Factory diagnostic authority for the Isuzu 4HK1 and 6HK1 diesel engines, packed into 314 searchable pages. Common rail fuel system flow charts walk you through rough idle and no-start conditions, while wiring diagrams on pages 241 to 294 map every sensor and harness connector. Torque tables cover everything from the flywheel (78 N⋅m / 58 lb ft, 1st step) to the CKP sensor (8 N⋅m / 69 lb in). Exploded views detail turbocharger teardowns and supply pump replacement. Key specs are called out clearly: 4HK1 compression pressure sits at 2.84 to 3.24 MPa (412 to 469 psi) at 200 rpm, and fuel vacuum must stay below 17 kPa. Multi-level bookmarks let you jump to any section. Search by keyword to pull up the exact spec or procedure you need without flipping through pages.
What's Inside This Isuzu 4HK1, 6HK1 Manual

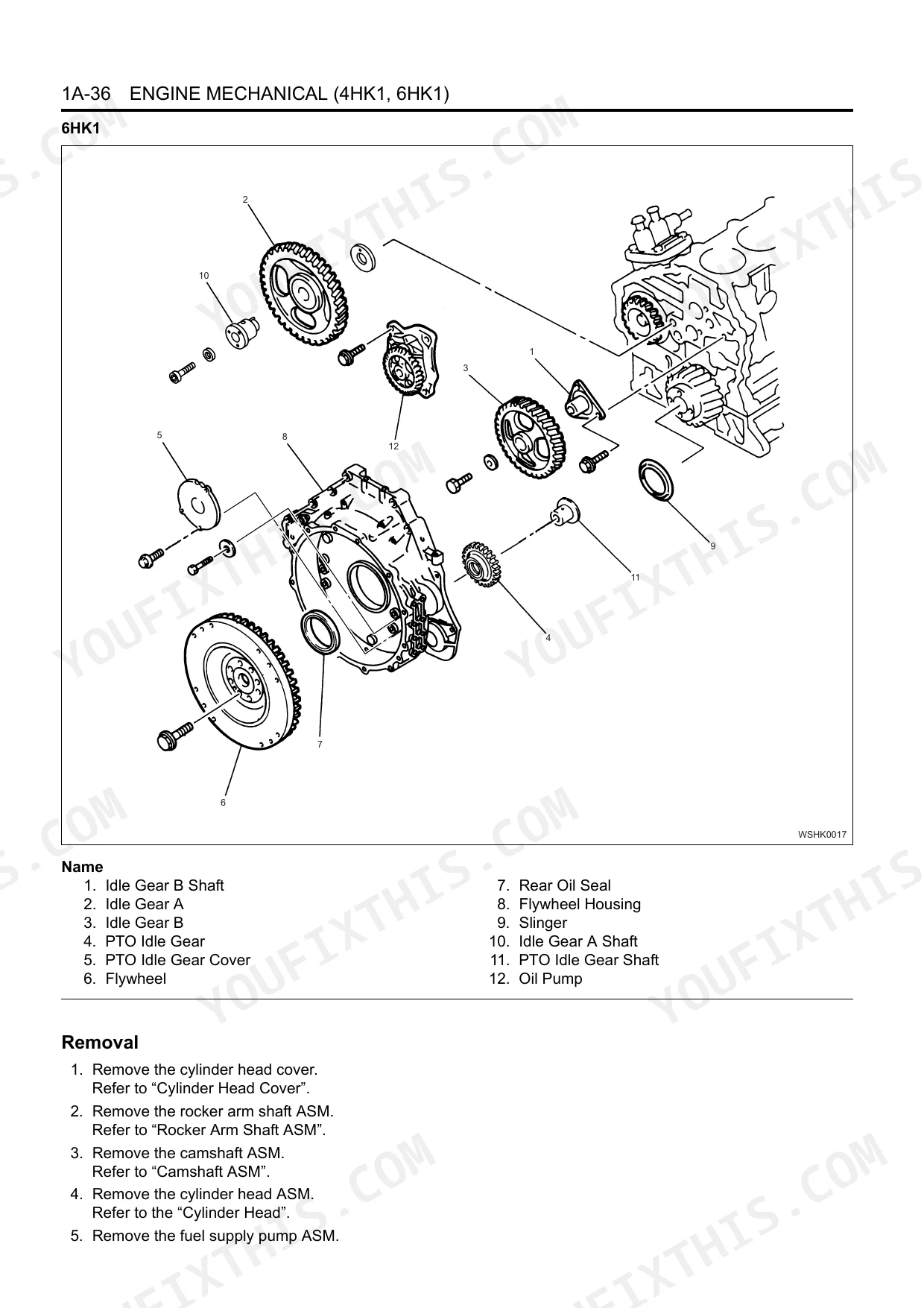

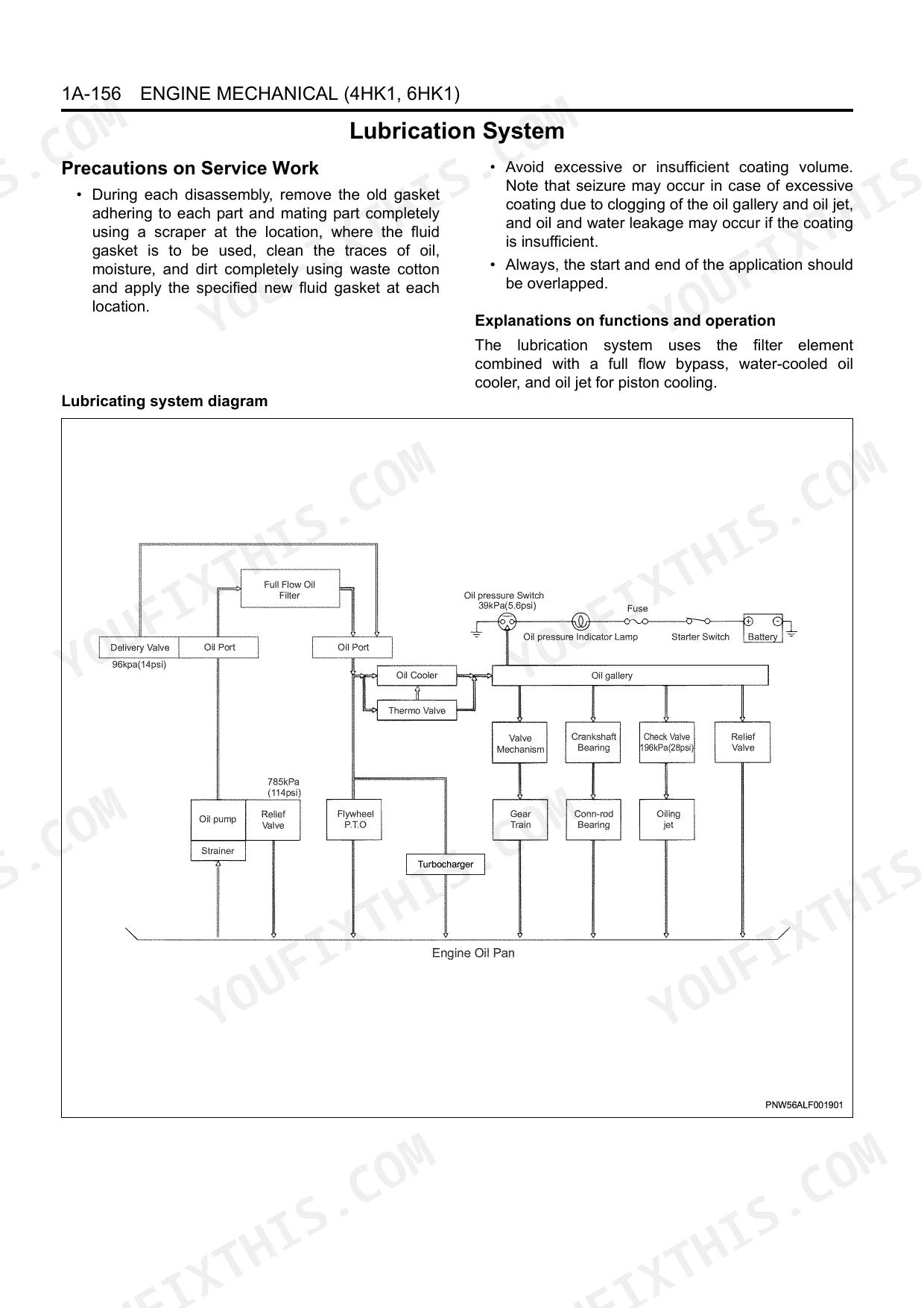

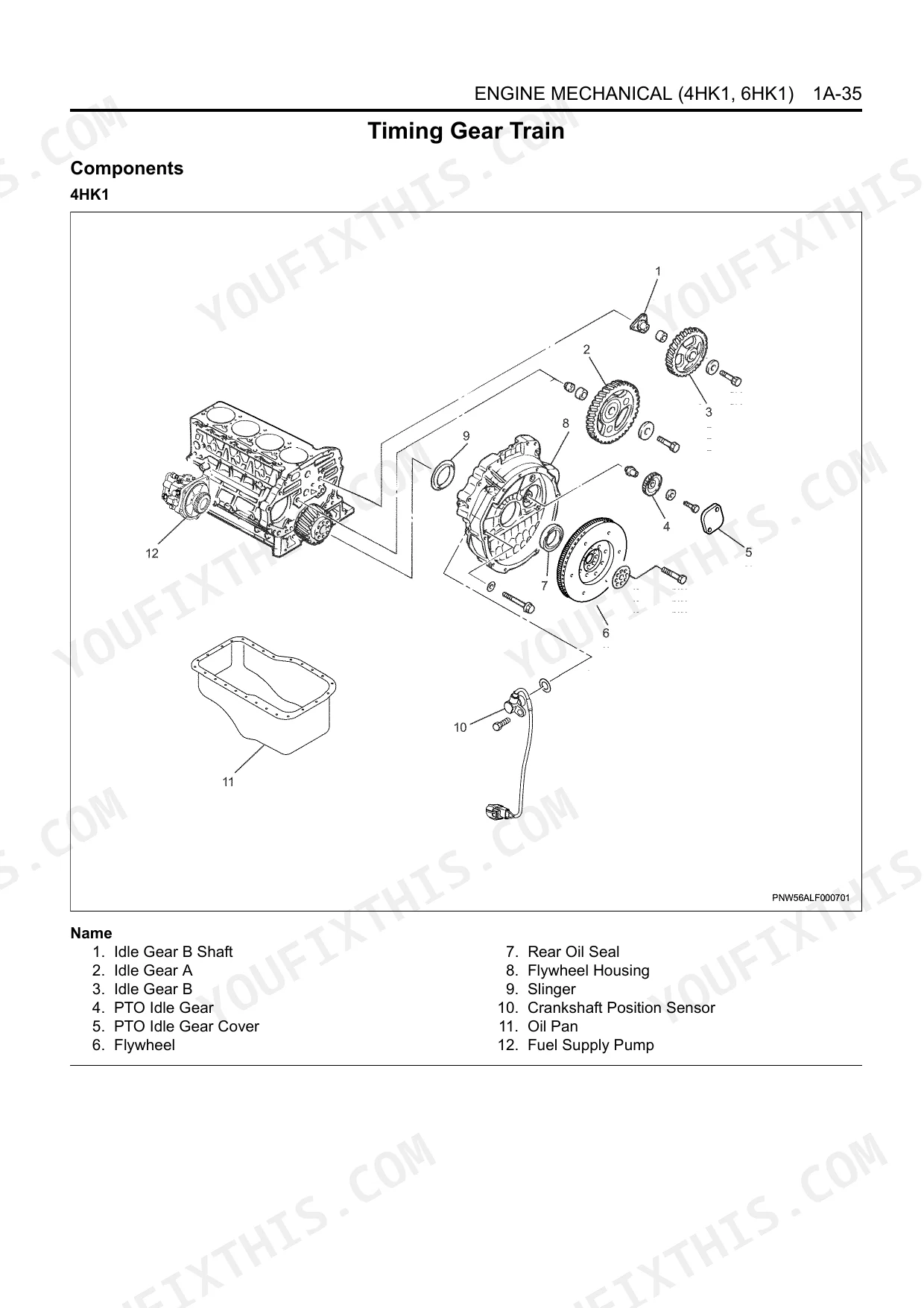

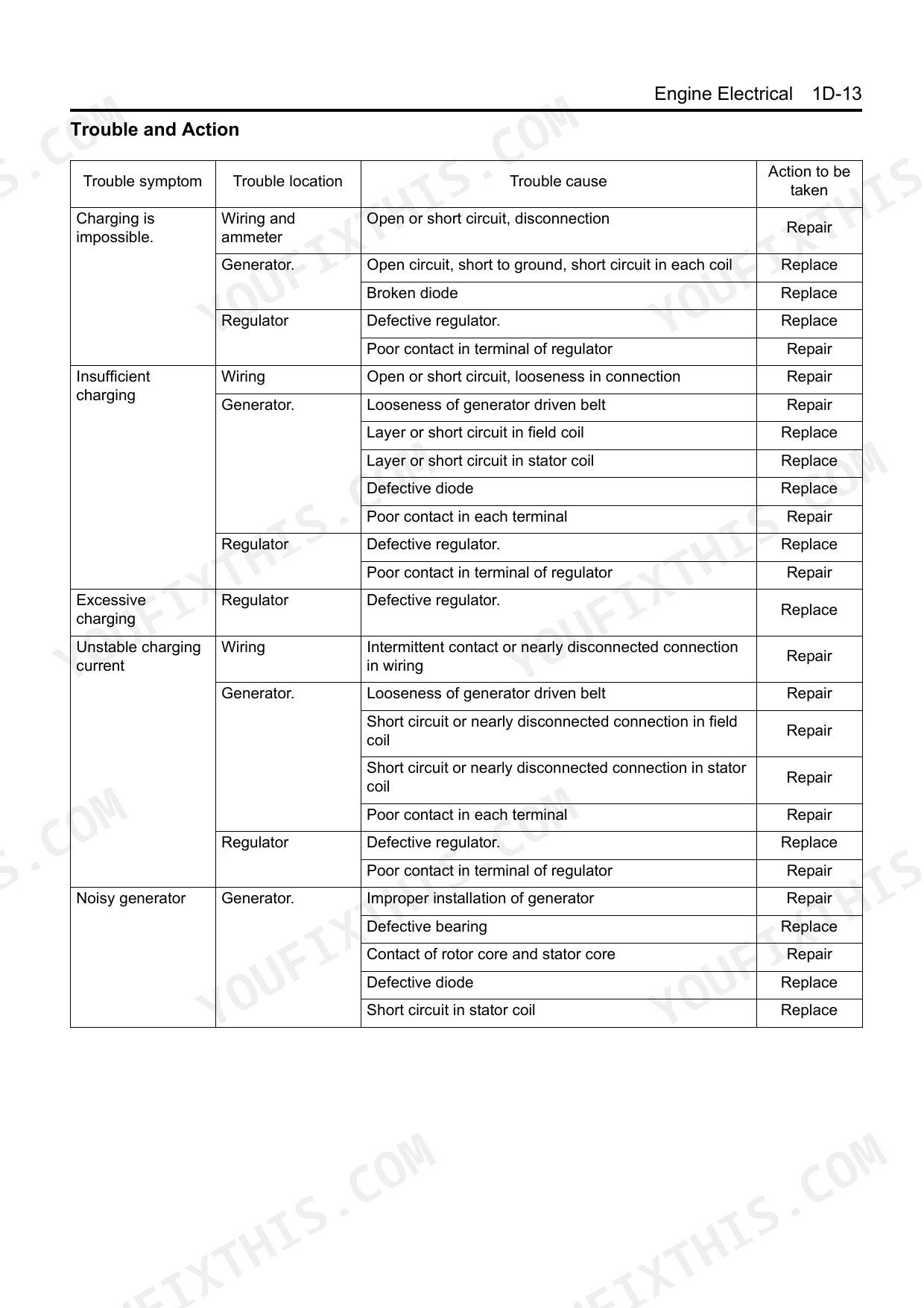

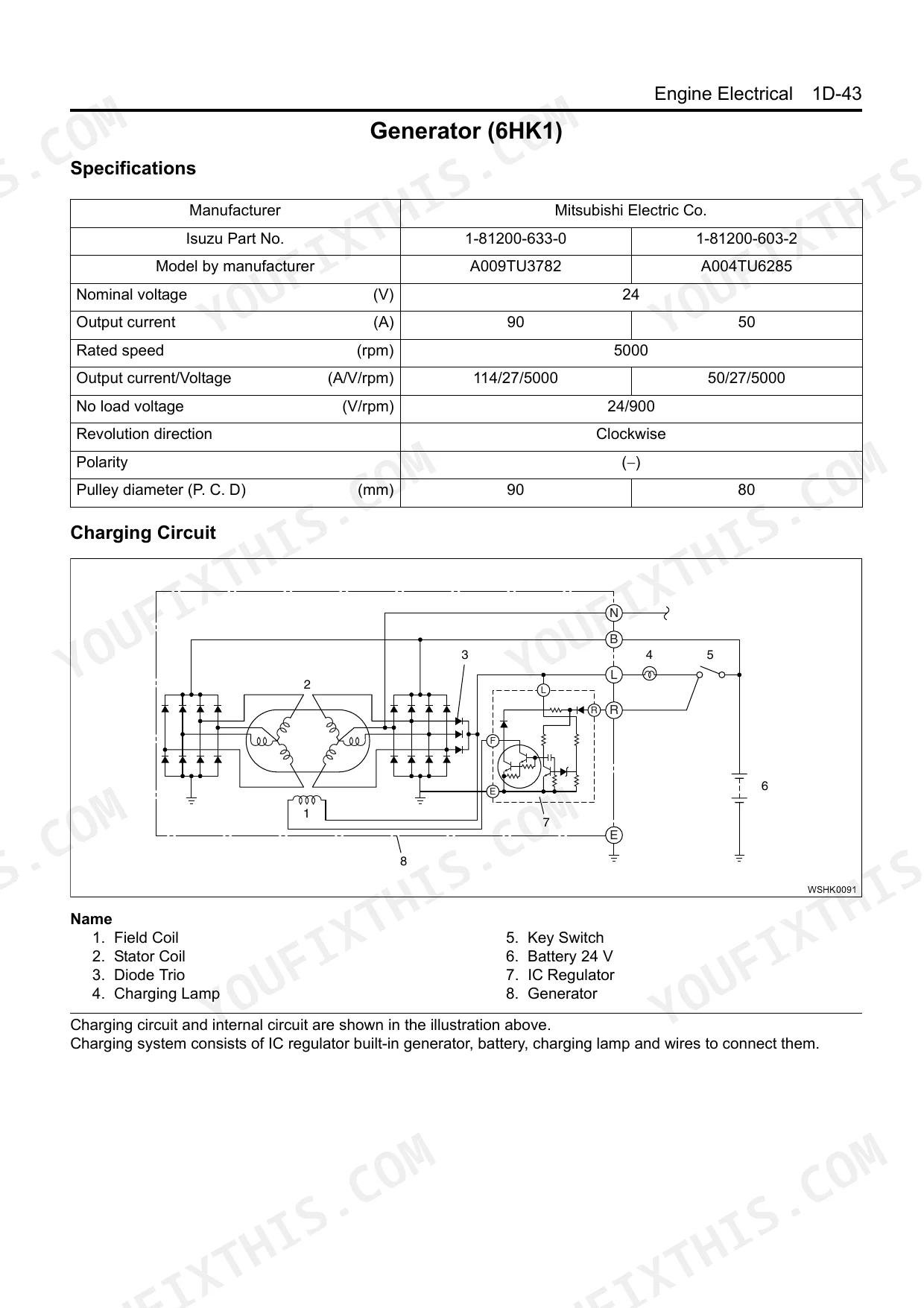

| System | Pages | Key Topics |
|---|---|---|
| Engine Mechanical (4HK1, 6HK1) | 1-178 | Engine Mechanical |
| Cooling System | 179-204 | Cooling System |
| Fuel System | 205-240 | Fuel System |
| Engine Electrical | 241-294 | Engine Electrical |
| Exhaust System and Turbocharger | 295-314 | Exhaust System and Turbocharger |

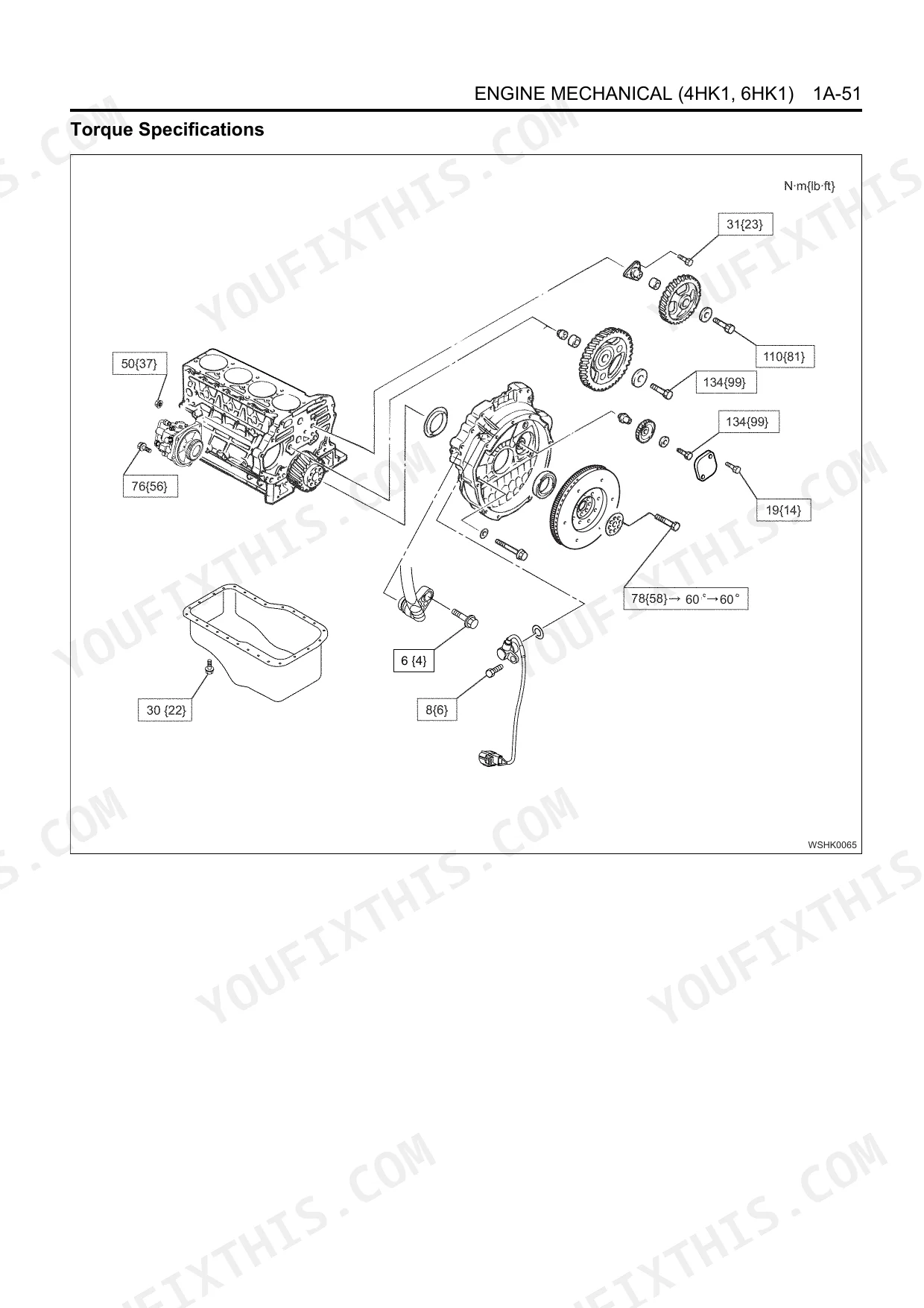

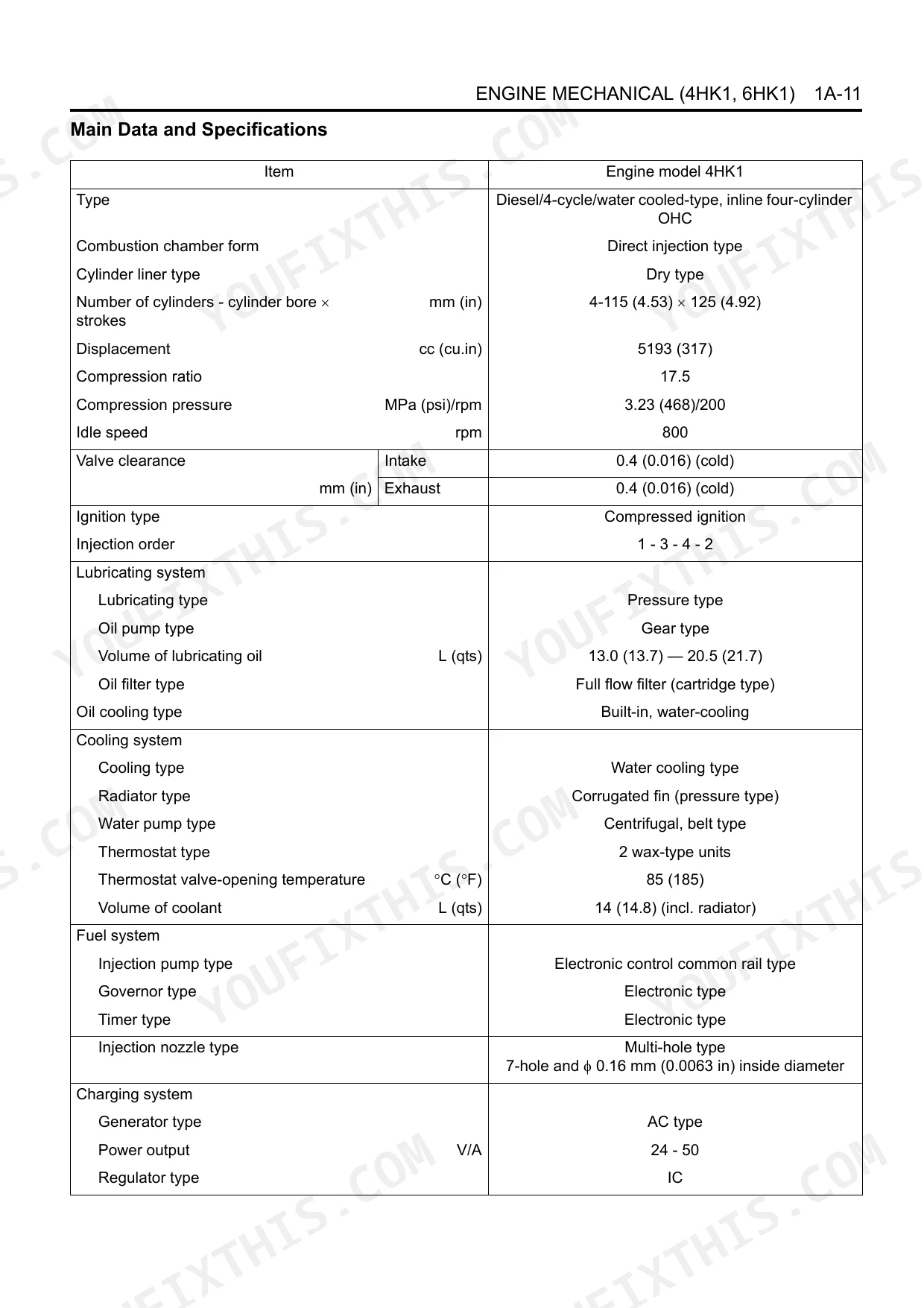

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve Clearance (Intake) | 0.4 mm (0.016 in) | p. 6 |
| Compression Pressure Standard (4HK1) | 2.84 – 3.24 MPa (412 – 469 psi) / 200 rpm | p. 10 |
| Compression Pressure Standard (6HK1) | 3.24 MPa (469 psi) / 200 rpm | p. 10 |
| Cylinder Head Cover Torque (4HK1) | 18 N⋅m (13 lb ft) | p. 16 |
| Lubricating Oil Volume (6HK1) | 28 (29.6) — 38 (40.2) L (qts) | p. 12 |
| Water Pump Main Body Bolts Torque (4HK1) | 127 N⋅m (94 lb ft) | p. 189 |
| Connecting rod bearing cap bolt tightening torque (1st step) | 39 N⋅m (29 lb ft) | p. 108 |
| Common rail tightening torque (6HK1) | 25 N⋅m (18 lb ft) | p. 236 |
| Fuel supply pump gear nut tightening torque | 64 N⋅m (47 lb ft) | p. 228 |
| Fuel injector clamp bolts tightening torque | 30 N⋅m (22 lb ft) | p. 220 |
| Turbine shaft axial play (Assembly specifications) | 0.06 – 0.09 mm | p. 301 |
Isuzu 4HK1, 6HK1 Common Problems This Manual Covers
Isuzu 4HK1 engine will not start after replacing sensors p. 255
Start with the troubleshooting chart on page 255 to rule out other starting system faults. Confirm the CKP sensor is torqued to 8 N⋅m (69 lb in) per page 117. Clear ECU memory afterward; the engine won't fire until previous sensor fault codes are wiped.
Manual Section: Starting System TroubleshootingRough idling and abnormal noise from fuel system p. 211
Bleed air from the fuel system following the procedure on page 211, and confirm fuel vacuum reads below 17 kPa. Check the supply pump gear nut torque (64 N⋅m / 47 lb ft) on page 228 to rule out mechanical looseness in the drive train.
Manual Section: Fuel System DiagnosticsAbnormal common rail pressure readings p. 236
Measure the common rail pressure sensor output first. If readings are out of range, replace the rail assembly and torque the 6HK1 common rail to 25 N⋅m (18 lb ft) per page 236 (4HK1: 19 N⋅m / 14 lb ft). Examine all injector lines for flow damper piston failures that could restrict fuel delivery.
Manual Section: Fuel System DiagnosticsIntermittent engine operation and electrical faults p. 241
Follow the engine wiring harness routing beginning on page 241, paying close attention to CMP and CKP sensor connectors for corrosion or loose pins. Confirm the generator lower mount bolt torque (127 N⋅m / 94 lb ft) on page 246 to maintain a solid ground path.
Manual Section: Engine ElectricalFrequently Asked Questions
Torque specs for 6HK1 cylinder head bolts?
6HK1 M14 cylinder head bolts (positions 1 through 26) use a three-step sequence: 1st step 98 N⋅m (72 lb ft), 2nd step 132 N⋅m (97 lb ft), 3rd step an additional 30° to 60° rotation. M10 bolts get 38 N⋅m (28 lb ft) on the 4th step. See page 95 for the full tightening order.
Torque specs for Isuzu 4HK1 turbo bolts
Turbocharger-to-exhaust-manifold bolts: 52 N⋅m (38 lb ft). Oil feed pipe joint bolts: 41 N⋅m (30 lb ft). The oil feed pipe bracket on the turbocharger side torques to 9 N⋅m (78 lb ft), and the cylinder block side bracket to 22 N⋅m (15 lb ft). Page 32 lists additional bracket values.
How do I diagnose an Isuzu engine that won't start?
Start with the Starting System Troubleshooting chart on page 255. The most frequent cause is a failed CKP or CMP sensor. Verify CMP sensor torque at 8 N⋅m (69 lb in) per page 97. After any sensor replacement, clear ECU memory or the engine will refuse to start.
Can I print this Isuzu 4HK1 6HK1 Engine manual?
Yes. The PDF is high-resolution and fully printable. Print individual torque tables, wiring diagrams, or the entire 314 pages for workbench reference.
