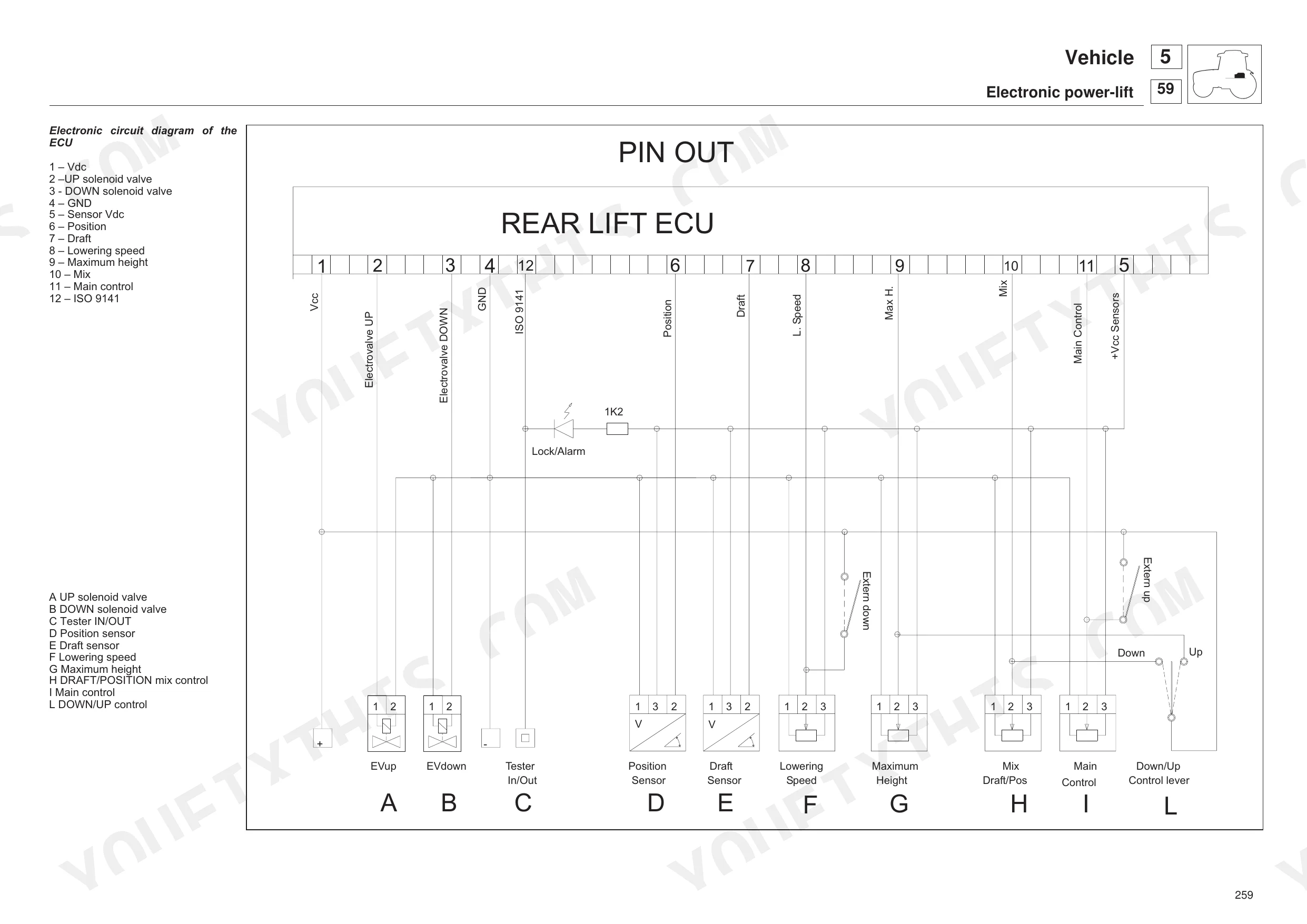

Chasing factory specs for your Same Dorado 85? This workshop manual (OEM #307.1064.3.0) runs 684 pages and covers the whole Dorado 55, 60, 65, 70, and 75 range alongside the 85, all in one document. Wiring coverage fills the electrical section with diagrams, layouts, and connector pinouts split by serial number variant, with hydraulic schematics for the lift, steering, and trailer braking circuits plus connector pinouts. Rebuild procedures cover all major assemblies; ECU calibration for the engine governor and electronic lift is included, and troubleshooting charts walk 15 fault codes across every system from clutch to PTO. Head bolts go in three stages: snug to 19 Nm, tighten to 49 Nm, then a final 90° turn. Front wheel bolts torque to 490 Nm on M20x1.5 2WD hubs or 360 Nm on M18x1.5 4WD. Find the spec, fix the machine. It is bookmarked by system and searchable, so pull it up on your phone at the bench.
What's Inside This Same DORADO 55–85 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Dorado 55-60-65-70-75-85 Introduction | 1-11 | Dimensions and Weights, Prescribed Lubricants and Capacities, Conversion Tables, Parts |

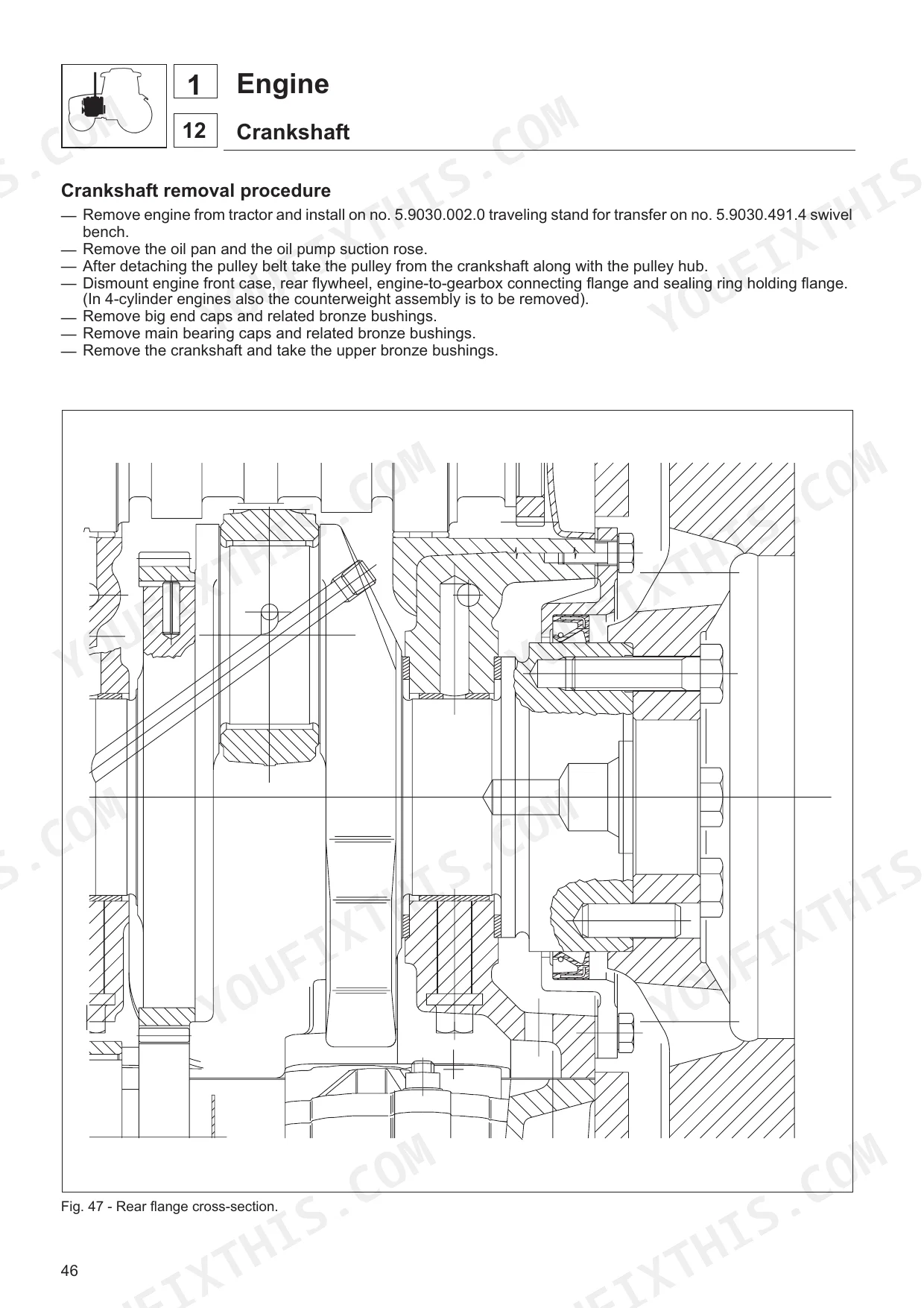

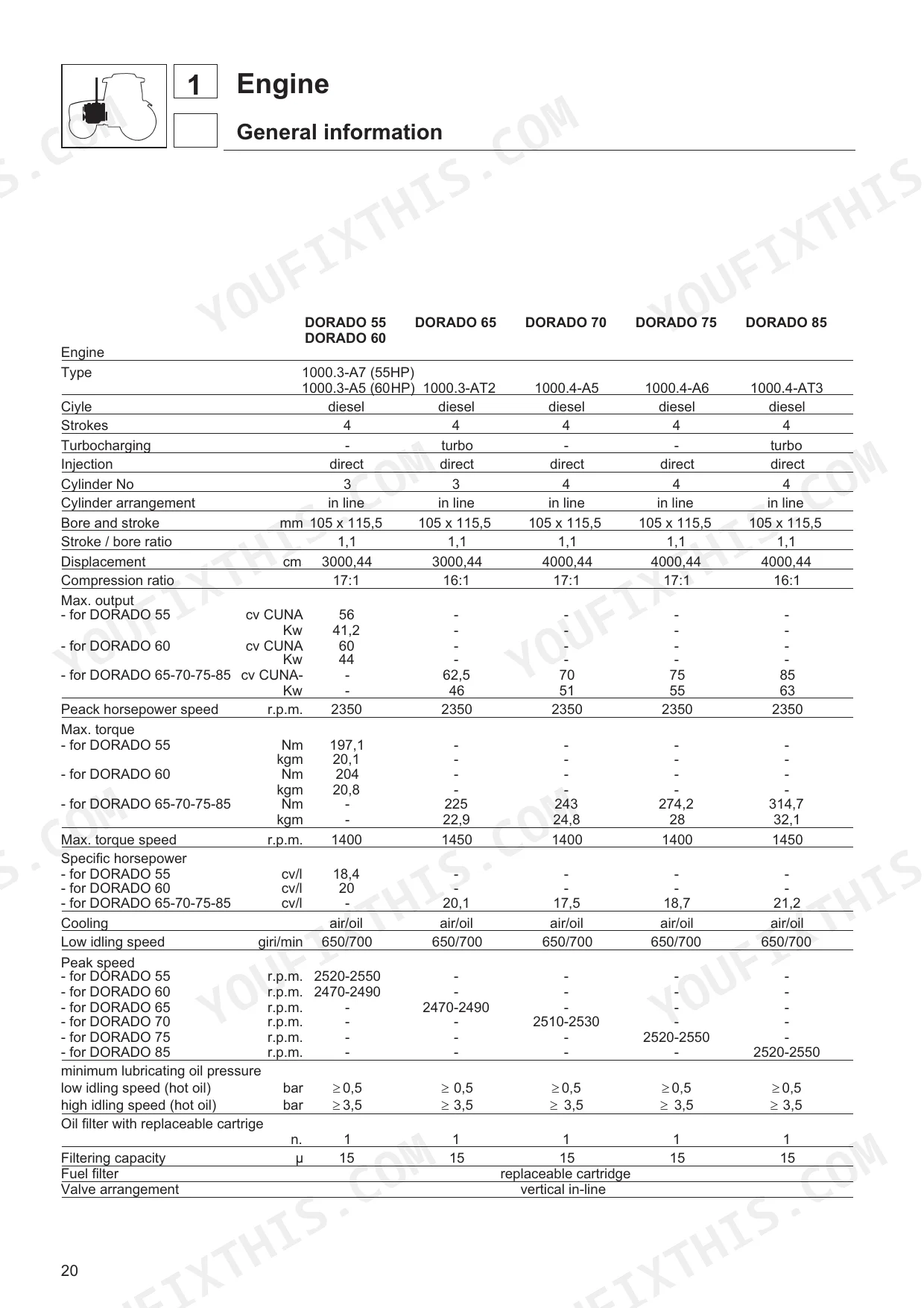

| Dorado 55-60-65-70-75-85 Engine | 12-109 | Engine Section, Timing Specifications, Lubrication System - Specifications, Fuel Supply System - Specifications, Turbocharger - Specifications, Cooling System - Specifications |
| Dorado 55-60-65-70-75-85 Clutch and Transmission | 110-198 | Gearshift Clutch, Spring Specifications to Belleville Washer for the Clutch Engagement, Cecking Clutch, Clutch Control Pedal, Bleeding Air From the Hydraulic Circuit |

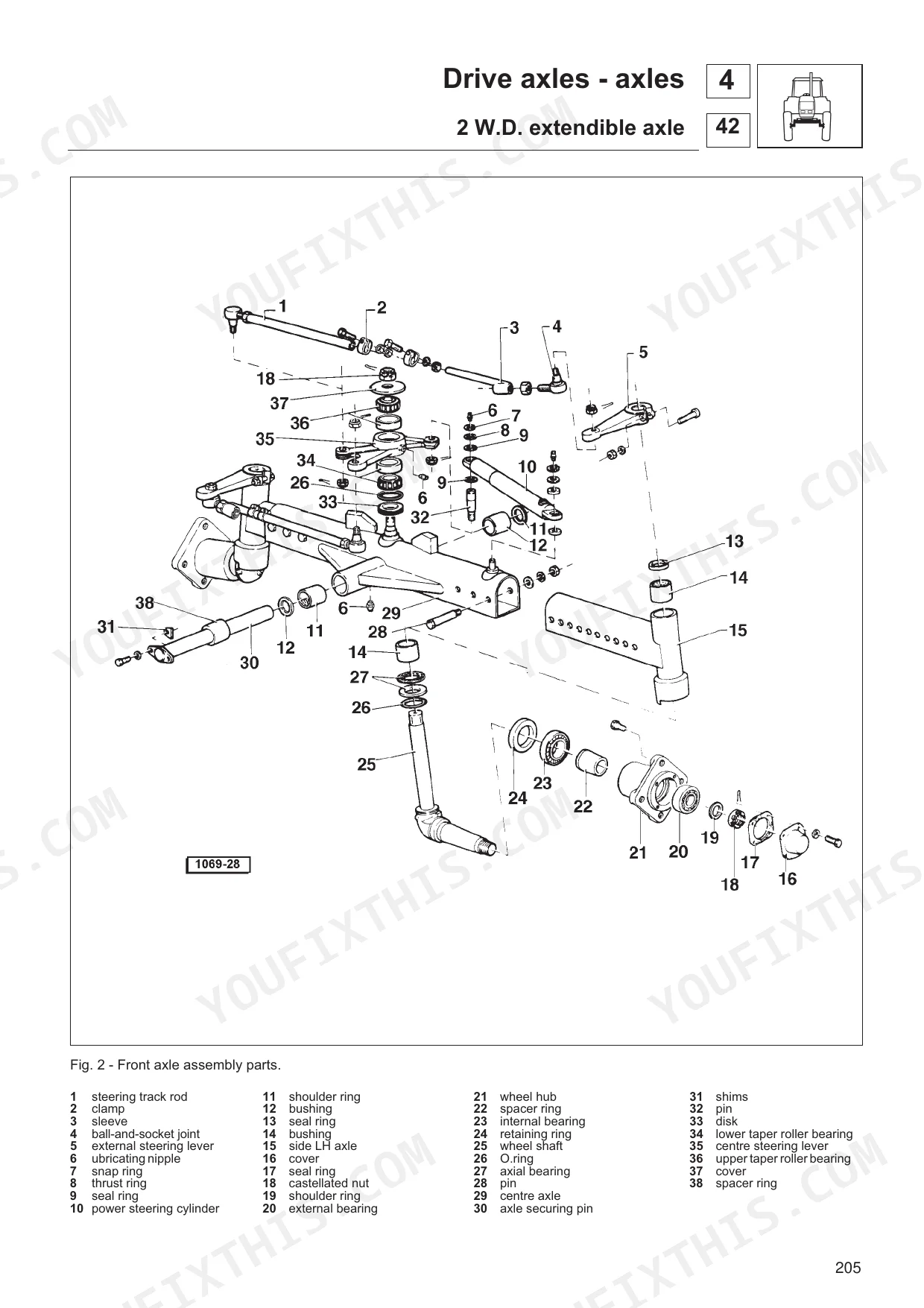

| Dorado 55-60-65-70-75-85 Drive Axles- Axles | 199-224 | Rear Axle, Installing the Rear Half-Shafts, Removal and Disassembly of the Epicyclic Reduction Unit, Fitting Lateral Stub Axles of the Wheel, 2WD Extendible Axle |
| Dorado 55-60-65-70-75-85 Vehicle | 225-282 | Brakes - General Information, Hydraulic Pump, Assembly of Brake Master Cylinder, Checking the Front Brake Disks on 2WD and 4WD Front Axles and the Rear Brake Disks |
| Dorado 55-60-65-70-75-85 Controls | 283-312 | Hydrostatic Steering, Inspections and Checks, Steering Pump, Directional Control Valve, Check the Setting of the Pressure Relief Valve, Bleeding the Hydraulic Circuit |
| Dorado 55-60-65-70-75-85 Body | 313-320 | Platform, Cab - General Information, Cab Air Filter, Screen Wash, Screen Wipers, Removing the Driving Platform Complete with Cab, Breakage of the Top Hood Release Cable |
| Water Dripping From the Points at Which Condensate Drain Lines Are Connected to the Conditioning Unit | 321-328 | Heating System, Ventilation, Operation and Maintenance of the Air-Conditioning System, Air Conditioning Unit for Cabs |
| Directions for Tightening Air Conditioning System Pipeline Fittings | 329-338 | Charging the System, Checking System, System Safety Elements, Temperature Regulation, Filling the Metering Unit, Refilling the System with Oil, Verifying Operation of the System After Recharging |
| Checking the Relief Valves of the Hydraulic Lift System | 339-344 | Hydraulic System, Diagnosing Malfuntions, Oil Filters, Hydraulic Pumps, Stripping the Hydraulic Pump |
| Trailer Hydraulic Braking Distributor Unit | 345-350 | Auxiliary Hydraulic Spool Valves, Checking the Operating Pressure, Checking the Pressure Relief Valve Setting, Checking the Surface of the Valve Spools, Conversion of Auxiliary Spool Valves From Double Acting to Single Acting Operation, Trailer Hydraulic Braking System |
| Electrical System Dorado 55 - 65 (Up Serial Number 1112) 75 - 85 | 351-588 | Starting, Use of the Tractor with Cuna 341/01 Hydraulic Trailer Braking, Installing the Hydraulic Braking Valve for Trailers Equipped with Safety Brake |
| Push Button Control | 589-597 | Jump Start Utilizing Another Battery, General Safety Directions, Electrical System Dorado 60 - 65 (Under Serial Number 1111) 70, Heating and Conditioning System, Heating System, Recharge System, Starting System, Ignition Key |
| Operation of the Broken Belts Alarm Control Unit | 598-605 | Fuse Box, Electronic Flasher Unit, 2-Speed Windscreen Wiper Switch, Work Ligths, Screen Washer Switch, Beacon Push Button, Push Button Agroshift, Relay |
| Electrical Wiring | 606-610 | Engine Stop Operation with a Type 2MH Engine Control Unit |
| Dorado 55-60-65-70-75-85 Appendix | 611-684 | Engine Electronic Unit, Power Lift Tester Version 1.23a, Power Lift Tester Version 1.24a, Presentation Screen, Functional Diagram, Main Menu |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

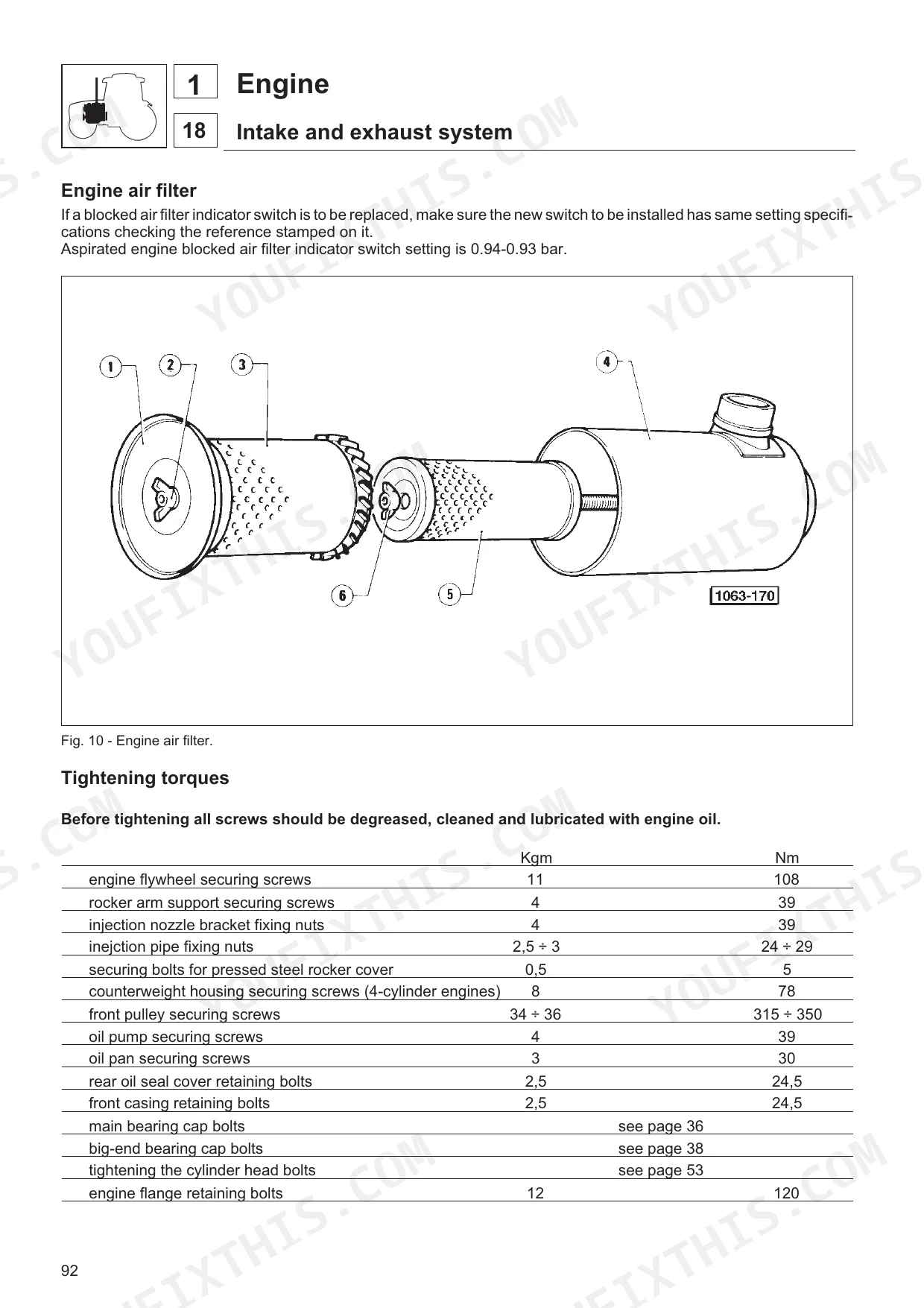

| Cylinder head securing screws torque (first pass) | 2 kgm (19 Nm) | p. 53 |
| Cylinder head securing screws torque (second pass) | 5 kgm (49 Nm) | p. 53 |
| Front wheel bolts (2RM M20x1,5) | 50 kgm (490 Nm) | p. 220 |
| Front wheel bolts (4RM M18x1,5) | 36,8 kgm (360 Nm) | p. 220 |
| Backlash between crownwheel and pinion teeth (30 km/h) | 0,17 - 0,23 mm | p. 143 |
| Backlash between crownwheel and pinion teeth (40 km/h) | 0,20 - 0,27 mm | p. 143 |
| Clearance between valves and rockers (cold engine) | 0,20 mm | p. 21 |
| DORADO 55-60-65 | ||
| Clutch disc diameter | 279,4 mm | p. 110 |
| DORADO 70-75-85 | ||
| Clutch disc diameter | 310 mm | p. 110 |
| 55HP - 63HP - 75HP | ||
| Injection advance (geometric) before TDC | 16° | p. 21 |
| DORADO 55 - 60 - 65 HP | ||
| Engine oil sump capacity | 6.7 litres | p. 9 |
| DORADO 70 - 75 - 85 HP | ||
| Engine oil sump capacity | 11 litres | p. 9 |
Same DORADO 55–85 Series Common Problems This Manual Covers
Electronic lift EPROM CHECK (code 15) with complete loss of PTO operation p. 187
Test the PTO solenoid circuit for shorts or open connections. Connect a pressure gauge to the PTO clutch test port. Adjust the P.T.O. clutch relief pressure to exactly 11 bar according to the procedure on page 187. Clear the flashing MEM codes to restore operation.
Manual Section: DORADO 55-60-65-70-75-85 Clutch and TransmissionTractor hesitates under heavy load in higher gears with persistent clutch slipping p. 114
Inspect the gearshift clutch components for excessive wear or glazing. Replace the friction disc if damaged. Verify the operating cylinder dimension A is set to 195 mm as shown on page 114. Bleed the hydraulic circuit completely to ensure the pedal engages without spongy feedback.
Manual Section: Clutch Diagnosing malfunctionsClunking noise from the rear housing when shifting gears or changing directions p. 143
Drain the transmission fluid and remove the rear housing cover. Set a dial indicator on the secondary shaft. Adjust the shims to achieve an axial play of exactly 0.09 mm as specified on page 143. Torque the crown wheel retaining bolts to 78 Nm.

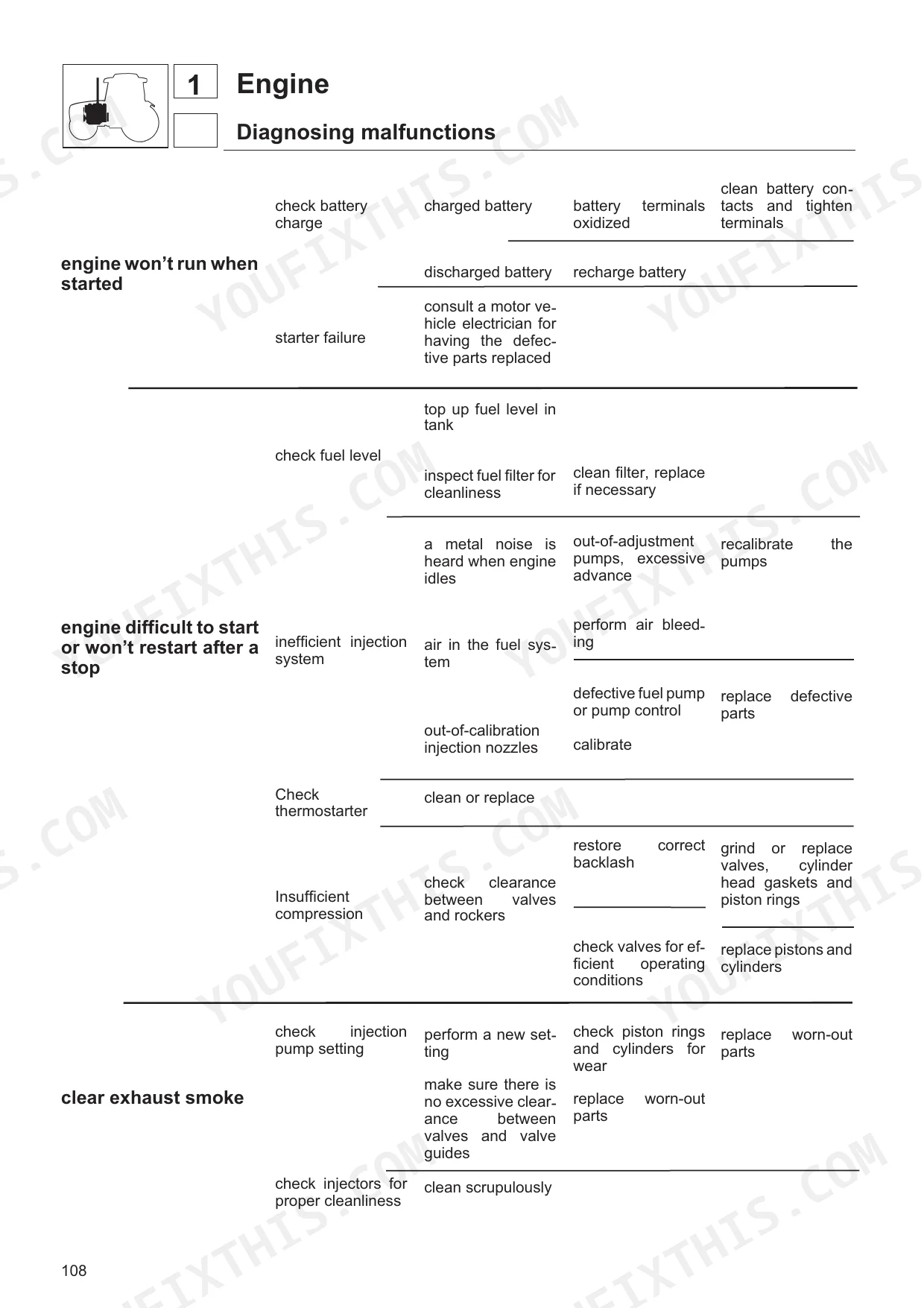

Manual Section: Transmission Diagnosing malfunctionsEngine cranks over slowly and produces dark exhaust smoke during cold starts p. 21
Remove the valve cover and check the valvetrain clearance. Adjust the clearance between valves and rockers on a cold engine to 0.20 mm using the specs on page 21. Remove the injectors and verify the rated calibration pressure hits 180 bar before reinstalling.
Manual Section: Engine Diagnosing malfunctionsThree-point hitch fails to raise heavy implements or drops rapidly under load p. 239
Connect a hydraulic test gauge to the rear remote valve. Check the hydraulic lift safety valve setting. Adjust the pressure relief valve to 190 bar as detailed on page 239. Inspect the main pump for internal bypass if pressure remains low after adjustment.
Manual Section: Electronic Lift Diagnosing malfunctionsFrequently Asked Questions
What does the PTO fault code mean on a SAME Dorado 85?
On the Dorado 85, the manual splits the PTO codes by circuit type. "P.T.O. SV S.C." (Short Circuit) points to an electrical fault, a failed P.T.O. solenoid, or a bad ECU, and the P.T.O. stops working. "P.T.O. SV O.C." (Open Circuit) traces to the same three causes but knocks out both the P.T.O. and HML systems. Either way, check pin 55.
How do I clear error codes on a SAME Dorado tractor?
Use the All Round Tester (ART) to do this: first open the "Alarms menu," then go into the "Monitor menu." Once you are in that menu, pressing "A" cancels the alarm list and resets the alarm log.
What are the replacement specifications for Clutch components?
Disc wear limits run 6 mm minimum thickness on the DORADO 55-65 and 70-85 models, or 9.7 mm on the USA 6-blade version. Friction disc thickness measures 8.5 ± 0.3 mm on the 55-65 and 70-85, and 10 ± 0.2 mm on the USA 6-blade. The Belleville washer for clutch engagement loads the pressure plate to 11000 Nm.
What are the replacement specifications for Transmission components?
On the transmission side, secondary shaft axial play should read 0.09 mm, while the change, reverser, and mini-reduction gears want 0.15 to 0.30 mm of axial play. Crownwheel-to-pinion backlash measures 0.17 - 0.23 mm on the 30 km/h versions and 0.20 - 0.27 mm on the 40 km/h versions. Replace the synchronizer rings once measured wear passes 125 +0.15 -0.3 mm.
What do I get after purchasing this Same DORADO 55 & variants manual?
Download starts the moment payment clears: the full 684-page searchable Workshop Manual, yours instantly. Open it on a laptop, tablet, or phone right at the workbench.
Is this Same DORADO 55 & variants Workshop Manual printable?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.

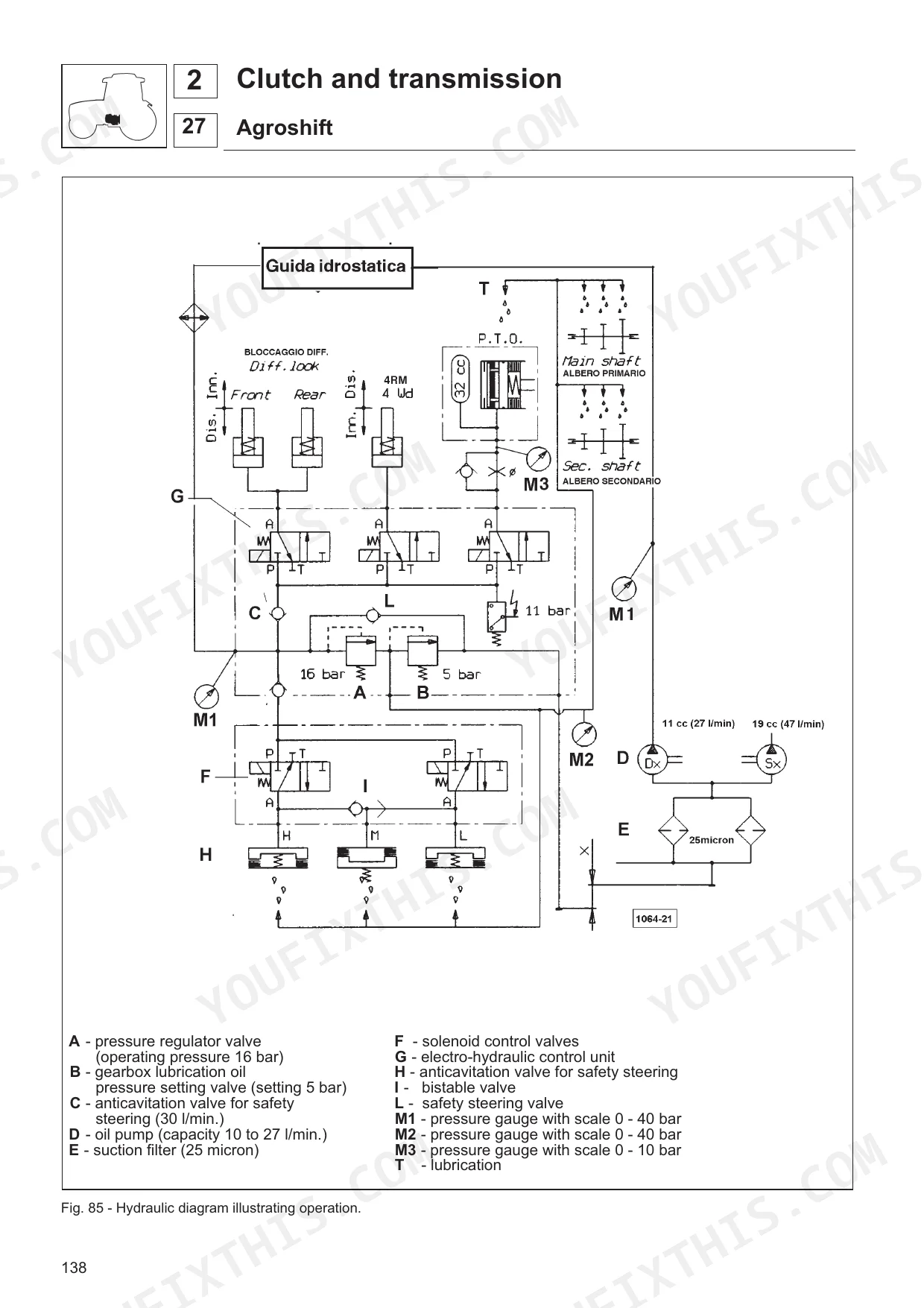

Are there hydraulic schematics in this Same DORADO 55 & variants manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
