Looking to rebuild the undercarriage or overhaul the power train on your crawler dozer? All 522 pages of this FiatAllis fd195l service manual pdf focus entirely on getting your heavy iron back to factory spec. Inside, you get step-by-step teardown procedures, advanced troubleshooting sections, and detailed exploded views of the steering clutches and track frames. Open up the maintenance schedules to confirm exactly how to bleed the fuel system or adjust the tracks. Lock down the rear mount center capscrew to 350-387 ft lbs using Loctite 242, and swap out the engine oil filter every 250 hours to keep the power plant running clean. Guessing on heavy equipment repairs only leads to broken bolts and wasted downtime. Grab this bookmarked download, pull it up on your shop tablet, and get back to pushing dirt.
What's Inside This FiatAllis FD195, FD195L Manual
| System | Pages | Key Topics |
|---|---|---|
| Identification Data | 2 | Engine Type and Serial Number, Tractor and Engine Identification Data Plate, Frame Type and Number, Catalog Part Number |
| Specifications | 3-5 | Engine, Power Train, Steering Clutches and Brakes, Track Frames and Undercarriage, Hydraulic System, Electrical System |
| Preliminary Instructions and Break-In Period | 6 | Preliminary Instructions, Break-In Period, Fuel System Bleeding, Cooling System Service, Lubrication and Service Guide, Track Adjustment |
| Operation | 7-22 | Controls and Instruments, Operating Instructions, Engine Starting, Engine Idling, Placing the Machine in Motion, Stopping the Machine, Stopping the Engine |
| Machine Operation | 23-29 | Dozing, Road and Ditch Cutting, Moving Large Rocks and Boulders, Piling, Levelling, Operating Tips |
| Maintenance | 30-55 | Maintenance Warnings, Walk Around Inspection, Lubrication and Service Guide, Every 10 Hours, Every 100 Hours, Every 250 Hours, Every 500 Hours, Every 1000 Hours |
| Electrical System (Operation Manual) | 56-73 | Wiring Diagram, Fuses, Master Switch, Starter Motor, Altern |
| Service Manual: Contents & Safety Rules | 74-92 | Service Manual Introduction, Table of Contents, Safety Rules, Service Precautions |
| Engine and Related Components | 93-135 | Engine Removal and Installation, Cylinder Head, Pistons and Liners, Crankshaft, Cooling System, Fuel Injection, Turbocharger, Torque Specifications |
| Transmission | 136-227 | Power Shift Transmission, Torque Converter, Clutch Packs, Control Valve, Removal, Disassembly and Reassembly, Pressure Tests, Troubleshooting |
| Final Drives | 228-272 | Final Drive Removal, Planetary Gears, Sprocket, Bearings and Seals, Disassembly and Reassembly, Adjustments |
| Bevel Gear, Steering Clutches & Brakes | 273-375 | Bevel Gear Group, Steering Clutch Packs, Brake Bands and Actuators, Pressure Tests, Adjustments, Disassembly and Reassembly, Troubleshooting |
| Implement Hydraulics | 376-417 | Hydraulic Pump, Control Valve, Blade and Ripper Cylinders, Main Relief Valve Setting, Hydraulic Schematic, Diagnostics, Overhaul |
| Undercarriage | 418-470 | Track Chain and Shoes, Track Rollers and Carrier Rollers, Idler and Recoil Spring, Track Tension, Wear Limits, Removal and Installation |
| Electrical System (Service Manual) | 471-512 | Wiring Diagrams, Alternator and Starter, Batteries, Instruments and Sensors, Switches and Relays, Troubleshooting |
| Operator Compartment | 513-522 | Cab and ROPS, Operator's Seat, Controls and Linkage, Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil filter replacement | Every 250 hours | p. 3 |
| Rear mount center capscrew (with Loctite 242*) | 47.5-52.5 daNm 350-387 ft lbs | p. 133 |
| Front mount center bolt | 41-45 daNm 302-331 ft lbs | p. 133 |
| Steering filter mesh size | 15 microns | p. 361 |
| Main relief valve adjustment pressure | 190 ± 5 bar | p. 384 |
| O.D. of pivot pin ball | 89.780-90.000mm (3.5346-3.5433 in) | p. 417 |
| I.D. of strut socket. | 90.220-90.440mm (3.5520-3.5606 in) | p. 417 |
| Engine Oil Capacity | 15 L | p. 73 |
| Fuel Tank Capacity | 345 L | p. 73 |
FiatAllis FD195, FD195L Common Problems This Manual Covers
FiatAllis FD195L leaking filter housing bolts and steering clutch fluid loss or failure to engage
Inspect the filter housing gasket for leaks. Replace the steering clutch filter during maintenance intervals on page 44. Verify the new filter meets the 15 microns mesh size specification detailed on page 361. Torque the housing bolts securely to restore proper clutch engagement.
Manual Section: Maintenance p. 44Inaccessible belly pan drain plug and transmission fluid not draining or partial drain
Remove the belly pan plug to access the transmission drain. Clear any packed dirt blocking the port. Drain the fluid completely and refill the system to the 27.5 L converter and transmission oil capacity specified on page 73. Check the dipstick to confirm the level.
Manual Section: Transmission TroubleshootingWorn hydraulic pump seals and system pressure loss or erratic dozer movement
Test the main relief valve adjustment pressure and set it to 190 ± 5 bar as outlined on page 384. If pressure drops, install a seal repair kit for the pump. Start the engine and run in the pump gradually per the reset procedure on page 394.
Manual Section: Hydraulic System TroubleshootingLow engine oil level from missed drain plug access and engine failing to start
Drain the contaminated oil completely. Replace the engine oil filter every 250 hours as directed on page 3. Fill the crankcase to the 15 L engine oil capacity listed on page 73. Test the engine under load to confirm smooth operation and verify starting performance.
Manual Section: Engine and Starter Motor TroubleshootingFrequently Asked Questions

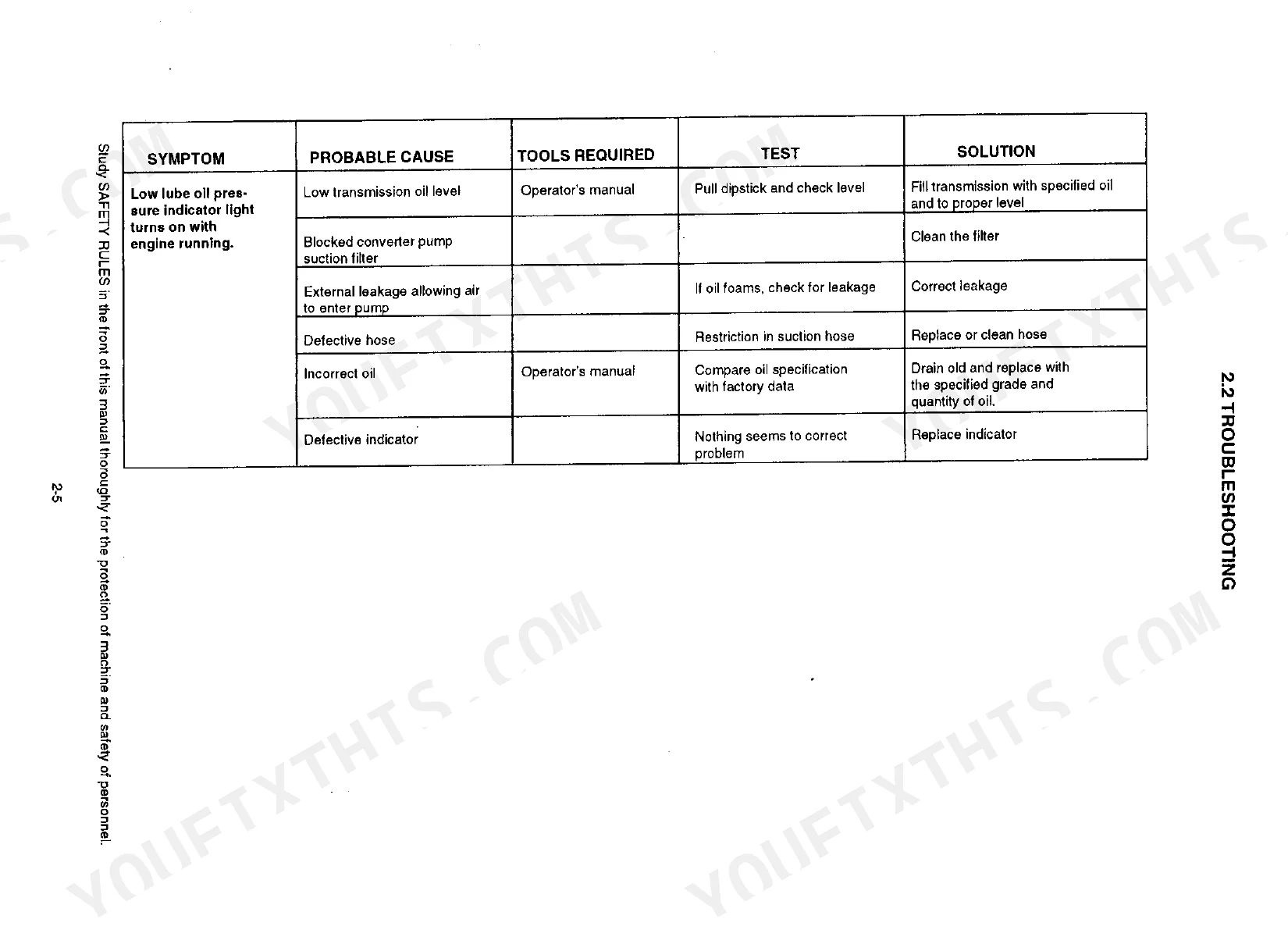

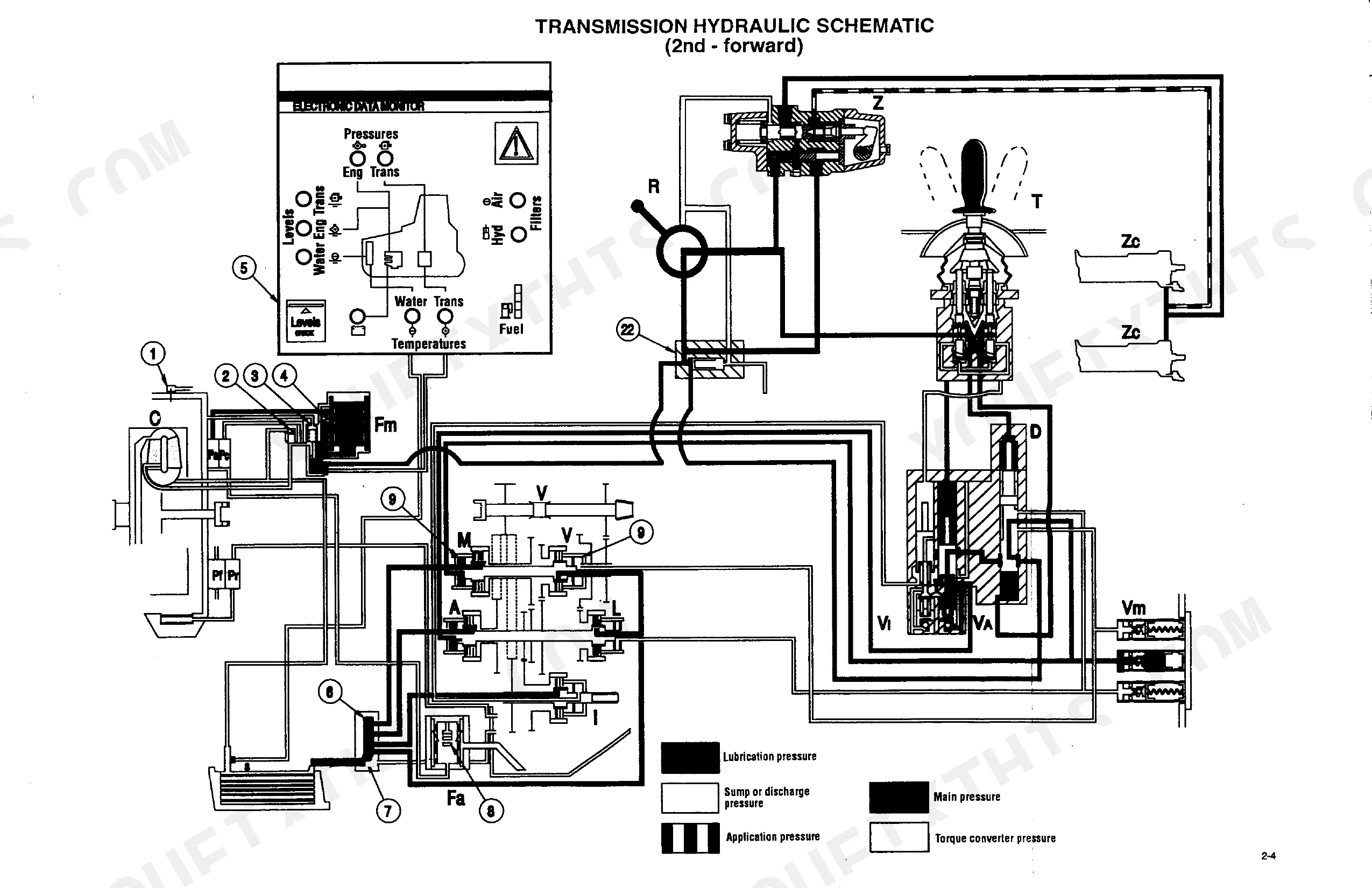

How to reset transmission oil pressure on FiatAllis FD195L?
The manual indicates that if the main oil pressure gauge is low due to an incorrectly set pressure regulating valve, the solution is to correct the valve setting. The pressure regulating/converter safety valve has an adjustment collar where one turn causes a pressure change of 0.8 bar (11.6 psi). The main pressure specification is 16.5 – 17.5 bar (239 – 254 psi). p. 141

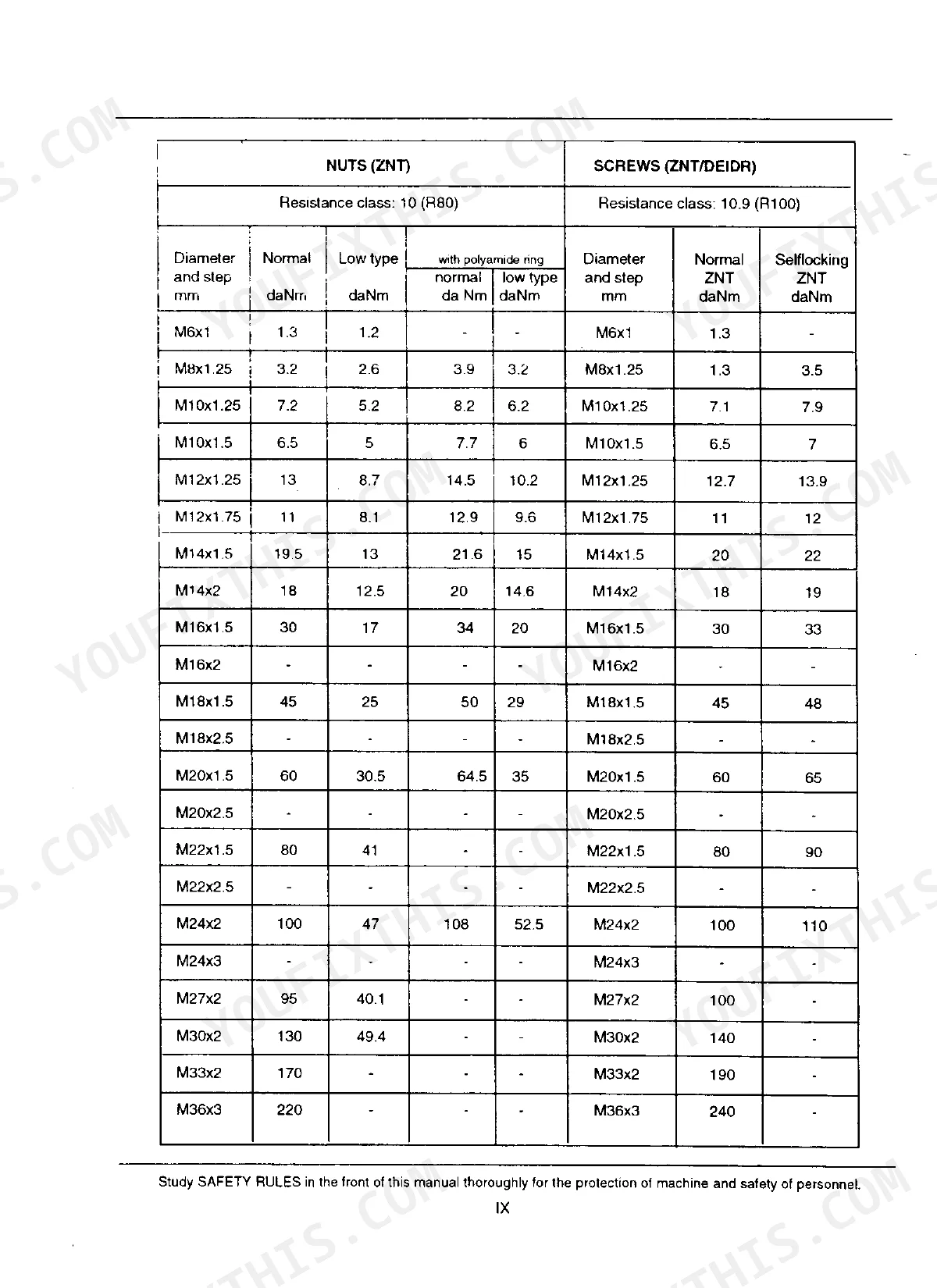

What are the torque specs for main bolt on FiatAllis FD195L engine?

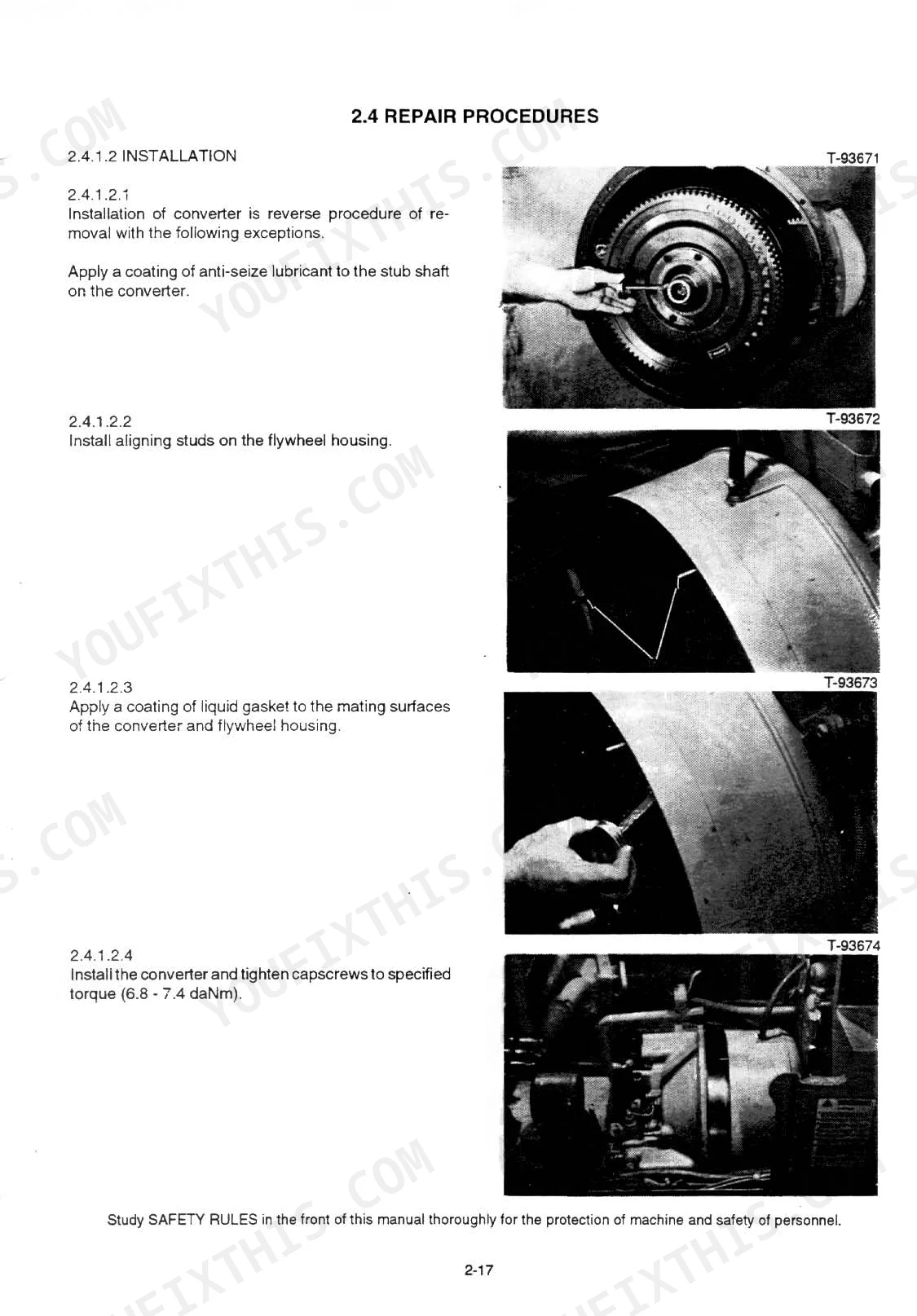

The manual provides several torque specifications for engine-related components. For instance, the rear mount center capscrew (with Loctite 242*) should be torqued to 47.5 – 52.5 daNm (350 – 387 lbs.ft), and the front mount center bolt to 41 – 45 daNm (302 – 331 lbs.ft). Engine to converter spacer capscrews require 6.8 – 7.4 daNm (50 – 55 lbs.ft). p. 133
What do error codes mean on FiatAllis FD195L dozer?
The FiatAllis FD195L dozer uses an Electronic Data Monitor (EDM) with indicator lights to signal faults rather than numerical error codes. A general malfunction indicator (13) flashes and a buzzer sounds when a fault occurs, as indicated by specific tell-tale lights (5-6-7-8 or 9). For example, light 'n' on the EDM indicates a clogged hydraulic oil filter. p. 23
How to reset hydraulic system on FiatAllis FD195L?
The manual does not describe a specific "reset" procedure for the entire hydraulic system. However, it outlines maintenance actions such as changing the hydraulic system return oil filter (page 53, 63) and checking for oil overheating (page 22). If oil overheating persists, it suggests shifting to a lower gear or stopping the engine and consulting an authorized Service Center. p. 22
Where is the reset plug for transmission on FiatAllis FD195L?
The manual does not mention a "reset plug" for the transmission. It describes procedures for draining transmission oil by unscrewing plugs A and B (page 52) and refilling through the filler neck (page 52). For checking oil levels, the "Levels check button" (14) on the Electronic Data Monitor is used (page 23). p. 52
How will I receive this FiatAllis FD195L, FD195L Crawler Dozer Service Manual?
Immediate download of the complete 522-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this FiatAllis FD195L, FD195L Crawler Dozer Service Manual printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
