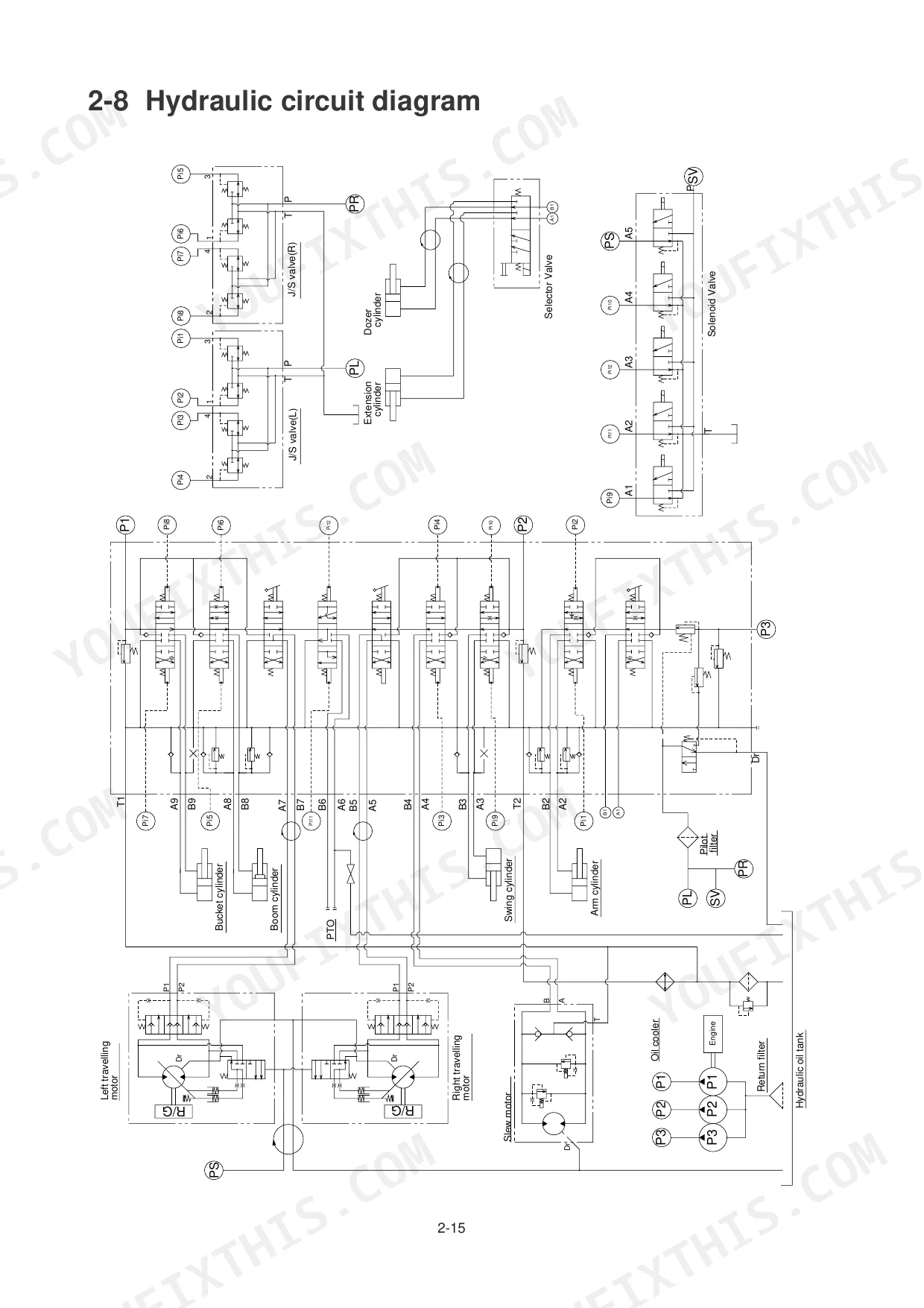

Every one of the 119 pages in this Hyundai Robex 16-7 Service Manual PDF covers your Robex 16-7 crawler excavator, nose to sprocket. Inside: the full hydraulic circuit diagram, electrical system wiring, and page after page of exploded views for the main pump, control valve, slew motor, travel motor, and hydraulic cylinders. You also get a dedicated troubleshooting section that walks the travelling, slewing, boom, and swing systems fault by fault, plus maintenance standards for the crawler, idler, and track rollers. Tighten the pilot filter to 58.8-78.5 N-m and torque grade 8.8 M10 bolts to 62 N-m; the factory numbers are printed right there. No more chasing hydraulic gremlins with a parts cannon and a prayer. Bookmarked and keyword-searchable, this PDF opens on your phone or tablet, so the answer walks out to the machine with you.
What's Inside This Hyundai R16-7 Manual
| System | Pages | Key Topics |
|---|---|---|
| Precautions on Maintenance | 6 | Correct Operation, Safety Check, Disassembly, Assembly, Cleaning |
| Outline | 7-24 | Location of Serial No, Name of Each Part, Dimensions and Specification, Weight List, Oil and Grease Supply Points, List of Supply Oil and Grease, When to Repair |
| Attachment | 25-32 | Standard of Maintenance, Measuring the Natural Fall of the Attachment, Measuring Attachment Cylinder Speed |
| Engine | 33-36 | Specification, Performance Curve |

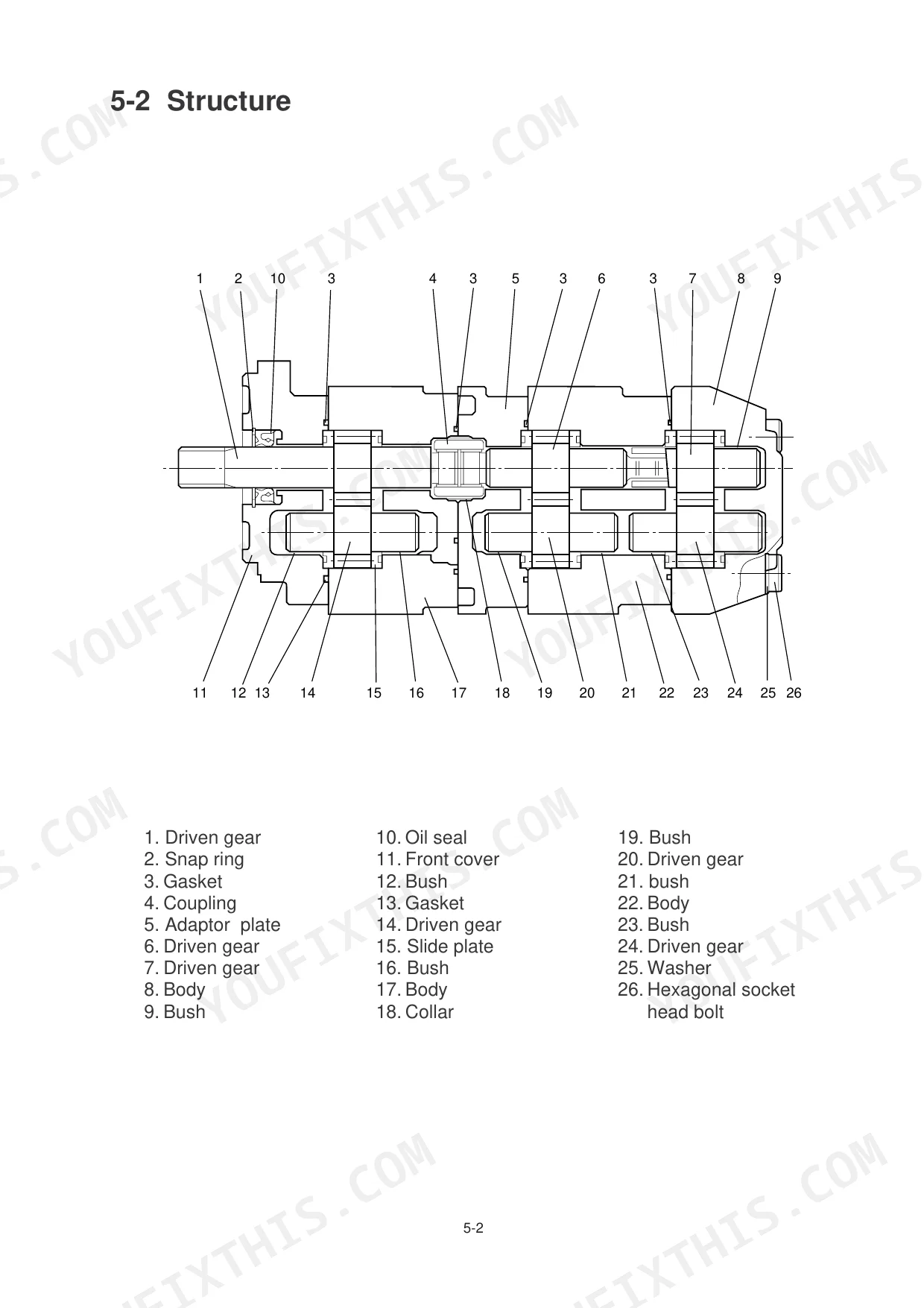

| Main Pump | 37-42 | Specification, Structure, Removing and Installing the Pump, Performance Test of the Hydraulic Pump |
| Hydraulic Oil Filter | 43-48 | Installation, Line Filter (SP08), Suction Filter, Pilot Filter, Replacing the Line and Suction Filters, Cleaning the Suction Filter |
| Control Valve | 49-56 | Specification, Disassembly and Assembly, Structure of the Relief Valve, Precautions for Handling |
| Joystick | 57-60 | Pilot Valve Specification, Port Pressures, Single-Operating Torque, Structure |
| Slew Motor | 61-66 | Specification, Structure, Standard of Maintenance of the Slew Bearing and Slew Case, Measuring Natural and Over-Slew Distance, Measuring Slewing Time |
| Travel Motor | 67-72 | Specification, Structure, Operation, Handling the Travelling Motor |
| Hydraulic Cylinder | 73-78 | Structure, Disassembly Procedure, Assembly and Inspection Procedure, Precautions for Assembly, Piston Screw Size and Tightening Torques |
| Swivel Joint | 79-82 | Specification and Structure, Disassembly and Assembly |
| Crawler | 83-90 | Structure and Operation, Standard of Maintenance, Disassembly and Assembly |
| Spring Case and Grease Cylinder | 91-94 | Structure, Specification of Spring (Set Length, Active Coils, Spring Constant), Disassembly and Assembly of the Adjuster, Grease Cylinder Components |
| Idler | 95-96 | Standard of Maintenance, Idler Tooth Width and Count, Lubricating Oil Grade, Pad or Replace Wear Limits |
| Sprocket | 97-100 | Removing the Sprocket, Installing the Sprocket, Standard of Maintenance and Wear Limits |
| Track Roller | 101-102 | Standard of Maintenance, Roller Outer Diameter and Tread Wear Limits, Mounting Bolt Tightening Torque (M16 P2.0), Lubricating Oil Quantity |
| Electrical Equipment | 103-106 | Structure and Function, Failure and Remedy |
| Troubleshooting | 107-119 | Travelling System, Slewing System, Boom System, Swing System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torque for M6 bolt (8.8 grade) | 12.5 N-m | p. 18 |
| Tightening torque for M8 bolt (8.8 grade) | 30 N-m | p. 18 |
| Line filter tightening torque | 19.6 Nm | p. 45 |
| Pilot filter tightening torque | 58.8-78.5 N-m | p. 46 |
| Engine Rated Output | 12.5 kW (17 PS) / 2,400 min-1 | p. 11 |

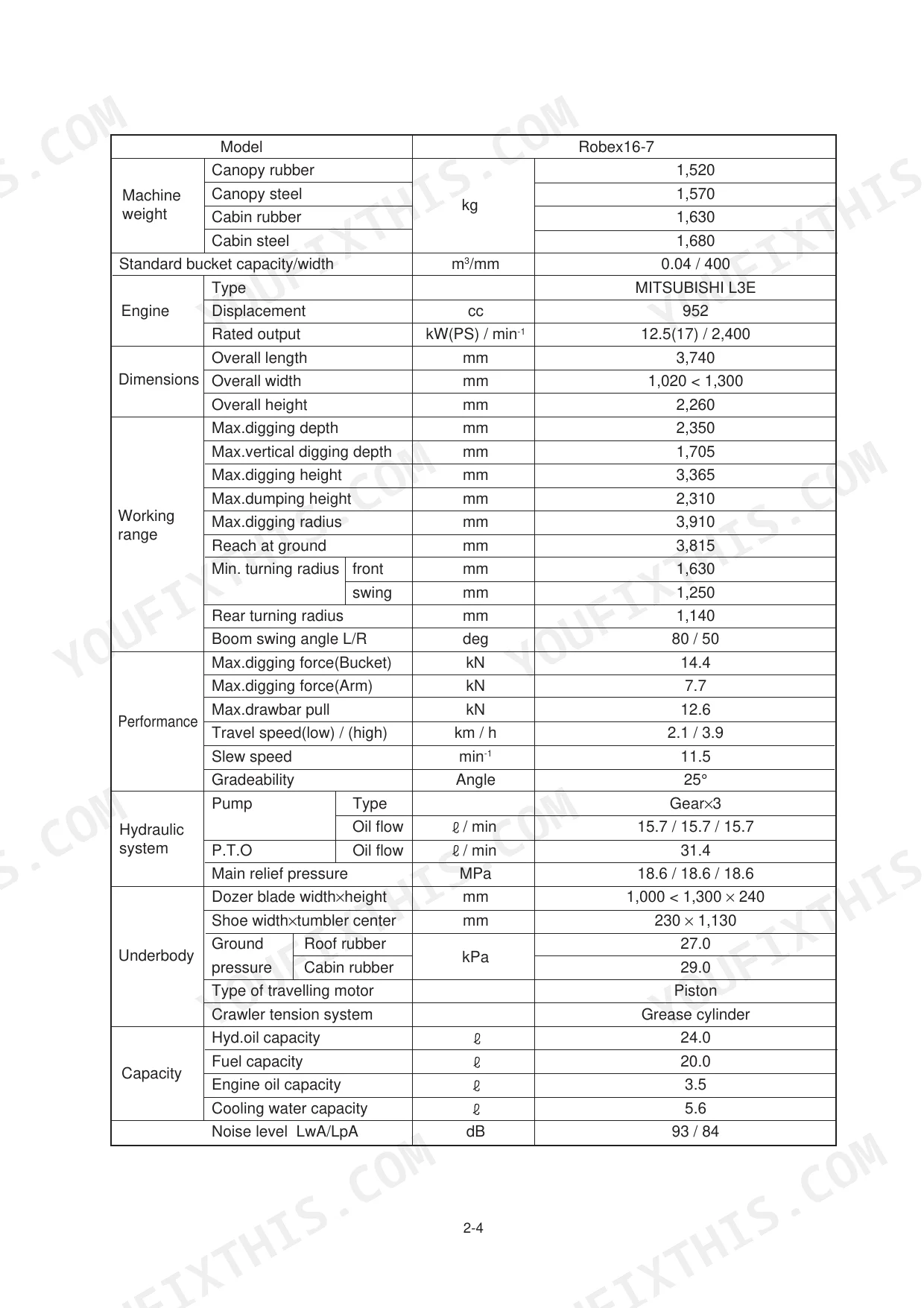

| Hydraulic Oil Capacity | 24.0 L | p. 11 |
| Fuel Tank Capacity | 20.0 L | p. 11 |
| Engine Oil Capacity | 3.5 L | p. 11 |
| Cooling Water Capacity | 5.6 L | p. 11 |
| Main Relief Pressure | 18.6 MPa | p. 11 |
| Tightening Torque M16 Bolt (12.9 grade) | 340 N-m | p. 18 |
| Tightening Torque Pump Mounting Bolt (M10 x 30) | 60.8 N-m | p. 40 |
Hyundai R16-7 Common Problems This Manual Covers
Hyundai Robex 16-7 hydraulic functions weak and slow, boom and bucket barely move when warm

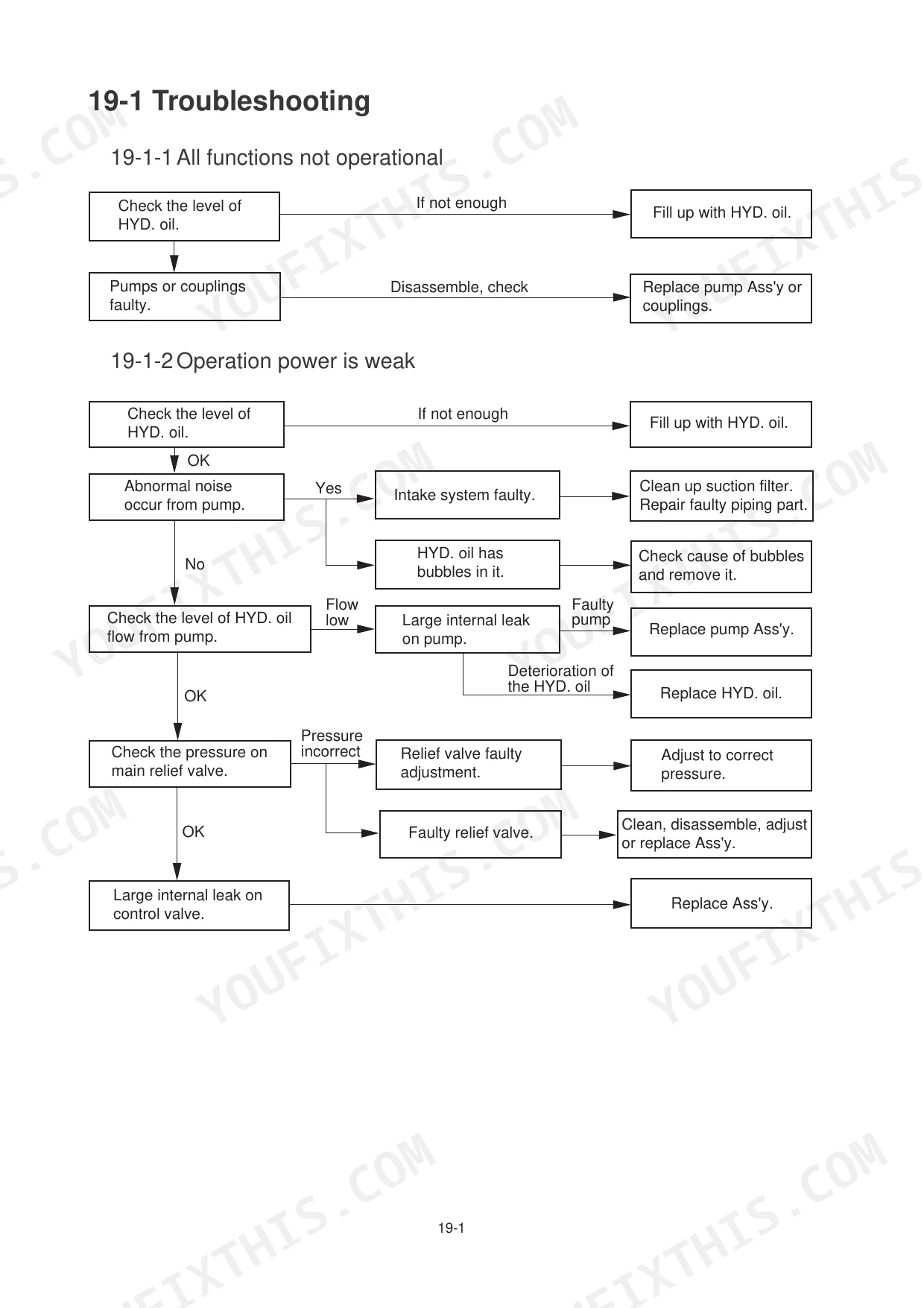

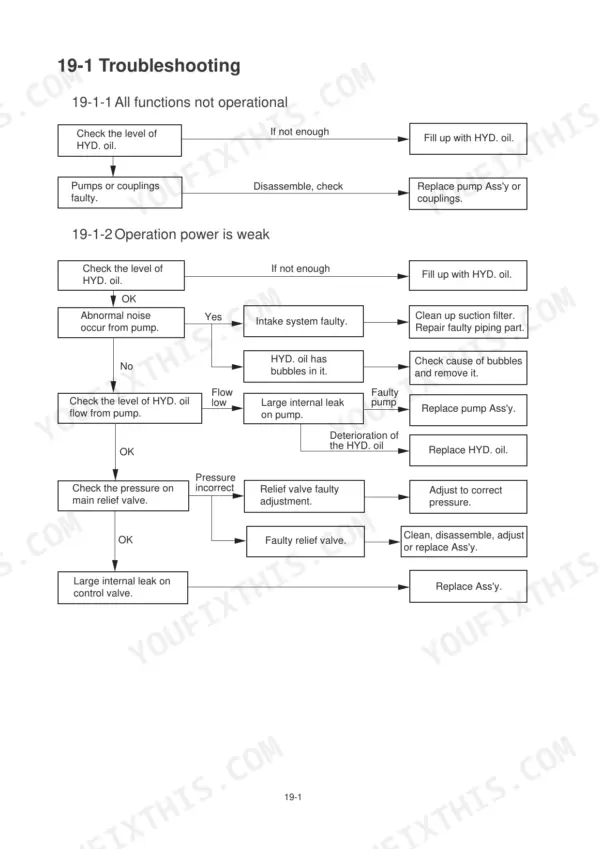

Check hydraulic oil level first; the system holds 24.0 L. Test main relief pressure against the 18.6 MPa spec listed on page 11, then work through the weak-power chart on page 108. If pilot pressure is missing, test the pilot solenoid coil and inspect the pump drive coupling for sheared splines.
Manual Section: Troubleshooting p. 108Engine won't crank or turns over slowly, starting is hit or miss on cold mornings
Load-test the battery before touching anything else. Clean and tighten the ground strap and starter connections, tracing each circuit on the wiring diagram on page 104. Test every fuse with a meter, not by eye. Torque loose M8 terminal hardware to 30 N-m, then retest cranking speed.
Manual Section: Electrical Equipment p. 103Machine tracks pull to one side, travel is jerky and won't hold on an incline
Check track tension and sprocket wear first; crawler maintenance standards start on page 83. Compare left and right travel motor case drain flow to find internal wear, following the travel motor procedures on page 67. Verify the system still builds the full 18.6 MPa relief pressure before condemning a motor.
Manual Section: Travel Motor p. 67Engine runs hot in warm weather and loses power under heavy digging loads
Clean the radiator fins with low-pressure air and check coolant level; the cooling system holds 5.6 L. Replace the air cleaner element on the intervals shown in the maintenance schedule on page 16. Drain water and sediment from the fuel system, then confirm the engine pulls its rated 12.5 kW at 2,400 min-1 without smoking.
Manual Section: Engine p. 33Upper structure turns slowly, groans during slewing, and drifts when parked across a slope
Inspect the slew motor gear and mounting hardware against the maintenance standards starting on page 61. Retorque any loose M10 x 45 mounting bolts to 80 N-m as specified on page 64. Drain and inspect the hydraulic oil; replace it and the filters if it looks dark or milky, since slow turning often traces to contamination or a worn relief valve.
Manual Section: Slew Motor p. 61Frequently Asked Questions
What are the hydraulic torque specifications for hose fittings on the Hyundai Robex 16-7?
The tightening torque for PF screw hose fittings varies by size. For a 1/4 size, the torque is 27-30 N-m; for 3/8 it is 47-52 N-m; for 1/2 it is 57-63 N-m; for 3/4 it is 108-120 N-m; and for 1 inch it is 126-140 N-m. p. 18
What is the required tightening torque for the main pump mounting bolts?

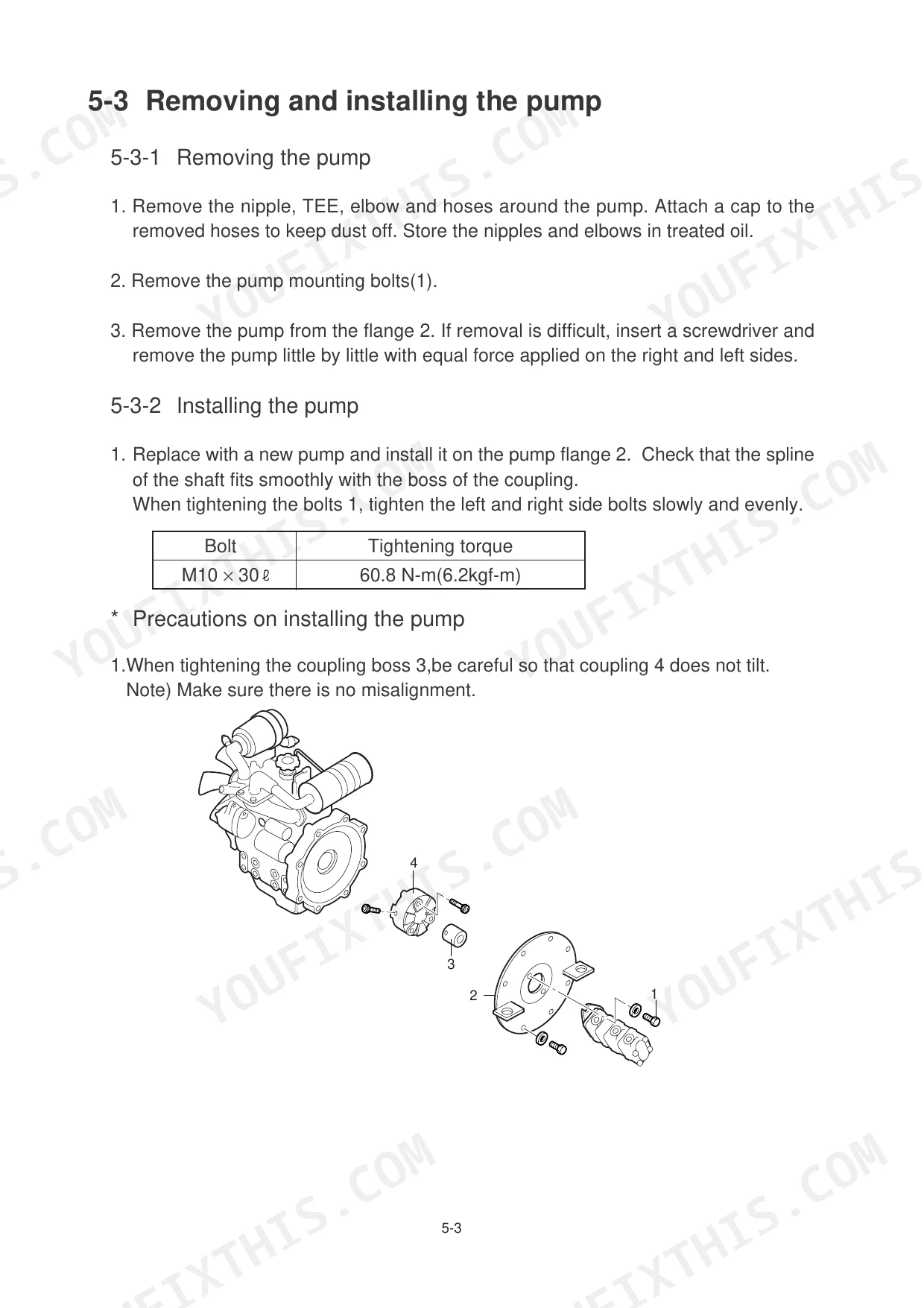

When installing the main pump, the M10 x 30 bolts should be tightened to a torque of 60.8 N-m (6.2 kgf-m). Ensure the left and right side bolts are tightened slowly and evenly to avoid misalignment. p. 40
What is the standard engine oil capacity for the Mitsubishi L3E engine in the Robex 16-7?
The engine oil capacity for the Mitsubishi L3E engine is 3.5 liters. p. 11
What is the correct fan belt tension for the Robex 16-7?
The fan belt should be checked and adjusted to have a sag of 10 to 12 mm at the center. p. 17
What is the procedure for adjusting the main relief valve pressure?
To adjust the main relief valve, install a pressure gauge in the measuring position between the pump and control valve. With the oil at 50-60°C and the engine at rated speed, remove the cap nut and turn the adjusting screw clockwise to increase pressure. Each rotation increases pressure by approximately 6.9 MPa (70 kgf/cm2). p. 56
What exactly do I receive with this Hyundai Robex 16-7 Service Manual?
A single searchable PDF file of 119 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is this Hyundai Robex 16-7 manual print-friendly?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
