Factory repair knowledge for the John Deere 6230, 6330, 6430, 7130, and 7230, packed into OEM manual #TM400819. It runs 1200 pages of step-by-step procedures, exploded views, and system diagrams. Coverage runs from the PowrQuad and PowrReverser transmissions to hydrostatic steering, rear PTO, and the full hydraulic charge pump and SCV circuit. Cold-weather starting aids, charging and starting circuits, electronic control unit R&R, front-wheel drive clutch, differential, final drives, and cab A/C all get their own procedures. Torque the front wheel dish-to-hub nuts to 300 N·m and the engine mounting screws to 100 N·m. With your machine down and the clock running, jump to any system by keyword or bookmark and pull the exact procedure.
What's Inside This John Deere 6230–7230 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-22 | - |

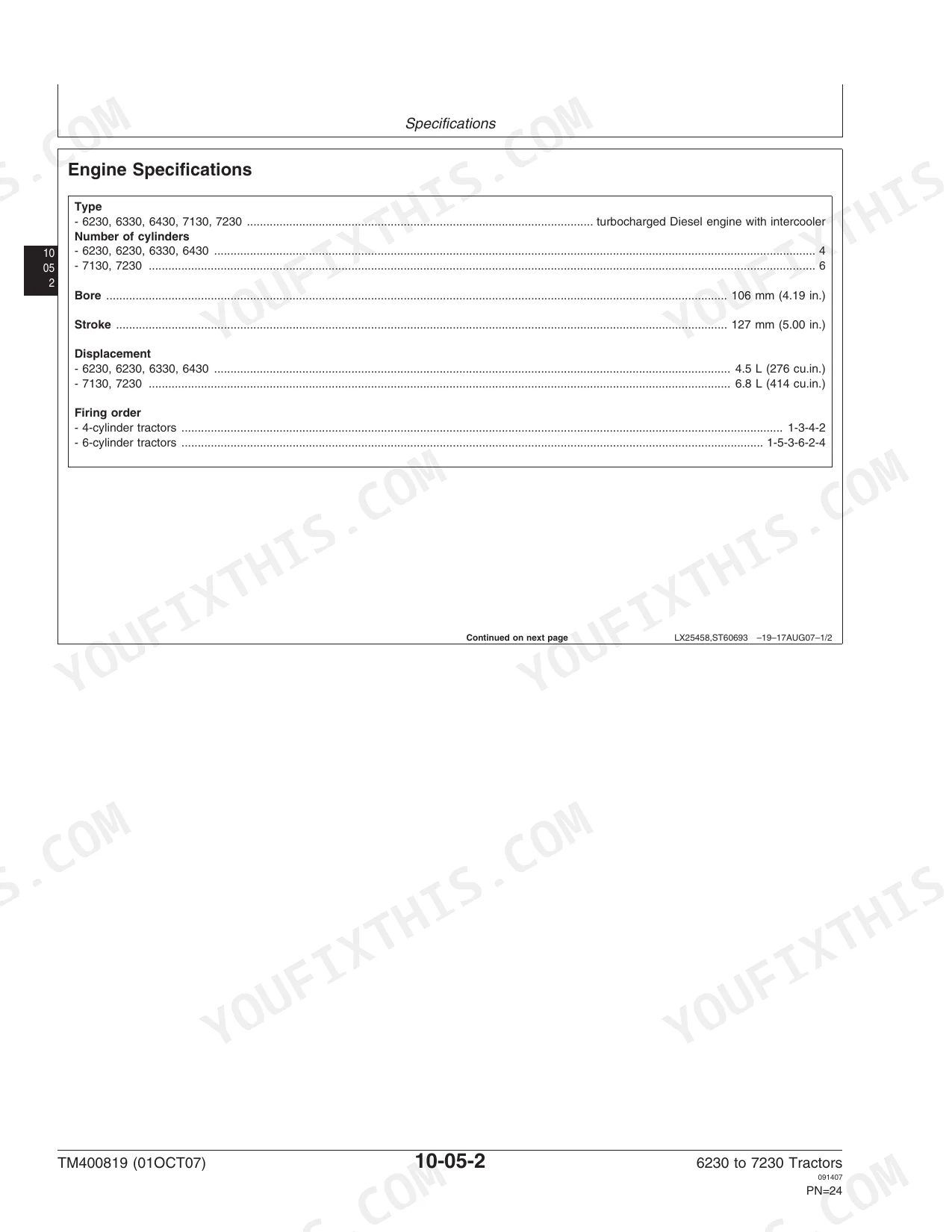

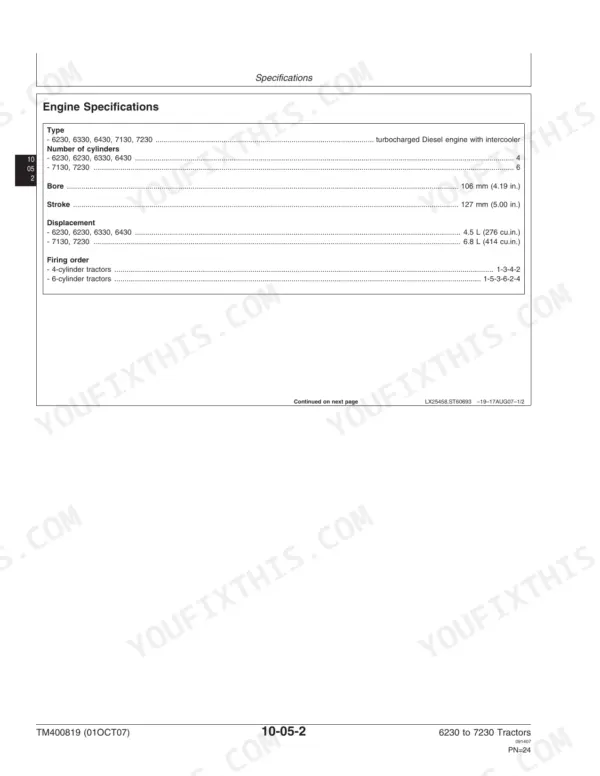

| General | 23-72 | Specifications, Tune-Up, Inspection Before Delivery |
| Engine | 73-92 | Removal and Installation of Components |

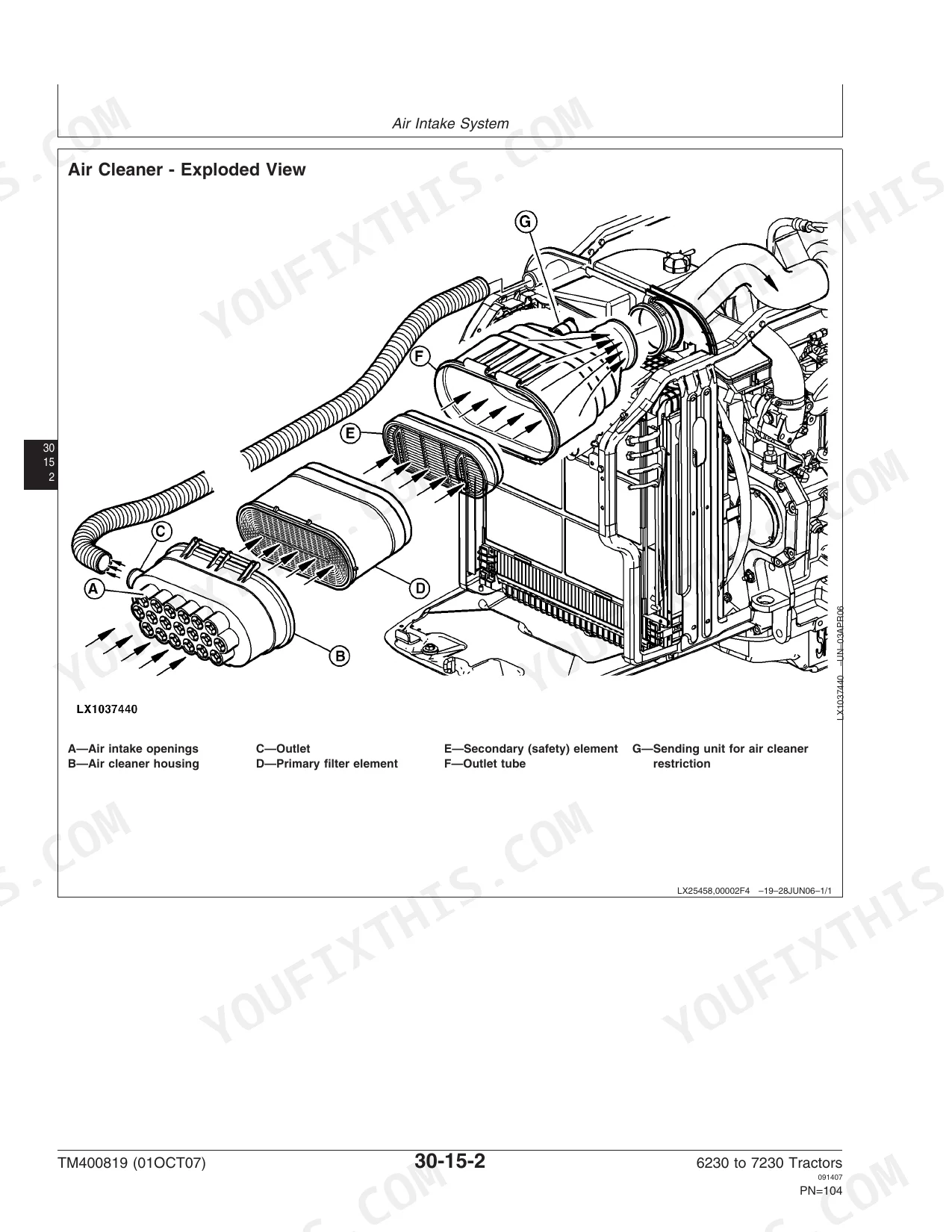

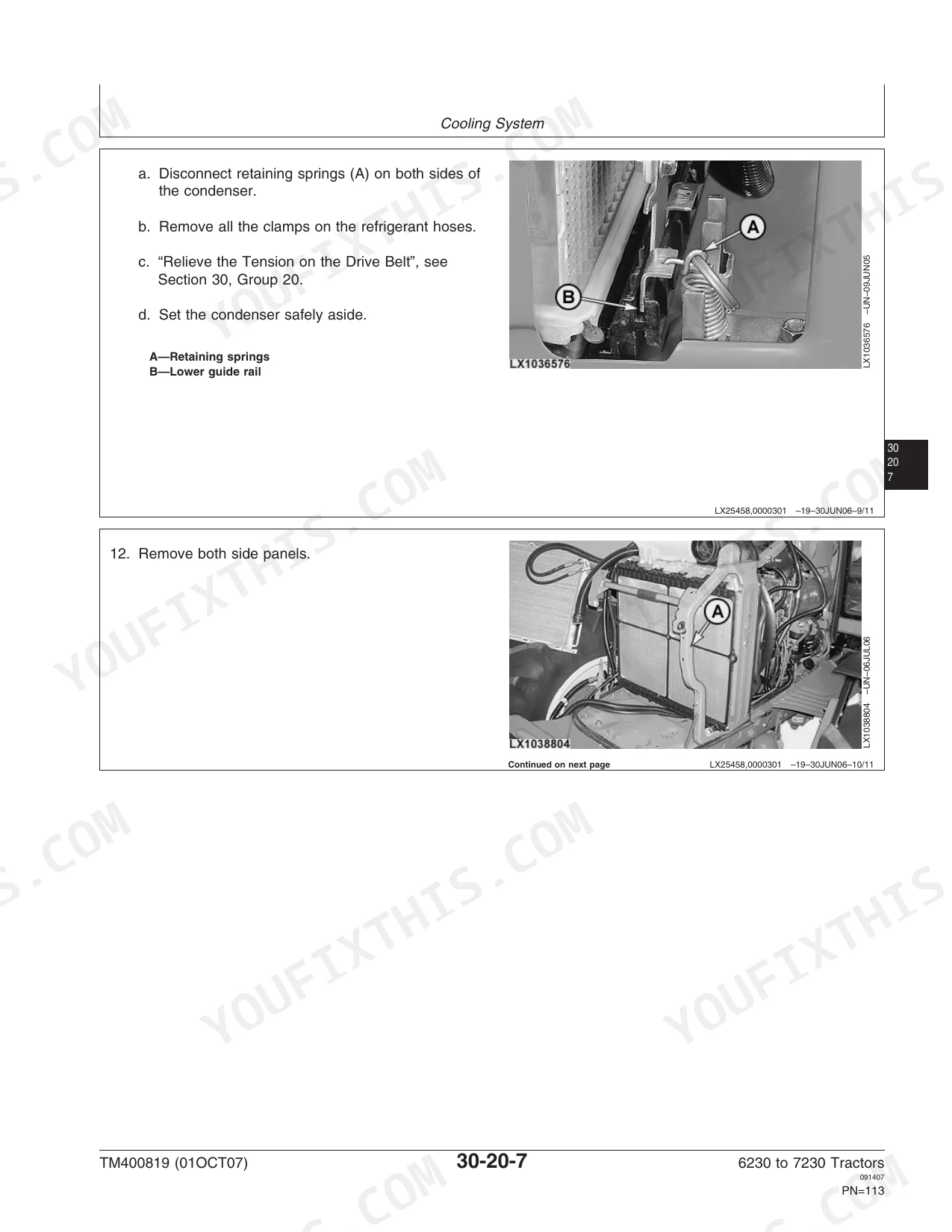

| Fuel, Air Intake, Cooling and Exhaust Systems | 93-140 | Speed Control, Fuel System, Air Intake System, Cooling System, Cold-Weather Starting Aids, Exhaust System |

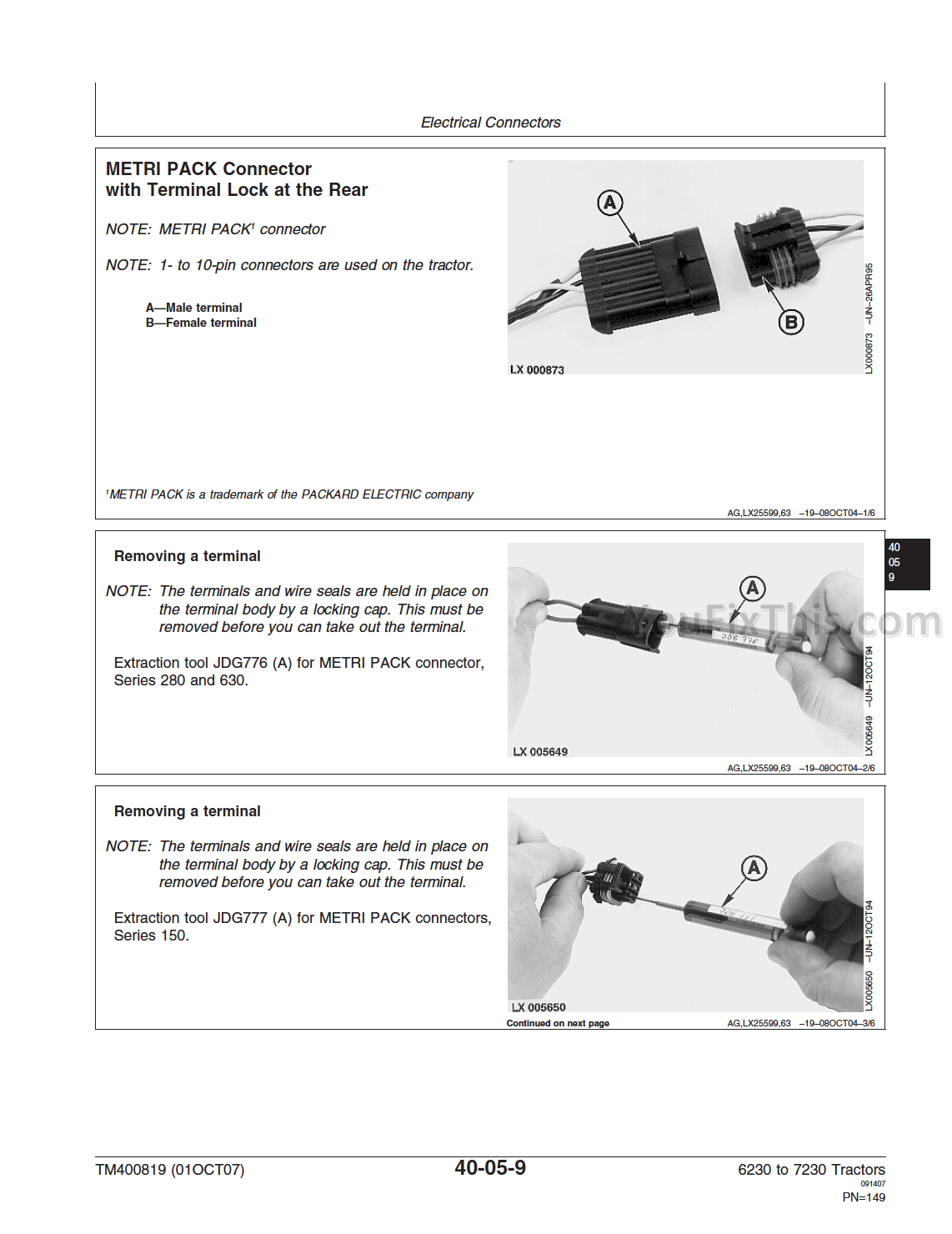

| Electrical System | 141-194 | Electrical Connectors, Charging Circuit, Starting Circuit, Electrical Components |
| Electronic Control Units | 195-208 | Removal and Installation of Electronic Control Units, Removal and Installation of Terminating Resistors |

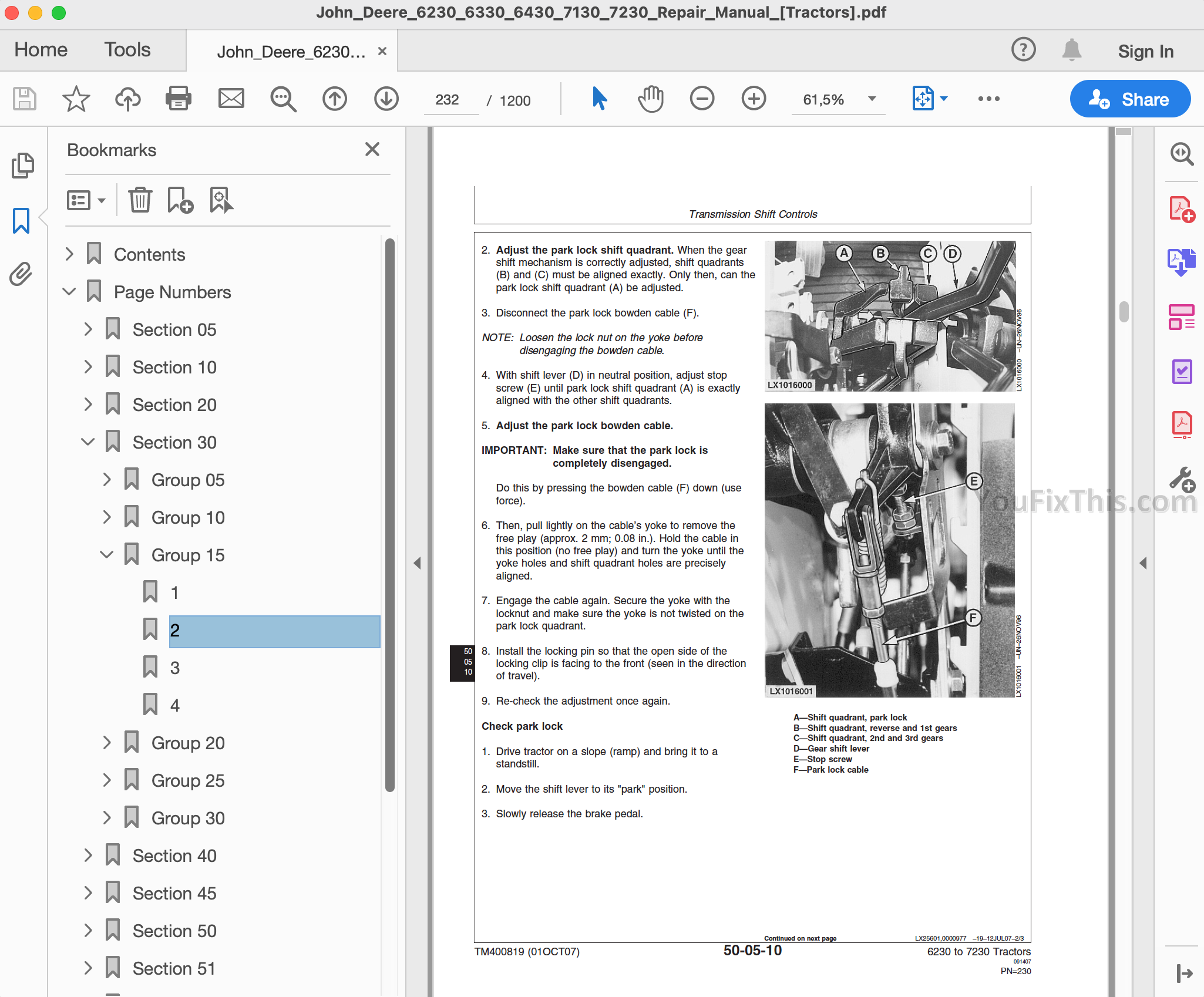

| Syncroplus Transmission | 209-288 | Removal and Installation of Components, Transmission Shift Controls, Perma Clutch Ii Module, Gear Transmission |

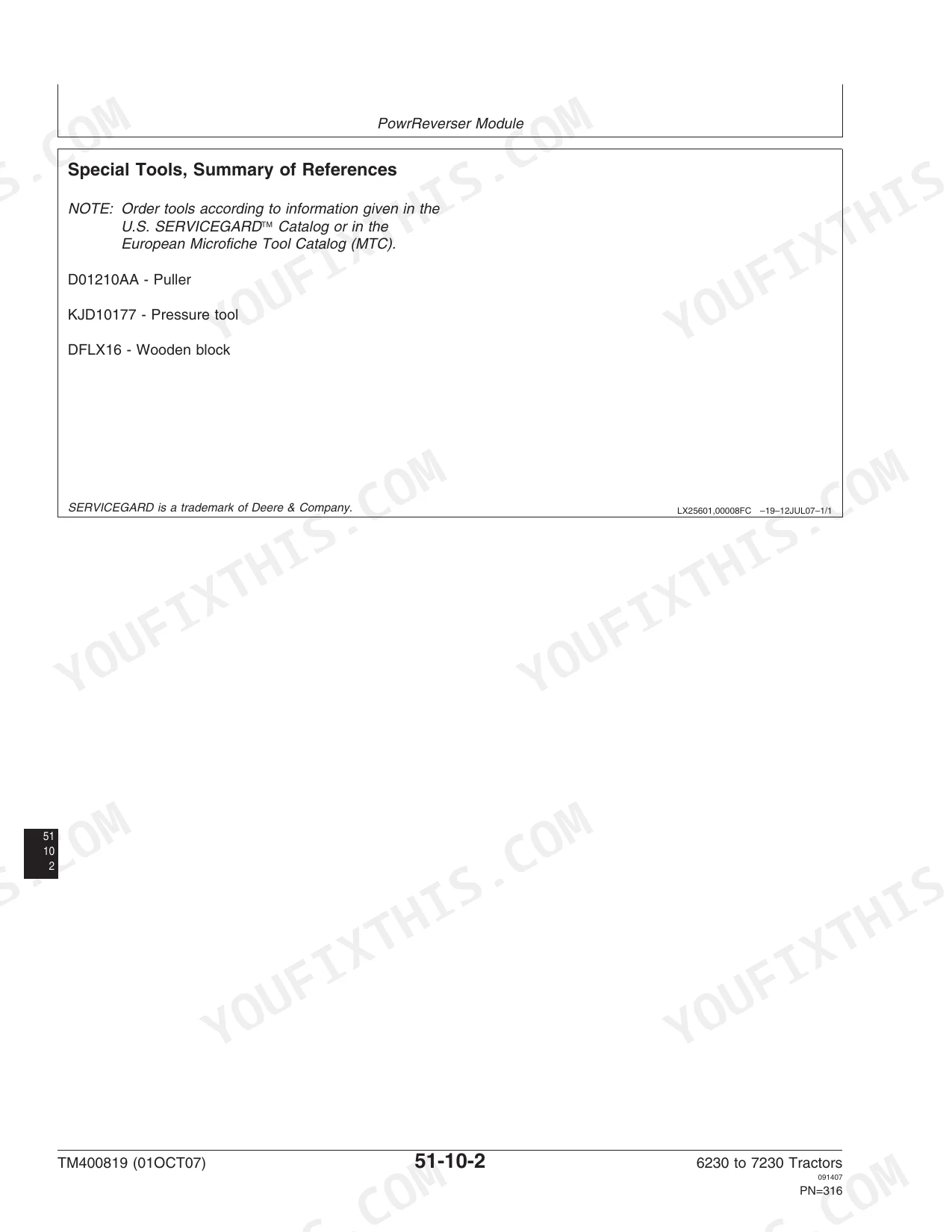

| Powrreverser Transmission | 289-392 | Removal and Installation of Components, Transmission Shift Controls, Powrreverser Module, Gear Transmission |

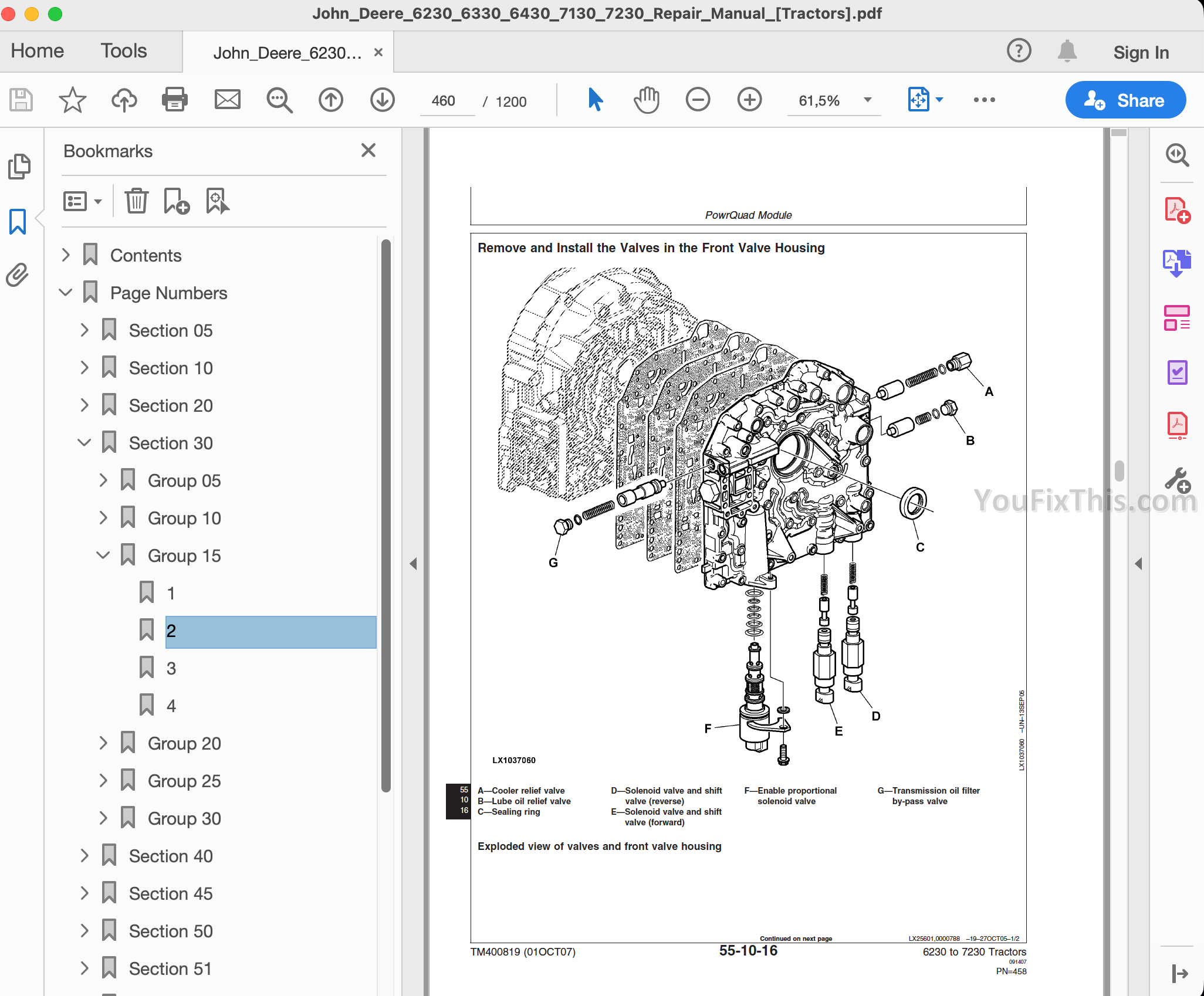

| Powrquad Transmission | 393-630 | Removal and Installation of Components, Transmission Shift Control, Powrquad Module, Creeper Transmission, Option Transmission, Range Transmission |
| Drive Systems | 631-782 | Removal and Installation of Components, U-Jointed Shafts and Torsion Damper, Front-Wheel Drive Clutch, Differential, Hydraulic Pump Drive, Final Drives, Rear PTO |
| Steering and Brakes | 783-852 | Hydrostatic Steering, Steering Cylinder, Brake Valve, Rear Wheel Brakes |

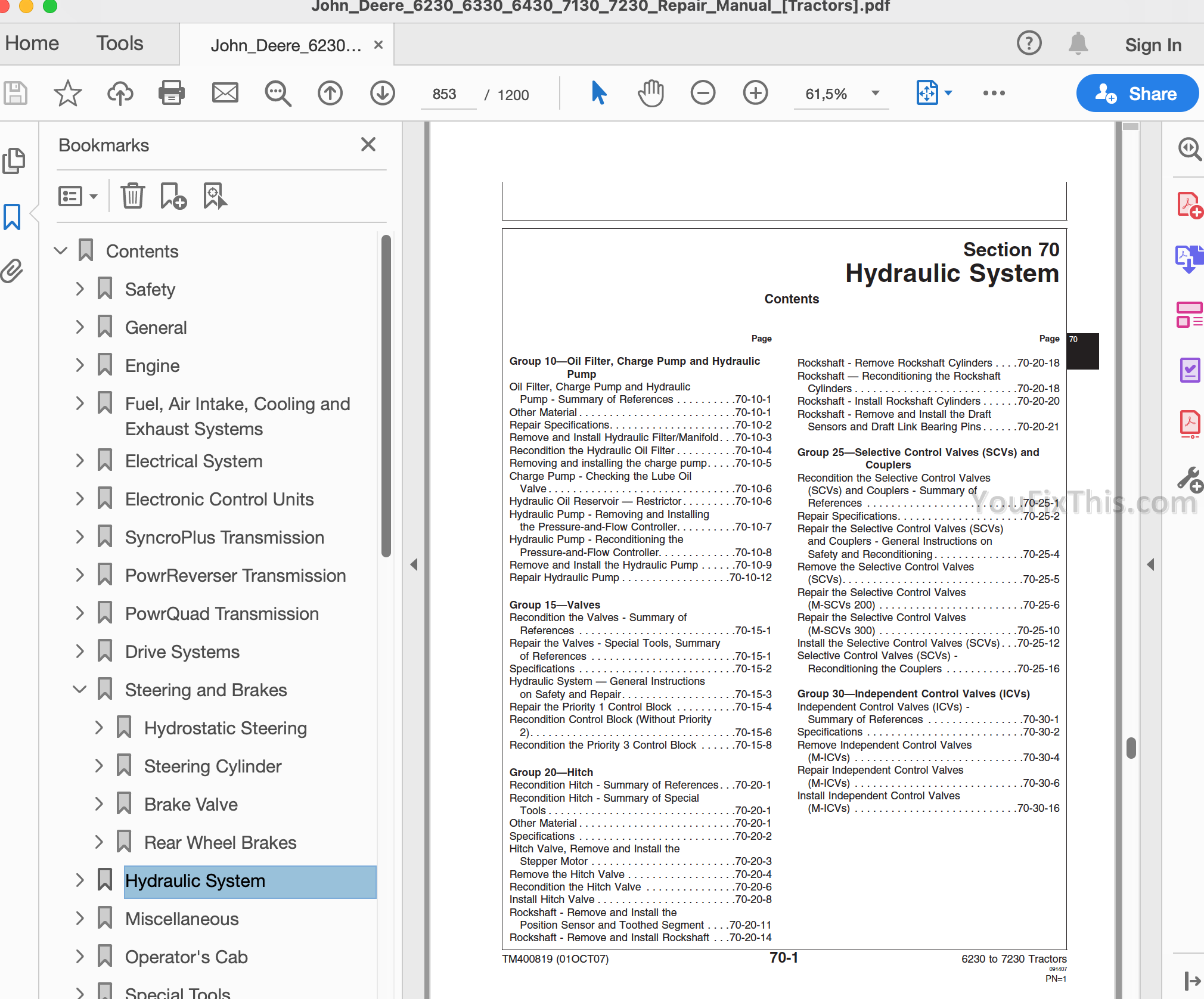

| Hydraulic System | 853-942 | Oil Filter, Charge Pump and Hydraulic Pump, Valves, Hitch, Selective Control Valves and Couplers, Independent Control Valves |
| Miscellaneous | 943-1038 | Removal and Installation of Components, Main Frame, Front Axle, Front Wheels, Rear Wheels and Fenders, Trailer Mounting and Swinging Drawbar, Pick-Up Hitch |
| Operator's Cab | 1039-1162 | Removal and Installation of Components, Controls and Instruments, Air-Conditioning System, Heating System, Seats |
| Special Tools | 1163-1190 | DFLX1 - Adapter Strut, DFLX5 - Lifting Eye for Operator’s Cab, JDE83 - Flywheel Turning Tool, FKM10427 - Crimping Pliers, DFLX24 - Seal Installer |

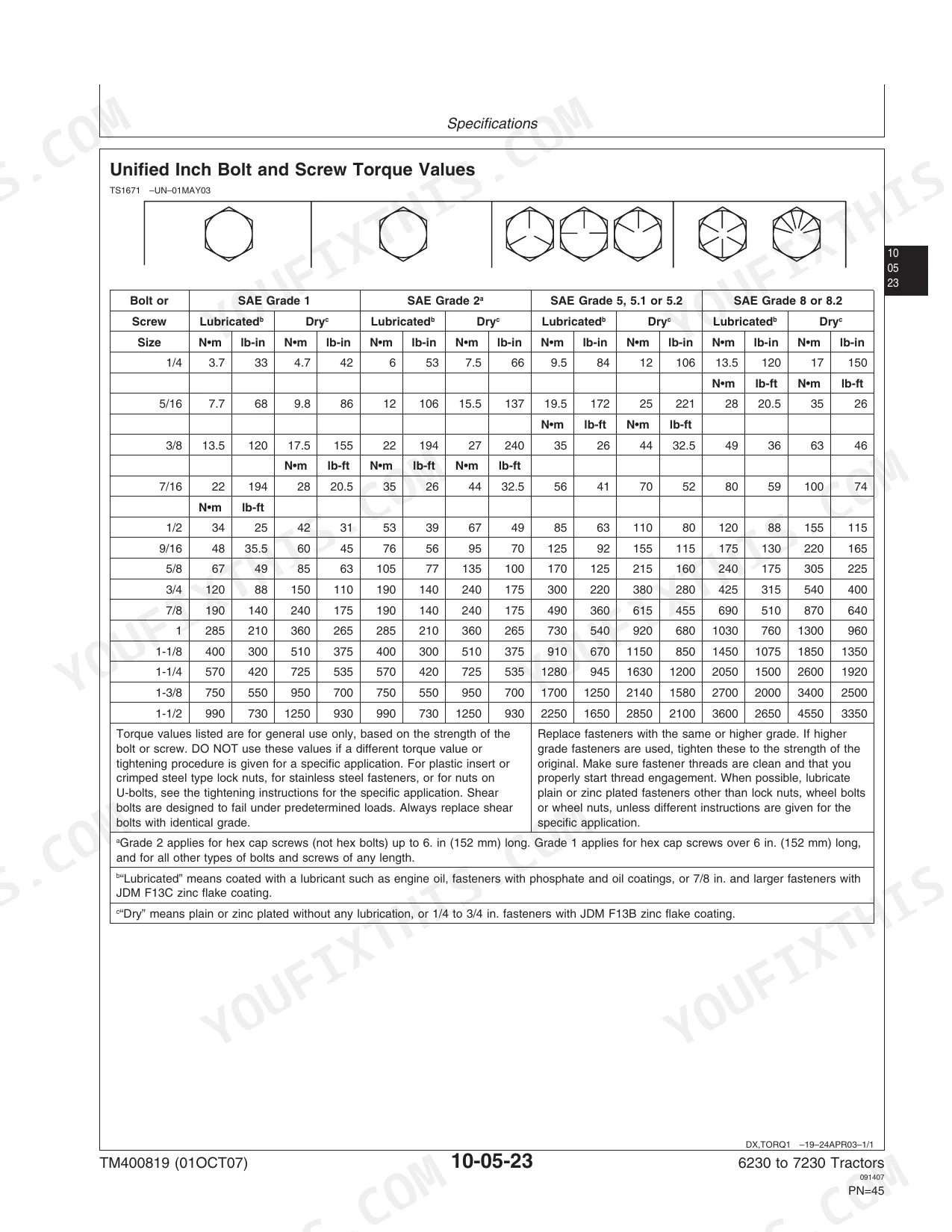

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front wheel bolts (wheel dish to hub, hex. nut) | 300 N•m / 220 lb-ft | p. 988 |
| Front wheel bolts (wheel dish to rim, hex. nut) | 250 N•m / 185 lb-ft | p. 988 |

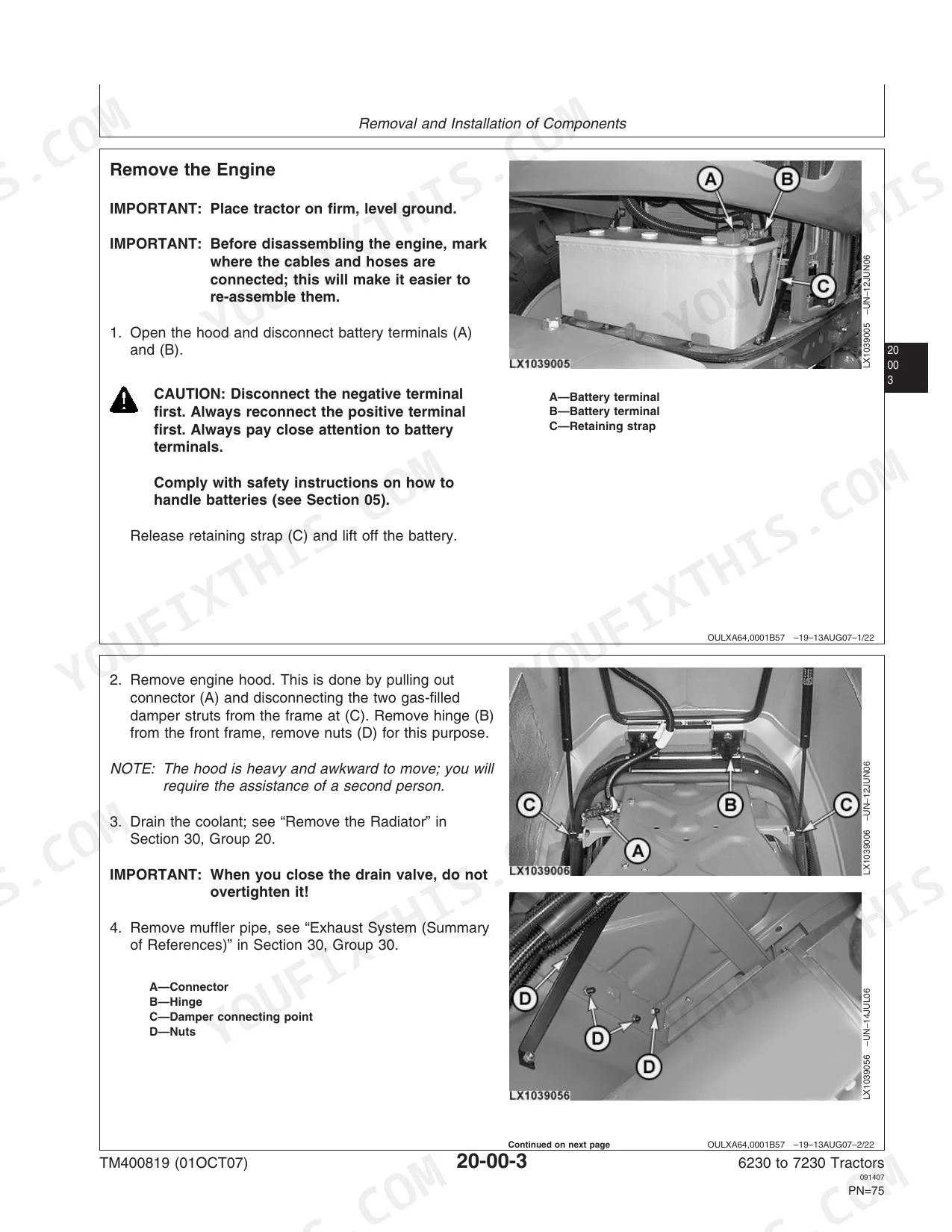

| Engine mounting screws | 100 N•m / 74 lb-ft | p. 76 |

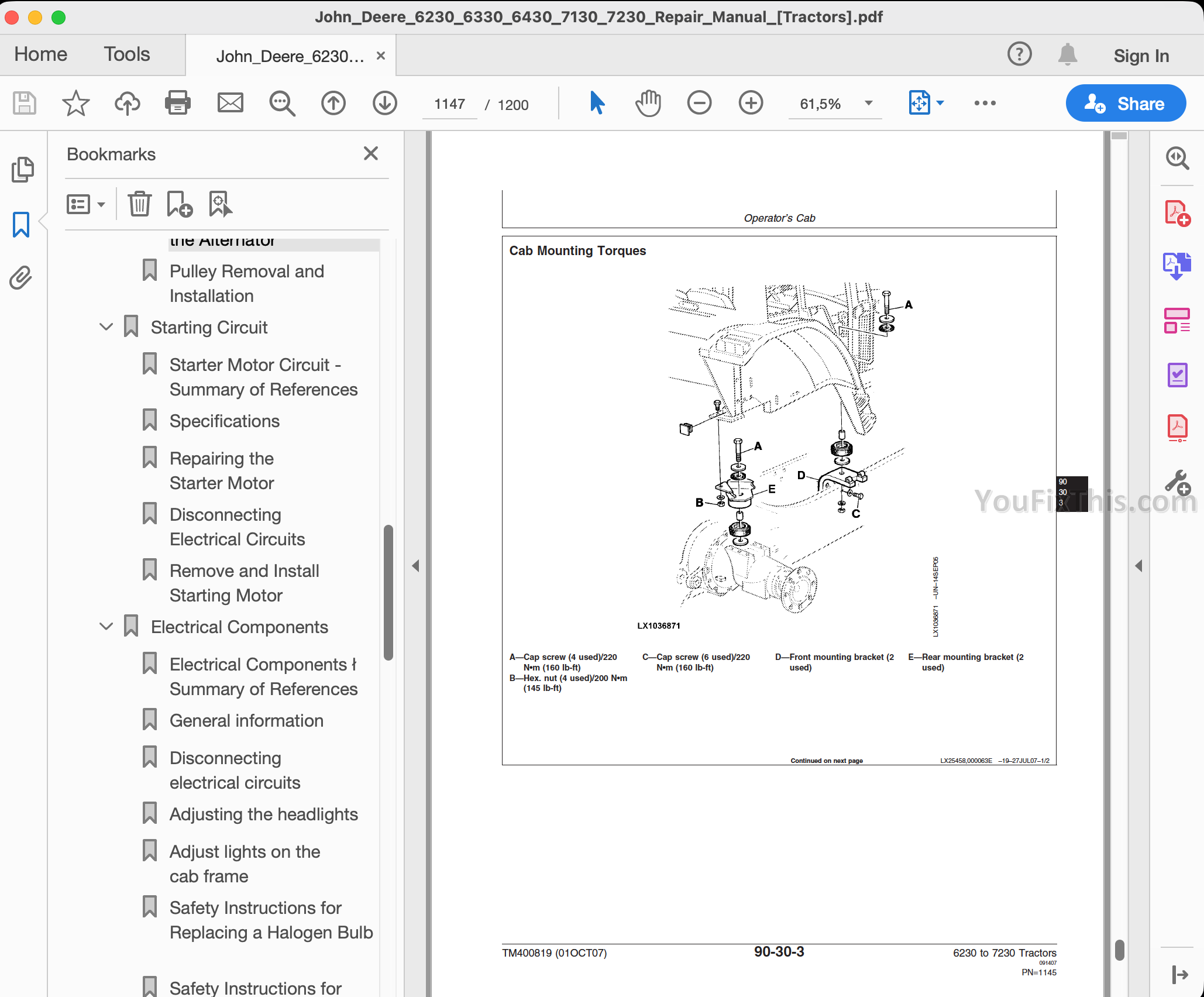

| Front cab mounting, cap screw | 220 N•m / 160 lb-ft | p. 1044 |
| Rear cab mounting, cap screws | 200 N•m / 150 lb-ft | p. 1044 |
| Rear wheel nuts (wheel dish to flanged axle) | 500 N•m / 370 lb-ft | p. 988 |
| 6230, 6330, 6430 | ||
| Battery (6230 to 6430) | 12 V, 110 Ah or 154 Ah | p. 28 |
| Alternator with overvoltage protection (6230 to 6430) | 14 V, 90 A | p. 28 |
| Starting motor (6230 to 6430) | 12 V, 3.0 kW (4.0 hp) | p. 28 |
| 7130, 7230 | ||
| Battery (7130 and 7230) | 12 V, 154 Ah or 174 Ah | p. 28 |
| Alternator with overvoltage protection (7130 and 7230) | 14 V, 115 A | p. 28 |
| Starting motor (7130 and 7230) | 12 V, 3.0 kW (4.0 hp) | p. 28 |
John Deere 6230–7230 Common Problems This Manual Covers
John Deere 6230, 6330, or 6430 battery drains overnight, tractor won't crank in the morning p. 141
Verify battery spec before blaming the charging system: 6230/6330/6430 units require a 12 V, 110 Ah or 154 Ah battery per page 28. Check both cable terminals and chassis ground straps for corrosion and clean to bare metal. Load-test the battery after a full charge. If it fails, replace it and retest the charging circuit before condemning the alternator.
Manual Section: Electrical SystemFault codes stored in the instrument cluster, warning lights won't clear after repair p. 195
Retrieve stored codes via the key-on instrument cluster switch sequence before clearing anything. Verify system voltage is at or above 12 V; low voltage alone triggers phantom codes on these tractors. Inspect each flagged wiring connector for corrosion or backed-out pins before replacing any module. When installing a replacement control unit, follow page 195 and confirm all terminating resistors are correctly seated.
Manual Section: Electronic Control UnitsTransmission slips or hesitates on direction change, PowrReverser won't engage cleanly under load p. 289
Check transmission oil level and condition first; contaminated fluid causes soft engagement before mechanical wear develops. Inspect the PowrReverser module and shift controls starting on page 289. Verify hydraulic circuit pressure: the axial piston pump should reach 20000 kPa (200 bar; 2900 psi) per page 33. If pressure is low, inspect the charge pump before pulling the transmission module.
Manual Section: PowrReverser TransmissionEngine idles rough or hunts at low RPM, slow idle speed out of spec p. 93
Measure slow idle with a tachometer and adjust to 845-855 rpm per page 27. Check fuel quality: diesel below cetane 45 (page 37) causes uneven combustion that mimics a governor fault. Bleed and inspect the fuel system starting on page 93, paying attention to the line strainer and filter condition. A blocked fuel return line produces the same rough idle symptom as a misadjusted governor.
Manual Section: Fuel, Air Intake, Cooling and Exhaust SystemsThree-point hitch won't lift rated load, hydraulic response slow or spongy p. 853
Start with hydraulic oil level and filter condition; a clogged filter starves the pump before any gauge moves. Test axial piston pump output against 20000 kPa (200 bar; 2900 psi) per page 33. If pressure is low, inspect the charge pump and relief valve starting on page 853. Confirm the hitch control valve linkage is adjusted for full stroke before you pull the pump.
Manual Section: Hydraulic SystemAlternator warning light stays on, battery voltage drops during field work p. 179
Inspect the drive belt for tension and wear before pulling the alternator. Check terminal connections per page 179: torque the hex nut at terminal 30 to 18 N•m (13 lb-ft), terminal D+ to 5 N•m (4 lb-ft), and attaching screws to 50 N•m (37 lb-ft). A loose mount vibrates and drops output intermittently. If voltage stays low with a known-good battery, replace the unit.
Manual Section: Electrical SystemFrequently Asked Questions
What are the replacement specifications for battery?
The 6230 to 6430 take a 12 V battery rated 110 Ah or 154 Ah. The 7130 and 7230 step up to 12 V, 154 Ah or 174 Ah. Match the cold-cranking rating to your climate.
What alternator is fitted to the 6230/6330/6430 versus the 7130/7230?
The 6230 to 6430 use a 14 V, 90 A alternator with overvoltage protection; the 7130 and 7230 use a 14 V, 115 A unit. Both are listed on page 28.
What are the front and rear wheel nut torque specs?
Torque the front wheel dish-to-hub nuts to 300 N.m (220 lb-ft) and the rear wheel nuts (dish to flanged axle) to 500 N.m (370 lb-ft), per page 988. Re-check after the first few hours of running.
Why does the PowrReverser slip or hesitate when changing direction?
Slipping or hesitation on a direction change points to the PowrReverser clutch packs or control valve. The transmission section (starting page 289) covers the pressure tests and clutch R&R needed to isolate it.
Is this John Deere 6230 & variants Technical Manual a digital download?
Yes. It's a 1200-page searchable PDF ready for immediate download. Works on any device, so you can pull it up on your phone right under the hood. No shipping, no waiting.
Are there any print restrictions on this John Deere 6230 & variants manual?
Yes, print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
