Part of the John Deere Repair Manuals.
This is the complete John Deere factory repair manual (TM400319) for the 7430 and 7530 Premium tractors. The 1,054 pages cover both the AutoPowr/IVT and PowrQuad transmission variants - you get the clutch pack torque sequences, control block servicing, oil pump replacement, and the filter housing procedures for each. Beyond the transmissions the manual works through the PowerTech diesel engine, fuel and air intake, the full cooling and exhaust system, wiring and all electronic control units from the engine ECU to the transmission TCU, hydraulic system repair, steering and brakes, and the operator cab. It is the same documentation a John Deere dealer technician uses, with the torque values and test steps needed to do the work correctly the first time.
What's Inside This John Deere 7430-7530 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | - | |
| General Information | Specifications, Machine Identification, Torque Values, Fluids and Lubricants | |
| Engine | Engine Removal and Installation, Crankshaft, Pistons, Cylinder Head, Oil System | |
| Fuel, Air Intake, Cooling and Exhaust | Fuel Injection System, Air Filter, Coolant System, Muffler and Exhaust Pipe Installation | |

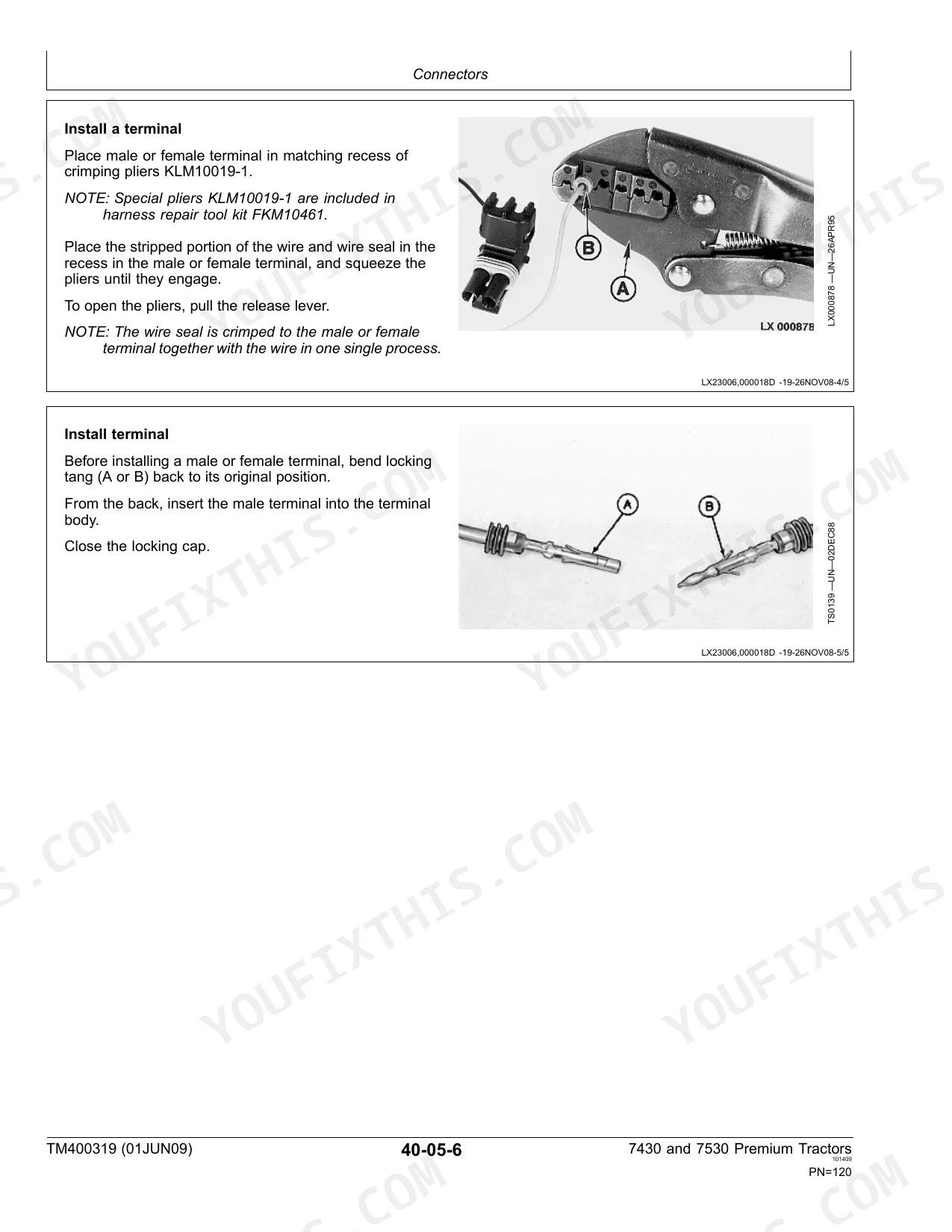

| Electrical System | Wiring Harness, Connectors (WeatherPack, MetriPack, Deutsch, Kostal), Alternator, Starting Motor, Headlight Adjustment | |
| Electronic Control Units | Atc, Bcu, ECU, Tcu, Uim, Jdl, Epc, Etc Removal and Installation, Terminating Resistors | |

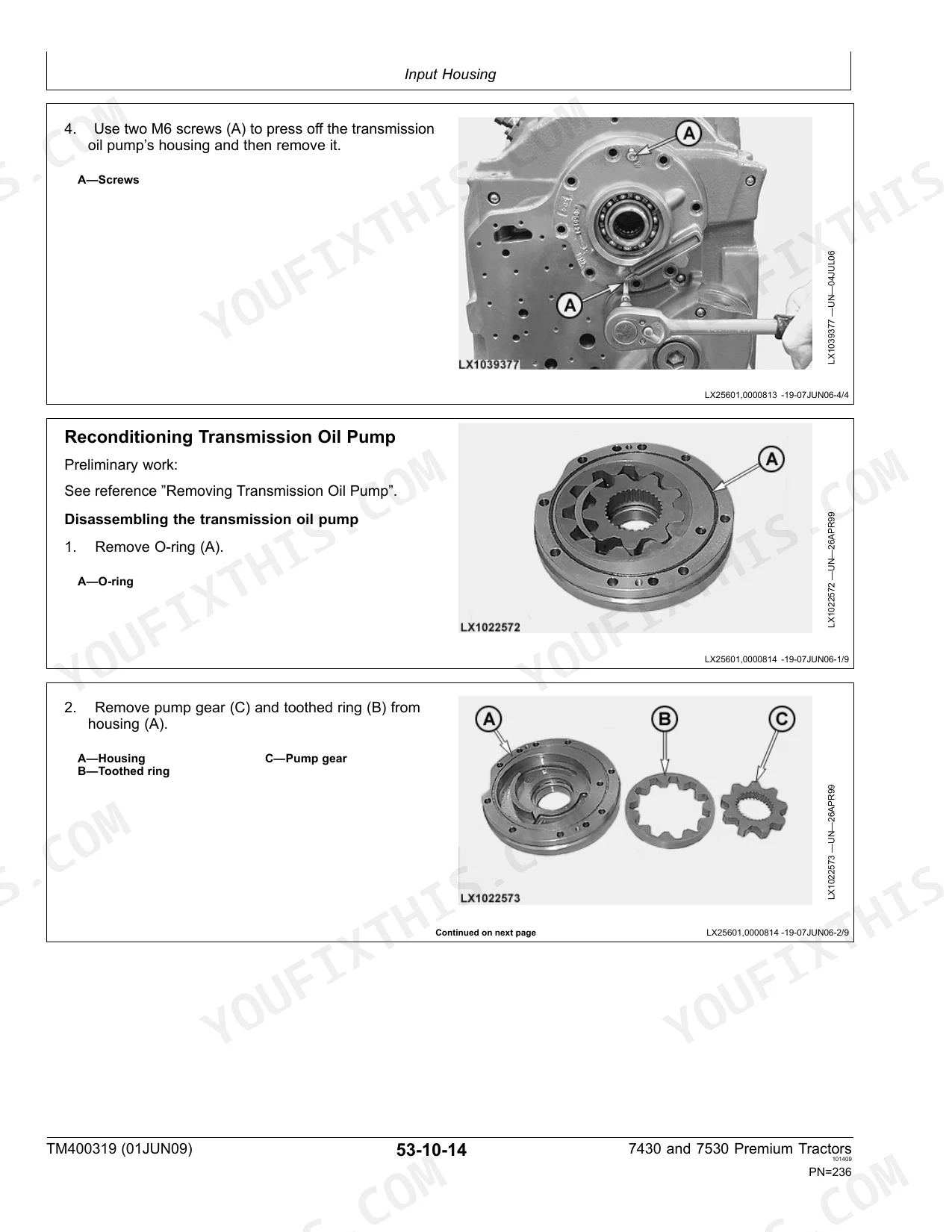

| AutoPowr/IVT Transmission | Input Housing, Clutch Control Block, Solenoid and Proportional Valves, Transmission Oil Pump, System Pressure Control Block, Thermostat Valve | |

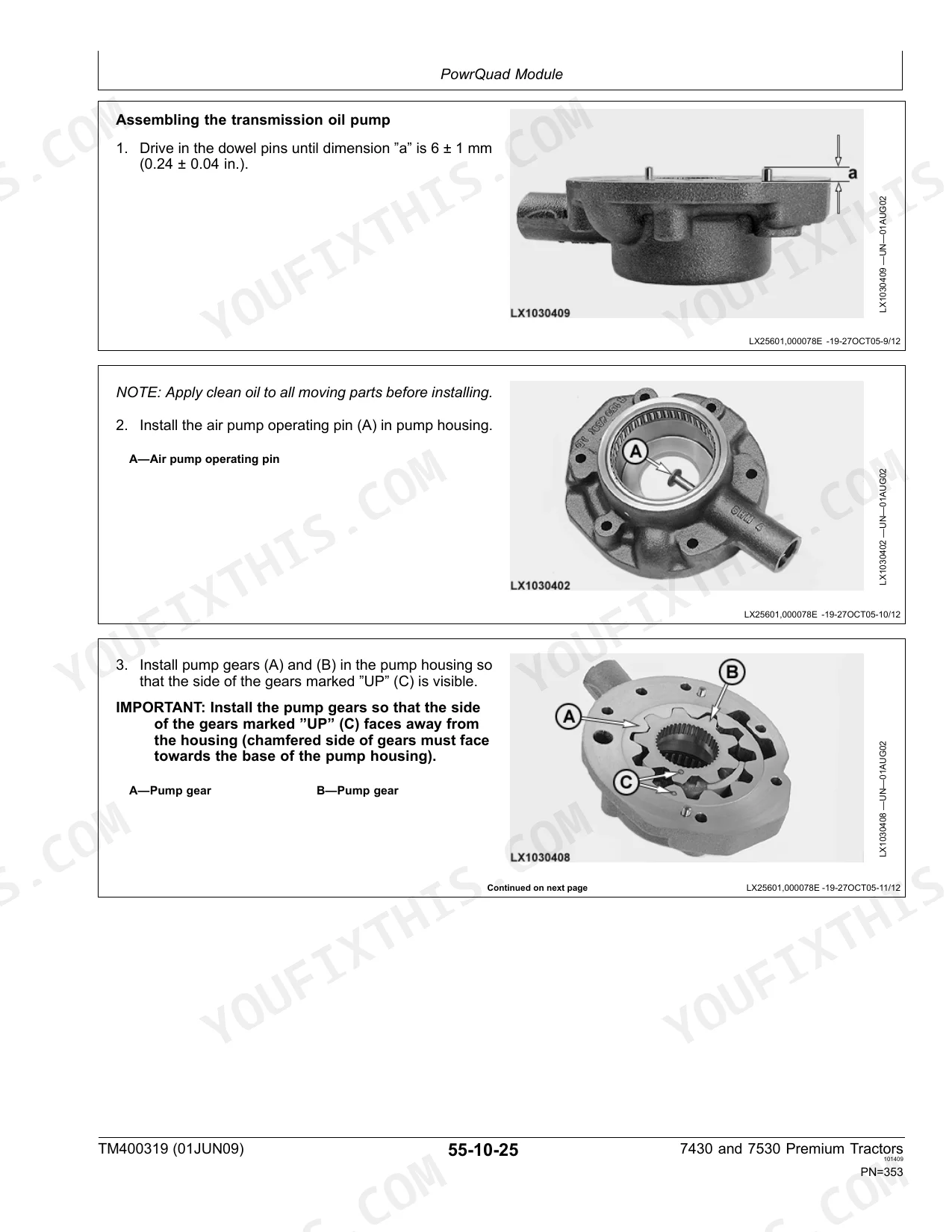

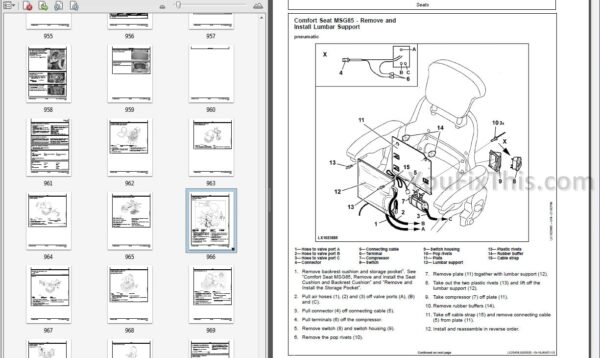

| PowrQuad Transmission | Transmission Shift Controls, Gear Clutch Packs, Oil Filter Housing, Internal Seals | |
| Drive Systems | Front Axle, Differential, Output Housing, U-Joint Shaft, Final Drive | |
| Steering and Brakes | Steering Cylinder, Orbital Valve, Brake Discs, Brake Pedal Linkage | |
| Hydraulic System | Hydraulic Pump, Control Valves, 3-Point Hitch, Remote Cylinder Circuits, System Pressure Testing | |
| Operator's Cab | Cab Removal and Installation, Air Conditioning, Stabilizer Bar, Cab Mounts, HVAC Components | |
| Miscellaneous | PTO, Drawbar, Rear Weights, Fenders | |
| Special Tools | Special Tools Index, Tool Part Numbers, Application by System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 7430 Premium, 7530 Premium | ||
| Alternator pulley torque | 80 N-m (60 lb-ft) | |
| Alternator cap screws torque | 50 N-m (37 lb-ft) | |
| Starting motor terminal 30 hex nut torque | 30 N-m (23 lb-ft) | |
| Output housing to differential housing cap screws | 135 N-m (100 lb-ft) | |
| Stabilizer bar to front cab support cap screws | 100 N-m (74 lb-ft) | |
| Production years | 2009-2011 | |
| AutoPowr/IVT Transmission | ||
| Thermostat valve M36x1.5 screw plug torque | 130 N-m (95 lb-ft) | |
| Filter housing to system pressure control block | 50-60 N-m (37-44 lb-ft) | |
| Transmission oil pump screws | 23 N-m (17 lb-ft) | |
John Deere 7430-7530 Common Problems This Manual Covers
AutoPowr/IVT slips or will not hold speed under load in the field
Start by checking for transmission fault codes using the tractor's diagnostic readout, then verify system pressure at the system pressure control block as described in the AutoPowr/IVT section. If pressure is low, replace the transmission oil pump and inspect the solenoid valves and clutch control block for contamination or sticking. Follow the torque sequence for the control block re-installation at 7 N-m temporary then 10 N-m final to ensure correct clamping load.
Manual Section: AutoPowr/IVT TransmissionEngine loses power or misfires during heavy tillage or loader work
A blocked fuel filter is the first item to rule out. Service the fuel water separator and primary fuel filter, then check injector return flow volume as covered in the Fuel and Air Intake section. If return flow is excessive on one injector it is failing under pressure, and replacing that injector will restore full power without touching the high-pressure pump.
Manual Section: Fuel, Air Intake, Cooling and ExhaustHydraulic lift response is slow or 3-point hitch drops under load
Slow lift with load drop typically means hydraulic pump output is below specification or a control valve is bypassing internally. The Hydraulic System section covers testing system pressure and pump flow. Replace the hydraulic filter first - contaminated fluid is the most common cause of premature pump wear on these tractors in dusty field conditions.
Manual Section: Hydraulic SystemIntermittent dashboard fault codes and ECU communication errors after cold start
The most common source is a corroded or loose connector in the CAN bus wiring or a failed terminating resistor. The Electrical System section covers the full range of connector types used on these tractors (WeatherPack, MetriPack, Deutsch, Kostal) and gives the correct repair method for each. Section 45 covers the terminating resistors; check both before replacing any ECU, as a bad resistor can throw codes pointing to multiple control units.
Manual Section: Electrical SystemFrequently Asked Questions
What transmissions does this manual cover for the 7430 and 7530 Premium?
The manual covers both the AutoPowr/IVT (infinitely variable) and PowrQuad Plus transmissions. It includes the clutch control block removal, solenoid and proportional valve service, oil pump replacement, and system pressure control block procedures for the AutoPowr/IVT, and shift control and clutch pack work for the PowrQuad, so you can service whichever transmission your tractor has.
Why is the AutoPowr/IVT transmission slipping or not holding ground speed under load?
Slipping under load on the AutoPowr/IVT typically points to worn clutch packs, a faulty pressure control solenoid, or low oil pressure from a failing transmission oil pump. The AutoPowr/IVT section covers removing and testing the system pressure control block and solenoid valves, and the oil pump service procedure, so you can isolate the cause before pulling the whole transmission.
How do I diagnose engine power loss on a 7430 or 7530 under heavy field load?
Power loss under load usually starts with a clogged fuel filter or a failing injector. The Fuel and Air Intake section covers the fuel injection system service steps. Check the primary fuel filter first, then verify injector output before suspecting the high-pressure pump.
Does this manual cover all the electronic control units on the Premium tractors?
Yes. Section 45 covers removal and installation procedures for every ECU on these machines: ATC, BCU, BIF, DSM, DTI, ECU, EPC, ETC, HTC, JDL, PLC/UIC, SIC, SSU, TCU, TEC, TSC, UIM, VTI, and the power modules. It also covers the terminating resistors in the CAN bus circuit, which are a common source of intermittent fault codes.
What are the key torque specs a technician needs for AutoPowr/IVT transmission service?
The AutoPowr/IVT section calls out: system pressure control block screws at 7 N-m temporary then 10 N-m final, filter housing to system pressure control block at 50-60 N-m, thermostat valve screw plug at 130 N-m, oil pump screws at 23 N-m, and solenoid and proportional valve screws at 6 N-m each. Getting these torques right is critical to maintaining proper clutch pressure after reassembly.
How quickly can I access this manual?
Immediate download of the complete 1054-page searchable Repair (102 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
