Part of the John Deere Repair Manuals.
This 400-page John Deere JD510 Technical Manual PDF (OEM #TM-1039) breaks down the complete Loader Backhoe, from engine tune-up and fuel system diagnosis through power train, steering, and hydraulic service. Inside you get full wiring diagrams for the charging and starting circuits, hydraulic schematics covering the backhoe control valve and cylinders, and a troubleshooting section that walks you through power train and hydraulic diagnosis. You'll also find a dedicated torque section and maintenance intervals for every group in the machine. Press the 153065 bushing into the cover flush to 0.02 inch below the bore face, notched end toward the bottom, straight off the factory page. No more guessing which group covers your hydraulic pump or chasing a wiring fault blind. This bookmarked, searchable PDF lets you jump to any of the nine major systems or search any spec by keyword, right from your phone in the shop.
What's Inside This John Deere JD510 Manual
| System | Pages | Key Topics |
|---|---|---|

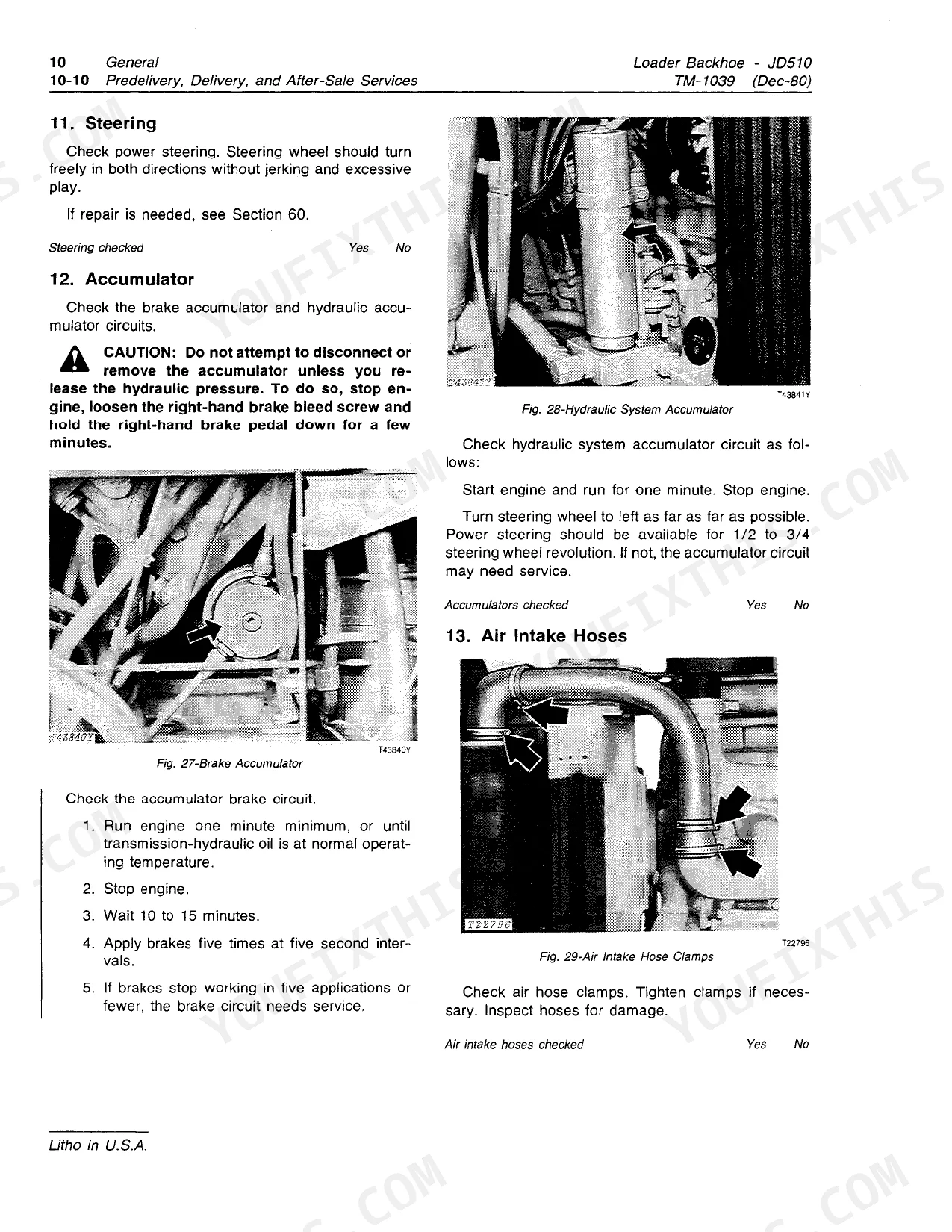

| General | 7-44 | Specifications, Predelivery Service, Engine Tune-Up, Lubrication, Component Separation |
| Engine | 45-83 | Engine Diagnosis, Basic Engine Repair, Lubrication System, Cooling System, Engine Specifications |

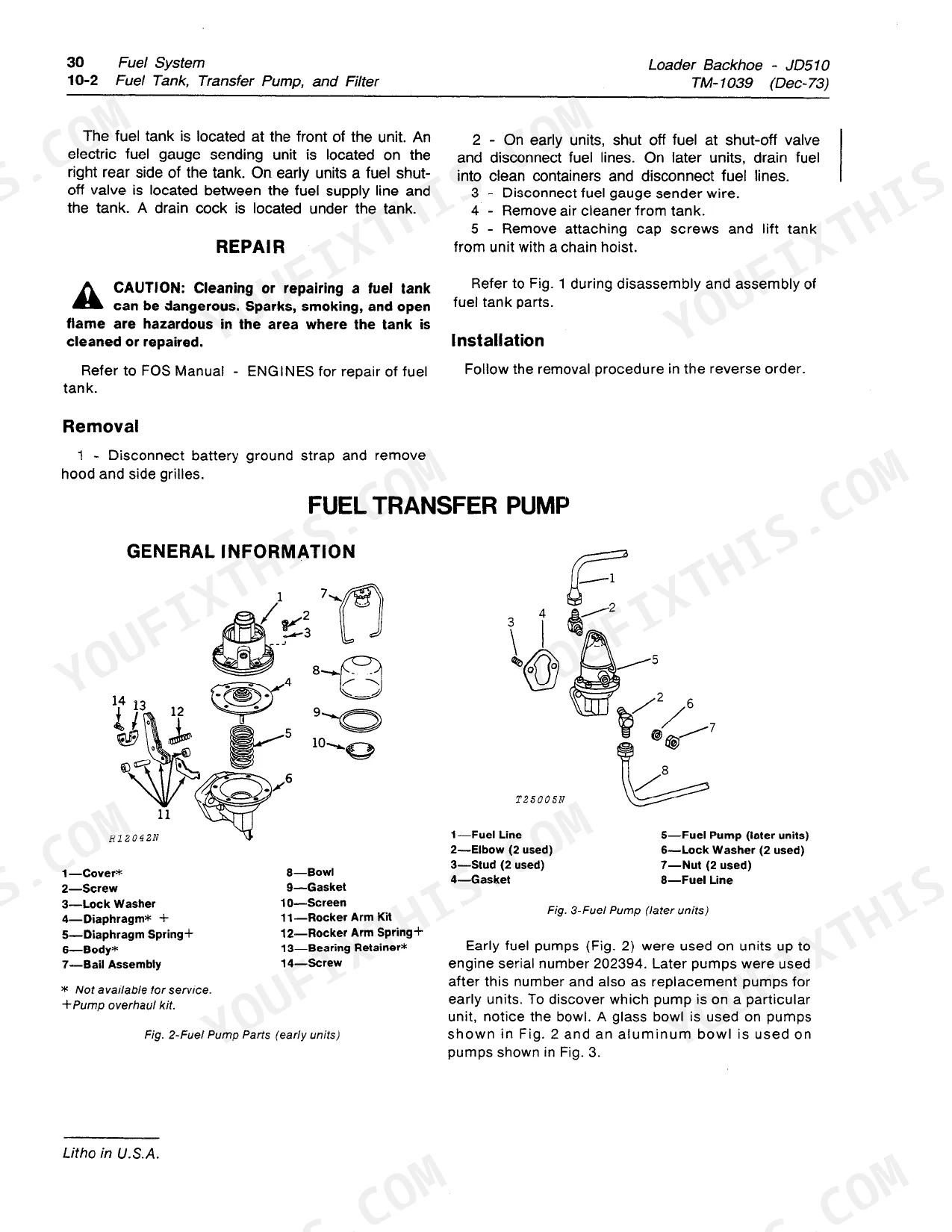

| Fuel System | 84-96 | Fuel System Diagnosis, Fuel Tank Service, Air Intake System, Fuel Injection Pump |

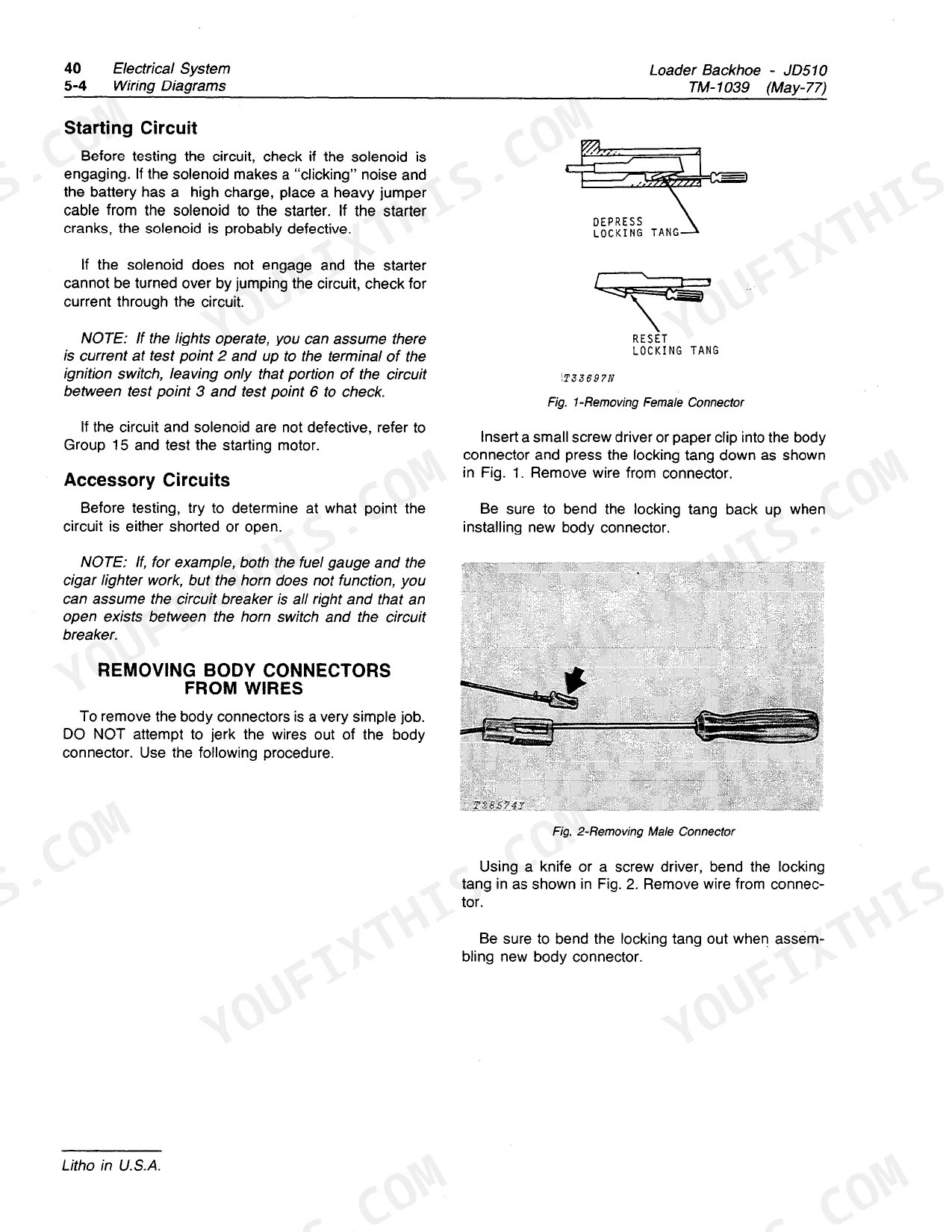

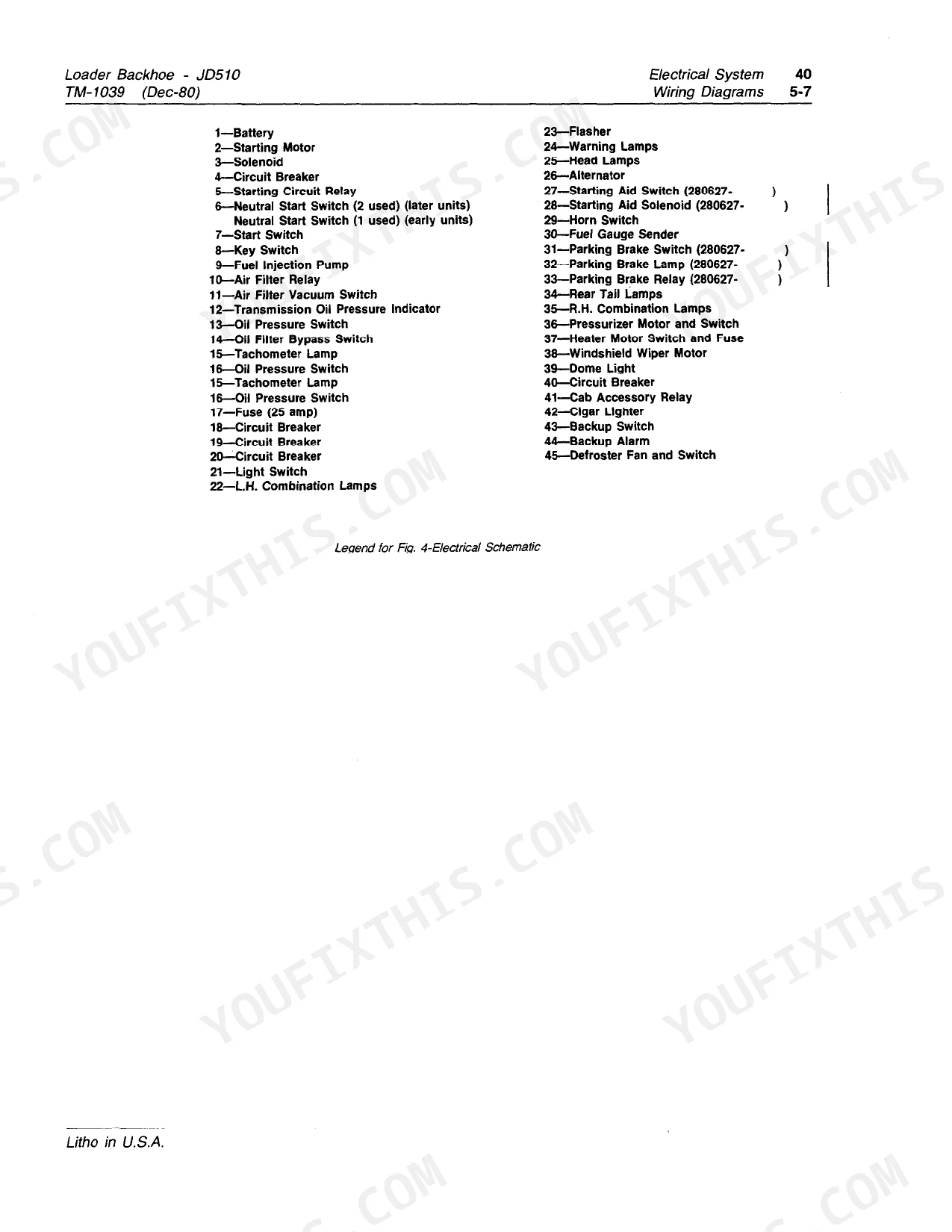

| Electrical System | 97-155 | Wiring Diagrams, Charging System, Starting Circuit, Lights & Accessories, Electrical Specifications |

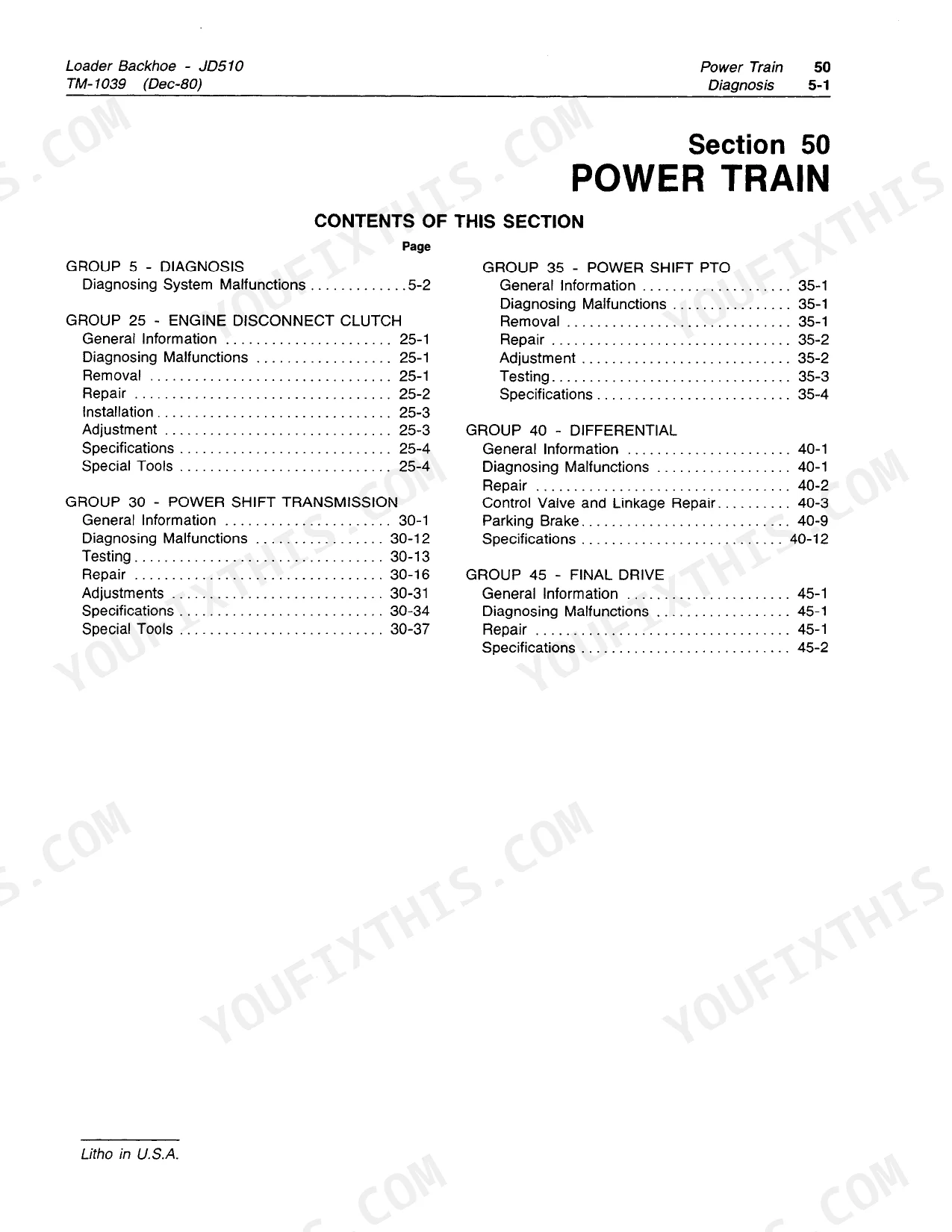

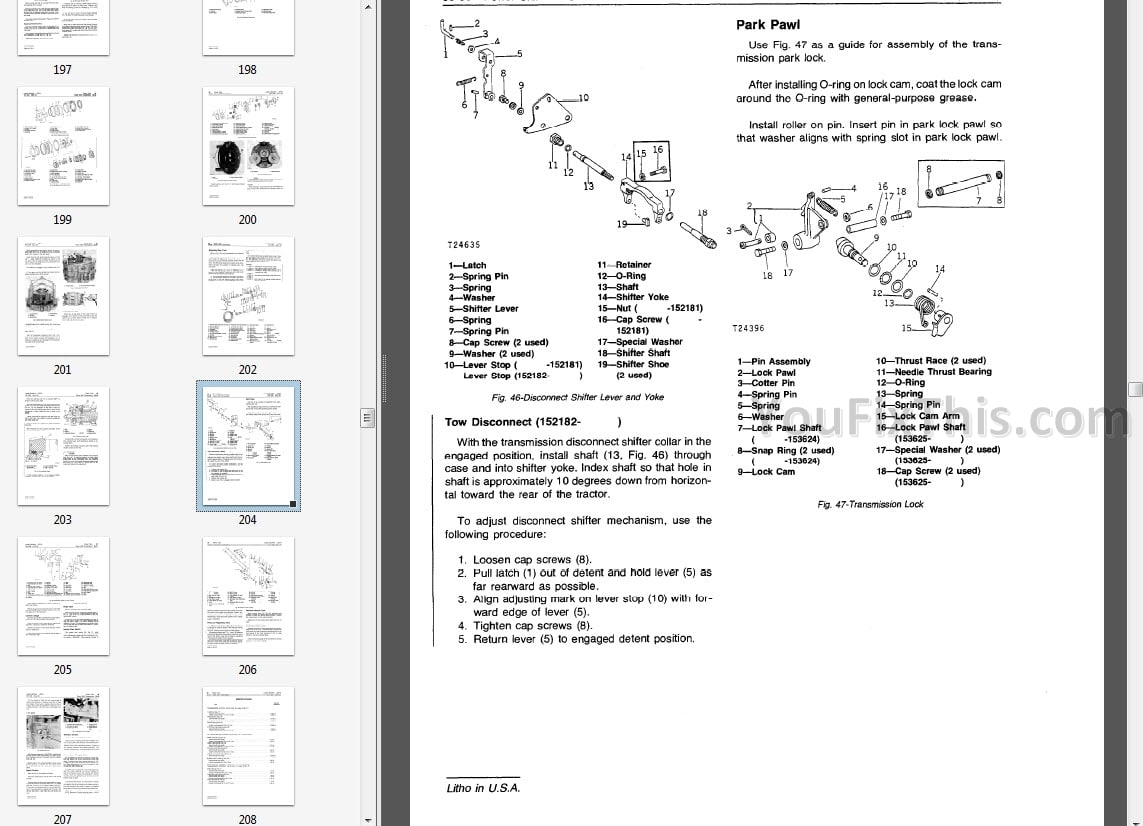

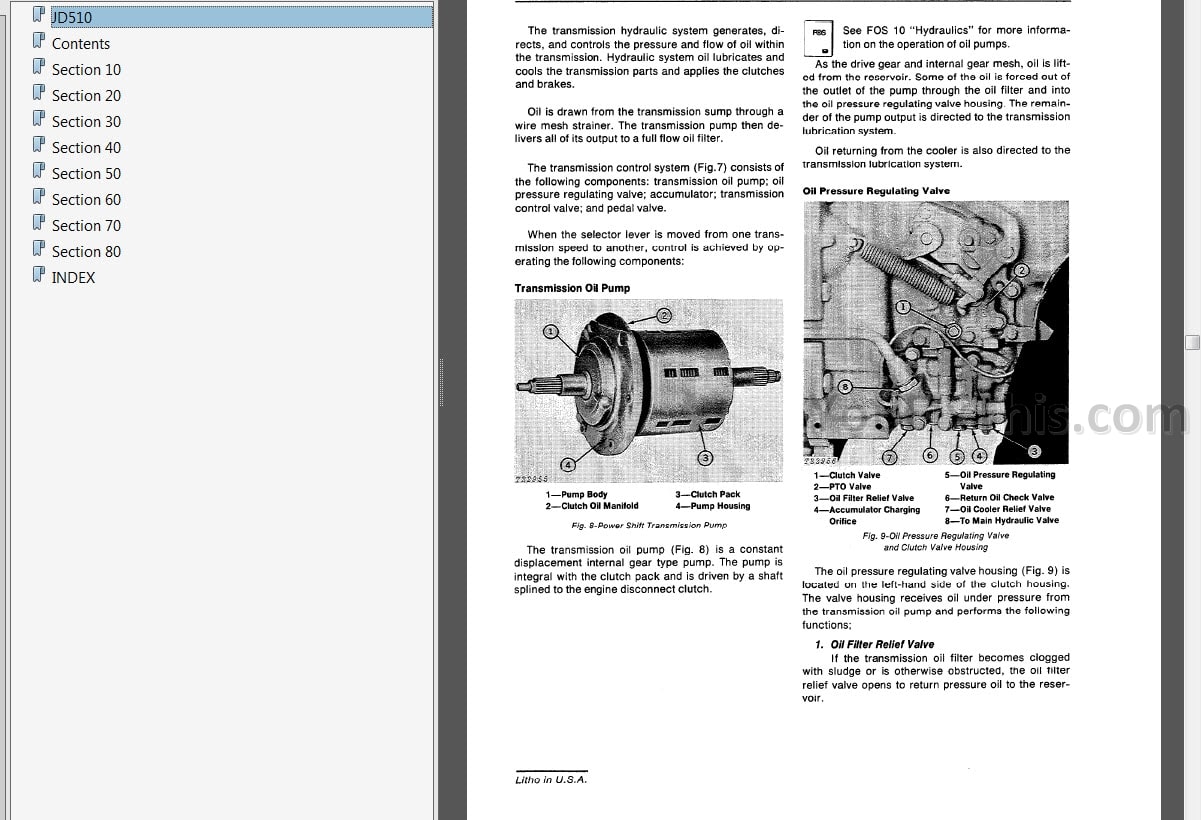

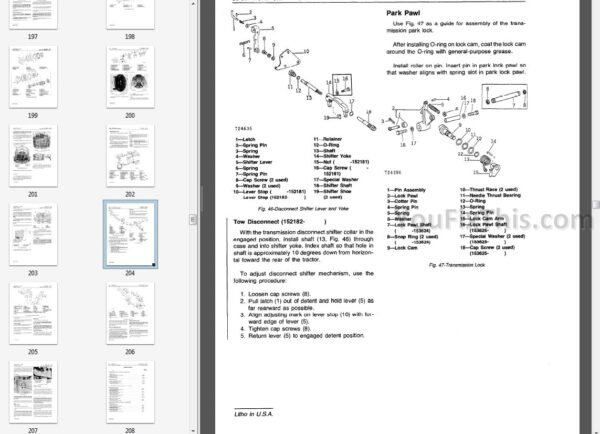

| Power Train | 156-246 | Power Train Diagnosis, Engine Disconnect Clutch, Power Shift Transmission, Differential, Final Drive |
| Steering and Brakes | 247-249 | General Information |

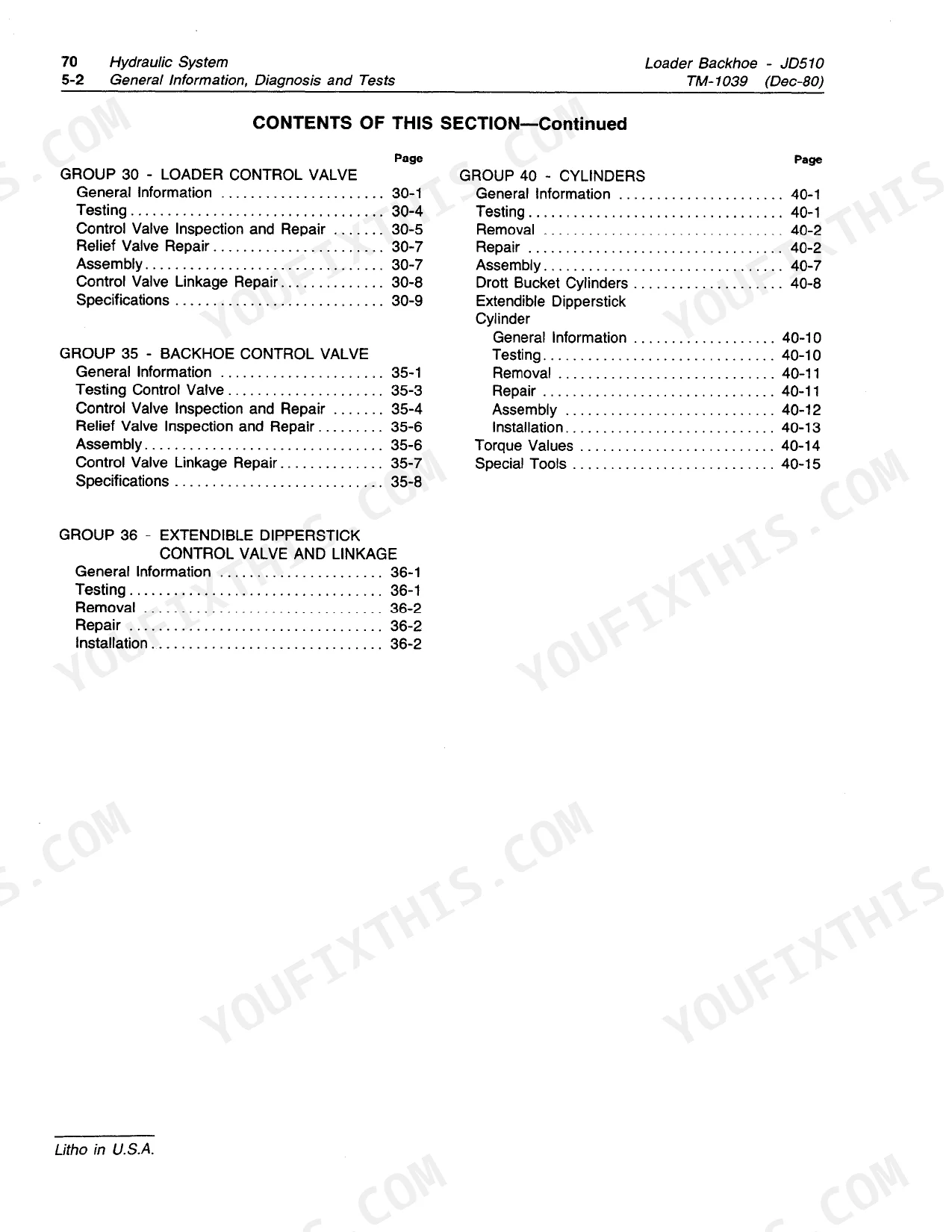

| Hydraulic System | 250-394 | Hydraulic Diagnosis, System Testing, Hydraulic Pumps, Power Steering, Cylinders |
| Miscellaneous | 395-399 | Front Axle, Pivot Bracket, Removal, Installation, Specifications |
| Index | 400 | Alphabetical Listing, Page References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic System General Information, Diagnosis, and Tests | Group 5 | p. 3 |
| Hydraulic System System Testing (Analyzer) | Group 6 | p. 3 |
| Hydraulic System Hydraulic Components | Group 10 | p. 3 |
| Hydraulic System Backhoe Control Valve | Group 35 | p. 3 |
| Bushing (153065-) press in cover | flush to 0.02 inch below | p. 200 |
| Bushing (-153064) press in cover | 0.06 inch plus or minus 0.02 inch | p. 200 |
| Differential drive and bevel pinion bearing rolling drag torque | 17 to 27 in-lbs | p. 203 |
| Lock nut (43, Fig. 43) torque | 400 ft-lbs | p. 203 |
| Oil pressure (lock engaged) (-161722) | 420 to 480 psi. | p. 228 |
| Oil pressure (lock engaged) (161723-) | 510 to 560 psi. | p. 228 |

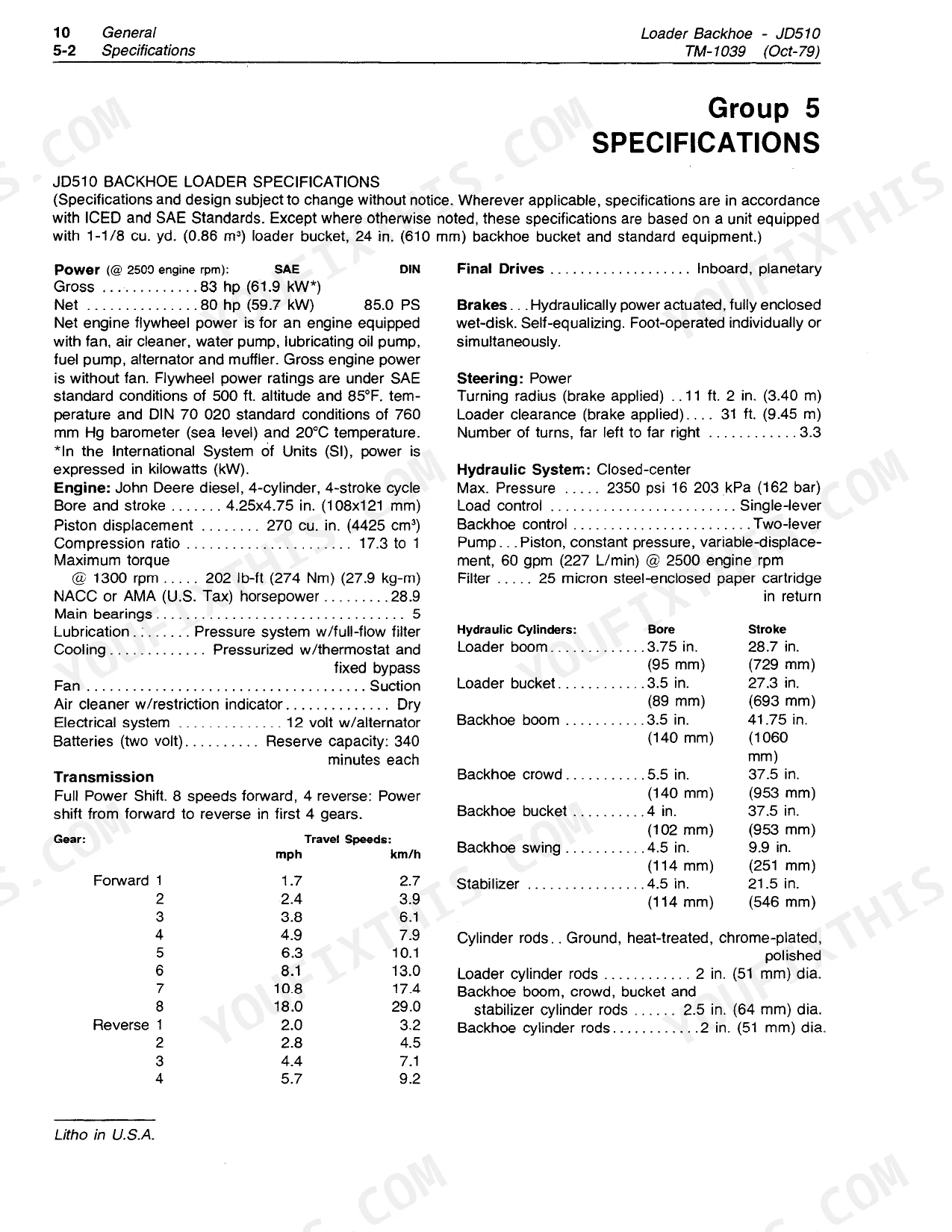

| Engine Net Power | 80 hp (59.7 kW) | p. 8 |
| Engine Piston Displacement | 270 cu. in. (4425 cm3) | p. 8 |
John Deere JD510 Common Problems This Manual Covers
No power to dig, hydraulics feel intermittently weak and jerky under heavy digging load
Check the transmission lock oil pressure on page 228; it should read 420 to 480 psi on early units or 510 to 560 psi on later units, depending on serial number break 161723. Low or fluctuating pressure points to a clogged filter or worn pump. Clean the inlet screen and retest before replacing components.
Manual Section: Power Train Diagnosis p. 228Hydraulic cylinder ram seals leak oil around the rod under heavy load conditions
Remove the cylinder and inspect the rod and piston seals along with the dirt seals for cuts, hardening, or extrusion damage. Pressure test the circuit against the system maximum of 2350 psi (162 bar) noted on page 8 to confirm the cylinder holds under full load. Replace both the ram seals and wiper seals as a set.
Manual Section: Hydraulic System Diagnosis & Tests p. 8Extenda-hoe slide rails have excessive slop and feel galled from lack of greasing
Check the greasing interval on the maintenance schedule on page 20; extenda-hoe slide rails need frequent lubrication to prevent metal-to-metal galling. Clean the slide surfaces of old grease and debris, inspect for scoring or high spots, and dress lightly galled areas with a fine stone. Replace slide pads if wear exceeds serviceable limits.
Manual Section: General p. 20Frequently Asked Questions
How to reset hydraulic pressure on John Deere JD510 backhoe?
Hydraulic pressure can be adjusted by adding or subtracting shims in the pressure control valve. For instance, the pressure control valve operating pressure is specified as 1850 to 1950 psi at 800 rpm. Refer to page 70-10-4 for detailed adjustment procedures. p. 320
How do you fix john Deere JD510 transmission slips in low forward gears, delayed engagement after warm-up?
Test the assembled clutch pack with shop air per page 201: apply 50 to 80 psi at each piston housing inlet passage and check for leaking seals. Verify the piston return spring load on page 228, it should take 50 to 60 lbs to compress the spring to 0.520 to 0.540 in. Replace any worn clutch pack components found. p. 201
How do you fix transmission kicks out of gear unexpectedly when running in the higher powershift gears?
Inspect the transmission reduction idler gear shaft nut torque on page 203; it should be tightened to 180 ft-lbs then to the nearest castellation with a cotter pin installed. Check the reduction gear shaft bearing preload, set to 0.00 to 0.002 in by adding or removing shims. Loose torque lets gears slip out under load. p. 203
How do you fix loader bucket or backhoe boom drifts down slowly from a raised position overnight?
Check the hydraulic lift circuit for loose fittings or internal cylinder leakage. Verify system pressure against the maximum spec on page 8 of 2350 psi (162 bar); pressure that bleeds down under load points to worn piston seals or a leaking control valve. Remove and inspect the cylinder rod seals, replacing them as needed. p. 8
How quickly can I access this John Deere JD510 manual after buying?
Immediate download of the complete 400-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this John Deere JD510 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Can I find wiring schematics in this John Deere JD510 manual?
Included. The John Deere JD510 Technical Manual provides a wiring diagram for the electrical system.
