Got a Kubota V1505-CR-TE5, D1803-CR-E5, V2403-CR-TE5, or any of the other CR-E5/TE5/TIE5 variants? This 64-page operator manual covers all fifteen engines in one document. Roughly 24 pages map out the maintenance schedules, from the 50-hour break-in through every routine check cycle, alongside daily pre-operation checklists, cold-weather starting steps, and DPF and emission-control procedures. It walks through the operator warning indicators, the Reduction Level 1 and Level 2 inducement sequences, and a troubleshooting section that catches faults before they strand you. Fill the V1505 with 6.7 L of API CJ-4 or CK-4 oil; the V3307 takes 11.2 L. Replace the oil filter at 50 hours, then every 400 hours on the V1505-CR-TE5 or every 250 hours on other models. When the engine is down, every hour counts: the bookmarked PDF lets you search any spec by keyword and jump straight to it.
What's Inside This Kubota V1505-CR-TE5 & variants Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 9-14 | Observe Safety Instructions, Wear Safe Clothing and Personal Protective Equipment (Ppe), Check Before Starting & Operating the Engine, Safe Handling of Fuel and Lubricants |
| Servicing of the Engine | 15 | - |

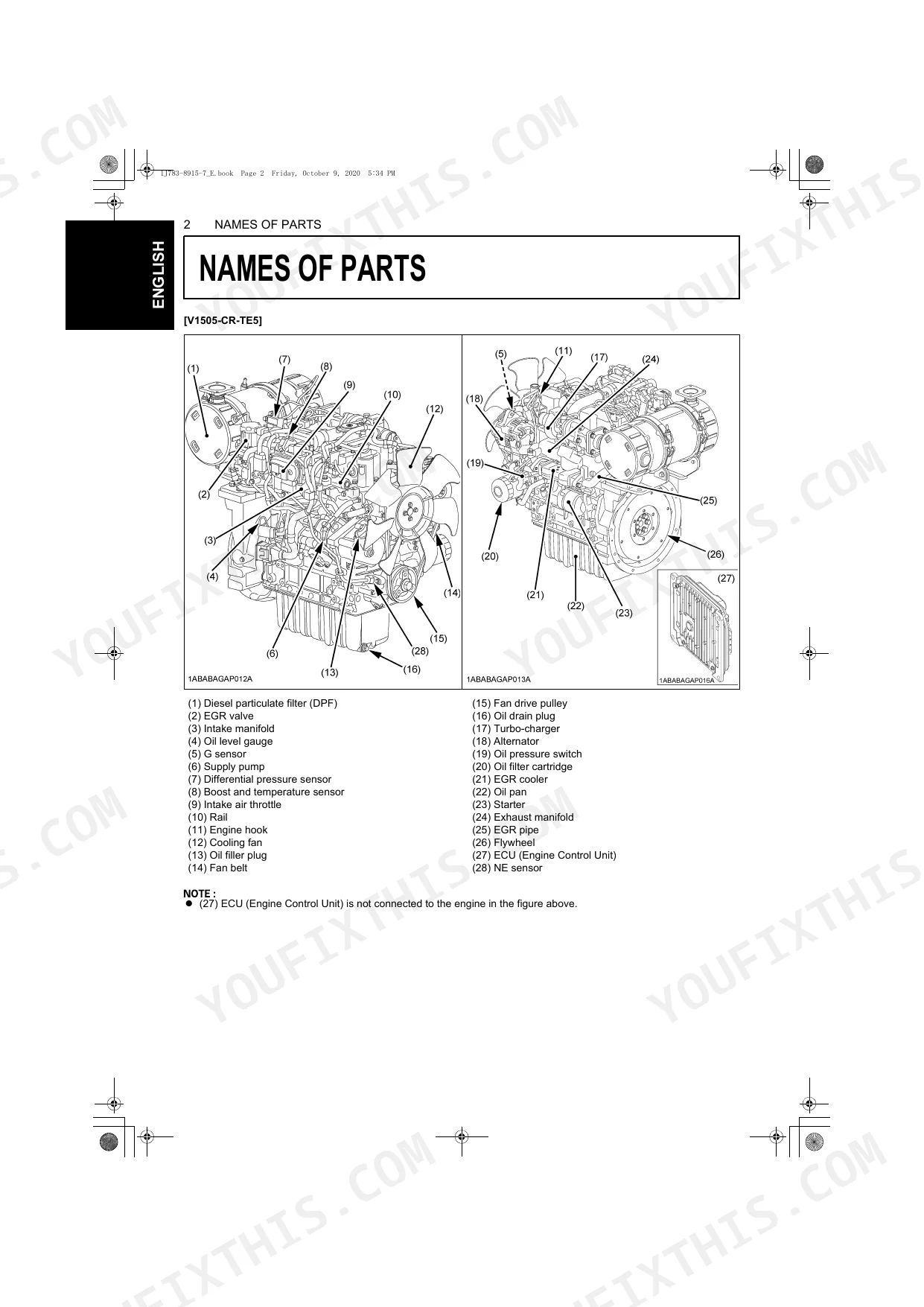

| Names of Parts | 16-21 | Diesel particulate filter (DPF), EGR valve, Intake manifold, Oil level gauge, Supply pump, Turbo-charger |
| Pre-Operation Check | 22 | Break-In, Daily Check |

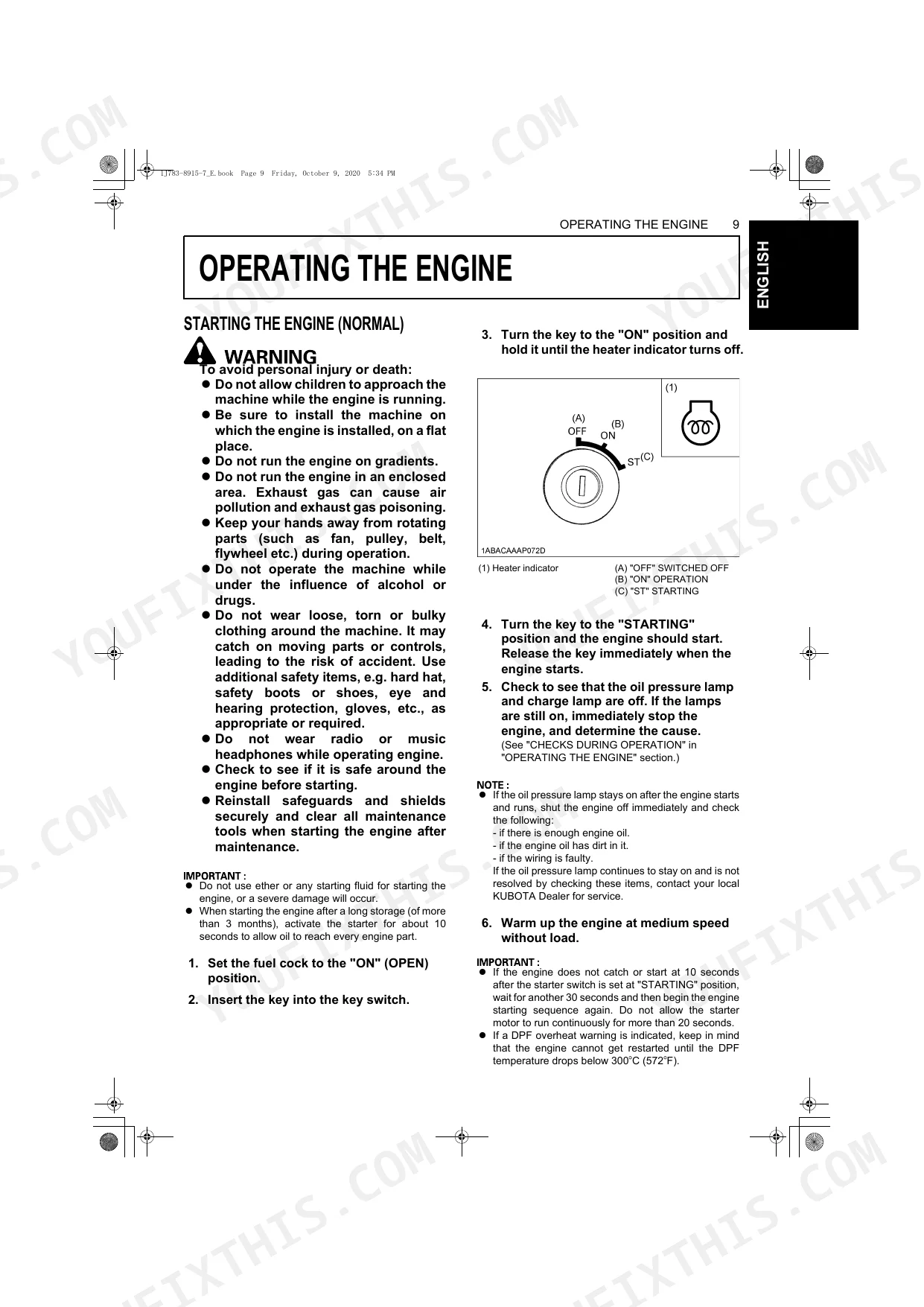

| Operating the Engine | 23-26 | Starting The Engine, Cold Weather Starting, Stopping The Engine, Checks During Operation, Diesel Particulate Filter, Air Flow Sensor, Emission Control System |
| Operator Warning and Inducement | 54-57 | Warning signal for Emission failure, Warning Indicator, Inducement for Emission failure, Reduction Level 1, Reduction Level 2, Repeat Tampering |

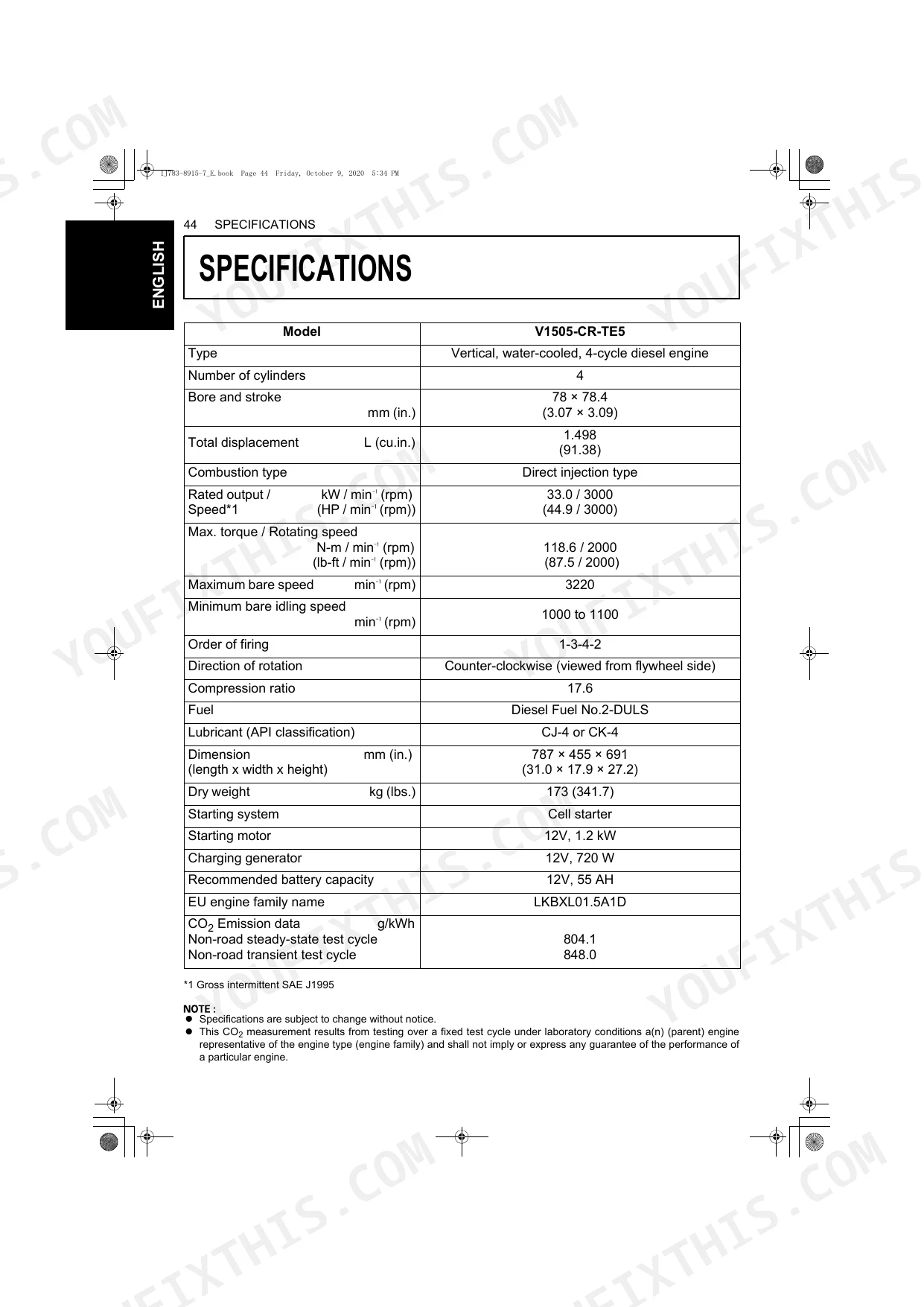

| Specifications | 58-64 | Engine type, Bore and stroke, Total displacement, Rated output / Speed, Max. torque / Rotating speed, CO2 Emission data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| V1505-CR-TE5 | ||
| Engine oil capacity | 6.7 L (1.77 U.S.gals.) | p. 34 |
| V1505-CR-TE5 Engine Oil Capacity | 6.7 L (1.77 U.S.gals.) | p. 20 |
| D1803-CR-E5, D1803-CR-TE5, D1803-CR-TIE5 | ||
| Engine oil capacity | 7.0 L (1.85 U.S.gals.) | p. 34 |
| D1803-CR-E5 Engine Oil Capacity | 7.0 L (1.85 U.S.gals.) | p. 20 |
| All Models | ||
| Engine Oil Type | API classification CJ-4 or CK-4 | p. 20 |
| Fuel Type | Diesel Fuel No.2-DULS | p. 58 |
| Oil Filter Cartridge Replacement Interval | 50 hours (initial), then every 400 hours | p. 28 |
| Fuel Filter Cartridge Replacement Interval | 500 operating hours | p. 28 |
| DPF Cleaning Interval | 3000 operating hours (without alarm system), 6000 operating hours (with alarm system) | p. 29 |
| V2403-CR-E5, V2403-CR-TE5, V2403-CR-TE5-BG, V2403-CR-TIE5 | ||
| V2403-CR-E5 Engine Oil Capacity | 9.5 L (2.51 U.S.gals.) | p. 20 |
| V2607-CR-E5, V2607-CR-TE5, V2607-CR-TIE5 | ||
| V2607-CR-E5 Engine Oil Capacity | 10.2 L (2.69 U.S.gals.) | p. 20 |
| V3307-CR-TE5, V3307-CR-TIE5 | ||
| V3307-CR-TE5 Engine Oil Capacity | 11.2 L (2.95 U.S.gals.) | p. 20 |
Kubota V1505-CR-TE5 & variants Common Problems This Manual Covers
Kubota V1505-CR-TE5 engine cranks slowly in cold weather and fails to start
Inspect the battery condition and confirm you are running API classification CJ-4 or CK-4 oil as specified on page 20. Drain the thickened oil and refill the crankcase with exactly 6.7 L (1.77 U.S.gals.) of fresh winter-weight oil before cranking again.
Manual Section: Engine No-Start IssuesDashboard emission warning indicator flashing constantly and engine is forced into a sudden stop during operation p. 54
Read the emission failure codes on page 54, then check the diesel particulate filter cleaning schedule. Clean or replace the DPF assembly if the machine has passed the 3000 operating hours (without alarm system) or 6000 operating hours (with alarm system) interval outlined on page 34.
Manual Section: Operator Warning and InducementCoolant temperature gauge spikes into the red zone and engine overheating alarm sounds
Examine the radiator and fan belt before topping up coolant. Confirm the radiator hoses and clamp bands have been replaced within the mandated 2-year interval. Clear any debris blocking the radiator fins to restore airflow across the cooling system.
Manual Section: Engine OverheatingEngine oil pressure warning lamp illuminates brightly on the meter panel during normal operation p. 22
Stop the engine immediately and turn to 'Checks During Operation' on page 25. Pull the dipstick to confirm the oil level, as detailed on page 18. Drain the crankcase and add fresh oil if you have run past the standard interval of every 250 hours of operation.
Manual Section: Pre-Operation CheckFrequently Asked Questions

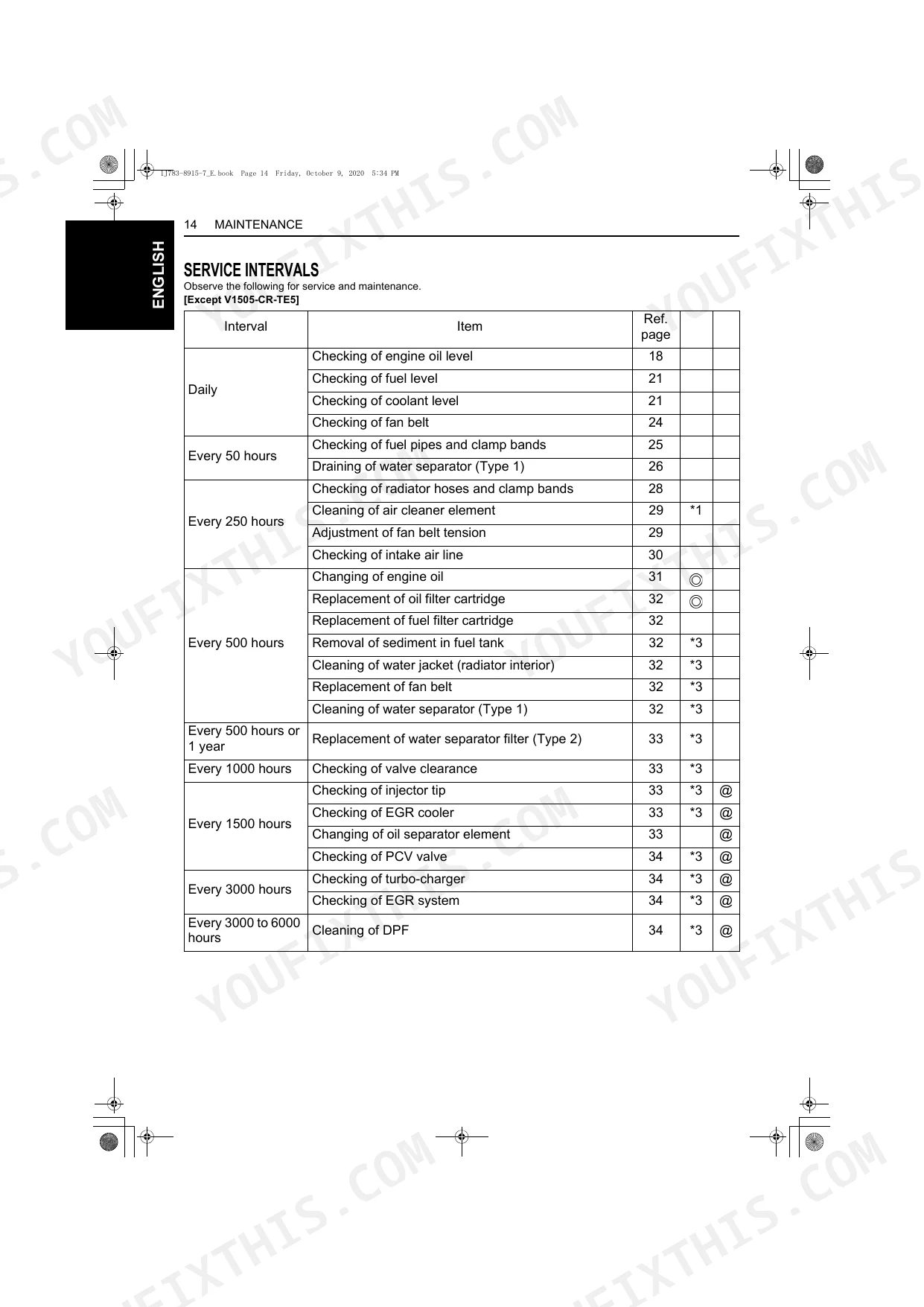

What are the recommended service intervals?
Intervals depend on the component and hours run. Daily, you check engine oil level (page 18), fuel level (page 21), and coolant level (page 21). At every 50 hours, inspect fuel pipes and clamp bands (page 25) and drain the water separator (Type 1) (page 26). Change the engine oil every 250 hours (page 28), and clean the DPF every 3000 to 6000 operating hours (page 34).
What fluids and capacities does this machine require?
Use API classification CJ-4 or CK-4 engine oil. The V1505-CR-TE5, for example, holds 6.7 L (1.77 U.S.gals.). Fuel should be Diesel Fuel No.2-DULS with a minimum Cetane Rating of 45. Coolant is a 50/50 mix of ethylene glycol (EG) type long-life coolant and clean soft water, and the V1505-CR-TE5 takes 5.0 L (1.32 U.S.gals.).

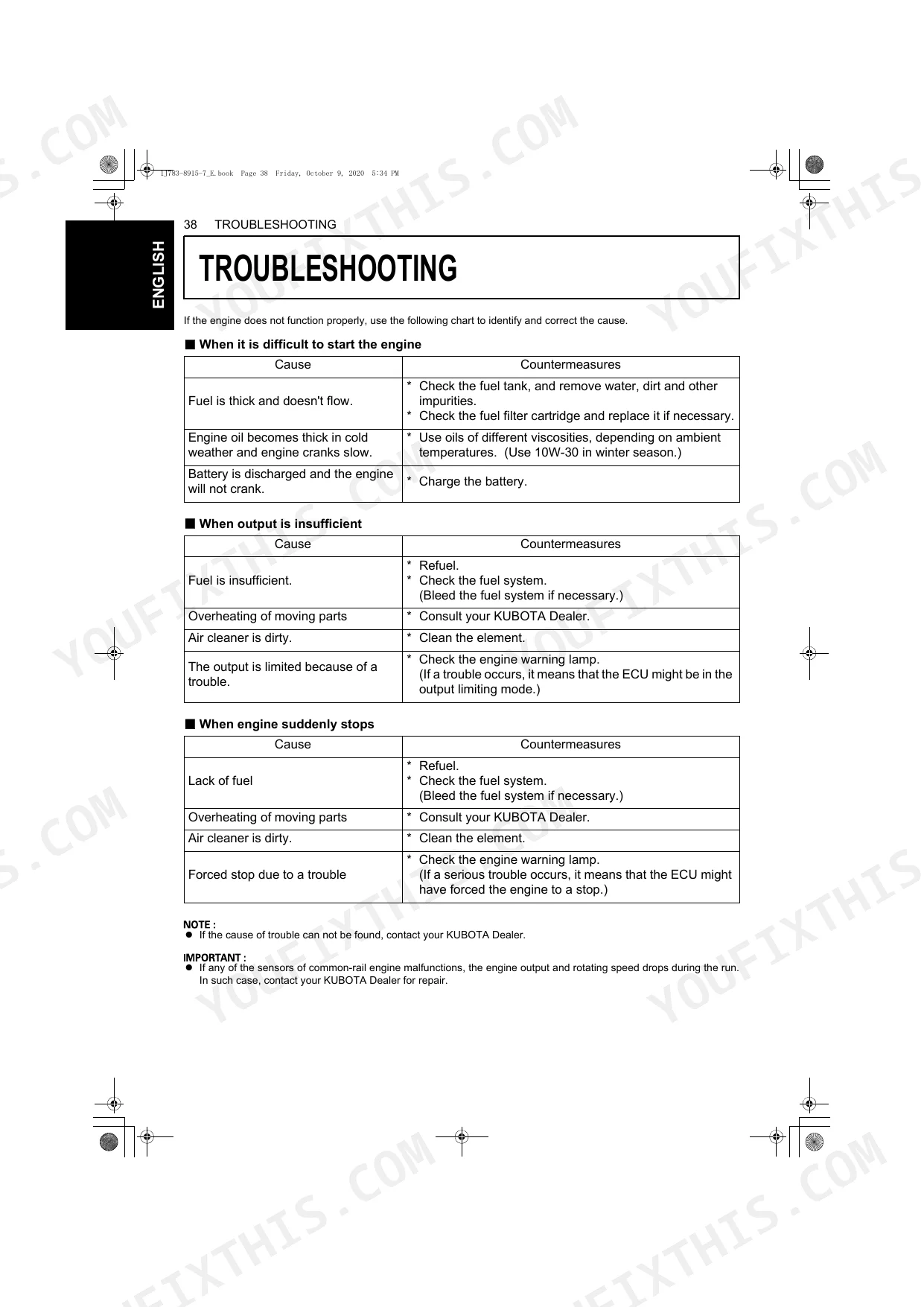

How to troubleshoot engine won't start?
When starting is hard, check the fuel tank for water and dirt, and swap the fuel filter cartridge if the fuel is thick and won't flow. Thick oil in cold weather causes slow cranking, so switch to a suitable viscosity such as 10W-30 in winter. A discharged battery that won't turn the engine over simply needs charging.
What torque specifications are listed?
Fan belt deflection should measure 7 to 9 mm (0.28 to 0.35 in.) on D1803/V2403 models under a 10 kgf (22.1 lbs) load, and 10 to 12 mm (0.39 to 0.47 in.) on V2607/V3307 models. Screw the oil and fuel filter cartridges in by hand until the gasket meets the seal surface, then snug them by hand, no wrench needed.
How to reset error codes or warning lights?
There is no user-operable reset. Warning and Inducement reduction cancel on their own once the fault location is repaired. When an emission failure is detected, the Warning Lamp flashes, so check and fix the fault right away; clearing the underlying issue clears the warning.
What do I get after purchasing this Kubota V1505-CR-TE5 & variants manual?
Immediate download of the complete 64-page searchable Operator Manual. Open it on any device, whether that's a laptop at your desk or a phone in the field.
Am I able to print pages from this Kubota V1505-CR-TE5 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
