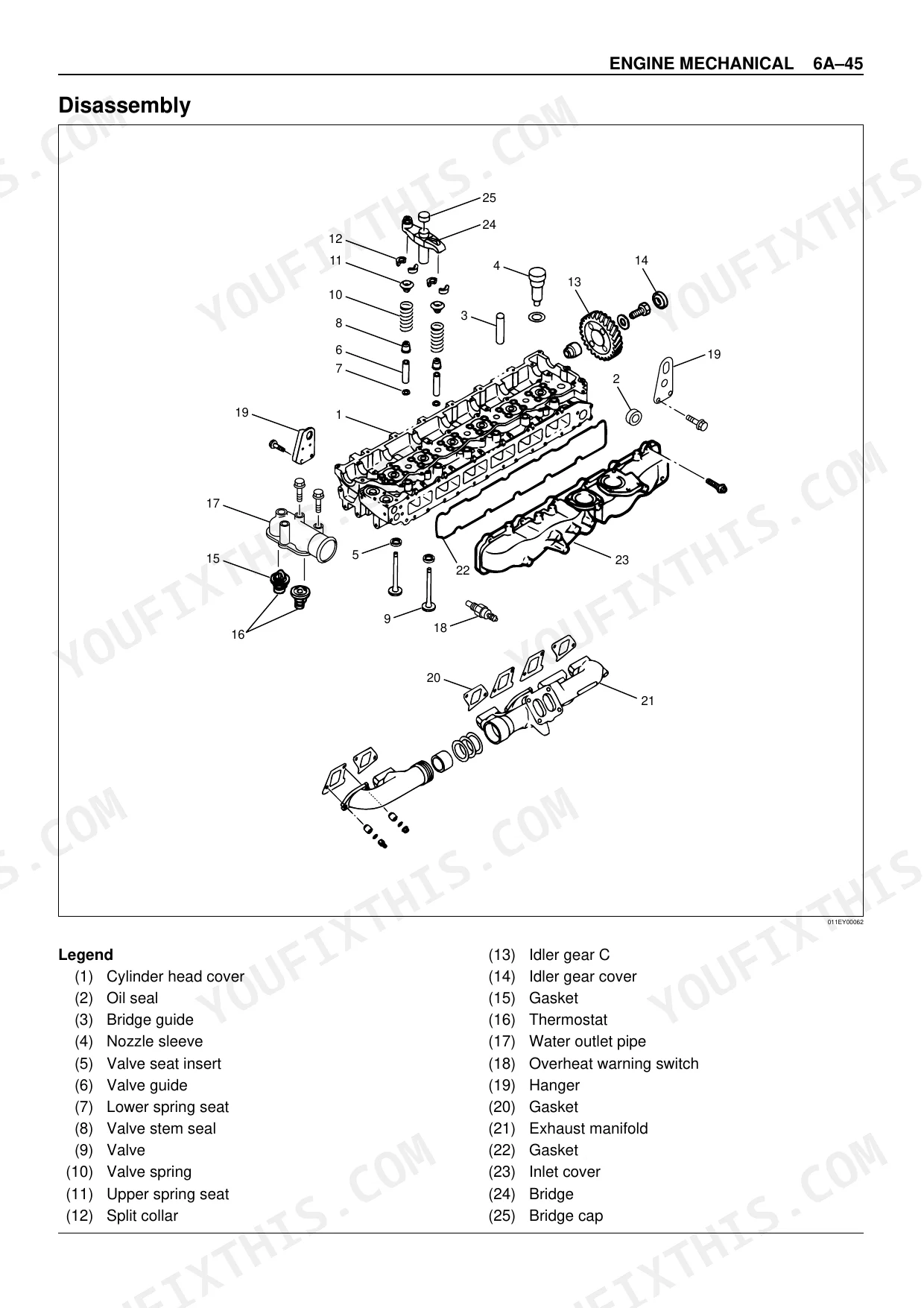

Working on a 2000 Isuzu AA-6HK1T or BB-6HK1T? This 241-page workshop manual (OEM #9806-2200) covers the full 7.790 L, 17.3:1 compression ratio diesel, from turbocharger teardown to injection pump timing and alternator rebuild. Step-by-step procedures walk you through fault isolation on fuel delivery, cooling, lubrication, and induction systems. Thirty exploded-view diagrams show exact part orientation and assembly order, and dedicated torque tables list every critical fastener value. Nozzle opening pressure specs call for 18.1 MPa (2630 psi) first stage; pre-lift should measure 0.05 mm before reinstalling. Troubleshooting charts cover hard starting, power loss, overheating, and black smoke conditions. The bookmarked, searchable PDF opens on any device, so pull it up on your phone right at the workbench.
What's Inside This Isuzu AA-6HK1T, BB-6HK1T Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 5-50 | General Repair Instruction, Illustration Arrows and Abbreviations, Fastener and Torque Specifications, Main Data and Specifications |
| Water Pump | 51-62 | Exhaust Manifold, Engine Mechanical Contents, Turbocharger, Intake Cover |
| Oil Cooler | 63-72 | Injection Pump, Alternator, Bearing Case |
| Cylinder Head | 73-111 | Rocker Arm and Shaft Assembly, Camshaft, Inspection and Repair |
| Timing Gears | 112-120 | Crank Pulley and Flywheel |
| Front Cover | 121-131 | Flywheel Housing, Oil Pan |
| Piston | 132-143 | Inspection and Repair |
| Crankshaft | 144-155 | Inspection and Repair |
| Cylinder Block | 156-164 | Inspection and Repair |
| Engine Cooling | 165-174 | Service Precaution, General Description, Thermostat, Water Pump |
| Engine Fuel | 175-194 | Service Precaution, General Description, Fuel Filter, Injection Nozzle Holder |
| Starting and Charging | 195-216 | Alternator General Description, Alternator Disassembly, Alternator Inspections and Repair, Alternator Reassembly and Testing |
| Engine Lubrication | 217-232 | General Description, Oil Pump, Oil Cooler, Oil Port Cover |
| Engine Induction | 233-241 | Service Precaution, General Description, Identification, Troubleshooting |

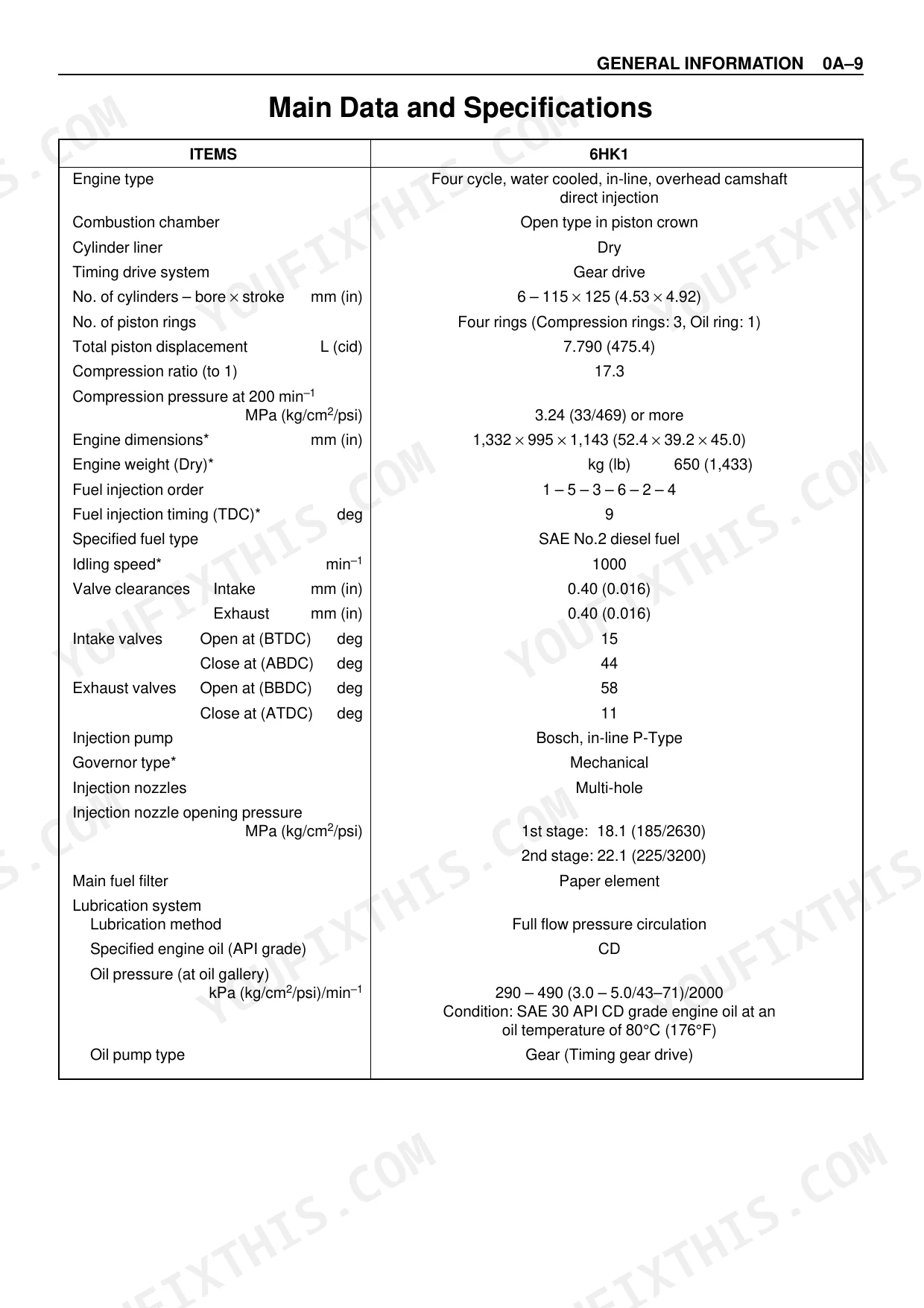

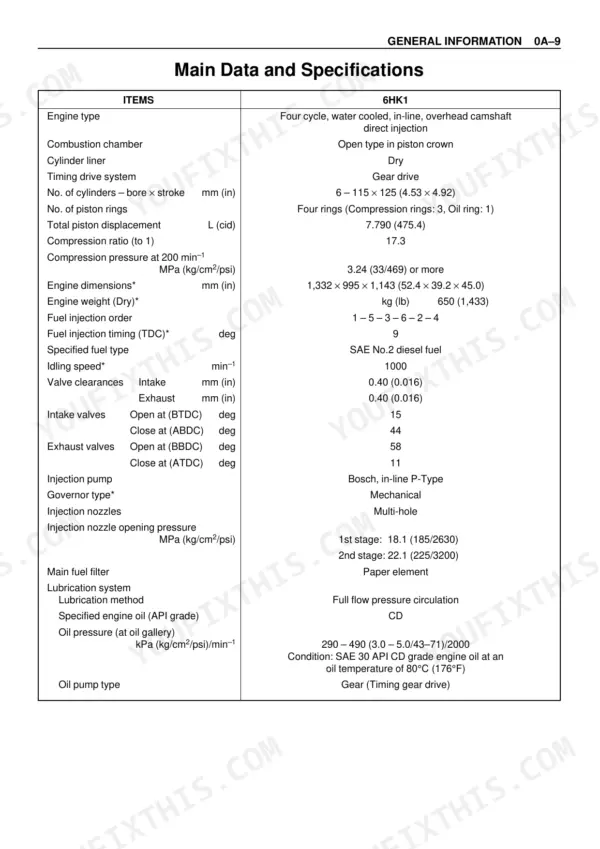

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Turbocharger assembly to exhaust manifold nut torque | 52 N·m (5.3 kgm/38 lbft) | p. 54 |
| Injection nozzle opening pressure (1st stage) | 18.1 MPa (185 kg/cm² / 2630 psi) | p. 44 |
| Injection nozzle opening pressure (2nd stage) | 22.1 MPa (225 kg/cm² / 3200 psi) | p. 44 |
| Injection pump fixing bolt torque | 44 N·m (4.5 kgm/33 lbft) | p. 66 |
| Injection pump timing advancer coupling bolt torque | 88 N·m (9.0 kgm/65 lbft) | p. 66 |
| Thermostat initial opening temperature | 82°C (180°F) | p. 168 |
| Thermostat full open temperature | 95°C (203°F) | p. 168 |
| Water pump to front plate nut torque | 39 N·m (4.0 kgm/29 lbft) | p. 61 |
| Water pump to front plate bolt torque | 20 N·m (2.0 kgm/14 lbft) | p. 61 |
| Turbocharger rotor shaft axial play (Standard) | 0.06 – 0.09 mm (0.0024 – 0.0035 in) | p. 238 |
| Turbocharger rotor shaft radial play (Standard) | 0.10 – 0.17 mm (0.0039 – 0.0067 in) | p. 238 |
| Rear oil seal slinger installation depth | 16.7 - 17.3mm (0.657 - 0.681 in) | p. 124 |
Isuzu AA-6HK1T, BB-6HK1T Common Problems This Manual Covers
Engine running hot, temperature gauge climbing past normal range under sustained load p. 33
Inspect the thermostat for proper operation; it should begin opening at 82°C (180°F) and reach full open at 95°C (203°F) per the specs on page 168. Drain and flush the cooling system, then refill with 14.5 L of coolant as noted on page 14. Check the water pump for shaft play; impeller interference should measure 0.022 to 0.062 mm (page 171). Clean debris from radiator fins and verify fan belt tension.
Manual Section: Engine CoolingEngine turns over but won't start, no combustion after extended cranking p. 29

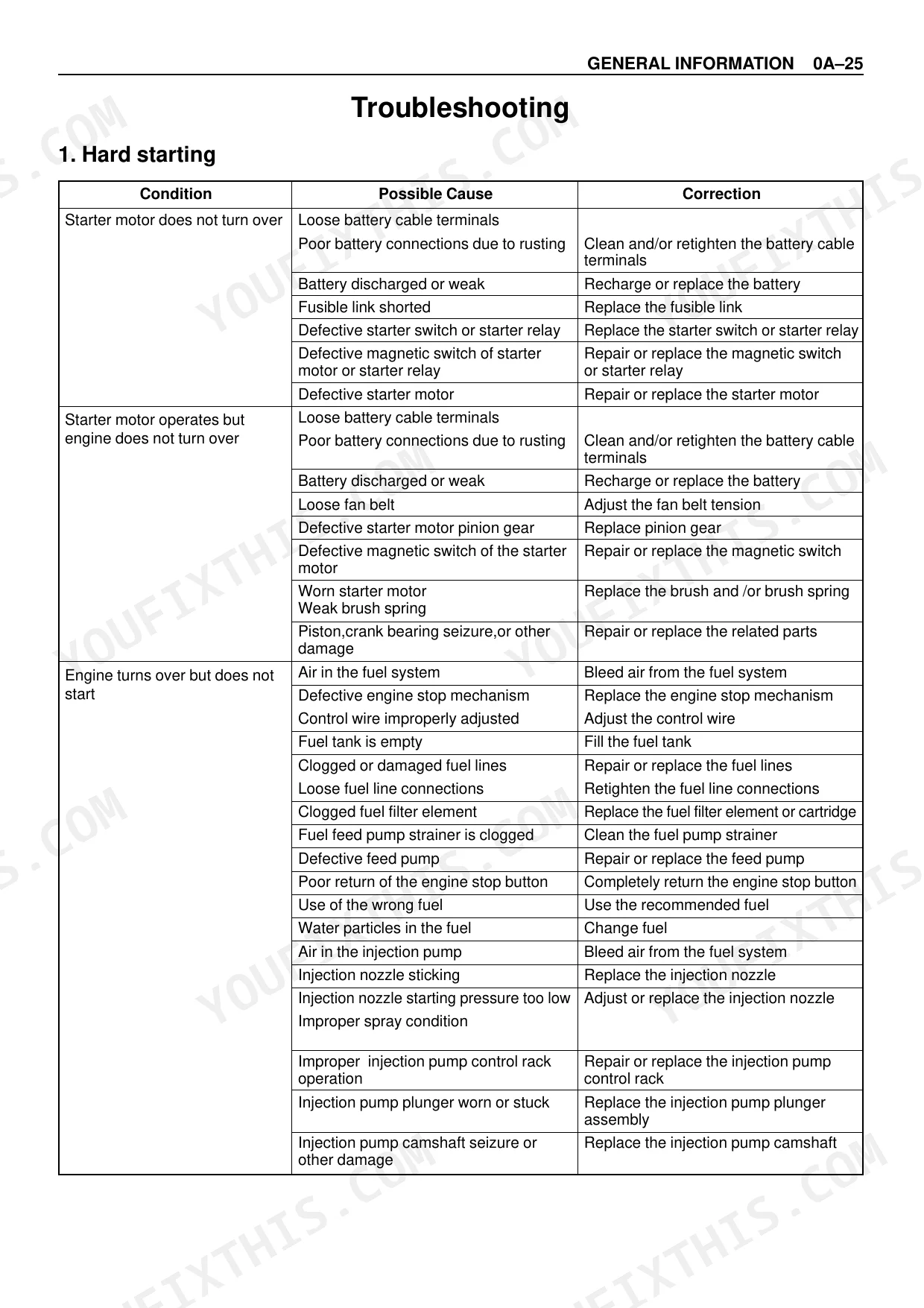

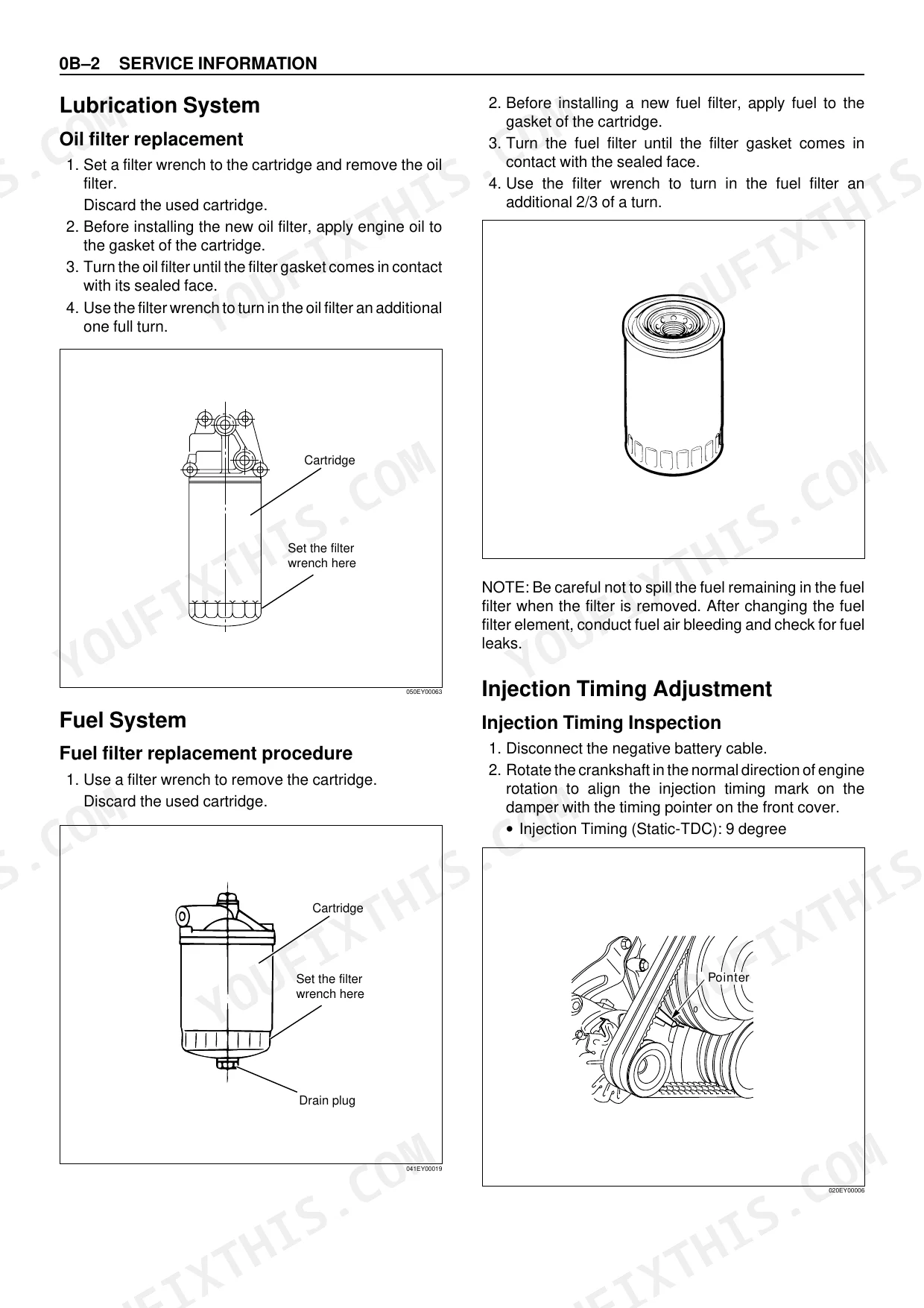

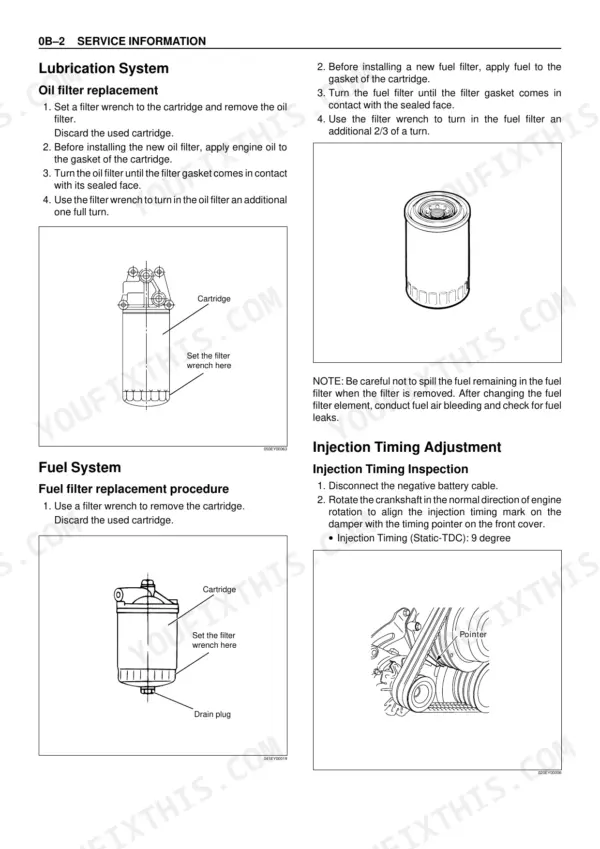

Follow the hard-start troubleshooting chart on page 29. Bleed the fuel system at each connection from tank to injection pump and confirm fuel reaches the injectors. Test nozzle opening pressure with a pop tester; first stage should read 18.1 MPa (2630 psi) per page 44. Verify injection pump timing is set at 9° static. Replace the fuel filter and clean the line strainer if contaminated.
Manual Section: General InformationLack of power under load, engine bogs down and misfires at higher RPM p. 31
Pull each injection nozzle and bench-test on a calibration stand; opening pressure must hit 18.1 MPa (2630 psi) first stage and 22.1 MPa (3200 psi) second stage per page 44. Confirm nozzle pre-lift measures 0.05 mm (page 187). Replace clogged fuel filters, clean the fuel strainer screen, and bleed all air from the system. Torque nozzle retaining nuts to 59 to 79 N·m per page 189.
Manual Section: Engine FuelBlack exhaust smoke at idle and under acceleration, poor fuel economy p. 33
Start with the air filter element and replace if restricted. Measure turbocharger rotor shaft axial play (spec: 0.06 to 0.09 mm) and radial play (0.10 to 0.17 mm) per page 238. Confirm turbo mounting nuts are torqued to 52 N·m (page 54). Test each injector for spray pattern quality; a dribbling nozzle will dump raw fuel. Clean or replace the intercooler if boost pressure is low.
Manual Section: Engine InductionTurbocharger whining noise, reduced boost pressure, oil in intake piping p. 38
Disconnect intake and exhaust connections at the turbo housing and inspect compressor and turbine wheels for blade contact or erosion. Measure rotor shaft axial play (standard: 0.06 to 0.09 mm) and radial play (0.10 to 0.17 mm) per page 238. If either reading is out of spec, rebuild or replace the cartridge. Verify oil supply and drain lines are clear. Torque turbo mounting nuts to 52 N·m (page 54) on reassembly.
Manual Section: Engine MechanicalOil pressure warning light on at idle, pressure drops when engine warms up p. 34

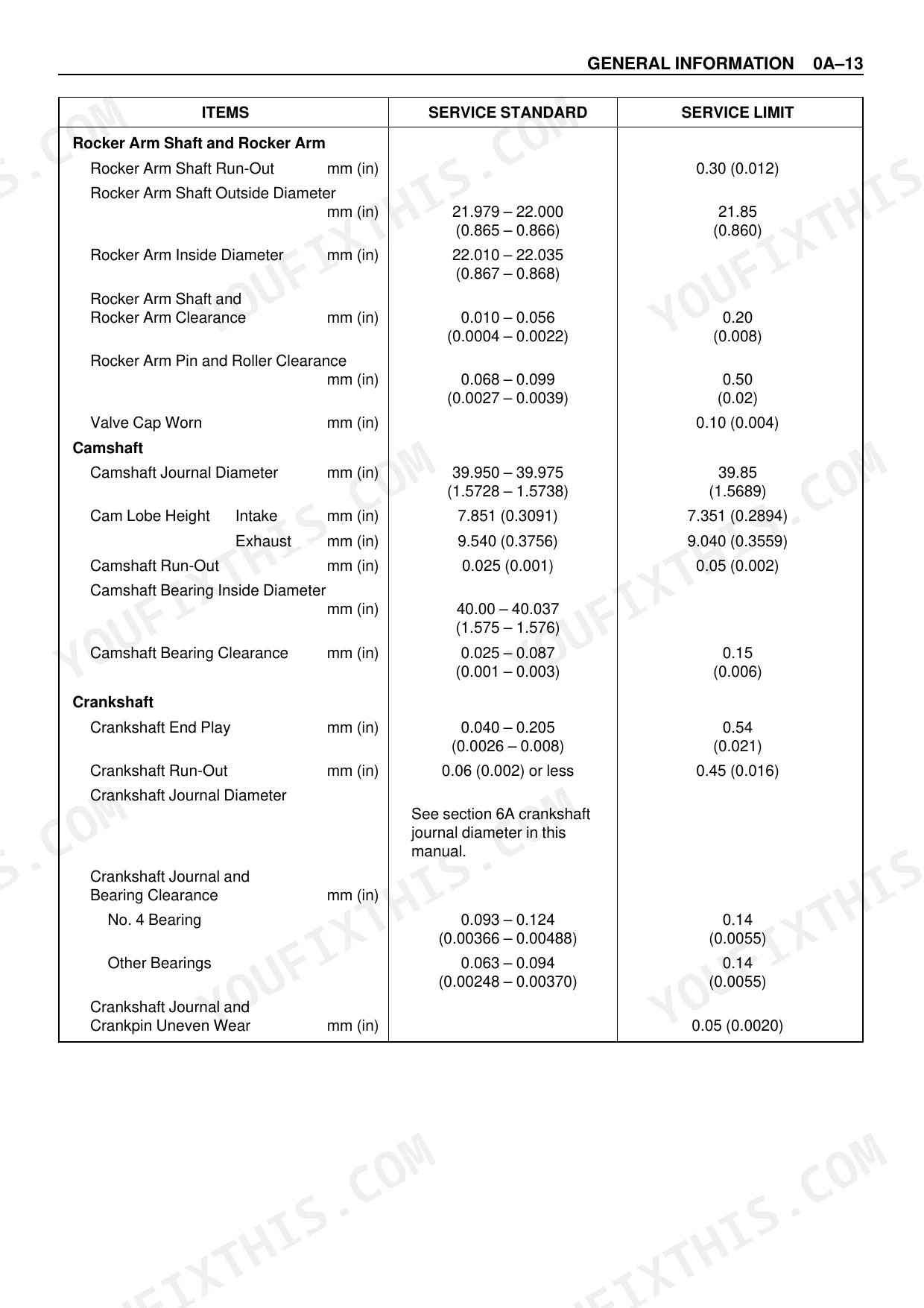

Confirm oil level and viscosity match operating conditions in the lubrication section starting on page 217. Swap the oil filter and inspect for metal debris, which signals bearing wear. Check the oil pump for gear wear and housing scoring. Compare main and rod bearing clearances against specs on page 17. If pressure stays low after a fresh oil and filter change, the pump or bearings likely need replacement.
Manual Section: Engine LubricationFrequently Asked Questions

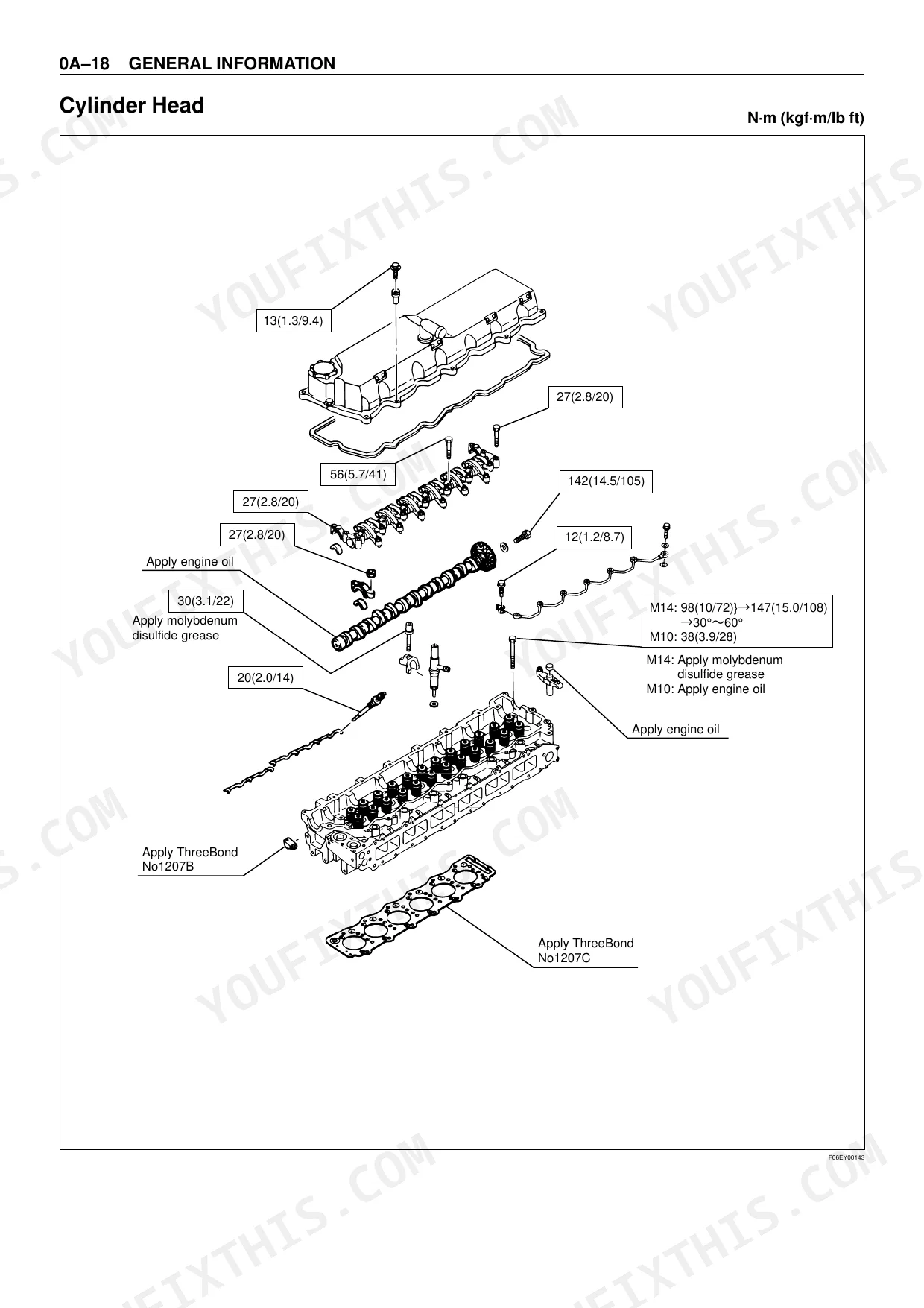

What are the torque specifications for the cylinder head bolts on an Isuzu 6HK1T engine?

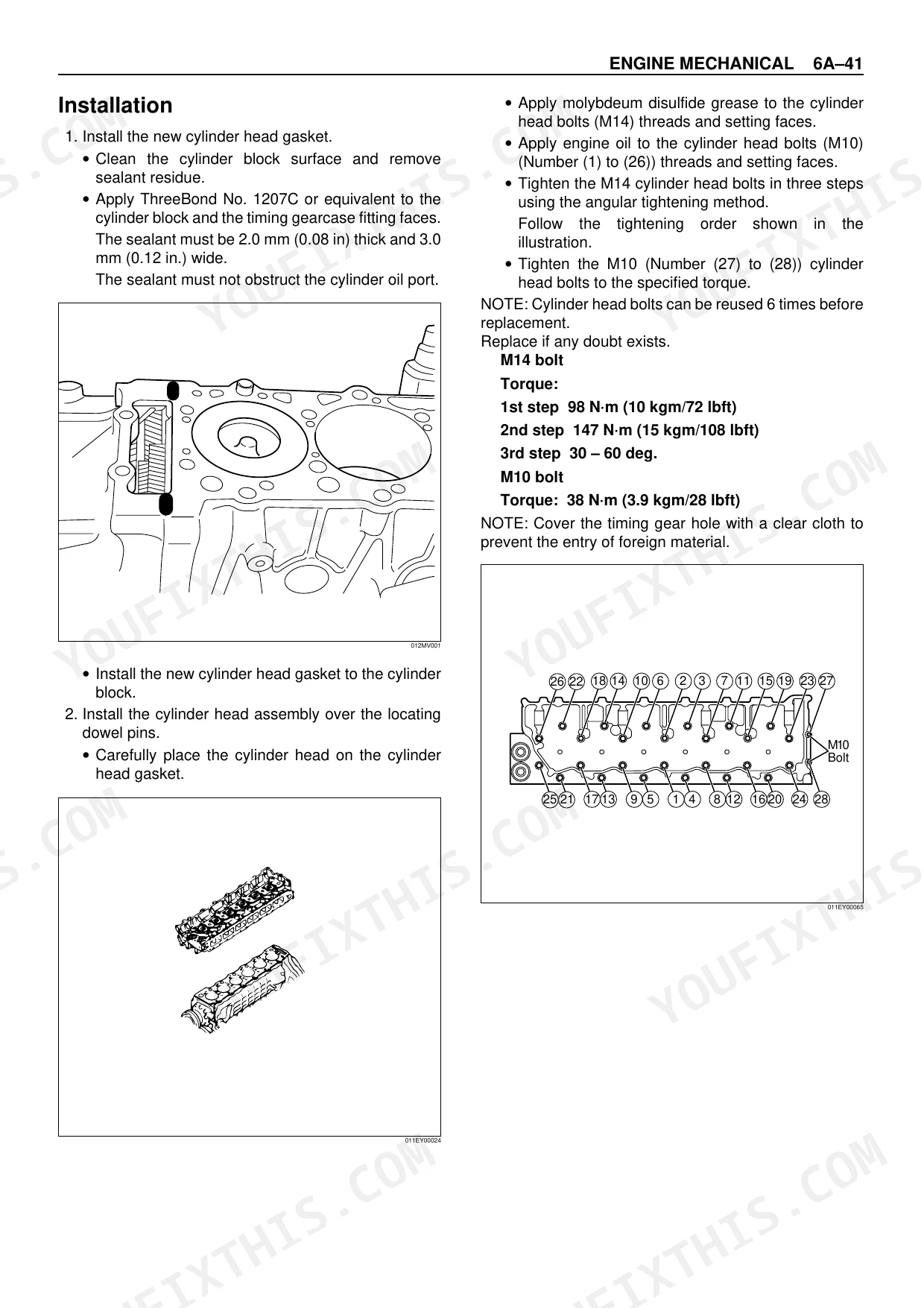

M14 cylinder head bolts require a three-step angular sequence: first to 98 N·m (72 lb-ft), then 147 N·m (108 lb-ft), followed by an additional 30-60 degrees of rotation. M10 cylinder head bolts get a single-step torque of 38 N·m (28 lb-ft).
What is the torque specification for installing the turbocharger on an Isuzu BB-6HK1T engine?
Mount the turbocharger assembly with a new gasket to the exhaust manifold. Tighten the mounting nuts to 52 N·m (5.3 kgm / 38 lb-ft).
What are the fuel injector opening pressure specifications for the 6HK1T engine?
Nozzle opening pressure is specified in two stages. First stage: 18.1 MPa (185 kg/cm² / 2630 psi). Second stage: 22.1 MPa (225 kg/cm² / 3200 psi). Nozzles reading outside these values need adjustment or replacement.
What are the test specifications for the fuel injection pump on a 6HK1T engine?
On a bench test, transfer pump pressure should read 255 kPa. The overflow valve opening pressure is also 255 kPa (2.6 kg/cm² / 37.0 psi).
How quickly can I access this manual after buying?
It's a 241-page searchable PDF, available for download immediately after checkout. Works on laptops, tablets, and phones, so you can reference it right on the shop floor.
Can I print this manual?
No restrictions. Print single pages, full chapters, or the whole manual. The PDF is completely unlocked.
