Part of the Isuzu 6HK1 engine documentation.
This is the Isuzu Service Manual for the 4HK1 and 6HK1 industrial diesel engines, a 907-page PDF you can download and keep on any device. These common rail engines power a wide range of construction and industrial machines, and the manual carries them from engine mechanical work all the way through the electronic engine control system.Inside you get the full engine mechanical section covering the cylinder head, pistons and connecting rods, crankshaft, and timing gear train, plus dedicated cooling, fuel, electrical, exhaust and turbocharger, and engine control chapters. It includes torque specifications, clearances, compression figures, and the diagnostic trouble code and scan tool procedures with wiring diagrams.For owners, fleet mechanics, and rebuilders working on 4HK1 or 6HK1 engines, it provides the factory specifications and step by step procedures needed for accurate diagnosis, repair, and overhaul.
What's Inside This Isuzu 4HK1, 6HK1 Manual
| System | Pages | Key Topics |
|---|---|---|

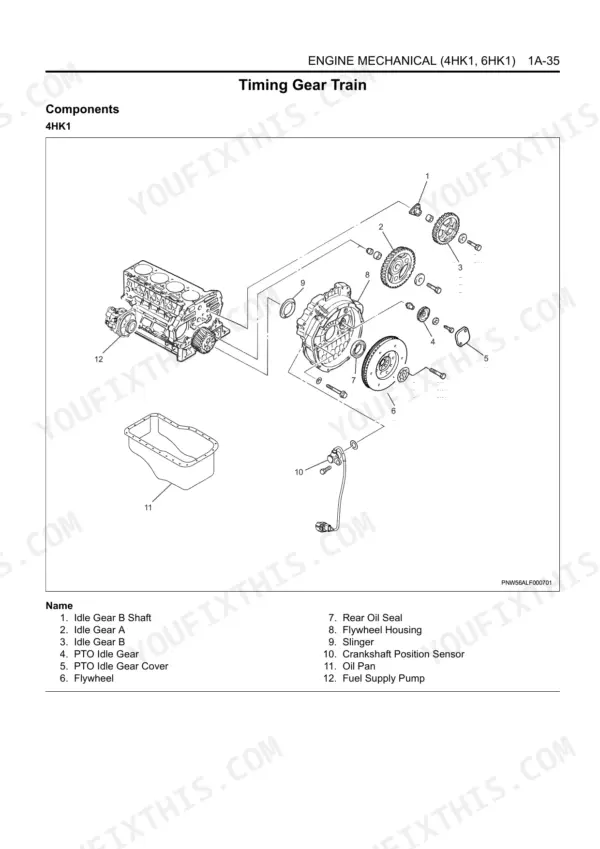

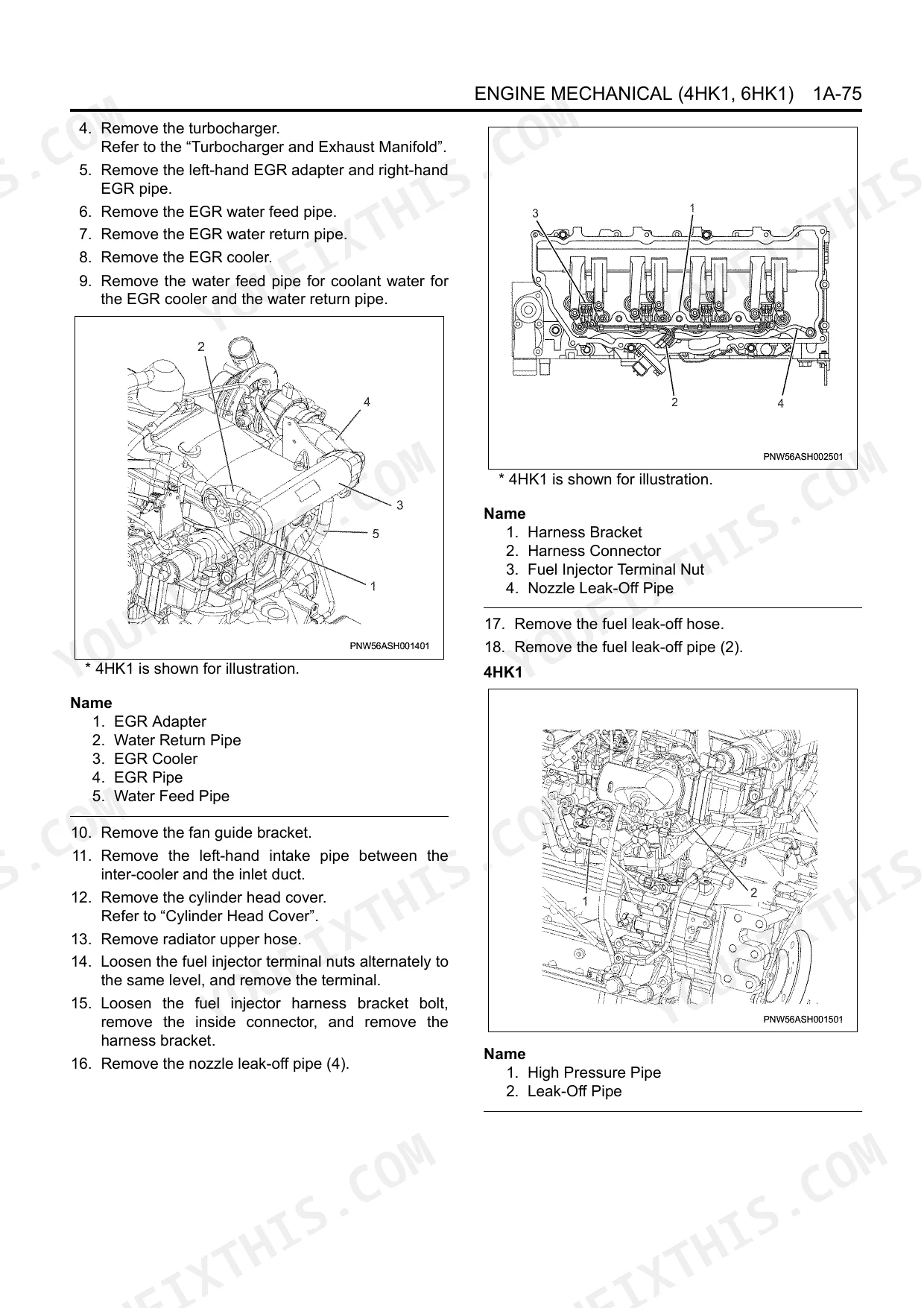

| Engine Mechanical | 1-178 | Cylinder Head, Piston & Connecting Rod, Crankshaft, Timing Gear Train |
| Cooling System | 27-52 | Water Pump, Thermostat, Drive Belt, Coolant |
| Fuel System | 53-76 | Common Rail, Fuel Injector, Fuel Supply Pump, Fuel Filter |
| Engine Electrical | 807-870 | Charging System, Starting System, Generator, Preheating System |
| Exhaust System and Turbocharger | 871-894 | EGR System, Turbocharger, Exhaust Manifold, Disassembly and Inspection |
| Engine Control | 877-907 | Diagnostic Trouble Codes (Dtc), Scan Tool Usage, Wiring Diagrams, Sensor Checks |

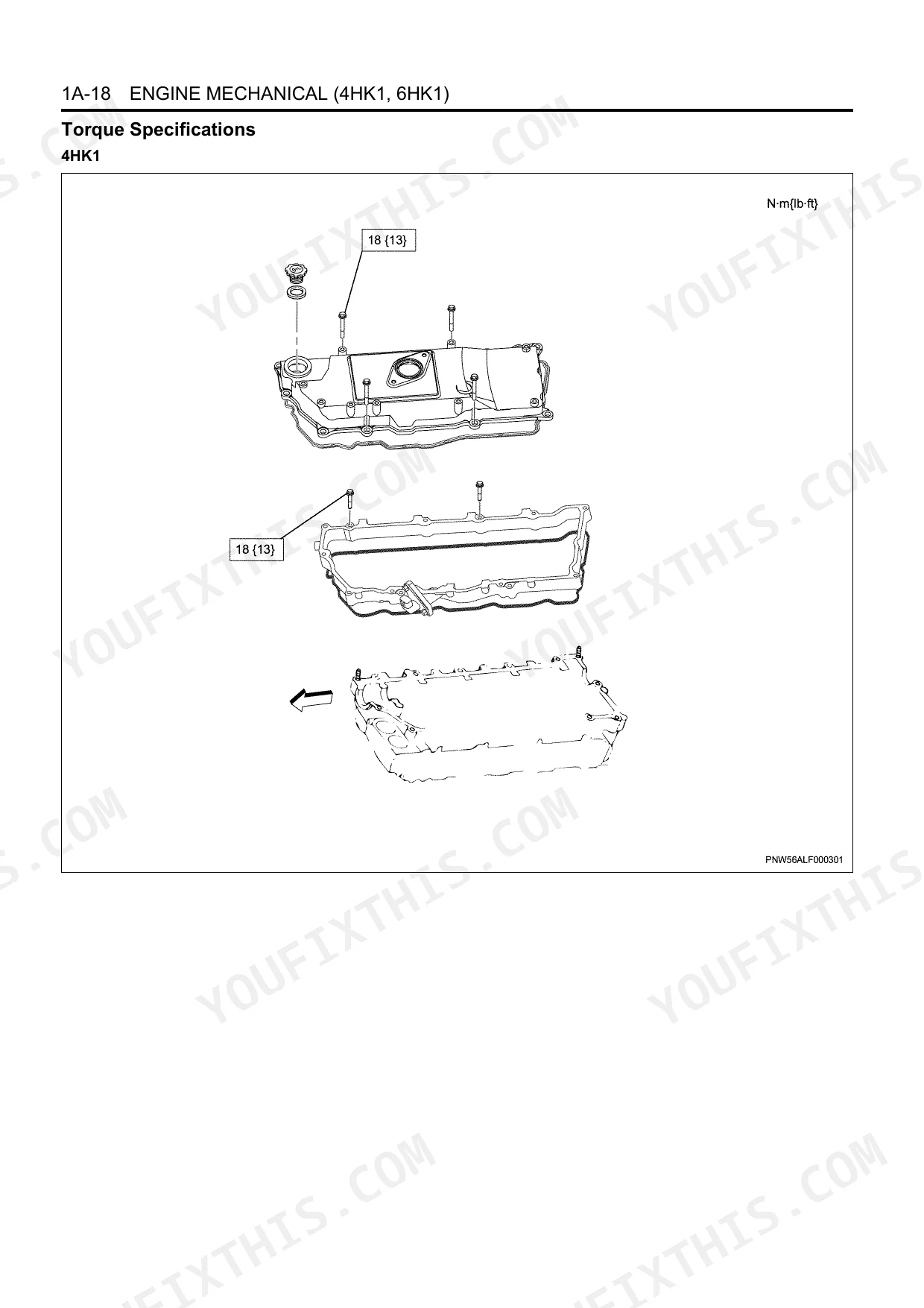

Quick Reference Specifications

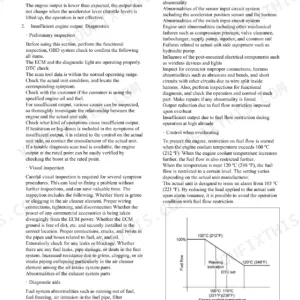

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Turbocharger to exhaust manifold nut torque | 52 N·m (38 lb ft) | p. 29 |
| Connecting rod bearing cap bolt torque | 1st step = 39 N·m (29 lb ft), 2nd step = 60°, 3rd step = 30° | p. 108 |
| Fuel injector clamp bolt torque | 30 N·m (22 lb ft) | p. 96 |
| Fuel supply pump bolt tightening torque | 76 N-m (56 lb ft) | p. 49 |
| Valve clearance (Intake and Exhaust) | 0.4 mm (0.016 in) | p. 6 |
| Piston ring gap (Top ring, Standard) | 0.2 – 0.3 mm (0.0079 – 0.0118 in) | p. 105 |
| Engine coolant temperature for ECM to begin limiting fuel flow | 108°C | p. 26 |
| 4HK1 | ||

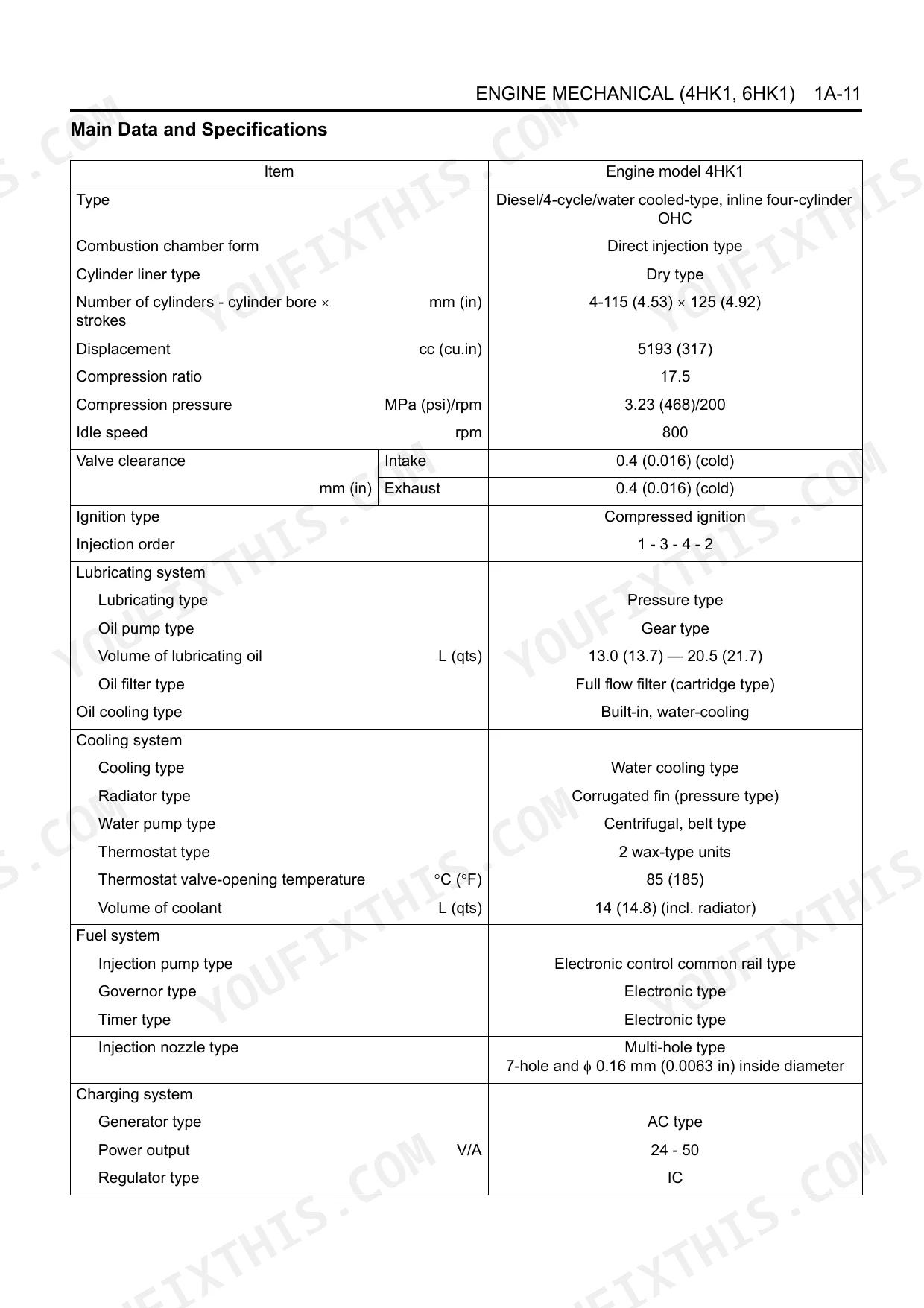

| Thermostat valve-opening temperature | 85 °C (185 °F) | p. 11 |

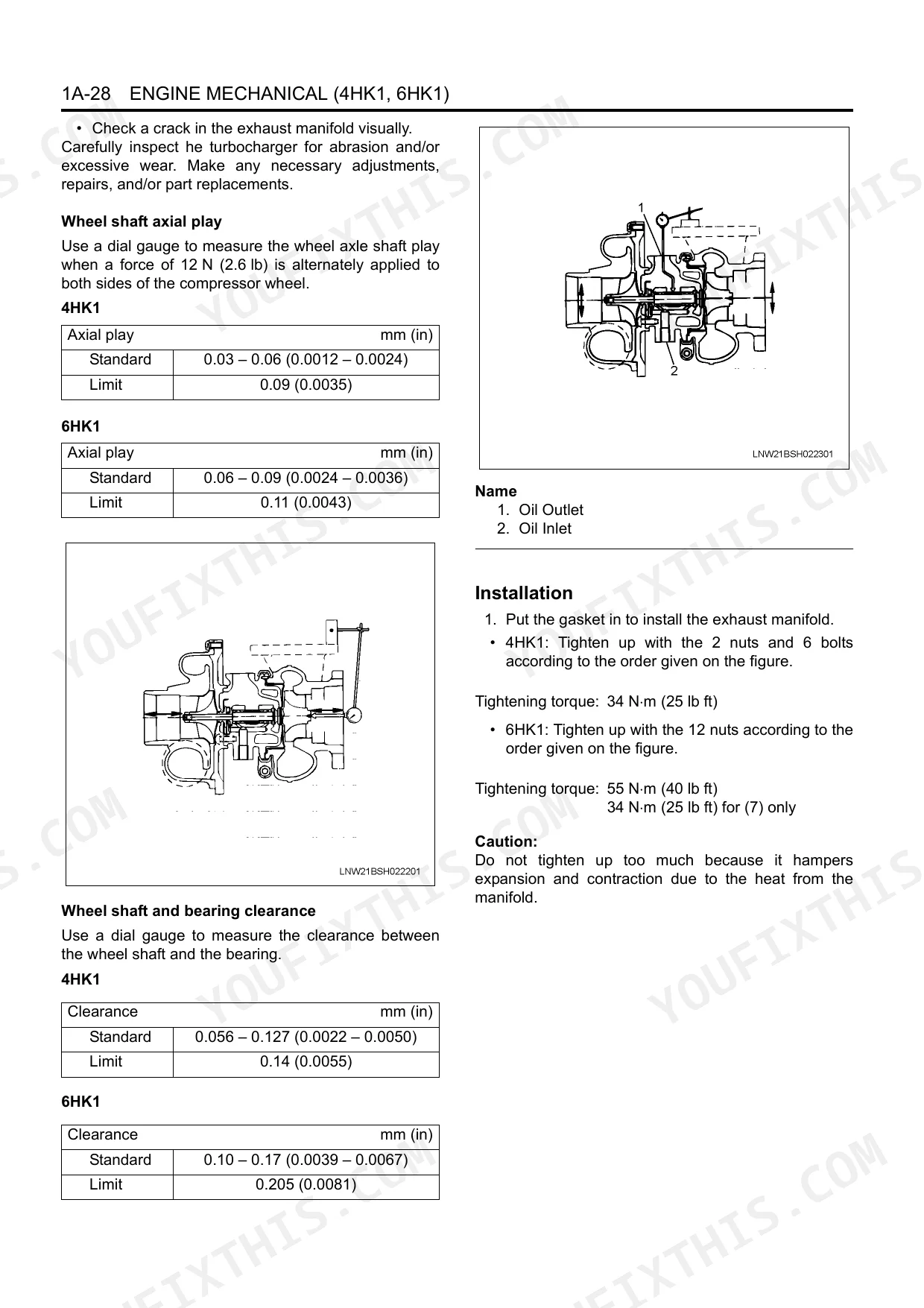

| Wheel shaft axial play (Standard) | 0.03 – 0.06 mm (0.0012 – 0.0024 in) | p. 28 |
| 6HK1 | ||
| Thermostat valve-opening temperature | 82 °C (180 °F) | p. 12 |
| Pump shaft and center interference | 0.048 - 0.078 mm (0.0019 – 0.0031 in) | p. 44 |
| Wheel shaft axial play (Standard) | 0.06 – 0.09 mm (0.0024 – 0.0036 in) | p. 28 |
Isuzu 4HK1, 6HK1 Common Problems This Manual Covers
Common rail injector faults
Clogged, leaking, or worn common rail injectors cause rough idle, black smoke, misfires, and poor economy on these engines. The Fuel System section covers the common rail, injector, and fuel filter service and inspection.
Manual Section: Fuel System p. 53Fuel supply pump wear
A worn supply pump cannot maintain rail pressure under load, leading to power loss and hard starting after the engine has sat. The Fuel System section gives the supply pump torque and service procedure.
Manual Section: Fuel System p. 53Overheating from cooling faults
A stuck thermostat, worn water pump, or slack drive belt drives coolant temperature up until the ECM starts limiting fuel. The Cooling System section covers the water pump, thermostat, and drive belt checks.
Manual Section: Cooling System p. 27Turbocharger performance loss
Worn turbine blades, excess shaft play, or clogged oil passages reduce boost and cause smoke and sluggish response. The Exhaust System and Turbocharger section covers turbocharger disassembly, inspection, and mounting torque.
Manual Section: Exhaust System and Turbocharger p. 871Diagnostic trouble codes and P codes

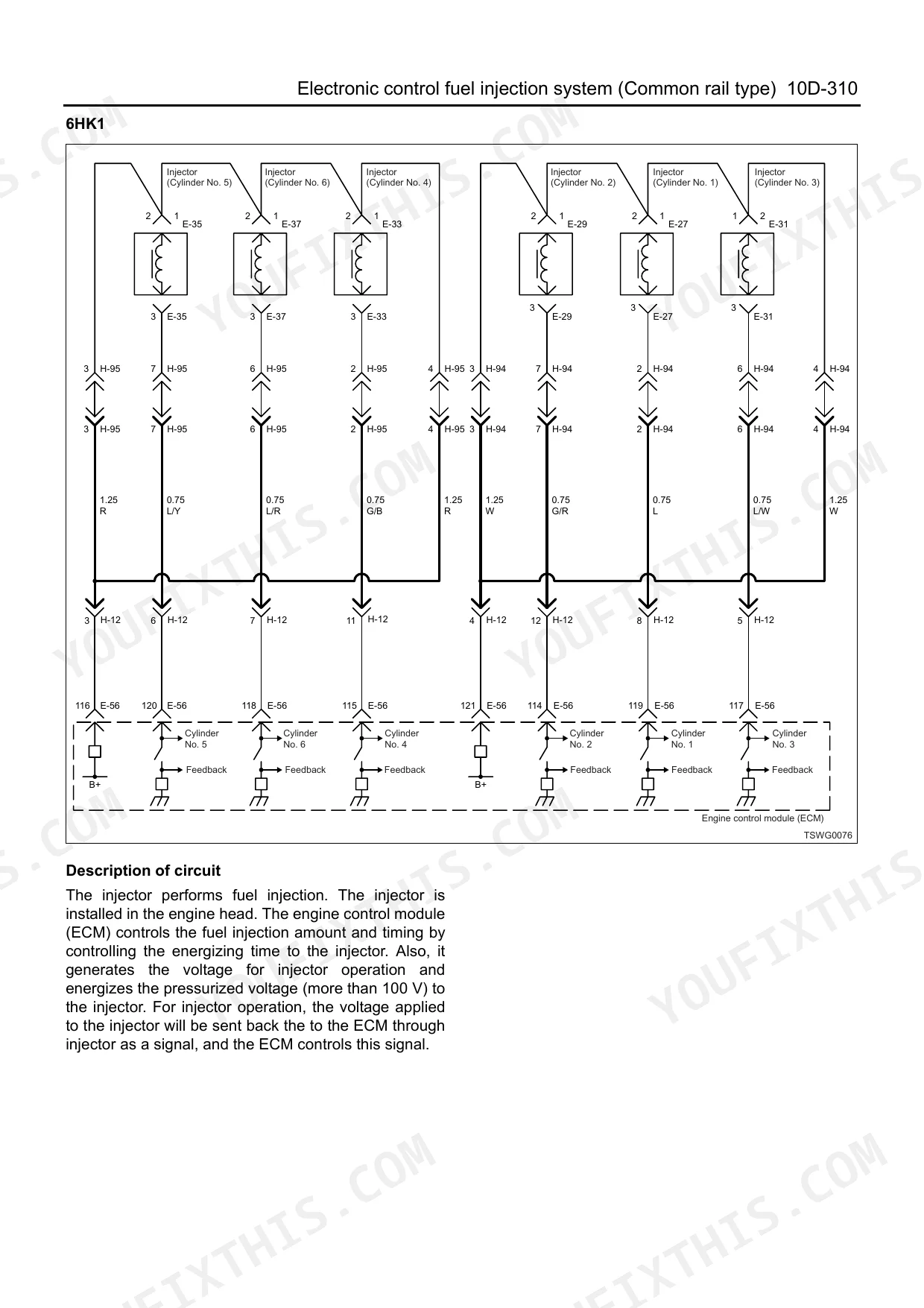

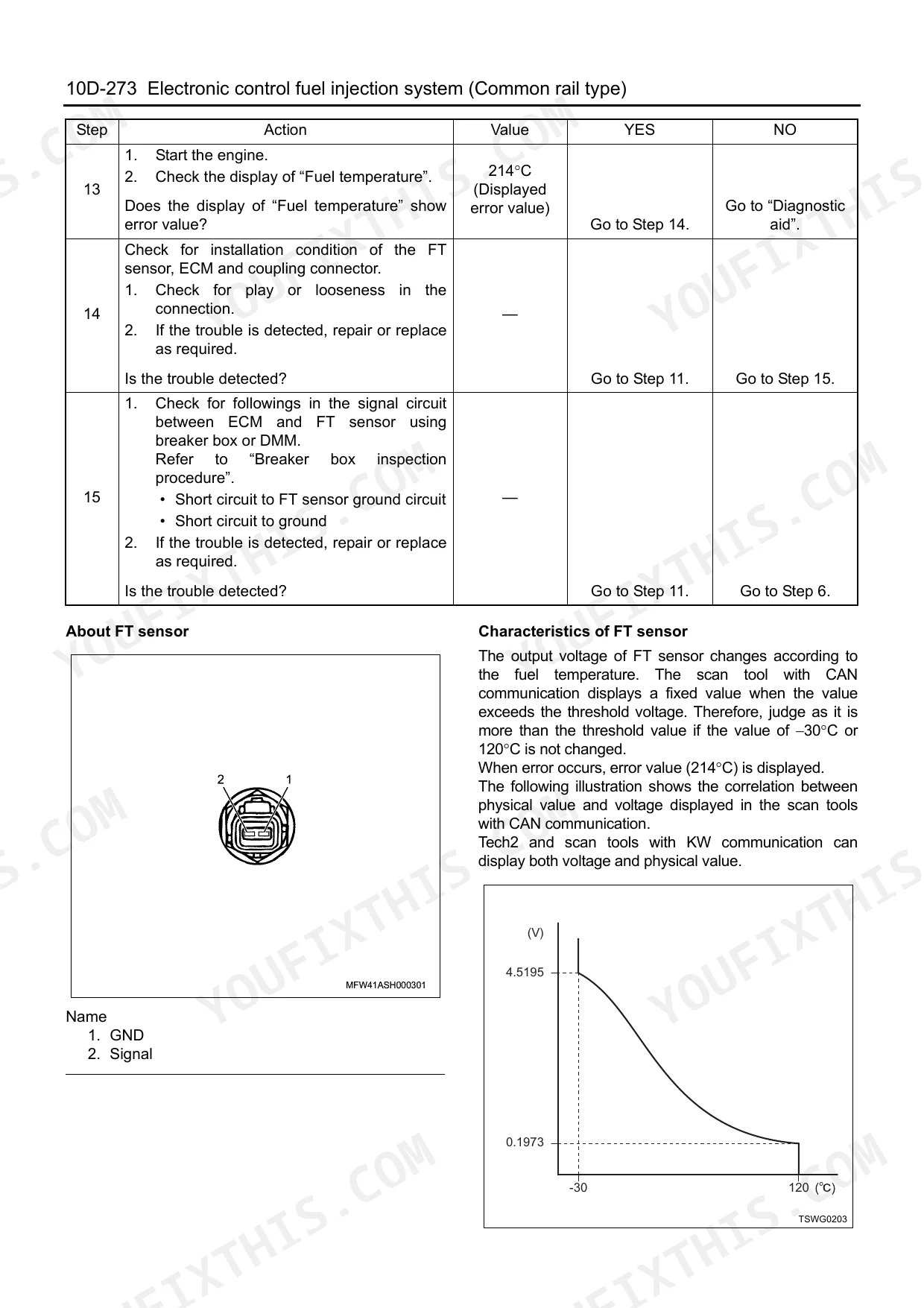

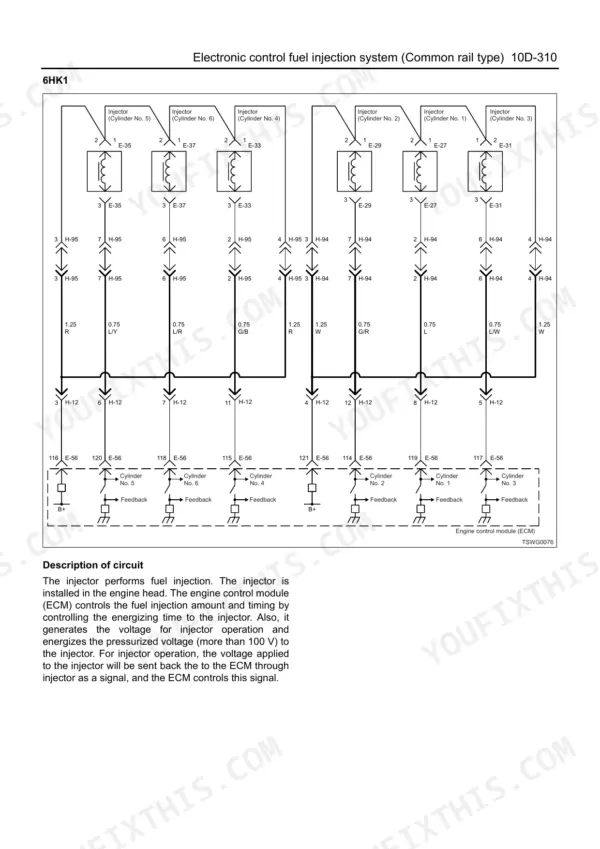

These electronically controlled engines set DTCs for sensor and system faults that put the engine into a reduced power state. The Engine Control section covers reading trouble codes, scan tool usage, sensor checks, and wiring diagrams.
Manual Section: Engine Control p. 877Valve train wear and low compression
Worn valves and seats or an out of spec valve clearance reduce compression and cause unstable running and power loss. The Engine Mechanical section gives the valve clearance, compression figures, and cylinder head service.
Manual Section: Engine Mechanical p. 1Oil consumption from worn piston rings
Worn rings raise oil consumption and exhaust smoke over high service hours. The Engine Mechanical section covers the piston and connecting rod inspection, ring gap, and reassembly.
Manual Section: Engine Mechanical p. 1Frequently Asked Questions
Which engines does this manual cover?
It covers the Isuzu 4HK1 and 6HK1 industrial diesel engines used across construction and industrial equipment.
Does it cover diagnostic trouble codes and wiring?
Yes. The Engine Control section covers diagnostic trouble codes, scan tool usage, sensor checks, and wiring diagrams for these electronically controlled engines. p. 877
Are cylinder head and connecting rod torque specs included?
Yes. The Engine Mechanical section gives cylinder head bolt, connecting rod bearing cap, and related torque values with the tightening steps. p. 1
Does it help with overheating problems?
Yes. The Cooling System section covers the water pump, thermostat opening temperature, and drive belt so you can trace and fix overheating. p. 27
What format is this manual in?
It's a 907-page PDF, available instantly after checkout. Works on laptops, tablets, and phones, so you can pull it up right at the machine.
Can I print this manual?
Yes, print as many copies as you need with no restrictions. Most mechanics print the relevant section and take it to the shop floor.
Are electrical wiring diagrams included in this Isuzu 4HK1, 6HK1 Service Manual?
Yes. The manual includes full electrical schematics with wire routing, connector identification, and circuit descriptions for charging, starting, and preheating systems.
