Want the real factory data for your Isuzu 4HK1 diesel engine? All 926 pages of this Isuzu 4HK1 Workshop Manual walk you through every system: fuel supply pump and common rail assembly, DPD regeneration, EGR valve teardown, and turbocharger service. Inside: wiring diagrams for the complete electrical system, a DTC index covering flash codes from P0016 crankshaft-camshaft correlation through U0411 turbo control module signal faults, and page after page of exploded views for cylinder head, crankshaft, flywheel, and oil pump assemblies. Torque the turbocharger assembly to the exhaust manifold at 52 N·m, then verify turbine shaft end clearance between 0.043 and 0.094 mm before buttoning it up. Your 4HK1 is down and the clock is running. Bookmarked by section and keyword-searchable, so you jump straight to the spec, not to page one.
What's Inside This Isuzu 4HK1, DIESEL ENGINE 4HK1 Manual
| System | Pages | Key Topics |
|---|---|---|

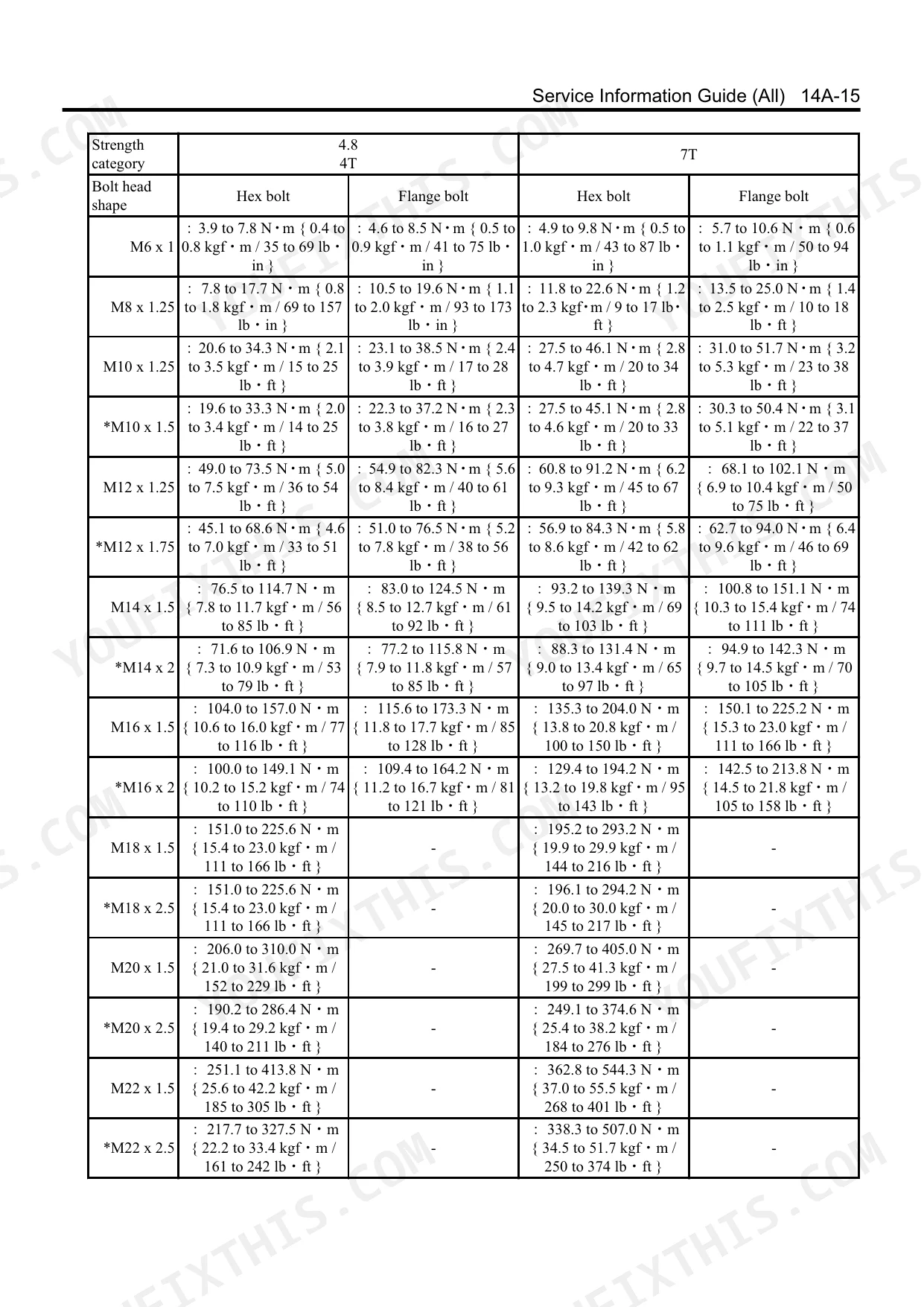

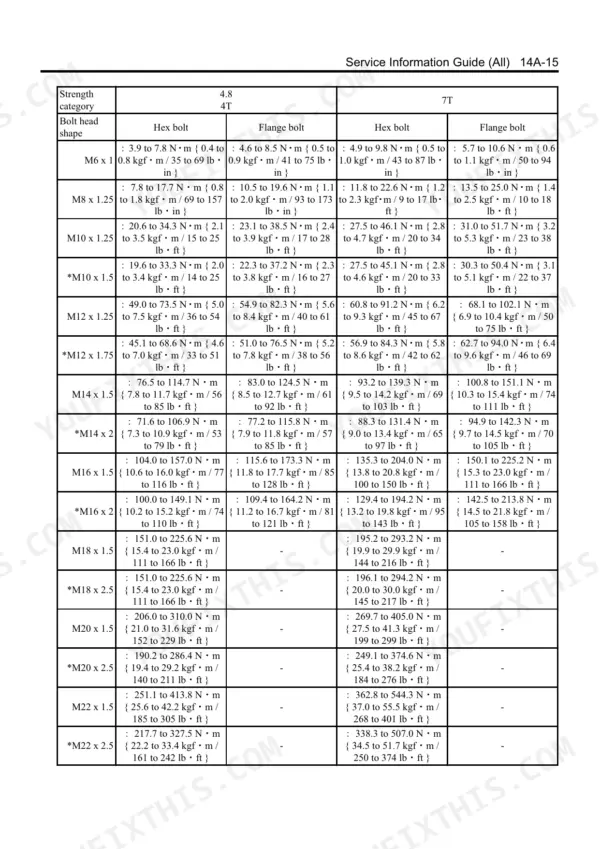

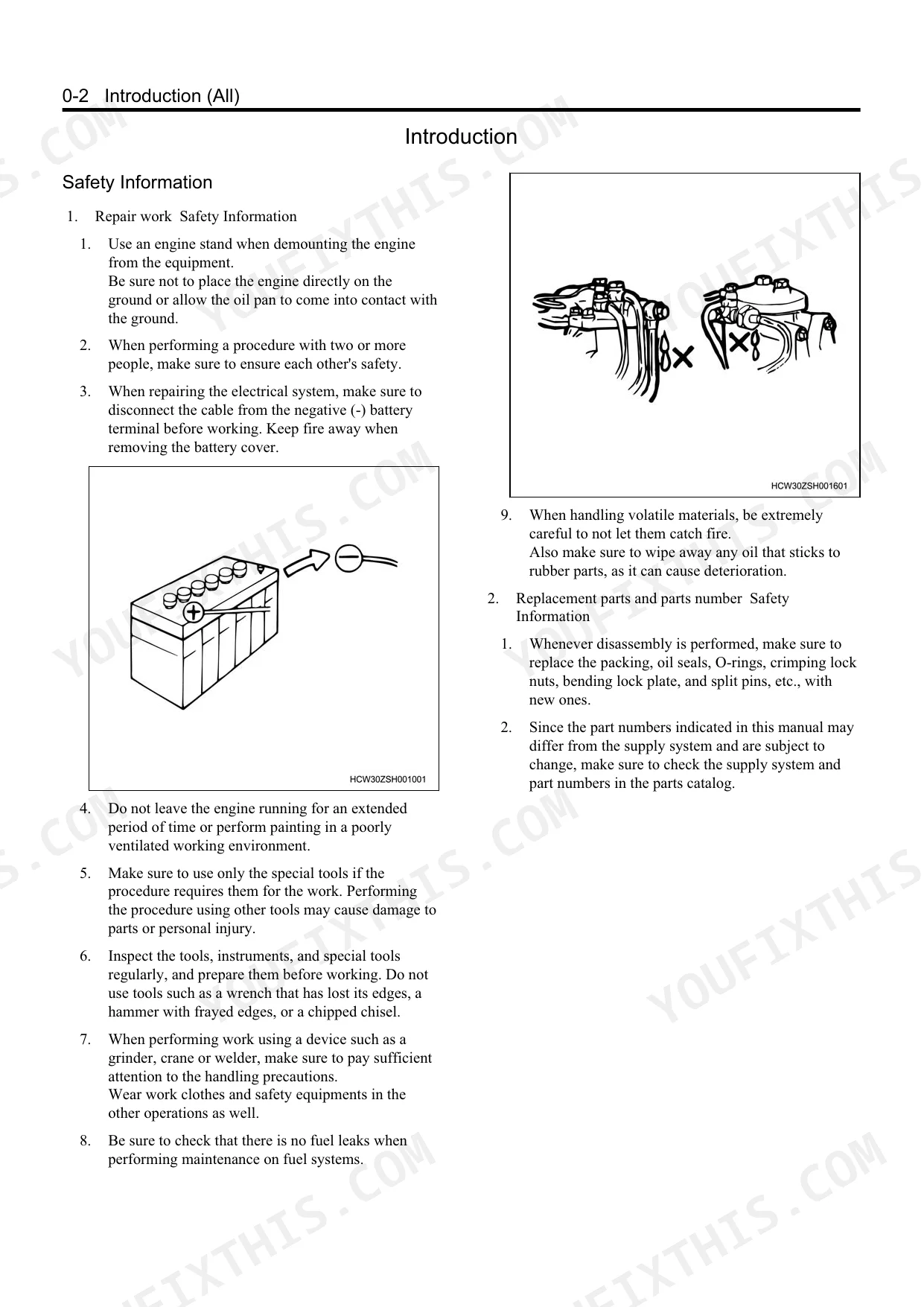

| Service Information Guide | 6-25 | Contents Included in Service Information, Plastic Gauge, Recommended Liquid Gasket, Thread Locking Adhesive Agent, Term, Abbreviations, Standard Bolts |

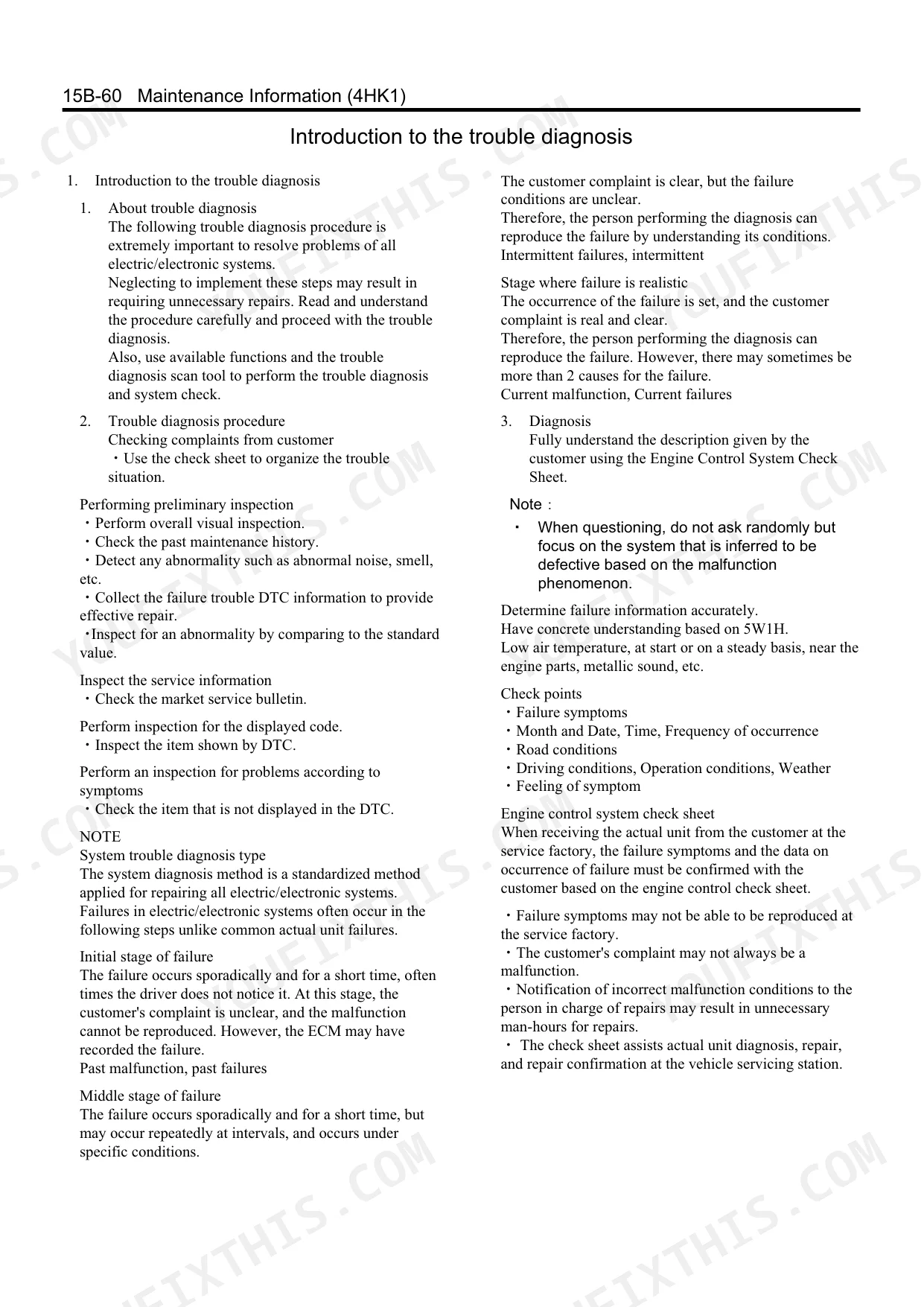

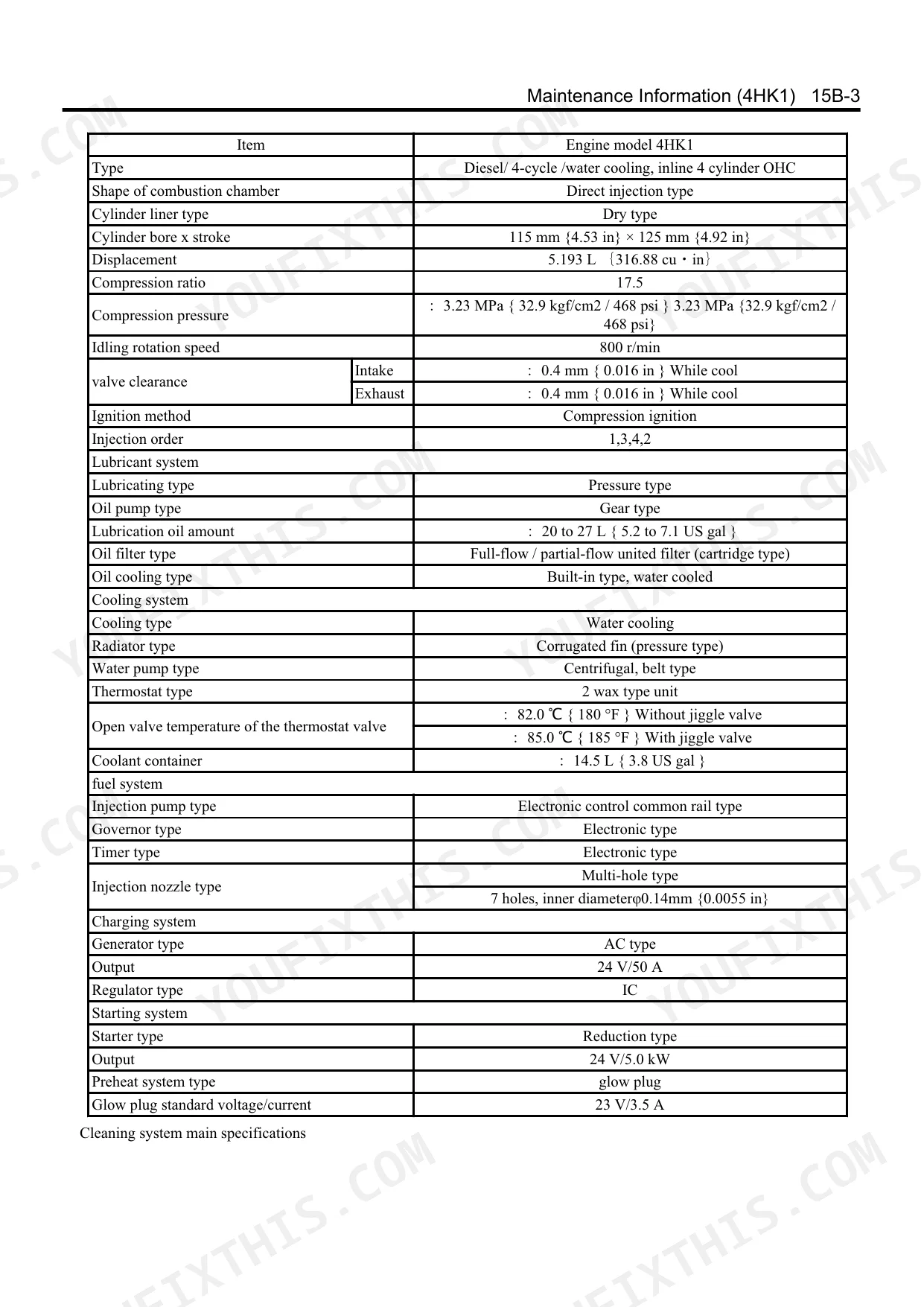

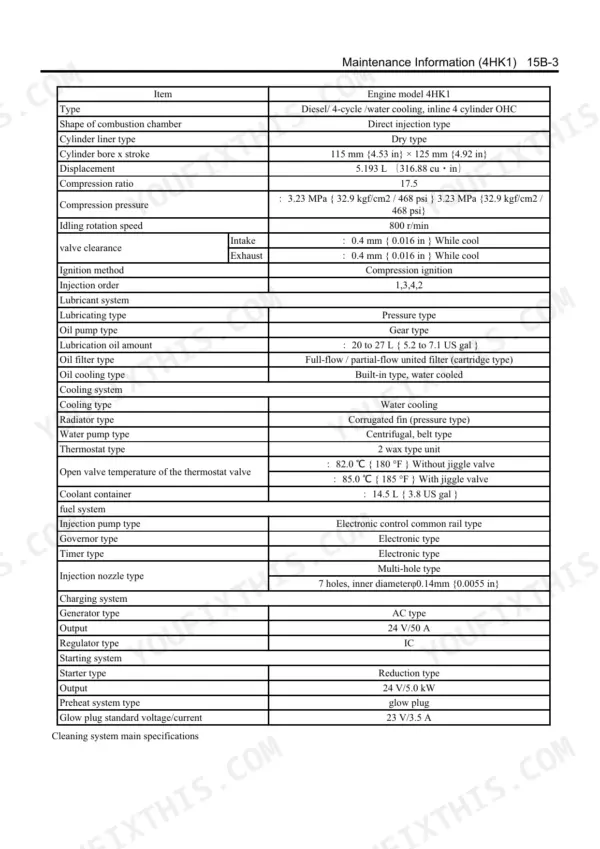

| Maintenance Information | 26-93 | Primary Specifications, Function, Structure, Operation, Maintenance Precautions, Introduction to the Trouble Diagnosis |
| Functional Inspection | 94-111 | Starting System Check, Fuel System Check, Air Intake System Check, Exhaust System Check, EGR Control System Check, Glow Control System Check, Dpd Control System Check |
| Symptom | 112-127 | Dpd System Manual Regeneration Frequently, Dpd System Regeneration Long Time, Engine Start Dilute, Engine Stalling, Excessive White Smoke in the Exhaust Gas |
| Dtc Information | 128-225 | Dtc P0016 Crankshaft Position - Camshaft Position Correlation, Dtc P0045 Turbocharger Boost Control Solenoid Circuit, Dtc P0087 Fuel Rail/System Pressure - Too Low |
| Engine Control | 226-351 | Dtc P0560 (Flash Code 155) System Voltage, Dtc P0563 (Flash Code 35) System Voltage High, Dtc P0606 (Flash Code 51) ECM/PCM Processor, Dtc P242F (Flash Code 131) Dpd Restriction, Dtc U0001 (Flash Code 84) Can-Bus Malfunction, Dtc Mapping Table |
| Mechanical | 352-707 | Cylinder Head Cover, Cylinder Head Assembly, Idle Gear, Crankshaft, Crankshaft Front Oil Seal, Flywheel, Flywheel Housing, Oil Strainer |
| Fuel System | 708-751 | Fuel Supply Pump, Injector, Common Rail Assembly, Relief Valve, Fuel Filter, Fuel Filter Pressure Sensor, Supplementary Information |
| Cooling | 752-777 | Water Pump Assembly, Cooling Fan Belt, Thermostat, Engine Coolant Temperature Sensor, Coolant, Overheat Switch, Radiator, Supplementary Information |

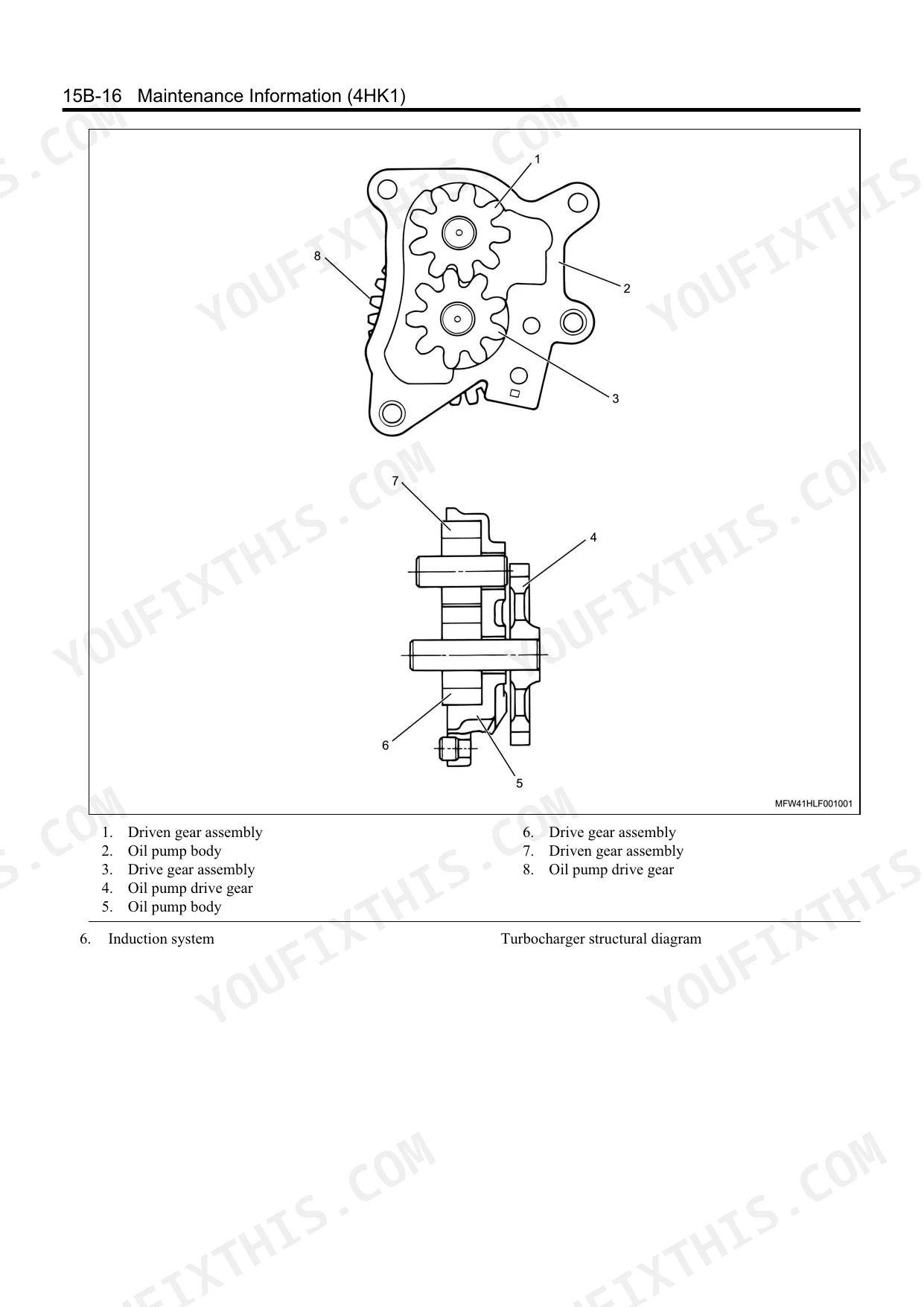

| Lubrication | 778-849 | Oil Pan, Oil Cooler Assembly, Oil Level Switch, Oil Pressure Sensor, Oil Pump Assembly, Engine Oil, Oil Port Cover, Supplementary Information |
| Induction | 850-867 | Boost Temperature Sensor, Turbocharger Assembly, Imt Sensor, Boost Sensor, Intercooler, Air Cleaner Element, Supplementary Information |
| Exhaust | 868-883 | Dpd Assembly, Exhaust Differential Pressure Sensor, Exhaust Gas Temperature Sensor, Supplementary Information |
| Aux. Emission Control Devices | 884-893 | EGR Valve (Removal), Inspection (EGR: Valve Inspection, Cooler Assembly Inspection, Cooler Assembly Cleaning), Installation (EGR Valve Installation) |
| Electrical | 894-926 | Glow Plug, Starter Assembly, Generator, Ecm, Supplementary Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CKP sensor bolt tightening torque | 78 N・m { 8.0 kgf・m / 58 lb・ft } | p. 418 |
| EGR pipe C tightening torque | 24 N・m { 2.4 kgf・m / 17 lb・ft } | p. 395 |
| EGR pipe B tightening torque | 24 N・m { 2.4 kgf・m / 17 lb・ft } | p. 395 |
| Turbocharger assembly turbine shaft clearance | 0.043 to 0.094 mm { 0.0017 to 0.0037 in } | p. 855 |
| Turbocharger assembly to exhaust manifold tightening torque | 52 N・m { 5.3 kgf・m / 38 lb・ft } | p. 856 |
| Fuel injector pipe tightening torque | 30 N・m { 3.0 kgf・m / 22 lb・ft } | p. 391 |
| Fuel injector harness terminal tightening torque | 48 N・m { 4.9 kgf・m / 35 lb・ft } | p. 392 |
| EGR cooler cleaning time (soak in Oil-Clean) | 30 min | p. 216 |
| Engine coolant temperature for restricted output (limp mode) | 100 °C { 212 °F } | p. 48 |
| DPD differential pressure sensor value for DPD restriction (high) | 4.5 kPa {0.05 kgf/cm2 / 0.7 psi} or higher | p. 215 |
| Cylinder bore x stroke | 115 mm x 125 mm | p. 28 |
| Displacement | 5.193 L | p. 28 |
Isuzu 4HK1, DIESEL ENGINE 4HK1 Common Problems This Manual Covers
Isuzu 4HK1 crankshaft position sensor failure on mid-life engines, no-start or erratic idle

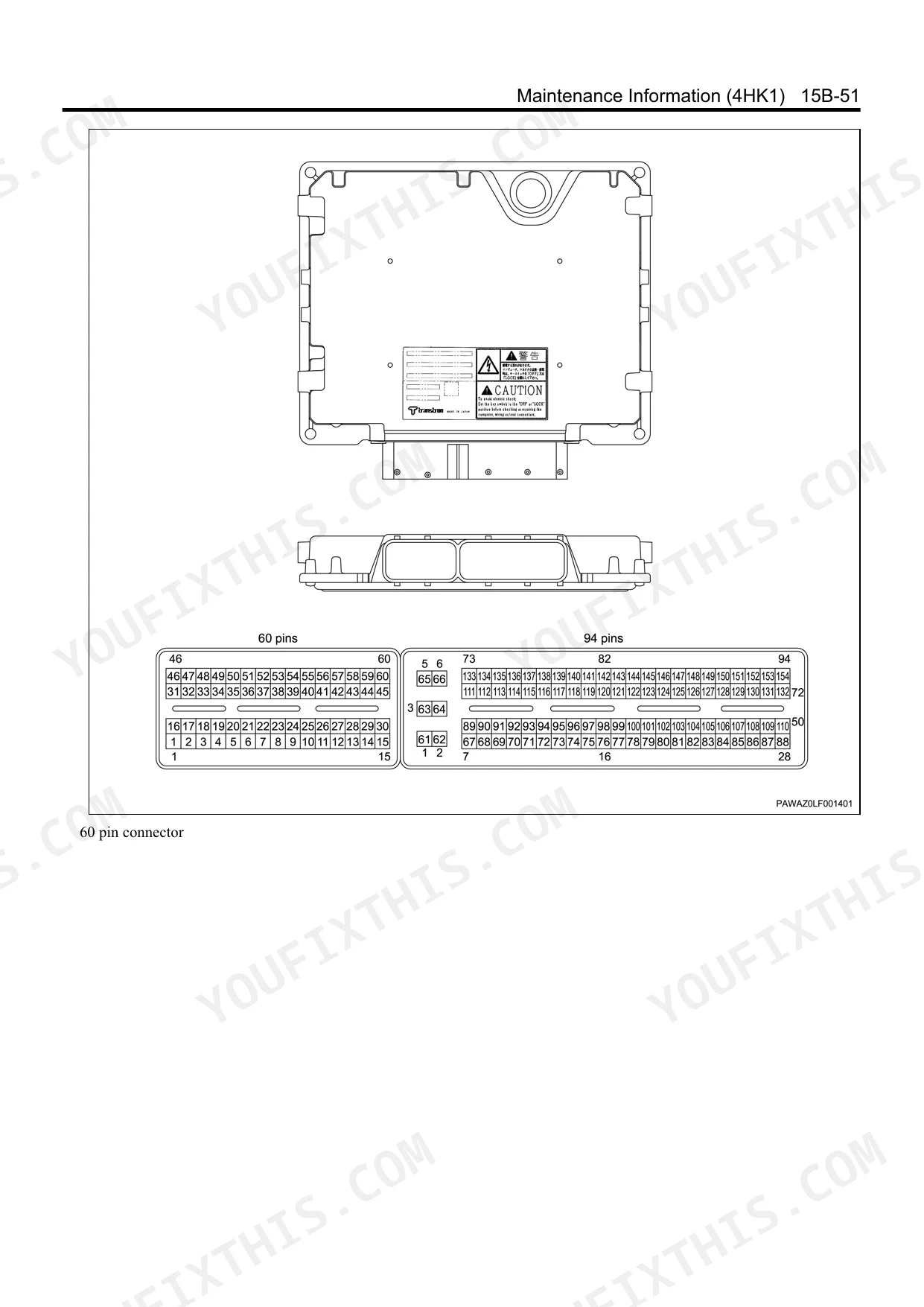

Inspect the ECM connector pins for low tension before condemning the sensor; see the pinout diagram. Pull DTC P0016 and follow the step-by-step procedures starting at page 226.
p. 226Frequently Asked Questions
How to reset Isuzu 4HK1 error codes
To reset Isuzu 4HK1 error codes, use the trouble diagnosis scan tool to clear the DTC. After clearing, turn the starter switch OFF for 30 seconds or longer, then turn it ON to confirm that no DTC has been detected.
What are the torque specs for Isuzu 4HK1 head bolts
For Isuzu 4HK1 cylinder head assembly, the M10 head bolts should be tightened to 157 N·m {16.0 kgf·m / 116 lb·ft} using the torque wrench. This is part of a multi-step tightening process that also involves applying molybdenum disulfide grease and engine oil.
Common error codes for Isuzu 4HK1 engine and how to fix them
A common error code is P0087 (Flash Code 225) for Fuel Rail/System Pressure - Too Low. This indicates that the ECM detected an abnormally low rail pressure. To fix this, restrict the fuel injection amount, stop the EGR control, and stop the DPD regeneration. For detailed steps, refer to the Fuel System section.
How to reset Isuzu 4HK1 DPF light
To reset the DPF light, perform a DPD manual regeneration using the trouble diagnosis scan tool. After the regeneration is completed, clear the DTC using the trouble diagnosis scan tool. Then, turn the starter switch OFF for 30 seconds or longer and restart the engine to confirm the light is off.
Is this Isuzu 4HK1 Workshop Manual a digital download?
This is a 926-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Isuzu 4HK1 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Isuzu 4HK1 manual have electrical diagrams?

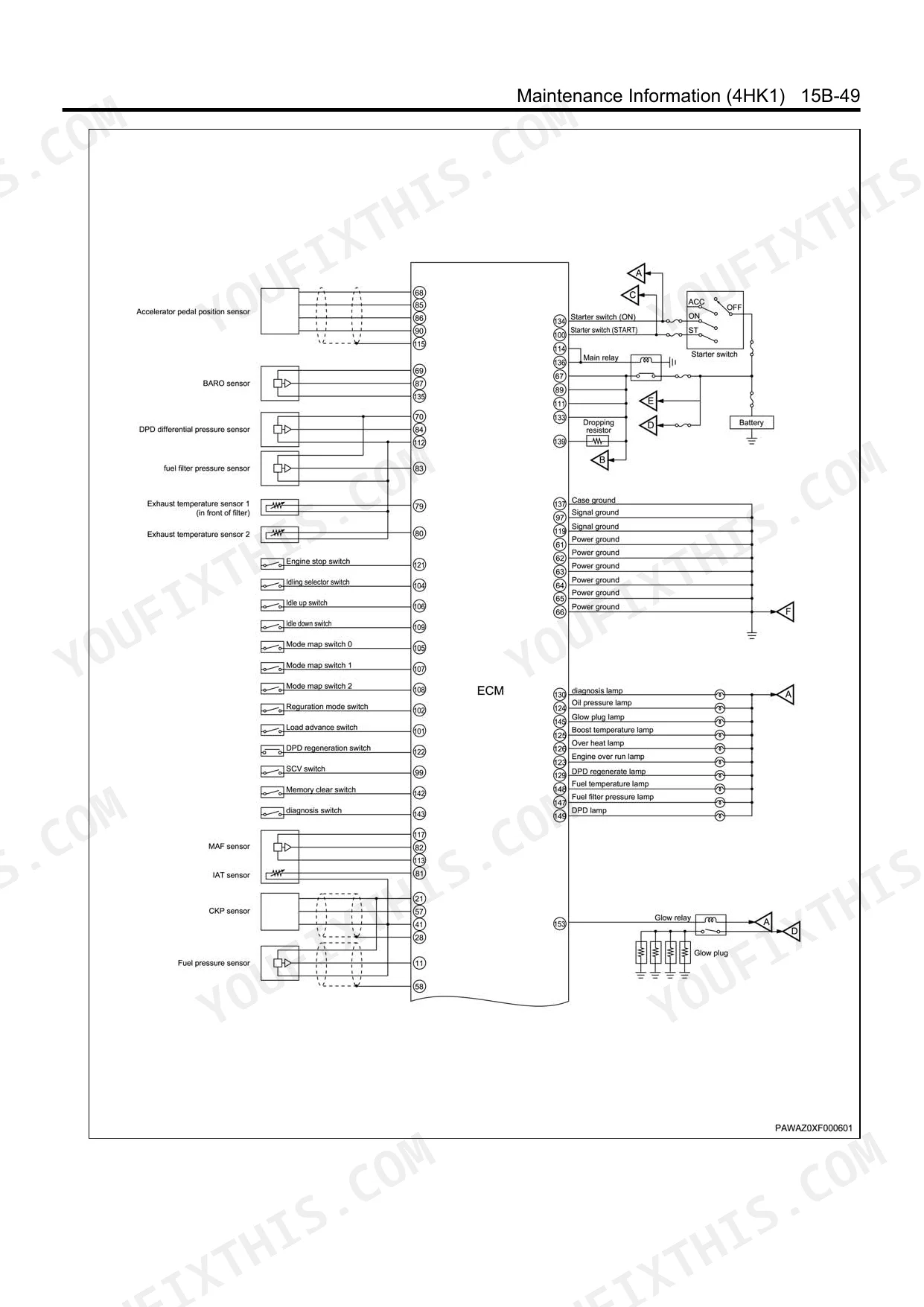

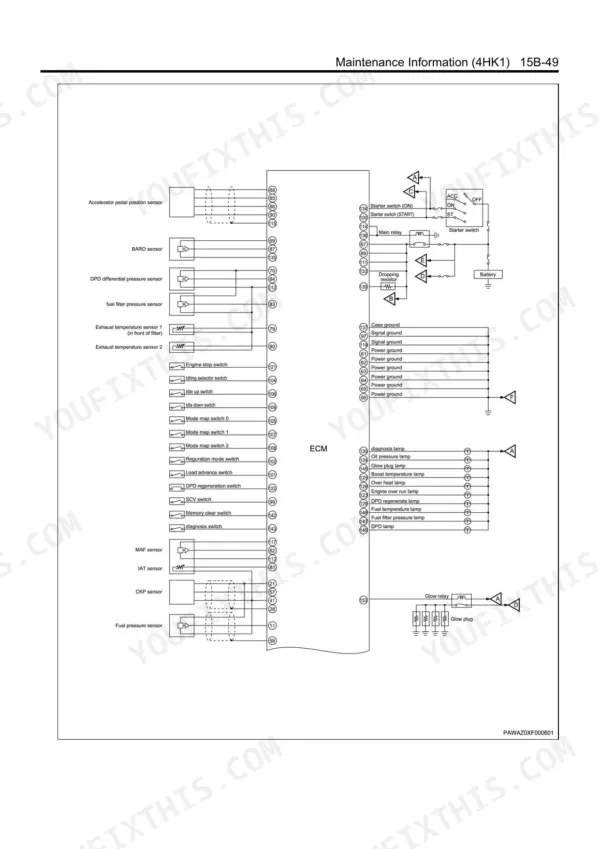

Included. The Isuzu 4HK1 Workshop Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
