Part of the Isuzu 4JJ1 engine documentation.
This is the Isuzu 4JJ1 workshop manual, a 278-page PDF covering service and repair of the 4JJ1 industrial diesel engine. It carries the step-by-step procedures, torque values, clearances, and functional explanations a mechanic needs to work through the engine properly.The manual is organized by system: General Information, Engine Mechanical (cylinder head, timing gear train, piston, connecting rod, crankshaft), Cooling System, Fuel System with the common rail and supply pump, Electrical System covering the charging and starting circuits in both 24V and 12V forms, the Exhaust System with EGR and turbocharger, Lubrication System, and the Preheating System. Trouble symptom lists and operation explanations run through the mechanical chapters.Use it for full rebuilds, torque-critical assembly, diagnosis, and routine service on the 4JJ1, with the specifications drawn straight from the sections you need.
What's Inside This Isuzu AI-4JJ1X, AJ-4JJ1T, BJ-4JJ1X, BU-4JJ1T Manual
| System | Pages | Key Topics |
|---|---|---|

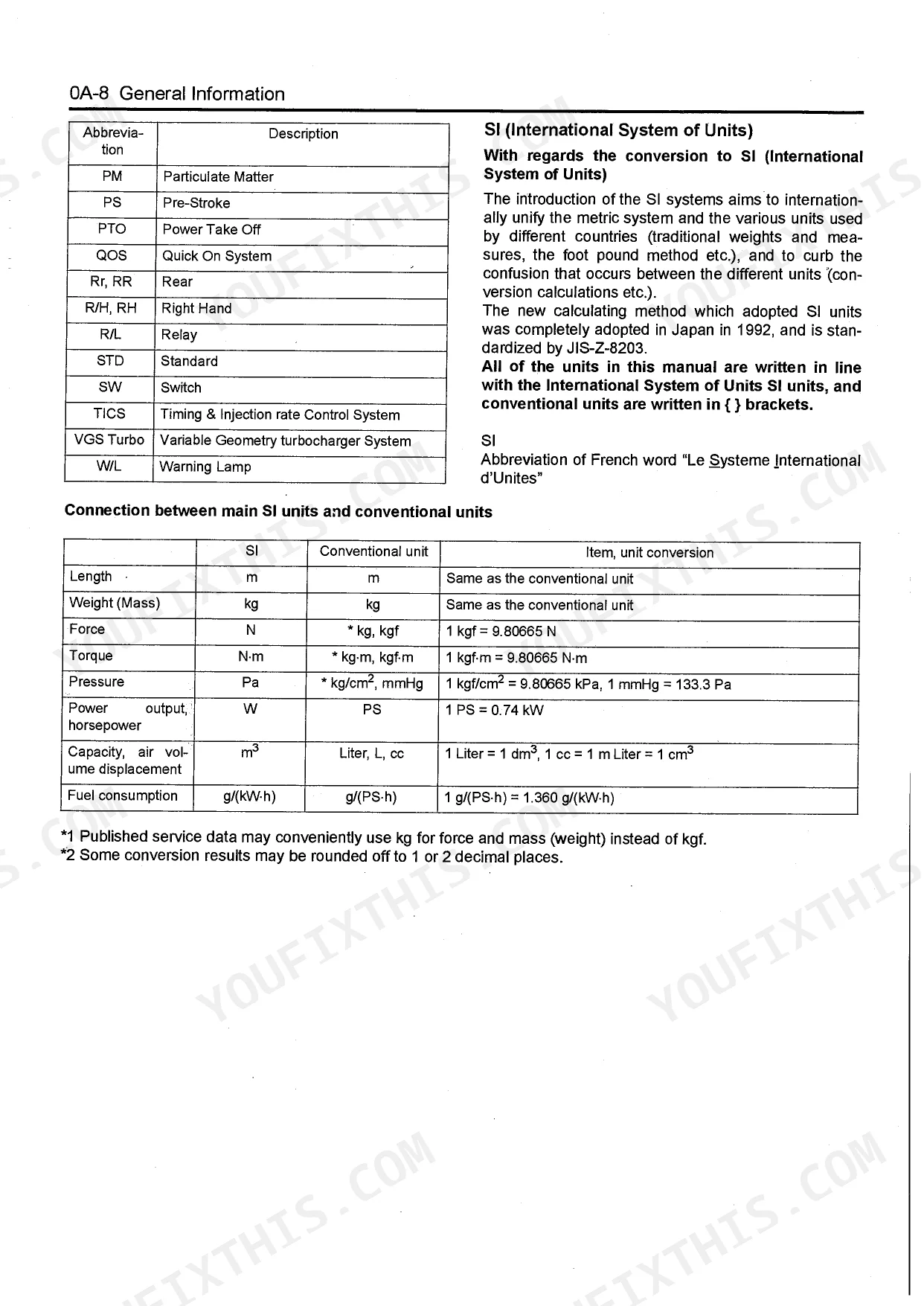

| General Information | 3-16 | Replacement parts and part numbers, Liquid gasket, Reading the Model, Terminology, description of abbreviations, Isuzu standard tightening torque |
| Engine Mechanical | 17-136 | Cylinder Head, Timing Gear Train, Piston, Connecting Rod, Crankshaft, Specifications |

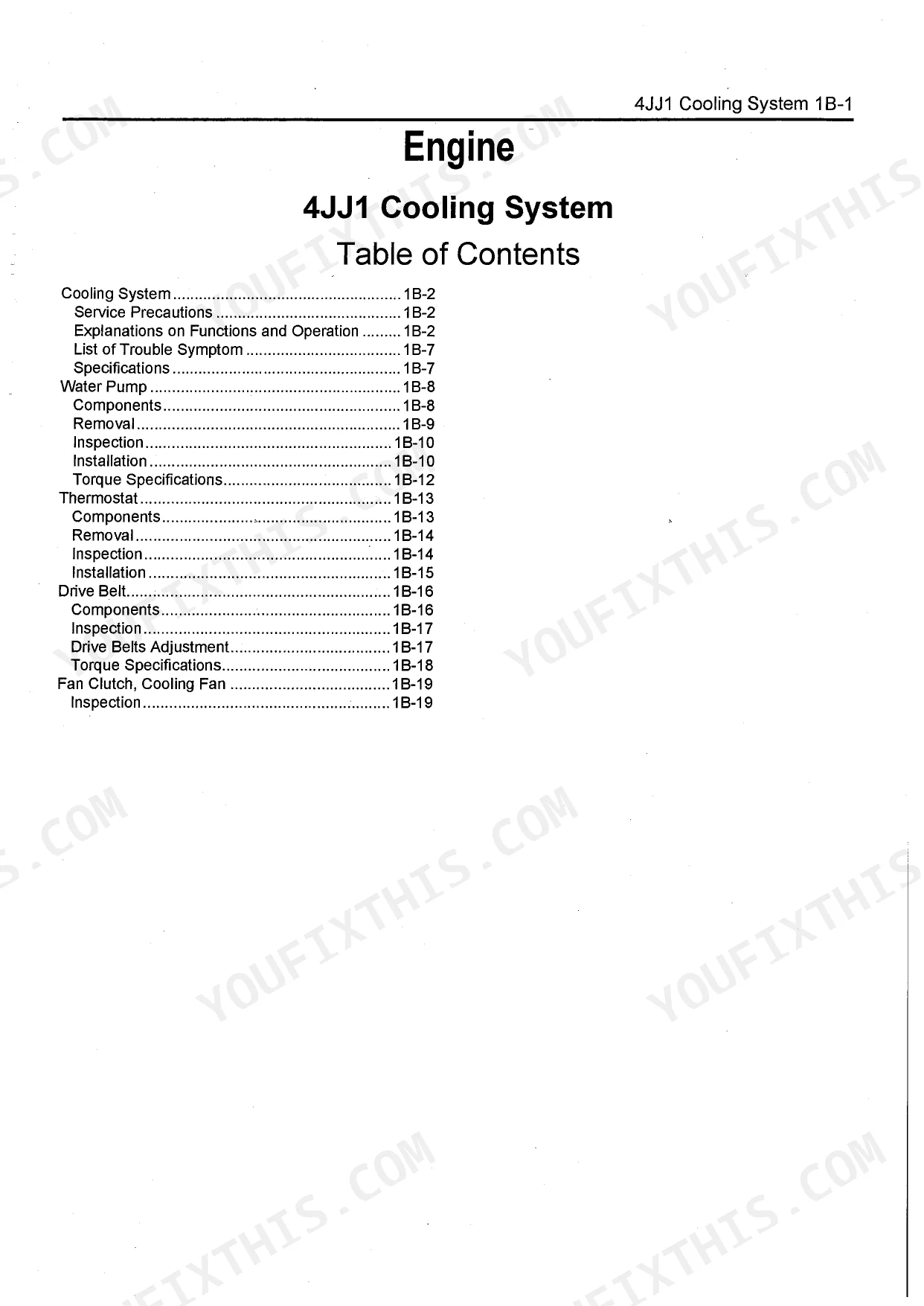

| Cooling System | 137-156 | Water Pump, Thermostat, Drive Belts Adjustment, List of Trouble Symptom, Explanations on Functions and Operation |
| Fuel System | 157-194 | Fuel Filter, Fuel Injector, Common Rail, Fuel Supply Pump, Explanations on Functions and Operation |
| Electrical System | 195-226 | Charging System, Generator (24V model), Generator (12V model), Starting System, Starter (24V model) |
| Exhaust System | 227-240 | EGR System, EGR Cooler, Turbocharger, List of Trouble Symptom, Explanations on Functions and Operation |
| Lubrication System | 241-270 | Function Check, Oil Filter, Oil Cooler, Oil Pump, Oil Pressure Switch, Explanations on Functions and Operation |
| Preheating System | 271-278 | Glow Plug Replacement, Specifications, List of Trouble Symptom, Explanations on Functions and Operation |
Every system also includes service precautions.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main bearing cap tightening torque | 166 N·m (16.9 kg·m/122 lb·ft) | p. 114 |
| Turbocharger to exhaust manifold tightening torque | 35 N·m (3.6 kg·m/25.8 lb·ft) | p. 39 |
| Turbocharger axial play service limit | 0.11 mm (0.004 in) | p. 233 |
| Fuel injector nozzle bracket bolts tightening torque | 26 N·m (2.7 kg·m/20 lb·ft) | p. 170 |
| Valve Clearance (cold) | 0 | p. 22 |
Isuzu AI-4JJ1X, AJ-4JJ1T, BJ-4JJ1X, BU-4JJ1T Common Problems This Manual Covers
Turbocharger failure and power loss
The 4JJ1 turbo can fail from oil contamination, worn seals, and carbon buildup, giving power loss, excessive smoke, and a whining noise. The Exhaust System section covers the turbocharger and its service limits.
Manual Section: Exhaust System p. 227Faulty injectors and rough idle
Clogged nozzles, worn seals, or contaminated fuel cause rough idle, misfiring, poor economy, hard starting, and black smoke. The Fuel System section covers the injectors, common rail, and supply pump.
Manual Section: Fuel System p. 157Hard starting in cold weather
Worn glow plugs make the engine hard to start, especially when cold. The Preheating System section covers glow plug replacement and its specifications.
Manual Section: Preheating System p. 271Overheating and coolant loss
A worn water pump, stuck thermostat, or loose drive belt leads to overheating and coolant loss. The Cooling System section covers the pump, thermostat, and belt adjustment.
Manual Section: Cooling System p. 137Charging and starting faults
No-crank and abnormal charging problems trace to the generator or starter circuit. The Electrical System section covers the charging and starting systems in both 24V and 12V configurations.
Manual Section: Electrical System p. 195Low oil pressure
Low oil pressure from a worn oil pump or blocked filter risks bearing damage. The Lubrication System section covers the oil pump, oil cooler, filter, and pressure switch.
Manual Section: Lubrication System p. 241Frequently Asked Questions
Which engine does this workshop manual cover?
It covers the Isuzu 4JJ1 industrial diesel engine across 278 pages, with procedures, specifications, and trouble symptom lists for every major system.
Does it list cylinder head bolt torque?
Yes. The Engine Mechanical section gives the cylinder head bolt torque, starting at 70 N.m for the first step, along with the tightening sequence and later stages. p. 76
Can I find turbocharger torque and service limits?
Yes. The manual gives the turbocharger to exhaust manifold torque of 35 N.m and covers the turbocharger axial play service limit for diagnosing wear. p. 39
Does it cover valve clearance and idle settings?
Yes. The Engine Mechanical section lists the cold valve clearance of 0.15 mm and the idle speed of 800 rpm for routine adjustment. p. 22
What do I get after purchasing this Isuzu 4JJ1 manual?
Immediate download of the full 278-page searchable Workshop Manual. Open it on any device: laptop at your desk or phone in the field.
Are there any print restrictions on this Isuzu 4JJ1 manual?
No DRM or copy protection. Print the entire manual or just the pages you need. Any home or office printer works.
Does this Isuzu 4JJ1 Workshop Manual have electrical diagrams?
Yes. The manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts for the 4JJ1.
