Part of the Isuzu 4JJ1 engine documentation.
This Isuzu shop manual, publication 4JJ1-WE-0662, is the factory service and repair guide for the AI-4JJ1X industrial diesel engine. Across 241 pages it walks through the engine from general service precautions into engine mechanical work, the cooling and fuel systems, engine electrical, and the exhaust and turbocharger group.You get step-by-step removal, inspection, and installation procedures backed by factory specifications: valve clearances, idle speed, compression pressure, tightening torques, and thermostat data, each tied to the relevant section.Whether you are diagnosing hard starting, chasing an overheating fault, servicing injectors, or rebuilding the top end, this manual gives you the numbers and sequences to do the job correctly. It is a downloadable PDF with a text layer, so you can search for a procedure or spec, zoom the illustrations, and print the pages you need.
What's Inside This Isuzu AI-4JJ1X Manual
| System | Pages | Key Topics |
|---|---|---|
| Cover | 1 | Industrial Diesel Engine Ai-4JJ1X Workshop Manual, Isuzu Motors Limited |

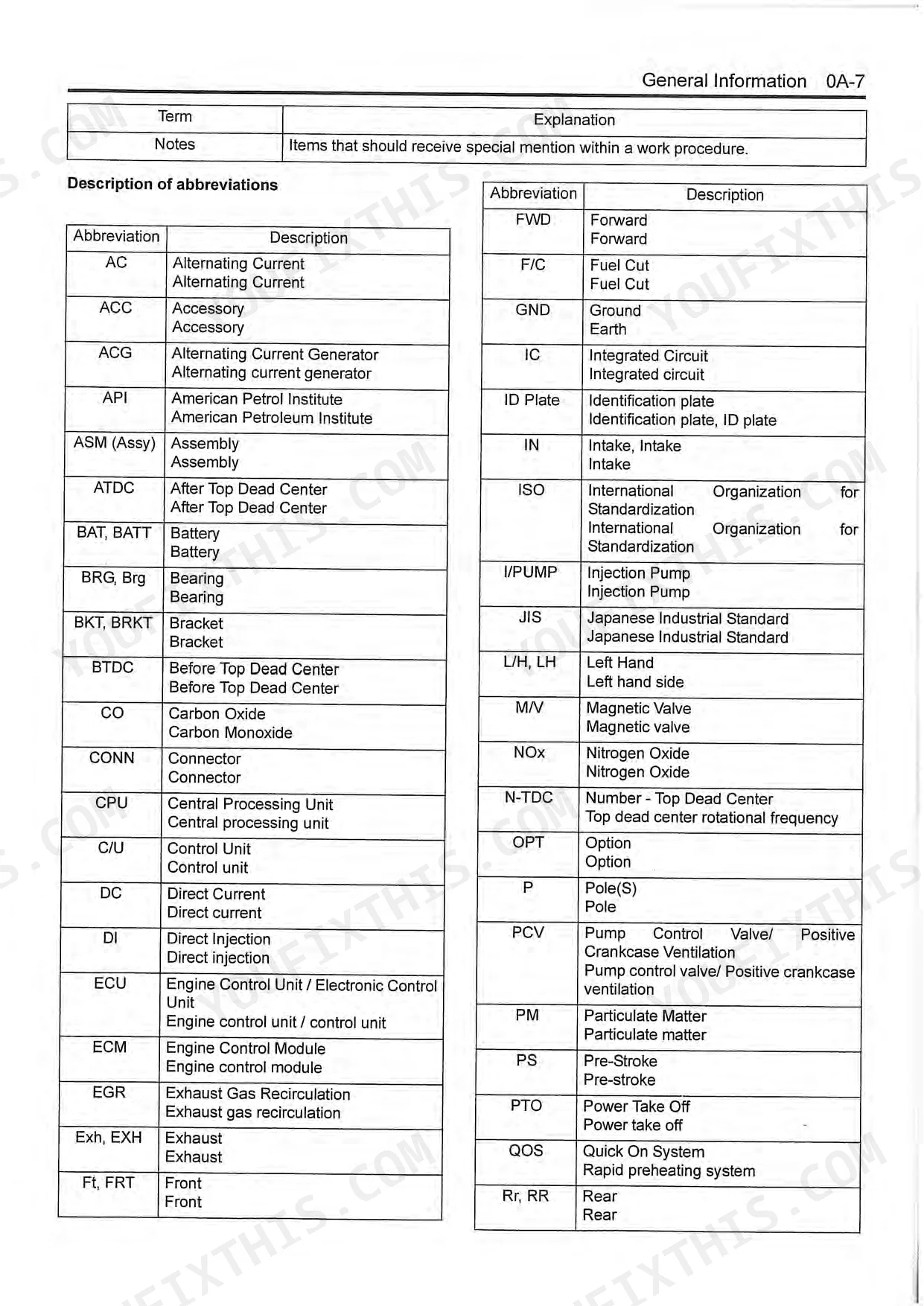

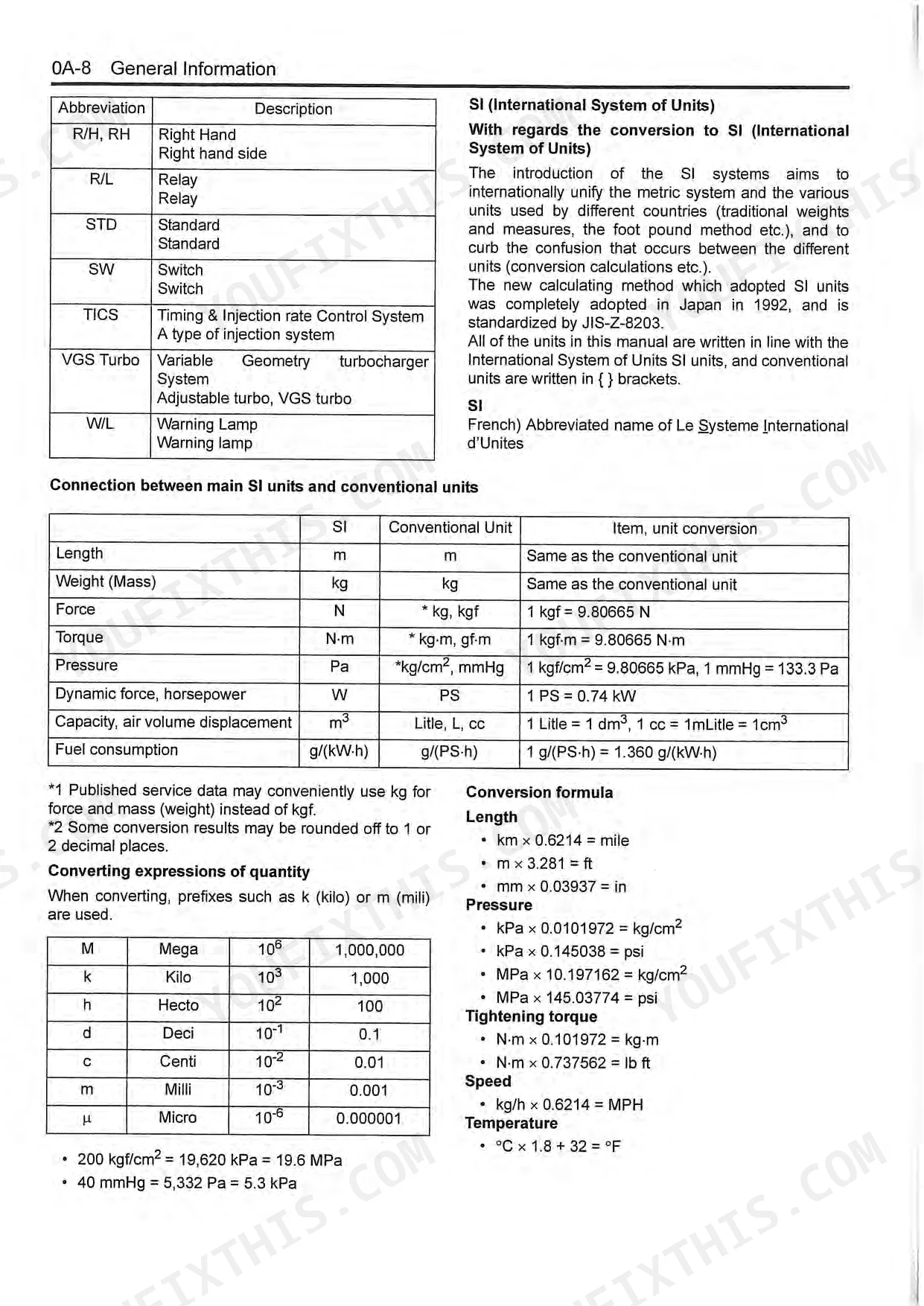

| General Information | 2-13 | Service Precautions, Liquid Gasket Application, Standard Bolt Torques |
| Engine Mechanical, Specifications and Engine Assembly | 14-64 | Isuzu Diesel Engine 4JJ1, Precautions on Service Work, Main Data and Specifications, Engine Foot, Cylinder Head Cover, Intake Manifold, Exhaust Manifold, Valve Spring Tension |

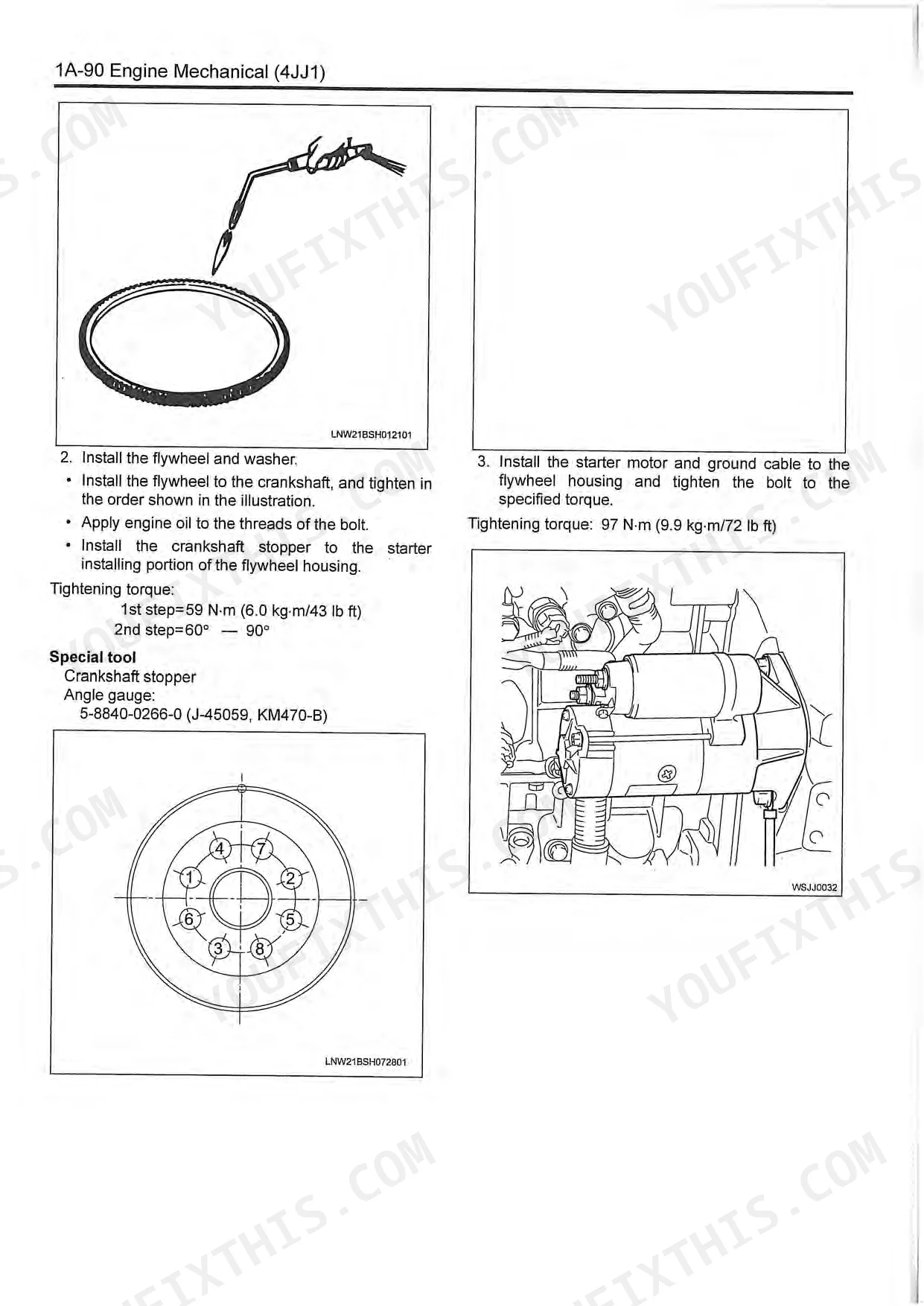

| Engine Mechanical, Cylinder Head, Piston and Connecting Rod | 65-103 | Cylinder Head Components, Removal, Disassembly, Inspection, Reassembly, Installation, Torque Specifications, Piston and Connecting Rod, Flywheel |

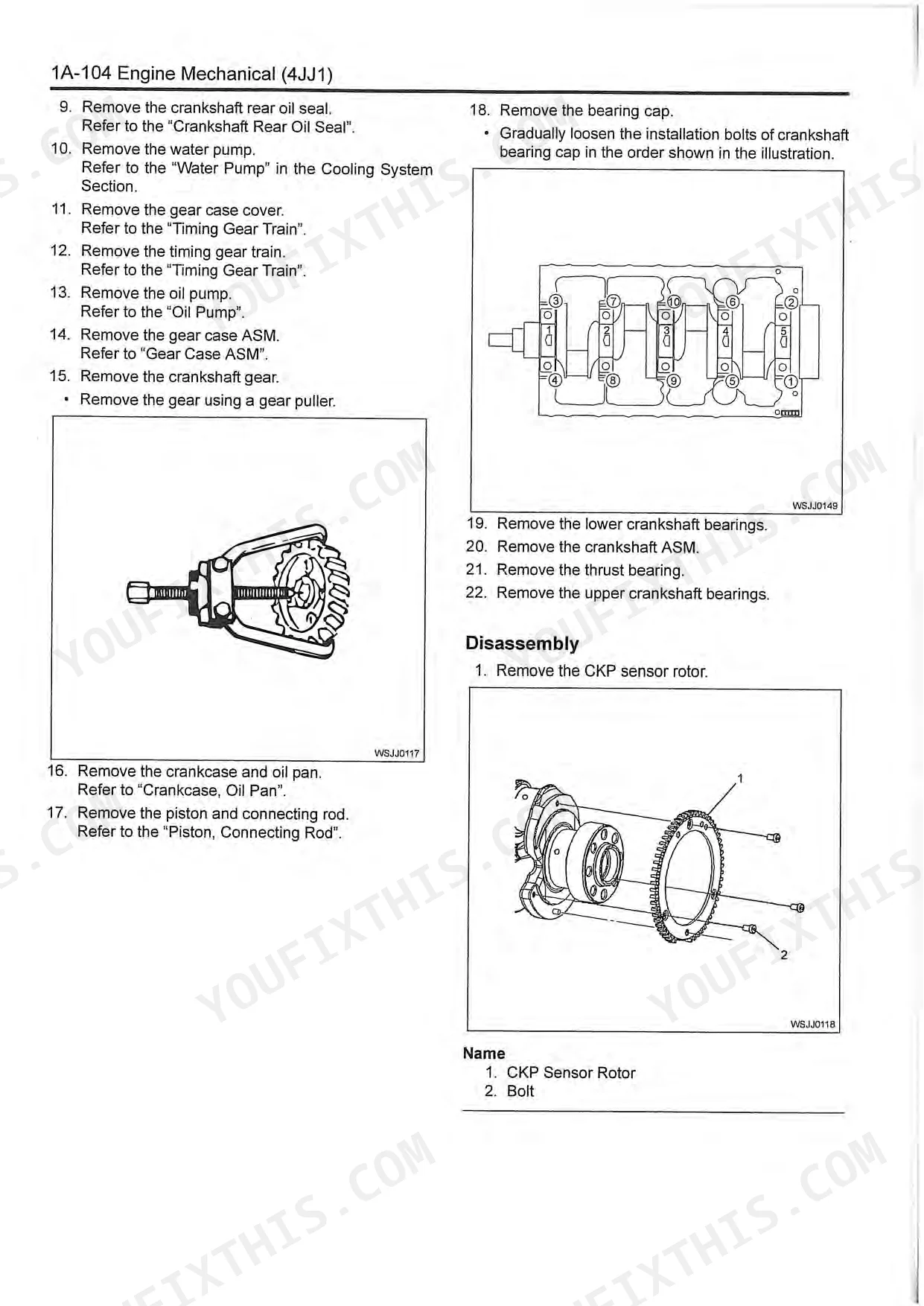

| Engine Mechanical, Timing Gear Train, Crankshaft and Camshaft | 104-157 | Timing Gear Train, Gear Case Asm, Crankshaft Front Oil Seal, Camshaft Asm, Crankshaft and Bearings, Oil Strainer, Torque Specifications |

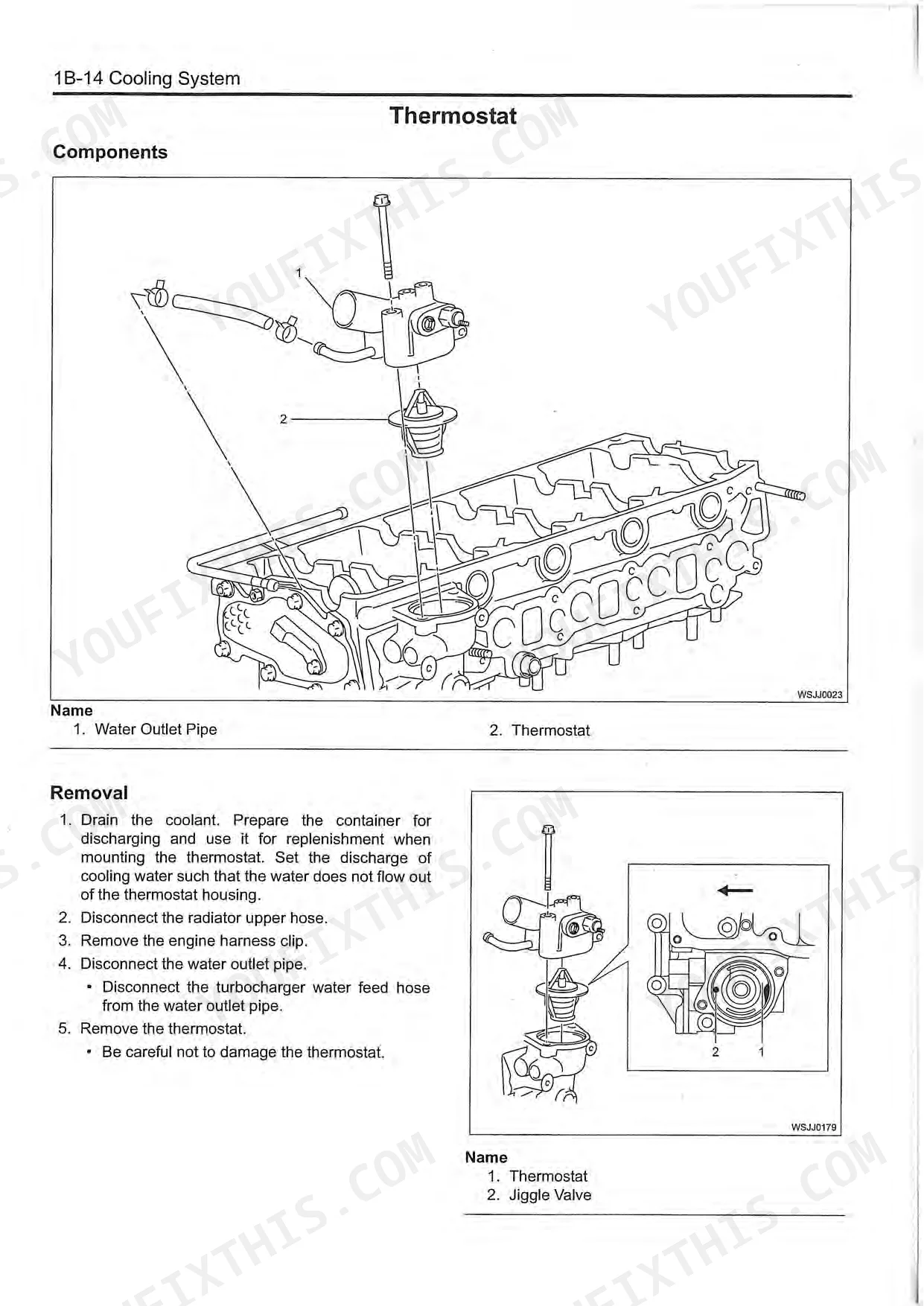

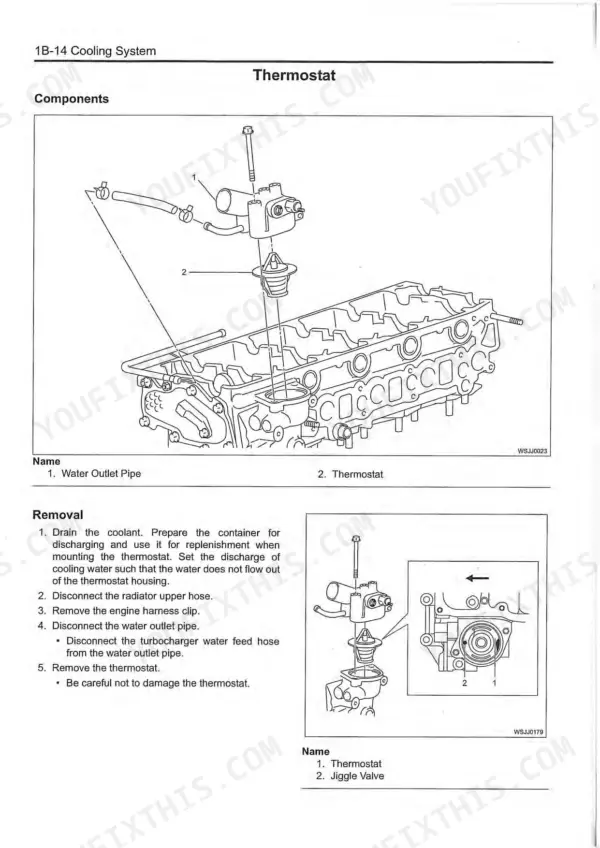

| Cooling System | 158-175 | Water Pump, Thermostat, Drive Belt, Coolant Specifications |

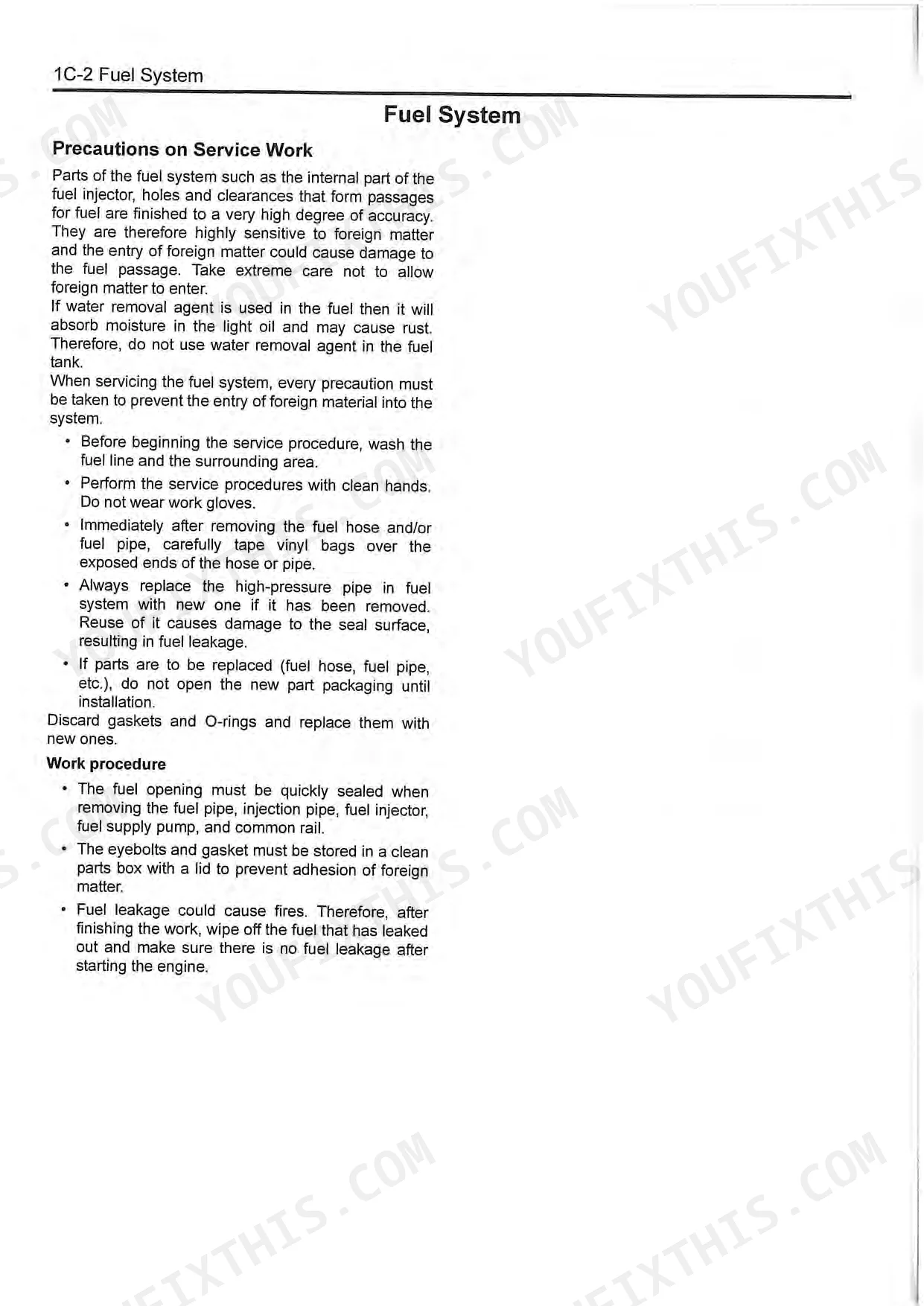

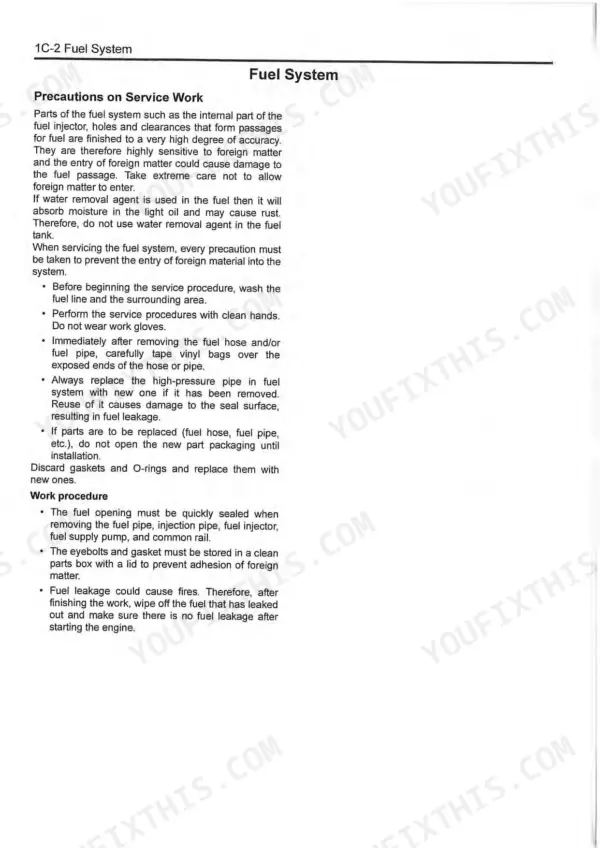

| Fuel System | 176-207 | Fuel Injector, Common Rail, Fuel Supply Pump, Fuel Filter |
| Engine Electrical | 208-231 | Charging System, Generator, Starting System, Preheating System |
| Exhaust System and Turbocharger | 232-242 | EGR System, EGR Cooler, Turbocharger Inspection |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Axial play service limit | 0.11 (0.004) mm (in) | p. 239 |
| Radial play of turbine shaft (max thickness gauge) | 0.2 mm (0.0078 in) or less | p. 239 |
| Nozzle bracket bolt tightening torque | 26 N·m (2.7 kg·m/20 lb ft) | p. 190 |
| Fuel injection pipe tightening torque | 29.5 N·m (3.0 kg·m/22 lb ft) | p. 190 |
| Glow plug tightening torque | 15 — 20 N·m (1.5 — 2.0 kg·m/11 — 15 lb ft) | p. 20 |
| EGR valve tightening torque | 25 N·m (2.5 kg·m/18 lb ft) | p. 32 |
| Thermostat valve-opening temperature | 85(185) °C (°F) | p. 21 |
| Thermostat full-open temperature | 100(212) °C (°F) | p. 172 |
| Cylinder head cover tightening torque | 130 N·m (13.3 kg·m/96 lb ft) | p. 202 |
| Idle Speed | 800 ± 25 rpm | p. 21 |
Isuzu AI-4JJ1X Common Problems This Manual Covers
Turbocharger wear and power loss

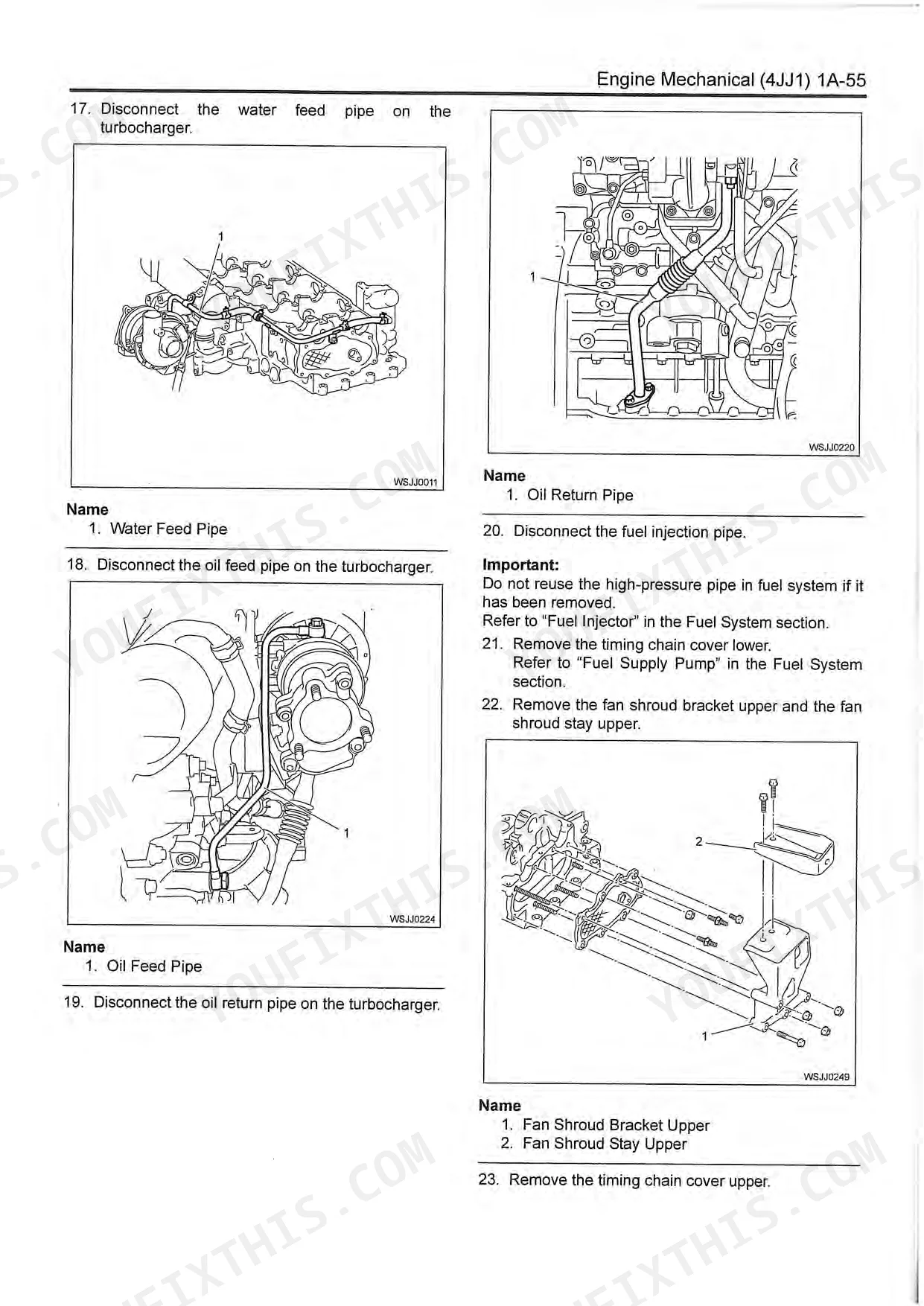

Loss of power, excessive smoke, and a whining noise point to turbocharger wear from oil contamination or carbon buildup. The Exhaust System and Turbocharger section covers turbocharger inspection and the play limits to check.
Manual Section: Exhaust System and Turbocharger p. 227Injector faults and rough idle
Clogged nozzles, worn seals, or contaminated fuel cause rough idling, misfiring, hard starting, and black smoke. The Fuel System section covers the injectors, common rail, and supply pump with service procedures and torques.
Manual Section: Fuel System p. 163Engine overheating under load
A high temperature gauge, power reduction, or steam usually trace to a coolant leak, a faulty thermostat, or a clogged radiator. The Cooling System section covers the water pump, thermostat, and coolant specifications.
Manual Section: Cooling System p. 145Hard starting or no start
Weak glow plugs or a failing preheat system leave the engine hard to start in cold conditions. The Engine Electrical section covers the preheating and charging systems with inspection steps and specifications.
Manual Section: Engine Electrical p. 195Low compression and valve issues
Lost compression from worn valves or incorrect clearance shows up as hard starting and low power. The Engine Mechanical section covers the cylinder head, valve clearance, and compression pressure checks.
Manual Section: Engine Mechanical p. 13EGR fault and P0401 code
Insufficient EGR flow can trigger P0401, black smoke, and power loss from a clogged or faulty EGR valve. The Exhaust System and Turbocharger section covers the EGR system and EGR cooler.
Manual Section: Exhaust System and Turbocharger p. 227Frequently Asked Questions
What does this shop manual cover?
It is the Isuzu factory service and repair manual for the AI-4JJ1X industrial diesel engine, publication 4JJ1-WE-0662. Its 241 pages give diagnosis, repair, and rebuild procedures with factory specifications.
Does it give valve clearance and engine specs?
Yes. The Engine Mechanical section provides the reference values, including valve clearance, idle speed, compression pressure, and injection order, along with the procedures to check and set them. p. 13
Are fuel injector service procedures included?
Yes. The Fuel System section covers the injectors, common rail, and fuel supply pump, with removal, inspection, and tightening torque values for the nozzle bracket and injection pipes. p. 163
How do I get the file after purchase?
You download the PDF directly after checkout. Nothing is shipped; the file is yours to keep, view offline, and reprint whenever you work on the engine.
What do I get after purchasing this Isuzu AI-4JJ1X manual?
After checkout you receive a 241-page PDF for instant download. Open it on your laptop, tablet, or phone and bring it right to the shop floor.
Can I print specific sections of this Isuzu AI-4JJ1X Shop Manual?
Yes. The PDF has no DRM restrictions, so you can print any page or section for your shop. Works with any standard printer.
Does this Isuzu AI-4JJ1X manual include wiring diagrams?
Yes. Wiring diagrams cover the charging system (generator), starting system (starter), and preheating system. They show internal connections, connector terminals, and performance test circuits.
