This 1,133-page Isuzu 4JJ1 Workshop Manual (OEM #IDE-2630G) covers everything needed to restore your 3.0L common rail diesel to factory spec. The 350 pages of teardown procedures address the complete mechanical system, fuel injection, turbocharger, and cooling circuits. You also get 82 pages of diagnostic trouble codes, 31 pages of full-color wiring diagrams with connector pinouts, and 50 exploded-view illustrations showing every bolt and gasket. Torque the injector clamp bolt to 26 N·m, check turbine shaft axial clearance (limit: 0.11 mm), then reinstall the intake assembly. No more chasing injection faults with a test light and guesswork. Opens on any device, searchable by keyword, so you find the exact spec and get back to running right.

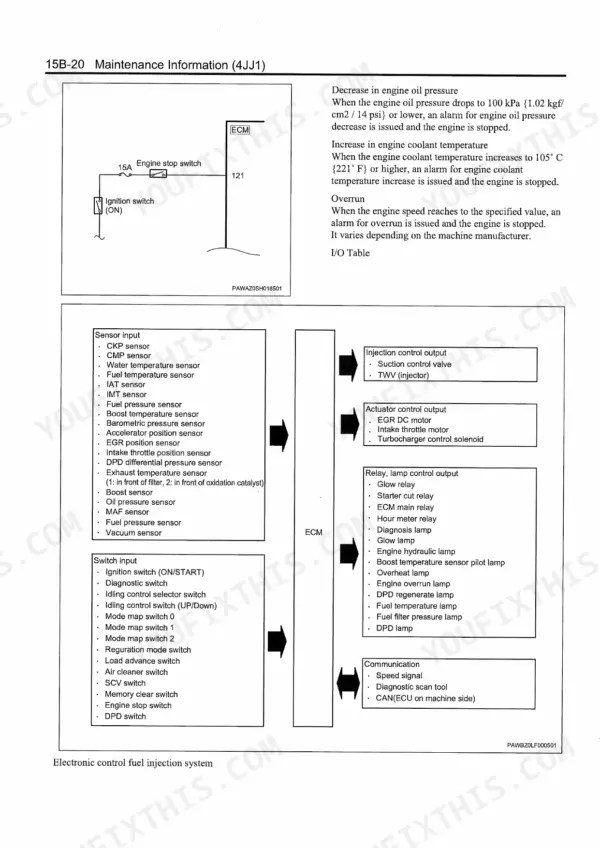

What's Inside This Isuzu 4JJ1 Manual

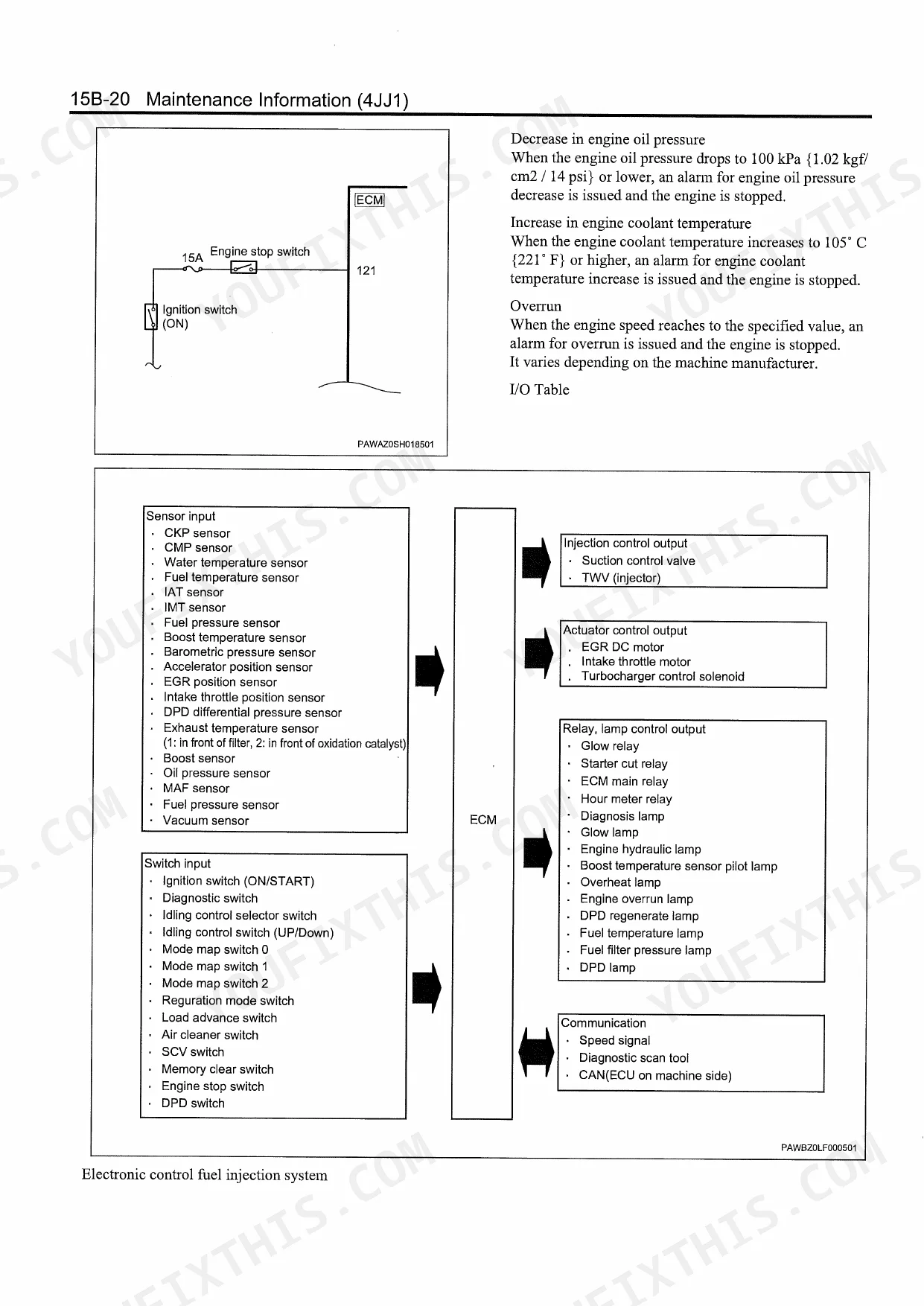

| System | Pages | Key Topics |
|---|---|---|
| Introdution | 4-5 | - |
| Service Infomation Guide | 6-25 | - |
| Maintenance Information | 26-85 | - |
| Functional Inspection | 86-101 | - |
| Symptom | 102-117 | - |
| DTC Infomation | 118-217 | - |
| Engine Control | 218-339 | - |

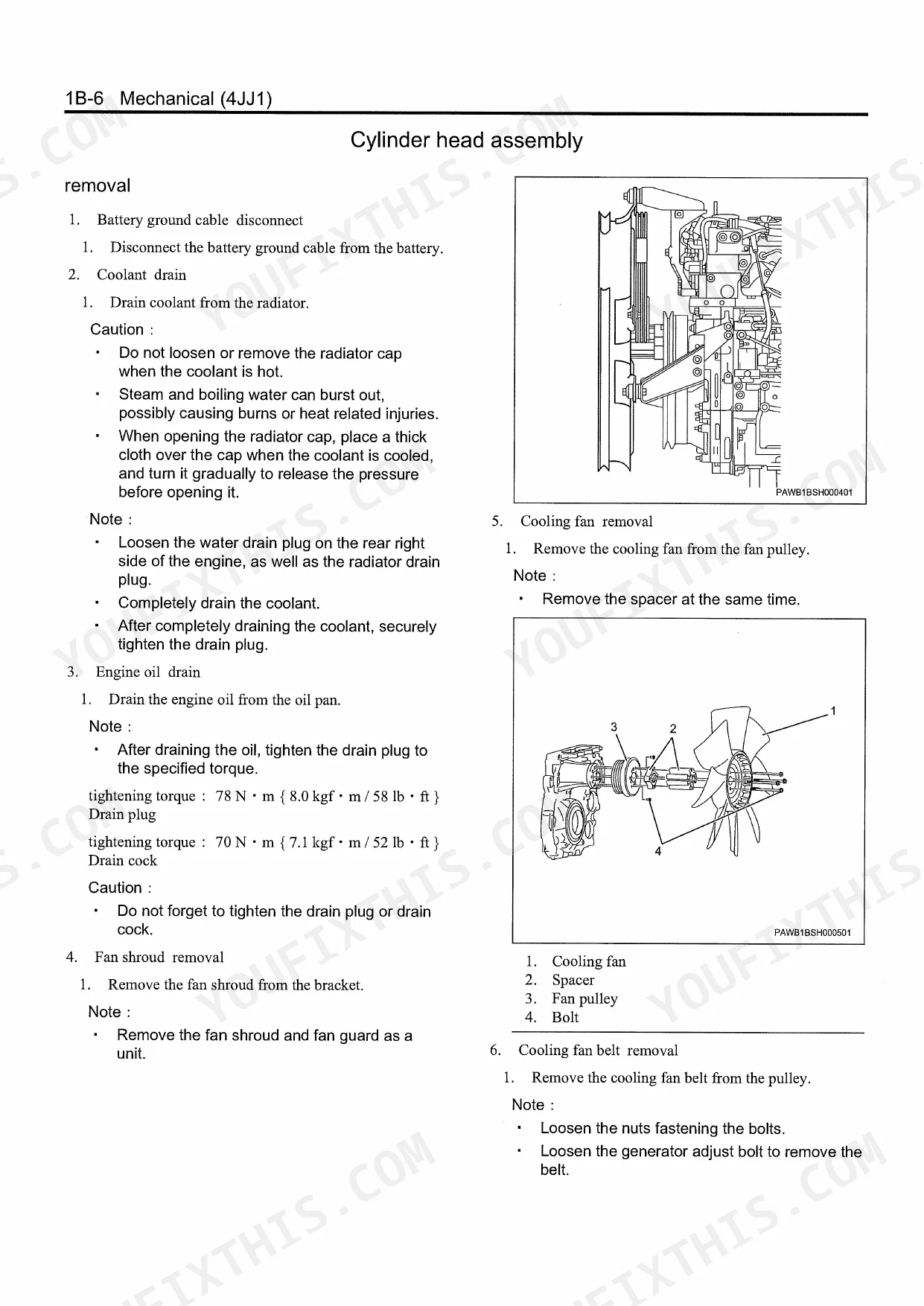

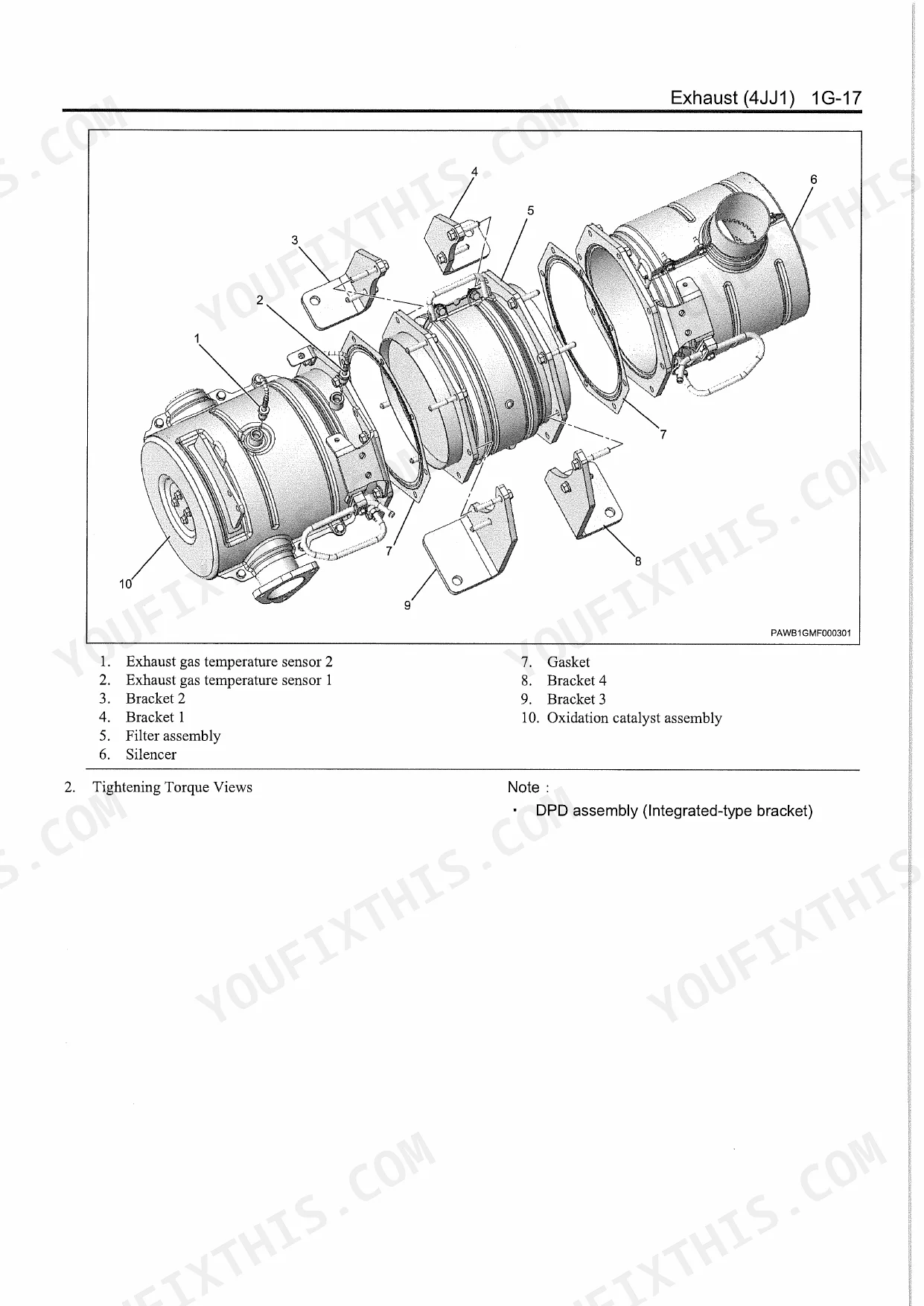

| Mechanical | 340-725 | - |
| Fuel System | 726-787 | - |
| Cooling | 788-811 | - |
| Lubrication | 812-893 | - |
| Induction | 894-915 | - |
| Exhaust | 916-935 | - |
| Aux.Emission Control Devices | 936-947 | - |
| Electical | 948-969 | - |

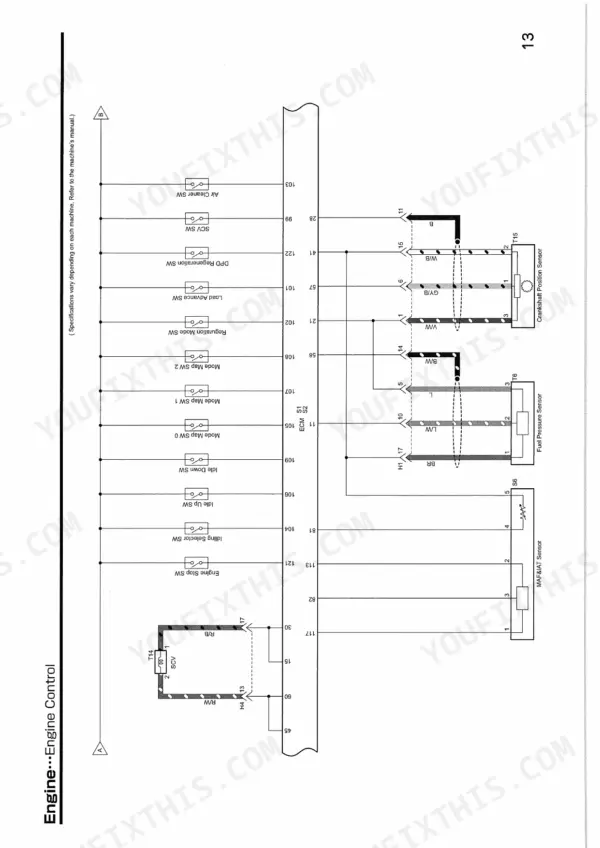

| Wiring Diagram | 970-1133 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

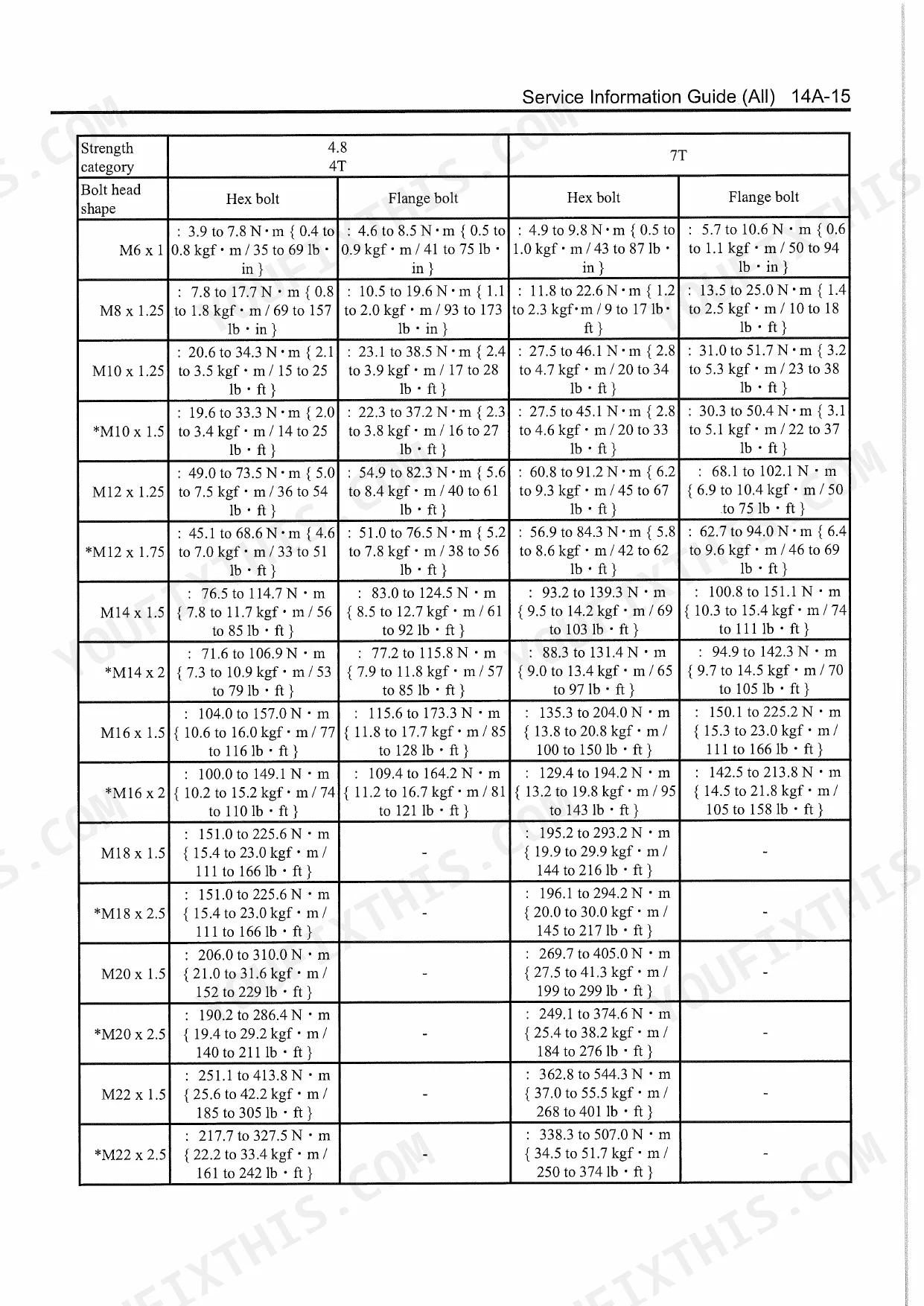

| Injector clamp bolt tightening torque | 26 N·m { 2.7 kgf·m / 19 lb·ft } | p. 379 |
| Injection pipe sleeve nut (injector side) tightening torque | 30 N·m { 3.1 kgf·m / 22 lb·ft } | p. 379 |
| Fuel filter case tightening torque | 29 N·m { 3.0 kgf·m / 21 lb·ft } | p. 743 |
| Fuel filter pressure sensor tightening torque | 24 N·m { 2.4 kgf·m / 18 lb·ft } | p. 766 |
| Turbine shaft axial clearance limit | 0.11 mm { 0.0043 in } | p. 897 |
| Compressor impeller to housing clearance limit | less than 0.2 mm { less than 0.0079 in } | p. 897 |
| Glow plug installation tightening torque | 18 N·m { 1.8 kgf·m / 13 lb·ft } | p. 951 |
| Glow plug resistance at room temperature | 6 Ω | p. 950 |
| Supply pump gear nut tightening torque | 130 N·m { 13.3 kgf·m / 96 lb·ft } | p. 425 |

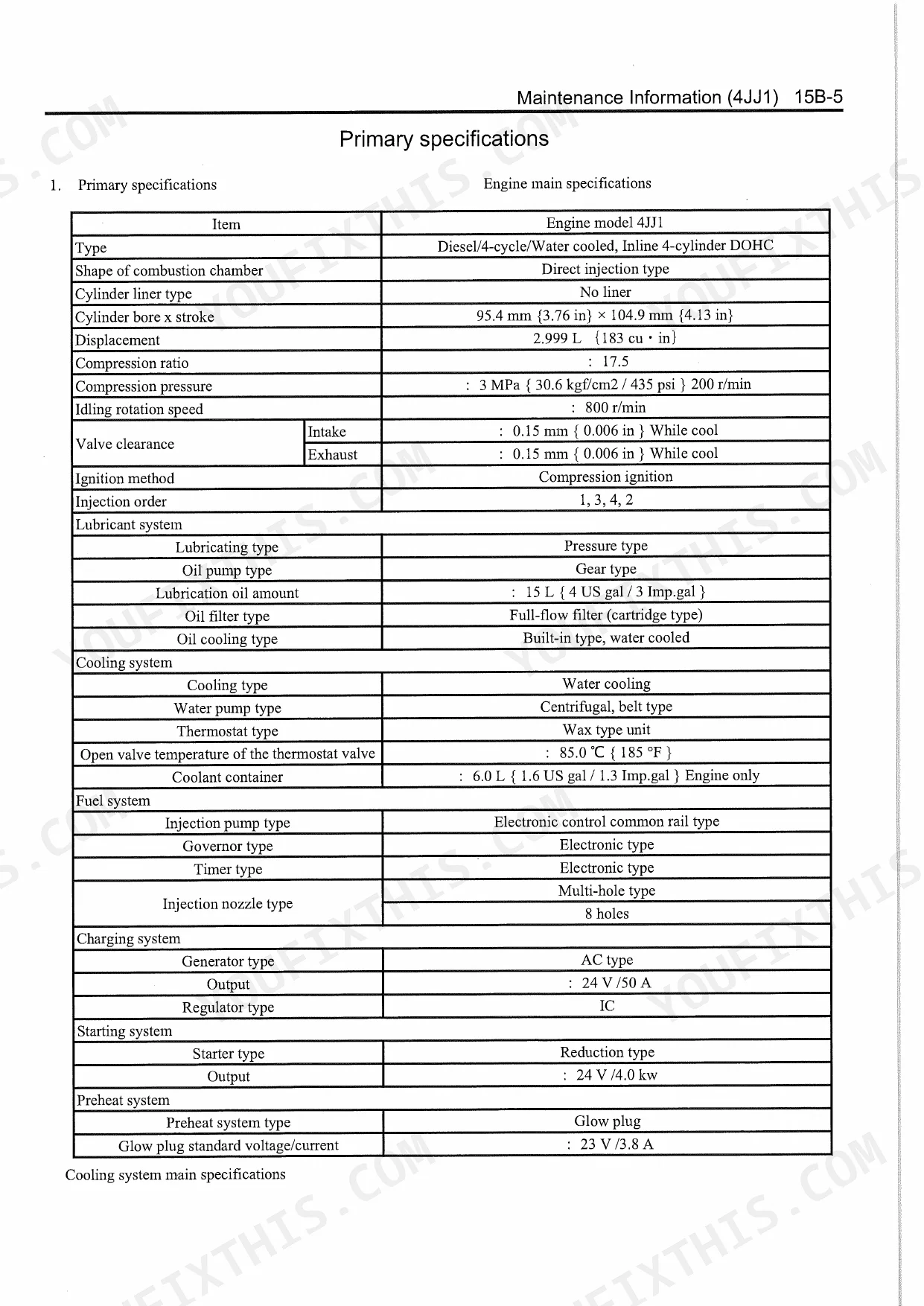

| Displacement | 2.999 L (183 cu·in) | p. 30 |
| Compression Ratio | 17.5 | p. 30 |
| Compression Pressure (Specification) | 3 MPa (30.6 kgf/cm2 / 435 psi) at 200 r/min | p. 30 |
Isuzu 4JJ1 Common Problems This Manual Covers

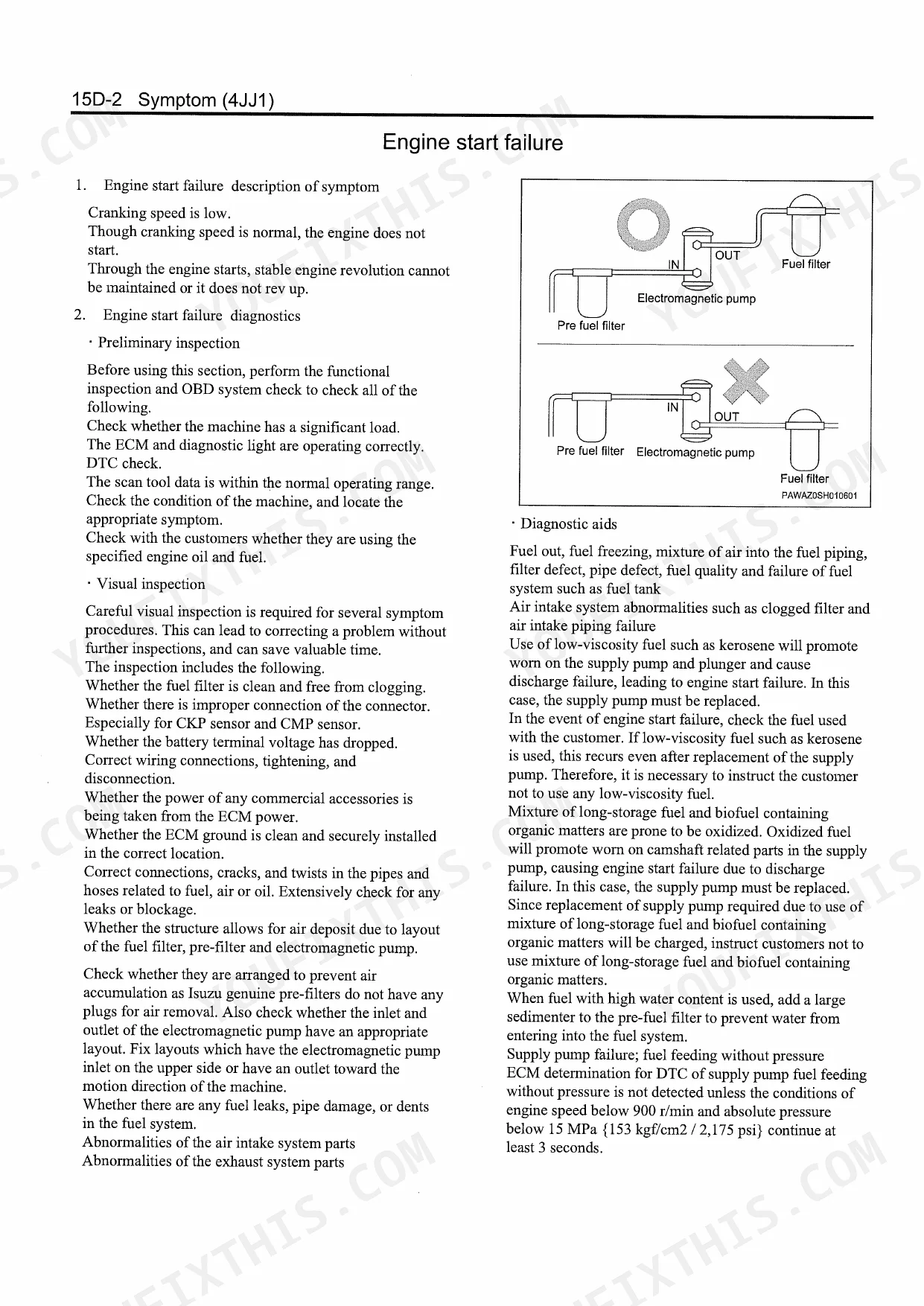

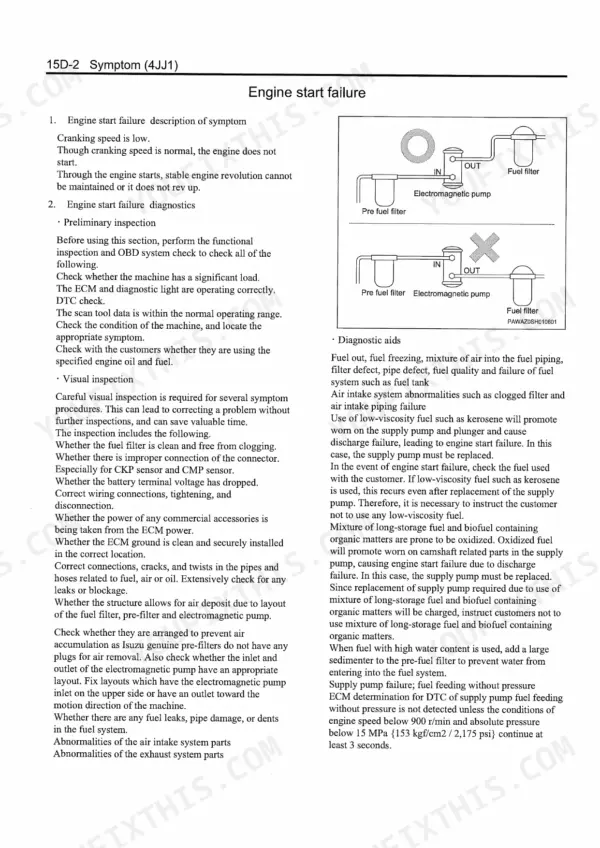

Isuzu 4JJ1 engine cranks but won't start after sitting overnight, low fuel pressure p. 103
Follow the fuel system diagnostics on page 103. Listen for feed pump operation during cranking to confirm priming. Inspect all injection pipe connections for looseness; torque injector sleeve nuts to 30 N·m (3.1 kgf·m / 22 lb·ft). Replace the fuel filter element and bleed air from the system completely before attempting restart.
Manual Section: SymptomExcessive black smoke under load with rough running and loss of power p. 109
Verify turbocharger operation and inspect the air intake for restrictions. Measure turbine shaft axial clearance per page 897; replace the turbocharger if clearance exceeds 0.11 mm (0.0043 in). Confirm compressor impeller to housing clearance stays below 0.2 mm (0.0079 in). Remove and flow-test all four fuel injectors for spray pattern consistency and leakage.
Manual Section: SymptomEngine speed hunts and surges at idle, won't hold steady RPM p. 107
Start by bleeding all air from the fuel system at the filter housing. Look for cracked fuel lines between tank and supply pump that allow air ingress under vacuum. Test the fuel temperature sensor and coolant temperature sensor circuits per the error code reference. Confirm turbocharger shaft rotates smoothly without binding or excessive radial play.
Manual Section: SymptomCold start failure with glow plug light on, engine barely turns over p. 951
Test glow plug resistance at each cylinder; specification is 6 Ω at room temperature per page 950. Replace any plug reading open circuit or significantly out of spec. Torque new glow plugs to 18 N·m (1.8 kgf·m / 13 lb·ft). Verify battery voltage under load and check all cable connections for corrosion or looseness.
Manual Section: ElectricalDPF regeneration light blinks constantly, poor acceleration and fuel economy p. 115
Review the DPF diagnostic aids on page 115 for sensor checks and visual inspection steps. Confirm exhaust backpressure is within specification and look for restrictions in the diesel particulate filter. Clean or replace differential pressure sensor lines; verify exhaust gas temperature sensors read accurately during regeneration cycles.
Manual Section: SymptomOil pressure warning light flickers at hot idle below 800 RPM p. 89
Bring the engine to operating temperature and measure oil pressure at 2,000 r/min with a mechanical gauge; minimum is 343 kPa (3.5 kgf/cm² / 50 psi) per page 89. Drain and inspect oil for fuel dilution or metal contamination. Examine oil pump clearances and replace the pressure relief valve if pressure remains low after confirming correct viscosity and level at 15 L (4 US gal).
Manual Section: Functional InspectionFrequently Asked Questions
How to start Isuzu 4JJ1 engine
After any fuel system maintenance, bleed trapped air. Pump the priming handle 20+ times until fuel spills from the air removal plug. Close the plug, pump 10-15 more times, then start the engine and idle for 5 seconds without revving.
What are the replacement specifications for fuel injectors?
Torque the injector clamp bolt to 26 N·m (19 lb·ft). The injection pipe sleeve nut on the injector side requires 30 N·m (22 lb·ft); the common rail side requires 25 N·m (18 lb·ft). When replacing an injector, record its 24-figure ID code in the ECU.
What are the replacement specifications for fuel filter?
Install a new O-ring before reassembly. Torque the filter case to 29 N·m (21 lb·ft) using the filter wrench (SST: 8-9801-3170-0). Tighten the drain plug to 2 N·m (18 lb·in) and the air bleeding plug to 10 N·m (89 lb·in).
What do I get after purchasing this Isuzu 4JJ1 manual?
You receive immediate download of the complete 1133-page searchable Workshop Manual. Access it on any device, from your laptop at the bench to your phone in the field.
Are there any print restrictions on this Isuzu 4JJ1 manual?
None. No DRM or copy protection. Print the entire manual or just the pages you need on any home or office printer.
Does this Isuzu 4JJ1 Workshop Manual have electrical diagrams?

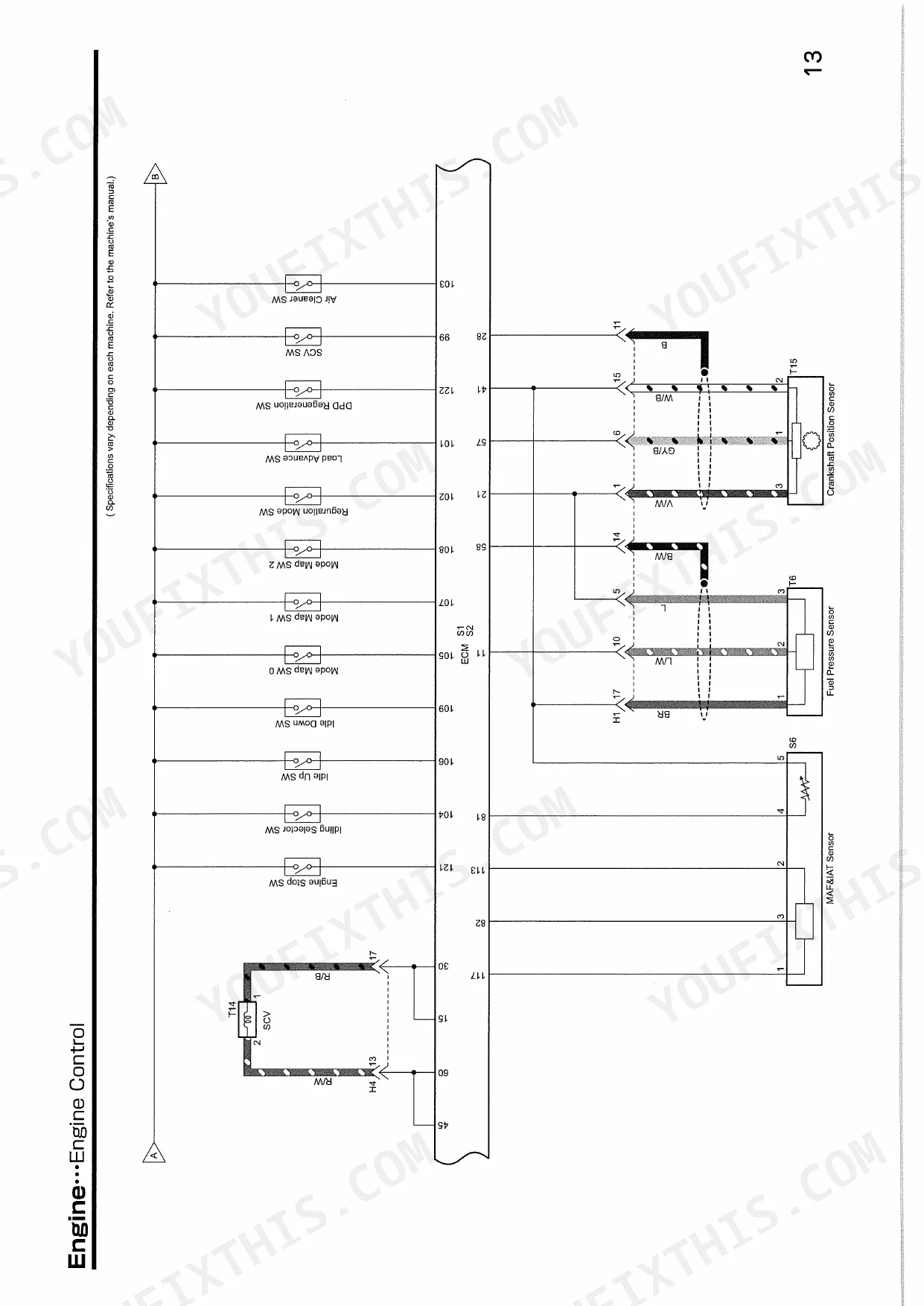

Yes. The Workshop Manual includes complete wiring harness diagrams, electrical circuits, and connector pinouts across 31 pages.
