This Isuzu AA-6SD1T Workshop Manual is the factory service reference for the AA-6SD1T industrial diesel engine, a turbocharged 9.839 L six-cylinder unit. It runs 243 pages with a full text layer, so you can search and copy specs straight from the PDF.Coverage is the complete overhaul path: general information with data and tightening torques, scheduled maintenance, three engine chapters for disassembly, inspection and repair, and assembly, plus dedicated sections for the lubrication, cooling, fuel and turbocharger systems, engine electrical, and troubleshooting. Repair standards at the back list wear limits and clearances.Whether you are setting valve clearance, rebuilding the turbo, torquing the cylinder head, or chasing an overheating or hard start fault, the procedures and exact specs are here. Download it once and print any page you need at the bench.
What's Inside This Isuzu AA-6SD1T Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 4-23 | Servicing Precautions, Main Data and Specifications, Tightening Torque Specifications |
| Maintenance | 24-39 | Lubricating System, Fuel System, Valve Clearance Adjustment, Cylinder Compression Pressure |

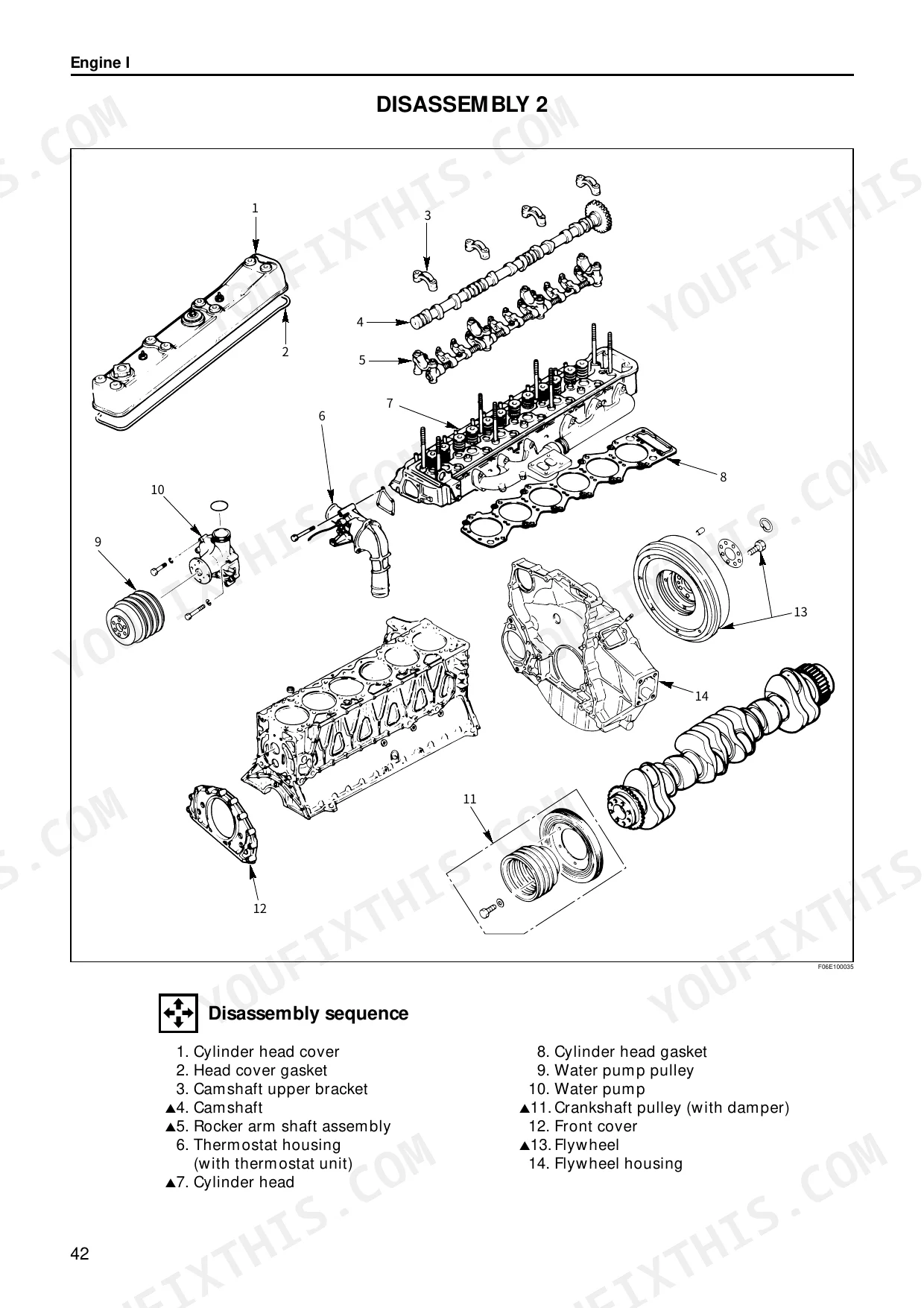

| Engine I (Disassembly) | 40-57 | External Components, Cylinder Head, Piston and Connecting Rod |
| Engine Ii (Inspection and Repair) | 58-87 | Cylinder Head, Cylinder Block, Crankshaft, Pistons |

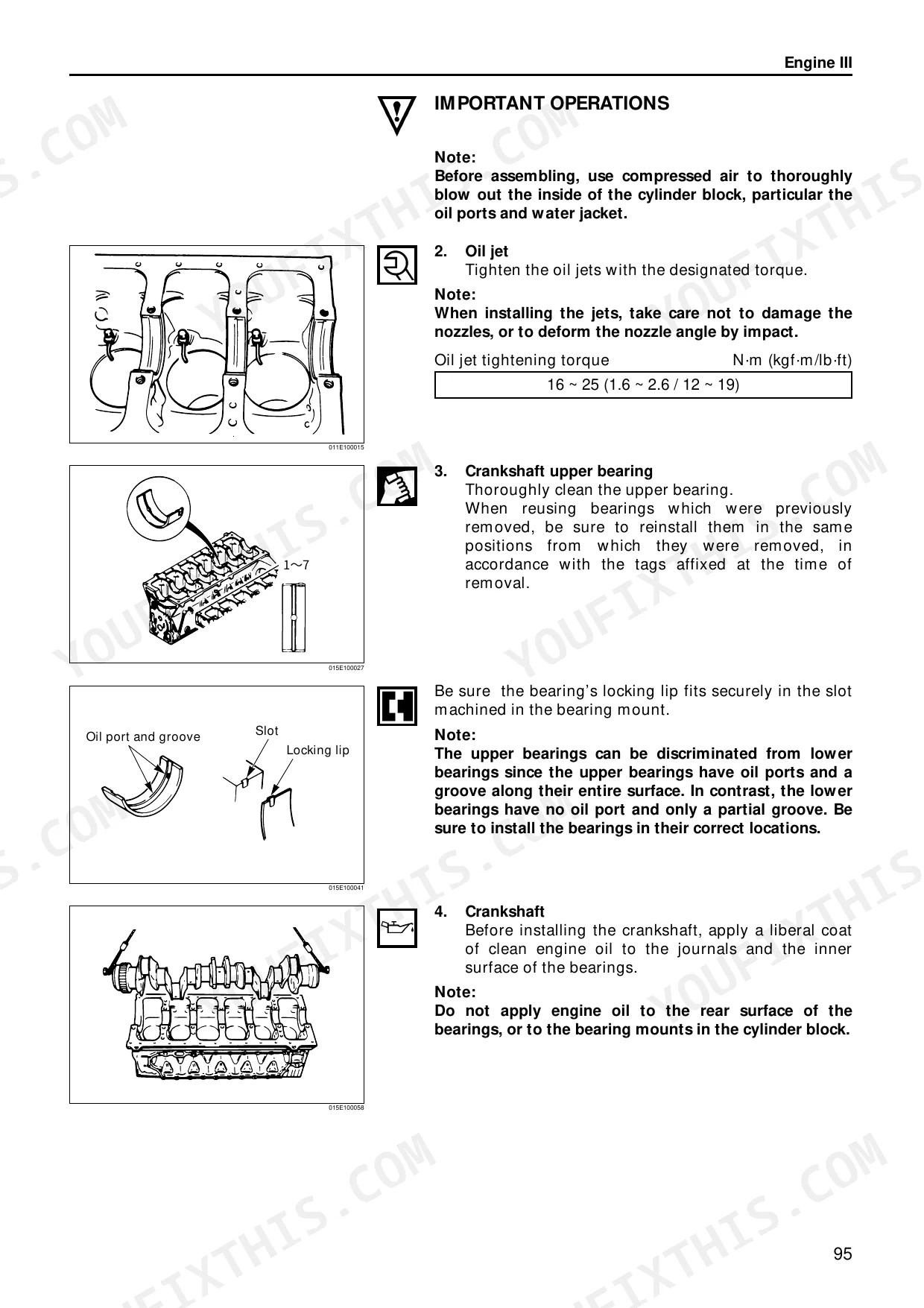

| Engine Iii (Assembly) | 88-119 | Piston and Connecting Rod Assembly, Cylinder Head Assembly, Timing Gear Train |

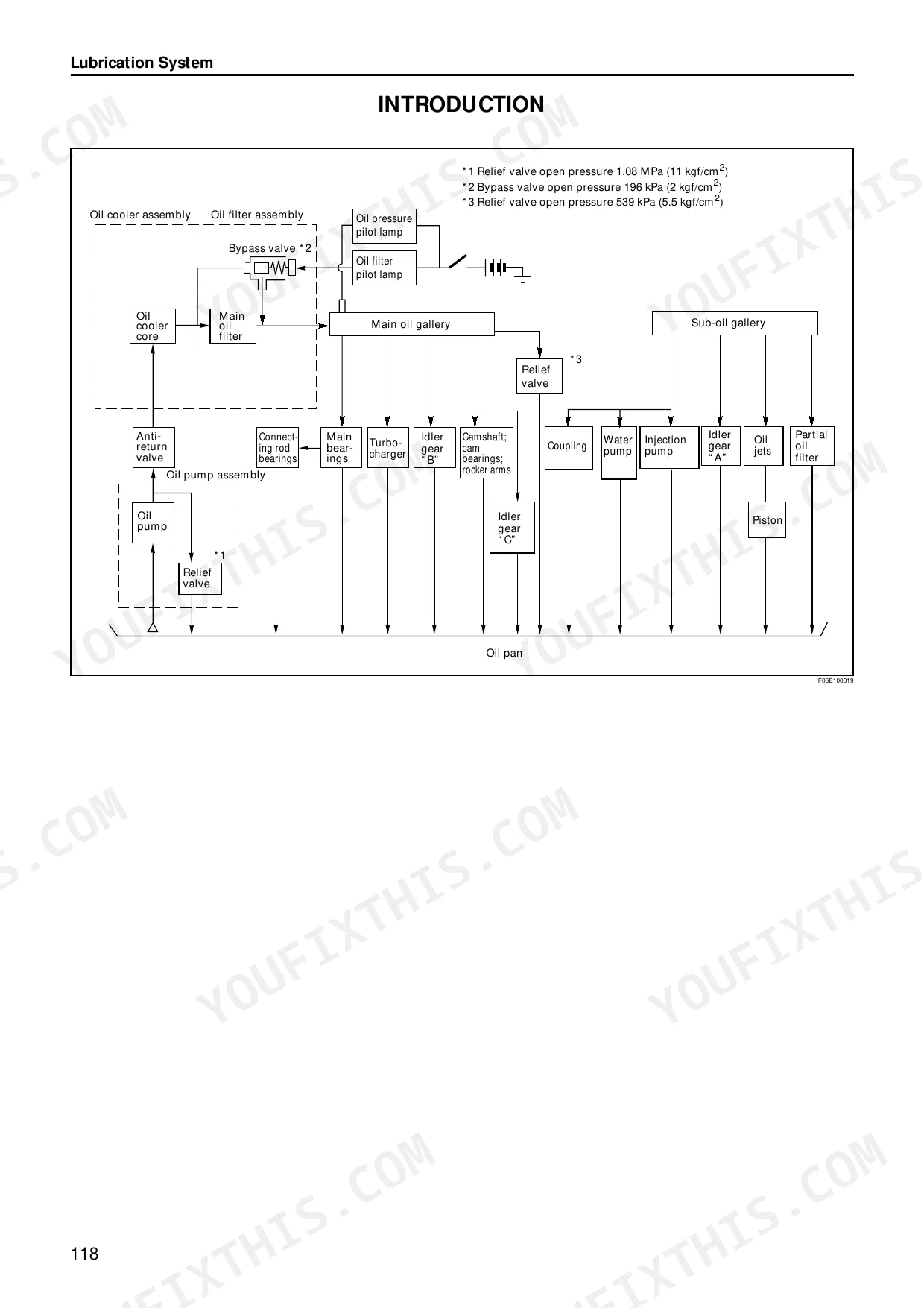

| Lubrication System | 120-131 | Oil Pump, Oil Filter, Oil Cooler |
| Cooling System | 132-141 | Water Pump, Thermostat |
| Fuel System | 142-155 | Injection Nozzle Disassembly, Reassembly, Opening Pressure Adjustment |
| Turbocharger | 156-175 | Troubleshooting, Disassembly, Inspection, Reassembly |
| Engine Electrical | 176-199 | Starter, Alternator |
| Troubleshooting | 200-221 | Starting Difficulties, Lack of Power, Overheating, Engine Sounds |
| Repair Standards | 226-241 | Wear Limits, Assembly Standards, Clearances |

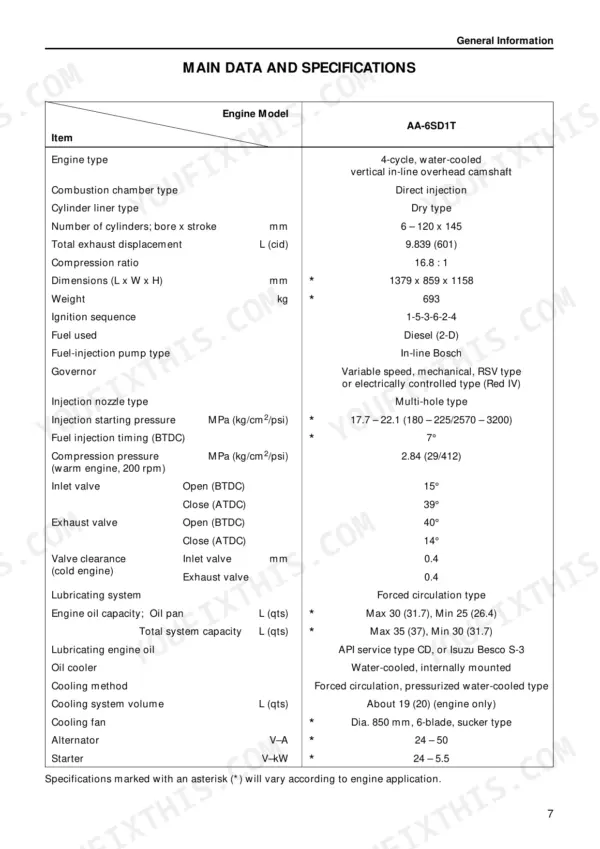

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve clearance (intake and exhaust) (cold engine) | 0.4 (0.016) mm (in) | p. 31 |
| Flywheel tightening torque | 74 ~ 83 (7.5 ~ 8.5 / 54 ~ 61) → 60° → 30° ~ 60° N·m (kgf·m/lb·ft) | p. 105 |
| Valve lift when fully open | 10 (0.39) mm (in) | p. 141 |
| Glow plug tightening torque | 22 ~ 27 (2.25 ~ 2.75 / 16.3 ~ 19.9) N·m (kgf·m/lb·ft) | p. 114 |
| injection nozzle opening pressure (1st stage) | 17.7 (180/2570) MPa (kg/cm2/psi) | p. 28 |
| Axial play of shaft & turbine wheel (Standard Clearance) | 0.075 – 0.155 (0.00295 – 0.00610) mm (in.) | p. 174 |
| Injection pump bolts tightening torque | 31 ~ 45 (3.2 ~ 4.6 / 23 ~ 33) N·m (kgf·m/lb·ft) | p. 114 |

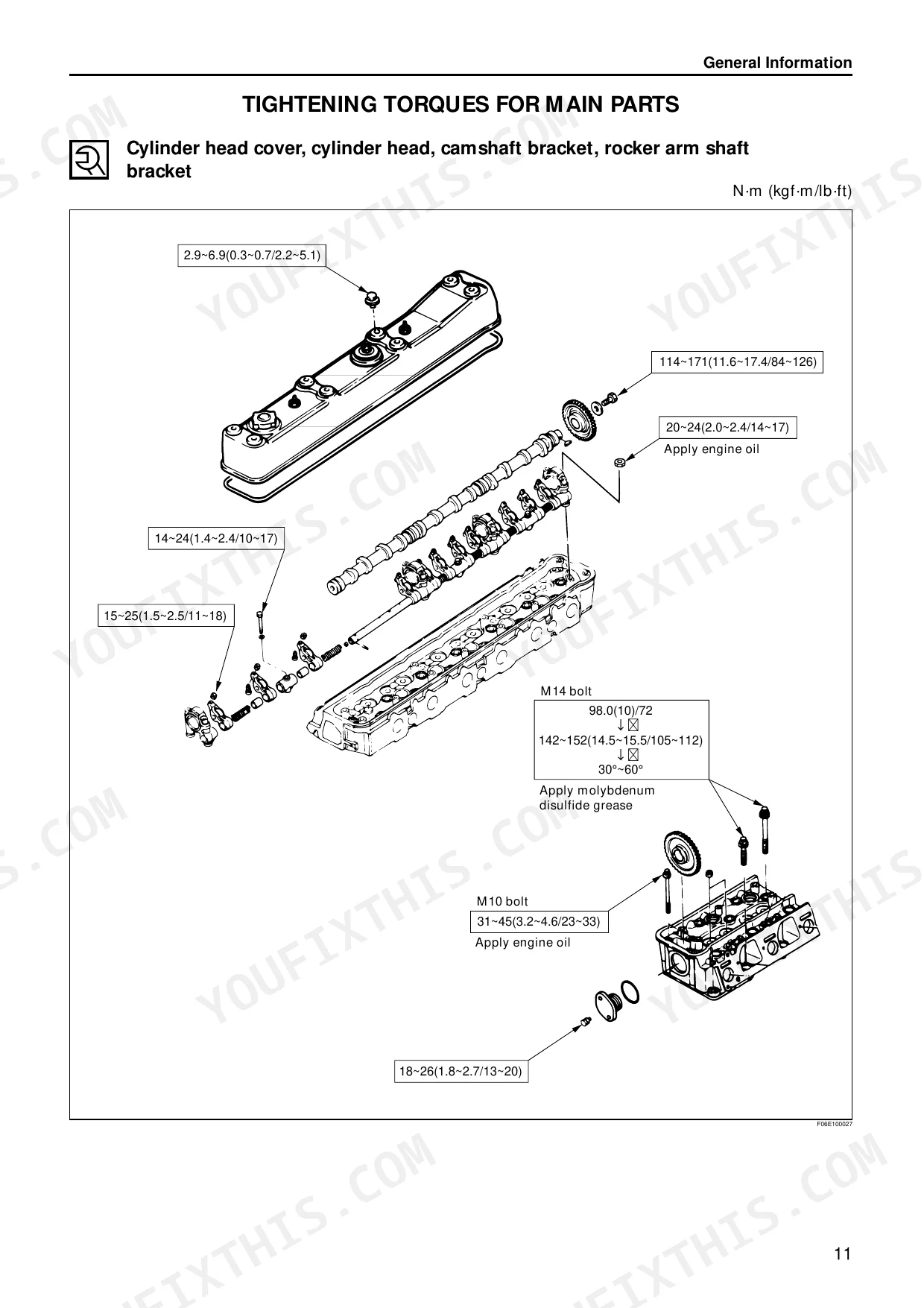

| Cylinder head bolt tightening torque (M14 bolts) | 98 (10/72) → 142 ~ 152 (14.5 ~ 15.5 / 105 ~ 112) → 30° ~ 60° N·m (kgf·m/lb·ft) | p. 107 |
| Overflow valve opening pressure | 245 (2.5 / 36) kPa (kgf/cm2/psi) | p. 27 |

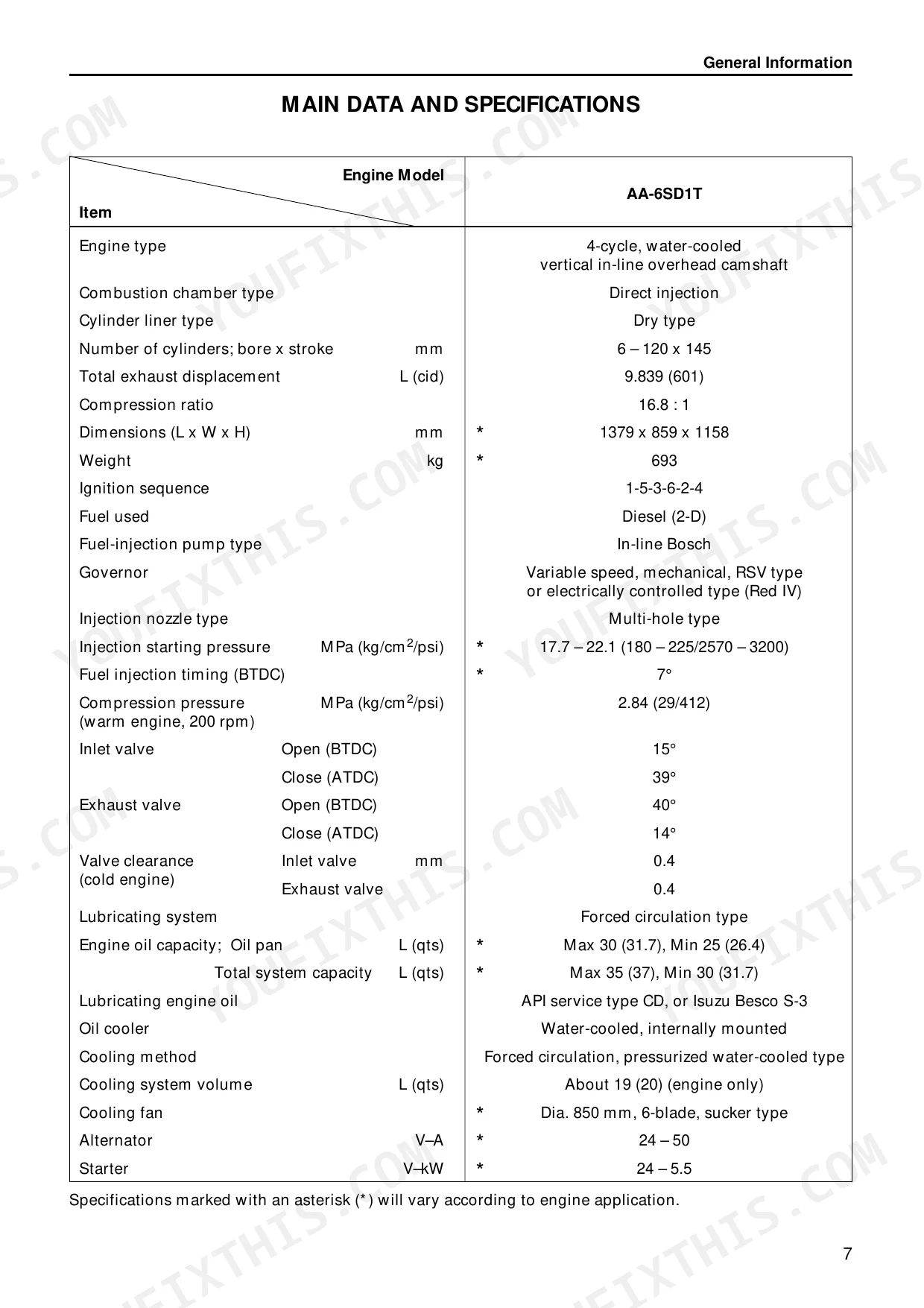

| Compression Ratio | 16.8 : 1 | p. 10 |
| Engine Weight | 693 kg | p. 10 |
| Total Exhaust Displacement | 9.839 L (601 cid) | p. 10 |
Isuzu AA-6SD1T Common Problems This Manual Covers
Overheating under heavy load
These engines overheat when coolant runs low, the radiator clogs, or the thermostat sticks shut. The Cooling System chapter covers water pump and thermostat service to restore proper flow.
Manual Section: Cooling System p. 132Hard starting in cold weather

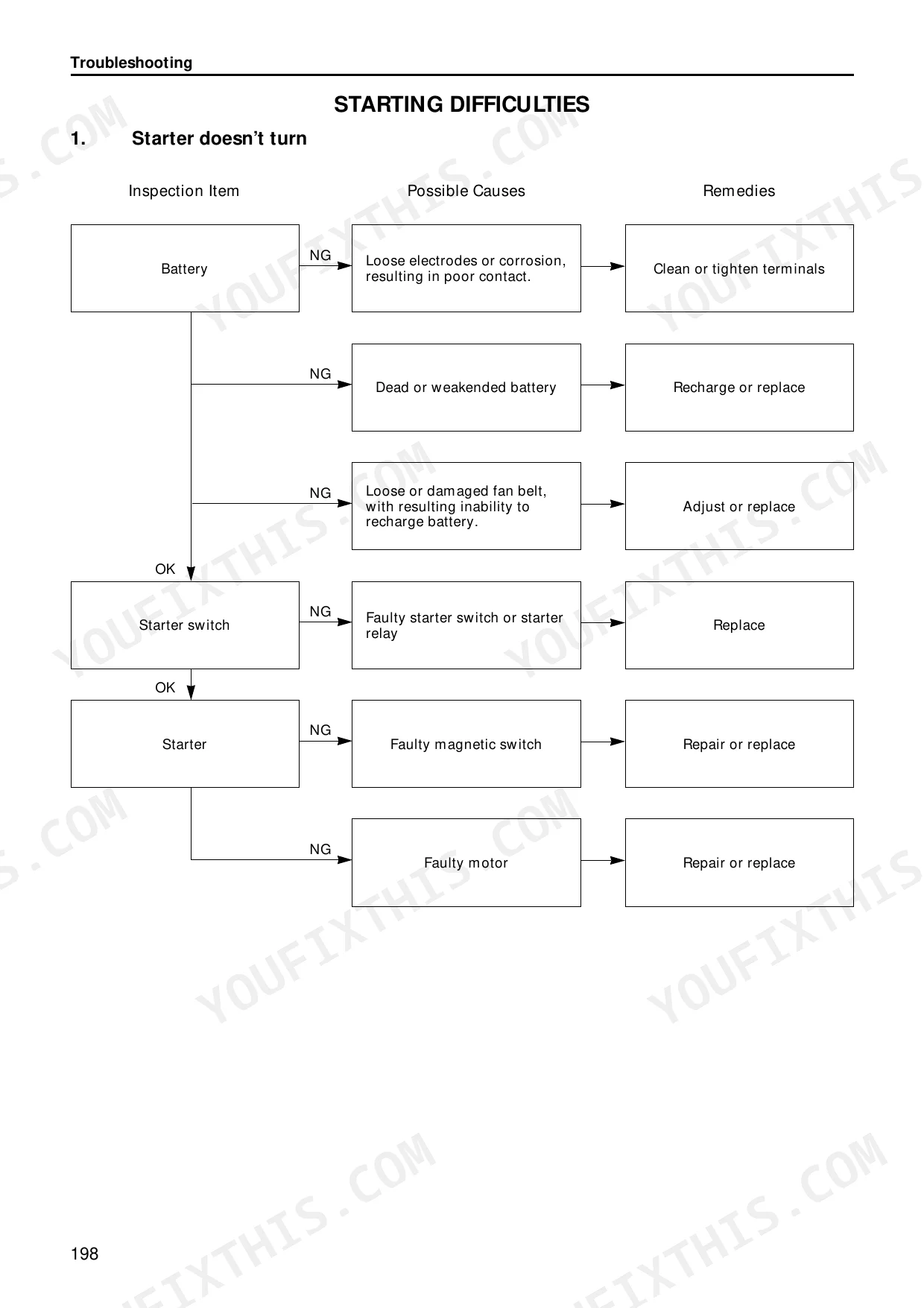

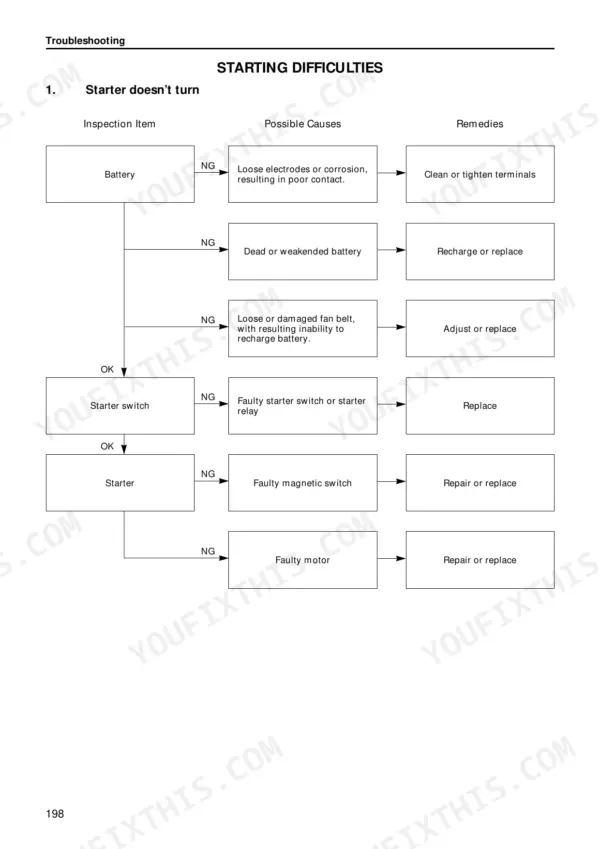

A weak battery, tired glow plugs, or poor fuel delivery make cold starts difficult. The Troubleshooting chapter works through starting difficulties step by step to isolate the cause.
Manual Section: Troubleshooting p. 200Turbocharger power loss
Worn turbine blades, dirty oil, or a clogged air filter cut boost and pulling power. The Turbocharger chapter covers disassembly, inspection and reassembly, including shaft axial play limits.
Manual Section: Turbocharger p. 156Poor injector spray and misfire
Low opening pressure or a fouled nozzle causes rough running, hesitation and smoke. The Fuel System chapter details injection nozzle disassembly and opening pressure adjustment.
Manual Section: Fuel System p. 142Cylinder head gasket failure
Repeated overheating can warp the head and blow the gasket, showing up as coolant loss or combustion leaks. The Engine II chapter covers cylinder head and block inspection and repair.
Manual Section: Engine II (Inspection and Repair) p. 58Valve clearance drift
Clearances that wander off spec cause noise, hard starting and lost power over time. The Maintenance chapter gives the valve clearance adjustment procedure and the cold engine setting.
Manual Section: Maintenance p. 24Frequently Asked Questions
Which engine does this manual cover?
It covers the Isuzu AA-6SD1T industrial diesel engine, a turbocharged six-cylinder unit with 9.839 L displacement and a 16.8 to 1 compression ratio, as identified on the manual cover and specification pages.
What is the cylinder head bolt torque?
The M14 cylinder head bolts torque to 98 N·m, then 142 to 152 N·m, then a further 30 to 60 degrees. The full procedure is in the Engine III (Assembly) chapter. p. 88
What is the valve clearance specification?
Valve clearance is 0.4 mm on a cold engine for both intake and exhaust. The Maintenance chapter gives the full checking and adjustment procedure. p. 24
How do I get the manual after buying?
The PDF downloads instantly after checkout. There is no shipping or waiting, and you keep the file to view or print whenever you need it.
What do I get after purchasing this Isuzu AA-6SD1T manual?
After checkout you'll download a 243-page searchable PDF. Works on laptops, tablets, and phones, so you can pull it up right at the machine.
Can I print this manual?
Yes. No DRM or copy protection. Print the whole thing or just the pages you need on any standard printer.

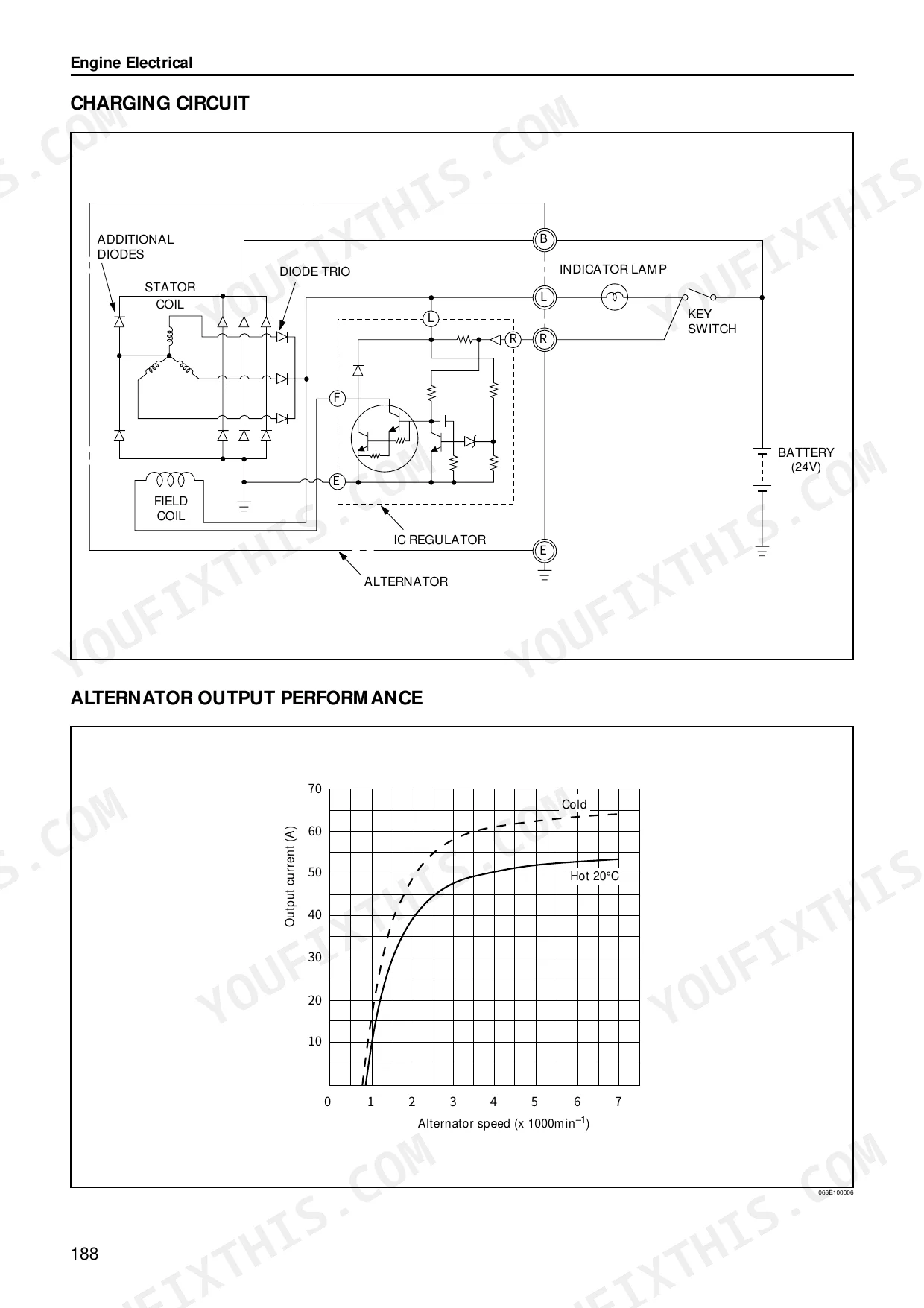

Can I find wiring schematics in this Isuzu AA-6SD1T manual?
Yes. Circuit diagrams for the starter and alternator systems are included.
