This Isuzu AA-6SD1T Service Manual is the factory workshop reference for the AA-6SD1T diesel engine, a turbocharged six-cylinder unit with a 16.8 to 1 compression ratio. It runs 246 pages with a full text layer, so every spec and procedure is searchable and printable.Coverage runs the whole rebuild: general information and torque data, routine maintenance, three engine chapters for disassembly, inspection and repair, and assembly, then standalone sections for the lubrication, cooling and fuel systems, the turbocharger, and engine electrical. A troubleshooting chapter and a repair standards section with wear limits and clearances round it out.Whether you are adjusting valve clearance, setting injection nozzle opening pressure, rebuilding the water pump, servicing the turbo, or torquing the cylinder head, the exact values and steps are here. Download instantly and print the pages you need.
What's Inside This Isuzu AA-6SD1T Manual
| System | Pages | Key Topics |
|---|---|---|

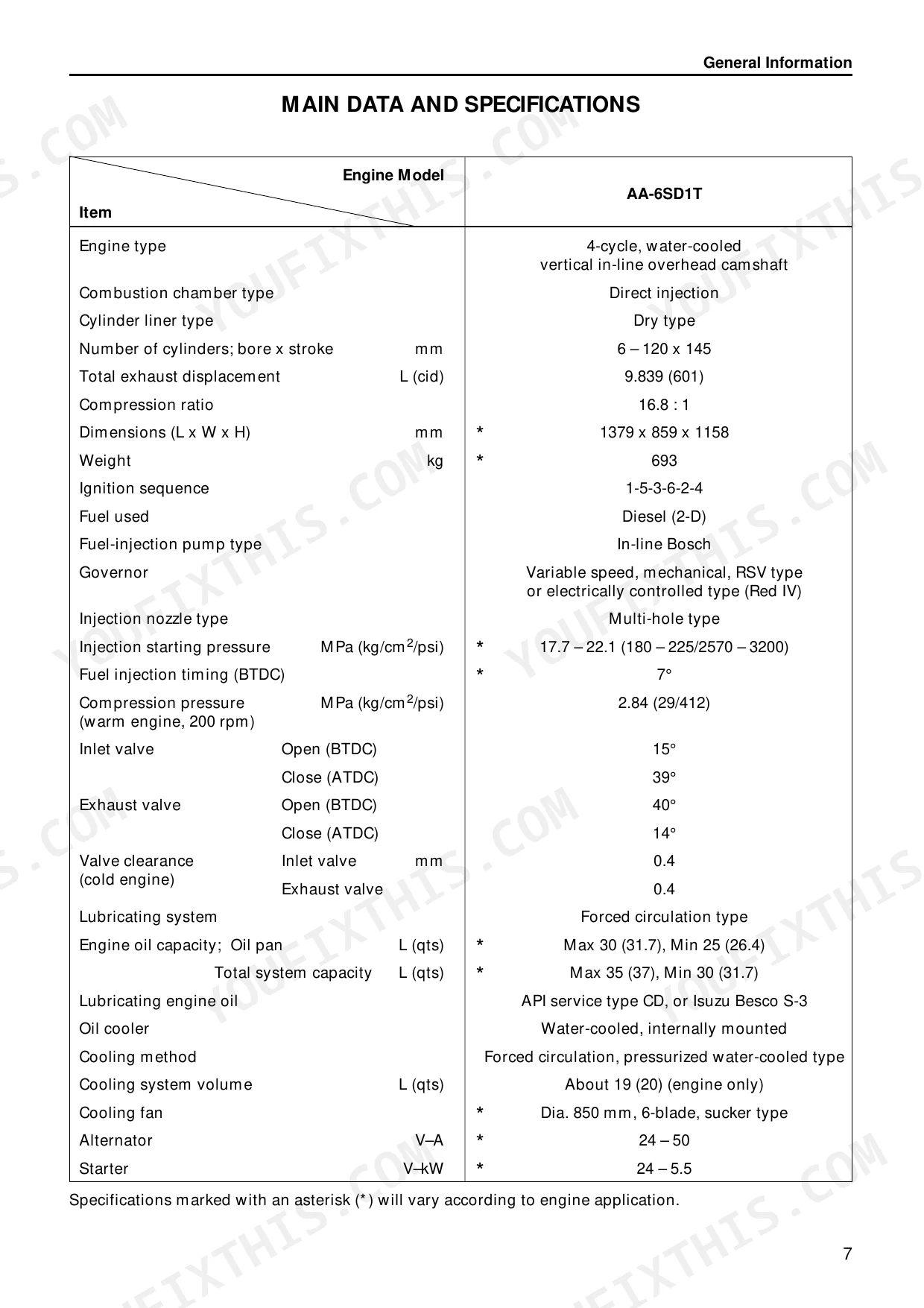

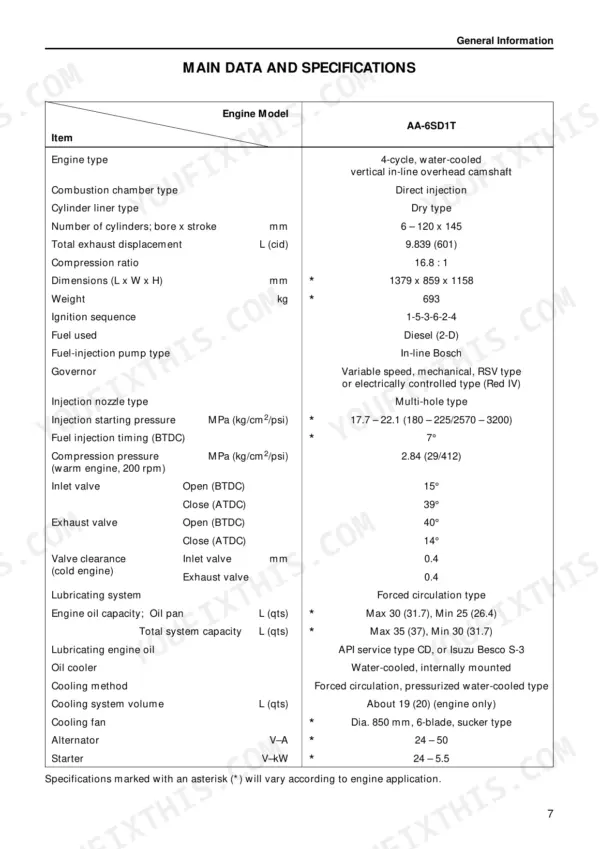

| General Information | 6-26 | General Servicing Precautions, Notes on the Format of This Manual, About Angular Tightening, Main Data and Specifications |
| Maintenance | 27-42 | Lubricating System, Fuel System, Injection Nozzle, Cooling System |

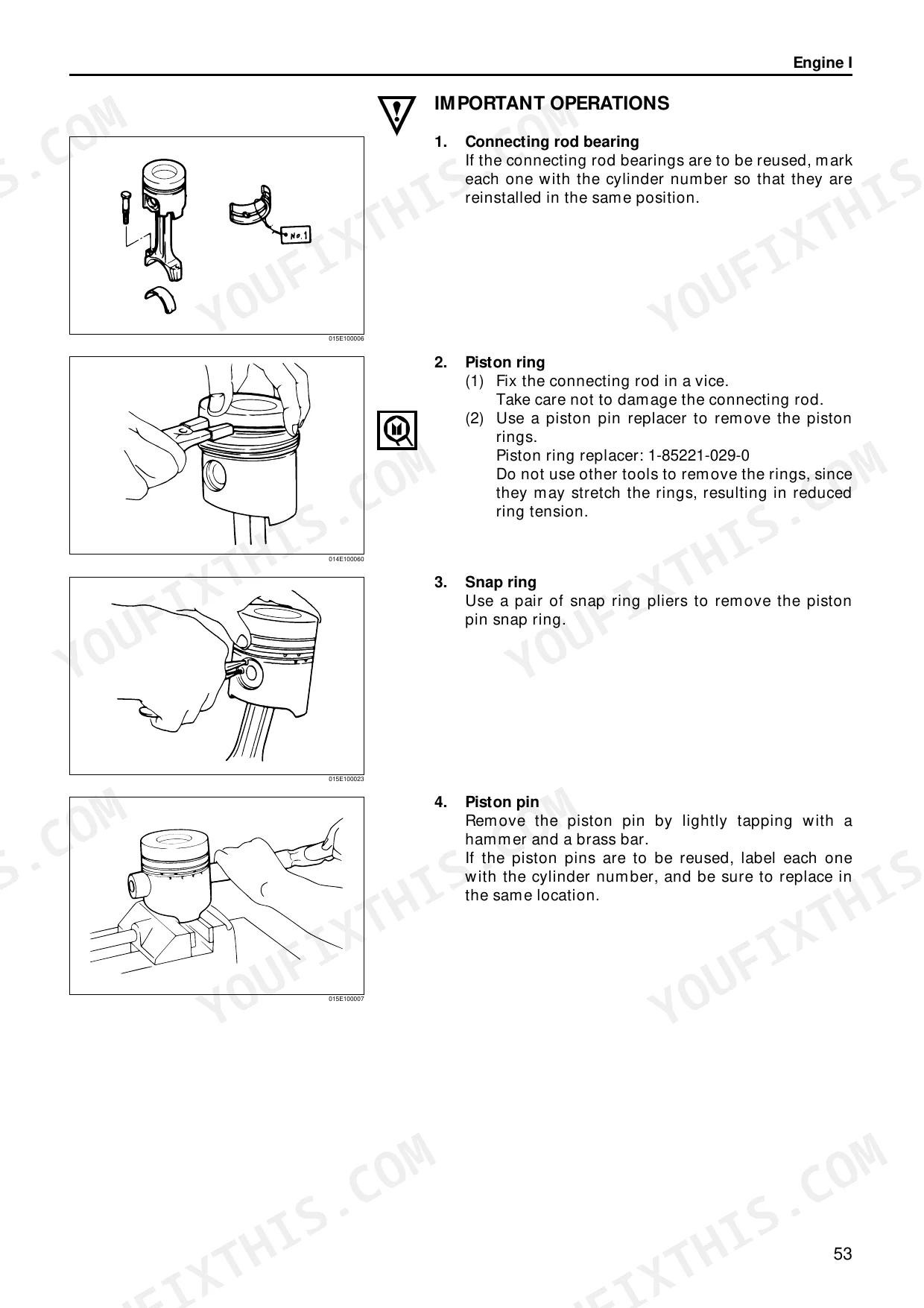

| Engine I (Disassembly) | 43-60 | Disassembly 1, Disassembly 2, Disassembly 3, Cylinder Head Disassembly |
| Engine Ii (Inspection and Repair) | 61-90 | Valve Springs, Rocker Arm Shaft and Rocker Arm, Camshaft, Cylinder Block, Cylinder Liner |
| Engine Iii (Assembly) | 91-122 | Piston and Connecting Rod Assembly, Assembly 1, Assembly 2, Assembly 3 |

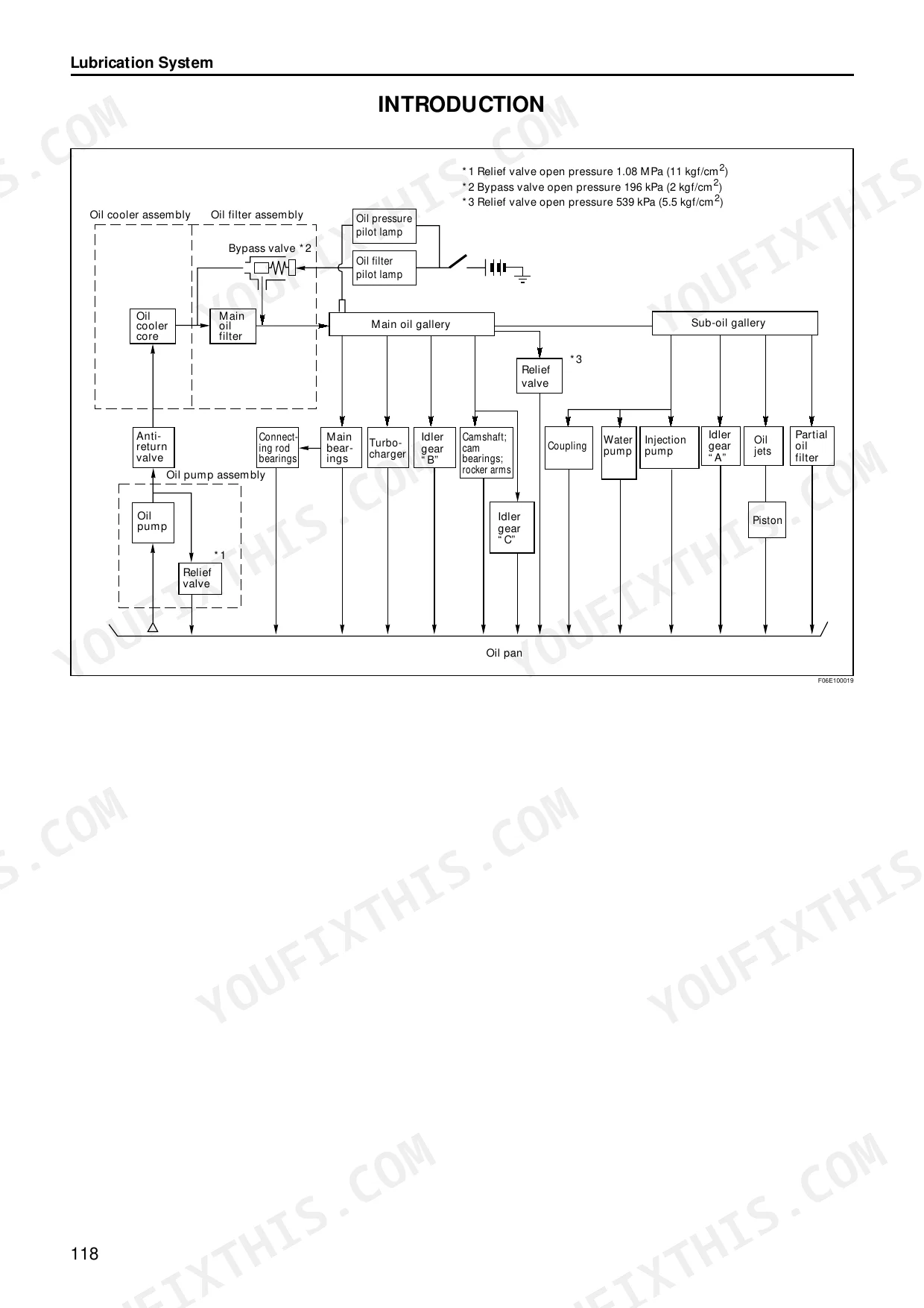

| Lubrication System | 123-134 | Introduction, Oil Pump, Oil Filter, Oil Cooler |
| Cooling System | 135-144 | Introduction, Water Pump Disassembly, Water Pump Inspection and Repair, Water Pump Assembly |
| Fuel System | 145-158 | Introduction, Injection Nozzle Disassembly, Reassembly and Opening Pressure Adjustment, Reassembly and Adjustment Procedure |

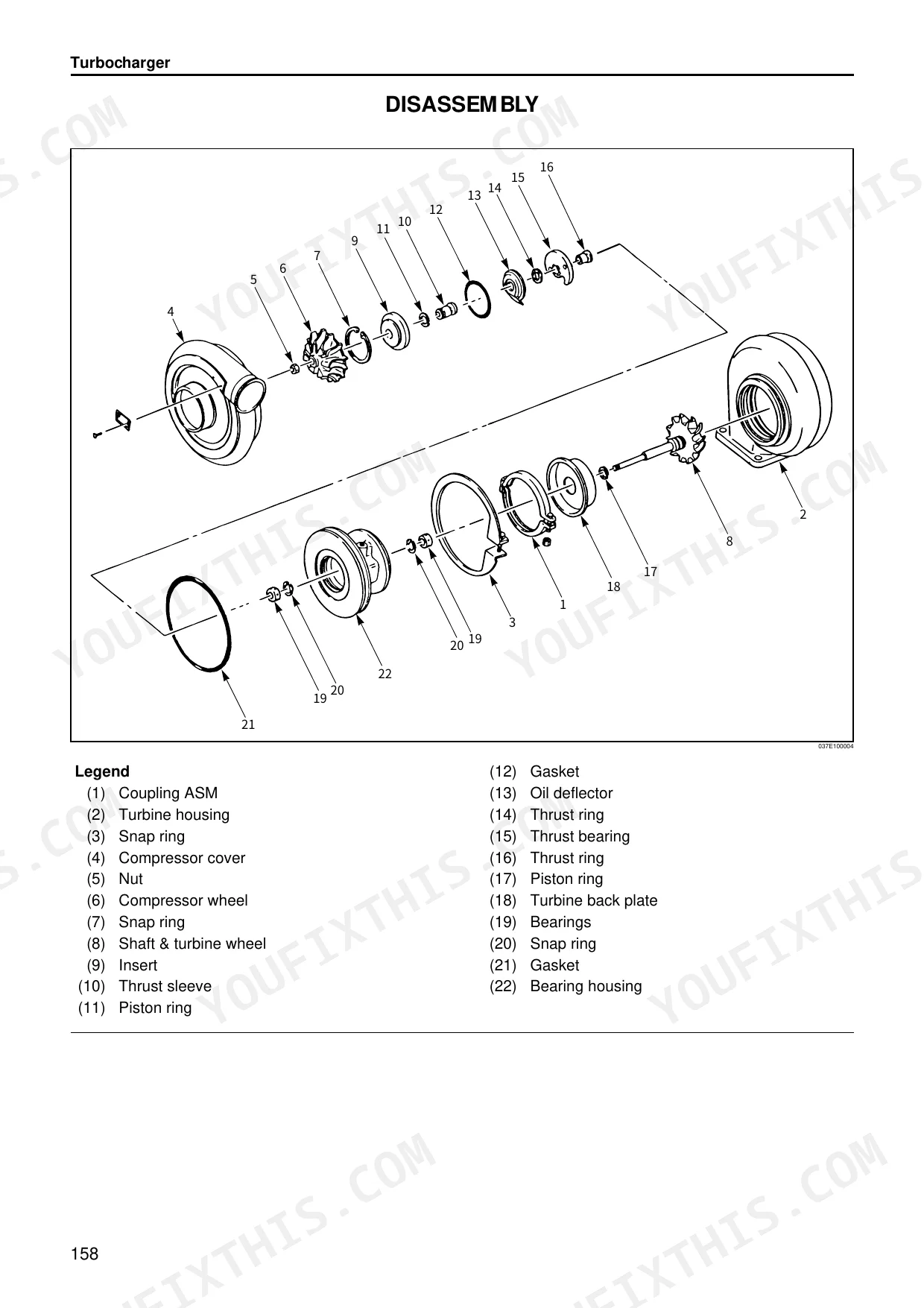

| Turbocharger | 159-178 | Turbocharger Servicing, Troubleshooting, Construction, Disassembly |

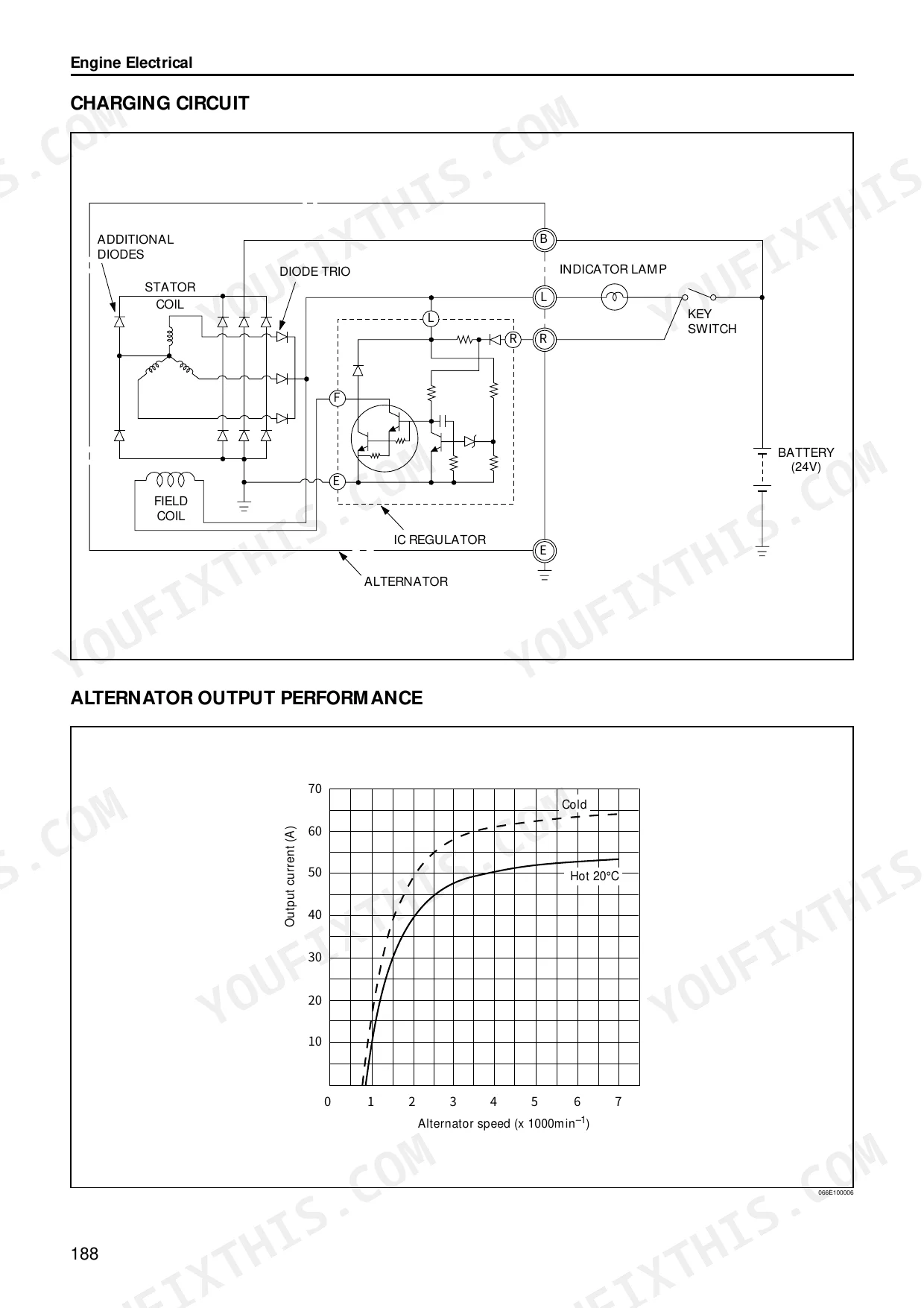

| Engine Electrical | 179-202 | Starter Main Data and Specifications, Starter Disassembly, Starter Inspection and Repair, Starter Reassembly |

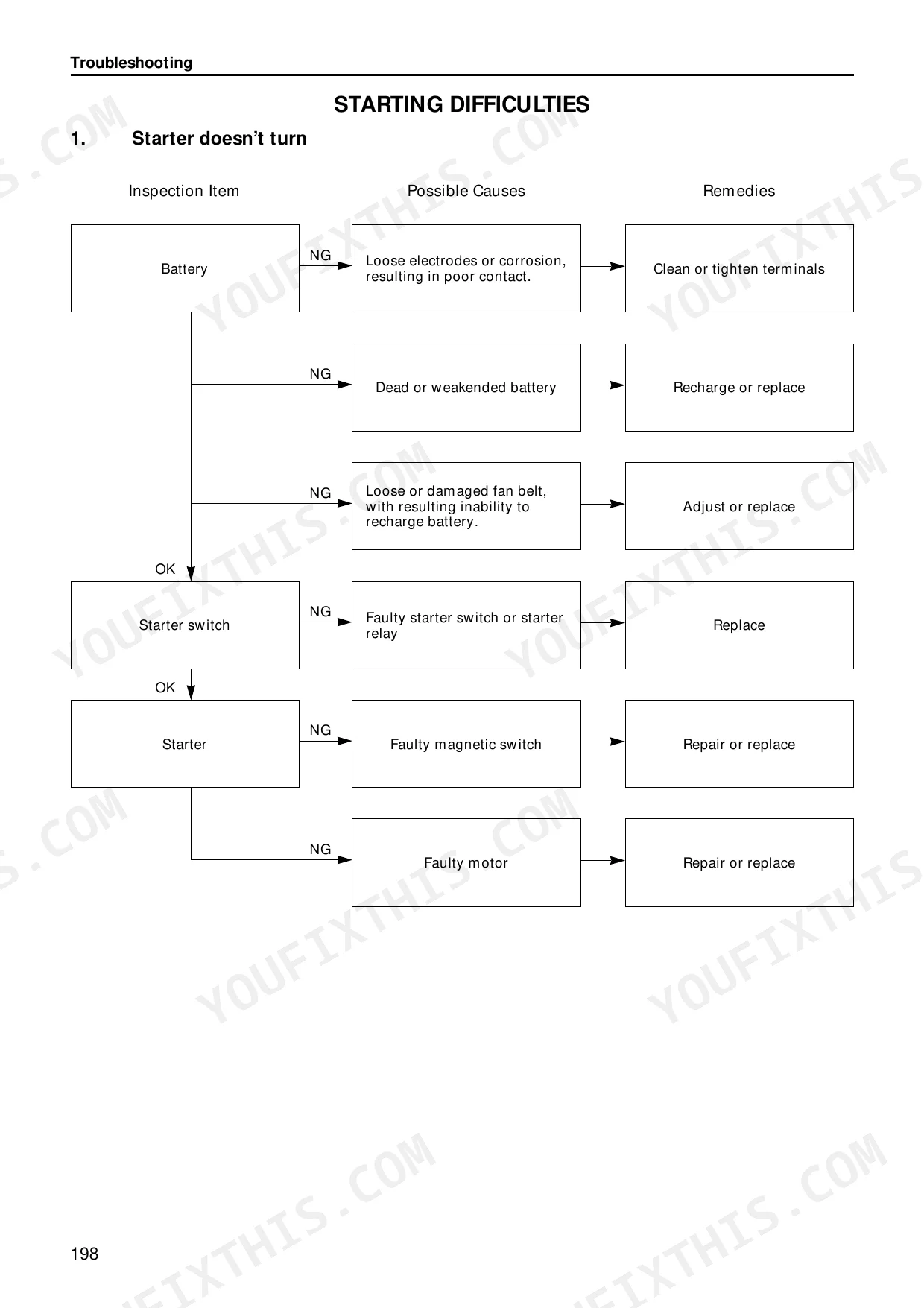

| Troubleshooting | 203-224 | Lack of Power, Excessive Fuel Consumption, Excessive Oil Consumption, Overheating |
| Special Tools | 225-228 | Special Tools List |
| Repair Standards | 229-246 | General Rules, Engine Body, Main Operating Parts, Valve System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injection nozzle opening pressure (1st stage) | 17.7 (180/2570) MPa (kg/cm2/psi) | p. 31 |
| Injection pipe tightening torque (Nozzle holder side) | 28 ~ 31 (2.9 ~ 3.2 / 21 ~ 23) N·m (kgf·m/lb·ft) | p. 118 |
| Delivery valve holder tightening torque | 108 – 118 (11.0 – 12.0 / 80 – 87) N·m (kgf·m/lb·ft) | p. 37 |
| Automatic timer (coupling plate) joint bolt tightening torque | 103 – 113 (10.5 – 11.5 / 76 – 83) N·m (kgf·m/lb·ft) | p. 37 |
| Axial play of shaft & turbine wheel (Standard Clearance) | 0.075 – 0.155 (0.00295 – 0.00610) mm (in) | p. 177 |
| Valve spring free height (Intake side, Inner, Standard) | 62.5 (2.46) mm (in) | p. 67 |

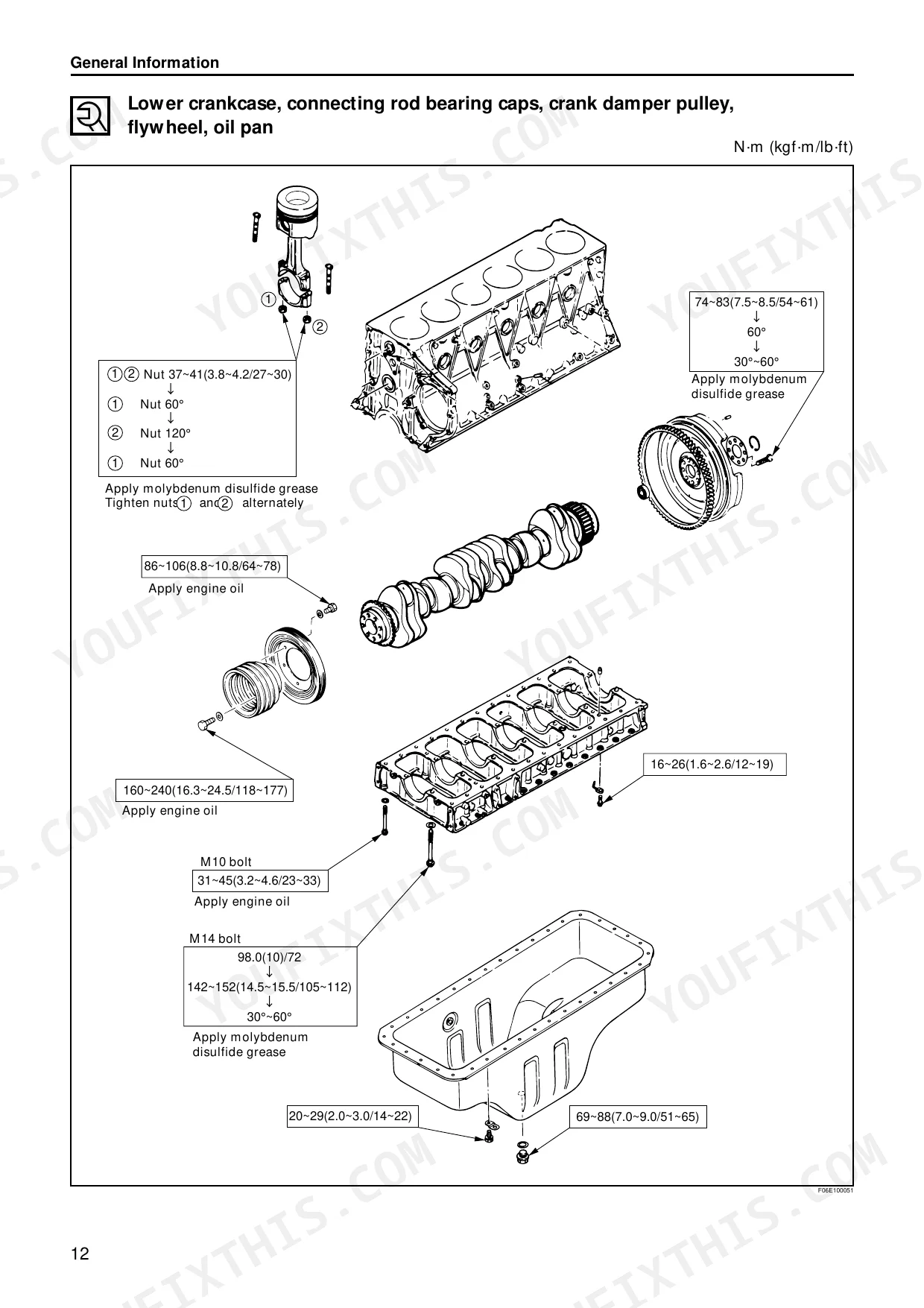

| Cylinder head bolt tightening torque (M14 bolts) | 98 (10/72) N·m -> 142 ~ 152 (14.5 ~ 15.5 / 105 ~ 112) N·m -> 30° ~ 60° | p. 110 |
| Piston ring opening gap (No. 1 compression, Standard) | 0.35 ~ 0.50 (0.0138 ~ 0.0197) mm (in) | p. 78 |
| Cylinder liner projection (Standard) | 0.106 ~ 0.134 (0.0042 ~ 0.0053) mm (in) | p. 73 |
| Regulated voltage (at rated output) | 27 volt | p. 200 |
| Engine Weight | 693 kg | p. 12 |
| Compression Ratio | 16.8 : 1 | p. 12 |
Isuzu AA-6SD1T Common Problems This Manual Covers
Low compression pressure
A worn cylinder liner, stuck or broken piston rings, or poor valve seating drop compression and power. The Engine II chapter covers cylinder block, liner and piston inspection with the standard limits.
Manual Section: Engine II (Inspection and Repair) p. 61Excessive oil consumption
Oil losses often trace to leaks past worn seals and gaskets in the lubrication circuit. The Lubrication System chapter covers the oil pump, oil filter and oil cooler service to find and stop the loss.
Manual Section: Lubrication System p. 123Defective starting

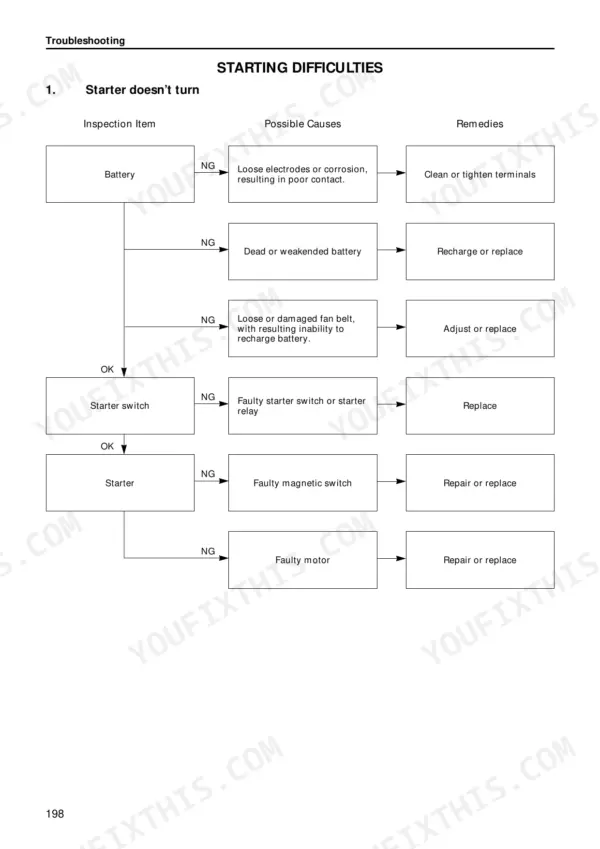

A wrong battery specific gravity, poor starter switch connections or a blown fuse leave the engine cranking slowly or not at all. The Engine Electrical chapter covers starter disassembly, inspection and repair.
Manual Section: Engine Electrical p. 179Low injection nozzle pressure
A defective nozzle or obstructed fuel pipe drops opening pressure and spoils spray, causing rough running and smoke. The Fuel System chapter covers nozzle disassembly and opening pressure adjustment.
Manual Section: Fuel System p. 145Overheating
Low coolant, a weak water pump or a faulty thermostat raise running temperature. The Cooling System chapter covers water pump disassembly, inspection and assembly to restore cooling.
Manual Section: Cooling System p. 135Turbocharger wear
Excess shaft and turbine wheel play from worn bearings or dirty oil reduces boost. The Turbocharger chapter covers construction, servicing, disassembly and the standard axial play clearance.
Manual Section: Turbocharger p. 159Frequently Asked Questions
Which engine does this manual cover?
It covers the Isuzu AA-6SD1T diesel engine, a turbocharged six-cylinder unit with a 16.8 to 1 compression ratio, as identified on the manual cover and main data pages.
What is the cylinder head bolt torque?
The M14 cylinder head bolts torque to 98 N·m, then 142 to 152 N·m, then a further 30 to 60 degrees. The Engine III (Assembly) chapter gives the full sequence. p. 91
What is the valve clearance setting?
Valve clearance is 0.4 mm on a cold engine. The Maintenance chapter covers valve clearance adjustment along with the other scheduled service checks. p. 27
What do I get after purchasing this Isuzu AA-6SD1T manual?
After checkout you get a 246-page searchable PDF, ready to download instantly. Open it on your laptop, tablet, or phone and bring it straight to the shop floor.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Isuzu AA-6SD1T manual?
Yes. The manual includes electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
