Need the factory service reference for your McCormick CX95 or any tractor in the CX range? This 918-page service manual covers the CX series. Inside: full electrical schematics with connector pinouts and instrument cluster programming procedures, wiring diagrams for every circuit, and hydraulic troubleshooting flowcharts with complete pump and regulator valve rebuild sequences. You also get transmission clutch and Powershift controller procedures, hitch controller calibration steps, fault code tables, and a dedicated torque section covering standard and special fastener values across all nine systems. Torque the main hydraulic pump retaining bolts to 24-28 Nm, set the drive gear locknut to 61-68 Nm, and top up the transmission/hydraulic system to 34.5 litres on 2WD models. Stop chasing specs across three forum threads. Bookmarked by system; search any fault code or torque value by keyword and land on it in seconds.
What's Inside This McCormick CX50-CX105 Series Manual
| System | Pages | Key Topics |
|---|---|---|

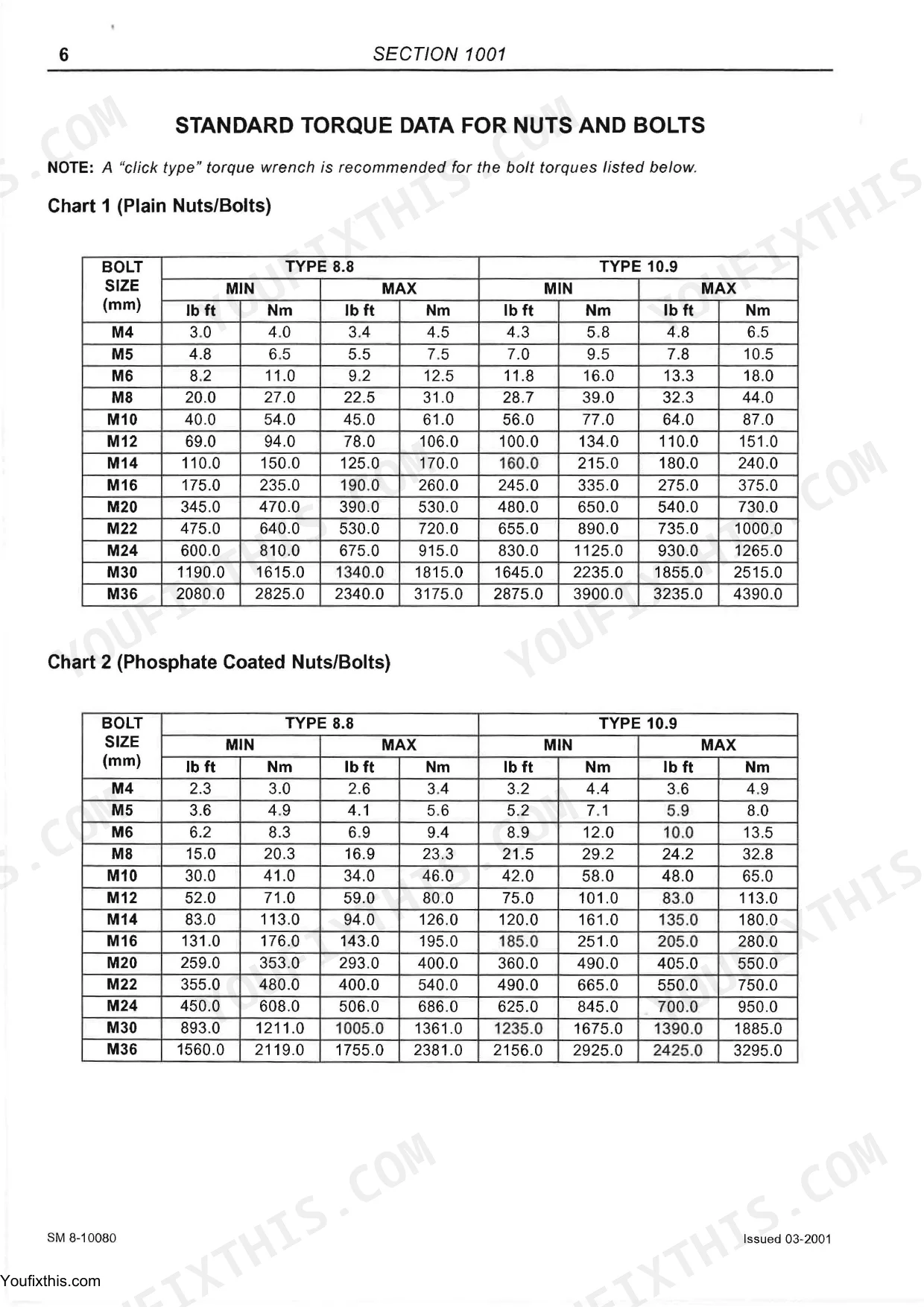

| General | 4-21 | Safety, General Information and Standard Torque Specifications (Standard Torque Data for Nuts and Bolts, Special Torques) |

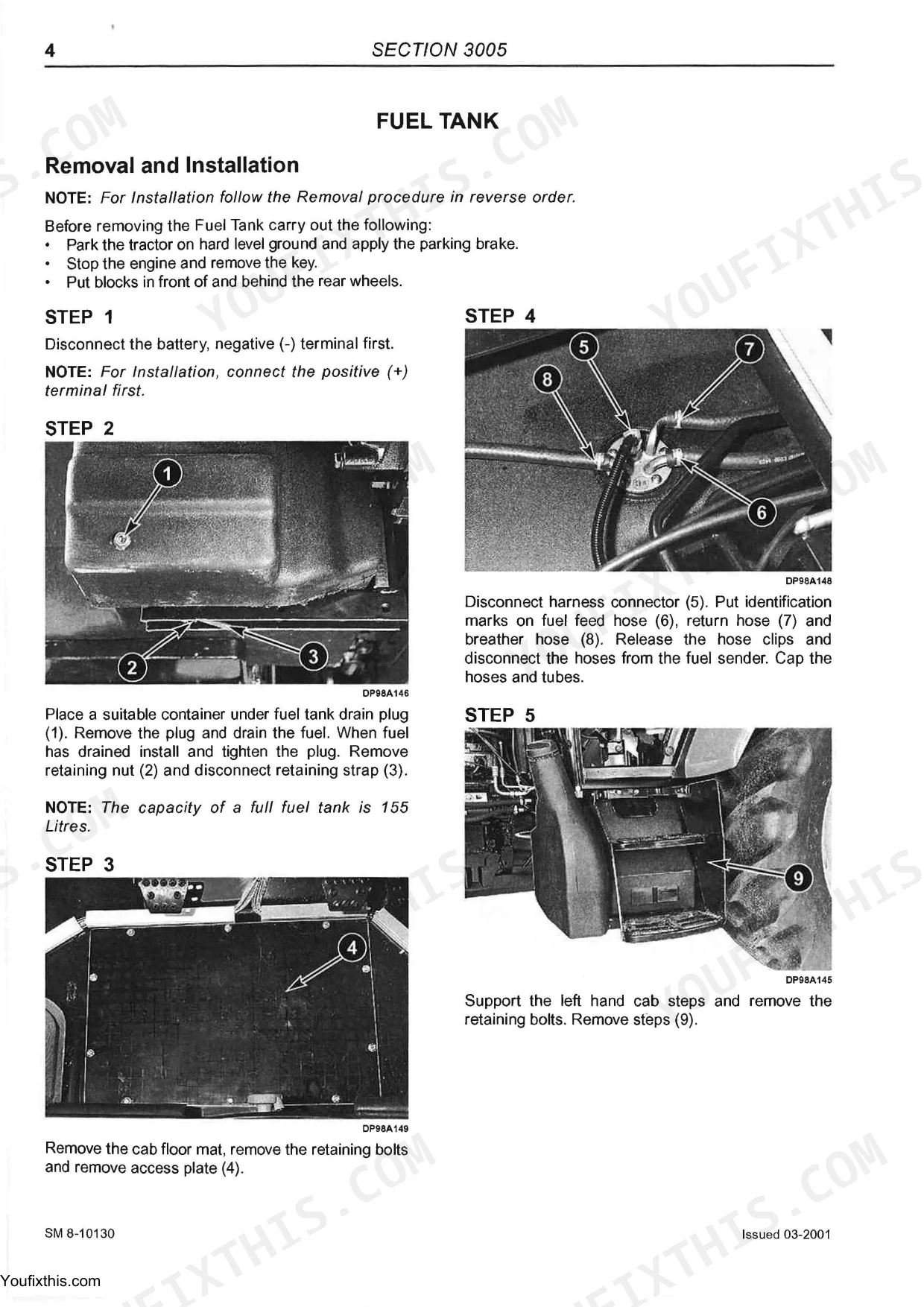

| Fuel System | 22-29 | 3005- Fuel Tank Removal & Servicing |

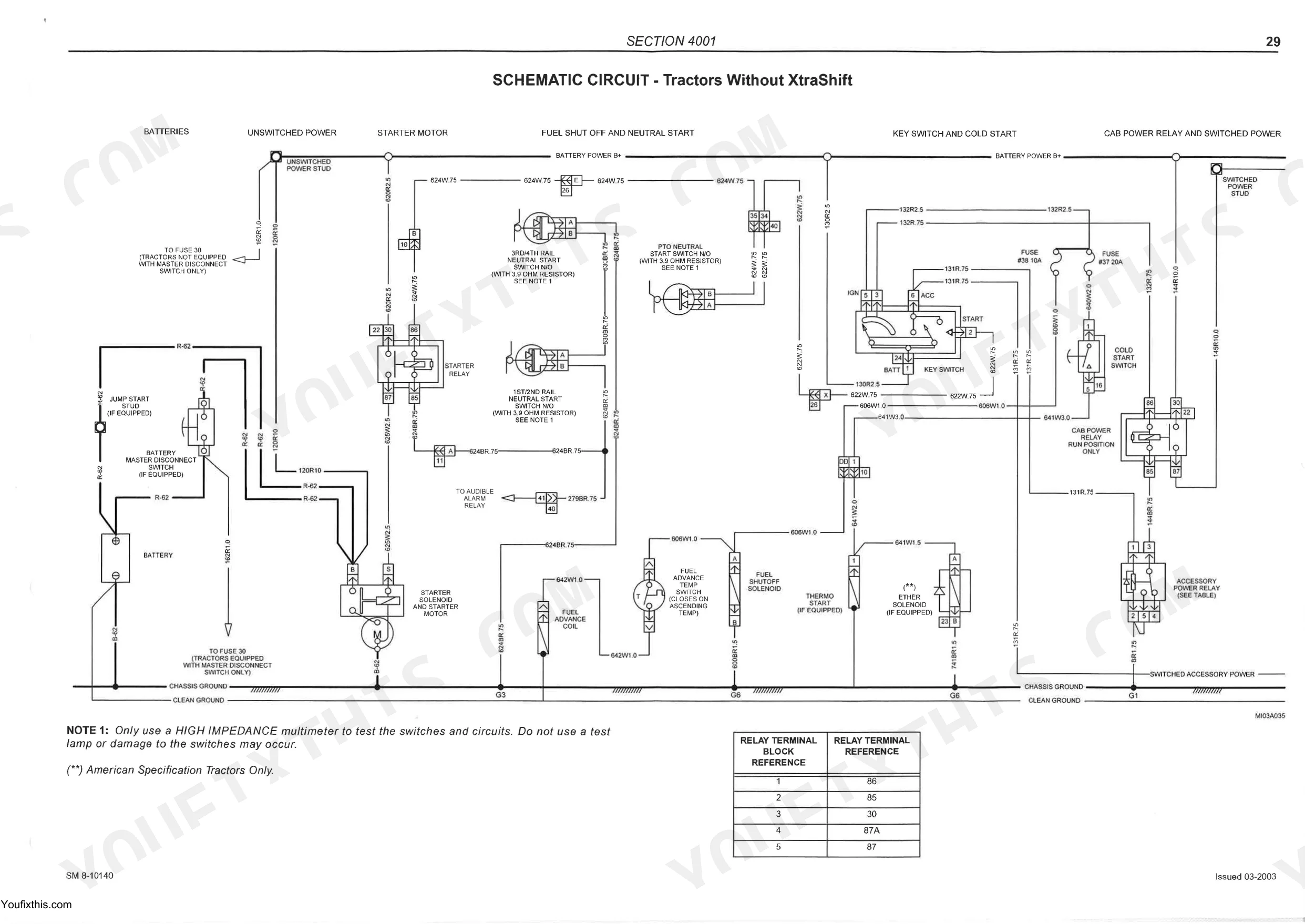

| Electrical | 30-174 | 4001- Electrical Schematics, 4002- Instrument Cluster Programming, 4004- Battery Servicing & Testing |

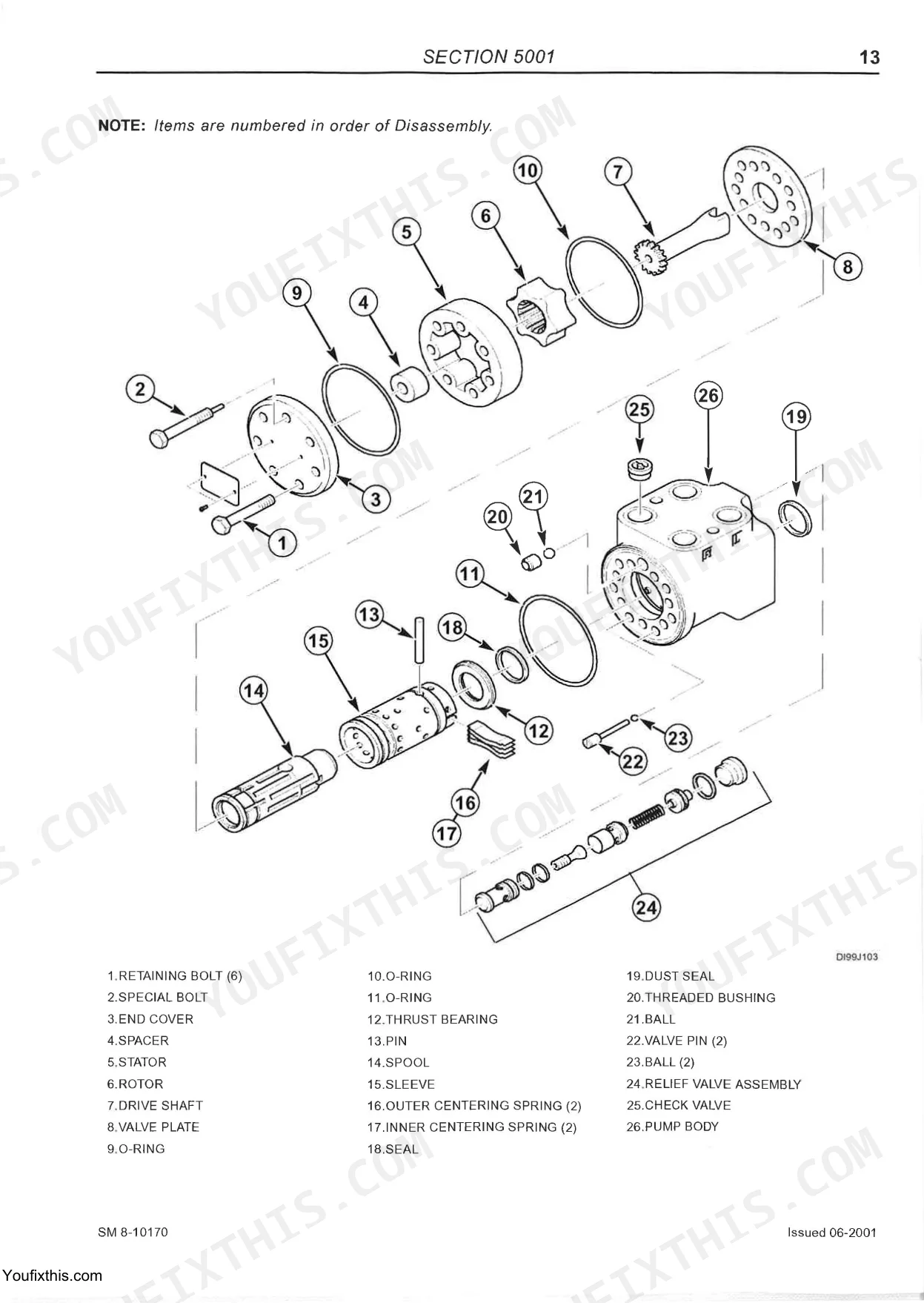

| Steering | 175-210 | 5001- Steering Column & Steering Hand Pump, 5003- 2 Wheel Drive Steering Cylinder, 5004- 2 Wheel Drive Front Axle |
| Transmission | 211-498 | 6002- Engine Clutch, Master Cylinder & Slave Cylinder, 6003- 2 Speed & Synchro Fwd/Rev Transmission Servicing, 6004- Creep Transmission Servicing |
| Brakes | 499-526 | 7001- Service Brakes, 7002- Parking Brake, 7004- Hydraulic Trailer Brake |

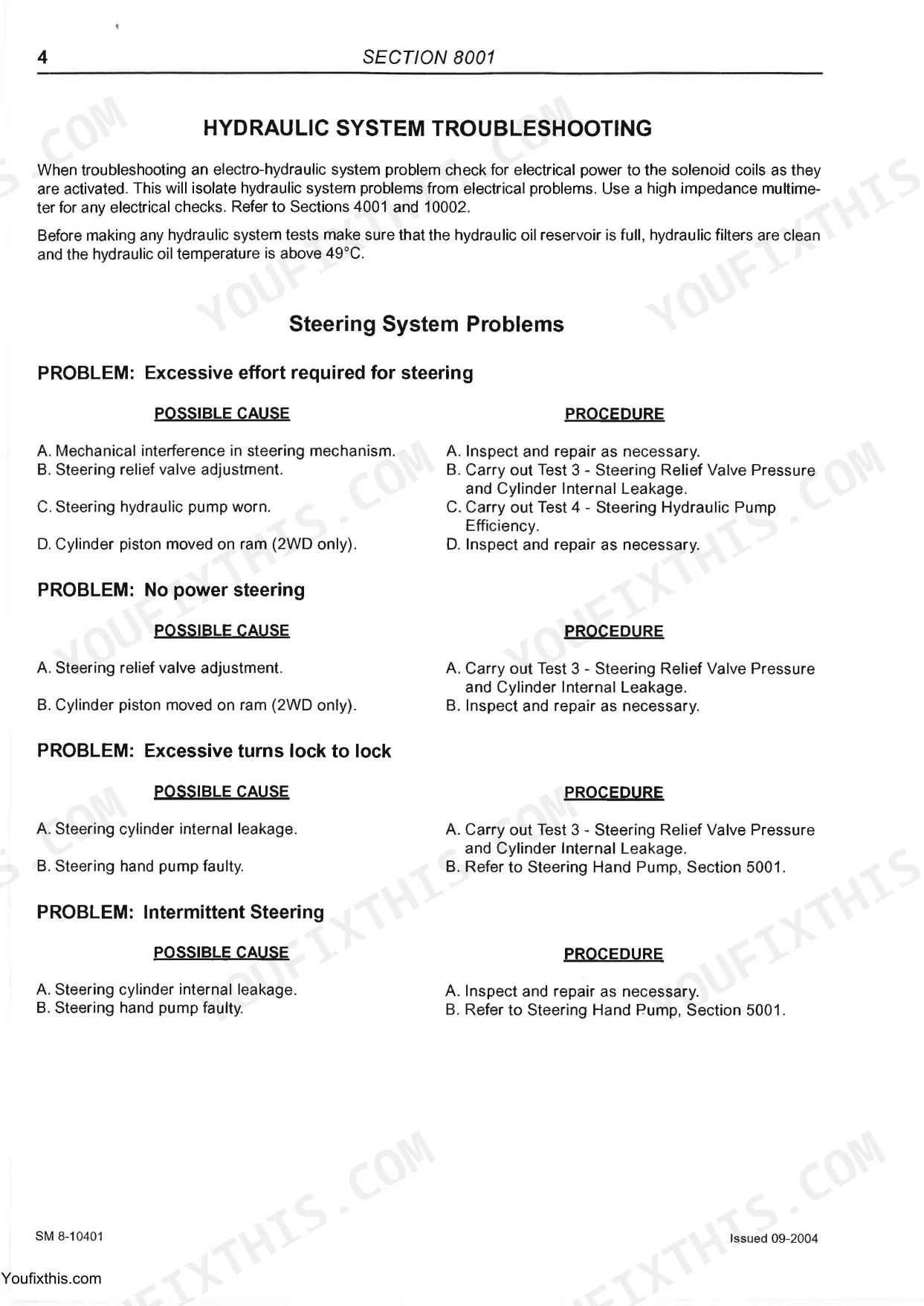

| Hydraulics | 527-636 | 8001- Hydraulic Trouble Shooting & Schematics, 8002- Filter Manifold & Main Hydraulic Pump, 8003- Steering Hydraulic Pump, 8004- Regulator Valve, 8006- Unloading Valve |
| Chassis & Mounted Equipment | 637-664 | 9001- Pedal, Lever & Switch Adjustments, 9008- Cab Mountings |
| Controller Systems | 665-918 | 10002- Hitch Controller (SM8-10550), 10002- Hitch/MFD/Differential Lock Controller (SM8-10560), 10006- Transmission Controller, F/N/R & Powershift |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main Hydraulic Pump Retaining Bolts | 24 to 28 Nm | p. 575 |
| Main Hydraulic Pump Drive Gear Locknut | 61 to 68 Nm | p. 575 |
| Compressor Manufacturer | SANDEN | p. 17 |
| Compressor Model | SD 7H15MD4609 | p. 17 |

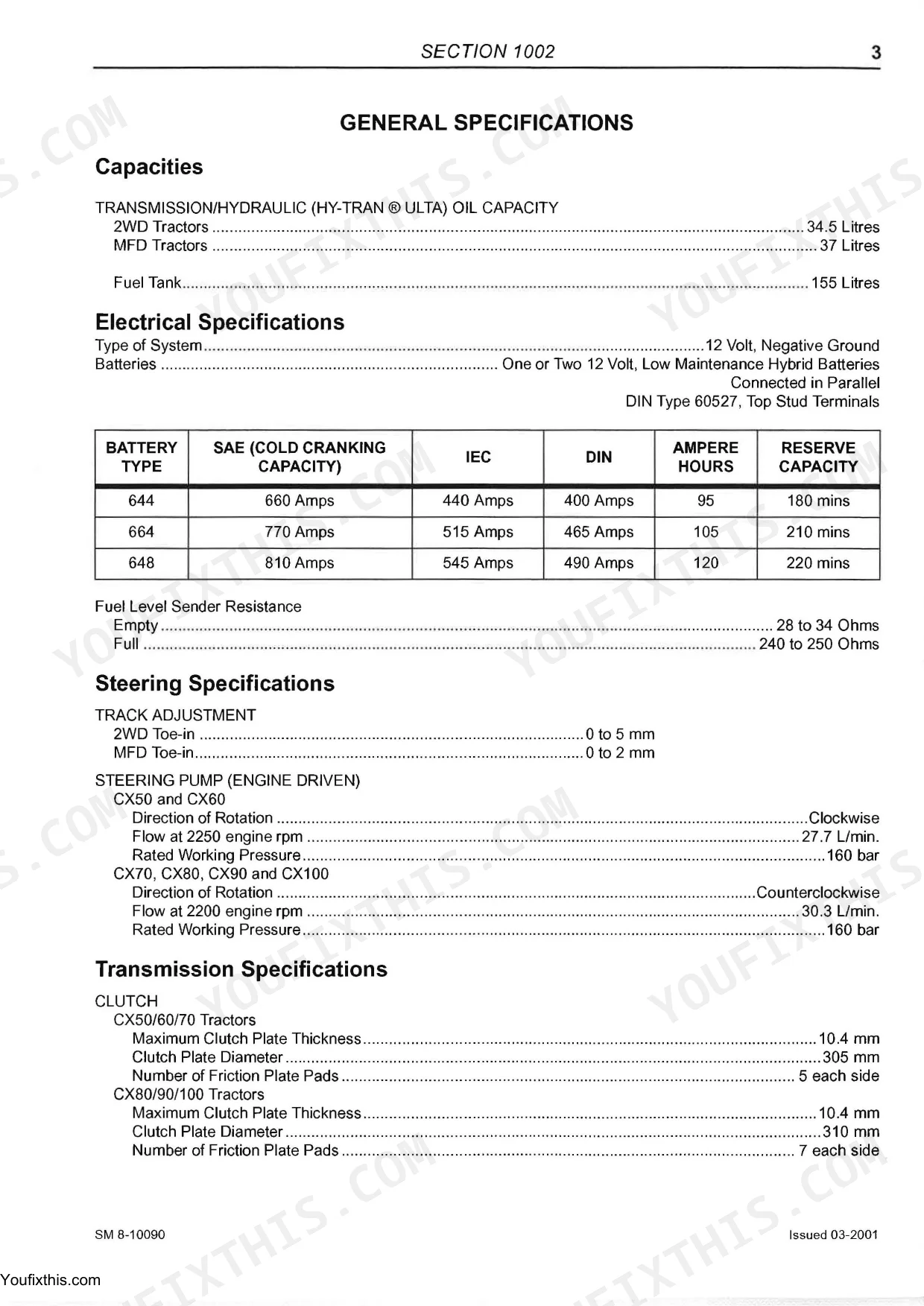

| Transmission/Hydraulic Oil Capacity | 34.5 Litres | p. 14 |
| Fuel Tank Capacity | 155 Litres | p. 14 |
| Steering Pump Rated Working Pressure | 160 bar | p. 14 |
| MFD Clutch Friction Plate Thickness (New) | 2.25 to 2.35 mm | p. 15 |
| Main Hydraulic Relief Valve Pressure | 172.5 bar | p. 16 |
| Refrigerant System Capacity | 1.93 kg | p. 17 |
| Steering Wheel Retaining Nut Torque | 45 to 51 Nm | p. 18 |
| Rear Axle Mounting Bolt Torque | 270 to 305 Nm | p. 18 |
McCormick CX50-CX105 Series Common Problems This Manual Covers
McCormick CX tractor hydraulic oil appears milky or foamy in the sight glass
Check all suction-line hose connections at the hydraulic tank for looseness or cracking. Air ingestion causes foamy oil; water ingress causes milky oil. Drain the tank and inspect for water pooling at the bottom. Refill with clean fluid, seal all fittings, then run the system and verify main pressure holds at 172.5 bar using the diagnostic flowchart.
Manual Section: Hydraulic Trouble Shooting & SchematicsFront pump shaft adapter bolts working loose or shearing after sub-frame reinstallation
Remove the sub-frame access panel and inspect the front pump shaft adapter bolts for shear or looseness. Torque main hydraulic pump retaining bolts to 24 to 28 Nm and the drive gear locknut to 61 to 68 Nm (full spec table on page 575). Verify shaft alignment before reinstalling; misalignment under load is the primary cause of recurring bolt failure.
Manual Section: Filter Manifold & Main Hydraulic Pump p. 575Hydraulic oil temperature climbing past 82°C, H-02 fault code active on the dash
Inspect the oil cooler core for debris and clean if clogged. Verify hydraulic tank level, then connect a pressure gauge and test main system pressure against the 172.5 bar relief valve spec. A bypassing relief valve forces the pump to work harder and generate heat. Follow the oil cooler fault sequence in the troubleshooting section.
Manual Section: Hydraulic Trouble Shooting & SchematicsHydraulic pump making grinding or whining noise at startup or under load
Check the hydraulic tank level immediately, as running the pump starved of oil causes rapid internal damage. Inspect the suction strainer for blockage and all suction-side fittings for air leaks. If noise persists after correcting the fluid level, test main pump output against the 172.5 bar specification using the pump diagnostic steps.
Manual Section: Hydraulic Trouble Shooting & SchematicsRear hitch drops slowly or won't hold position after being raised to full height
Check the hitch controller for stored error codes using the procedure. Verify the hitch position potentiometer and drop speed potentiometer are calibrated correctly. If the hitch holds position but responds slowly, adjust the drop speed control. Test main hydraulic pressure against the 172.5 bar spec to confirm the pump is delivering adequate flow.
Manual Section: Hitch Controller (SM8-10550)Frequently Asked Questions
How to reset the error code on McCormick CX75?
To erase error codes on the McCormick CX75, access the hitch controller's diagnostic display. When the display reads 'e', indicating a prompt to keep error codes, answer NO to erase them from the control module memory. This procedure is detailed on page 678 of the manual. p. 678
What are the torque specs for the wheel nuts on McCormick CX105?
For McCormick CX105, the torque specifications for wheel nuts vary by axle type. Front wheel nuts should be tightened to 300 to 350 Nm. Rear wheel nuts for flange axles are 278 to 298 Nm, for 5/8 inch bar axles are 183 to 207 Nm, and for 3/4 inch bar axles are 241 to 264 Nm. p. 461
How do you fix McCormick CX tractor hydraulic oil appears milky or foamy in the sight glass?
Check all suction-line hose connections at the hydraulic tank for looseness or cracking. Air ingestion causes foamy oil; water ingress causes milky oil. Drain the tank and inspect for water pooling at the bottom. Refill with clean fluid, seal all fittings, then run the system and verify main pressure holds at 172.5 bar using the diagnostic flowchart.
How do you fix front pump shaft adapter bolts working loose or shearing after sub-frame reinstallation?
Remove the sub-frame access panel and inspect the front pump shaft adapter bolts for shear or looseness. Torque main hydraulic pump retaining bolts to 24 to 28 Nm and the drive gear locknut to 61 to 68 Nm (full spec table on page 575). Verify shaft alignment before reinstalling; misalignment under load is the primary cause of recurring bolt failure. p. 575
How quickly can I access this manual after buying?
You get a 918-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Yes, print as many as you need. The PDF is DRM-free, so print whatever sections you want to take out to the shop. Standard letter or A4 paper works.

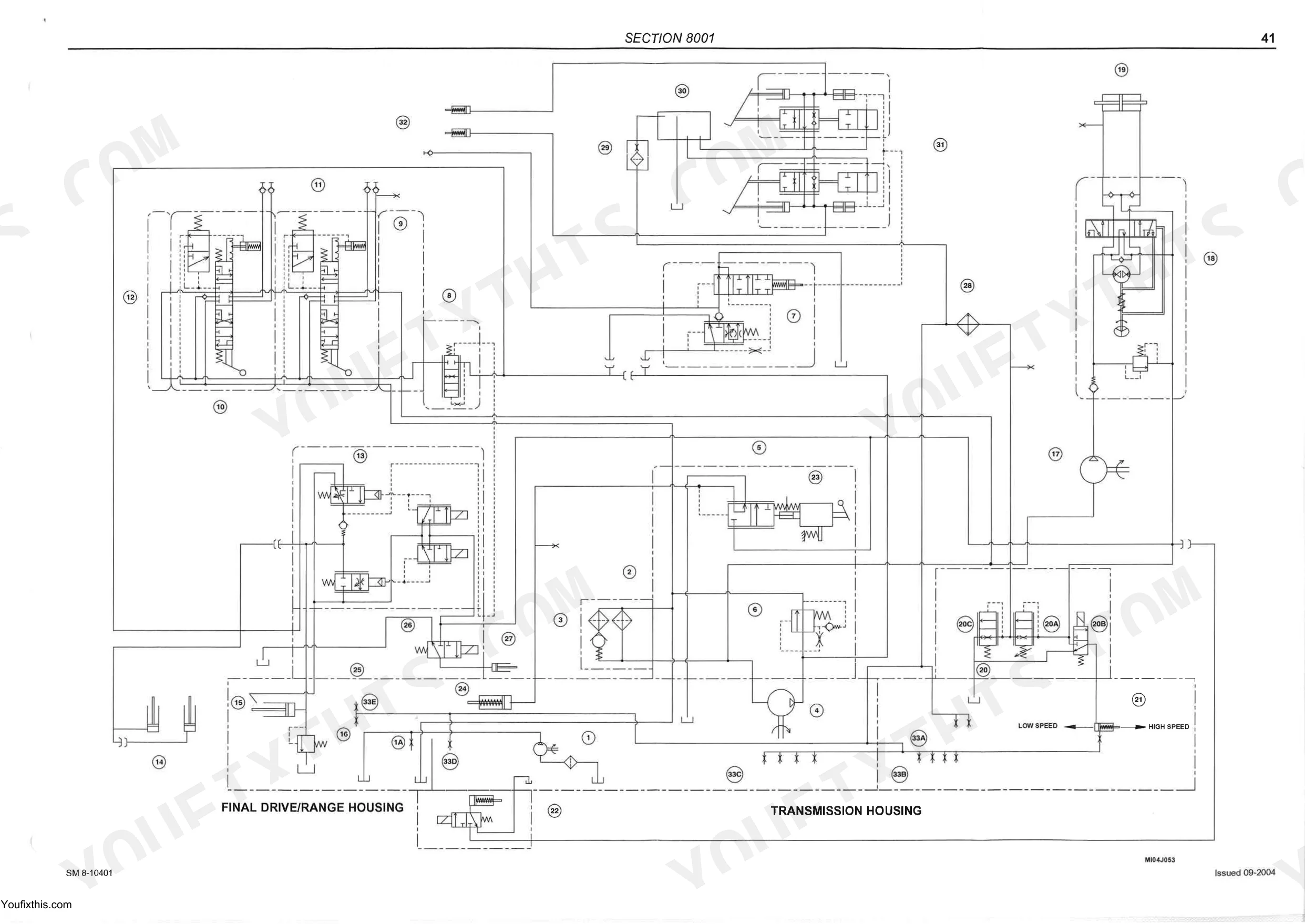

Does this McCormick CX50–CX105 Series manual include hydraulic schematics?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
