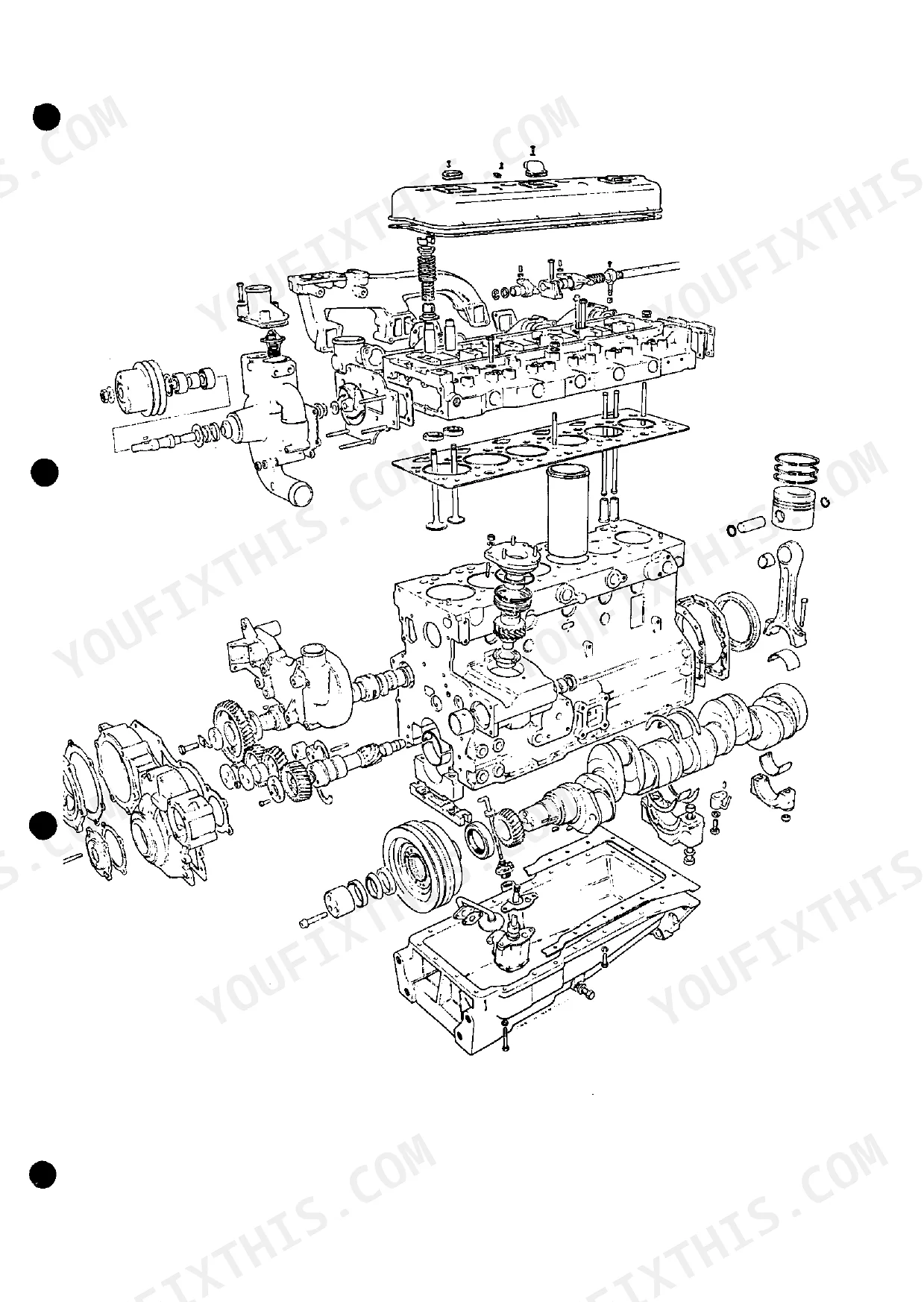

Hunting for a Perkins 6.3544 workshop manual PDF? This 161-page factory workshop manual (OEM #TPD10891146E) covers the 1982-1992 Perkins 6.3544 series diesel engines: 6.3544, T6.3544, and 6.3724. You get a fault finding chart that traces low cranking speed, lack of power, overheating, and poor compression back to the cause, backed by page after page of exploded views, clearances, and torque data. Inside: complete rebuild procedures for the cylinder head, pistons, liners, crankshaft, timing gear, H2A and H1C turbochargers, plus the Clayton Dewandre and Bendix Westinghouse compressors. Set injector opening pressure to 215 atm (3,160 lbf/in²) and check the oil filter by-pass valve at 8 to 12 lbf/in² before you condemn the pump. No more digging through forum threads at midnight. Bookmarked PDF; jump to any section from your phone in the shop and get wrenching.
What's Inside This Perkins 6.354 & M-Series Manual

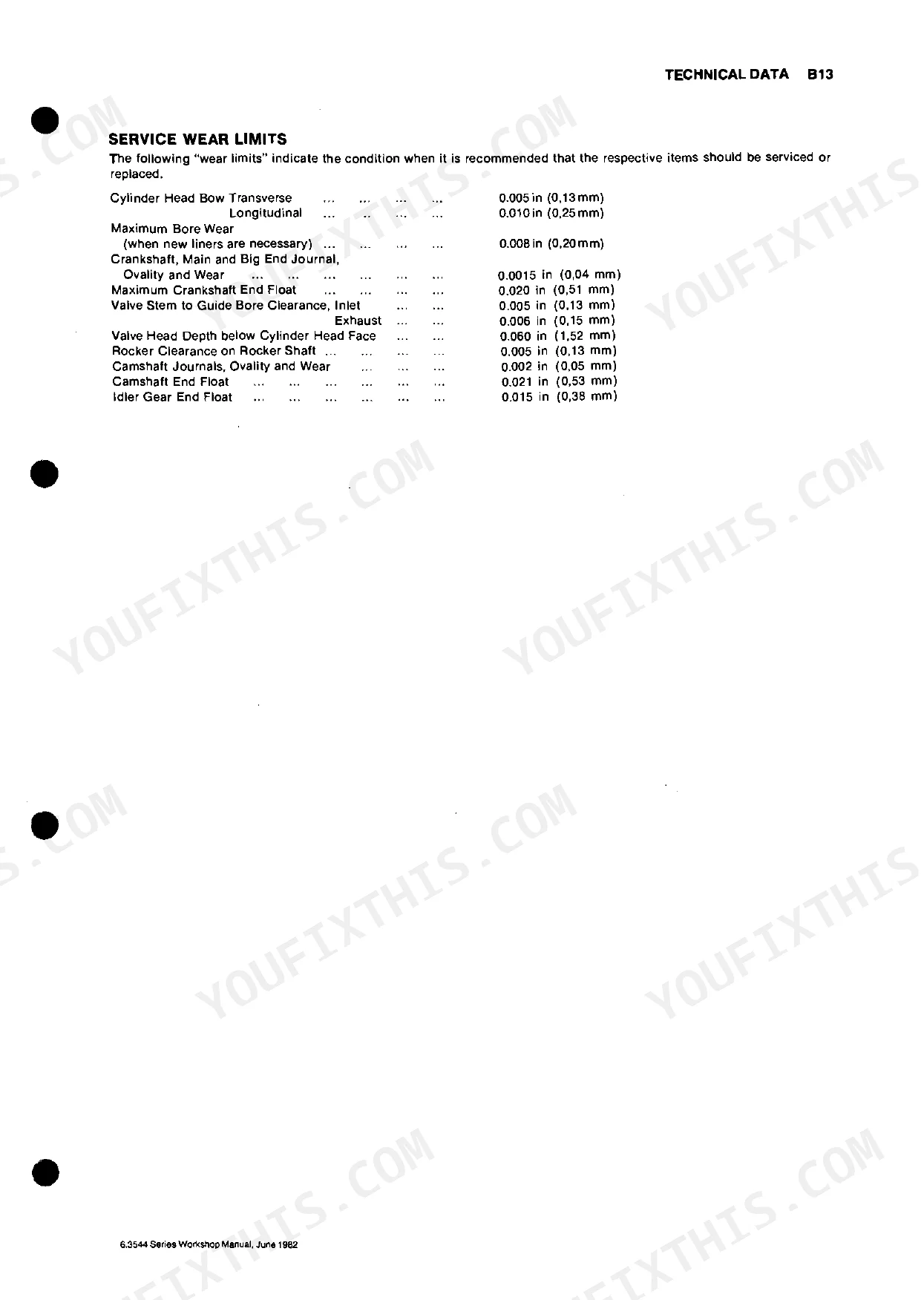

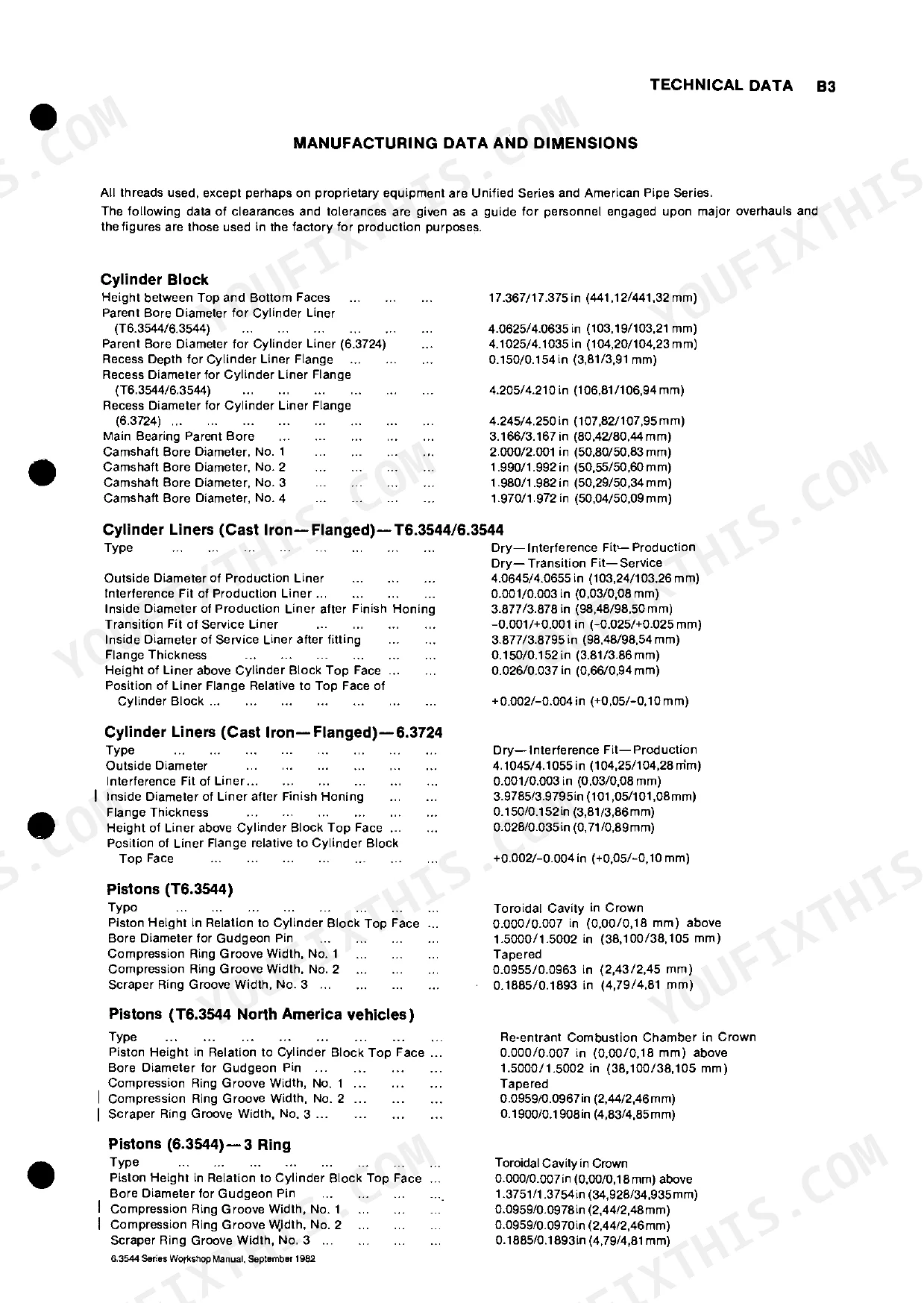

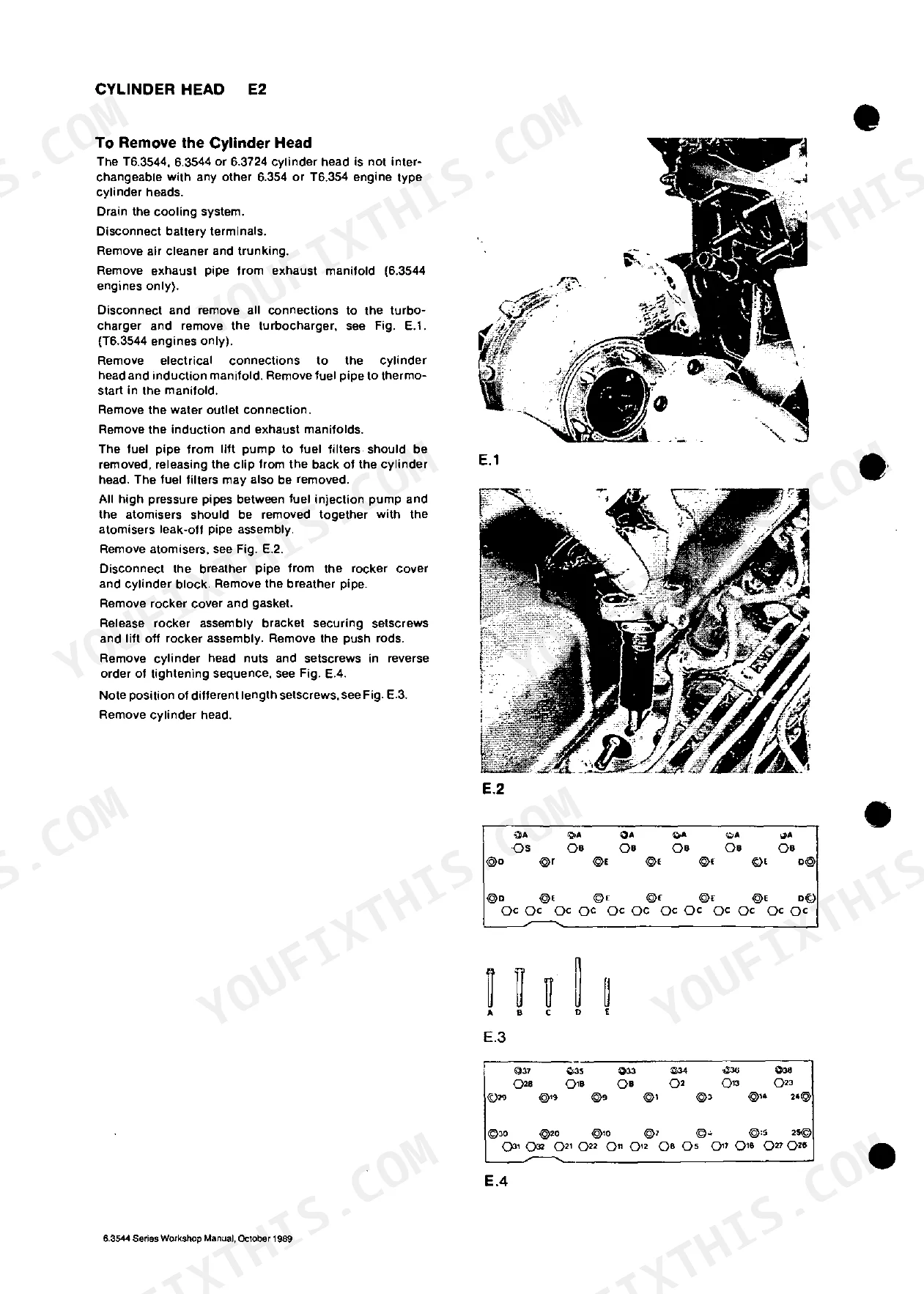

| System | Pages | Key Topics |
|---|---|---|
| Operating and Maintenance | 3-6 | Running-In, Routine Maintenance Schedule, Recommended Lubricating Oils and Coolant, Engine Storage |
| Engine Photographs | 7-10 | Index to Engine Photographs |
| Technical Data | 11-24 | Crankshaft Data, Fuel Injection Pump Data |
| Fault Finding | 25-26 | Fault Finding Chart, Low Cranking Speed, Lack of Power, Overheating, Poor Compression, Excessive Crankcase Pressure |
| Cylinder Head | 27-34 | Cylinder Head Removal and Fitting, Valve and Valve Seat Servicing |
| Pistons and Connecting Rods | 35-40 | Piston and Rod Assembly, Piston Ring Fitting, Piston and Connecting Rod Data |
| Cylinder Block and Liners | 41-43 | Cylinder Block, Cylinder Liners, Liner Dimensions, Liner Interference Fit, Liner Renewal |
| Crankshaft and Main Bearings | 44-50 | Crankshaft Installation |
| Timing Case and Drive | 51-56 | Timing Case and Gear Servicing, Auxiliary Drive Shaft and Fuel Pump Drive Shaft Servicing |
| Timing | 57-63 | Fuel Injection Pump Timing Checks |
| Lubricating System | 64-71 | Oil Cooler Servicing |
| Cooling System | 72-78 | Coolant System Maintenance, Water Pump Servicing, Piston Cooling and Charge Cooler |
| Air Cleaners and Fuel System | 79-87 | Air Cleaners Servicing, Fuel Pump and Filter Servicing, Fuel System Settings and Air Elimination |
| Flywheel and Flywheel Housing | 88-90 | Flywheel and Housing Servicing |
| Turbocharger | 91-99 | H2A and H1C Turbocharger Servicing |
| Alternator and Starter Motor | 100-104 | Alternator Servicing and Testing |
| Compressor | 105-109 | Clayton Dewandre SC6 Compressor, Benoix Westinghouse Twin 9 Compressor |
| Exhauster | 110-111 | Description, Operation, Servicing, Removal, Dismantling, Re-Assembly |
| Approved Service Tools | 112-114 | Valve and Piston Tools, Crankshaft and Liner Tools, Timing and Engine Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Type of Filter | Full Flow Replaceable Canister | p. 20 |
| Element Type | Paper | p. 20 |
| Setting Pressure | 215 atm 3160 lbf/in² (21,8 MN/m²) | p. 126 |
| Sump Capacity (typical) | 26 Imperial Pints (14,8 Litres) | p. 19 |
| Minimum to Maximum mark on Dipstick | 5 Imperial Pints (2,84 Litres) | p. 19 |
| Maximum Current Consumption | 12.5/13.5A at 11.5V | p. 22 |
| Flow Rates through Thermostart | 3,5/5,0 ml/min | p. 22 |
| Crankshaft Pulley Diameter T.I.R. | 0.002 in (0,05 mm) | p. 47 |
| Rear Oil Seal Diameter T.I.R. | 0.002 in (0,05 mm) | p. 47 |
| Atomiser seating washers for naturally aspirated engines thickness | 0.080 in (2,03mm) | p. 85 |
Perkins 6.354 & M-Series Common Problems This Manual Covers
Perkins 6.3544 diesel cranks but won't start, needs excessive thermostart use in cold weather
Check the fault finding chart on page 25 for no-start causes. Test fuel lift pump output; static pressure below 6 lbf/in² (41 kN/m²) means a worn pump, with procedures on page 83. Bleed air from the fuel system per page 79, then test the thermostart; current draw should read 12.5/13.5A at 11.5V.
Manual Section: Fault Finding p. 25Loses power under load with black exhaust smoke and low turbo boost

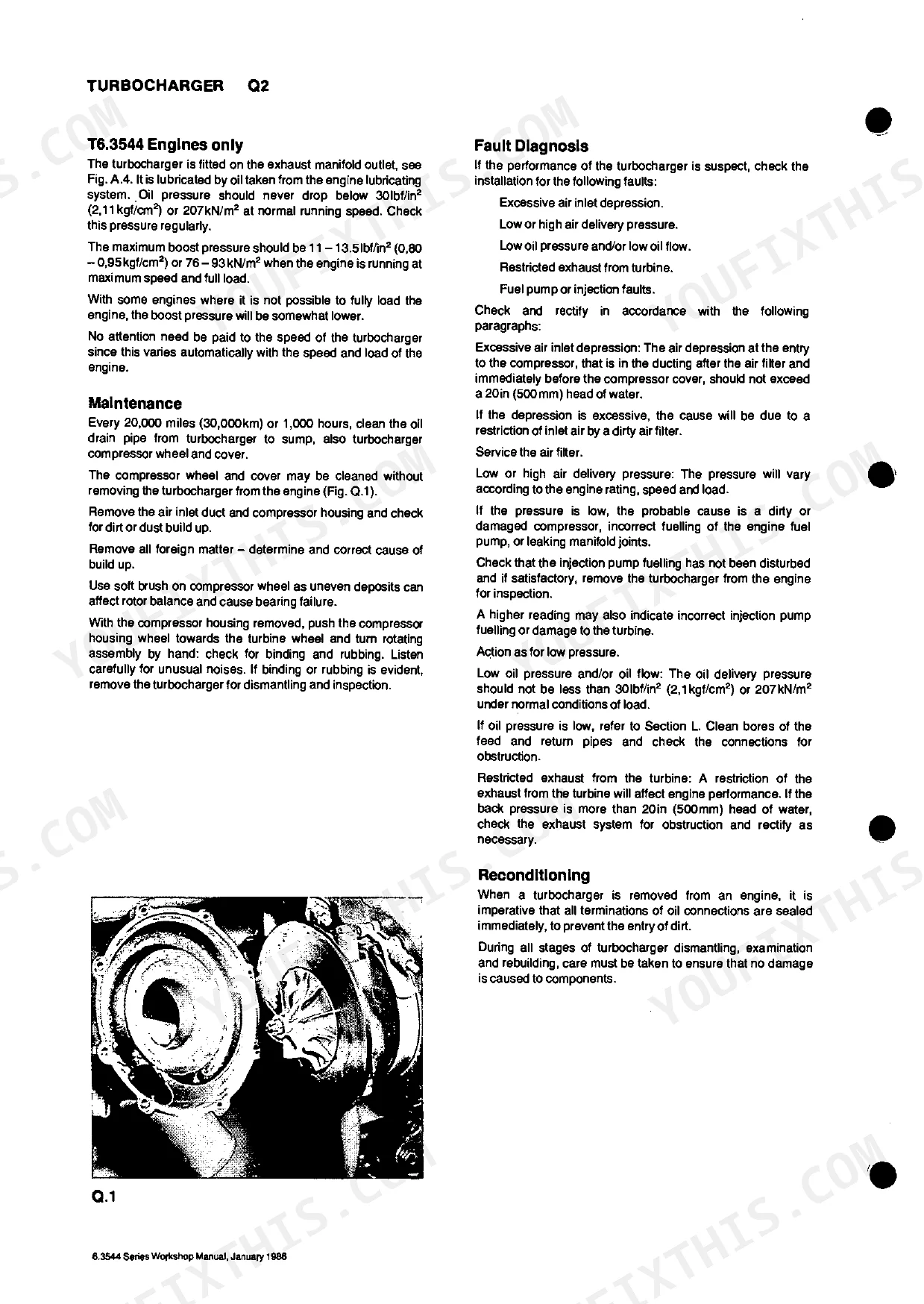

Check the air cleaner first; a restricted element starves the turbo, so renew it after six cleanings or once a year (page 80). Then run the turbocharger fault diagnosis on page 92. On T6.3544 engines, boost below 11 lbf/in² (76 kN/m²) at full load points to compressor wear or exhaust leaks; strip procedures start on page 91.
Manual Section: Turbocharger p. 92Low oil pressure warning at idle after hot running, gauge drops below normal
Verify pressure with a master gauge; minimum is 30 lbf/in² (207 kN/m²), listed in the technical data on page 11. Check the oil level; the dipstick minimum to maximum band holds 5 Imperial Pints (2.84 litres). If pressure stays low, follow the lubricating system fault procedures starting on page 64 and check the pump and relief valve.
Manual Section: Lubricating System p. 64Blue exhaust smoke and high oil consumption, worse under boost at speed
Isolate the turbocharger before blaming the rings. Check shaft end float; on Holset units it must stay within 0.004/0.006 in (0.10/0.15 mm), with the procedure on page 157. Clean the turbo oil drain pipe every 1,000 hours; a blocked drain pushes oil past the seals. If the turbo checks out, follow the piston ring fitting procedure on page 35.
Manual Section: Turbocharger p. 157Engine runs hot at full load, coolant temperature climbing steadily on the gauge
Check coolant level against the full capacity of 38 Imperial Pints (21.6 litres) on page 20. Test the thermostat in heated water; it should open at 170/185°F (77/85°C) depending on which unit is fitted. Follow the cooling system fault procedures starting on page 72 and inspect the water pump for impeller wear.
Manual Section: Cooling System p. 72Oil leaks from the filter canister and sump gasket, drips overnight after shutdown
Remove the canister and inspect the sealing ring seat; fit a new full flow canister and torque it to 15 lbf ft (20 Nm), procedure on page 71. For the sump, renew the gasket and torque the setscrews and nuts evenly to 15 lbf ft (20 Nm). Refill with 26 Imperial Pints (14.8 litres) and recheck warm.
Manual Section: Lubricating System p. 71Frequently Asked Questions

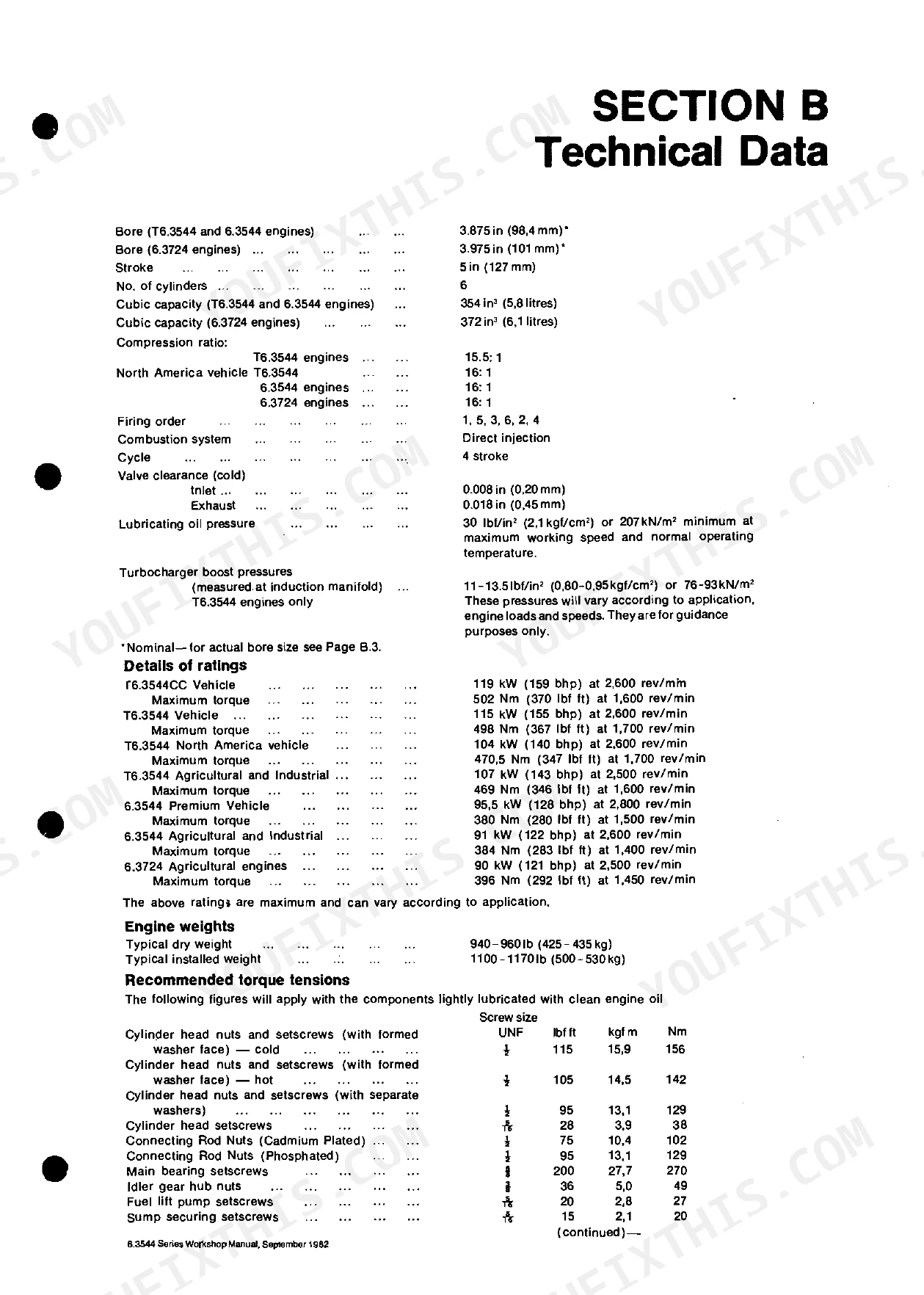

What are the torque specifications for Perkins 6.3544 cylinder head bolts?
For earlier cylinder head fasteners (1 to 32) with separate washers, tighten to 95 lbf ft (13,1 kgf m) or 130 Nm. If using flanged fasteners (part number 36812611), tighten to 115 lbf ft (15,9 kgf m) 156 Nm. The small setscrews (33 to 38) should be tightened to 28 lbf ft (3,9 kgf m) or 38 Nm. p. 29
What are the torque specifications for Perkins 6.3544 connecting rod bolts?
The recommended torque for connecting rod nuts is 75 lbf ft (10,4 kgf m) 102 Nm for cadmium plated nuts, and 95 lbf ft (13,1 kgf m) 129 Nm for phosphated nuts. p. 11
What are the cold valve clearances for the Perkins T6.3544, 6.3544, and 6.3724 diesel engines?
The cold valve clearance for the inlet is 0.008 in (0,20 mm) and for the exhaust is 0.018 in (0,45 mm). p. 11
What is the minimum lubricating oil pressure for the Perkins T6.3544, 6.3544, and 6.3724 diesel engines?
The minimum lubricating oil pressure is 30 lbf/in² (2,1 kgf/cm²) or 207 kN/m² at maximum working speed and normal operating temperature. p. 11
What is the coolant capacity for the Perkins T6.3544, 6.3544, and 6.3724 diesel engines?
The coolant capacity for these engines is 38 Imperial Pints, which is equivalent to 21,6 litres. p. 11
What do I get after purchasing this Perkins 6.3544, T6.3544, 6.3724 manual?
Immediate download of the complete 161-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Perkins 6.3544, T6.3544, 6.3724 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
