This 128-page Case/international Shop Manual PDF covers the complete factory service scope for the 235, 235H, 245, 255, 265, and 275 tractors, spanning front axle systems (both two-wheel-drive and all four-wheel-drive variants) through engine rebuild, transmissions, and hydraulic lift overhaul. Inside: full electrical wiring diagrams, hydraulic schematics with pump, auxiliary valve, and lift cover procedures, and a condensed service data section packed with tune-up specs, clearances, and fluid capacities. Four distinct transmission types cover this family (sliding gear, constant mesh, synchromesh for the 245/255/265, and the 235H hydrostatic unit), each with complete teardown and troubleshooting procedures. Set your 275 clutch release lever to 20.3-21.7 mm before closing up the clutch pack, and confirm alternator output at 14 volts, 8 amps at 1300 rpm. Your dealer can't quote factory spec for a tractor this old. One download, bookmarked by system, searchable by keyword.
What's Inside This Case/international 235-275 Manual
| System | Pages | Key Topics |
|---|---|---|
| Shop Manual Case / International | - | - |

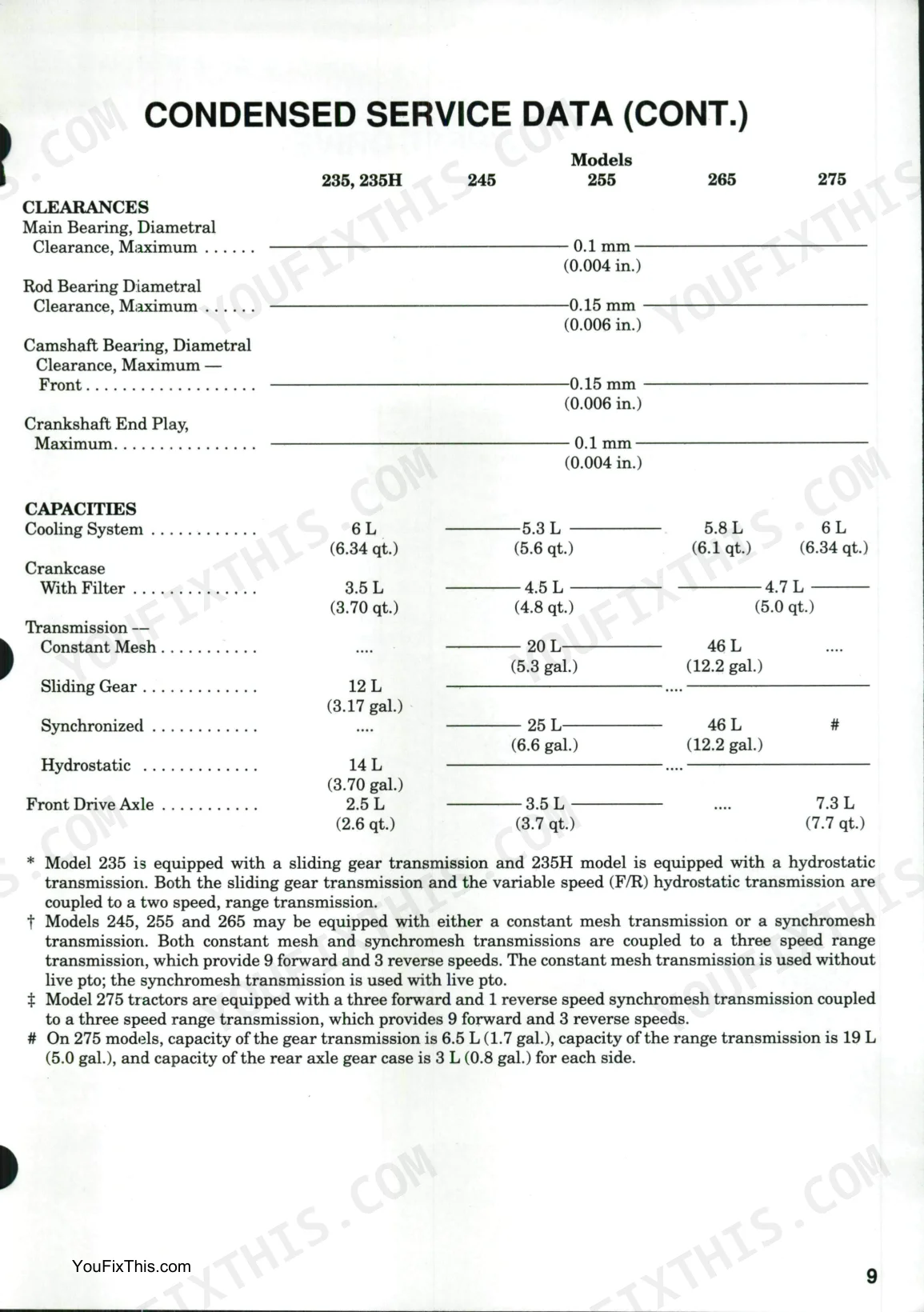

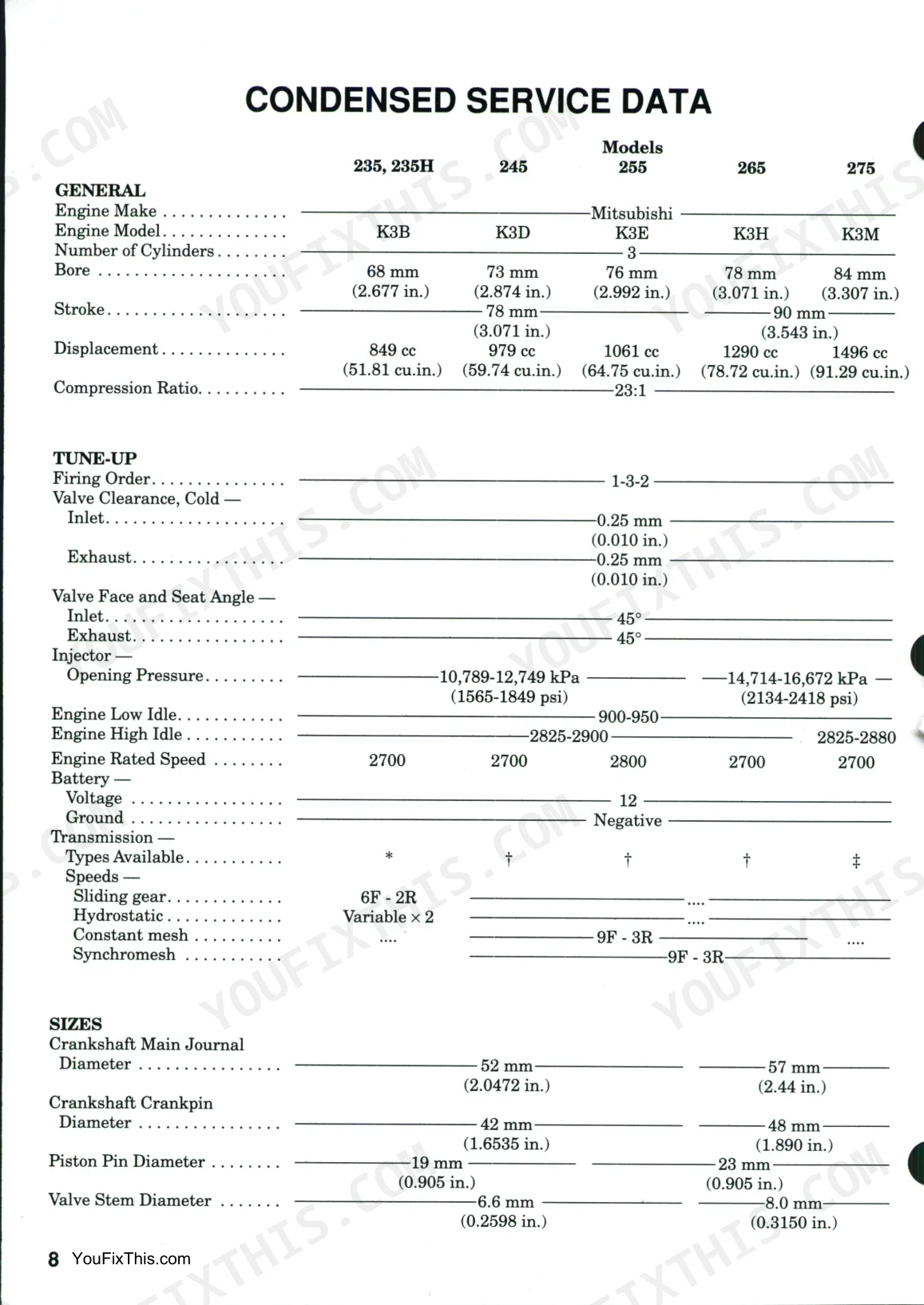

| Condensed Service Data | 4-5 | General, Tune-Up, Sizes, Clearances, Capacities |
| Front Axle System (Two-Wheel Drive) | 6-14 | Axle Main Member, Spindles and Bushings, Steering Bellcrank, Tie Rod and Toe-In, Tires, Wheels and Bearings, Tread Adjustment and Drag Link (Non-Adjustable Axle) |
| Front Drive System(Four-Wheel Drive 235 and 235H Models) | 15-20 | Maintenance, Front Axle Assembly and Steering Linkage, Front Final Drives and Wheel Axles, Front Drive Spindles and Inner Axles, Differential Bevel Pinion, Differential |
| Front Axle System (Four-Wheel Drive 245 and 255 Models) | 21-25 | Maintenance, Front Axle Assembly and Steering Linkage, Front Final Drives and Wheel Axles, Front Drive Spindles and Inner Axles, Differential Bevel Pinion and Ring Gear, Differential |
| Front Axle System (Four-Wheel Drive 275 Model) | 26-32 | Maintenance, Front Axle Assembly and Steering Linkage, Front Final Drives and Wheel Axles, Front Drive Spindles and Inner Axles, Differential |
| Manual Steering System | 33-35 | Remove and Reinstall, Overhaul, Adjustment |
| Power Steering System | 36-40 | Remove and Reinstall, Overhaul, Adjustments |
| Engine | 41-54 | Cam Followers, Camshaft, Connecting Rods and Bearings, Crankshaft and Main Bearings, Crankshaft Seals, Cylinder Head, Flywheel, Maintenance |
| Cooling System | 55 | Belt, Radiator, Thermostat, Water Pump |

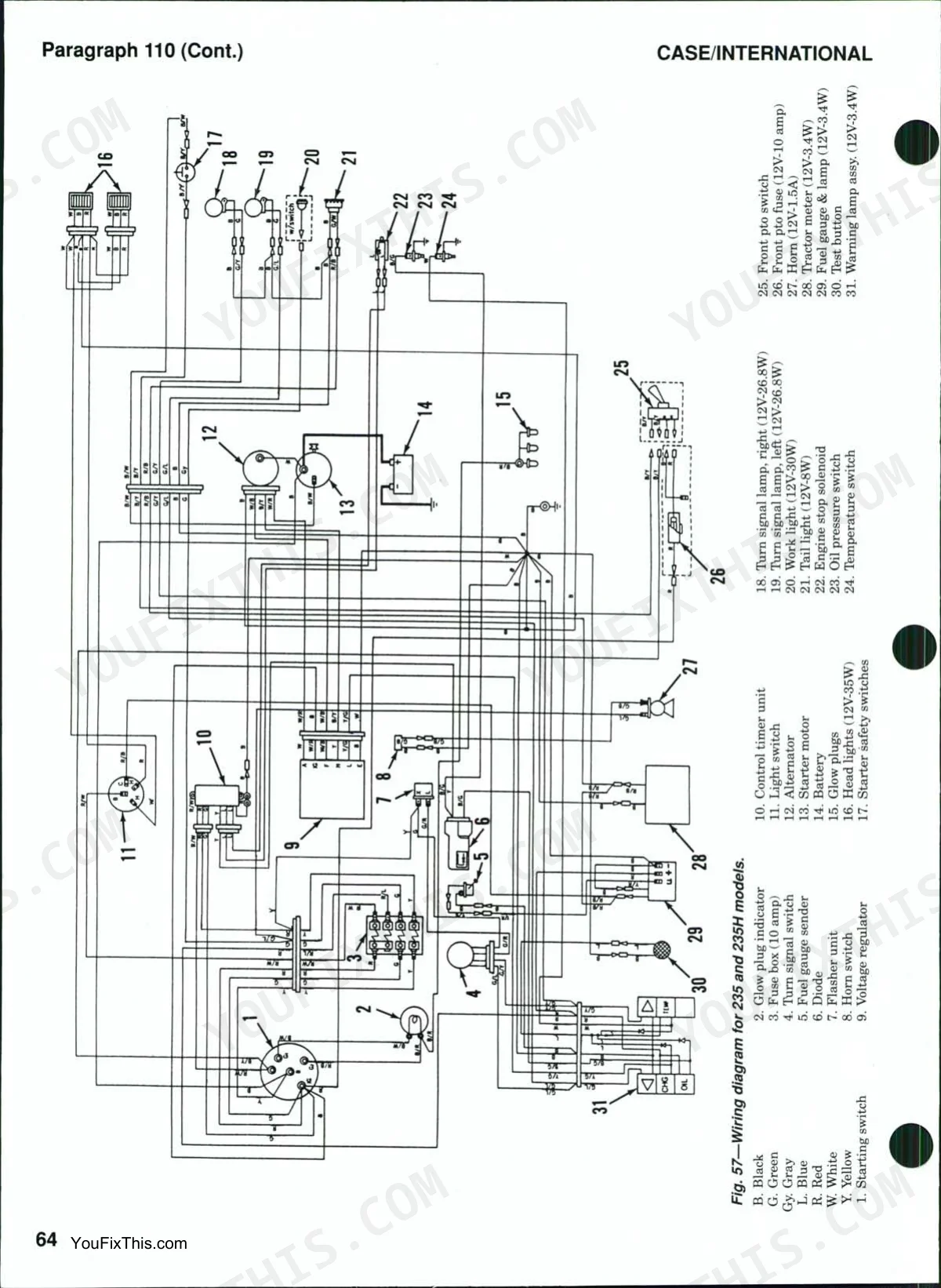

| Electrical System | 49 | Alternator and Regulator, Circuit Description, Safety Switches, Starting Motor |
| Diesel Fuel System | 50-62 | Fuel Filter and Lines, Fuel Shut-Off Solenoid, Glow Plugs, Governor and Injection Pump Camshaft, Injection Pump, Injector Nozzles |
| Clutch | 63-68 | Clutch Linkage (All Models Without Live PTO, Models with Live PTO), Clutch Split, Cover, Pressure Plate and Disc |
| Transmission (Sliding Gear) | 69-73 | Inspection, Lubrication, Remove and Reinstall, Overhaul |
| Transmission (Constant Mesh) | 74-77 | Shifter Cover, Input Shaft and Mainshaft, Countershaft, Reverse Idler Gear and Shaft, PTO Front Shaft, Range Transmission |
| Synchromesh Transmission(245, 255 and 265 Models | 78-85 | Shifter Cover, Input Shaft and Mainshaft, Countershaft, Reverse Idler Gear and Shaft, PTO Front Shaft, Hydraulic Clutch |
| Transmission (275 Model) | 86-97 | Hydraulic Clutch, Inspection, Lubrication, Overhaul, Remove and Reinstall |
| Transmission235H Hydrostatic | 98-103 | Lubrication, Troubleshooting, Tests and Adjustments, Control Linkage Adjustment, Hydrostatic Unit, Range Transmission |
| Differential | 104-106 | R&R and Overhaul, Bevel Gear Backlash, Differential Carrier Bearing Side Play, Bevel Pinion Shaft, Carrier Bearings |
| Final Drive | 107-110 | Axle and Housing, R&R Assembly, Overhaul, Inner Bearing, Pinion Shaft, Brake Assembly |
| Brakes | 111-113 | Adjustment, Operation, R&R and Overhaul |
| Power Take-Off | 114-116 | Front Drive Shafts, PTO Drives, Rear PTO Gears, Shafts, Multiple Disc Hydraulic Clutch |
| Hydraulic Lift System | 117-128 | Auxiliary Valve, Fluid and Filters, Hydraulic Pump, Lift Cover, Troubleshooting, Tests and Adjustments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Pinion gap clearance when solenoid is engaged | 0.5-2.0 mm (0.0197-0.0787 in.) | p. 59 |
| Fuel filter replacement interval | at least once each year or whenever filter appears dirty | p. 51 |
| Alternator output (1300 rpm) | 14 Volts, 8 Amperes | p. 56 |
| Alternator output (2500 rpm) | 14 Volts, More than 30 Amperes | p. 56 |
| Safety switch stroke (S) | 4-5 mm (0.16-0.20) | p. 58 |
| Engine Low Idle | 900-950 rpm | p. 52 |
| Valve Clearance, Cold - Inlet | 0.25 mm (0.010 in.) | p. 4 |
| 275 model (early) | ||
| Clutch release lever height | 20.3-21.7 mm (0.799-0.843 in.) | p. 68 |
| Maximum variation in release lever height | 0.7 mm (0.027 in.) | p. 68 |
| All Two-Wheel-Drive Models | ||
| Front wheel bearing repacking/renewal interval | every 1000 hours of operation | p. 6 |
| Front wheel hub rolling torque (2WD) | 0.6-0.8 N.m (6-7 in.-lbs.) | p. 6 |
| 235 | ||
| Safety switch initial adjustment distance (1) | 20-21 mm (0.79-0.83 in.) | p. 58 |
Case/international 235-275 Common Problems This Manual Covers
Case/International 235 hydraulic hitch will not raise despite engine running at operating speed p. 117
Check the drop rate control knob on the lift cover first; it must be open, not fully closed. Verify hydraulic fluid level meets capacity specs on page 5. If the hitch still will not lift, connect a flow meter as described on page 117 to test pump output and confirm relief pressure is within specification.
Manual Section: Hydraulic Lift SystemStarter clicks but engine won't crank, no response to key in any position p. 57
Test each safety switch with a voltmeter or continuity tester, checking that stroke measures 4-5 mm (0.16-0.20 in.) per specs on page 58. If switches pass, pull the starter and measure pinion gap clearance: it should be 0.5-2.0 mm (0.0197-0.0787 in.) when the solenoid is engaged (page 57). Replace any switch or solenoid that falls out of spec.

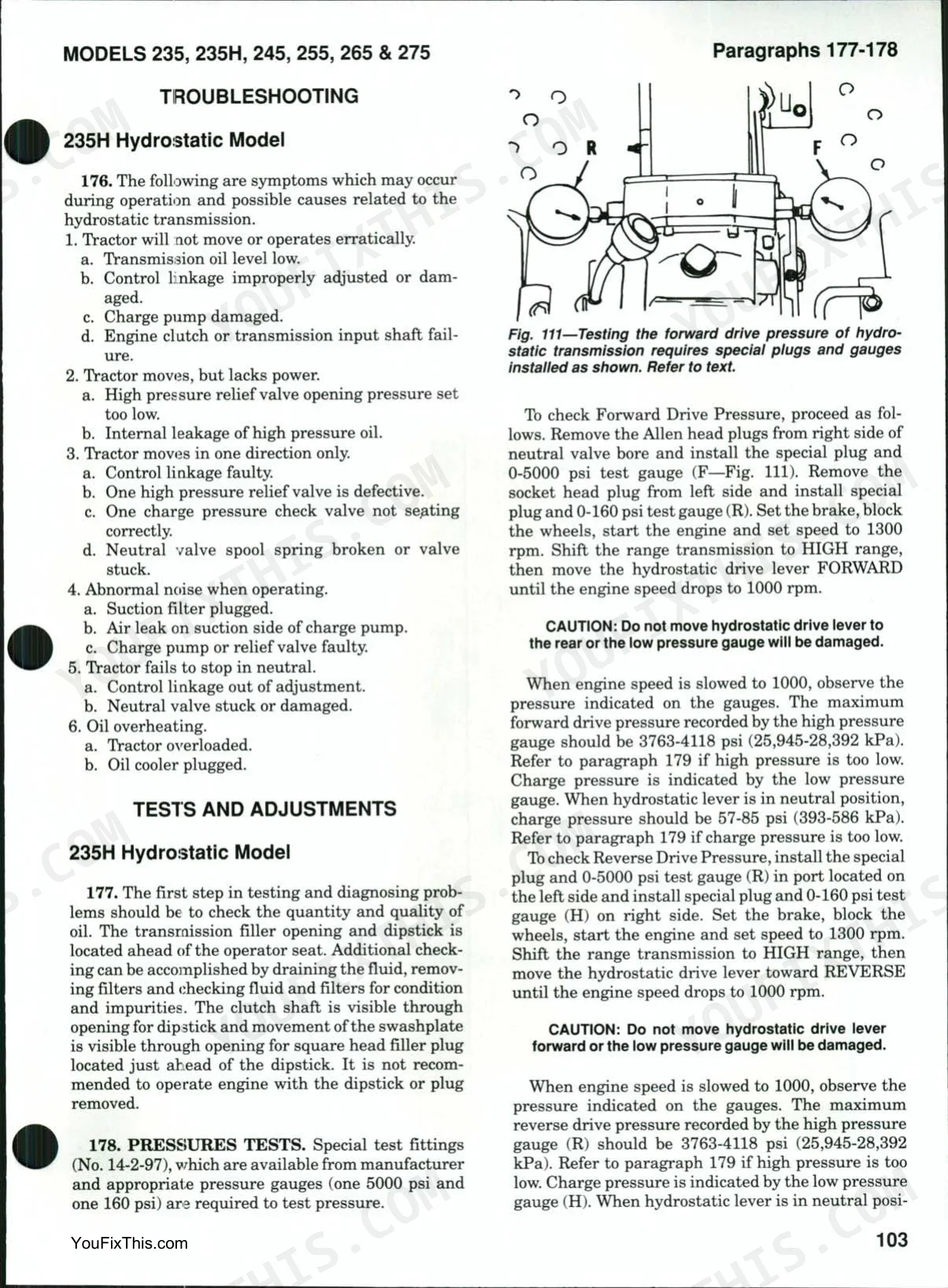

Manual Section: Electrical System Safety SwitchesHydrostatic transmission won't move in either direction or operates erratically at any speed p. 99
Verify fluid quantity and quality first per page 99; the hydrostatic unit is sensitive to low or dirty fluid. Measure forward drive pressure, reverse drive pressure, and charge pressure at the test ports (specs on page 99). If charge pressure falls below specification, suspect the charge pump or a clogged filter before splitting the transmission.
Manual Section: Transmission (235H Hydrostatic)Clutch slips under load with delayed engagement and pedal sinking toward floor p. 68
Remove the clutch and inspect disc lining thickness; replace if below the 0.3 mm (0.012 in.) wear limit (page 68). Verify rivet countersink depth falls between 1.2-2.0 mm (0.05-0.08 in.), since shallow rivets score the flywheel face. Check release lever height and adjust to spec before reinstalling.
Manual Section: ClutchEngine misfires and bogs under load with excessive black exhaust smoke and rough idle p. 55
Replace fuel filters at least once yearly or whenever dirty (page 55). If misfiring continues, use the injector line disconnection test in the Diesel Fuel System section: with the engine running, loosen each injector line fitting one at a time and note which cylinder, when cut, causes no rpm change. Send those nozzles for bench testing.
Manual Section: Diesel Fuel SystemAlternator not charging, battery drains between uses, charge warning light stays illuminated p. 57
Check fan belt deflection: should be 13 mm (1/2 in.) at
Frequently Asked Questions
What are the torque specs for rear wheel to axle hub bolts on Case/International 235 and 235H models?
The rear wheel to axle hub bolts for Case/International 235 and 235H models should be tightened to 118-132 N.m (87-98 ft.-lbs.) torque. This specification is crucial for proper assembly and safe operation.
What is the torque specification for rear axle stud nuts on Case/International 245, 255, and 275 models?
For Case/International 245, 255, and 275 models, the nuts securing the rear wheel rim to the wheel disc should be tightened to 152-172 N.m (112-127 ft.-lbs.) torque. The rear wheel to axle hub bolts should be tightened to 118-132 N.m (87-98 ft.-lbs.) torque.
What are the replacement specifications for Starter solenoid?
The manual does not provide specific replacement specifications for the starter solenoid itself, such as a part number or electrical ratings. However, it does describe the disassembly process and an adjustment specification for the pinion gap when the solenoid (13) is engaged: the pinion (3) should move to within 0.5-2.0 mm (0.0197-0.0787 in.) of the end of the pinion shaft (6).
What are the replacement specifications for Fuel filters?
The manual specifies that a renewable paper filter element type fuel filter (4) should be installed. It should be replaced at least once each year or whenever it appears dirty, or if the engine is misfiring or has lost power.
What do I get after purchasing this Case/international 235 & variants manual?
You get a 128-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Can I find hydraulic circuit diagrams in this Case/international 235?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Case/international 235 & variants.
