Case International 433, 533, 633, 733, 833, E633A, E733A, E833A, International Diesel Tractor, E 633, E 733, E 833 Four (incl. Wiring)

$19.99 USD · one-time payment

Model: 433 | 533 | 633 | 733 | 833 | E633A | E733A | E833A | E 633 | E 733 | E 833 Four Wheel Drive
Type: Diesel Tractor
90 Pages·9.8 MB·Searchable PDF·English·Print-Ready

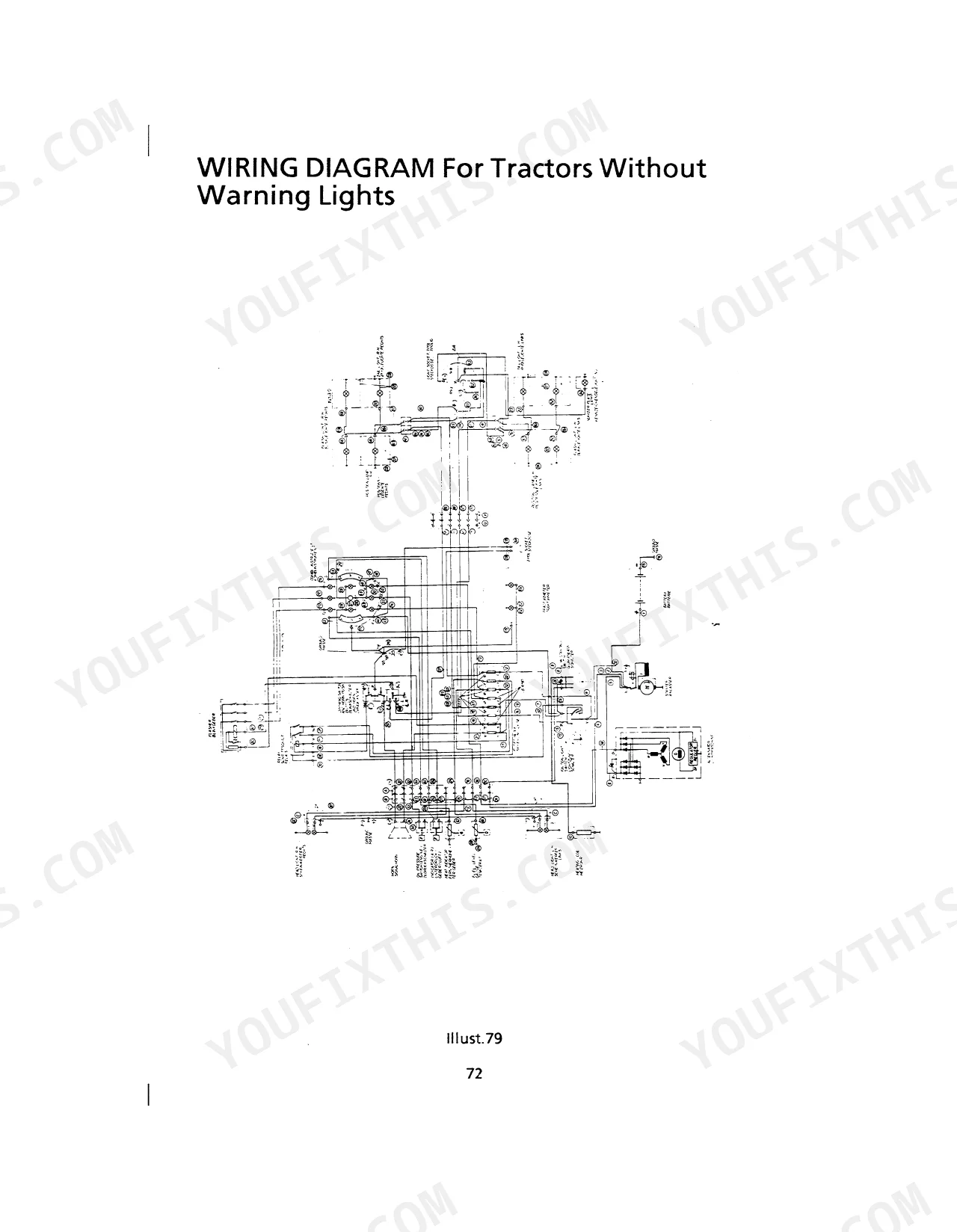

  • ✓ Wiring Diagrams
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (2-level navigation)
Preview Sample Pages (PDF)
Add to Cart

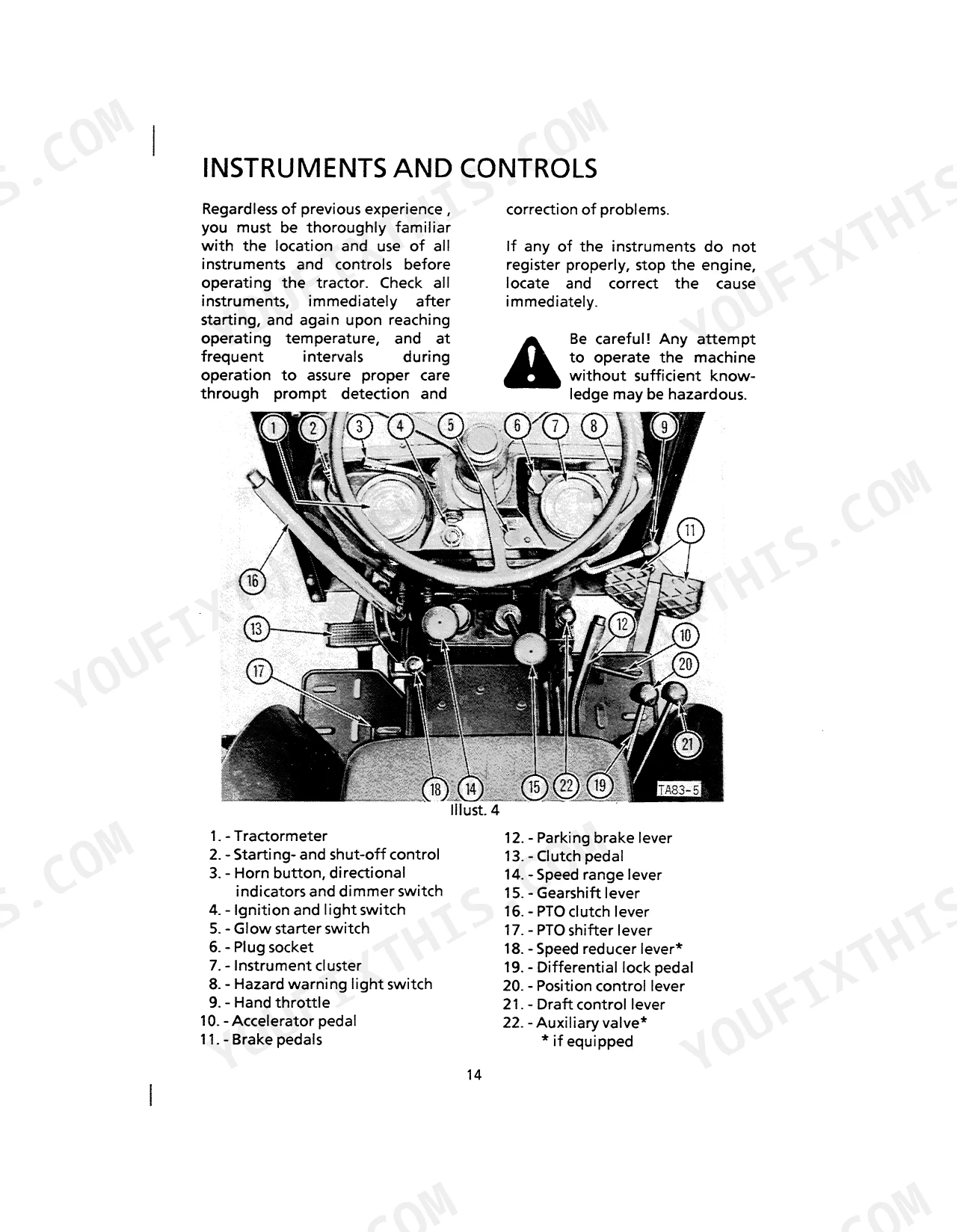

Case International 433-833 tractor controls diagram showing instrument cluster, pedals, and levers with numbered key list.
Case International 433, 533, 633, 733, 833, E633A, E733A, E833A, International Diesel Tractor, E 633, E 733, E 833 Four (incl. Wiring)
$19.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

Running a Case International 433, 533, 633, 733, 833, E633A, E733A, or E833A diesel tractor? This 90-page operator manual gives you the factory operating procedures for the full lineup, four-wheel-drive variants included, from break-in through long-term storage. Inside: a complete controls walkthrough covering the tractormeter, ignition switch, brake pedals, and speed range and gear shift levers, plus wiring diagrams for tracing electrical faults. You get PTO setup, three-point suspension hitch, drawbar procedures, a full maintenance schedule for engine and chassis, and a troubleshooting section covering engine faults, hydraulic position loss, and power steering. Install primary and secondary fuel filters to 1.0-1.5 daNm, and replace the safety air cleaner element at every fifth main cleaning cycle. Every hour your tractor sits idle costs money. Bookmarked by section: open it on your tablet, find the spec, and get back to work.

What's Inside This Operator Manual

SystemPagesKey Topics
Introduction3-6Safety Precautions
Technical Data7-11Capacities, Dimensions, Travel Speeds, Recommended Lubricants
Preparing the Tractor for Each Days Work12-13Fuel, Draining Condensation, Crankcase Oil
Instruments and Controls14-21Tractormeter, Ignition and Light Switch, Instrument Cluster, Brake Pedals, Speed Range Lever, Gear Shift Lever

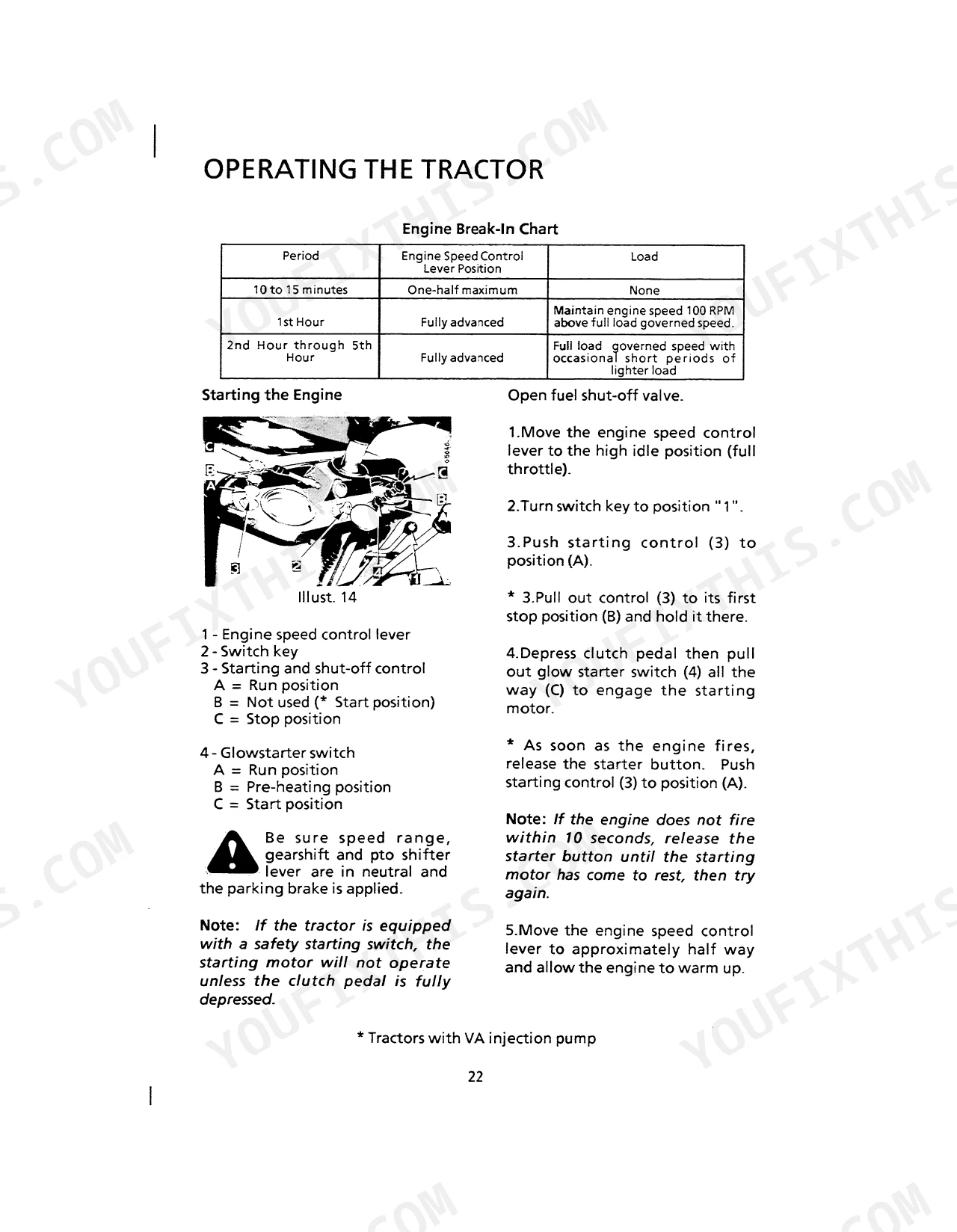

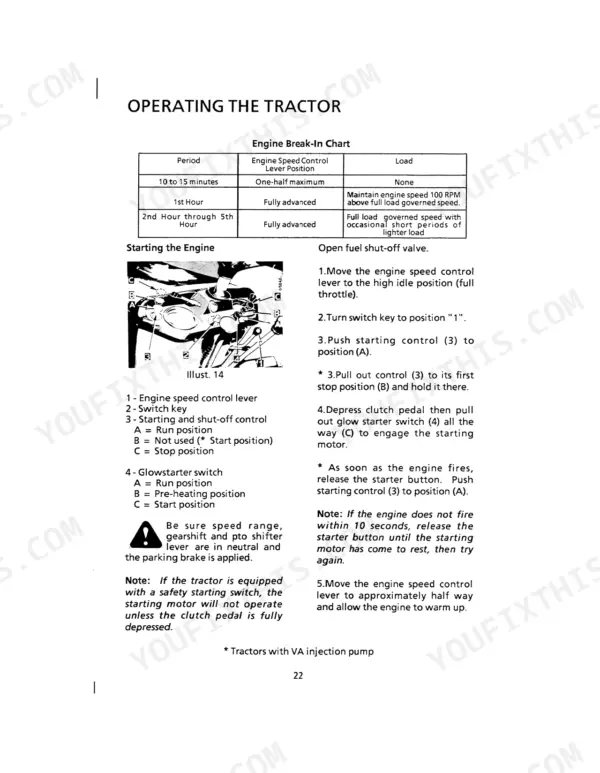

Operating the Tractor22-24Break-in-Period, Starting and Stopping the Engine
Operating Adjustments25-31Weights, Tread Width
Operating Equipment32-43P.T.O., Trailer Hitch, Drawbar, Three-Point Suspension Hitch

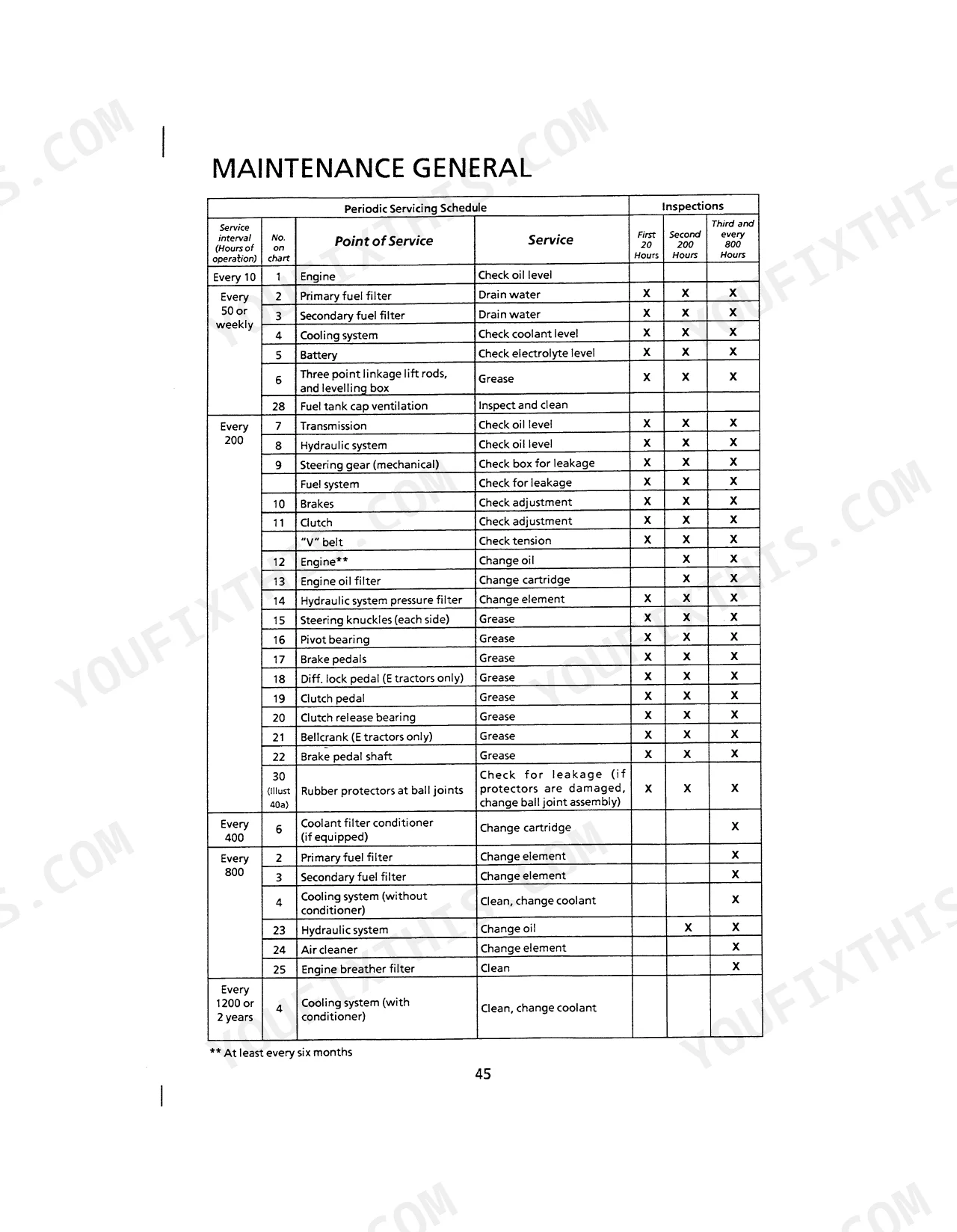

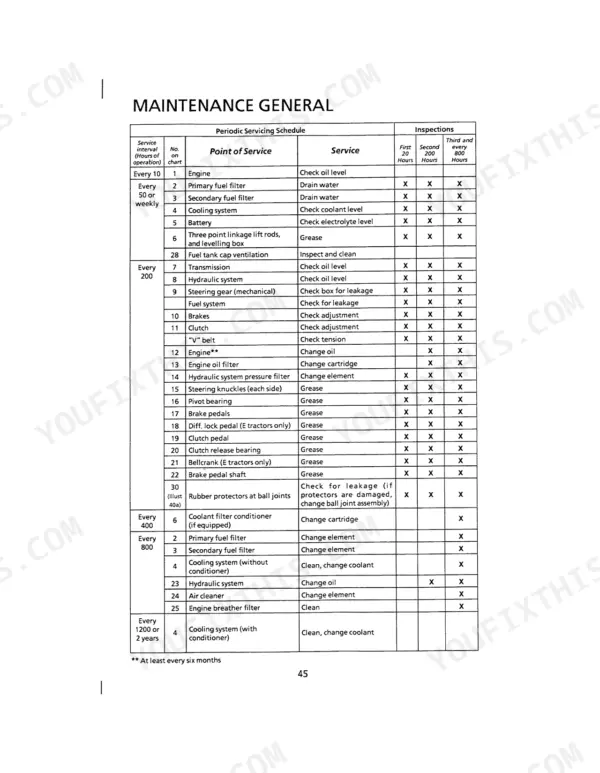

Maintenance44-78Maintenance Engine, Maintenance Chassis
Storing and Housing79-80Radiator, Injectors, Air Cleaning System, Fuel Tank, Battery, Drive Belts

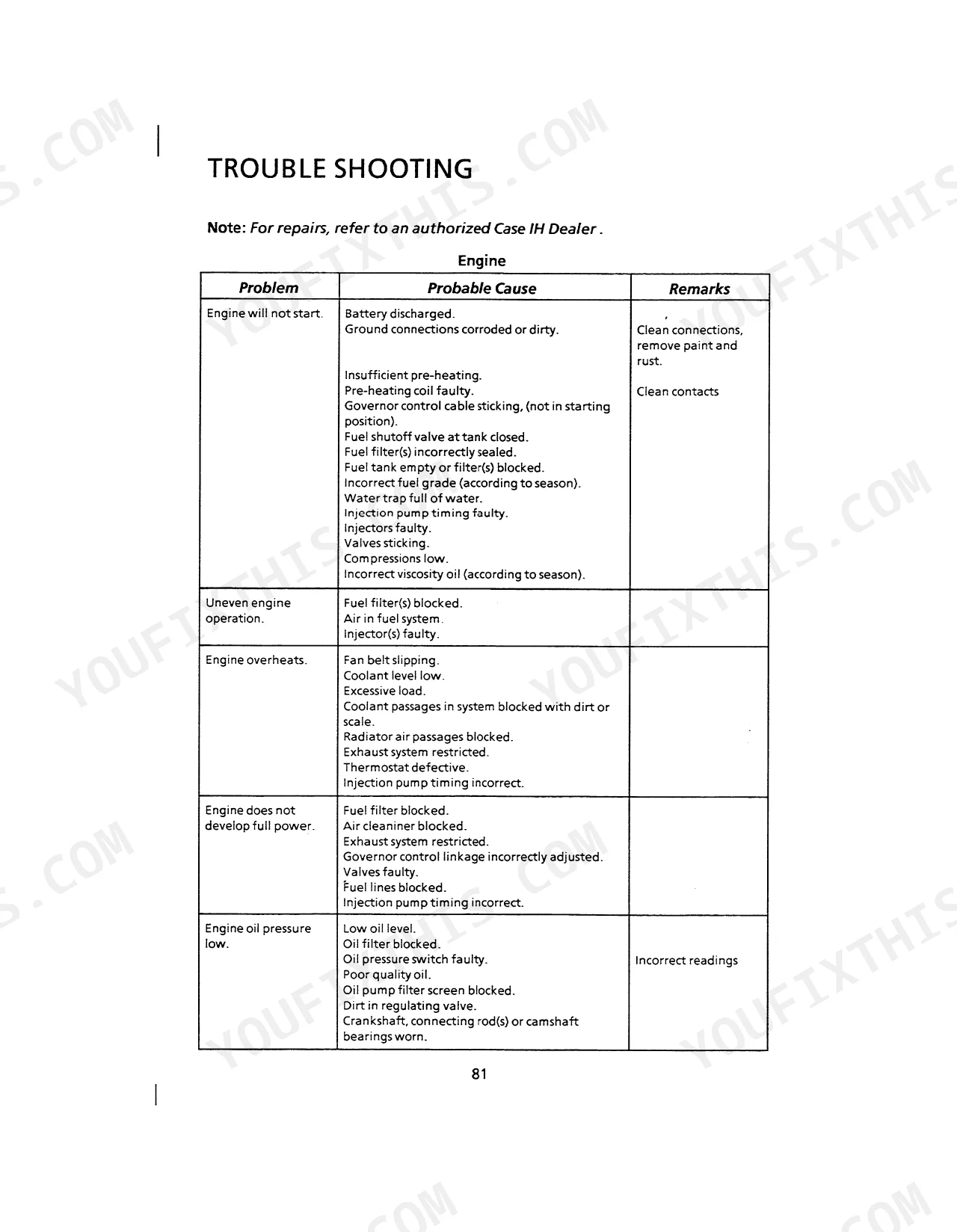

Trouble Shooting81-84Engine, Hydraulic System, Power Steering
Attachments85-88Front Wheel Drive Control Lever, Drive Shaft Universal Joints, Differential, Planetaries, Tires, Recommended Lubricants

Quick Reference Specifications

SpecificationValuePage
All Models
Primary fuel filter installation torque1.0-1.5 daNmp. 58
Secondary fuel filter installation torque1.0-1.5 daNmp. 58
Safety air cleaner element replacementMust be replacedp. 55
Probable causes for hydraulic system losing position under loadBlock valve leaking, Cylinder cushion valve leaking, External leakage on pressure line, Cylinder "O" rings or piston seals damaged or brittlep. 82
Remarks for hydraulic system losing position under loadGrind in valve seat or change block valve, Change cushion valve, Change seals and tighten, Fit new partsp. 82
Probable causes for engine overheatingFan belt slipping, Coolant level low, Excessive load, Coolant passages in system blocked with dirt or scale, Radiator air passages blocked, Exhaust system restricted, Thermostat defective, Injection pump timing incorrectp. 81
Probable causes for hydraulic system overheatingExcessive load, Air in system, Valve spool or relief valve sticking, Relief valve opening pressure too low, Internal leakage in control valve or power cylinder, Pump worn due to foreign matter in oilp. 82
Front Wheel Bolts Torque16 + 2 daNmp. 11
Rear Wheel Nuts Torque30 + 5 daNmp. 11
Engine Clutch Free Travel30 to 40 mmp. 66
E633A, E733A, E833A
Front Wheel 'Toe-in' (4WD Tractors)0 to 2mmp. 85
433, 533, 633
PTO Slip Clutch Torque (540 rpm)115 daNmp. 34
BrandCase International
Model433, 533, 633, 733, 833, E633A, E733A, E833A, E 633, E 733, E 833 Four Wheel Drive
Machine TypeDiesel Tractor
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages90
File Size9.8 MB
Wiring DiagramsYes
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
