This is the Kubota B1700, B2100, and B2400 shop manual, a 454 page workshop and service manual covering the standard, HSD, D, HSDB, and E variants of these compact tractors, including their D905, D1005, and D1105 diesel engines. Unlike a parts catalog, this book gives the actual repair procedures.It is organized into sections for the engine, clutch, transmission (with the Bi-Speed Turn supplement), rear axle, brakes, front axle, steering, hydraulics, and electrical system, plus mower and enhanced model supplements. You get specifications, torque values, clearances, disassembly and reassembly steps, and troubleshooting.Use it to set cylinder head and connecting rod torque, check valve clearance, service the hydrostatic transmission and 3-point hydraulics, diagnose no-start faults, and adjust brakes and steering. Delivered as a downloadable, printable PDF.
What's Inside This Kubota B1700–B2400 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 10-53 | Engine, Transmission, Fuel System, Cooling System, Electrical Parts, Tires, Hydraulic System |
| Engine | 54-123 | Cylinder Head, Crankshaft, Lubricating System, Cooling System, Fuel System, Injection Pump, Injection Nozzle, Governor |
| Clutch | 124-139 | Clutch Disc, Pressure Plate Assembly, Release Bearing, Clutch Pedal, Clutch Shaft, Clutch Release Fork, Fuel Tank, Universal Joint |
| Transmission | 140-204 | Hydrostatic Transmission, Main Gear Shift Section, PTO System, Differential Gear, Clutch Housing, Front Wheel Drive Section |

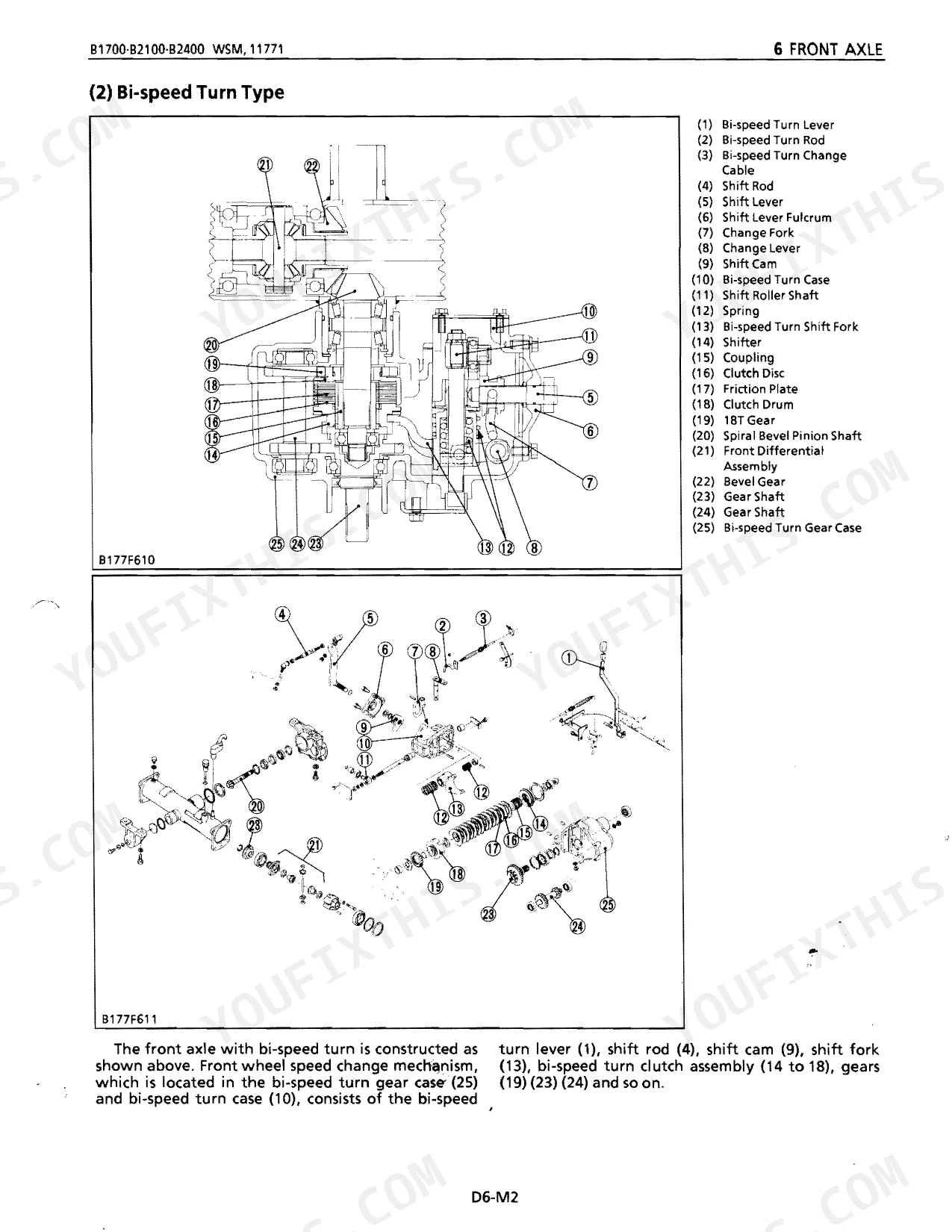

| Transmission Supplement, Bi-Speed Turn | 205-239 | Bi-Speed Turn Cable, Propeller Shaft Cover, Coupling, Drag Link, Rear Axle Case, Front Axle, Front Wheel Hub, Bi-Speed Turn Clutch |
| Rear Axle | 240-249 | Rear Axle Case, Differential, Differential Gear Shaft, Spur Gear, Spiral Bevel Gear, Differential Lock Shift Fork, Differential Lock Clutch |
| Brakes | 250-263 | Brake Pedal, Brake Case, Brake Assembly, Brake Disc, Friction Plate, Cam Plate, Brake Cam, Differential Lock Clutch |
| Front Axle | 264-281 | Propeller Shaft, Bevel Gear Case, Differential Gear, Front Gear Case, Axle Flange, Drag Link |
| Steering | 282-305 | Hydraulic Circuit, Power Steering Body, Relief Valve, Sector Gear Shaft, Ball Nut, Worm Shaft, Steering Wheel |
| Hydraulic | 306-331 | Hydraulic Circuit, Hydraulic Pump, Flow Priority Valve, Position Control Valve, Relief Valve, Hydraulic Cylinder, Hydraulic Block Type Outlet, Rear Hydraulic Outlet |
| Electrical | 332-381 | Starter, Glow Plug, Safety Switch, Fuel Cut Off Solenoid, AC Dynamo, Alternator, Ic Regulator, Hazard Unit |
| Mower | 382-417 | Gear Box, Mower Blades, Universal Joint, Front Gauge Wheels, Rear Gauge Wheels, Lift Arms, Front Hanger Bracket, Mid Hanger Bracket |
| Enhanced Model Supplement | 418-454 | HST Pedal Return Spring, Power Steering Assembly, Hydraulic Pump, Flow Priority Valve, Sector Gear Shaft, Ball Nut Assembly, Valve Housing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

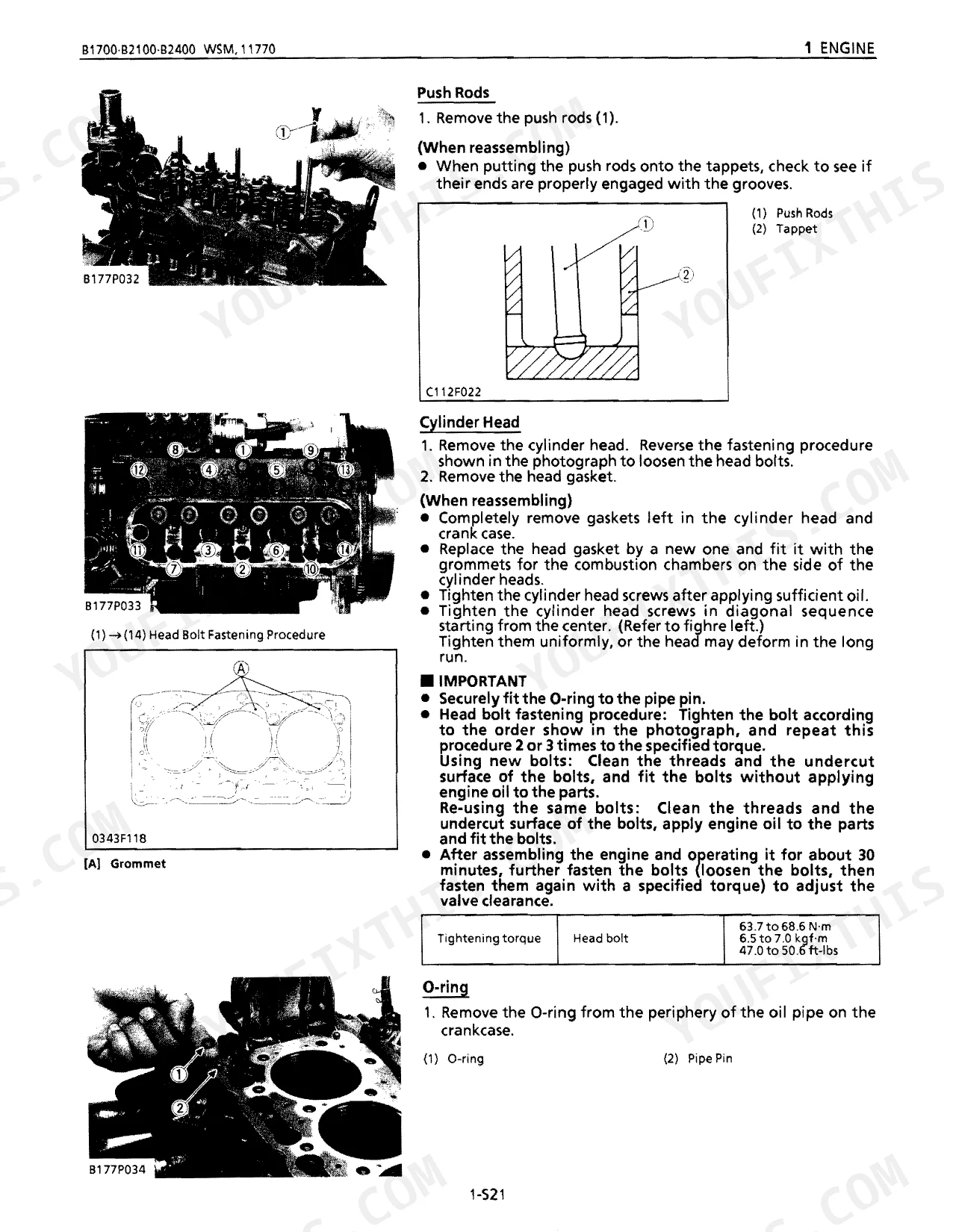

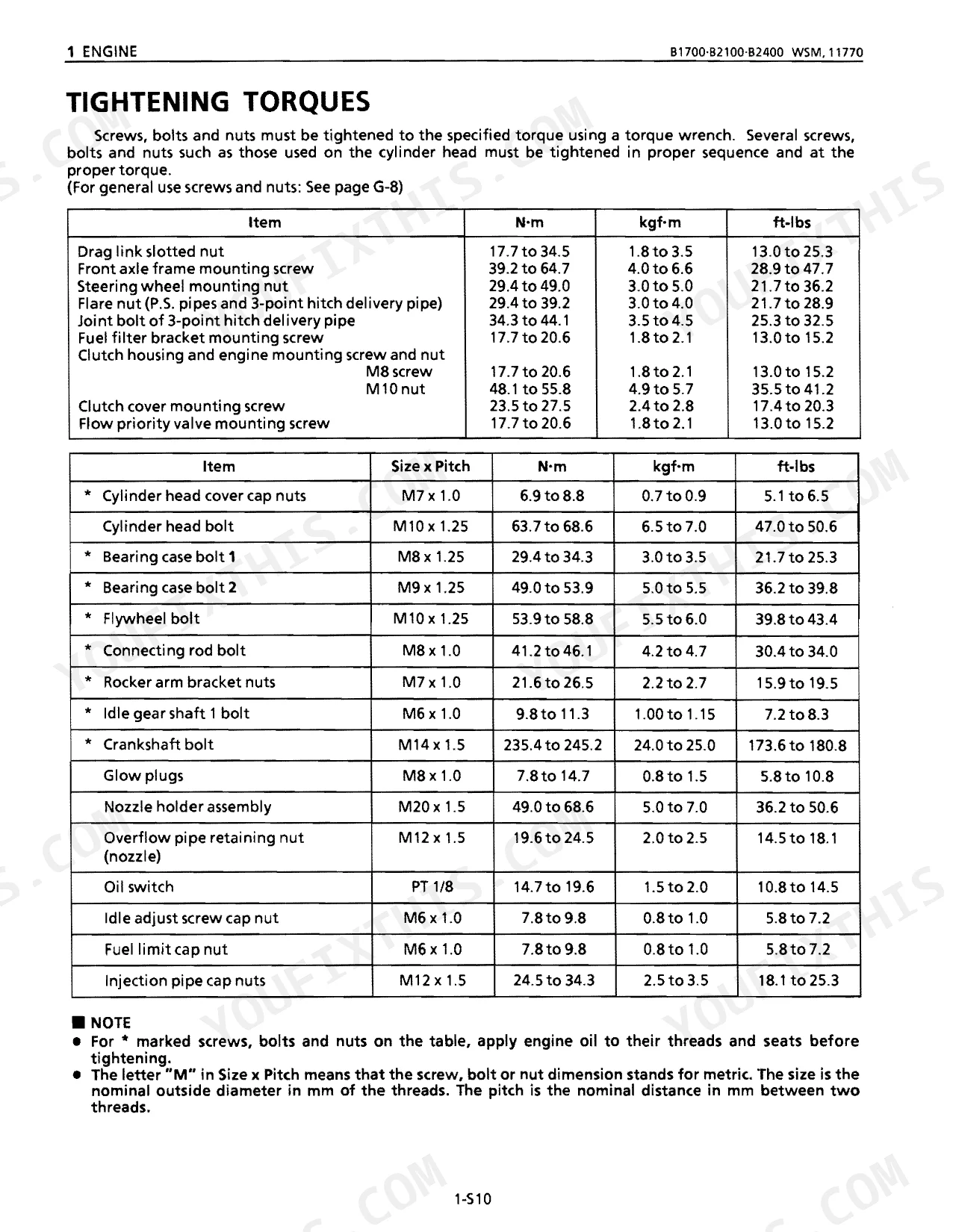

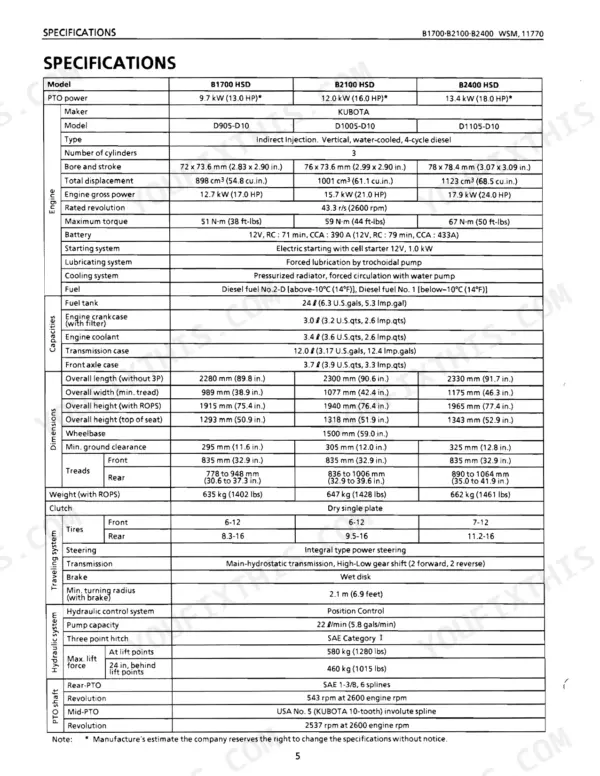

| Cylinder head bolt | 63.7 to 68.6 N·m, 6.5 to 7.0 kgf·m, 47.0 to 50.6 ft-lbs | p. 83 |
| Hydraulic oil filter cartridge replacement | Initial 50 hours, then every 300 hours | p. 21 |
| Engine oil filter cartridge replacement | Initial 50 hours, then every 200 hours | p. 21 |
| Fuel filter element replacement | Every 400 hours | p. 21 |
| Fuel filter bracket mounting screw | 17.7 to 20.6 N·m | p. 83 |
| Air cleaner element replacement | Once yearly or after every sixth cleaning | p. 29 |
| Glow plugs | 7.8 to 14.7 N·m, 0.8 to 1.5 kgf·m, 5.8 to 10.8 ft-lbs | p. 83 |
| Mica Undercut (allowable limit, factory 0.5-1.0 mm) | 0.2 mm | p. 359 |
| Brake Disc Thickness (allowable limit, factory 3.3-3.5 mm) | 3.0 mm | p. 256 |
| Friction Plate Thickness (allowable limit, factory 1.92-2.08 mm) | 1.52 mm | p. 256 |
| Flare nut (P.S. pipes and 3-point hitch delivery pipe) | 29.4 to 39.2 N·m | p. 83 |

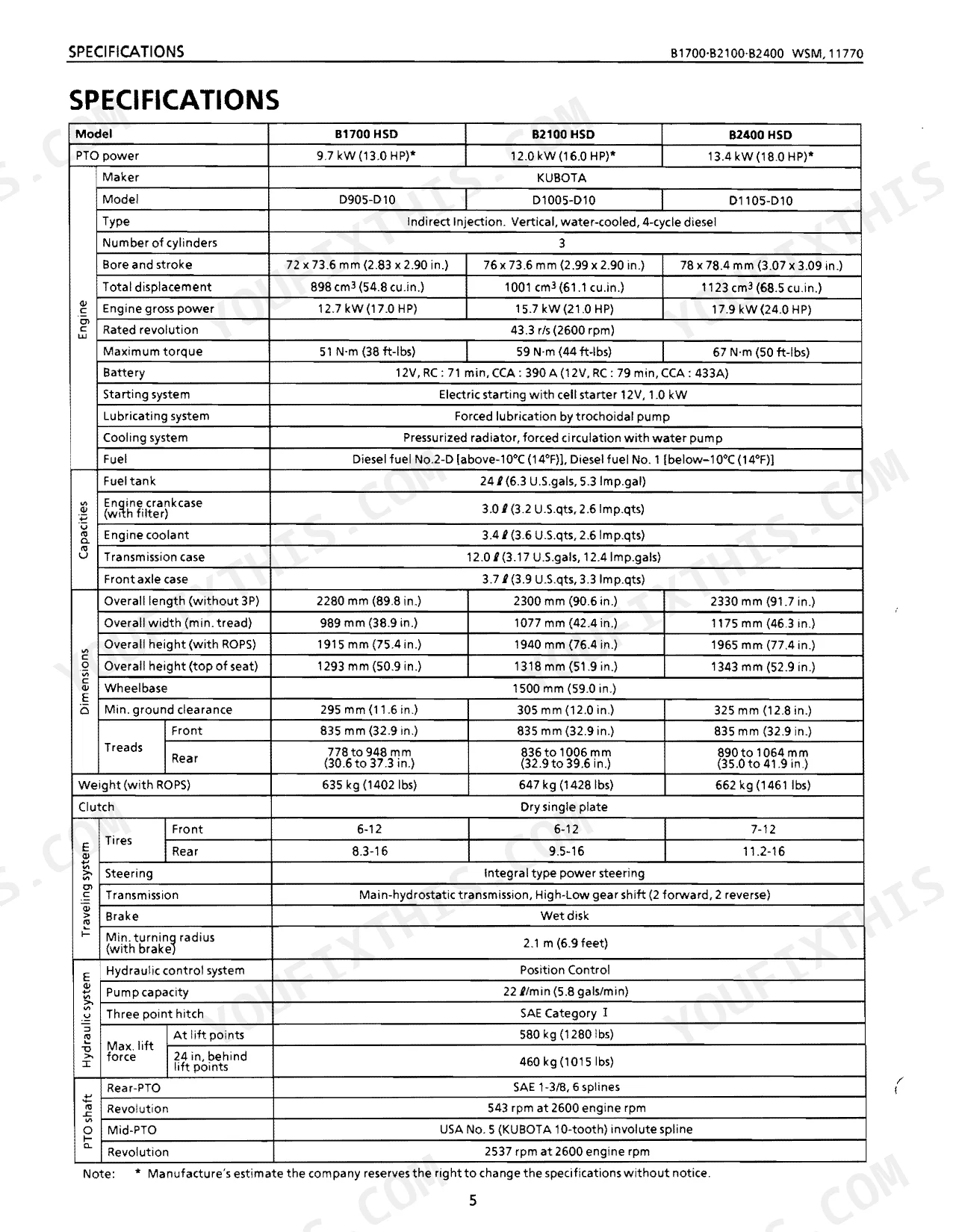

| PTO Power | 9.7 kW (13.0 HP) | p. 5 |
Kubota B1700–B2400 Series Common Problems This Manual Covers
Tractor loses drive in both directions

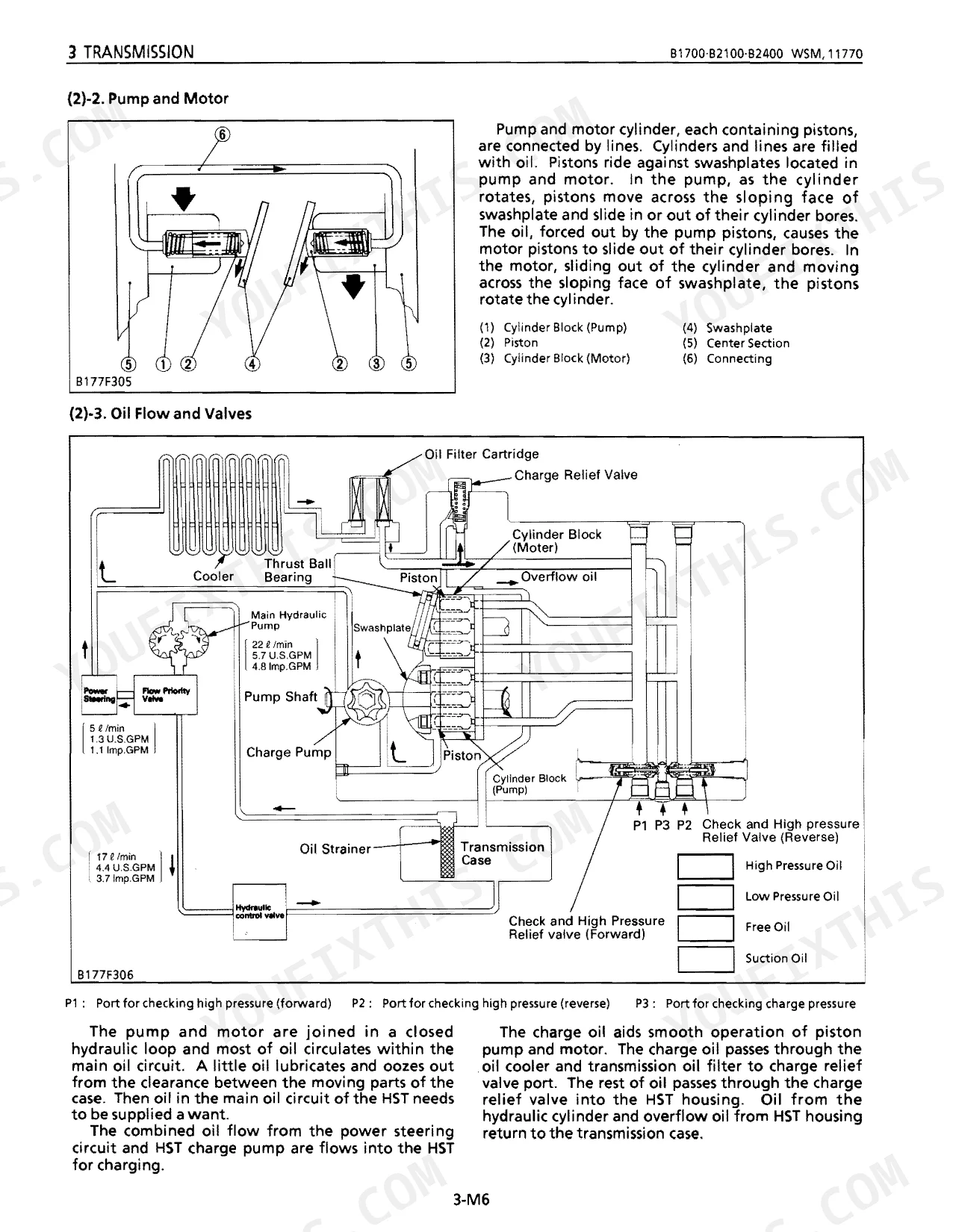

A hydrostatic tractor that will not move or feels weak after fluid service often has low or contaminated oil, a clogged suction screen, or charge pump wear. The Transmission section covers HST service.
Manual Section: Sect 3 Transmission p. 1403-point hitch raises slowly or not at all
A hitch that lifts slowly, jerks, or will not raise usually points to low fluid, a worn pump, a stuck relief valve, or internal cylinder leakage. The Hydraulic section covers the pump, valves, and lift circuit.
Manual Section: Sect 8 Hydraulic p. 306No crank or no start

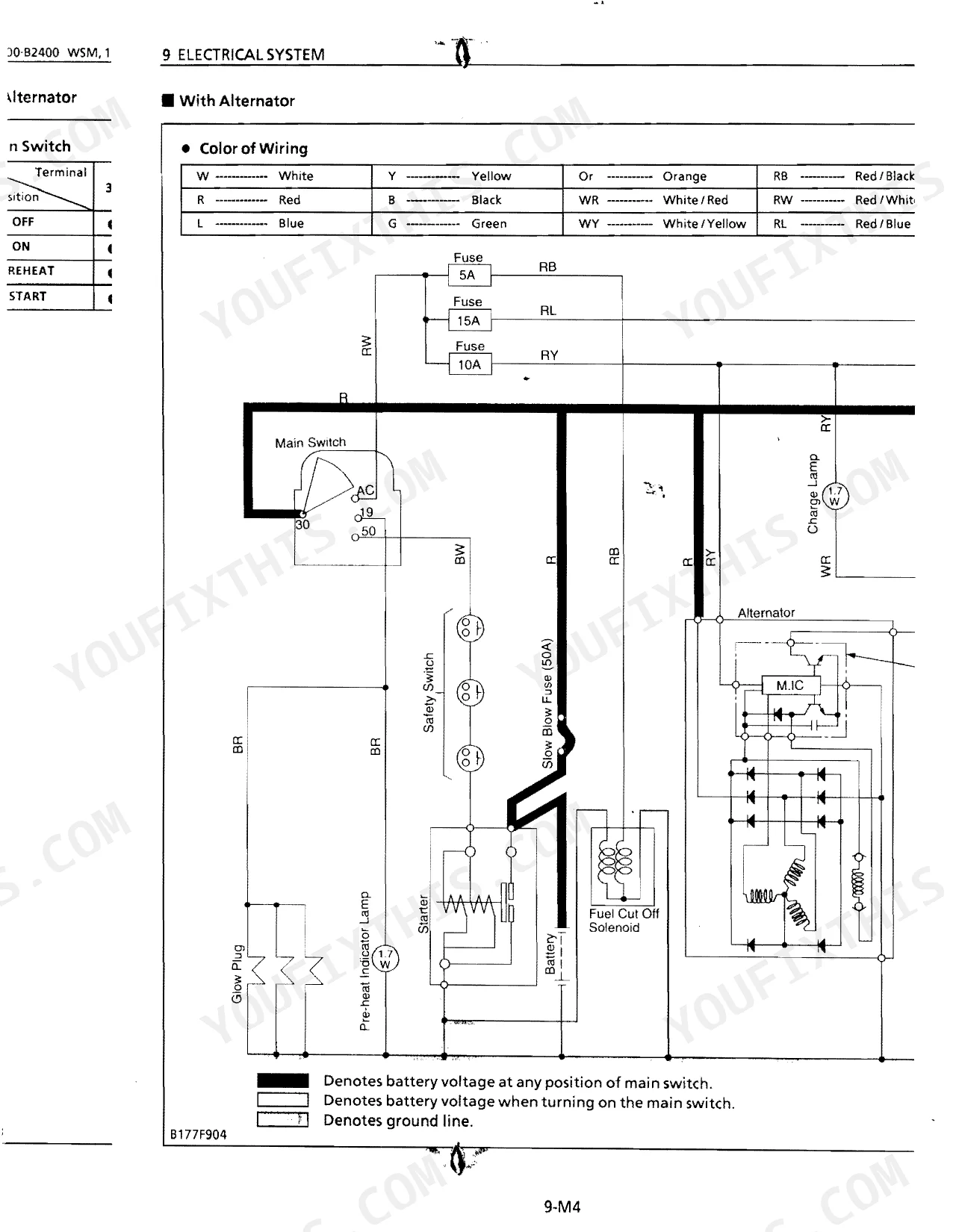

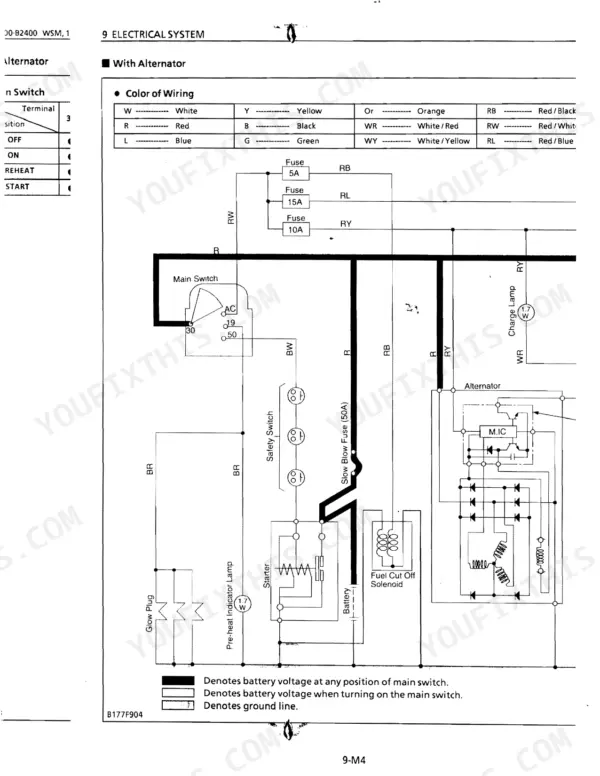

A no-crank condition often traces to the safety switches, battery cables, starter, or the fuel cutoff solenoid not receiving power. The Electrical section covers wiring, the starter, and solenoid testing.
Manual Section: Sect 9 Electrical p. 332Weak or contaminated brakes
Brakes that stop poorly or act unevenly are often caused by worn discs or contamination from leaking axle seals. The Brakes section gives service specs and procedures for the brake assembly.
Manual Section: Sect 5 Brakes p. 250Front-end play or toe-in issues
Steering play or toe-in problems develop after loader work or rough terrain, and 4WD front axles can develop backlash. The Front Axle section covers backlash checks and alignment.
Manual Section: Sect 6 Front Axle p. 264Overheating or power loss under load

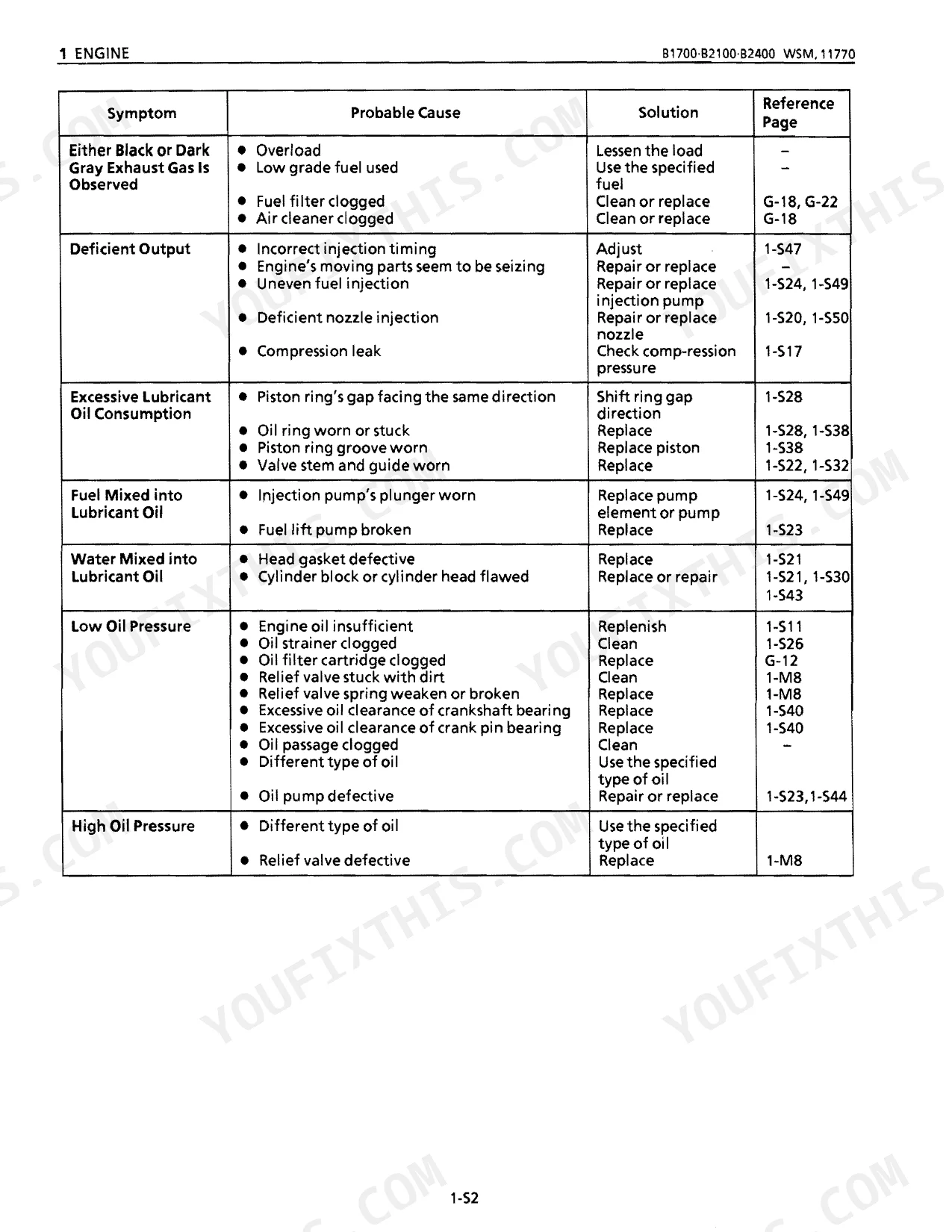

Overheating and loss of power under load often come from a plugged radiator, restricted fuel supply, or engine wear. The Engine section provides the specs and procedures to diagnose and rebuild.
Manual Section: Sect 1 Engine p. 54Clutch or pedal free play out of adjustment
A dragging or slipping clutch usually needs pedal free-play adjustment or a worn dry plate replaced. The Clutch section covers adjustment and overhaul.
Manual Section: Sect 2 Clutch p. 124Frequently Asked Questions
Which models and engines does this shop manual cover?
It covers the Kubota B1700, B2100, and B2400 in their standard, HSD, D, HSDB, and E variants, with the D905, D1005, and D1105 diesel engines.
Does it include torque specs and clearances?
Yes. The Engine section gives values such as cylinder head bolt torque, connecting rod bolt torque, and cold valve clearance, alongside the overhaul procedures. p. 54
Does it cover the hydraulic and 3-point system?
Yes. The Hydraulic section covers the pump, control valve, relief settings, and lift circuit, so you can diagnose and repair slow or weak 3-point performance. p. 306
Can it help with electrical and no-start troubleshooting?
Yes. The Electrical section covers wiring, the starter, and the stop solenoid, which is where most no-crank and no-start diagnosis on these tractors begins. p. 332
How is this Kubota B1700–B2400 Series Shop Manual delivered?
This is a 454-page searchable PDF (26 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Kubota B1700–B2400 Series manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Kubota B1700–B2400 Series Shop Manual include the hydraulic layout?

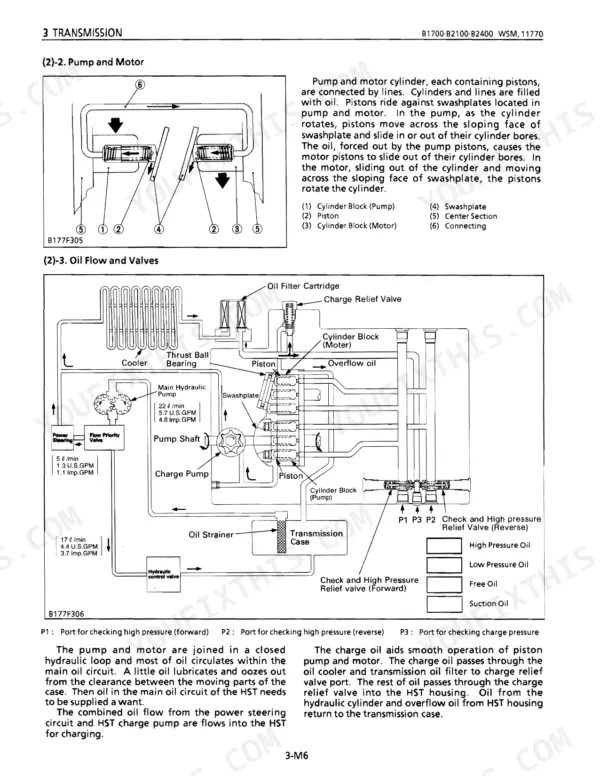

Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
