This is the factory Caterpillar SIS repair manual export for the 299D compact track loader, serial prefix GTC00001-UP, with the Tier 4 C3.8 common-rail engine. The main PDF runs 2148 pages and covers every system on the machine: hydrostatic power train, Standard Flow and High Flow XPS hydraulics, the Machine ECM and MID 039 diagnostic code procedures, the DPF and NOx reduction system, fuel injectors and trim files, undercarriage, and full engine repair. The same download includes two separate fold-out interactive schematic PDFs, one hydraulic and one electrical (media UENR3966), each a 56 by 35 inch colour sheet with component and pressure tap tables. Test specs, cycle times, and relief pressures are all in here with page references.
What's Inside This Caterpillar 299D Repair Manual
| System | Pages |
|---|---|
Quick Reference Specifications

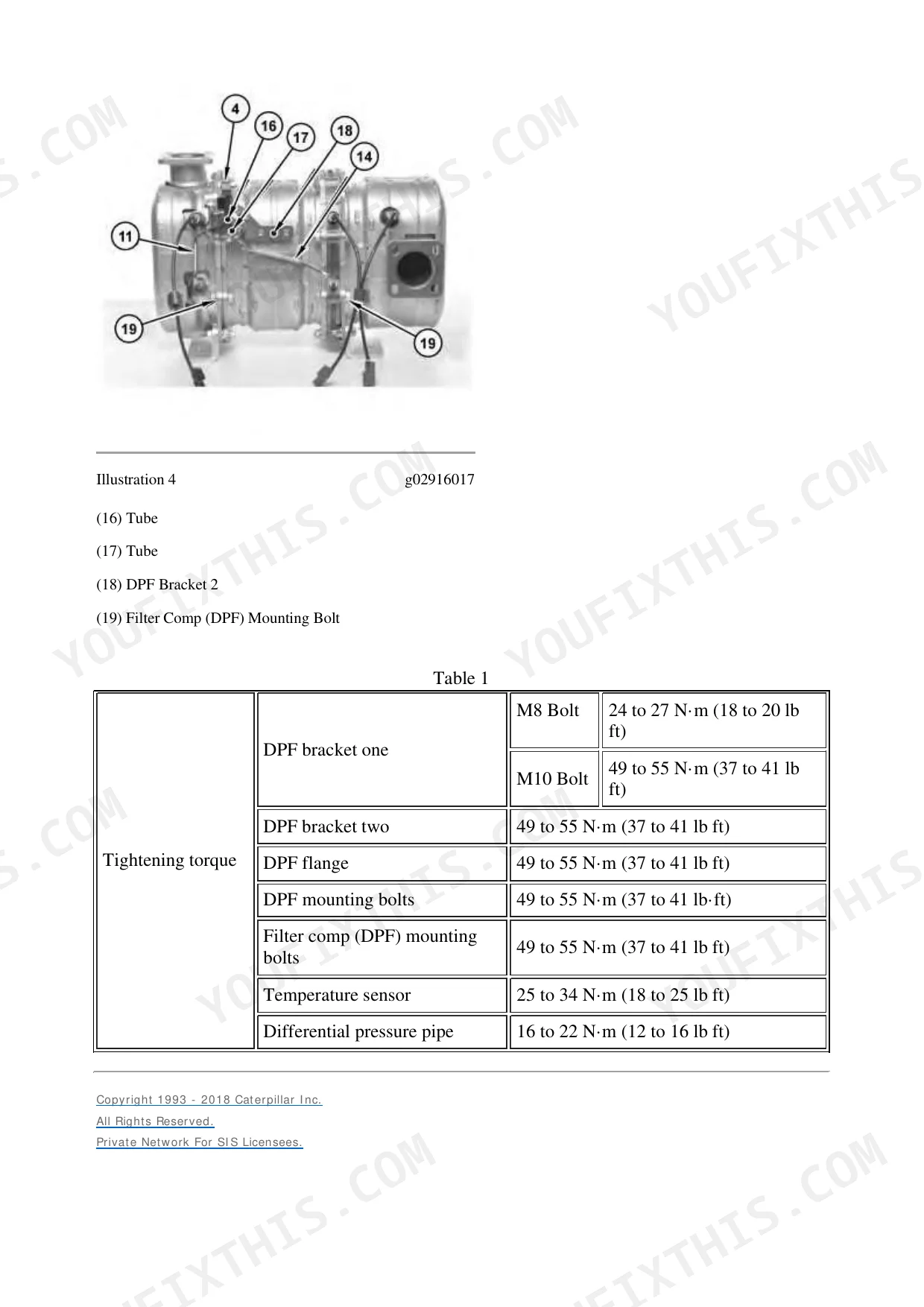

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Main relief valve pressure | 23000 ± 700 kPa (3335 ± 102 psi) (All standard flow models) / 23000 ± 1000 kPa (3335 ± 145 psi) (All High Flow (XPS) and (XHP) models) | p. 965 |
| High Flow hydraulic system | ||
| High pressure cutoff | 28000 ± 700 kPa (4060 ± 102 psi) | p. 1000 |
| Load sensing pressure | 21400 ± 800 kPa (3105 ± 116 psi) | p. 1000 |
| Standard and High Flow hydraulic system | ||
| Margin pressure | 1600 ± 200 kPa (232 ± 30 psi) | p. 1010 |
| All models | ||
| Charge pressure at high idle | 3100 ± 200 kPa (450 ± 30 psi) | p. 979 |
| All models, at 18000 ± 1000 kPa and 2000 ± 10 rpm, oil 50 ± 10 °C | ||
| Charge pump minimum flow | 36.8 L/min (9.72 US gpm) | p. 989 |
| 246D, 262D, 272D, 277D, 279D, 287D, 289D, 299D, at 2000 ± 10 rpm | ||
| Work tool pump minimum flow, standard flow | 61 L/min (16.1 US gpm) | p. 992 |
| 246D, 262D, 272D, 277D, 279D, 287D, 289D, 299D with WT jumper 377-5466, at 1800 ± 25 rpm | ||
| Work tool pump minimum flow, High Flow XPS | 78 L/min (21 US gpm) | p. 995 |
| 272D XHP and 299D XHP with WT jumper 377-5466, at 1800 ± 25 rpm | ||
| Work tool pump minimum flow, XHP | 96 L/min (25.3 US gpm) | p. 995 |
| 299D and 299D XHP, standard flow | ||
| Lift cylinder cycle time, raise | 5.2 seconds (± 0.5 sec) | p. 939 |
| Tilt cylinder cycle time, dump | 2.3 seconds (± 0.5 sec) | p. 939 |
| Lift and tilt cylinders, oil at 50 ± 10 °C | ||
| Maximum cylinder drift rate | 3 mm (0.12 inch) per 1 minute | p. 940 |
| 272D and 299D | ||
| Demand fan speed, maximum | 2600 ± 50 rpm | p. 984 |
| Hydraulic oil contamination test | ||
| Hydraulic system cleanliness level | ISO Code 18/15 | p. 955 |
| DPF bracket two, flange and mounting bolts | ||
| Diesel Particulate Filter mounting bolt torque | 49 to 55 N·m (37 to 41 lb ft) | p. 38 |
Caterpillar 299D Common Problems This Manual Covers
Loss of drive power or the machine crawls on one side as charge pressure falls off with pump wear.
Start with Power Train Operational Checks at page 1678, then run Hydrostatic System - Test and Adjust at page 1703. Verify charge pressure of 3100 plus or minus 200 kPa at high idle (page 979) and charge pump minimum flow of 36.8 L/min under the specified test conditions (page 989) before condemning a hydrostatic pump or motor.
Manual Section: Power Train, pages 1627-1910 p. 1703Weak, spongy, or drifting hydraulics on a used machine with unknown history.
Work through Visual Inspection at page 933 and Operational Checks at page 938 first, then the main relief test at page 965 against the 23000 kPa spec and the pilot accumulator test at page 970. The book also sets the oil cleanliness target at ISO Code 18/15 (page 955), because dirty oil is what wore the pump in the first place.
Manual Section: Hydraulic System, pages 854-1382 p. 938Hard starting, misfire, stall, or random shutdowns that feel like fuel but might be electrical.

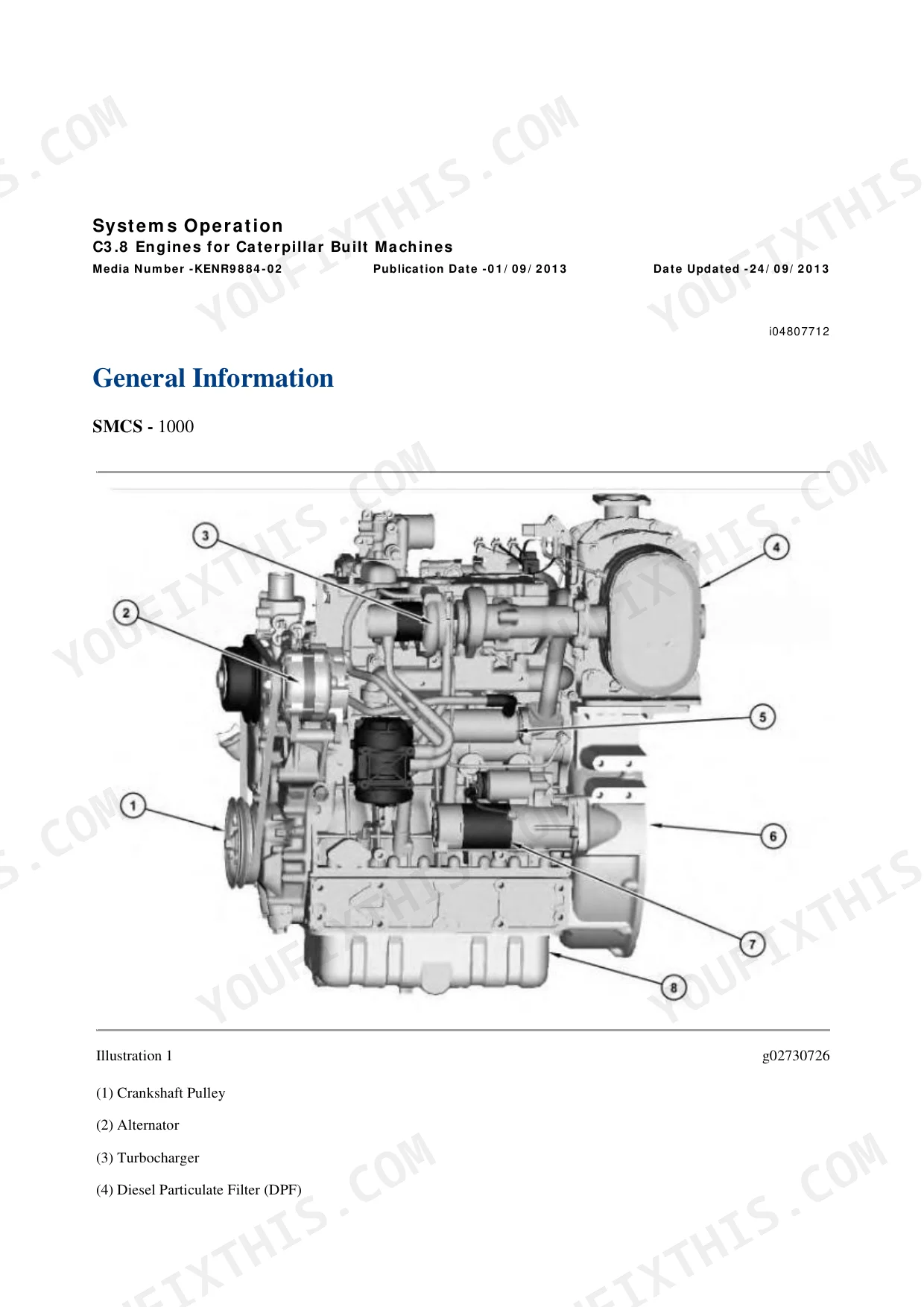

The Engine Arrangement section carries the symptom-based hard start, misfire, stall and overspeed troubleshooting trees (pages 709-759), and the Machine Arrangement symptom entry point at page 1447 routes you to the right system. Cross-check with the air-in-fuel test in the Fuel System section before pulling injectors.
Manual Section: Engine Arrangement, pages 709-759 p. 709Overheating in hot weather or under load, often blamed on the radiator when it is the demand fan.

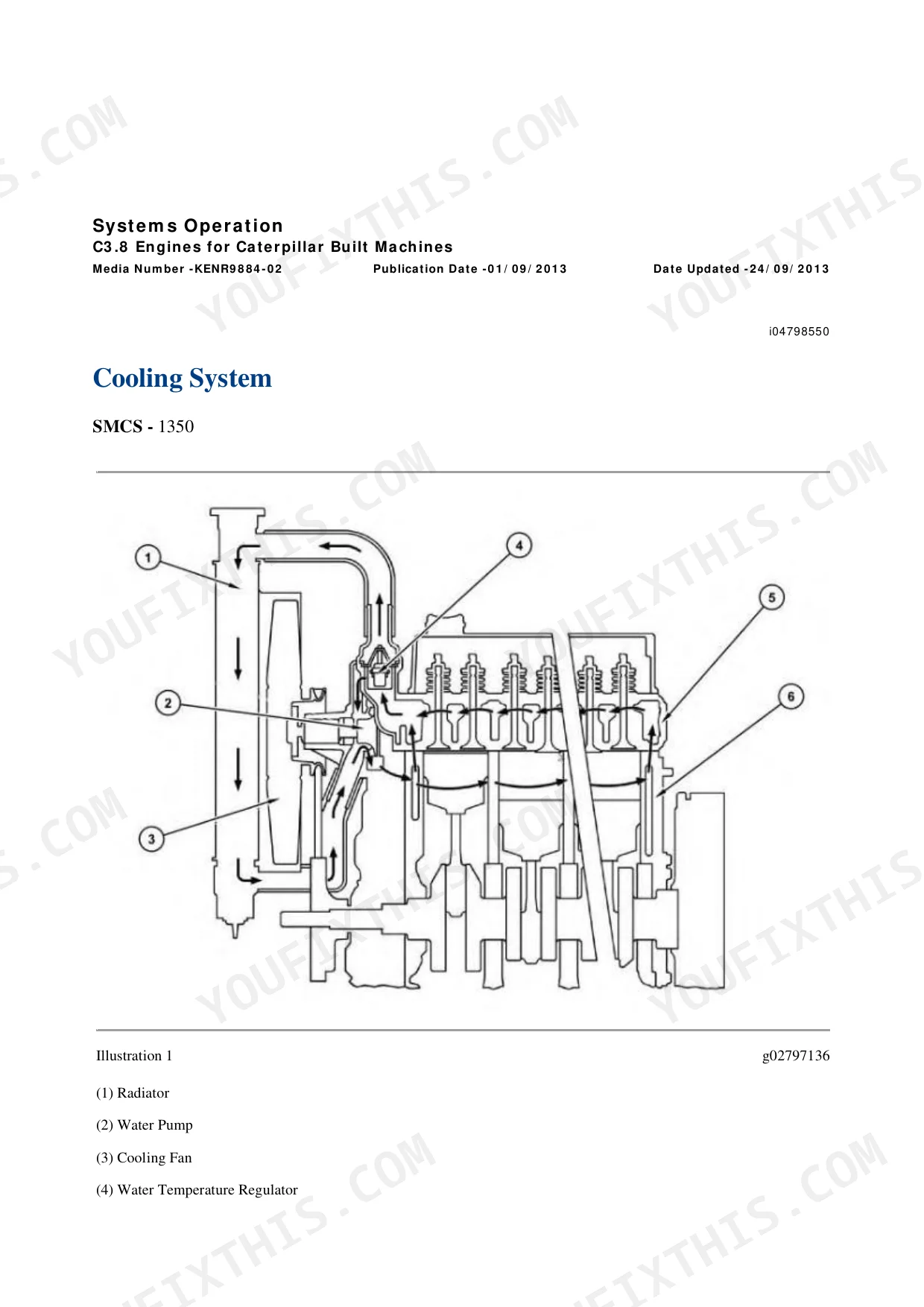

The Cooling System section covers the water temperature regulator test, the demand fan gear motor, and a full overheating checklist. The fan speed spec is in the hydraulic tests: demand fan maximum speed for the 299D is 2600 plus or minus 50 rpm (page 984), so you can prove whether the fan circuit is actually delivering before buying cooling parts.
Manual Section: Cooling System, pages 119-157 p. 984Frequently Asked Questions
My 299D lift arms drift down and the cycle times feel slow. Does this manual tell me what is acceptable and where to start?
Yes. Operational Checks at page 938 gives the stopwatch numbers: on standard flow, lift raise should take 5.2 seconds plus or minus 0.5 and tilt dump 2.3 seconds plus or minus 0.5 (High Flow machines raise in 4.4 seconds), and maximum cylinder drift is 3 mm per minute with oil at 50 C (page 940). If the machine fails those, the main relief test at page 965 tells you whether you are at the 23000 kPa spec (3335 psi) or bleeding pressure somewhere. From there the book walks pump and valve testing so you replace the worn part, not the whole valve bank. p. 938
My High Flow XPS work tool (mulcher, cold planer) runs weak. Is the High Flow test procedure in here?
It is. High Flow Hydraulic System - Test and Adjust starts at page 998 and gives the numbers that matter: high pressure cutoff at 28000 plus or minus 700 kPa (4060 psi), margin pressure 1600 plus or minus 200 kPa at page 1010, and a work tool pump minimum flow of 78 L/min using the WT jumper 377-5466 (page 995). Standard flow machines get their own 61 L/min minimum at page 992. If your pump cannot make minimum flow at pressure, you know it is the pump and not the tool. p. 998
The machine sets intermittent diagnostic codes that come and go. How does the manual handle electrical troubleshooting?

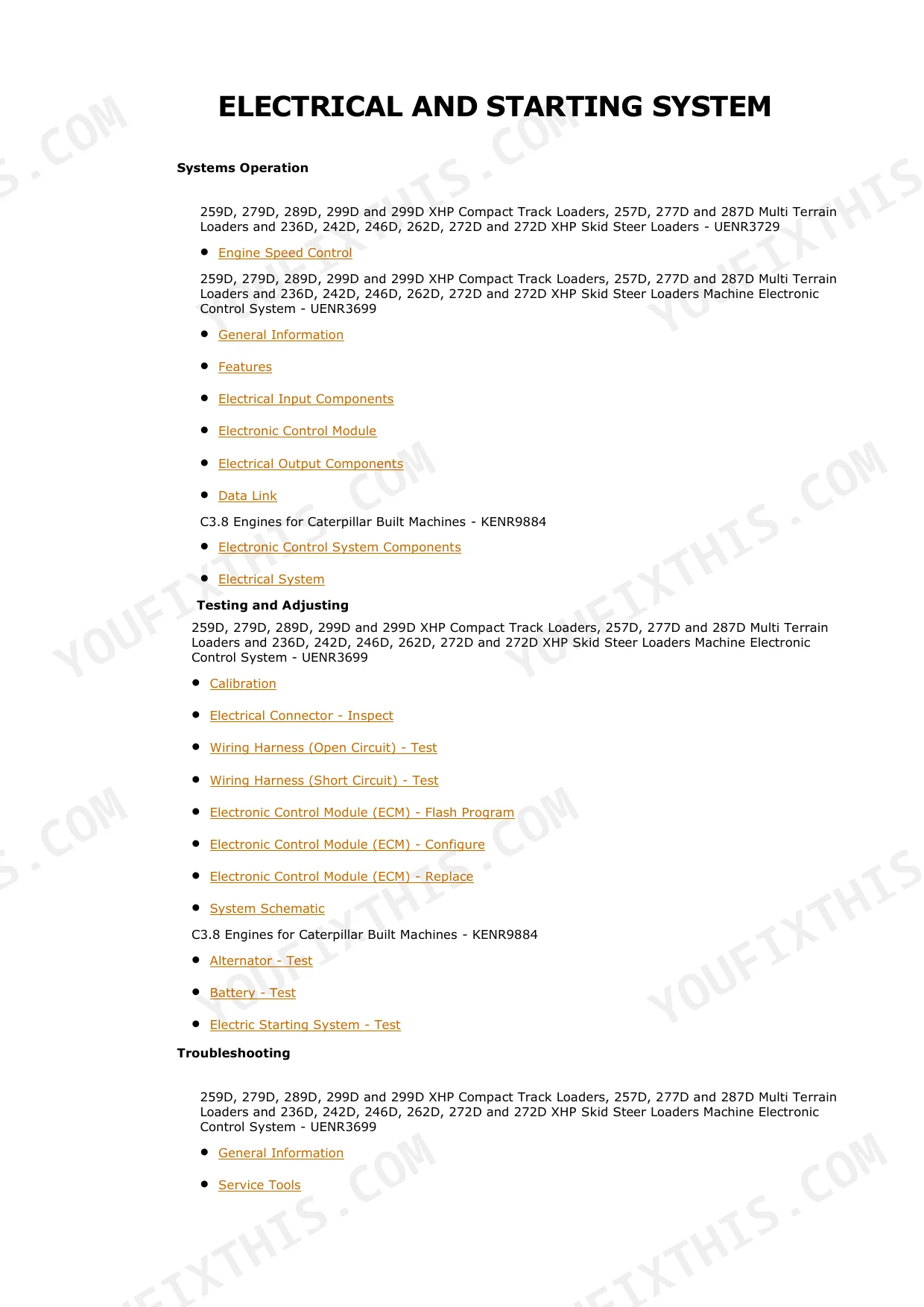

The Electrical and Starting System section runs from page 158 to 708 and is built around the Machine ECM: input and output components, data link, wiring harness open and short circuit tests, and MID 039 code procedures. The step most people skip is Electrical Connector - Inspect at page 228, and on these machines a corroded or backed-out pin is behind a lot of ghost codes. The Operator Station section (page 1451 on) shows how to pull codes from the operator monitor without Cat ET, plus CID/FMI procedures for joystick and switch circuits. p. 228
Does this cover the DPF and emissions system on the C3.8, or just the base engine?

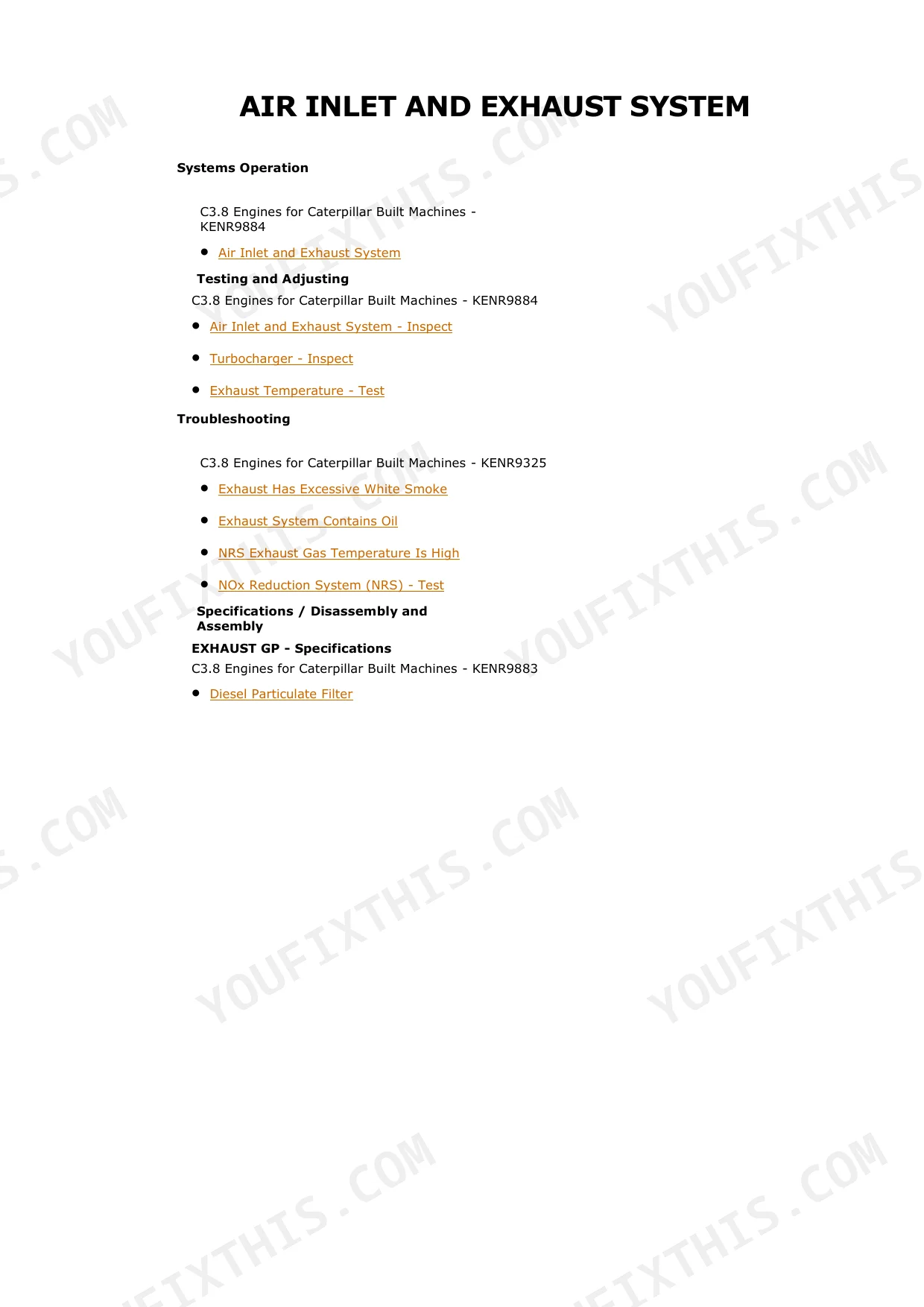

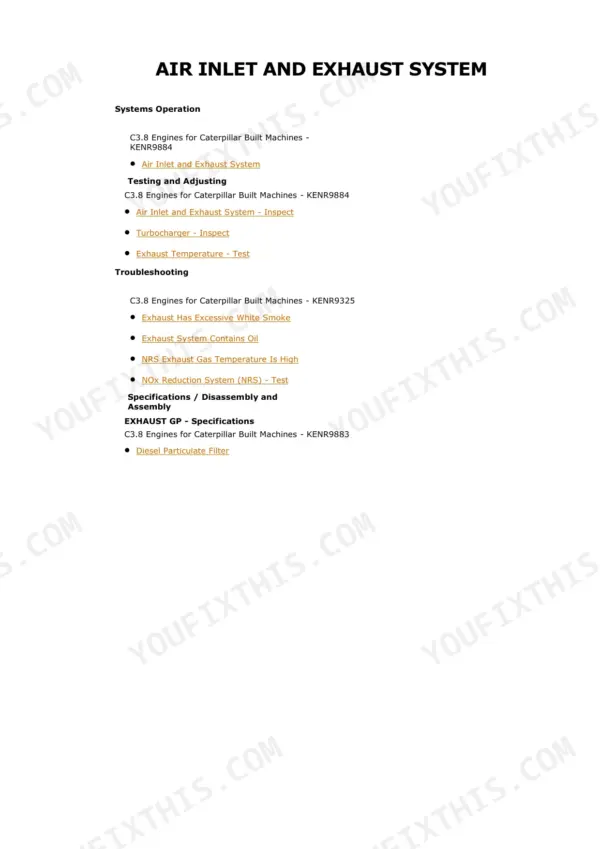

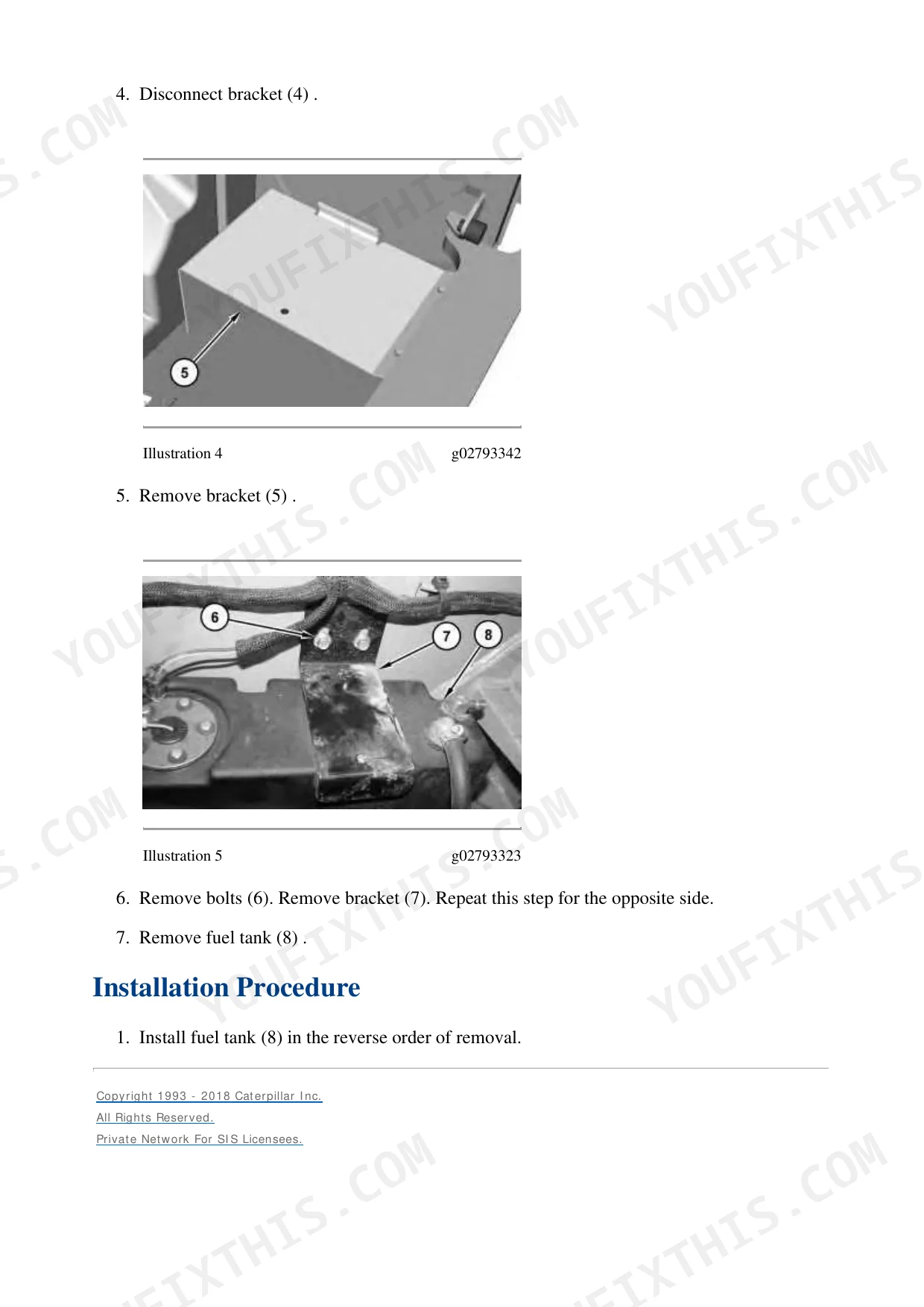

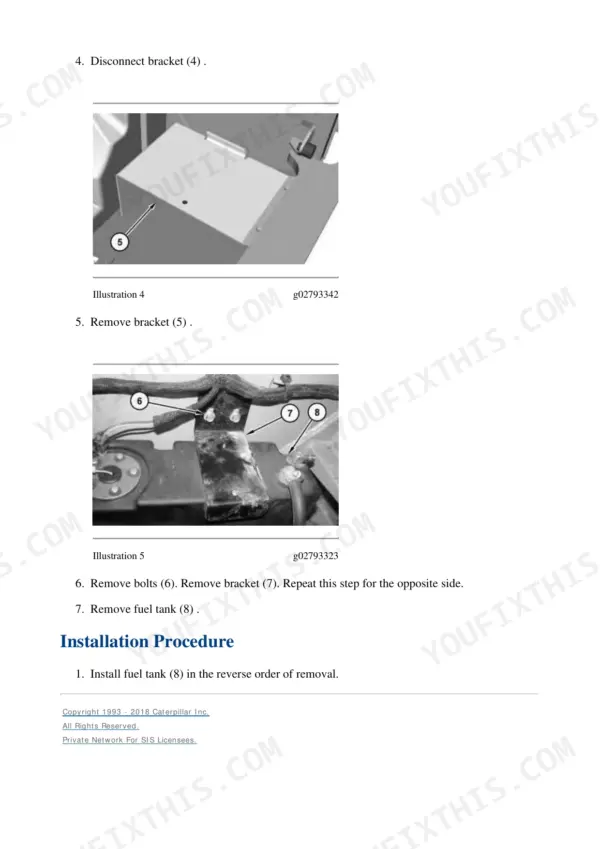

Both. The Air Inlet and Exhaust System section (pages 2 to 38) covers the turbocharger, the NOx Reduction System, and the Diesel Particulate Filter, including the exhaust temperature test and white-smoke troubleshooting. It even has hardware detail like the DPF mounting bolt torque of 49 to 55 N.m. The Fuel System section (pages 783 to 853) handles the common-rail side: injectors and trim files, fuel rail pressure and temperature, and the air-in-fuel test, which is worth running before you blame the aftertreatment for a rough runner. p. 36
Are the wiring and hydraulic schematics printed inside the manual?
They come as two separate PDFs inside the same ZIP download, not as pages in the main book. You get a hydraulic schematic document and an electrical schematic document (media UENR3966), both full colour fold-out sheets at 56 by 35 inches with component tables, pressure tap tables, and machine views. They cover the 272D / 272D XHP skid steers and 299D / 299D XHP track loaders, so trace the callouts for your serial prefix. Print shops can plot the sheets full size, or you zoom on a tablet in the shop. The main manual also carries its own schematics in the body: the hydrostatic circuit at page 1630 and per-circuit ECM schematics such as the 8 volt sensor supply at page 293.
