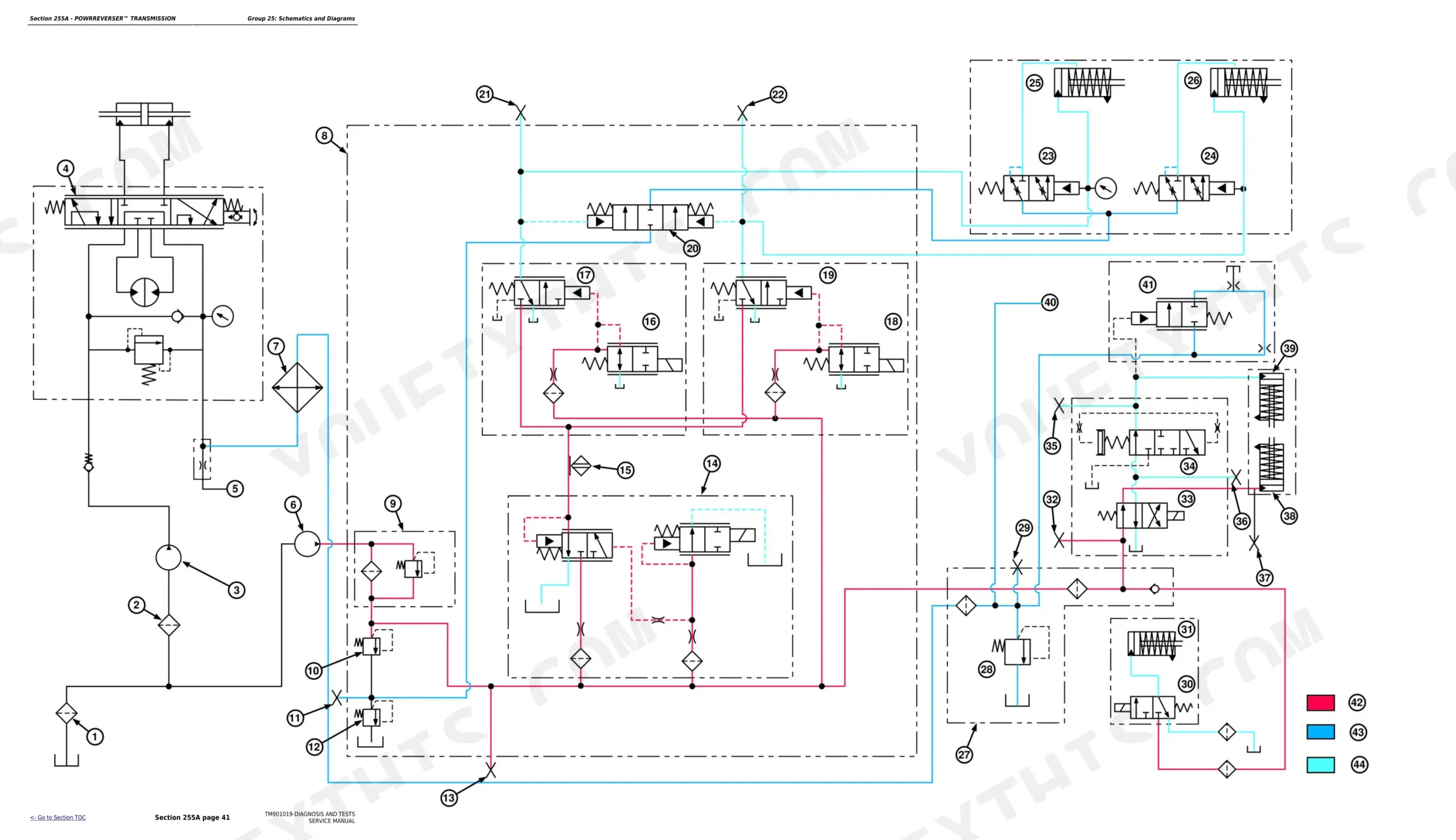

John Deere built this Diagnostic Technical Manual (OEM #TM901019) to cover three tractors at once: the 5055E, 5065E, and 5075E, across 1,178 factory pages. Wiring schematics span the cab and OOS harnesses for both PowrReverser and sync shuttle transmission variants, while the hydraulic schematics trace full fluid routing through the transmission and hitch systems. The Diagnostic Trouble Code section walks each CCU, ICC, and PTR fault through step-by-step procedures, backed by calibration address tables, connector pinouts, CAN communication theory, and control unit test routines for all three controllers. Before chasing any electrical fault, confirm battery state of charge at 1.265 specific gravity and 12.65 V. No more staring at a dashboard code with no path forward. Everything is bookmarked and keyword-searchable, so you can pull it up on a tablet and work through the fault tree.
What's Inside This John Deere 5055E, 5065E, 5075E Manual

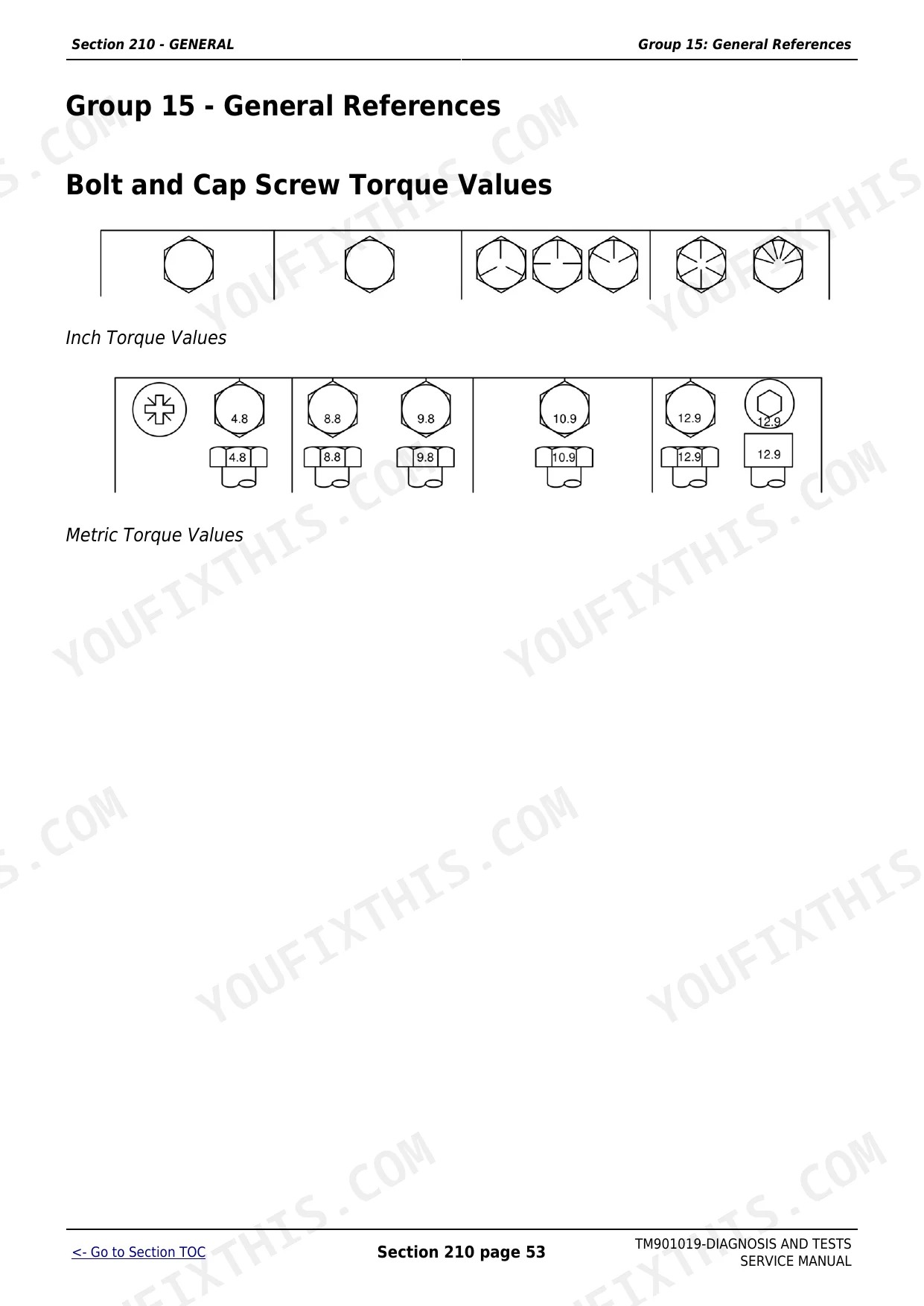

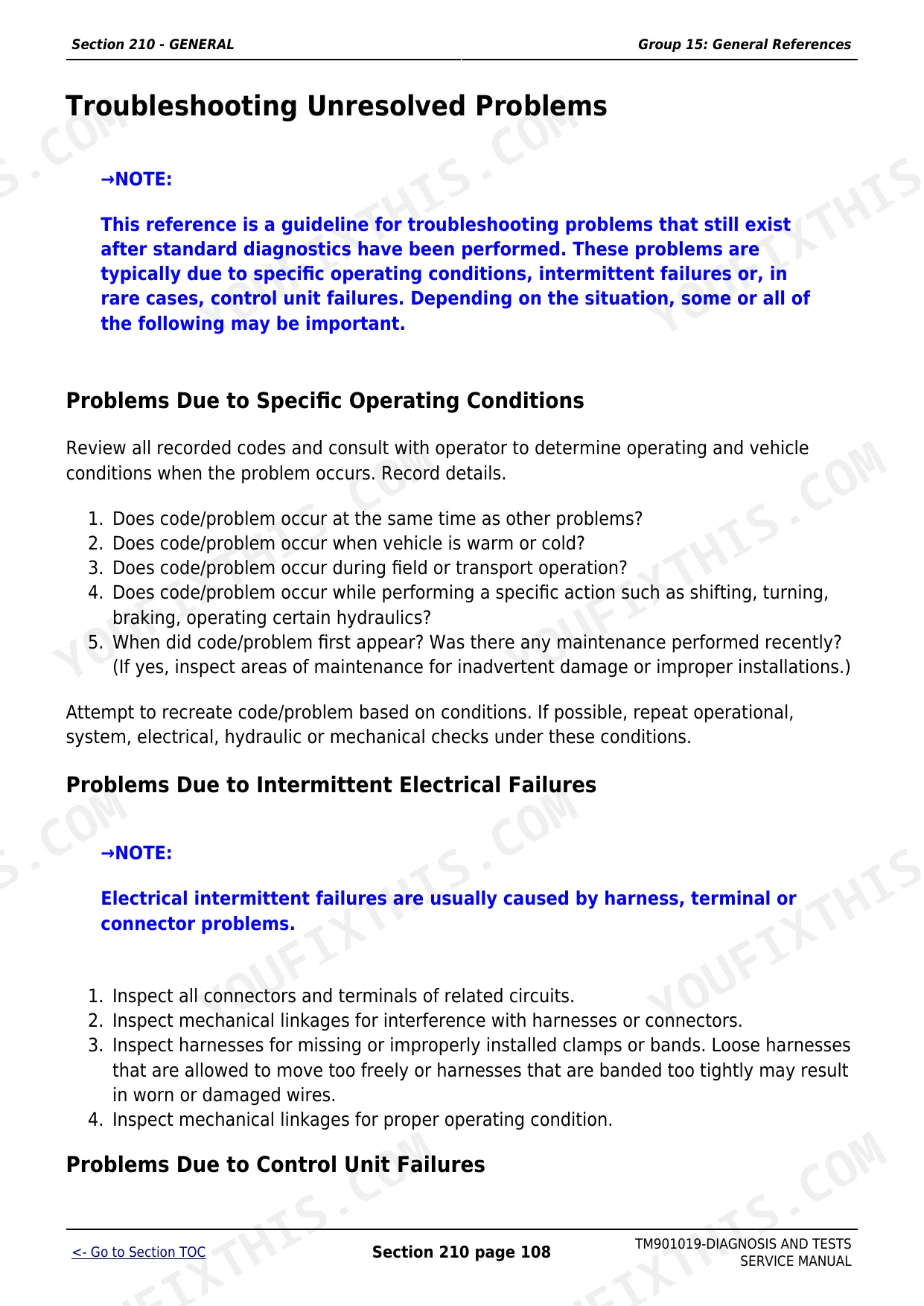

| System | Pages | Key Topics |
|---|---|---|
| General | 8-121 | Group 05 - Safety (Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Prepare for Emergencies, Wear Protective Clothing, Protect Against Noise, Handle Fluids Safely, Avoid Fires, Handle Starting Fluid Safely, Fire Prevention, Keep ROPS Installed Properly, Use Foldable ROPS and Seat Belt Properly, Stay Clear of Rotating Drivelines, Use Steps and Handholds Correctly, Read Operator Manuals for Isobus Implements, Use Seat Belt Properly, Operating the Tractor Safely, Avoid Backover Accidents, Limited Use in Forestry Operation, Operating the Loader Tractor Safely, Keep Riders Off Machine, Instructional Seat, Use Safety Lights and Devices, Use a Safety Chain, Transport Towed Equipment at Safe Speeds, Use Caution on Slopes and Uneven Terrain, Freeing a Mired Machine, Avoid Contact with Agricultural Chemicals, Handle Agricultural Chemicals Safely, Handling Batteries Safely, Avoid Heating Near Pressurized Fluid Lines, Remove Paint Before Welding or Heating, Handle Electronic Components and Brackets Safely, Practice Safe Maintenance, Avoid Hot Exhaust, Clean Exhaust Filter Safely, Work in Ventilated Area, Support Machine Properly, Prevent Machine Runaway, Park Machine Safely, Transport Tractor Safely, Service Cooling System Safely, Service Accumulator Systems Safely, Service Tires Safely, Service Front-Wheel Drive Tractor Safely, Tightening Wheel Retaining Bolts/Nuts, Avoid High-Pressure Fluids, Do Not Open High-Pressure Fuel System, Store Attachments Safely, Dispose of Waste Properly) |

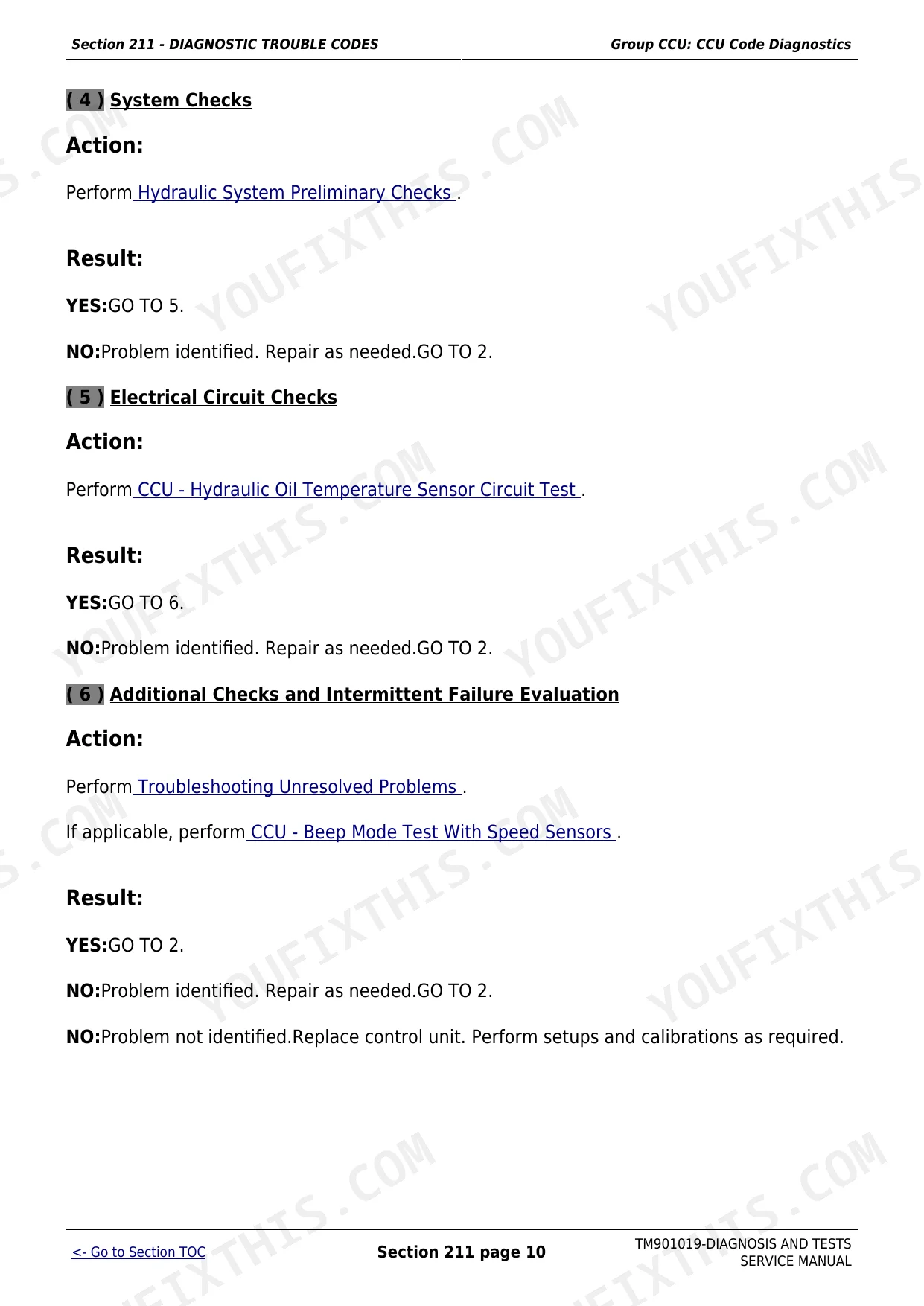

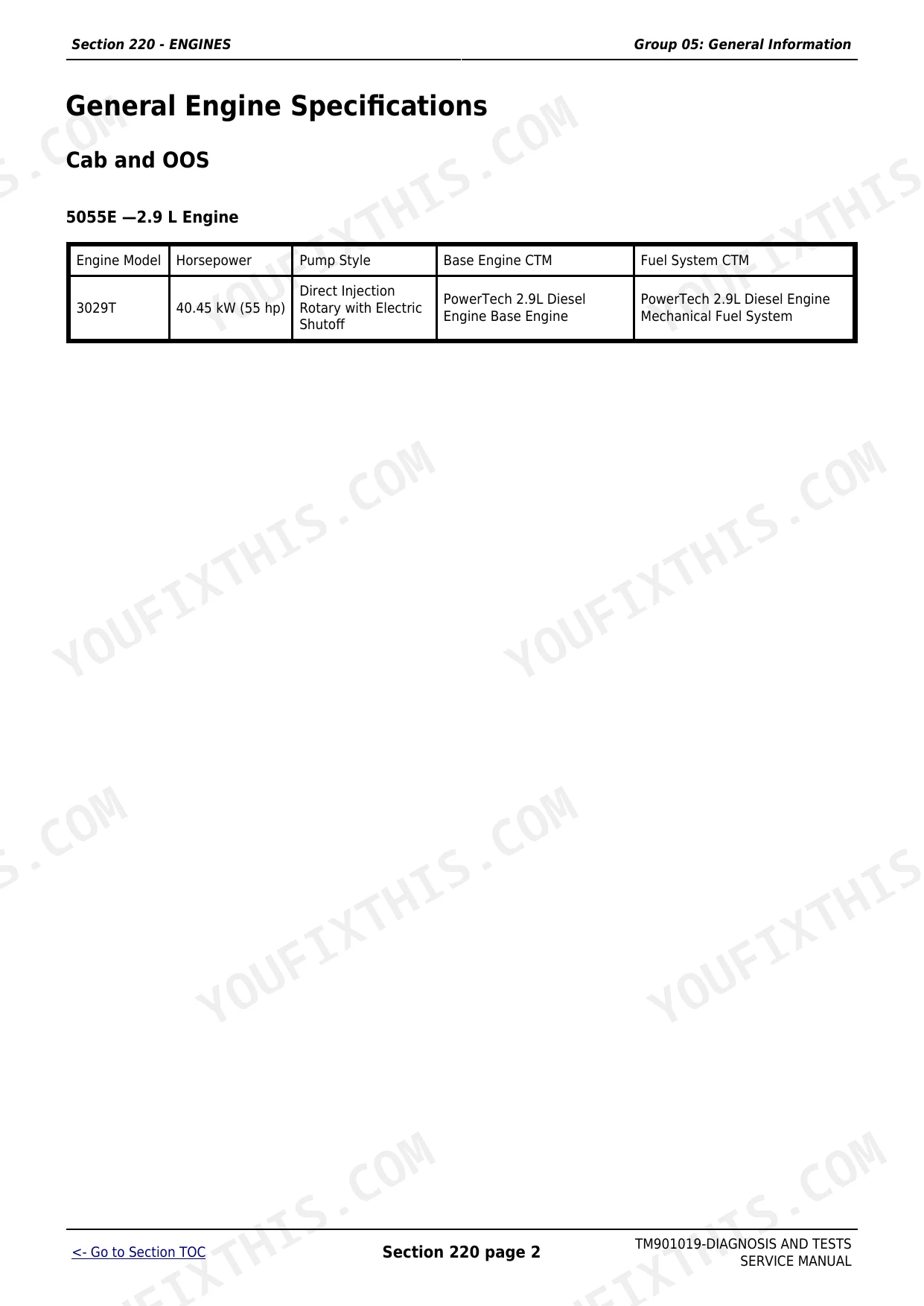

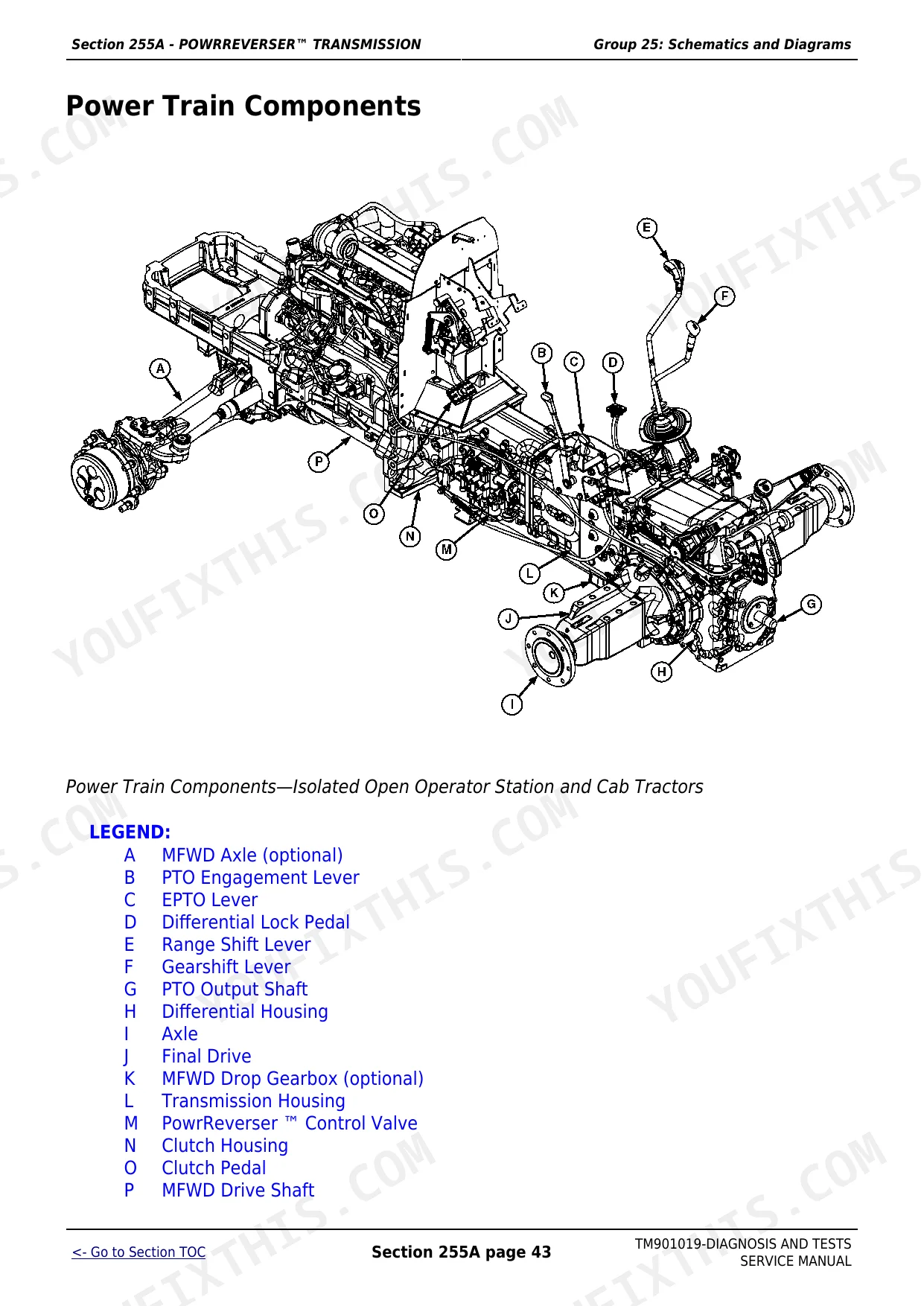

| Diagnostic Trouble Codes | 122-203 | Group Ccu - Ccu Code Diagnostics (Ccu - Non-Tractor Ccu Codes, Code Diagnosis) |
| Observable Symptoms | 204-218 | Group 20 - Engines (Engine Problems), Group 30 - Fuel and Air (Fuel and Air Problems), Group 40 - Electrical (12-Volt Electrical Problems, Connector Problems) |
| System Diagnosis | 219-252 | Group 40 - Starting, Charging and Start Aid (System Diagnosis), Group 55 - PowrReverser™ Transmission (Before You Start), Group 56A - Differential Lock (Before You Start) |
| Engines | 253-261 | Group 05 - General Information (John Deere Engine Repair, Use Component Technical Manual, List of All Tractor-Specific Engine Information) |
| Fuel and Air | 262-272 | Group 05 - General Information (John Deere Engine Fuel Systems Repair, Use Component Technical Manual) |
| Electrical System | 273-494 | Group 05 - Fuse/Relay Block (Fuse/Relay Block Diagram Listing, Access Fuses and Relays, Load Center - 1 Fuses and Relays-OOS, Load Center - 2 Fuses and Relays-OOS, Load Center Fuses and Relays, Cab, Center Console Relay and Diode, Light Module Relay, Cab) |
| Control Units | 495-856 | Group 05 - General References (Electro-Hydraulic Controller General Information, Performance Monitor General Operation, Diagnostic Trouble Code Listing, Ccu Code List, Icc Code List, Ptr Code List, Control Unit Addresses, Ccu Address List, Icc Address List, Ptr Address List, Reference, CAN Lo and CAN Hi Voltage Checks, CAN Communication System Theory of Operation) |
| Section 255A - Powrreverser™ Transmission | 857-904 | Group 05 - General Information (PowrReverser™ Transmission Identification, Reference), Group 10 - Preliminary and Operational Checks (Pr Transmission Preliminary Checks) |
| Section 255B - Tss Transmission | 905-918 | Group 15 - Tests and Adjustments (Checking and Adjusting Clutch Pedal Free Play), Group 20 - Theory of Operation (Tss Transmission Theory of Operation) |
| Drive Systems | 919-957 | Group 05 - General Information (Reference), Group 10 - Preliminary and Operational Checks (Reference, MFWD Operational Checks) |
| Steering and Brakes | 958-993 | Group 05 - General Information (Reference), Group 10 - Preliminary and Operational Checks (Reference, Rear Brakes Preliminary Check) |
| Hydraulics | 994-1089 | Group 05 - General Information (Reference, Warming Transmission/Hydraulic System Oil), Group 10 - Preliminary and Operational Checks (Reference) |
| Operator′S Station | 1090-1157 | Group 05 - General Information (Reference), Group 10 - Preliminary and Operational Checks (Reference) |
| Service Tools | 1158-1178 | Group 05 - Dealer-Fabricated Tools (DFRW26, Test Lead for Automotive-Style Fuses, DFRW51, Electronic Circuit Load Tester, DFRW126, Modified Tap Out Harness, DFRW133, Tap Out Harness) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Air Filter Restriction Switch Closure Vacuum | 4.98–7.48 kPa (20–30 in. H₂O) | p. 331 |
| Hydraulic Filter Bypass Valve Pressure Differential | more than 35 kPa (0.4 bar) (5 psi) | p. 1044 |
| Battery Voltage (100% charged) | 12.65 V | p. 292 |
| Battery Specific Gravity (100% charged) | 1.265 | p. 292 |
| Alternator Output Amperage | Minimum 10 amps at 2400 rpm | p. 300 |
| Alternator Regulated Voltage | 14.2–14.8 VDC at 2400 rpm | p. 300 |
| Fuse Rating (Orange) | 5 Amp | p. 274 |
| Fuse Rating (Red) | 10 Amp | p. 274 |
| 5055E | ||
| Engine Horsepower | 40.45 kW (55 hp) | p. 254 |
| 5065E | ||
| Engine Horsepower | 47.81 kW (65 hp) | p. 255 |
| 5075E | ||
| Engine Horsepower | 55.16 kW (75 hp) | p. 256 |
John Deere 5055E, 5065E, 5075E Common Problems This Manual Covers
John Deere 5055E/5065E/5075E cranks but won't start after sitting, fuel system suspected p. 219
Check battery voltage before anything else: a fully charged battery reads 12.65 V, while 12.06 V or below means 25% charge or less (page 292). Charge at 15 to 25 amps rather than condemning the starter. Look at the fuel filter for restriction and bleed trapped air from the lines. The starting system diagnosis on page 219 isolates whether the fault is electrical or fuel-related.
Manual Section: Section 213 - System DiagnosisEngine loses power or surges under load during field operations, throttle unresponsive p. 204
Inspect the air filter first. The restriction switch activates at 4.98 to 7.48 kPa (20 to 30 in. H2O) vacuum (page 331), and a plugged element kills power before the warning light fires. Replace the fuel filter if past service interval. If symptoms persist, follow the engine problem diagnosis on page 204 to trace fuel delivery or injector faults.
Manual Section: Section 212 - Observable SymptomsLoader or rear hitch operates slowly, weak pressure, or stops responding to controls p. 994
Confirm hydraulic oil level and look for milky discoloration. Swap the hydraulic filter per the maintenance schedule (page 1044). Check all hoses for cracks or internal collapse at least once a year (page 54). If flow stays sluggish after fresh fluid and filter, run the pump flow and relief valve tests in the hydraulics diagnosis on page 994.
Manual Section: Section 270 - HYDRAULICSBattery dies overnight or instrument gauges go dark, charging warning light illuminated p. 219
Start at the alternator, since the charging light points there: at 2400 rpm, output should read 14.2 to 14.8 VDC (page 300). Then rule out the battery itself, where 12.65 V is a full charge and 12.06 V or below sits at 25% (page 292). A reading outside the alternator range sends you into the charging system diagnosis on page 219.
Manual Section: Section 213 - System DiagnosisTractor won't move in forward or reverse after direction change, PowrReverser feels sluggish p. 857
Verify clutch pedal free play sits at 21 to 25 mm (0.830 to 0.984 in.) before assuming internal damage (page 893). Gauge transmission oil level and condition. Work the PowrReverser preliminary checks on page 857; if main relief valve pressure drops below 2000 kPa (290 psi), suspect pump wear or a stuck control valve (page 887).
Manual Section: Section 255A - Powrreverser™ TransmissionFrequently Asked Questions
How do I adjust clutch free play on a John Deere 5055E/5065E/5075E?
Loosen the jam nuts (C) first, then turn the turnbuckle (B). Counterclockwise increases free play; clockwise decreases it. Aim for a free play distance of 21–25 mm (0.830–0.984 in.). Once it measures correctly, tighten the jam nuts (C) back down.
How do I diagnose weak takeoff or clutch slippage on a John Deere 5E tractor?
Several faults cause weak takeoff or clutch slippage: a faulty PTO solenoid valve circuit, a stuck PTO solenoid valve, or a stuck or blocked PTO clutch piston or brake piston. When you suspect a problem, run the PTO Clutch Leak Test. PTO clutch pressure should read zero when disengaged and 2000 ± 100 kPa (20 ± 1 bar) (290 ± 14.5 psi) when engaged.
What is the cold start sensor issue on a John Deere 5055E?
Mounted in the water manifold/thermostat housing, the cold start advance switch stays normally closed at coolant temperatures below 60°C (140°F), feeding current to energize the cold start solenoid. Once coolant temperature climbs above 60°C (140°F), the switch opens, cuts current to the solenoid, and timing returns to normal operating levels.
How to reset John Deere 5055E error code
Two routes reset error codes: Service ADVISOR or the performance monitor. With Service ADVISOR, recall, record, and clear codes through the Diagnostics tab. On the performance monitor, press and hold the Roll Mode Switch for 5 seconds, move to diagnostic address 001, then press the set/save button when 'CLR?' appears to clear the codes.
What do I get after purchasing this John Deere 5055E, 5065E, 5075E manual?
You receive a 1178-page searchable PDF, ready to download right after checkout. It runs on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this John Deere 5055E, 5065E, 5075E manual cover the hydraulic system?
Yes. The manual includes complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications.
Document Quality
This document is a high-quality digital PDF with fully searchable and selectable text, indicating a robust OCR layer or native digital creation. The text throughout is crisp and easy to read, ensuring clarity for all instructions and information. Diagrams and illustrations, while appearing to be raster images, are generally clear and their labels are readable without significant pixelation at standard viewing levels. All pages are clean, free from scan artifacts, stains, or skewed content, providing a professional and consistent presentation. There are no notable blank or filler pages, so you get continuous content.
