This 334-page Scotts Technical Manual (OEM #TM1949) covers the L1642, L17.542, L2048, and L2548 lawn tractors, engines and all, from Briggs & Stratton to Kohler powerplants. Inside you get complete wiring diagrams with harness legends, a full troubleshooting chart section for chasing electrical gremlins, and torque tables covering everything from blade bolts to steering hardware. Every major system gets its own teardown: gear and hydrostatic power trains, steering, brakes, attachments, and deck removal, all with component locations and step-by-step procedures. Torque the blade cap screw to 62 N-m (46 lb-ft), and confirm your battery's 160 CCA rating before you chase a no-start as an electrical fault. No more swapping PTO switches on a hunch when the real fault is upstream. Bookmarked by system, so you jump straight to Electrical or Brakes without scrolling past three tractors you don't own. Download it, open it on your phone in the shop, and get your L2048 running right.
What's Inside This Scotts L1642, L17.542, L2048, L2548 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | General Diagnostic Information, Specifications, Electrical Wiring Harness Legend, Component Location, System Schematic, Troubleshooting Chart |
| Safety | 5-8 | Recognize Safety Information, Handle Fluids Safely, Prevent Battery Explosions, Service Machines Safely, Park Machine Safely |

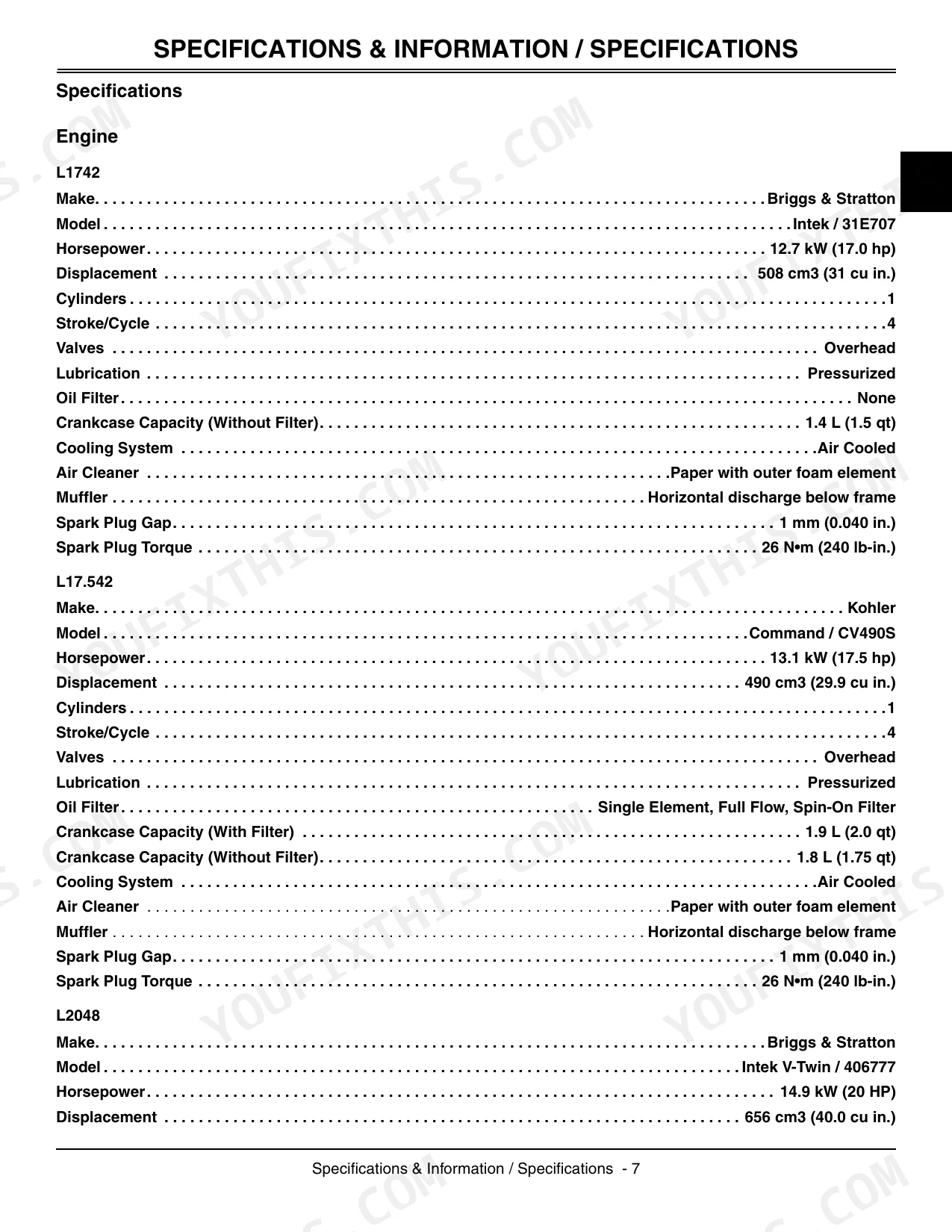

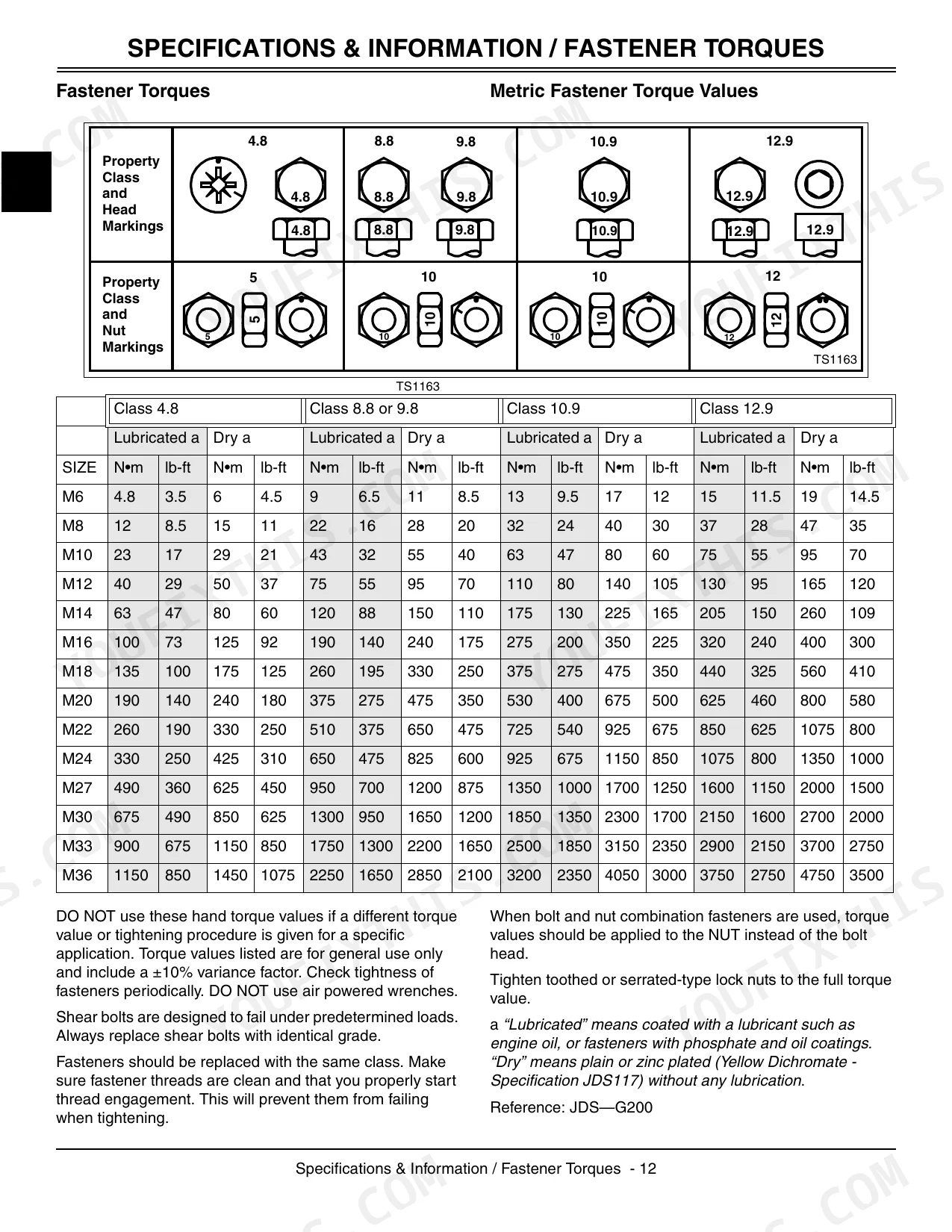

| Specifications & Information | 9-22 | Engine, Fuel System, Electrical, Transaxle, PTO Drive, Steering, Implement Lift and Tire Specifications, Fastener Torque Values, Serial Number Locations |

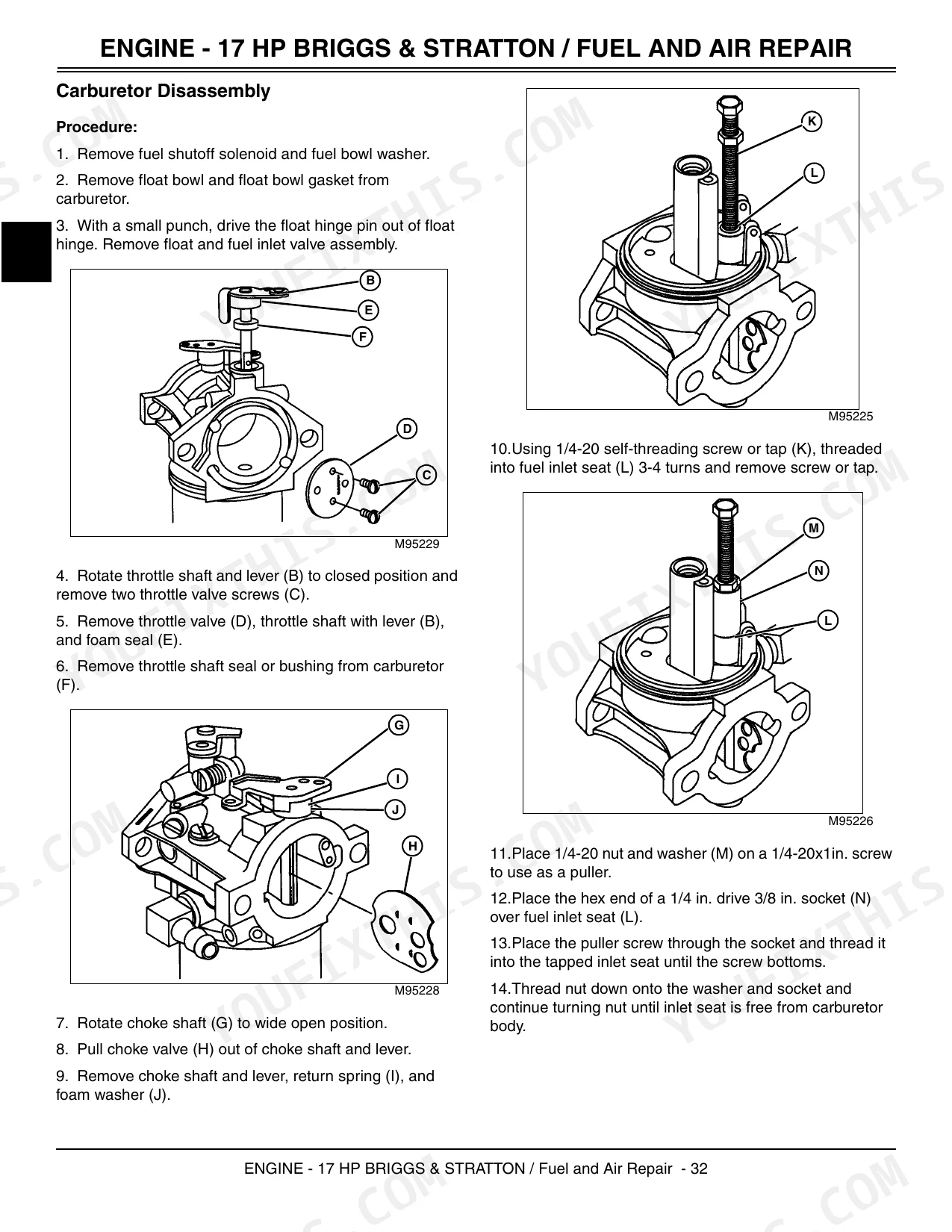

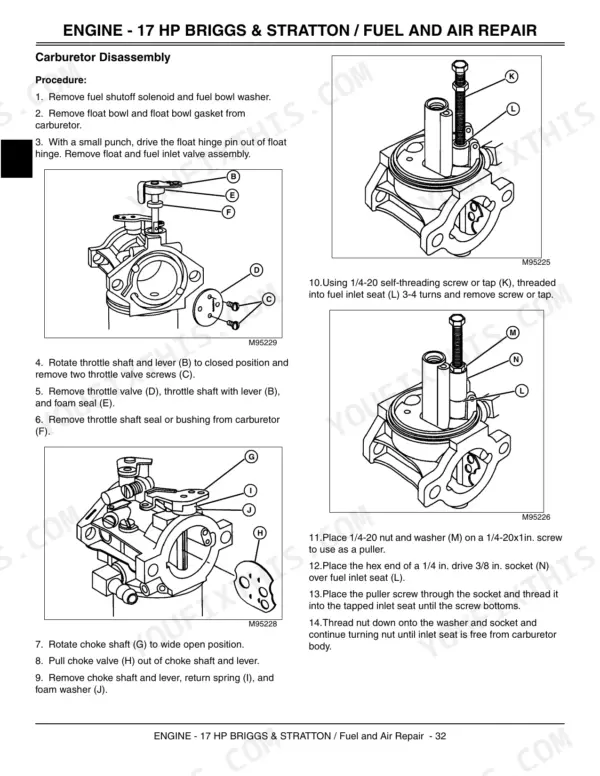

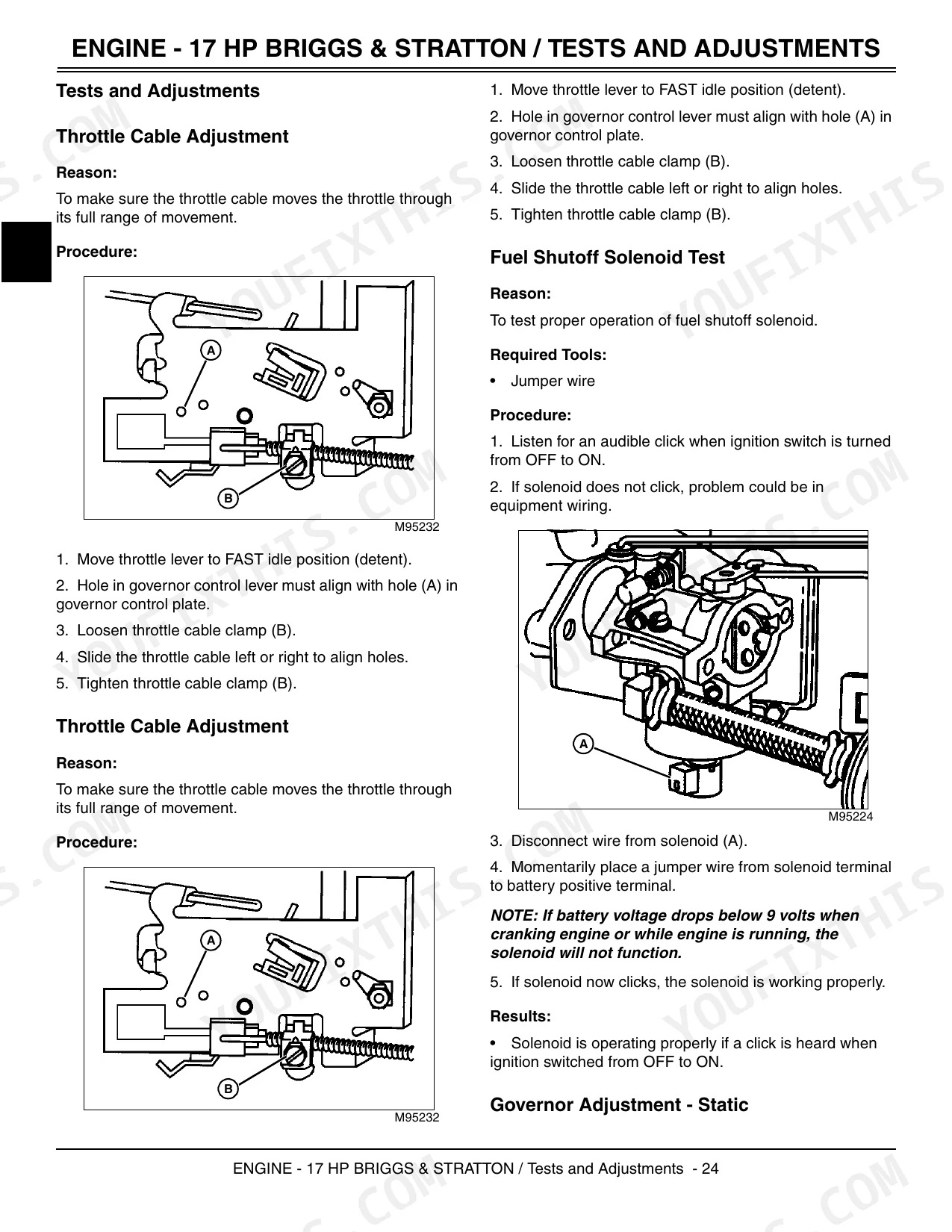

| Engine - 17 Hp Briggs & Stratton | 23-62 | Specifications, Tests and Adjustments, Fuel and Air Repair, Engine Repair, Piston, Rings and Rod, Starting Motor Disassembly |
| Engine - 20 & 25 Hp Briggs & Stratton | 63-110 | Engine Specifications, Tests and Adjustments, Repair, Carburetor Disassembly and Assembly, Piston, Rings and Rod Removal and Installation, Crankshaft Removal and Installation |
| Engine - 17.5 Hp Kohler | 111-160 | Specifications, Tests and Adjustments, Fuel and |

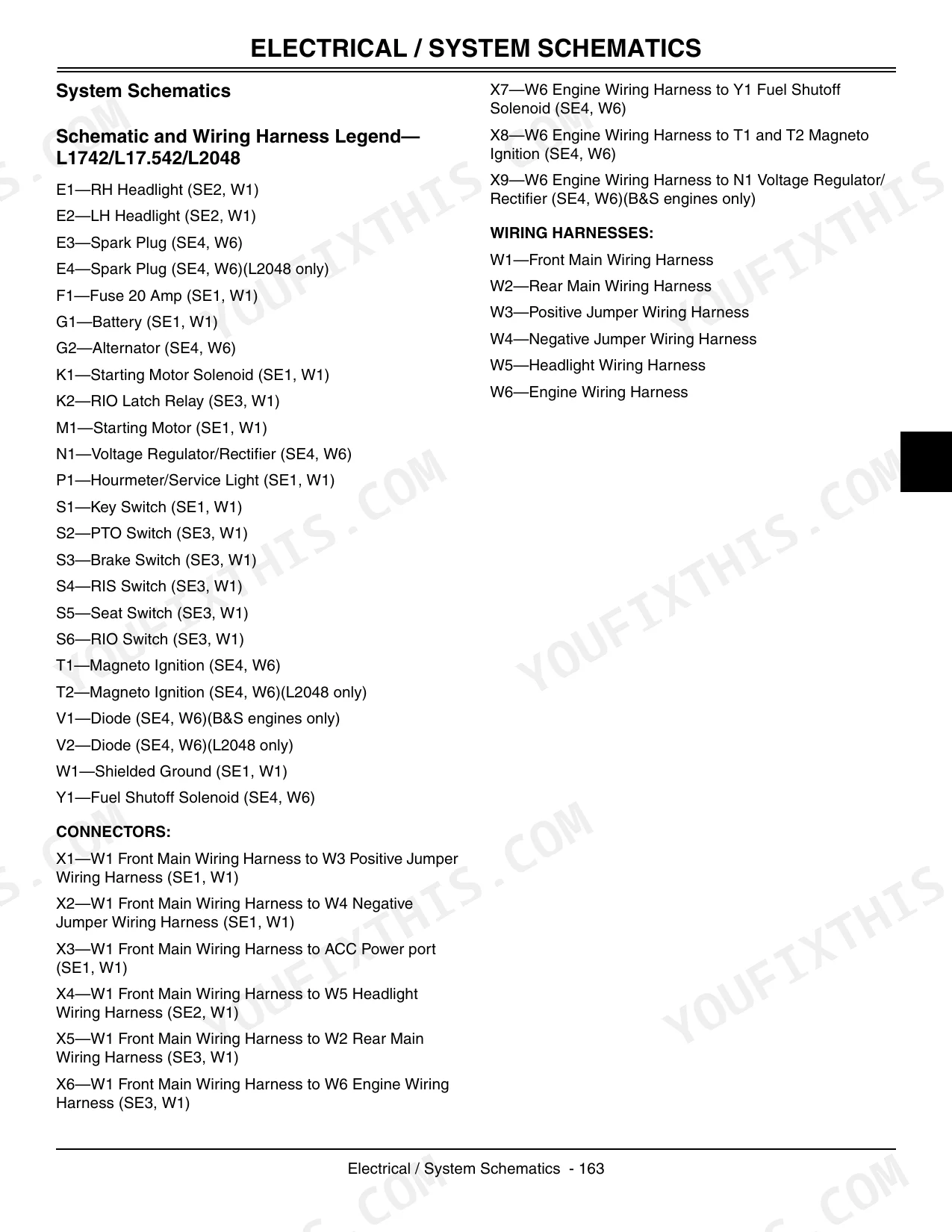

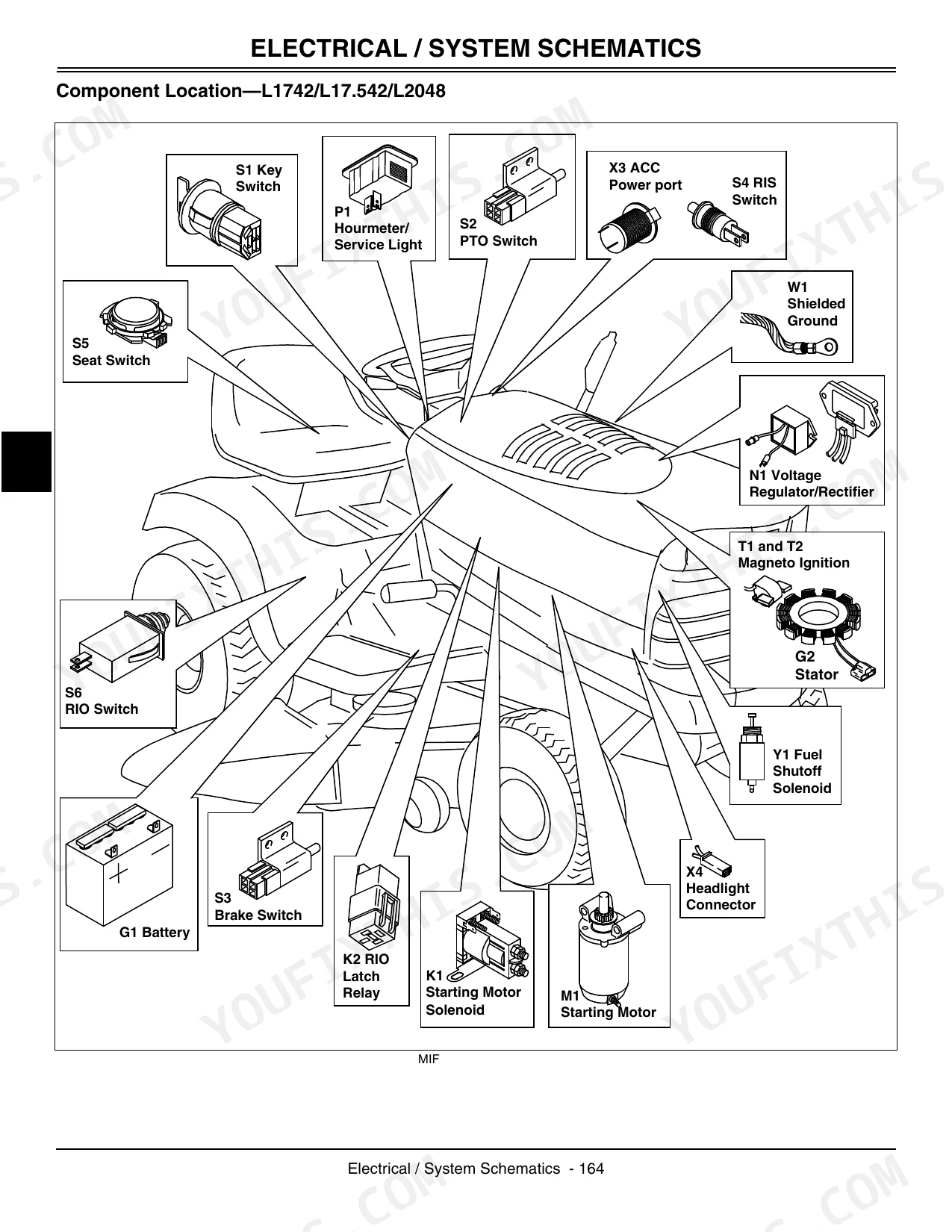

| Electrical | 161-236 | Reading Electrical Schematics, Wire Color Abbreviation Chart, Component Location (Fuel Shutoff Solenoid, Voltage Regulator/Rectifier), Power Circuit Operation, Schematics and Diagnosis, Charging and Starting Circuits, Safety Switch Tests |
| Power Train - Gear | 237-256 | General and Torque Specifications, Drive Component Location, Forward and Reverse Drive Linkage, Clutch Pedal and Belt Traction Drive Operation, Diagnostics, Tests and Adjustments, Repair |
| Power Train - Hydrostatic | 257-274 | Repair and Torque Specifications, Transaxle and Drive Component Location, Forward/Reverse Pedals and Linkage, Hydrostatic Power Train Operation, Diagnostics, Tests and Adjustments, Repair |
| Steering | 275-284 | General Specifications, Torque Specifications, Component Location, Steering Shaft and Pedestal Removal and Installation, Steering Sector Gear Removal and Installation |
| Brakes | 285-298 | General Specifications, Torque Specifications, Component Location, Brake Adjustment – Gear, Brake Adjustment – Hydro, Brake Linkage Removal and Installation – Gear |
| Attachments | 299-320 | Repair Specifications, Component Location, Diagnostics, Tests and Adjustments, Blade Brake Removal and Installation – 42-Inch, Mower Deck Removal and Installation |
| Miscellaneous | 321-328 | Repair Specifications, Tire Pressure Adjustment, Front Wheel Removal and Installation, Rear Wheel Removal and Installation, Hood Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Tank Capacity | 7.9 L (2.1 gal) | p. 12 |
| Battery Voltage | 12 VDC | p. 13 |
| Rear Tire Pressure | 69 kPa (10 psi) | p. 14 |
| Mower Blade Cap Screw Torque | 62 N•m (46 lb-ft) | p. 14 |
| 17 hp Briggs & Stratton | ||
| Engine Oil Capacity (without filter) | 1.4 L (1.5 qt) | p. 11 |
| L17.542 | ||
| Engine Oil Capacity (with filter) | 1.9 L (2.0 qt) | p. 11 |
| L1642, L17.542 | ||
| 42-Inch Mower Deck Cutting Width | 106.7 cm (42 in.) | p. 14 |
| L2048, L2548 | ||
| 48-Inch Mower Deck Cutting Width | 121.9 cm (48 in.) | p. 15 |
Scotts L1642, L17.542, L2048, L2548 Common Problems This Manual Covers
Scotts lawn tractor engine won't crank, no click from starter solenoid when key turns

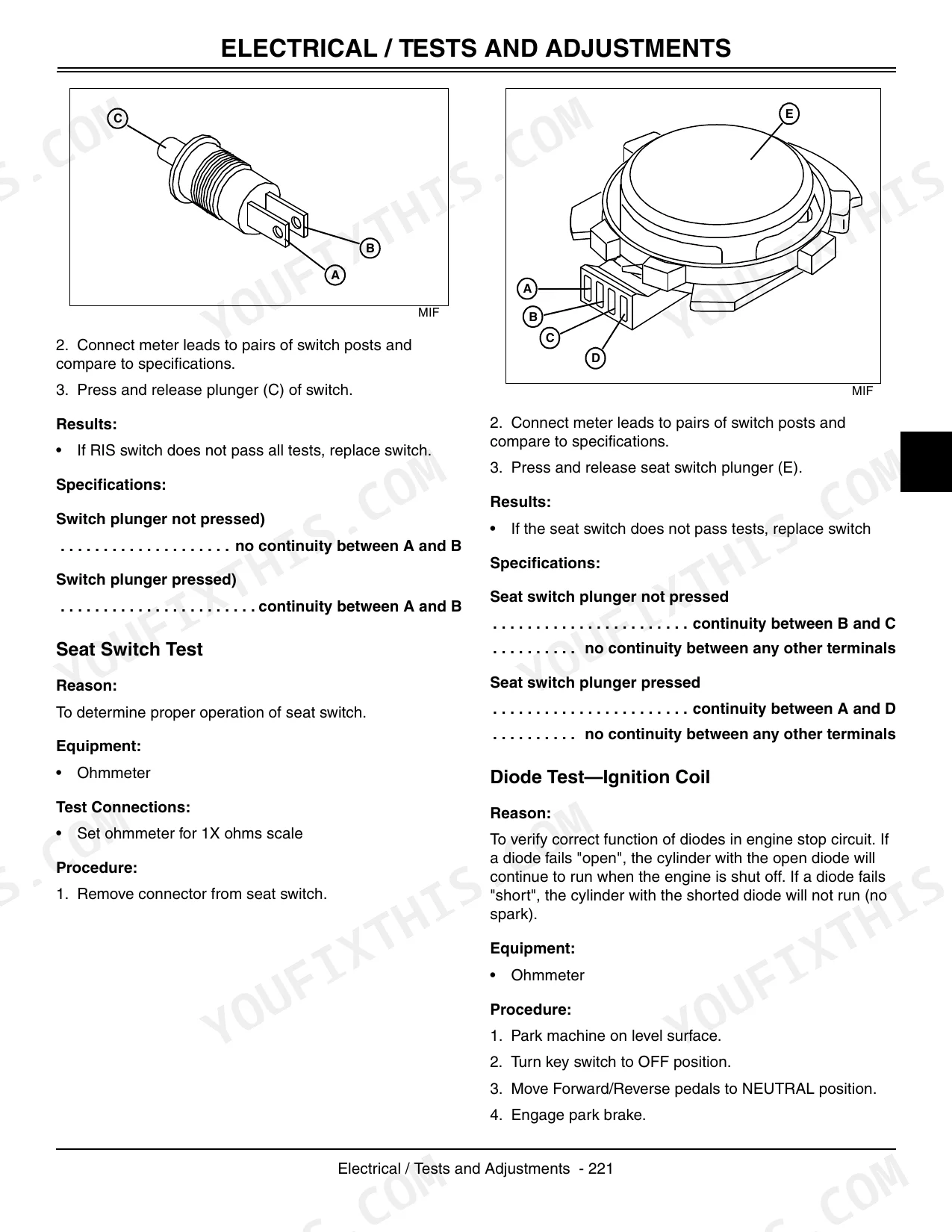

Check the safety interlock circuit before condemning the solenoid. Verify the seat switch, PTO switch, and brake/clutch switch each show continuity when engaged, per the electrical diagnostics. Confirm battery voltage holds at 12 VDC (page 13) under load; a weak battery mimics a bad interlock and wastes hours.
Manual Section: Electrical: Diagnostics and OperationEngine stalls the instant the brake pedal is released during mowing
Test the brake/clutch safety switch for intermittent dropout while working the pedal through its full travel. Reference the power and cranking circuit diagnostics to trace the interlock path. Confirm battery voltage stays above 12 VDC (page 13) during the fault; sagging voltage under load can mimic a bad switch.
Manual Section: Electrical: Diagnostics and OperationBattery drains and engine stalls whenever electrical accessories or the PTO clutch engage
Check the charging circuit first. Load test the battery to the 255 amp for 15 seconds minimum spec (page 13) and confirm resting voltage per the battery voltage check on page 211. A defective alternator or stator, or a loose ground cable, lets voltage sag under PTO clutch load; inspect harness connections for corrosion before replacing the stator.
Manual Section: Electrical: Diagnostics and Operation p. 211Engine and mower blades keep running after the operator leaves the seat
Treat this as a safety-critical interlock failure, not a nuisance. Check the seat switch and PTO clutch circuit per the electrical diagnostics, then replace the PTO switch per the procedure on page 214 if it fails continuity testing. Verify battery voltage holds at 12 VDC (page 13) so a weak supply isn't masking the fault.
Manual Section: Electrical: Diagnostics and Operation p. 214Rough idle and fuel leakage from a carburetor clogged with old gas varnish
Pull the carburetor and clean the jets and idle circuit; old fuel varnish is the usual culprit on machines that sat over winter. Inspect gaskets and seals for vacuum leaks while it's apart. While you're in there, gap the spark plug to 0.76 mm (0.030 in.) (page 25) since a fouled plug often gets blamed for carburetor symptoms.
Manual Section: Engine - 17 Hp Briggs & Stratton p. 25Frequently Asked Questions
What are the torque specifications for the mower deck bolts on Scotts L2048?
For the Scotts L2048, the blade cap screws should be tightened to 62 N•m (46 lb-ft), gage wheels to deck to 34 N•m (25 lb-ft) for a 42-inch deck or 30 N•m (22 lb-ft) for a 48-inch deck, and spindle mounting screws to 27 N•m (20 lb-ft). Additionally, leveling bracket nuts should be tightened to 55 N•m (40 lb-ft). p. 14
What are the torque specifications for the blade bolt on a Scotts L17.542 lawn tractor?
The blade cap screw on a Scotts L17.542 lawn tractor should be tightened to 62 N•m (46 lb-ft). This specification applies to both 42-inch and 48-inch mower decks. p. 14
How do I adjust the mower deck height on a Scotts L2048?
To adjust the mower deck height, first ensure the machine is on a level surface with the engine off and tires inflated to 97 kPa (14 psi) front and 69 kPa (10 psi) rear. Move the mower lift handle to the desired cutting height. For front-to-rear adjustment, the front blade tip must be 3 – 6 mm (0.12 – 0.24 in.) lower than the rear blade tip, which is adjusted by turning the front adjusting nut. p. 297
What is the engine oil capacity for the Scotts L1742 lawn tractor?
The crankcase capacity for the Scotts L1742 lawn tractor, without the oil filter, is 1.4 L (1.5 qt). p. 11
What is the recommended spark plug gap for the Scotts L17.542 lawn tractor?
For the Scotts L17.542 lawn tractor, which is equipped with a Kohler engine, the recommended spark plug gap is 0.76 mm (0.030 in.). p. 113
How quickly can I access this Scotts L17–L2548 Series manual after buying?
Instant PDF download. You get the full 334-page searchable Technical Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Scotts L17–L2548 Series Technical Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
