Part of the John Deere Repair Manuals.
Need factory answers for your John Deere 14.542GS, 1642HS, or 17.542HS? This 259-page lawn tractor technical manual PDF covers all three machines, from the 14.5 and 16 Hp Briggs & Stratton engines to the 17.5 Hp Kohler. Inside: complete electrical schematics walking you through power, cranking, ignition, and charging circuit operation, plus full diagnostics and repair coverage for both the gear and hydrostatic power trains. You also get exploded views, troubleshooting charts, and step-by-step procedures for steering, brakes, and attachments. Gap the Briggs plugs at 1 mm (0.040 in.), then pull the blade cap screw down to 62 N-m (46 lb-ft) before the deck goes back on. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a full text layer: jump to any section, hunt down any spec by keyword, right on the phone in your shop.
What's Inside This John Deere 14.542GS, 1642HS, 17.542HS Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2-3 | - |
| Safety | 4-7 | - |
| Specifications & Information | 8-21 | Repair Specifications |
| Engine - 14.5 & 16 Hp Briggs & Stratton | 22-61 | Starting Motor Assembly, Starting Motor Pinion Gear Replacement, Fuel and Air Repair, Engine Repair, Tests and Adjustments |
| Engine - 17.5 Hp Kohler | 62-111 | Crankshaft, Starting Motor, Fuel and Air Repair, Engine Repair, Tests and Adjustments |

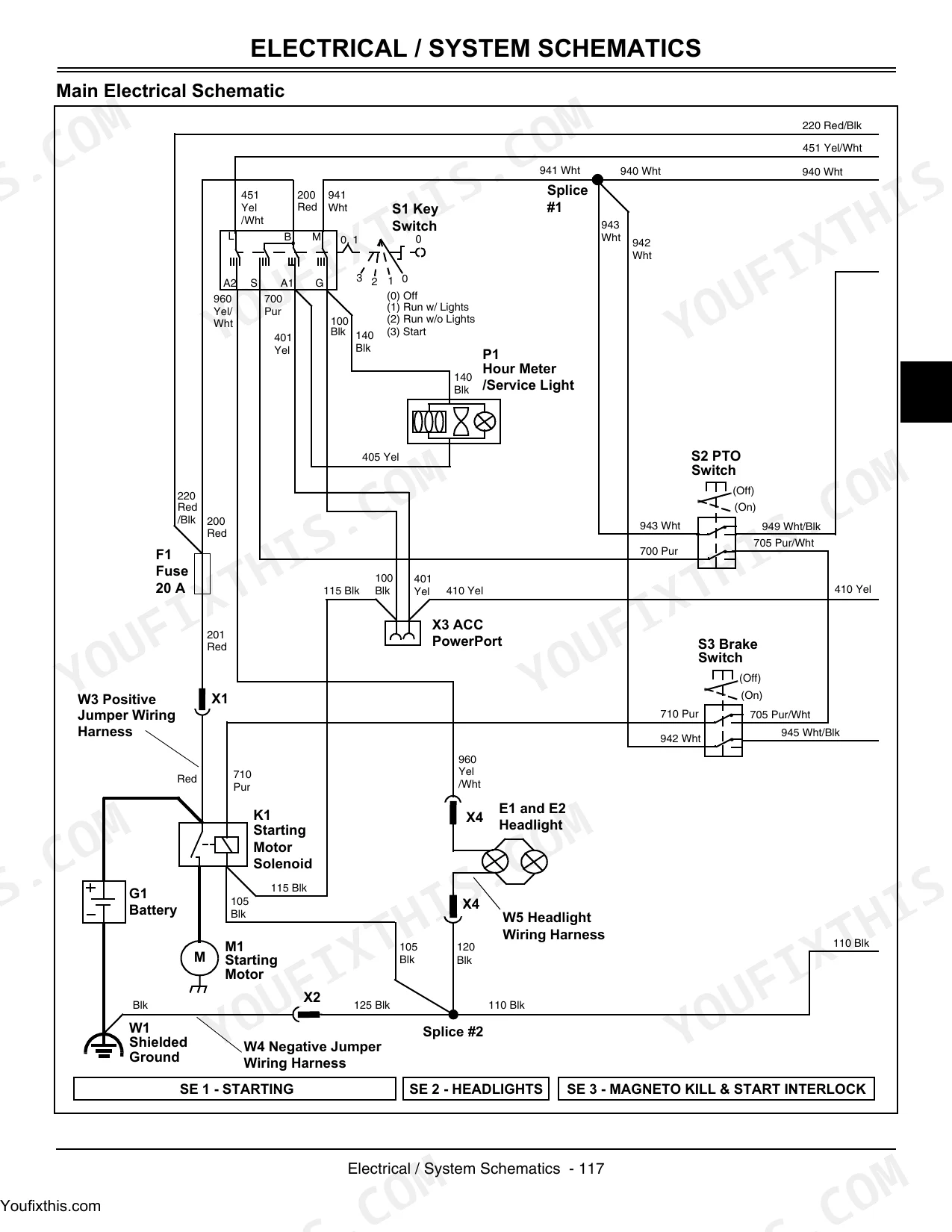

| Electrical | 112-165 | System Schematics, Power Circuit Operation, Cranking Circuit Operation, Ignition and Shutoff Circuit Operation, Charging Circuit Operation |

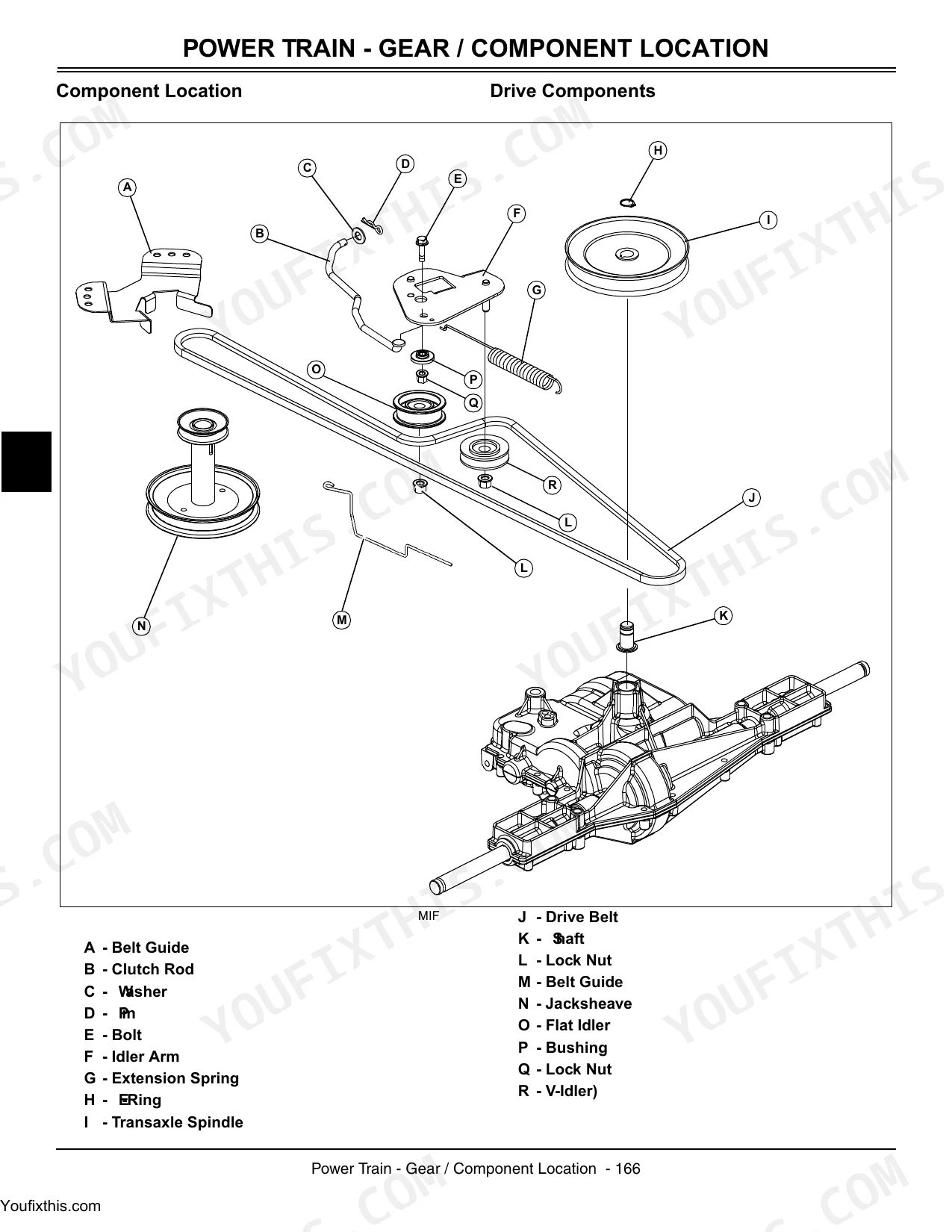

| Power Train - Gear | 166-185 | Troubleshooting, Theory of Operation, Diagnostics, Component Location, Repair |
| Power Train - Hydrostatic | 186-203 | Theory of Operation, Diagnostics, Component Location, Repair, Tests and Adjustments |
| Steering | 204-213 | Steering Shaft and Pedestal Removal and Installation, Steering Sector Gear Removal and Installation, Front Axle Removal and Installation, Component Location |
| Brakes | 214-227 | Park Brake Lever and Linkage, Component Location, Repair, Tests and Adjustments |
| Attachments | 228-245 | Diagnostics, Component Location, Repair, Tests and Adjustments |
| Miscellaneous | 246-253 | Front Wheel Removal and Installation, Rear Wheel Removal and Installation, Hood Removal and Installation, Repair, Tests and Adjustments |
Every system also includes specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Warm battery | 16°C (60°F) | p. 4 |
| Spark Plug Gap | 1 mm (0.040 in.) | p. 10 |
| Spark Plug Torque | 26 N•m (240 lb-in.) | p. 10 |
| Blade cap screw | 62 N•m (46 lb-ft) | p. 13 |
| cap screws | 62 N•m (46 lb-ft) | p. 15 |
| Fuel Tank Capacity | 7.9 L (2.1 gal) | p. 11 |
| Battery Voltage | 12 VDC | p. 117 |
| Transaxle Capacity (Gear) | 0.64 kg (1.406 lbs) | p. 12 |
| Front Tire Pressure | 97 kPa (14 psi) | p. 12 |
| Mower Deck Blade Cap Screw Torque | 62 N•m (46 lb-ft) | p. 13 |
John Deere 14.542GS, 1642HS, 17.542HS Common Problems This Manual Covers
John Deere 14.542GS will not move forward when traction engaged, drive belt looks loose

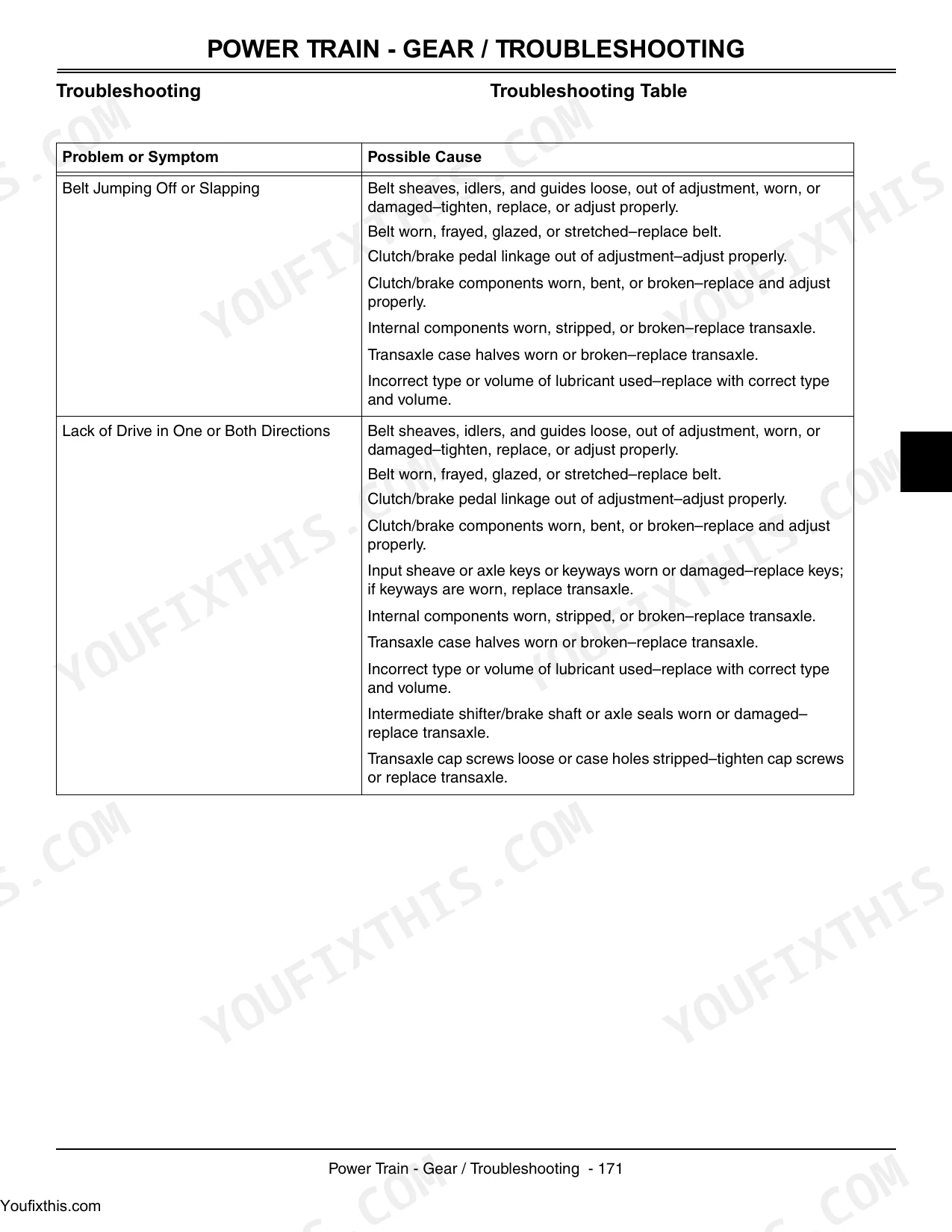

Check the shift lever first; N position means no drive no matter the engine speed. Inspect the traction drive belt for glazing, cracks, or a jumped pulley, then work through the troubleshooting table starting on page 174. If the transaxle has shifted on the frame, retorque the front mounting cap screws to 34 N•m (25 lb-ft).
Manual Section: Power Train - Gear p. 174Engine cranks but will not start, or runs rough and misfires under load
Drain stale fuel and refill with fresh gasoline. Remove the spark plug and inspect for fouling; gap a new plug to 0.76 mm (0.030 in.) and torque it to 26 N•m (240 lb-in.) per the electrical specs on page 117. Verify the plug wire snaps on firmly and check the air filter for clogging.
Manual Section: Electrical p. 117Mower deck vibrates badly at PTO engagement, cut looks uneven and striped
Torque the blade cap screws to 62 N•m (46 lb-ft) as listed on page 13; loose bolts are the usual vibration source on these decks. Check both blades for bends and matched sharpening, then spin each spindle by hand to feel for bearing roughness. Inspect the deck belt for chunking using the attachments diagnostics starting on page 228.
Manual Section: Attachments p. 13Hydrostatic drive loses power on slopes with jerky engagement and transaxle whine
Verify the drive belt rides fully in its sheaves and the idler tensioning spring is intact and seated. Clean debris off the fan and hydro housing exterior; trapped heat kills these transaxles. On hydrostatic models, retorque loose transaxle mounting cap screws to 40 N•m (30 lb-ft), the spec on page 188.
Manual Section: Power Train - Hydrostatic p. 186Engine overheats and loses power partway through mowing wet or tall grass
Shut down and let the engine cool. Clean packed clippings out of the cooling fins and blower housing with compressed air. Drain stale fuel and refill with fresh gasoline. On the 17.5 hp Kohler only, confirm oil pressure holds at least 124 kPa (18 psi) at 1250 rpm, checked per page 64. Slow your ground speed in heavy grass.
Manual Section: Engine - 17.5 Hp Kohler p. 64Frequently Asked Questions
What are the recommended service intervals?
For the 42-Inch mower deck, the spindle brake measurement should be checked every 25 hours or once a year, whichever comes first. General service and lubricant change intervals are referred to the operator's manual. p. 238
What fluids and capacities does this machine require?

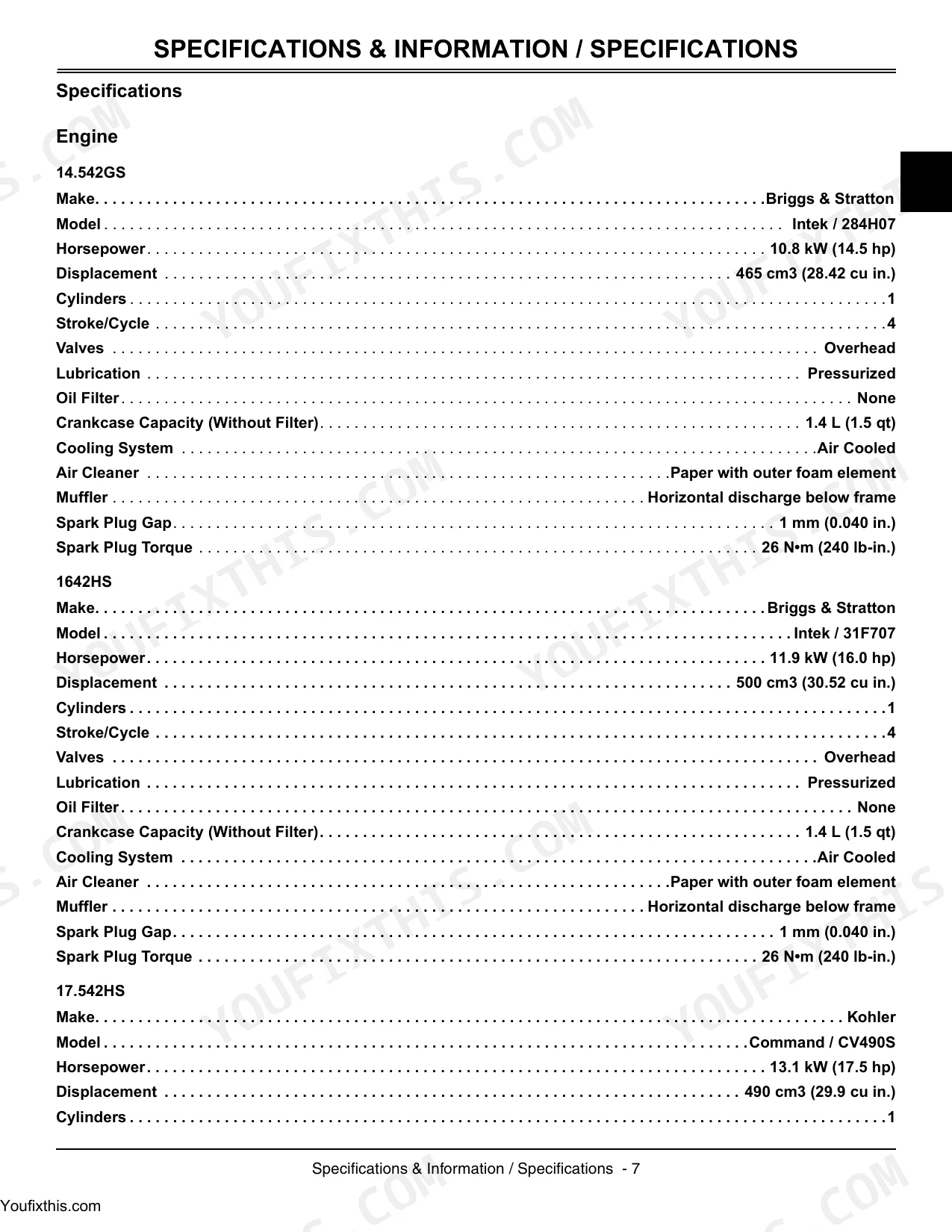

The machine requires specific fluids and capacities depending on the component. For instance, the 14.542GS engine crankcase capacity (without filter) is 1.4 L (1.5 qt), and the fuel tank capacity is 7.9 L (2.1 gal). Recommended lubricants include TURF-GARD® OR PLUS-4® engine oil, John Deere Low Viscosity HY-GARD® (J20D) transmission oil, and John Deere MOLY HIGH TEMPERATURE EP GREASE. p. 10
How to troubleshoot engine won't start?
To troubleshoot an engine that won't start, refer to the Cranking Circuit Diagnosis section. This involves checking battery voltage at the battery posts, starting motor solenoid, and key switch, as well as testing resistance at the negative battery terminal to ground. Detailed test procedures are outlined on pages 130-134. p. 130
What are the valve clearance specifications?

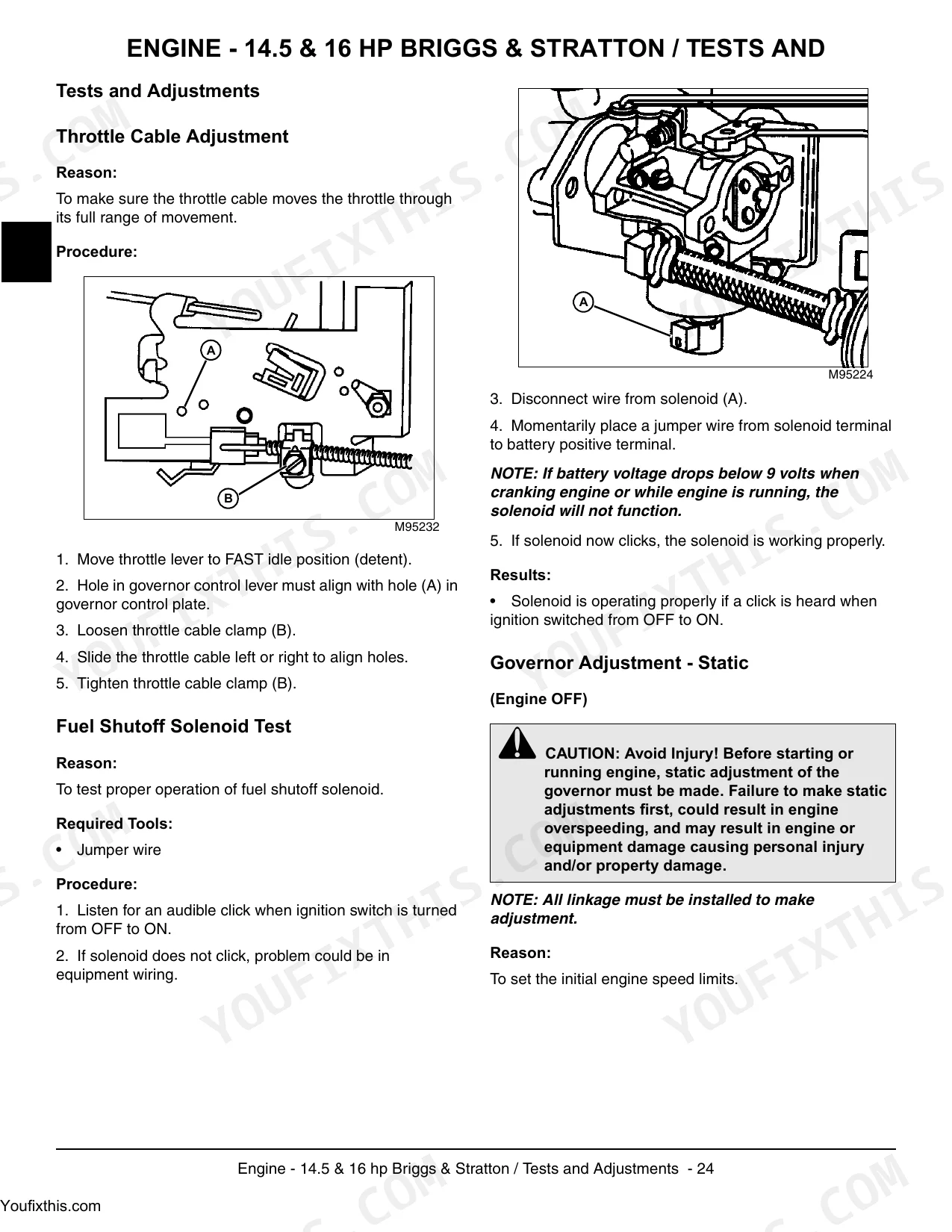

For Briggs & Stratton engines, the intake valve clearance is 0.08 – 0.13 mm (0.003 – 0.005 in.) and the exhaust valve clearance is 0.13 – 0.18 mm (0.005 – 0.007 in.). Kohler 17.5 HP engines, however, use hydraulic lifters and therefore have no specified valve adjustment clearance. p. 24
What torque specifications are listed?

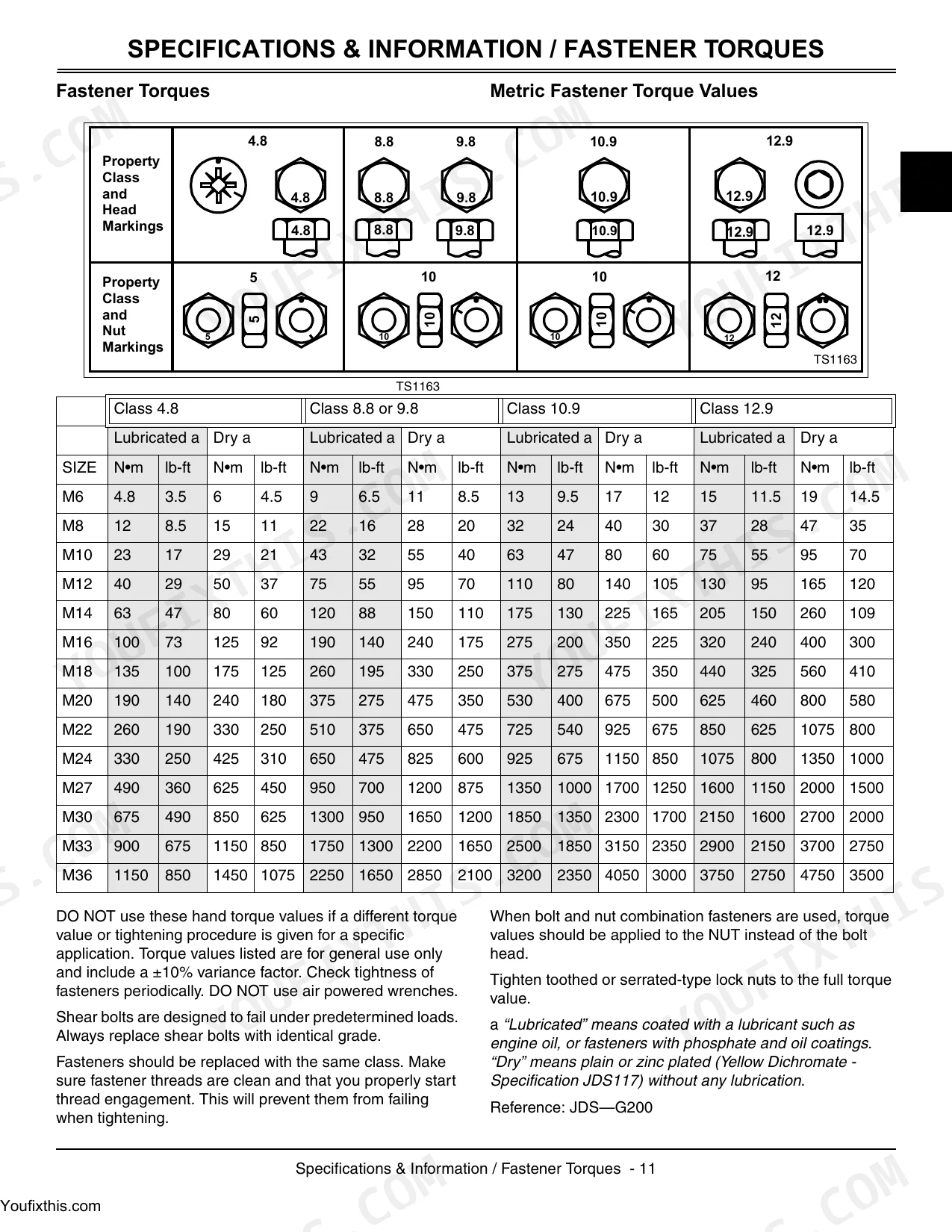

The manual provides extensive torque specifications for various components. For example, Briggs & Stratton engine's Blower Housing Screws should be tightened to 9.6 N•m (85 lb-in.), and Kohler engine's Air Cleaner Base Nut to 10 N•m (89 lb-in.). General metric fastener torque values are also provided in tables on pages 11 and 12. p. 22
Is this John Deere 14.542GS, 1642HS, 17.542HS manual a digital download?
You get a 259-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this John Deere 14.542GS, 1642HS, 17.542HS manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
