This is the complete John Deere factory repair manual (TM1651) for the 7610, 7710 and 7810 row-crop tractors. Across 1,576 pages it walks you through every major system on these machines: pulling and rebuilding the 6081 PowerTech diesel, overhauling the Power Shift, AutoPowr/IVT and PowrQuad transmissions, servicing the MFWD front drive axle, repairing the hydraulic pump and valve stack, and chasing down electrical faults with factory wiring diagrams. It is the same information a John Deere dealer technician works from, with torque values, test pressures and capacities called out so each repair is done to spec the first time.
What's Inside This John Deere 7610-7810 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety precautions, serial number locations, general specifications, fluid capacities, special tools | |
| Engine | Engine remove/install, cylinder block, crankshaft, camshaft, valve train, timing gear train, turbocharger, tightening torques | |
| Fuel and Cooling Systems | Fuel tank, fuel transfer pump, fuel filter, radiator, thermostat, water pump, viscous fan drive, coolant capacity | |

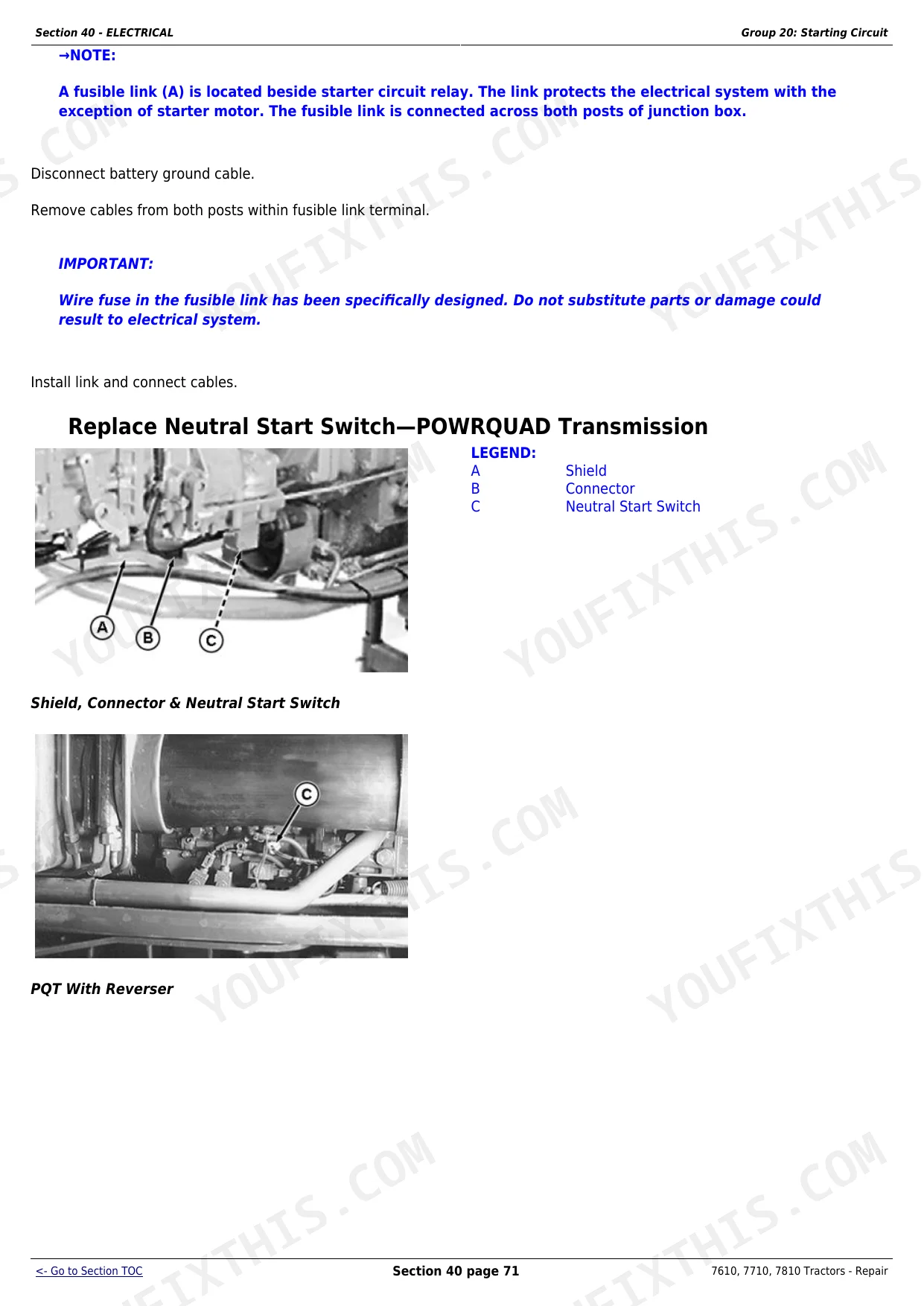

| Electrical | Wiring harnesses, fuse panels, alternator, starter motor, instrument cluster, sensors, electronic controllers, wiring diagrams | |

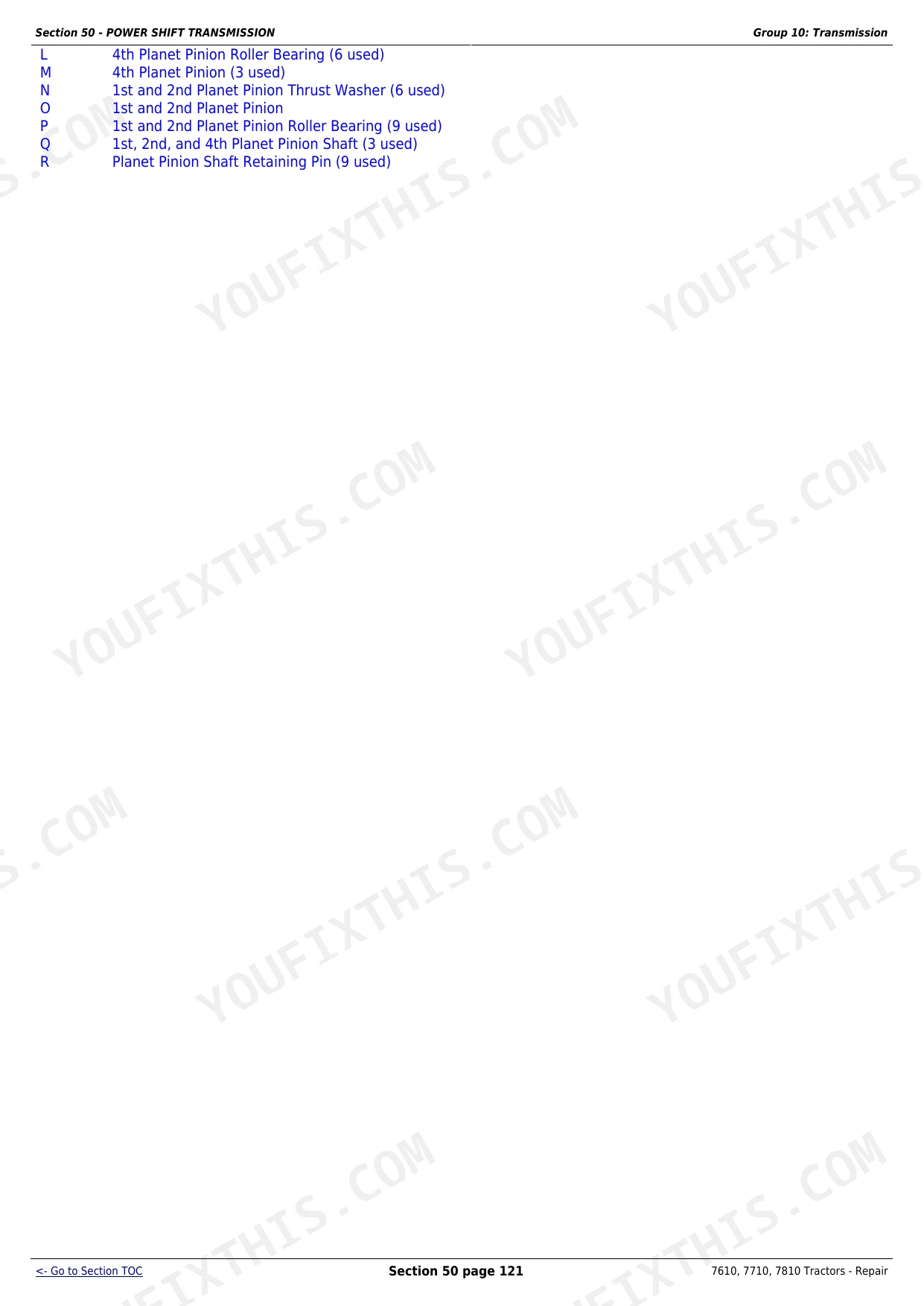

| Power Shift Transmission | Shift valve, solenoids, clutch packs, park pawl, reduction gear housing, oil pump, tow disconnect | |

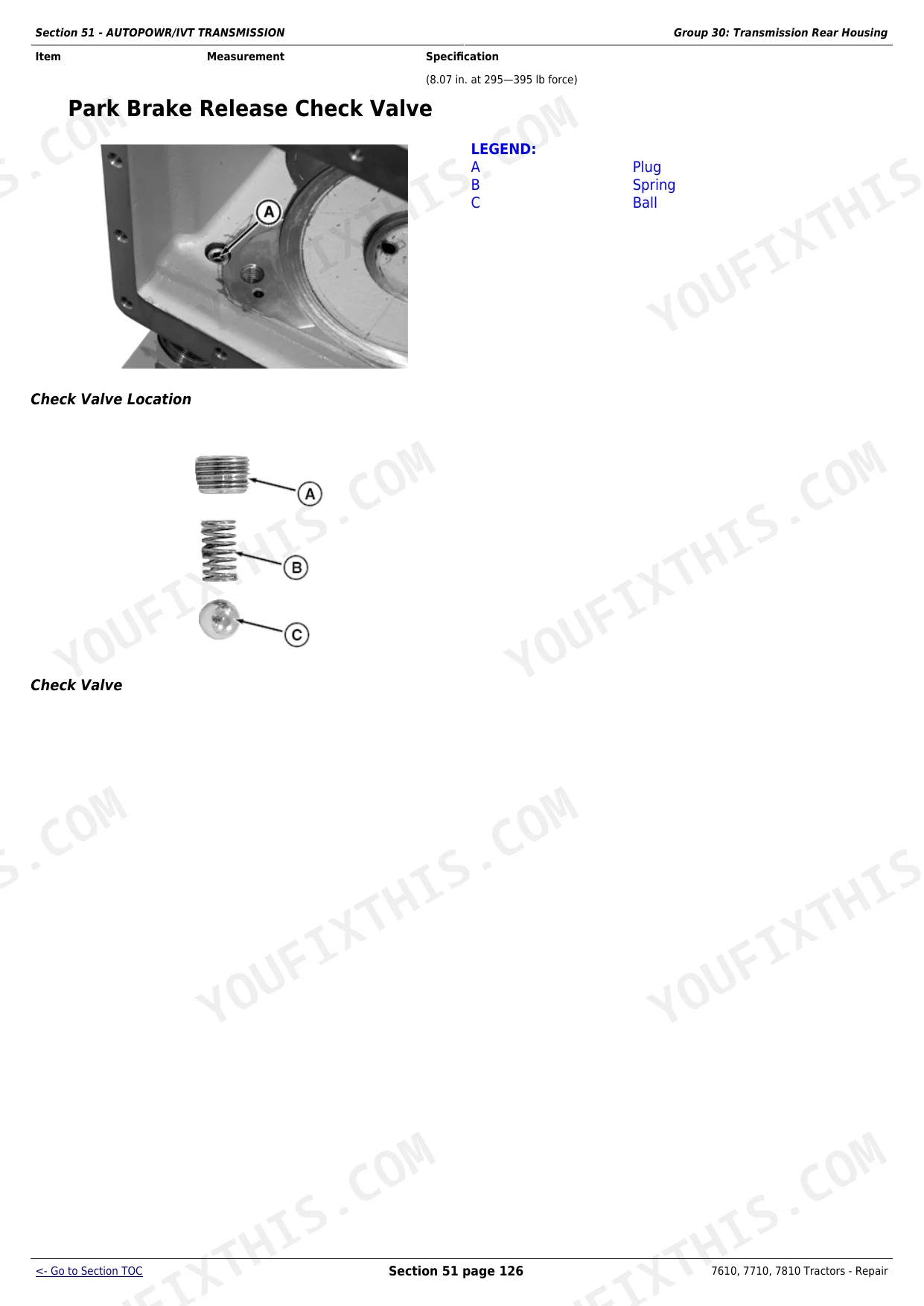

| AutoPowr/IVT Transmission | Continuously variable transmission, hydrostatic unit, planetary gear set, IVT controller, range selection | |
| PowrQuad Transmission | Synchronized ranges, PowrQuad clutch pack, shuttle, PTO drive | |
| Drive Systems | MFWD front axle, differential, final drives, front wheel drive shaft, driveline yokes | |
| Steering and Brakes | Hydraulic steering, orbitrol valve, steering cylinder, brake calipers, brake pedals, park brake | |

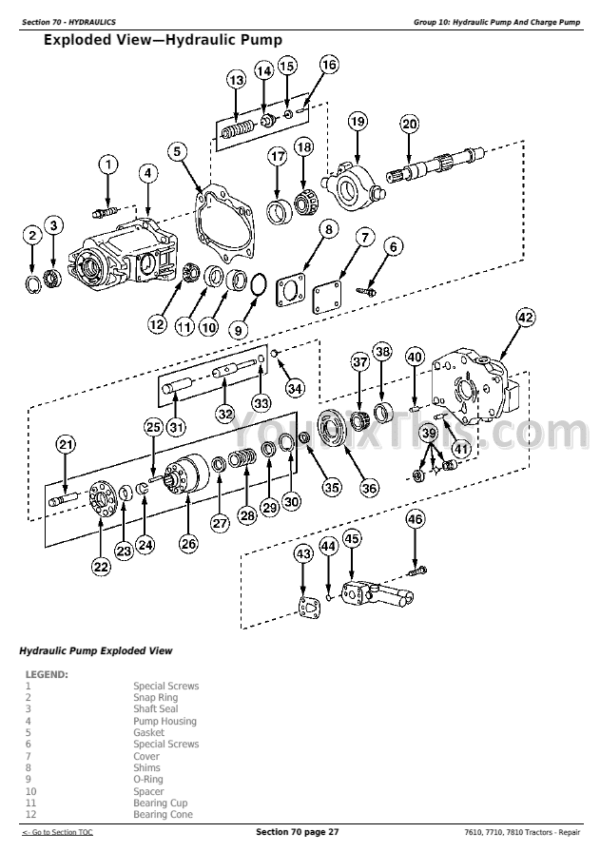

| Hydraulics | Hydraulic pump, open-center valve stack, remote couplers, hitch cylinder, three-point hitch, test pressures | |
| Miscellaneous | PTO shaft, drawbar, hitching components, rear axle seals | |
| Operator Station | Seat and suspension, hand controls, air conditioning, instrument panel, HVAC system, cab removal | |
| Dealer Fabricated Tools | Special tool drawings and specifications for dealer fabrication |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Front Engine Mount Cap Screws Torque | 130 N.m (96 lb-ft) | |
| Rear Engine Mount Cap Screws Torque | 320 N.m (237 lb-ft) | |
| Drive Shaft Yoke-to-Engine Cap Screws Torque | 66 N.m (48 lb-ft) | |
| Oil Pan Cap Screw 3/8 in. Torque | 68 N.m (50 lb-ft) | |
| Oil Pan Cap Screw 1/2 in. Torque | 162 N.m (120 lb-ft) | |
| Bearing Support Cap Screws Torque | 610 N.m (450 lb-ft) | |
| Radiator Pressure Test | 80 kPa (0.8 bar / 12 psi) | |
| Radiator Cap Pressure Test | 60-80 kPa (0.6-0.8 bar / 9-12 psi) | |
| Fuel Cooler Leak Test Air Pressure | 140 kPa (1.4 bar / 20 psi) | |
| Oil Cooler Leak Test Air Pressure | 700-1000 kPa (7-10 bar / 100-150 psi) | |
| 7610 | ||
| Coolant Capacity | 24 L (25 qt) | |
| 7710 and 7810 (S.N. -90000) | ||
| Coolant Capacity | 26 L (27.5 qt) | |
| 7710 and 7810 (S.N. 90001-) | ||
| Coolant Capacity | 33 L (35 qt) | |
| 7610, 7710, 7810 | ||
| Production Years | 1998-2005 | |
John Deere 7610-7810 Common Problems This Manual Covers
Tractor will not go forward - Power Shift stuck in neutral
The detent inside the shift valve wears or breaks, preventing the valve from locking into the forward clutch position. Remove the shift valve assembly as described in the Power Shift Transmission section, inspect the detent ball and spring for wear or breakage, and replace the detent components or the complete shift valve. Verify the forward clutch pack pressure after reassembly using the test specifications in the manual before returning the tractor to service.
Manual Section: Power Shift TransmissionGear housing cracked around the park pawl actuating shaft
Uneven loading from worn park pawl components causes the tow disconnect and reduction gear housing casting to crack around the actuating shaft bore. Disassemble the Power Shift Transmission per Section 50, inspect the housing bore for wear and cracks, and replace the housing if cracked. Replace the park pawl, actuating shaft and any worn mating parts at the same time to prevent the failure from recurring on a new housing.
Manual Section: Power Shift TransmissionEngine overheats during field work
Check the coolant level first - capacity is 24 L (7610) or 26-33 L (7710/7810 depending on serial number). A clogged radiator core, stuck thermostat, failed water pump or worn viscous fan drive are the common mechanical causes. The Fuel and Cooling Systems section covers testing the radiator at 80 kPa (12 psi), pressure-testing the cap at 60-80 kPa and inspecting the viscous fan drive so you can isolate the cause before the engine sustains heat damage.
Manual Section: Fuel and Cooling SystemsThree-point hitch lifts slowly or fails to hold position under load
Slow lift points to low system pressure or a worn hydraulic pump; failure to hold load points to internal leakage in the hitch control valve or cylinder. The Hydraulics section covers testing system pressure at the remote couplers and hitch test ports, inspecting the pump for wear, and servicing the open-center valve stack so you can pinpoint whether the fault is in the pump, valve or cylinder before replacing parts at random.
Manual Section: HydraulicsFrequently Asked Questions
Why won't my John Deere 7810 move forward even though the engine runs fine?
The most common cause on these Power Shift machines is a broken detent inside the shift valve. The shift valve controls which clutch pack engages for each direction; when the detent fails, the valve cannot lock into the forward position and the tractor stays stationary. The Power Shift Transmission section of this manual covers removing the shift valve assembly, inspecting the detent mechanism and rebuilding or replacing the valve so the tractor drives normally again.
What are the main engine torque specs for the 7610, 7710 and 7810?
Key grounded values from this manual: front engine mount cap screws 130 N.m (96 lb-ft), rear engine mount cap screws 320 N.m (237 lb-ft), drive shaft yoke-to-engine cap screws 66 N.m (48 lb-ft), and bearing support cap screws 610 N.m (450 lb-ft). The Engine section lists every fastener torque for the 6081 PowerTech diesel so you can reassemble correctly after any major repair.
Does this manual cover all three transmission options - Power Shift, AutoPowr/IVT and PowrQuad?
Yes. The manual has a dedicated section for each transmission type: Section 50 for the Power Shift, Section 51 for the AutoPowr/IVT continuously variable transmission, and Section 55 for the PowrQuad synchronized transmission. Each section covers removal, disassembly, inspection tolerances, rebuild and reinstallation so you can service whichever unit your tractor has.
The gear housing around the park pawl shaft is cracked on my 7710 - is that a known issue?
Yes, cracking around the park pawl actuating shaft in the tow disconnect and reduction gear housing is a documented failure on these Power Shift tractors. Wear in the housing allows the shaft to load the casting unevenly until it cracks. The Power Shift Transmission section covers inspection of the housing, the park pawl components and the tow disconnect so you can assess whether to repair or replace the housing before it fails completely.
Does this manual include wiring diagrams and hydraulic schematics?
Yes. The Electrical section (Section 40) covers wiring harnesses, fuse panels, alternator, starter motor and the electronic controllers with factory wiring diagrams. The Hydraulics section (Section 70) covers the hydraulic pump, the open-center valve stack, remote couplers and the three-point hitch with test pressures. Both sections give enough detail to trace faults and verify repairs without guessing.
