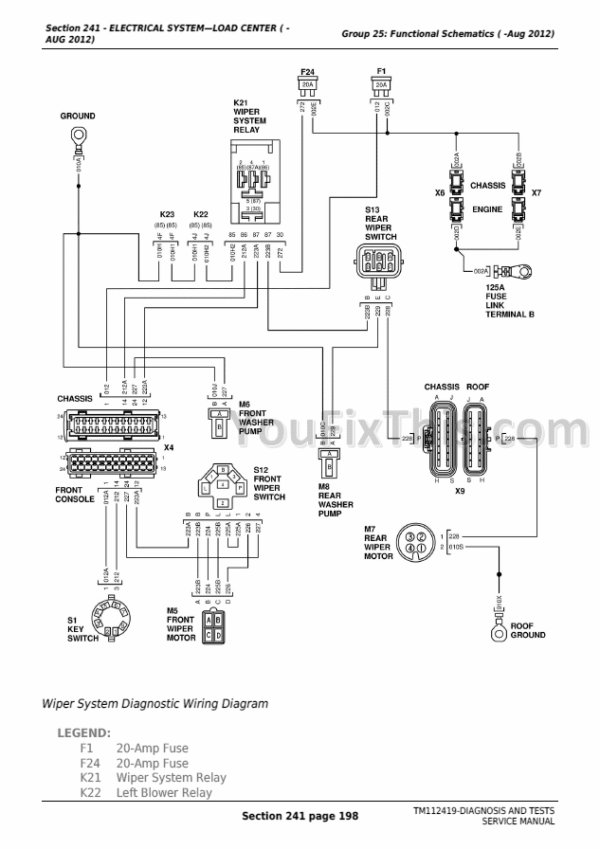

This is the factory John Deere Diagnosis and Tests Service Manual (TM112419) for the 5083E Limited, 5093E Limited and 5101E Limited tractors, covering both Tier 2/Stage II and Tier 3/Stage IIIA emissions variants. Its 1,923 pages walk a technician through reading and clearing diagnostic trouble codes on the CCU and PTR controllers, working through symptom-driven diagnostic trees for every major system, and performing the factory-specified pressure, flow and electrical tests on the PowrReverser transmission, hydraulics, drive systems and operator station. Full functional schematics and connector pinouts are included for both the Vehicle Electrical Center and Load Center wiring configurations. This is the same technical information a John Deere dealership technician uses to resolve an active fault code before replacing any parts.
What's Inside This John Deere 5083E Limited, 5093E Limited, 5101E Limited Manual
| System | Pages | Key Topics |
|---|---|---|
| General | Safety, General Specifications, Hydraulic Symbols, Wiring Diagram Information, Electrical Schematic Symbols, Circuit Troubleshooting | |
| Diagnostic Trouble Codes | Ccu Code Diagnostics, Ptr Code Diagnostics | |
| Observable Symptoms | Engine Symptoms, Fuel and Air Symptoms, Electrical Symptoms, Control Unit Symptoms, PowrReverser Transmission Symptoms, Drive System Symptoms, Steering and Brake Symptoms, Hydraulic Symptoms, Operator Station Symptoms | |
| System Diagnosis | Starting, Charging and Start Aid, PowrReverser Transmission, Differential Lock, MFWD, Rear PTO, Steering, Rear Brakes, Rear SCV System, Mid-Mount Control Valve, Rear Hitch, Air Conditioning | |
| Engines | General Information, Tests and Adjustments, Engine System Theory of Operation | |
| Fuel and Air | General Information, Fuel and Air Theory of Operation | |

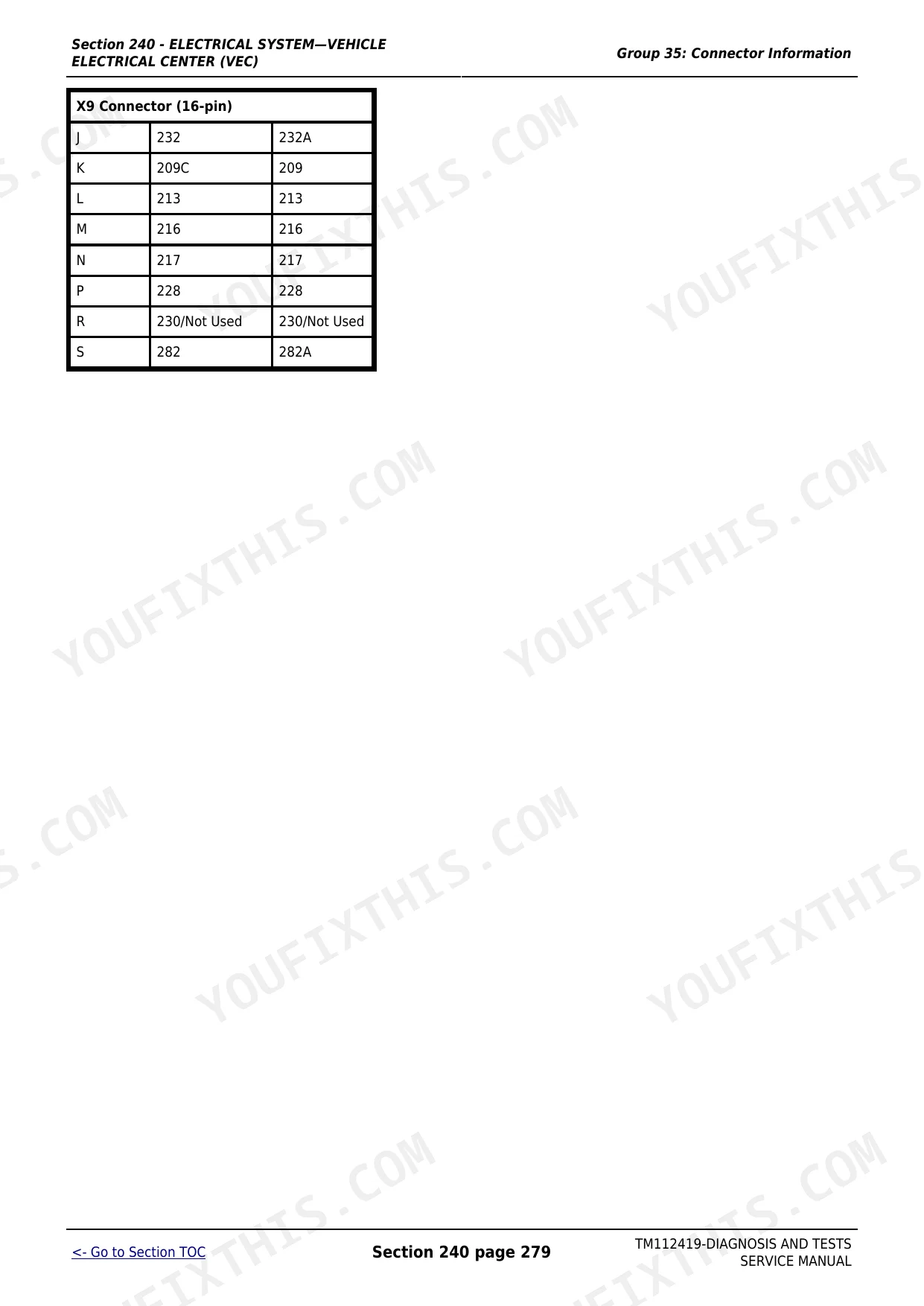

| Electrical System - Vehicle Electrical Center | Vehicle Electrical Center and Fuse/Relay Block, Tests and Adjustments, Theory of Operation, Functional Schematics, Connector Information | |
| Electrical System - Load Center | Load Center and Fuse/Relay Block, Tests and Adjustments, Theory of Operation, Functional Schematics, Connector Information (Pre- and post-August 2012 Variants) | |
| Control Units | Ccu General References and Tests and Adjustments, Ptr Tests and Adjustments | |
| PowrReverser Transmission | Reverser Clutch Packs, Transmission Solenoid Valves, Gear Selection Circuit, Park and Neutral Position, Clutch Engagement Pressure, Tests and Adjustments, Theory of Operation, Schematics and Diagrams | |
| Drive Systems | MFWD Engagement System, Differential Lock Circuit, Front Axle Assembly, Final Drives, Rear Axle, Tests and Adjustments, Theory of Operation, Schematics and Diagrams | |
| Steering and Brakes | Orbitrol Steering Valve, Steering Cylinder Checks, Brake Pressure Tests, Brake Pedal Linkage, Parking Brake Adjustment, Tests and Adjustments, Theory of Operation | |
| Hydraulics | General Information, Preliminary and Operational Checks, Tests and Adjustments, Theory of Operation (Pre- and post-August 2011 Variants) | |
| Operator's Station | Operator Presence Circuit, Seat Switch, Instrument Panel Gauges, Control Switches and Levers, Display Unit Checks, Tests and Adjustments, Theory of Operation | |
| Service Tools | Dealer-Fabricated Tools, Service Tools and Kits |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5083E Limited, 5093E Limited, 5101E Limited | ||
| Engine (all models) | John Deere 4045 (4.5L, 4-cylinder turbocharged diesel) | |
| Emissions Compliance | Tier 2/Stage II and Tier 3/Stage IIIA | |
| 5083E Limited | ||
| Rated Engine Power - 5083E Limited | 83 hp (61.9 kW) at 2200 rpm | |
| 5093E Limited | ||
| Rated Engine Power - 5093E Limited | 93 hp (69.4 kW) at 2200 rpm | |
| 5101E Limited | ||
| Rated Engine Power - 5101E Limited | 101 hp (75.3 kW) at 2200 rpm | |
| All models | ||
| Transmission | PowrReverser 12F/12R synchronized | |
| Rear PTO Speeds | 540/540E/1000 rpm | |
| Production Years | 2010-2015 | |
John Deere 5083E Limited, 5093E Limited, 5101E Limited Common Problems This Manual Covers
Transmission pressure low or erratic, especially when cold or under PTO load
The most common root cause in the 5083E/5093E/5101E is a worn or failed bearing in the rear PTO cover (bell housing area). Follow the System Diagnosis section for the PowrReverser (Section 213, Group 55) to perform the factory pressure tests and isolate whether the fault is the bearing, the hydraulic pump or the valve body before replacing the pump, which is a frequent but premature first repair on these machines.
Manual Section: PowrReverser TransmissionRecurring hydraulic pump failures, sometimes multiple in succession
Repeated pump failures point to an underlying pressure or contamination problem rather than a weak pump. Use the Hydraulic preliminary checks in Sections 270 or 271 to verify system pressure and return flow, and inspect the hydraulic filter for metal debris that reveals the contamination source. Fixing the root cause - often the PTO cover bearing - stops the pattern of successive pump replacements.
Manual Section: Drive SystemsDash does not illuminate and engine will not crank, but headlamps work normally

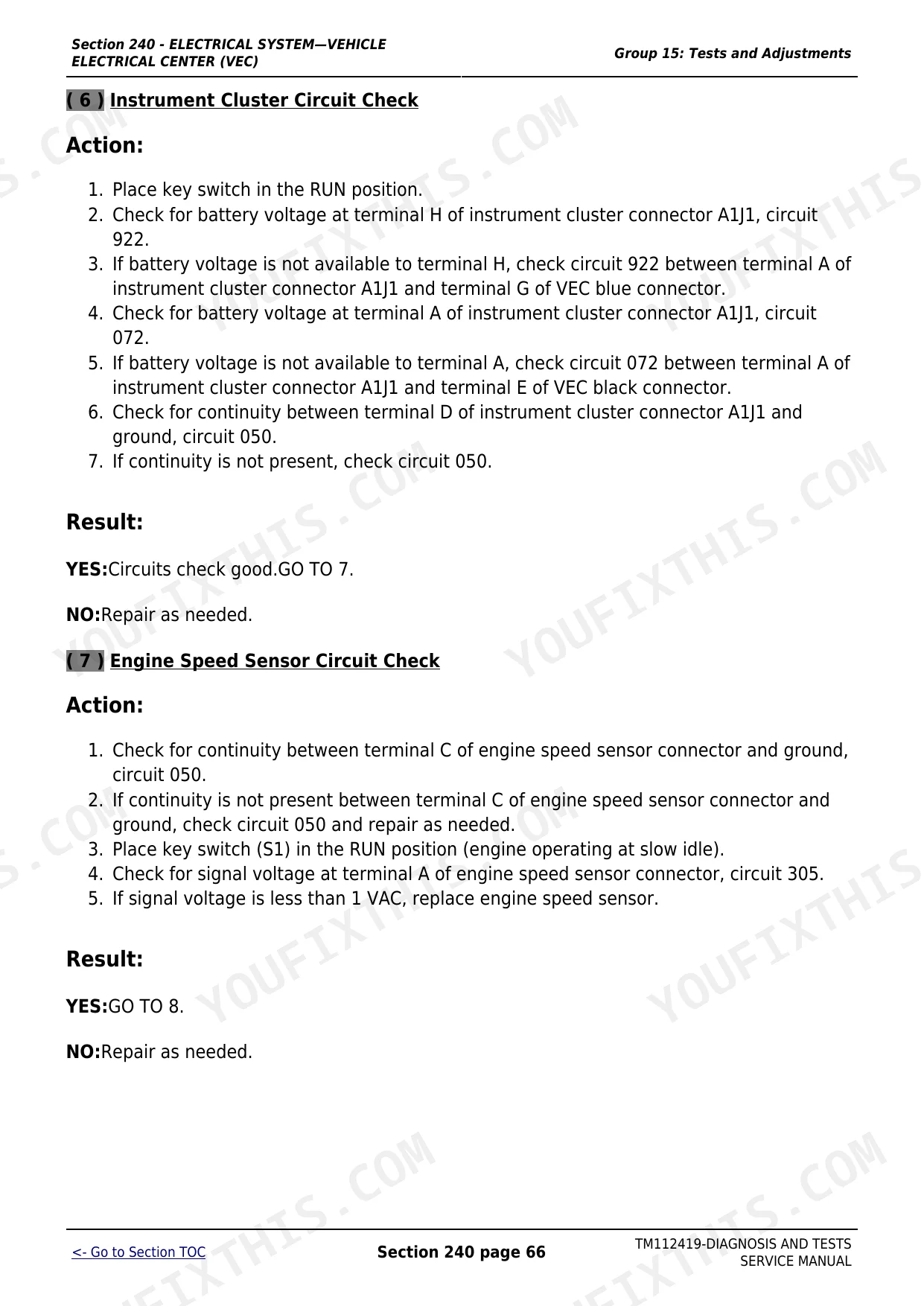

Work through the Load Center fuse and relay diagrams in Section 241 or Section 242 (matched to your tractor build date - pre or post August 2012) and use the Seven-Step Electrical Procedure from Section 210 to pinpoint the open in the power feed. Verify connector condition using the pinout tables in Group 35 of the relevant electrical section before condemning a control module.
Manual Section: Electrical SystemHard starting, white smoke and low power on a low-hour 5101E Limited
White smoke with hard starting on a low-hour engine points to a fuel delivery problem rather than mechanical wear. The Fuel and Air section (Section 230) covers the theory of operation and Section 220 Group 15 gives the specific pressure and flow checks for the Stanadyne mechanical fuel system. Verify injection timing and fuel supply pressure before suspecting injector or pump failure.
Manual Section: EnginesFrequently Asked Questions
How do I read and clear fault codes on the John Deere 5083E, 5093E or 5101E Limited?

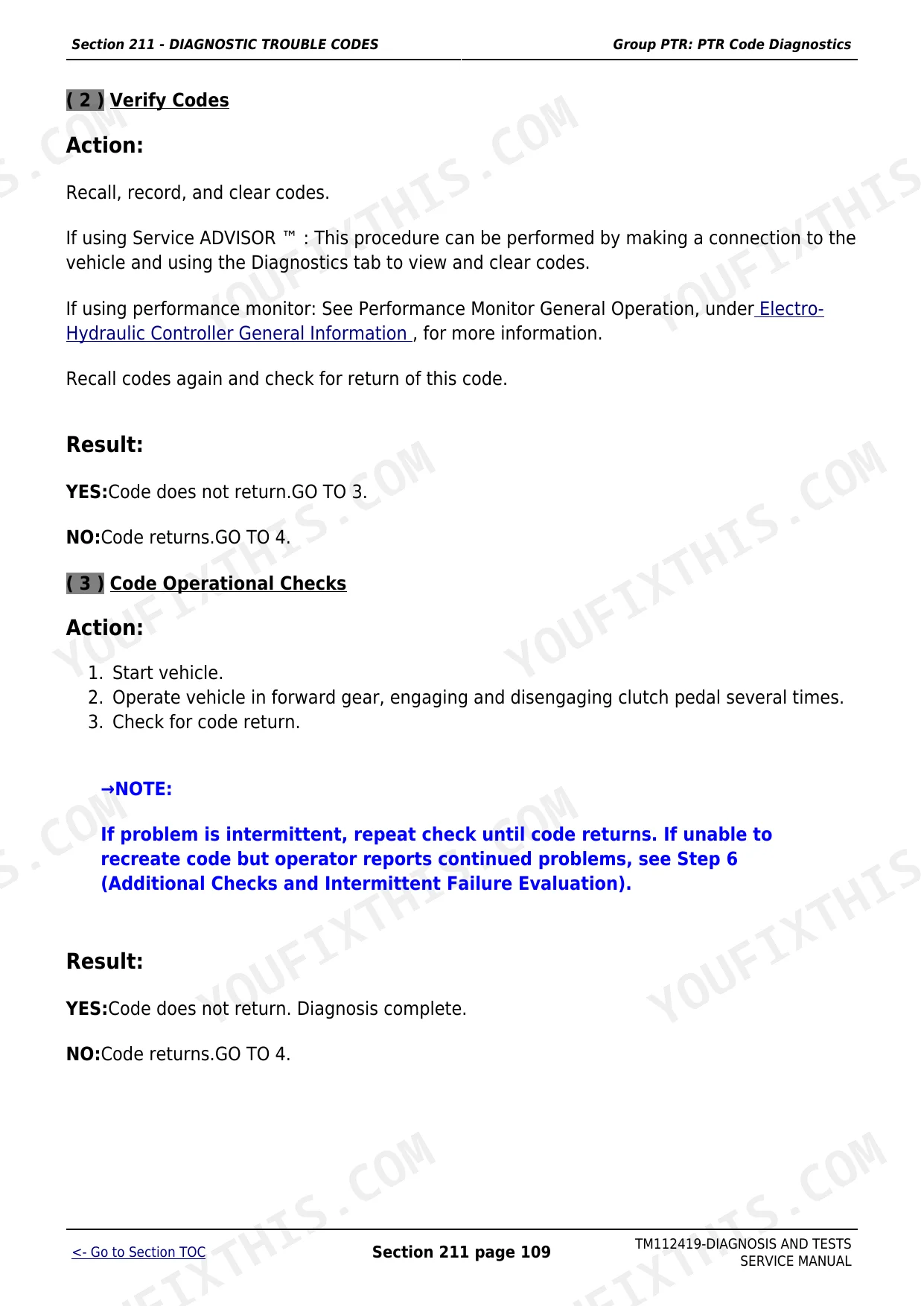

The Diagnostic Trouble Codes section (Section 211) lists all CCU and PTR codes with their causes and test procedures. You can read active codes through the tractor instrument display. The manual gives the exact steps to diagnose and clear each code using a service tool, so you are not guessing which component to replace when a code shows up.
What should I check first when the 5083E has low or erratic transmission pressure?
Start with the PowrReverser System Diagnosis (Section 213, Group 55), which walks you through preliminary and operational checks before any disassembly. A common root cause in these tractors is a worn bearing in the rear PTO cover. The section provides factory pressure test values and a step-by-step circuit check to isolate the fault before touching the hydraulic pump.
Why won't the dash light up or the engine crank on a 5101E Limited when the headlamps work?
Headlamps on but no dash power isolates the fault to the internal feed circuit, not the battery or main fuse. Use the Load Center fuse and relay diagrams in Section 241 or 242 (depending on build date) and the Seven-Step Electrical Procedure in Section 210 to trace the open circuit. Check the connector pinouts in Group 35 before condemning a control unit.
Does this diagnostic manual cover the MFWD and differential lock systems?
Yes. Section 213 has dedicated groups for MFWD (Group 56B) and Differential Lock (Group 56A), each with preliminary checks, pressure tests and theory of operation. Section 256 on Drive Systems adds schematics and diagrams for both systems so you can confirm whether a fault is hydraulic, electrical or mechanical before disassembly.
Which hydraulic and oil filters should I keep on hand when servicing a 5E Limited tractor?
The most commonly replaced service parts on these machines are the engine oil filter (RE504836), the hydraulic filter (RE45864 or RE197065) and the fuel filter (RE522868). Keeping the hydraulic filter on its correct interval matters most: an overdue filter is a leading cause of hydraulic system overheating and the pump failures that follow.
