This is the complete John Deere factory repair manual (TM8088) for the 5303 and 5403 utility tractors. Across 1,123 pages it covers every major system: removing and rebuilding the 3000 Series engine, servicing the CollarShift transmission and rear final drives, repairing the hydraulic pump and rockshaft, and tracing the full electrical system with wiring schematics. Each repair section is paired with a dedicated operation, test and adjustment section so you can diagnose a fault before pulling anything apart. It is the same technical information a John Deere dealer technician works from, with the torque values, test pressures and clearances called out so a repair is done to spec the first time.
What's Inside This John Deere 5303/5403 Manual

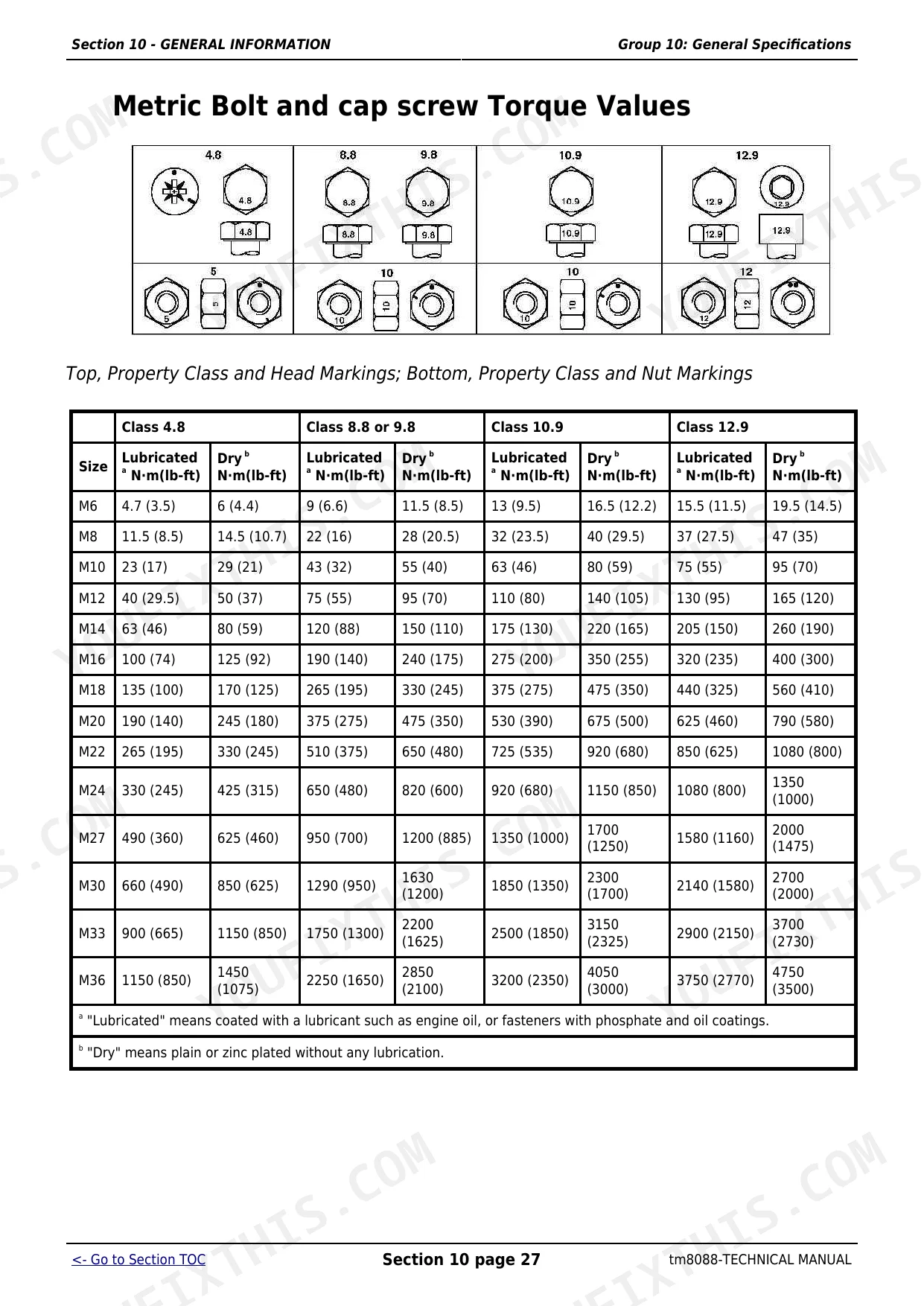

| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, General Specifications, Fuel and Lubricants, Serial Number Locations, Features and Accessories | |
| Engine | Engine Remove/Install, Cylinder Head and Valves, Cylinder Block, Liners, Pistons and Rods, Crankshaft, Main Bearings and Flywheel, Camshaft and Timing Gear Train, Lubrication System, Cooling System | |
| Fuel and Air | Fuel System, Air Intake and Exhaust System, Speed Control Linkage | |
| Electrical System | Battery, Starter and Alternator, Electrical System Components, Wiring Harness | |
| Power Train | Clutch Housing, Clutch Assembly - CollarShift Transmission, Transmission, Rear PTO Drive Shaft, Differential, Final Drives | |
| Steering and Brakes | Steering Repair, Brake Repair | |
| Hydraulic System | Hydraulic Pump and Filter, MITA Rockshaft, JD Rockshaft, Selective Control Valve (SCV) | |
| Miscellaneous | Front Axle, Wheels, 3-Point Hitch | |
| Operator Station | Seat and Support, Operator Platform, Fenders | |
| Operational Checkout | Operational Checkout Procedures | |
| Engine Operation, Tests and Adjustments | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments | |
| Fuel/Air Operation, Tests and Adjustments | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments | |

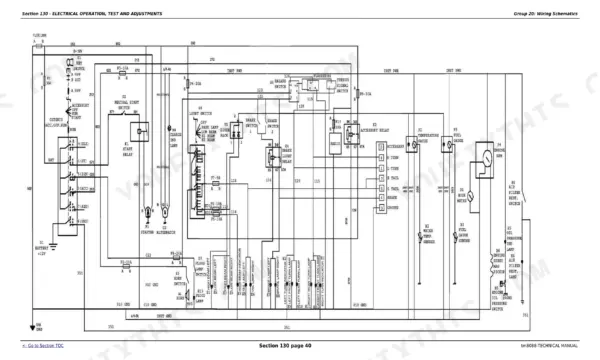

| Electrical Operation, Tests and Adjustments | Component Location, Theory of Operation, Wiring Schematics, Diagnosis, Test and Adjustment | |
| Power Train Operation, Tests and Adjustments | Component Location - CollarShift Transmission, Theory of Operation - CollarShift Transmission, Diagnosis, Tests and Adjustments | |
| Steering and Brake Operation, Tests and Adjustments | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments | |

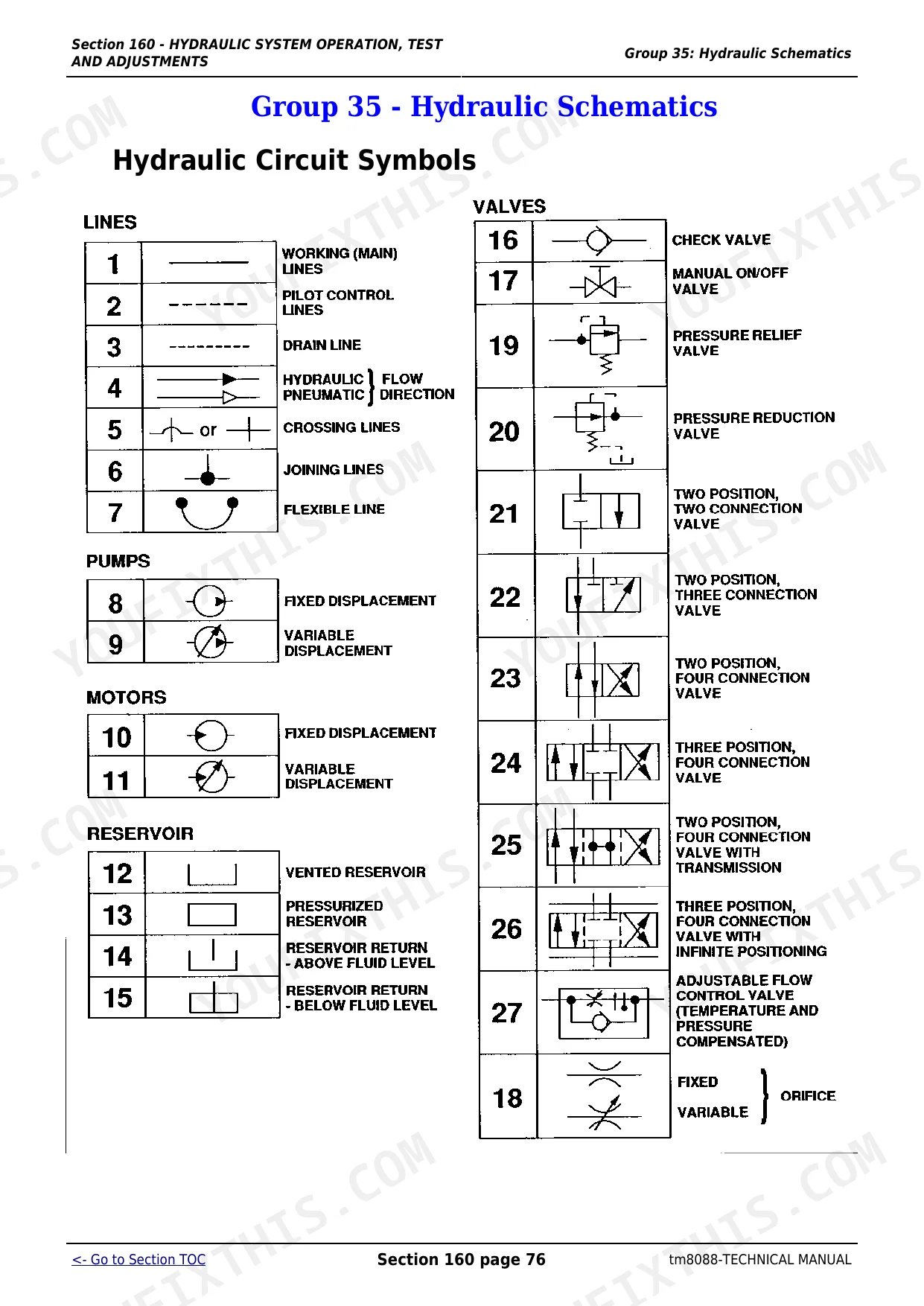

| Hydraulic System Operation, Tests and Adjustments | Component Location, Theory of Operation, Diagnosis, Hydraulic Tests Without SCV, Hydraulic Tests With SCV, Hydraulic Tests All, Adjustments - MITA Rockshaft, Adjustments - JD Rockshaft, Hydraulic Schematics |

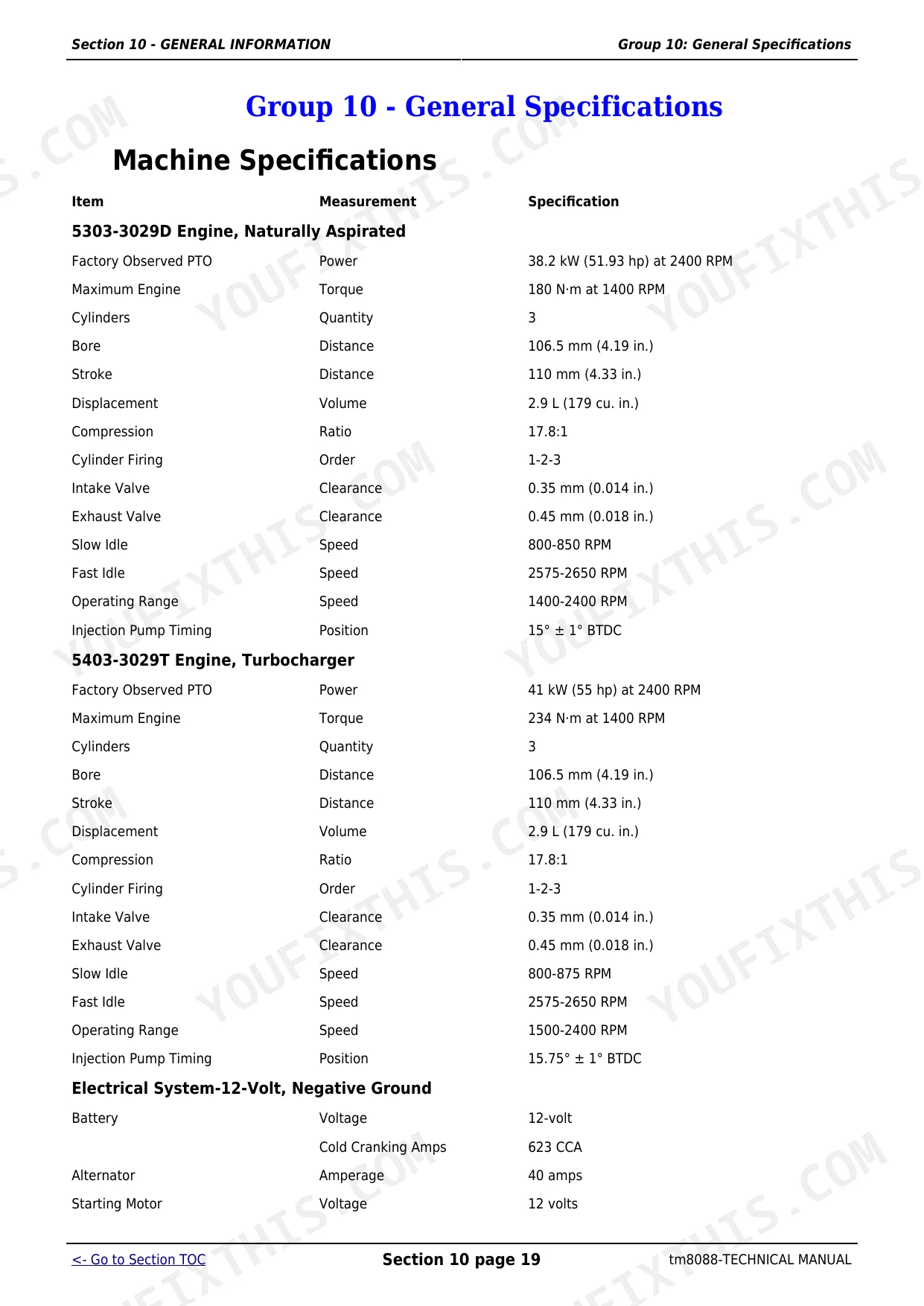

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Transmission Type | Nine speeds forward, three reverse (CollarShift) | |
| PTO Speed | 540 rpm | |
| 3-Point Hitch Category | Category II |
John Deere 5303/5403 Common Problems This Manual Covers
3-point hitch or loader lifts slowly or fails to reach full height
This is nearly always a worn hydraulic pump or a pressure relief valve stuck open, reducing system pressure. The Hydraulic System section covers removing and inspecting the pump, testing relief valve opening pressure, and servicing the MITA or JD rockshaft. Confirm hydraulic fluid level and condition first - contaminated fluid accelerates pump wear and a simple fluid and filter change will sometimes restore enough pressure to return the hitch to normal operation.
Manual Section: Hydraulic SystemEngine overheats after sustained work even with clean coolant
The most common root cause is a clogged radiator core or a thermostat that no longer opens fully, restricting flow through the cooling circuit. The Engine section covers cooling system service including thermostat replacement, radiator remove/install and flushing procedures. Check coolant concentration and inspect the radiator for debris packing before assuming a more costly internal cause like a failing head gasket.
Manual Section: EngineClutch pedal requires excessive force to disengage or engagement is abrupt
Worn clutch disc or an out-of-adjustment clutch linkage is the typical cause. The Power Train section covers clutch housing disassembly, clutch assembly removal and inspection for the CollarShift transmission, and complete clutch replacement procedure. Verify pedal free travel and linkage adjustment before disassembling the clutch housing, as a simple linkage adjustment can restore correct pedal feel without pulling the transmission.
Manual Section: Power TrainEngine stalls under load or is hard to start, especially after sitting

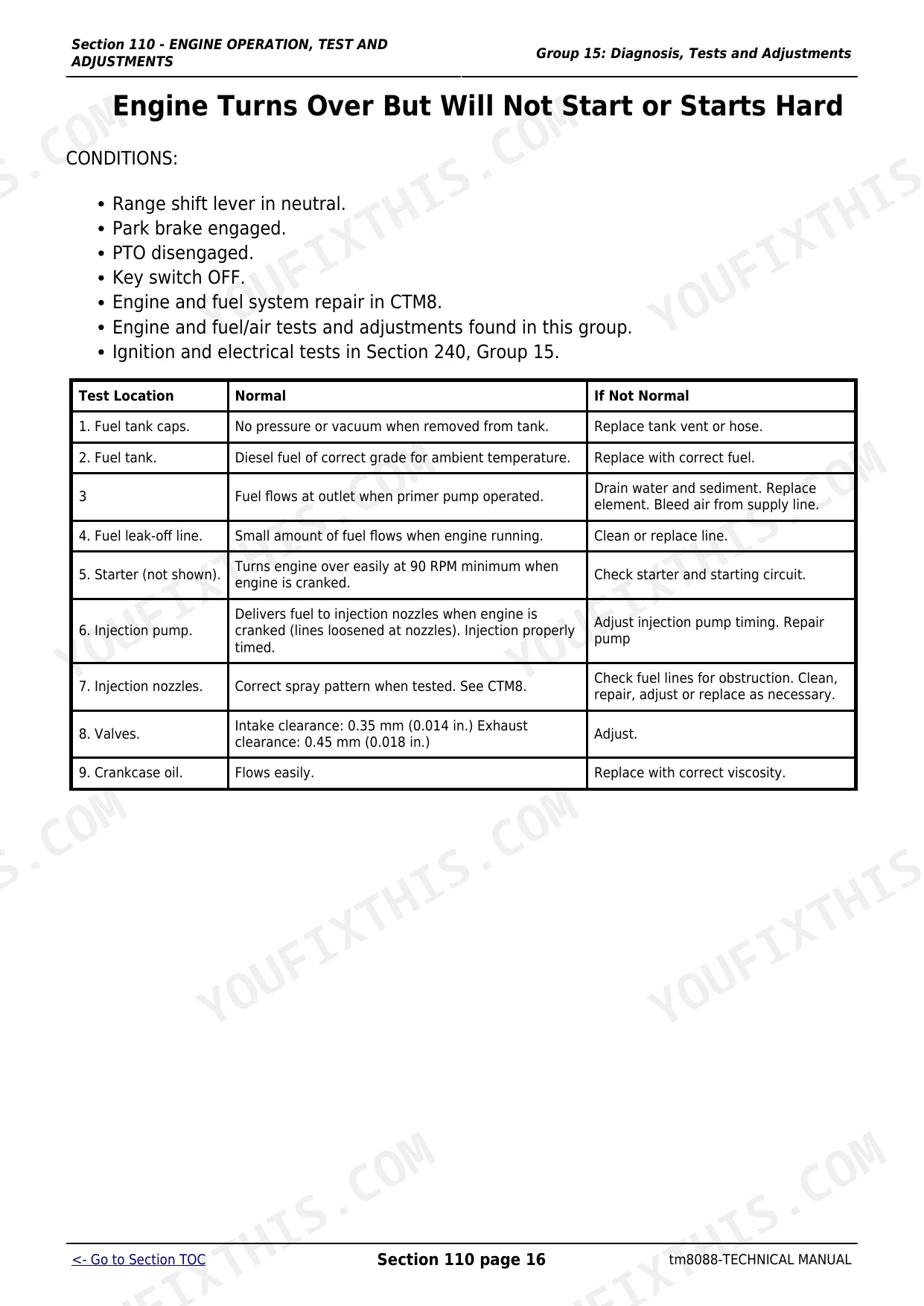

Fuel starvation from a clogged primary fuel filter or water in the fuel bowl is the most frequent cause on these tractors. The Fuel and Air section covers full fuel system service including filter replacement, bleeding the injection system and servicing the speed control linkage. Replace the fuel filter first, drain the water separator bowl, and bleed the system before suspecting injector or injection pump problems.
Manual Section: Fuel and AirFrequently Asked Questions
What engine is in the John Deere 5303 and 5403 tractors?

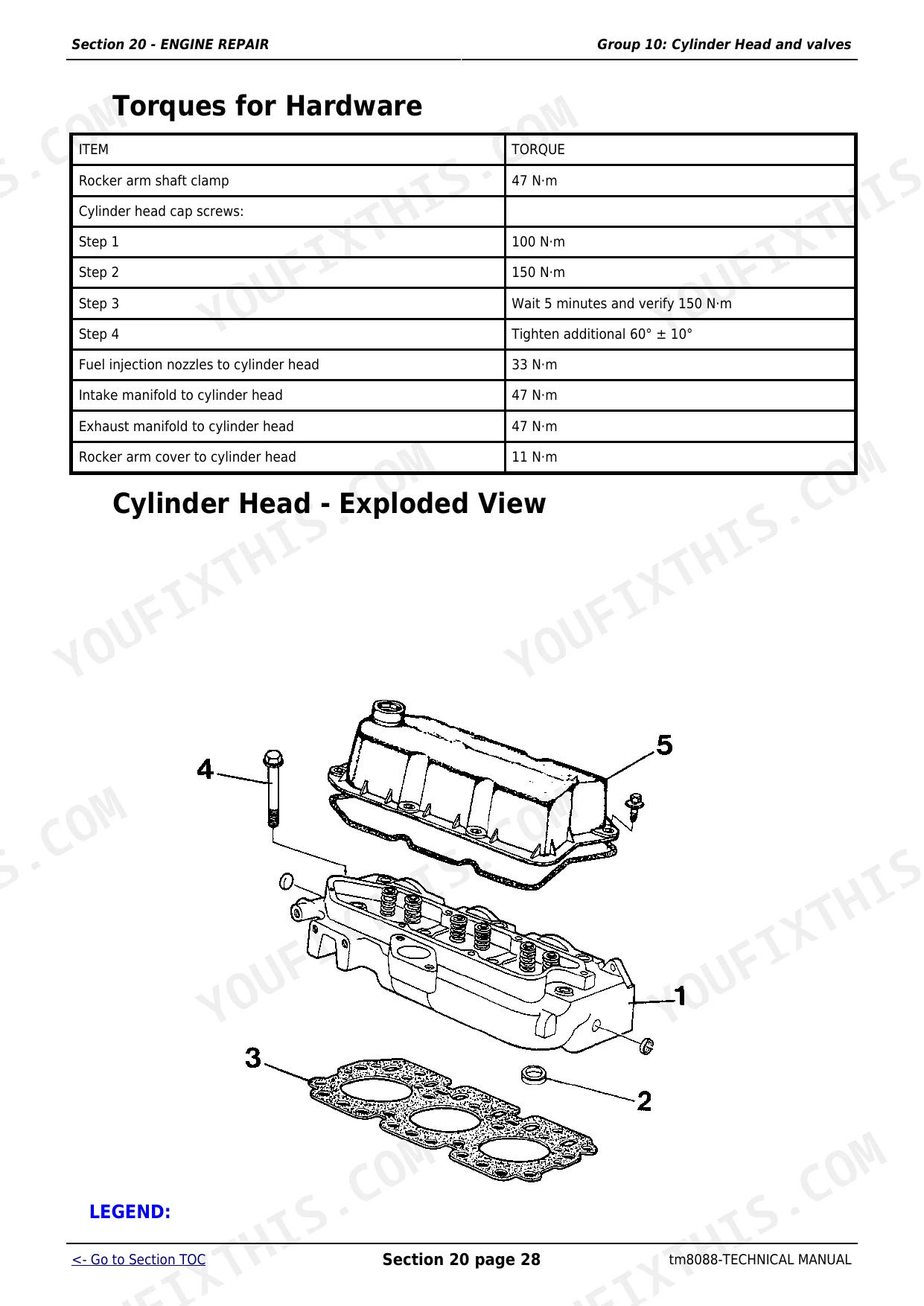

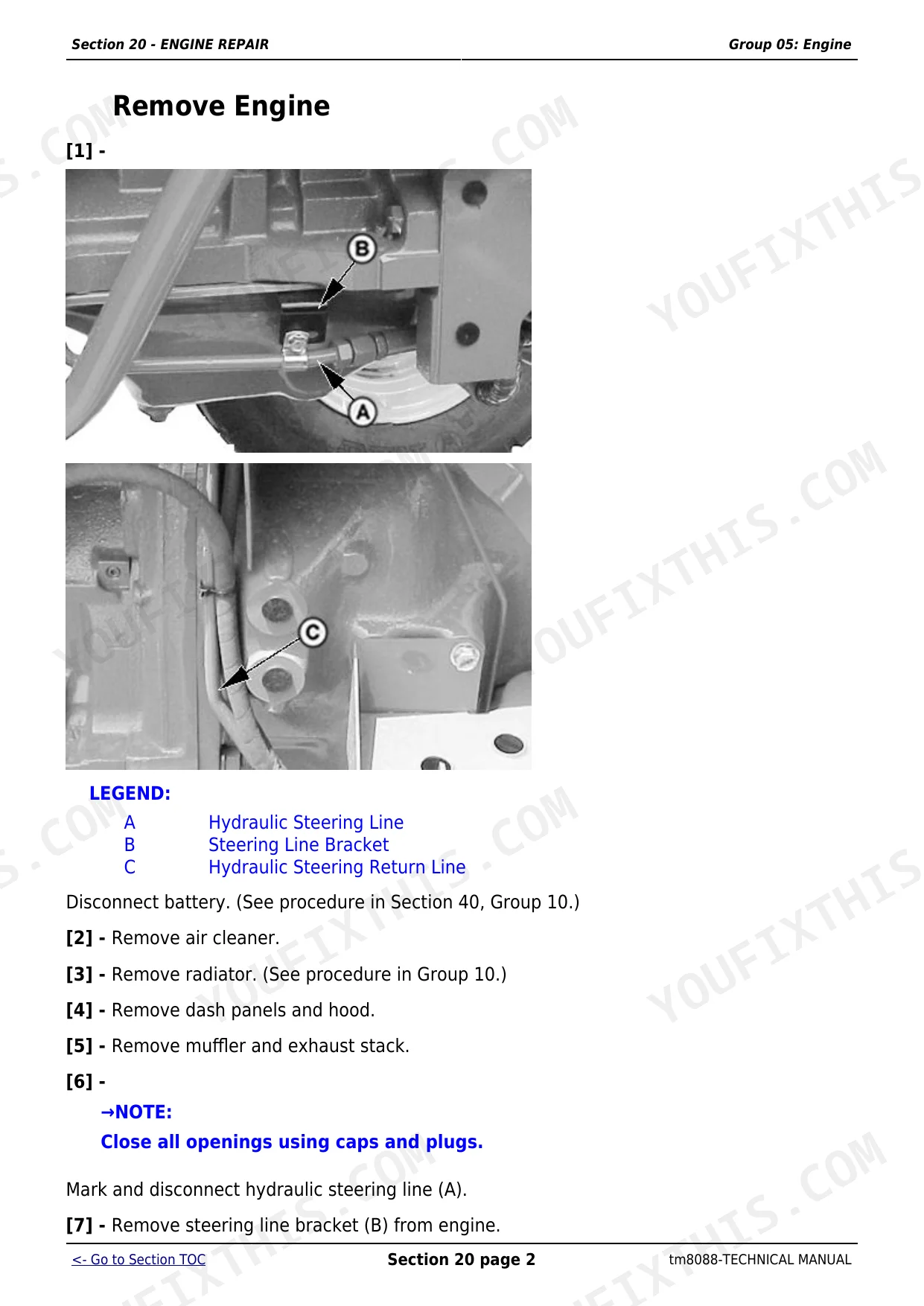

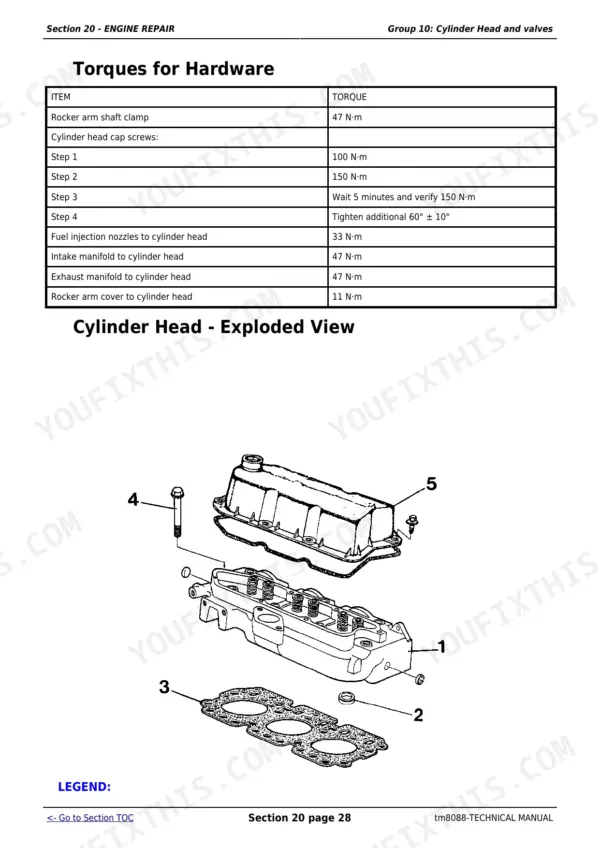

Both models use a John Deere 3000 Series diesel engine. The Engine section of this manual covers cylinder head removal, liner and piston service, crankshaft and main bearings, camshaft, lubrication and cooling so you can fully rebuild the engine to factory spec.
Why does the 3-point hitch or loader fail to lift on a 5403?
The most common cause is a worn hydraulic pump or a failed pressure relief valve causing internal leakage. The Hydraulic System section covers removing and testing the hydraulic pump and filter, servicing the MITA and JD rockshaft, and adjusting the rockshaft control valve so you can restore full lift capacity.
What transmission does the 5303 and 5403 use, and how many speeds does it have?
These tractors use a CollarShift transmission giving nine speeds forward and three reverse. The Power Train section covers clutch housing removal, clutch assembly service, full transmission disassembly and rebuild, differential and final drive repair, plus a dedicated operation, test and adjustment section for diagnosing shift faults.
Does this manual include electrical wiring schematics for the 5303 and 5403?

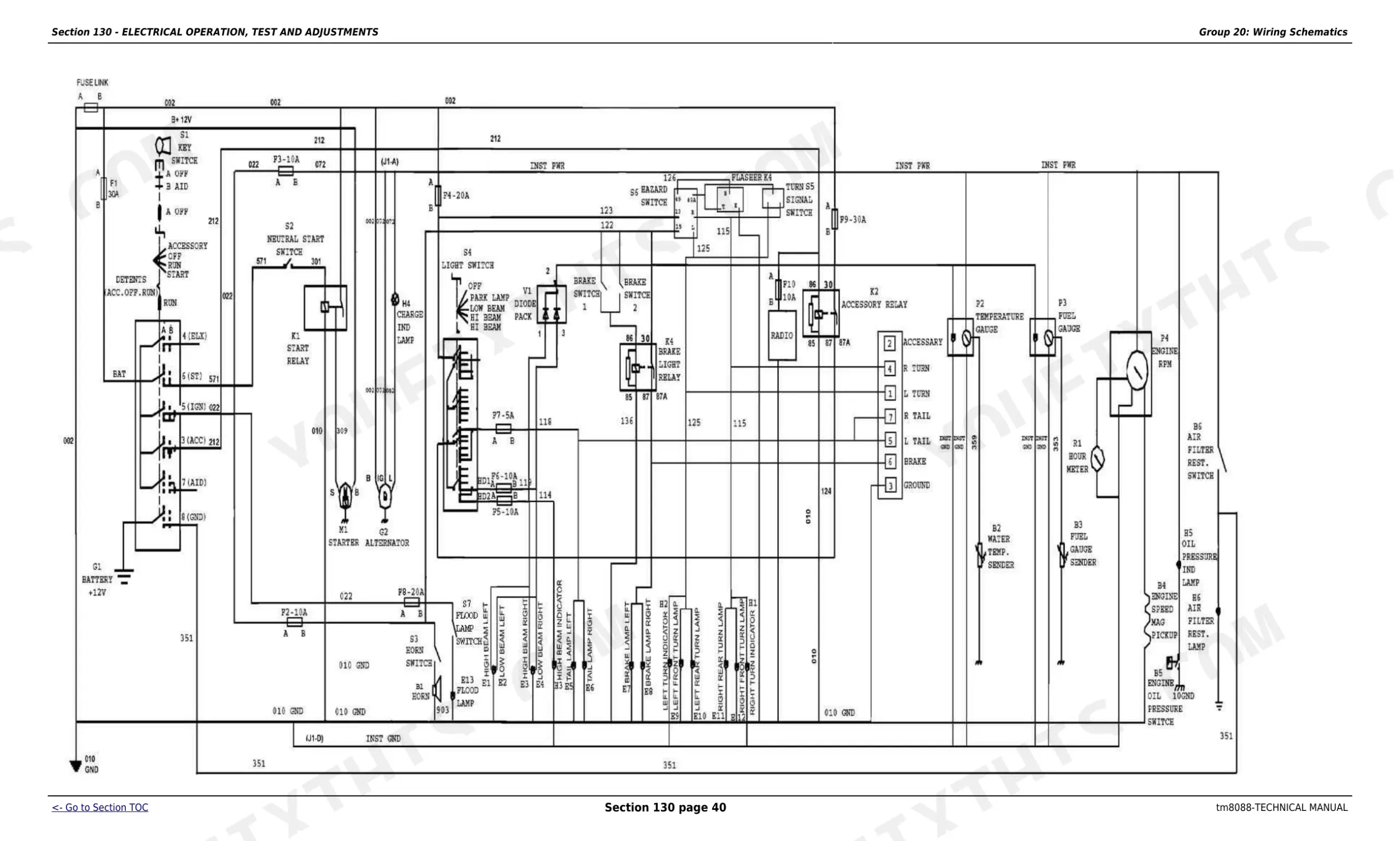

Yes. The Electrical System section covers battery, starter and alternator service, electrical components and wiring harness repair. The Electrical Operation, Tests and Adjustments section adds wiring schematics and a diagnostic procedure so you can trace intermittent faults without guessing at connections.
What fuel and lubricant specifications apply to the John Deere 5303 and 5403?
The General Information section lists the approved fuel grades, engine oil viscosity, transmission and hydraulic fluid specifications, and service intervals. Using the correct fluids and sticking to the change intervals is the single most effective way to avoid premature clutch disc wear and hydraulic pump failure on these tractors.
How will I receive this John Deere 5303, 5403 Repair?
A 1123-page Repair in searchable PDF format (23 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this John Deere 5303, 5403 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
