This is the John Deere TM1679 Technical Manual for the 4500, 4600, and 4700 Compact Utility Tractors, the same 722 page service manual John Deere wrote for its own technicians. It covers tractors built across the serial ranges listed for each model, from the 4500 through the 4700.Inside you get the full repair picture: the 4TNE84 and 4TNE88 diesel engines, the gear, hydrostatic, and PowrReverser power trains, final drives and PTO, plus electrical (North American and European sections), steering, brakes, and hydraulics. Every system is grouped together with specifications, component locations, theory of operation, troubleshooting charts, diagnostics, tests and adjustments, and step by step repair.With torque values, fluid capacities, and pressure settings taken straight from Deere, you can diagnose a fault, set clearances, and rebuild a component yourself instead of guessing or paying shop rates. It is delivered as a downloadable PDF you can read on screen or print.
What's Inside This John Deere 4500, 4600, 4700 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 4-8 | Recognize Safety Information, Replace Safety Signs, Handle Fluids Safely-Avoid Fires, Use Care in Handling and Servicing Batteries, Use Care Around High- Pressure Fluid Lines |

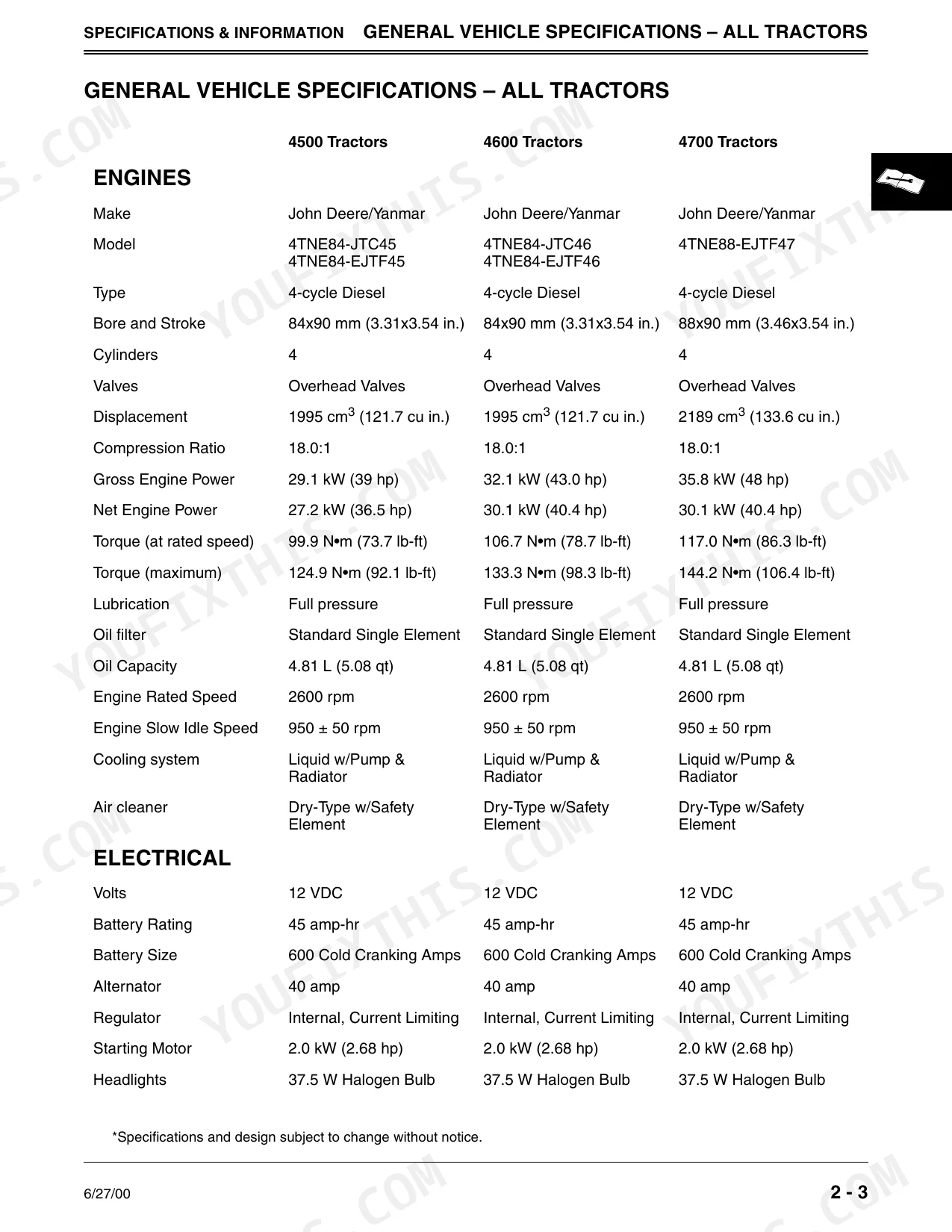

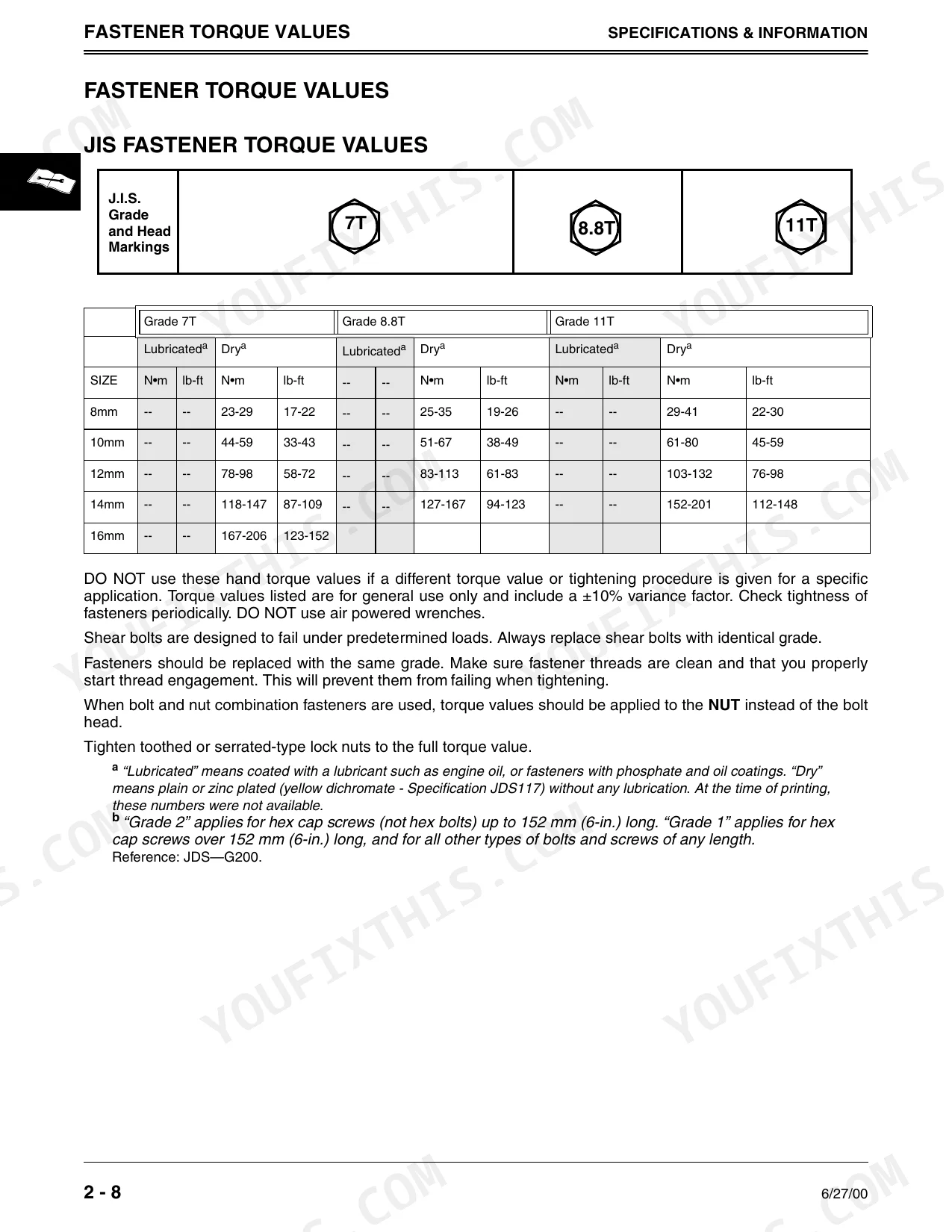

| Specifications | 9-26 | Fastener Torque Values, O-Ring Seal Service Recommendations, Diesel Fuel Specifications, Engine Oil, Transmission & Hydraulic Oil, Coolant, Product Identification Locations |

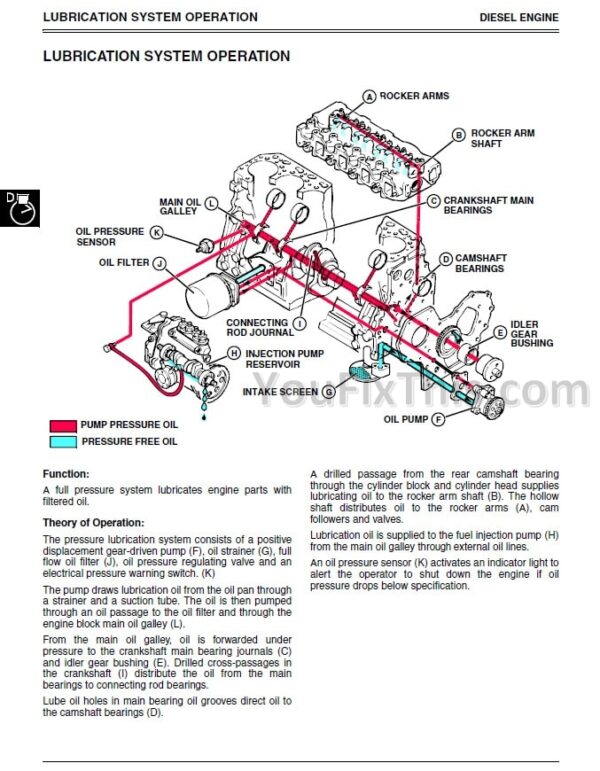

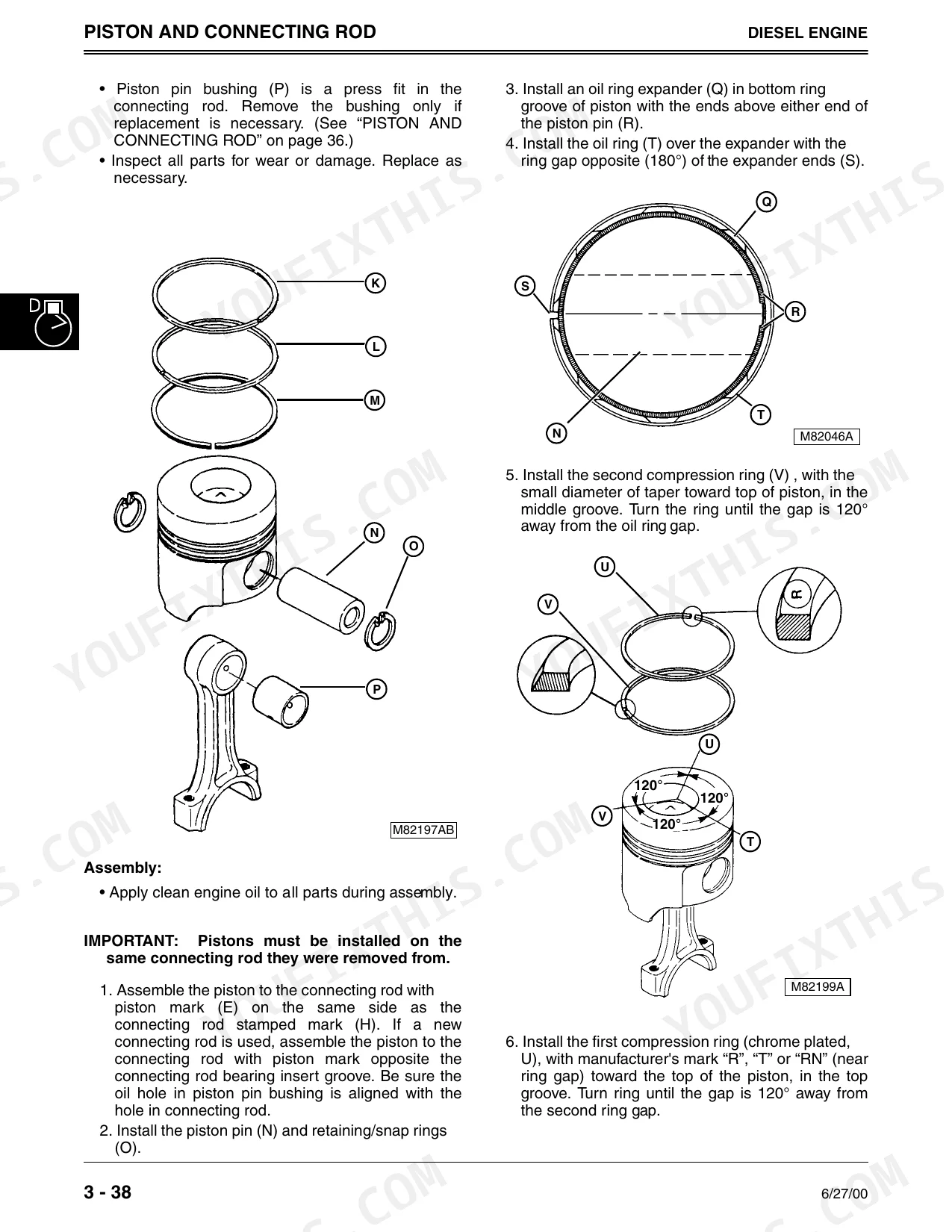

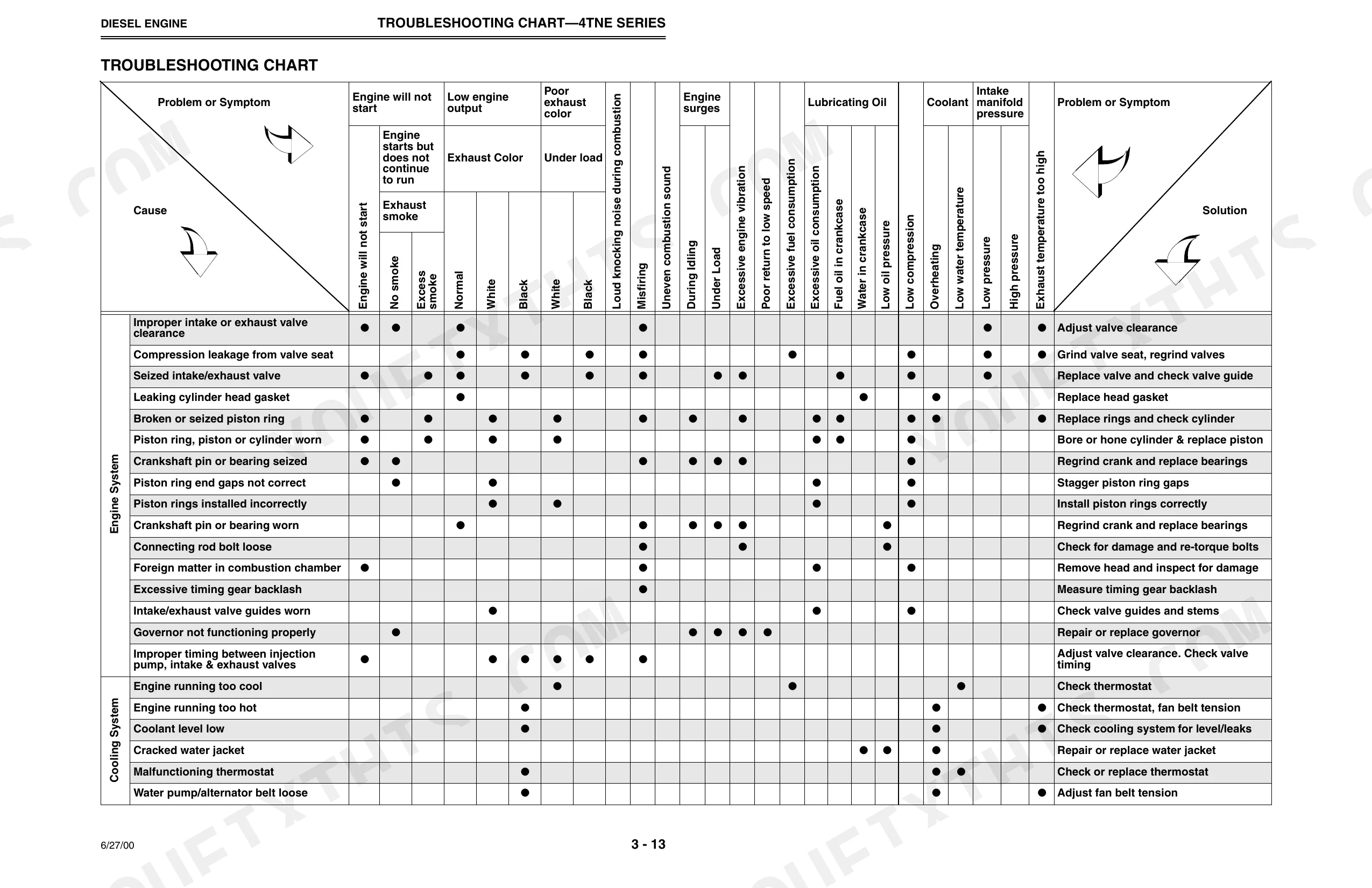

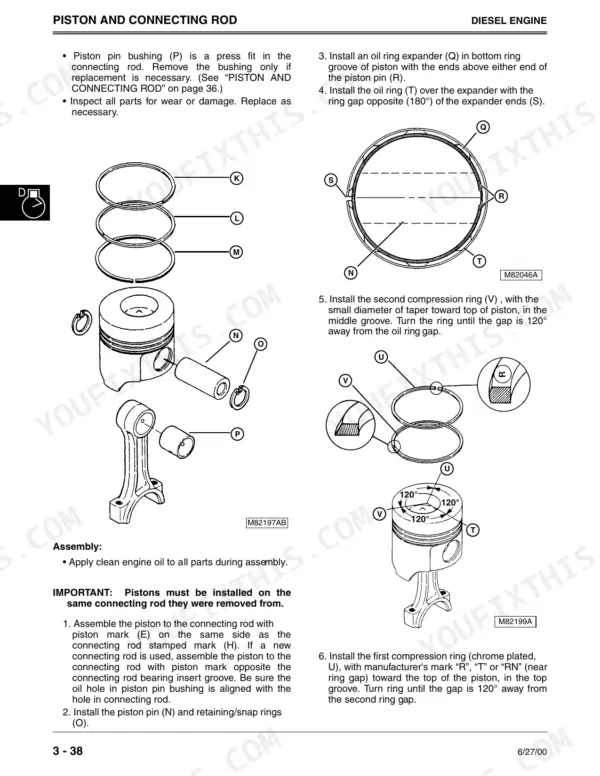

| Diesel Engine | 27-102 | Theory of Operation, Engine System Diagnosis, Tests and Adjustments, Repair |

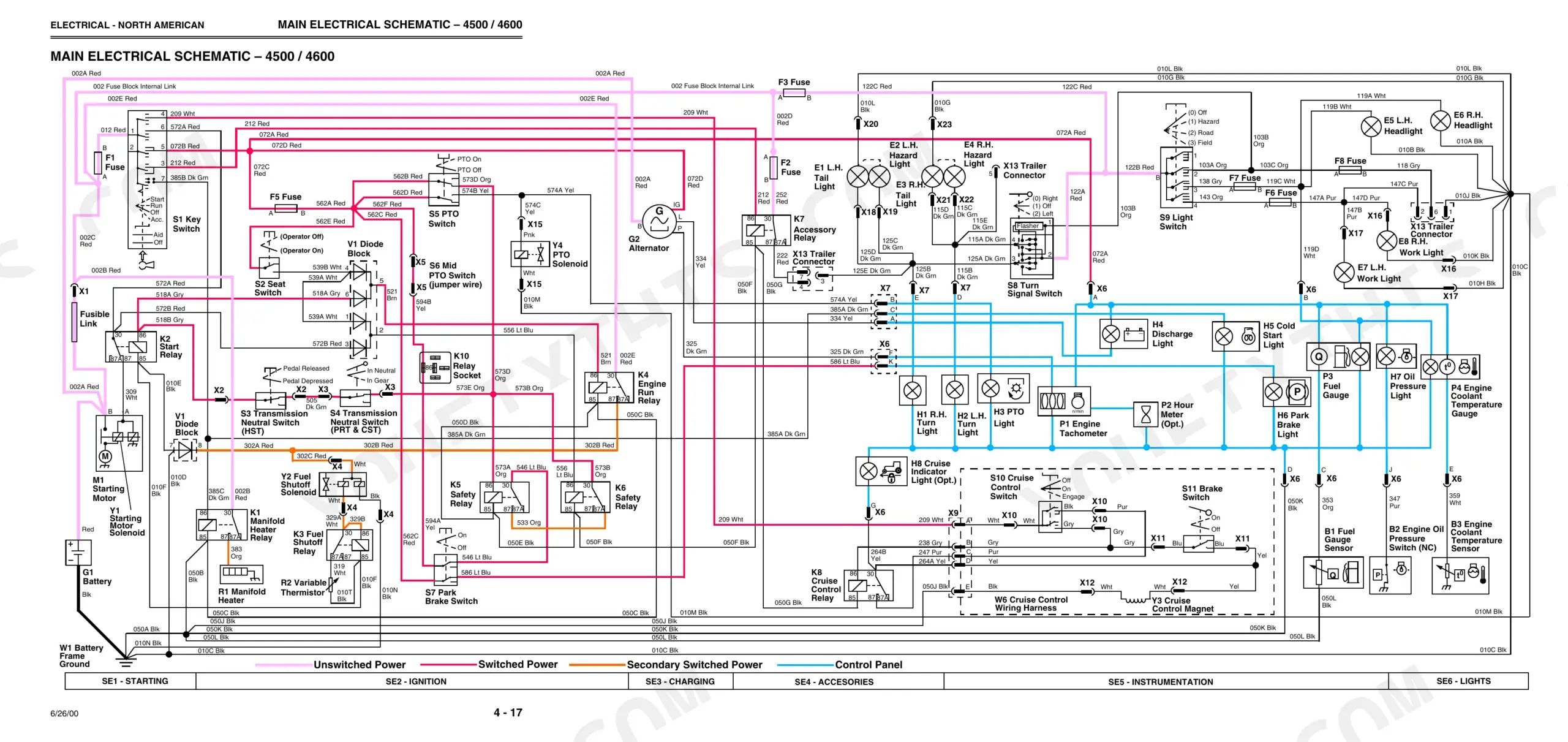

| Electrical | 103-348 | Reading Electrical Schematics, Specifications, North American Electrical Section, Tests and Adjustments, European Electrical Section, European Cab Electrical Section |
| Gear Power Train | 349-380 | Specifications, Component Location, Theory of Operation, Tests and Adjustments, Repair |
| Hydrostatic Power Train | 381-436 | Specifications, Theory of Operation, Component Location, Hydrostatic System Schematic, Troubleshooting, Diagnostics, Tests and Adjustments, Repair |
| Powrreverser™ Power Train | 437-492 | Specifications, Component Location, Theory of Operation, Tests and Adjustments, Repair |
| Final Drive Power Train | 493-586 | Specifications, Component Location, Troubleshooting, Theory of Operation, Tests and Adjustments, Repair, PTO Theory of Operation, PTO Repair |
| Steering | 587-602 | Specifications, Steering Component Location, Theory of Operation, Troubleshooting Chart, Diagnosis, Tests and Adjustments, Repair |
| Brakes | 603-626 | Specifications, Component Location, Theory of Operation, Troubleshooting Chart, Diagnosis, Tests and Adjustments, Repair |
| Hydraulics | 627-690 | Specifications, Component Location, Troubleshooting Chart, Theory of Operation, Schematics, Tests and Adjustments, Repair |
| Miscellaneous | 691-710 | Specifications, Repair, Cab |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

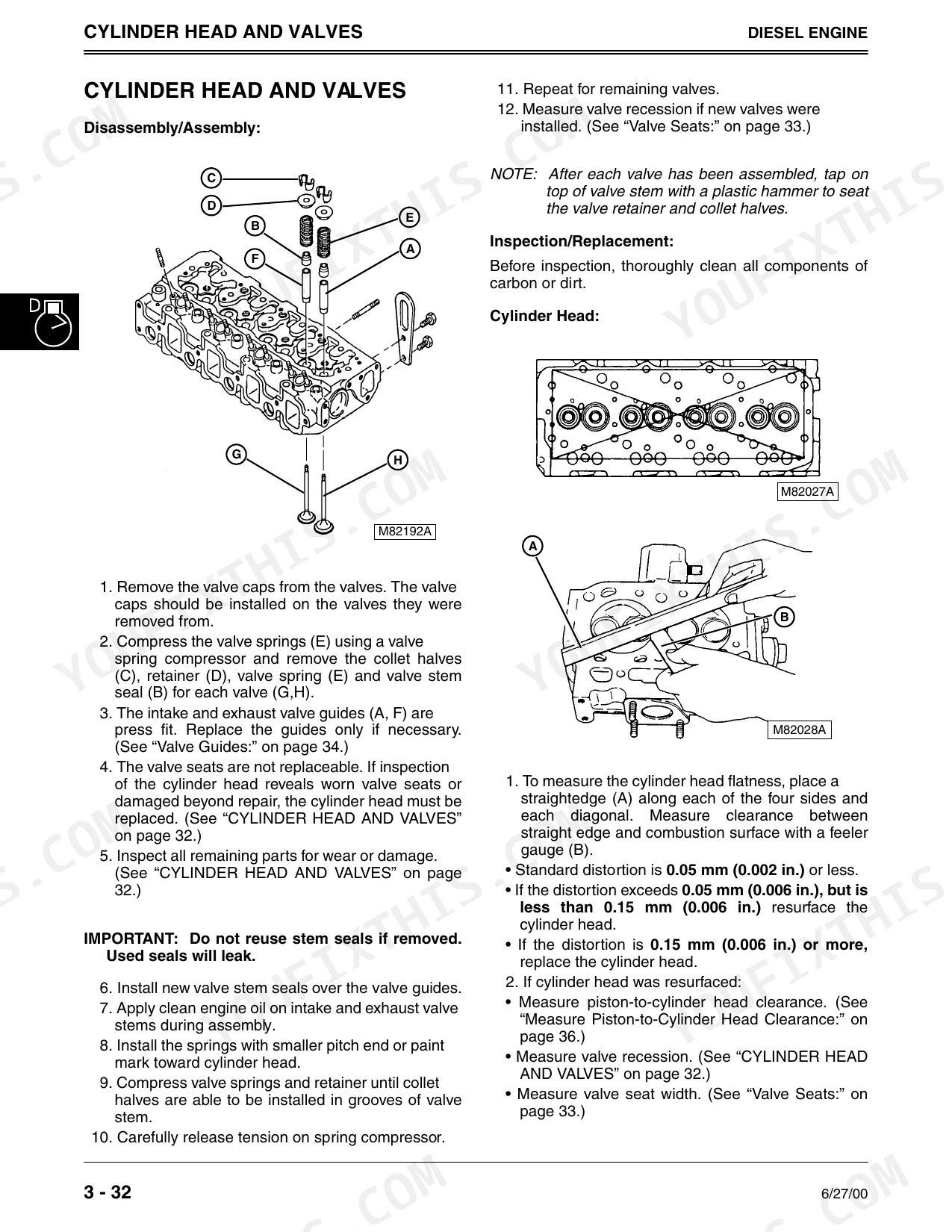

| Cylinder Head Bolts (Lubricating Oil Applied) | 85 - 91 N•m (62 - 67 lb-ft) | p. 33 |
| Rear Wheel Bolts | 88 - 108 N•m (65 - 80 lb-ft) | p. 25 |
| Front Wheel Bolts | 88 - 108 N•m (65 - 80 lb-ft) | p. 25 |
| Thermostat Opening Temperature | 69.5 - 72.5° C (157 - 163° F) | p. 33 |
| Thermostat Fully Opened | 85° C (185° F) | p. 33 |
| Battery Voltage | 12 VDC | p. 110 |
| Battery BCI group | 27F | p. 110 |
| Engine Oil Capacity | 4.81 L (5.08 qt) | p. 29 |

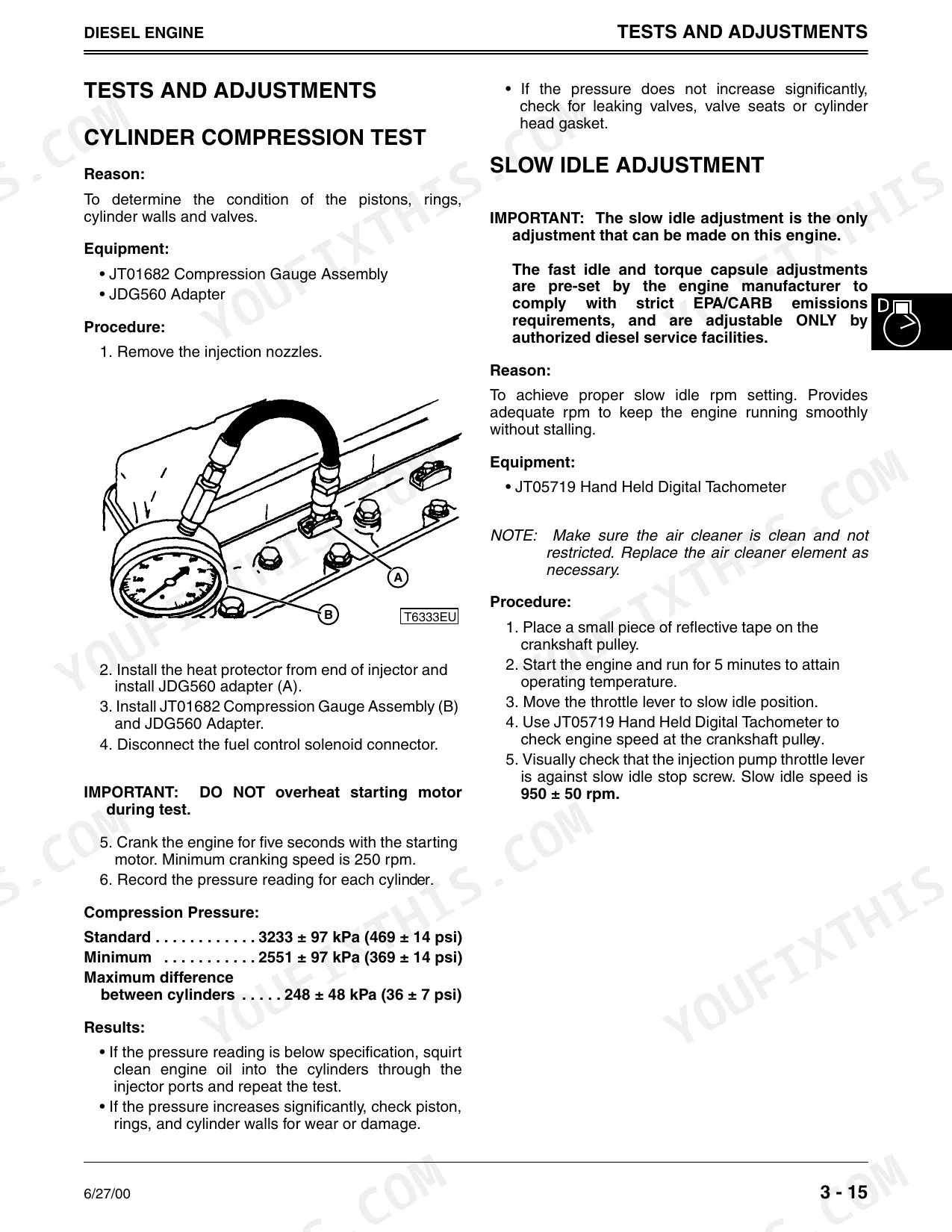

| Cylinder Compression Pressure | 3233 ± 97 kPa (469 ± 14 psi) | p. 33 |
| Clutch Pedal Free Play | 20 mm (0.780 in.) | p. 61 |
| Hydraulic Reservoir Capacity (Gear Power Train) | 37 liters (9.8 gal) (39.1 qt) | p. 61 |
| Hydrostatic Pump Pressure Relief Valve Setting | 41368 kPa (6000 psi) | p. 93 |
John Deere 4500, 4600, 4700 Common Problems This Manual Covers
Sputtering, stalling, or fuel starvation
Owners report the tractor sputters, dies, or acts fuel-starved until the fuel filter is replaced. Restricted fuel, contaminated fuel, or air in the system starves the diesel engine, and the manual walks through diagnosis and repair.
Manual Section: Section 3 - DIESEL ENGINE p. 27Overheating after grille cleaning
Coolant temperature climbs into the red or overheating persists even after cleaning the grille. The engine section covers cooling-system tests and adjustments so you can check the thermostat, radiator cap, and system pressure before it becomes serious damage.
Manual Section: Section 3 - DIESEL ENGINE p. 27Loss of drive or poor hydrostatic response
Hydrostatic tractors can lose motion, respond poorly, or fail to move under load. The manual's troubleshooting, diagnostics, and tests point to low transmission oil, a hydraulic supply issue, or a control fault.
Manual Section: Section 6 - Hydrostatic Power Train p. 381Safety interlock or PTO switch faults
Safety interlock tests fail when a seat, brake/neutral, or PTO switch acts up in the electrical circuit. The electrical section covers testing and adjusting these safety-start circuits so the tractor cranks and the PTO engages correctly.
Manual Section: Section 4 - ELECTRICAL p. 103Steering fluid leaks and hard steering
Steering that leaks or feels heavy usually traces to a hydraulic component in the steering circuit. The steering section provides component locations, a troubleshooting chart, diagnosis, and repair procedures.
Manual Section: Section 9 - STEERING p. 587Weak or dragging brakes
Brakes that feel soft, drag, or pull uneven need adjustment or repair. The brakes section gives specifications, theory of operation, a troubleshooting chart, and step by step repair to restore stopping performance.
Manual Section: Section 10 - BRAKES p. 603Frequently Asked Questions
Which models and years does this manual cover?
It is the John Deere TM1679 Technical Manual for the 4500, 4600, and 4700 Compact Utility Tractors, covering the serial ranges listed for each model. These tractors were produced from roughly 1998 to 2001.
Does it include cylinder head bolt torque specs?
Yes. The Diesel Engine section lists the cylinder head bolt torque as 85 to 91 N·m (62 to 67 lb-ft) with lubricating oil applied, plus other fastener and engine specifications. p. 27
Will it help with hydrostatic drive problems?
Yes. The Hydrostatic Power Train section covers theory of operation, the system schematic, troubleshooting, diagnostics, and tests and adjustments for loss of motion, poor response, or drive faults. p. 381
Does it cover the electrical system and safety switches?
Yes. The Electrical section includes North American and European wiring, schematic reading, specifications, and tests and adjustments, including the seat, neutral, and PTO safety-interlock circuits. p. 103
What do I get after purchasing this John Deere 4500, 4600, 4700 manual?
A 722-page searchable PDF, ready to download right after checkout. It works on any device, so you can pull it up on the phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this John Deere 4500, 4600, 4700 manual?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. Any standard printer handles it.
Are hydraulic system diagrams in this John Deere 4500, 4600, 4700 manual?
Yes. It includes hydraulic system diagrams, circuit schematics, and component specifications.
