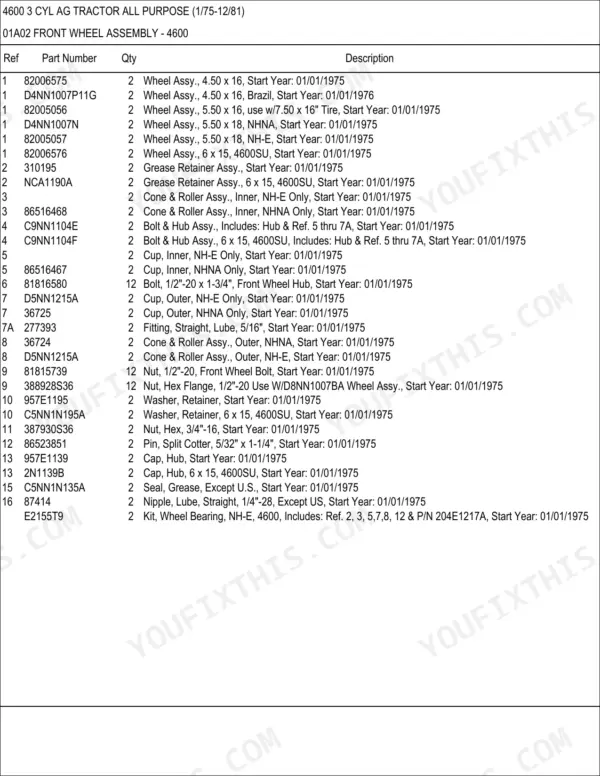

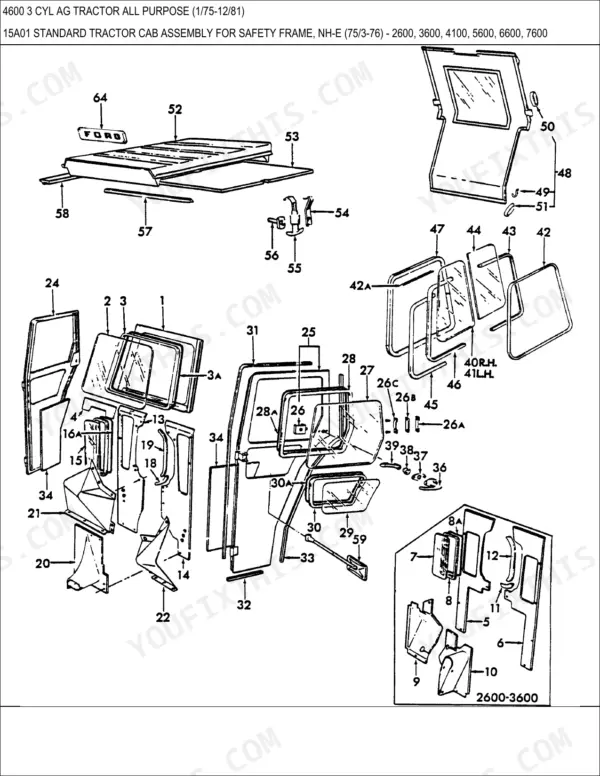

Hunting for a Ford 4600 parts manual PDF that shows the whole machine? All 706 pages of this factory parts catalog map the 1975-1981 Ford 4600 Agricultural Tractor, from front axle to rear lamps. Inside: exploded views keyed to original part numbers for the 3-cylinder gasoline and diesel engines, 8-speed transmission, hydraulic lift, steering gear, PTO, brakes, cab glass, seats, and electrical system, plus accessory kits like weights, tow hooks, and remote cylinders. You get full parts lists with cross-references, abbreviation tables in English, French, and Spanish, and a metric-to-inch conversion chart. Fill the transmission with 25 liters of oil and know the power steering pump relief valve is rated at 650 PSI; that data sits right in the listings. Stop ordering the wrong bushing twice. Bookmarked with a live text layer, so you can search any part number and jump straight to the figure.
What's Inside This Ford 4600 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Diesel, W/Rotor Injection Pump - Except 7600, 7700, Gasoline, Single Fuel Filter, Dual Fuel Filter Assembly, Air Cleaner, Oil Bath Type, Nhna Nh-E, Air Cleaner Assembly, Dry Type, Foot Accelerator Controls, Fuel Injection Pump, Rotor - Except 7600, 6600, 6700 Nh-E Nhna, Fuel Injector Assembly - Diesel, Carburetor Assembly, Holley, Zenith, Fuel Pump Assembly, Electric Fuel Pump, Fuel Filter Kit, Accessory, All Tractors, Nhna, Fuel Sedimenter & Fuel Filter | |
| Cooling System | Transmission Oil Cooling System, Radiator & Related Parts, Water Pump & Related Parts | |
| Engine | Cylinder Block, Head & Related Parts, Crankshaft, Flywheel & Related Parts, Camshaft, Rocker Arm, Valves & Related Parts, Gasoline, Cylinder, Diesel, Cylinder Engine, Pistons & Connecting Rods, Diesel - Except 7600, 7700, Oil Pump & Pan, Engine Gasket Kits, 3-Cylinder Gasoline & Diesel, Hydraulic Pump Assemblies, Engine Mounted, Piston Type, Lubrication Equipment, Accessory | |
| Electrical System | Headlamp Assembly, Nhna, Front Mounted, Head & Utility Lamps, Fender or Cab Mounted - Except 3900, Front Mounted Nh-E, W/Cab, Front Mounted Ece, Nh-E - Except 231, 531, Side Mounted Headlamps, Duplo, Nh-E, Rear Wiring, W/Flat Top Fenders, W/Stop Lamps & Flashers, W/Wide Fenders & Ece Lights, Italy, Rear Lamps, L/Cab, Flasher Lamps & Turn Signal, Stop & Flasher, W/Flat Fenders, Nh-E & Nhna Imports, Parking Lamps, Side & Flasher, Lamp Assembly, Parking, Flasher Lamp Assembly | |
| Clutch & Transmission | Transmission Handbrake, Transmission Shaft, FWD, Nh-E, Transfer Box, W/Wet Clutch, Hand Lever, 8 Speed Transmission - Case, Shift Levers & Related Parts, 8 Speed Transmission - Gears & Related Parts, Clutch Controls, W/Cab, Single Clutch Assembly, 11", 6 & 8 Speed Trans., 12" & 13", 13", Reduction Gear Box Assembly, Cylinder, Transmission Shift Pattern Decals, Nhna | |
| PTO | Independent Power Take-Off Assembly, W/7 & 8-Speed & Manual Reversing, PTO Guard Kit & Assembly, Accessory, PTO Gear Housing & Pulley W/Guard | |
| Rear Axle, Differential & Brakes | Rear Wheels, Rear Wheel Weights, Brakes & Brake Controls, Hydraulic Trailer Brakes, Rear Axle, Differential & Related Parts, Standard, Power Adjustable, 24", Accessory, Rear Wheel Wgts., 30", For Manual Adj. Wheel, Acc.Y, 30" & 34", For Power Adjustable Wheels, Brake Linkage & Pedals, W/Cab, Handbrake, Handbrake Lever & Cable, Handbrake Attaching Parts, Germany, Differential Lock Linkage | |
| Front Axle & Steering | Front Wheel Assembly, Front Wheels, Front Wheel Drive, Front Axle, Steering & Related Parts, Steering Gear Assy, Steering Pump & Reservoir, FWD, Front Wheel Weights, Accessory, Manual & Power, Steering Gear Assy., Power Steering Gear Assembly, Power, Nh-E, Steering Arms | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger & Related Parts, Drawbar Stays, Remote Control Valve O-Ring Kit, Selector Valve, Hydraulics, Remote Control Valves, Automatic Pick-Up Hitch & Swinging Drawbar Kits, Hydraulic Lift Assist Ram, Lift Quadrant, W/Cab, Accessory, Selector Valve Assembly | |
| Body & Operator Station | Engine Block Kit, Stepped Stud, Foot Throttle Controls, W/Cab, Diesel, Instrument Panel, Nhna, Deluxe Seat Assembly, Super Comfort Seat Assembly, Steel Pan Seat & Related Parts, Custom Deluxe Seat Assembly, Seat Assembly, Brazil Unique, Crown Fenders, Platform, Tool Box & Related Parts, Flat Top Fenders, Round Roof Safety Frame, Germany, Engine Hood, Grille & Related Parts, Front Fenders, Nh-E, Seat Belt for 2-Post ROPS, Tractor Cab Kits, Vinyl, Accessory | |
| Decals & Accessories | Front End Weights, Accessory, Front End Wafer Weights, Front Bumper, Weights & Mount Kits, External Lift Link Check Chains, Stabilizer Kit, Identification Decals, Identification Decals & Plates, Identification Decal Kits, Decals, Instruction, Safety, Nh-E, Nhna, Kit, Tools, Engine Coolant Heater Kits, Rear View Mirror Kits, Safety Emblem Parts | |
| Other Components | Front End Weights, Front Bumper, Weights & Mount Kits, Stabilizer Kit, Pipe & Coupling Kits, Quick Attach Hitch, Drive Shafts, FWD, Nh-E, Differential Box, Reduction Gears, Front Support, Front Transfer Housing, Internal Parts of Pinion, Reduction Box, Transfer Box, W/Collar Gear, Center Housing & Related Parts, Single & Double Acting, Quick Attach Hitch - Series 796, Nhna |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Power Steering Pump Relief Valve Pressure | 650 PSI | p. 63 |
| Filter, Engine Oil, Spin-on | 1 quart | p. 172 |
| Oil, Transmission | 25 Liters | p. 638 |
Ford 4600 Common Problems This Manual Covers
Ford 4600 power steering pump worn out, unsure which pump and seal kit fits my serial range
Check the hydraulic pump exploded views starting, which break down the engine mounted piston pump, gear pump, relief valves, and seals. Match your pump against the parts number list by serial range. Confirm the relief valve you order is rated for the 650 PSI relief pressure listed on page 63.
Manual Section: Hydraulic Pump AssembliesNeed the correct draft control and lift quadrant parts for a hydraulic lift rebuild
Check the Hydraulic Lift Cover section, which itemizes the lift cover assembly, draft control, lift quadrant, and hydraulic lift shaft. Verify each part against the parts number list before ordering. Plan the refill as well: transmission oil capacity, shared with the rear hydraulics, is listed as 25 liters on page 638.
Manual Section: Hydraulic Lift Cover & Related PartsTransmission oil cooler hoses cracked and leaking, can't identify replacement hose and bracket part numbers
Inspect your old cooler lines, then check the Transmission Oil Cooling System section covering the cooler assembly, hoses, tubes, and brackets. Match routing against the drivetrain parts diagram and cross-reference numbers. Drain before swapping hoses; a full transmission refill takes 25 liters per page 638.
Manual Section: Transmission Oil Cooling SystemFrequently Asked Questions
What are the replacement specifications for the engine oil filter?
For the 6600C model, use filter assembly part number 86546617. For other models, use filter part number 86546614 or 86546614DS. p. 172
What is the part number for the hydraulic oil filter element?
The replacement filter element for the hydraulic system is part number C5NNN832B. p. 124
What is the correct replacement belt for the alternator on a 4600 tractor?
For the 4600 tractor, the correct alternator belt is part number 86518903, which is a 1/2 inch by 28 inch belt. p. 420
What is the part number for the fuel filter element for the CAV single fuel filter system?
The fuel filter element kit for the CAV single fuel filter system is part number 83937061. p. 267
How quickly can I access this Ford 4600 manual after buying?
You get a 706-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Ford 4600 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
