An hour from now you could have this 88-page Ford 2600 operator manual PDF, factory publication 42260040, open on the fender while you run break-in checks on a tractor that is new to you. One download covers four models across the 2600 to 4600 range. Controls and instruments get an early walkthrough, from brake and transmission levers to the hydraulic lift, and the operation section handles starting, the differential lock, belt pulley, wheel tread settings, and ballast. Lubrication and maintenance takes the largest share of the book, built around a chart that tells you which fitting gets grease at which hour interval. Gap the plugs at 0.023 to 0.027 inch, and after resetting rear tread, pull the wheel nuts to 90-120 lbs. ft. on the 2600 and 3600, 300-420 lbs. ft. on the 4100 and 4600 Jobs stall on numbers like that, usually with rain coming. Buy it once and it is yours for keeps: a bookmarked PDF you can keyword-search from the tractor seat.
What's Inside This Ford 2600, 3600, 4100, 4600 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 22 | Tractor, Operating the Tractor, Driving the Tractor, P.T.O. Operation |
| Controls and Instruments | 23-30 | Seat, Light, And Engine Controls, Brake Controls, Transmission and P.T.O. Controls, Hydraulic Lift Controls |

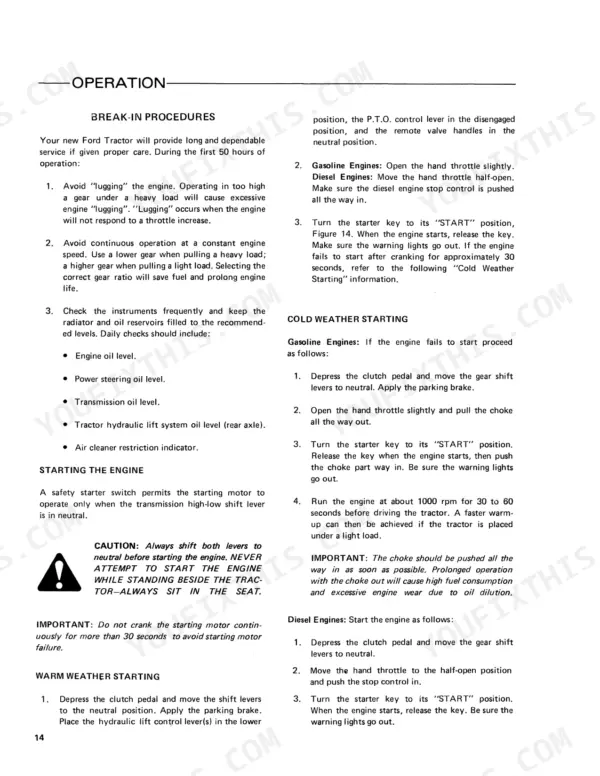

| Operation | 31-54 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating Transmission and P.T.O., Towing the Tractor, Operating Differential Lock, Operating Belt Pulley |

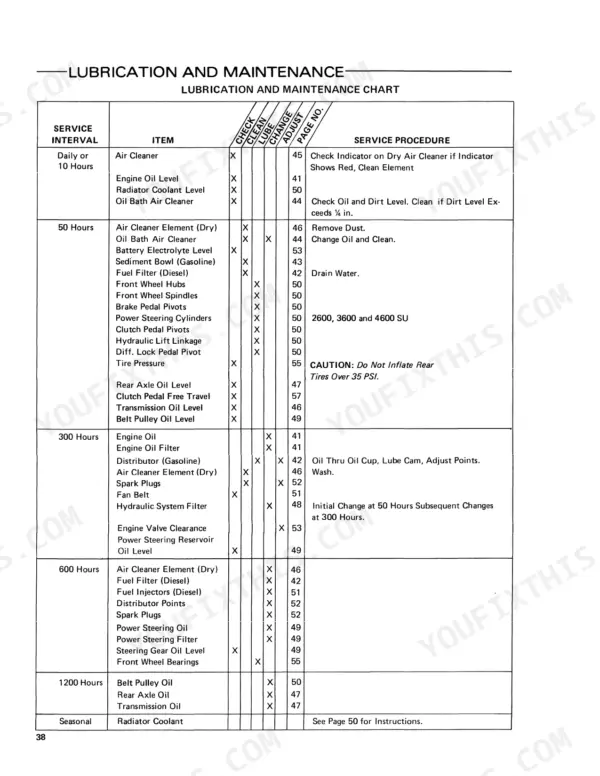

| Lubrication and Maintenance | 55-76 | Lubrication and Maintenance Chart, Fuels and Lubricants (Fuel and Lubricant Service Procedures, Tractor Storage) |
| Specifications | 77-83 | Capacities, Electrical System, Engine, Clutch, Brakes, Hydraulic System |
| Pre-Delivery and 50-Hour Service | 84-88 | Inoperative Service Checks, Operative Service Checks, Performance Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 2600, 3600 | ||
| Rear wheel nut torque (2600, 3600) | 90-120 lbs. ft. (12.4-16.6 kgm) | p. 46 |
| 4100, 4600 | ||
| Rear wheel nut torque (4100, 4600) | 300-420 lbs. ft. (41.5-58.1 kgm) | p. 46 |
| All Models | ||
| Nominal Hydraulic System Pressure | 2500 psi | p. 80 |
| Spark Plug Gap | 0.023-0.027 inch | p. 80 |
Ford 2600, 3600, 4100, 4600 Common Problems This Manual Covers
Ford 2600 gasoline engine hard starting after sitting all winter, cranks but won't fire
Check the engine starting procedure on page 32 and follow it exactly for a cold start. Verify the fuel is fresh; stale gas after winter storage is the usual culprit. Remove the spark plugs, clean them, and gap each to 0.023-0.027 inch. Reinstall the plugs and crank with the choke set as the procedure directs.
Manual Section: Engine Starting (Warm/Cold Weather) p. 32Hydraulic lift weak, three-point hitch drops under load or won't hold implements raised
Check rear axle oil level first; low fluid is the top cause of a hitch that drops. Verify you are in position control, not draft control, when carrying mounted implements. The system runs a nominal 2500 psi, listed on page 80, so weak lift with correct fluid means the pump needs a shop visit.
Manual Section: Hydraulic Lift System Troubleshooting p. 80Rear wheel loose or wobbling after adjusting wheel tread for row crop work
Torque the rear wheel nuts to the figure for your model: page 46 calls for 90-120 lbs. ft. (12.4-16.6 kgm) on the 2600 and 3600, and 300-420 lbs. ft. (41.5-58.1 kgm) on the 4100 and 4600, after any tread change. Inspect the disc-to-rim bolts while you are under there, then recheck the nuts after the first hour of loaded fieldwork before heading back out.
Manual Section: Operation p. 46Frequently Asked Questions
What are the torque specifications for the rear wheel nuts on a Ford 4100 or 4600 tractor?
After changing the rear wheel tread settings, the wheel nuts on the Ford 4100 and 4600 tractors should be torqued to 300–420 lbs. ft. (41.5–58.1 kgm). p. 46
What are the replacement specifications for clutch pedal free travel on Ford 2600, 3600, 4100, 4600 tractors?
To maintain maximum clutch life, the clutch pedal free travel should be checked every 50 hours. The correct free travel distance is 1 1/4 inches (31.7 mm). p. 75
What is the recommended service interval for changing the engine oil and filter on a Ford 2600, 3600, 4100, 4600?
The engine oil and filter should be changed every 300 hours of operation. p. 59
What is the correct valve clearance setting for the intake and exhaust valves on a Ford 2600, 3600, 4100, 4600?
The intake valve clearance should be set to 0.014 go-0.016 no-go (.35–.41 mm), and the exhaust valve clearance should be set to 0.017 go-0.019 no-go (.43–.48 mm). p. 71
What is the correct fan belt deflection for these tractors?
The fan belt should deflect about 3/4 inch (19.0 mm) for an old belt, or about 1/2 inch (12.7 mm) for a new belt, when 25 lbs. (11.3 kg) of pressure is applied midway between the alternator and crankshaft pulleys. p. 69
What do I get after purchasing this Ford 2600 manual?
A 88-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I free to print this Ford 2600 Operator Manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
