This is the factory illustrated parts catalog for the Ford 5610 tractor, build dates January 1981 through December 1993. It is a figure-search book: exploded-view drawings with part numbers and quantities for every assembly on the tractor, from the cylinder block and crankshaft to the hydraulic lift cover, 8-speed and synchronized transmissions, Dual Power unit, front axle, steering gear, rear axle, brakes, cab, and electrical parts. You look up the figure, match the callout to your worn part, and walk into the dealer or online listing with the exact number. Be clear on what it is not: there are no repair procedures, torque specs, or wiring diagrams here. This book is for identifying and ordering parts, and it does that job properly.
What's Inside This Ford 5610 Parts Manual

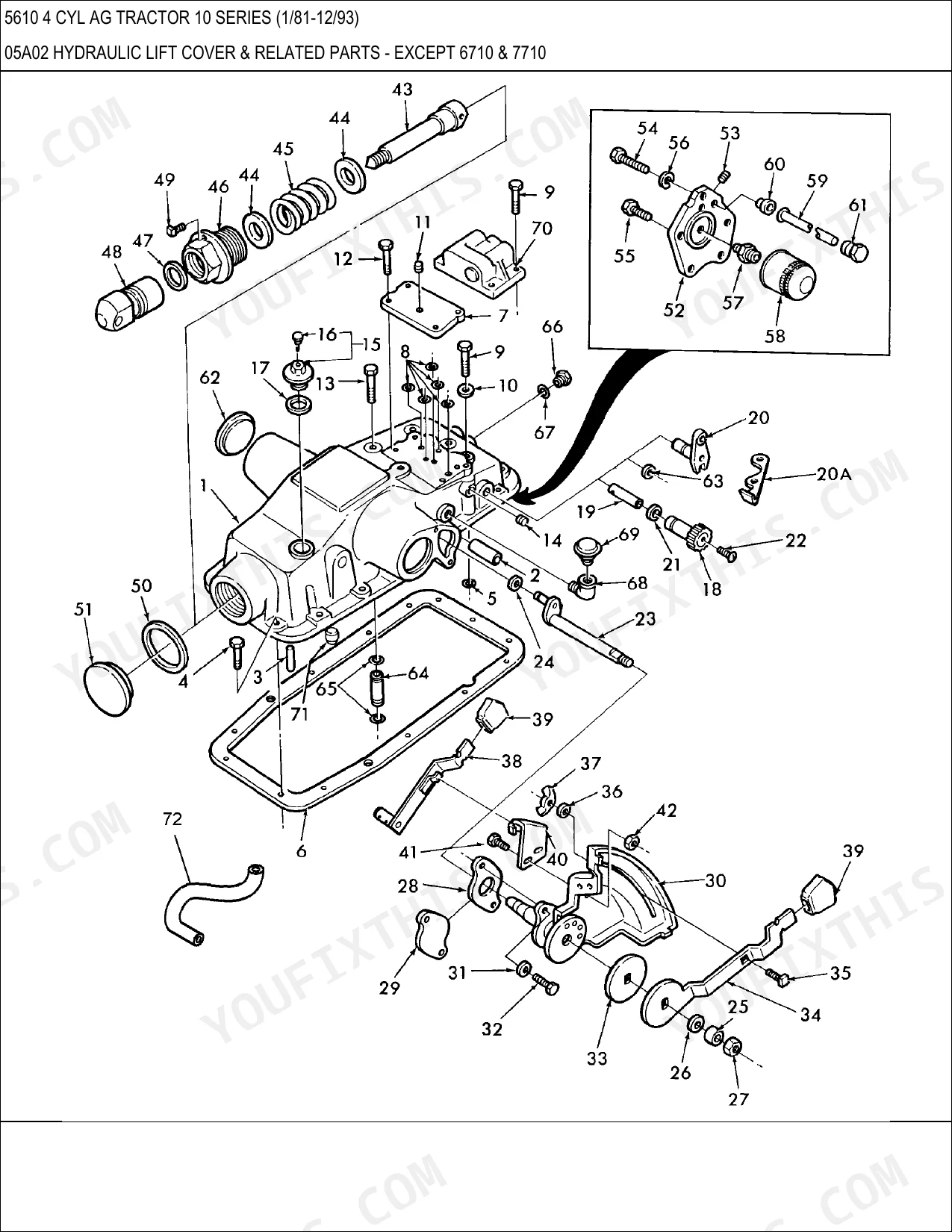

| System | Pages | Key Topics |
|---|---|---|
| Wheels and Tires | 9-39 | Front Wheel Assembly, Rear Wheels, Power Adjustable Rims, Wheel Weights, Dual Wheels |
| Brakes | 40-66 | Brake Assemblies, Brake Linkage and Pedals, Transmission Handbrake, Hydraulic Trailer Brakes |
| Front Axle and Steering | 67-171 | FWD Front Axle and Differential, Hubs and Spindles, Steering Gear, Power Steering Pump and Cylinder |
| Rear Axle and Differential | 172-185 | Rear Axle Housing, Differential and Final Drive, Differential Lock Controls |
| Hydraulic Lift and Controls | 186-280 | Hydraulic Lift Cover, Lift Cylinder and Piston, Draft Control Linkage, Remote Control Valves |
| Engine | 281-312 | Cylinder Block and Head, Crankshaft and Flywheel, Pistons and Connecting Rods, Camshaft and Valve Train |
| Transmission | 313-403 | 8-Speed Non-Synchronised Gearbox, Dual Power Unit, Gearshift and Cover Assembly, PTO Drive |
| Cooling and Oil Cooler | 404-424 | Radiator and Shroud, Water Pump, Thermostat Housing, Engine Oil Cooler |
| Fuel System | 425-511 | Fuel Tanks and Lines, Inline Injection Pump, DPS Rotary Injection Pump, Filters and Injectors |
| Hydraulic Pump | 512-520 | Engine Mounted Hydraulic Pump, Pump Drive, Hydraulic Tubing |
| Electrical System | 521-645 | Wiring Harnesses, Starter and Alternator, Lamps and Switches, Battery and Cables |
| Instruments | 646-673 | Instrument Cluster, Gauges and Senders, Warning Lamps, Instrument Panel |
| Seats | 674-701 | Grammer Suspension Seat, Super Comfort Seat, Deluxe Seat Assembly, Seat Belts |
| Fenders and Platform | 702-727 | Flat Top Fenders, Rear Mud Fenders, Operator Platform, Tool Box |
| Cab | 728-866 | Cab Frame and Glass, Doors and Latches, Interior Trim, Heater and Vents, Mirrors |
| Decals | 867-885 | Identification Decals, Instruction Decals, Safety Decals |
| Paints and Lubricants | 886-929 | Paints, Lubricants, Lubrication Equipment, Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Weight | Approx. 43 lbs. | p. 27 |
| Rear Wheel Weight | 70 lbs. | p. 29 |
| Rear Wheel Weight | 100 lbs. | p. 31 |
Ford 5610 Common Problems This Manual Covers
Hydraulic pump is weak or leaking and you need the pump, seals, and O-rings identified before tearing in
The Hydraulic Lift section shows the pump in exploded view with every seal, O-ring, gasket, and hardware item called out by part number and quantity, plus the lift cover, control linkage, remote valves, and load monitor, so one order covers the whole reseal.
