Hunting down components is simple with this 132-page Ford 1000 Parts Catalog PDF (OEM #FTO-17219-B) built specifically for your tractor. Open to highly detailed exploded views covering the entire machine, from the internal cylinder block components to the hydraulic control valve quadrant. You get complete part numbers, precise hardware descriptions, and clear exploded views to ensure you order exactly what you need for a successful repair. Identify the specific fuel injection pump components, locate the exact three-point linkage pins, or confirm the correct flasher lamp wiring harness before you ever pick up the phone to call the parts counter. Stop guessing at part numbers and paying restocking fees for the wrong hardware. Download this bookmarked file directly to your tablet, search by keyword, and build your parts list right the first time.
What's Inside This Ford 1000 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

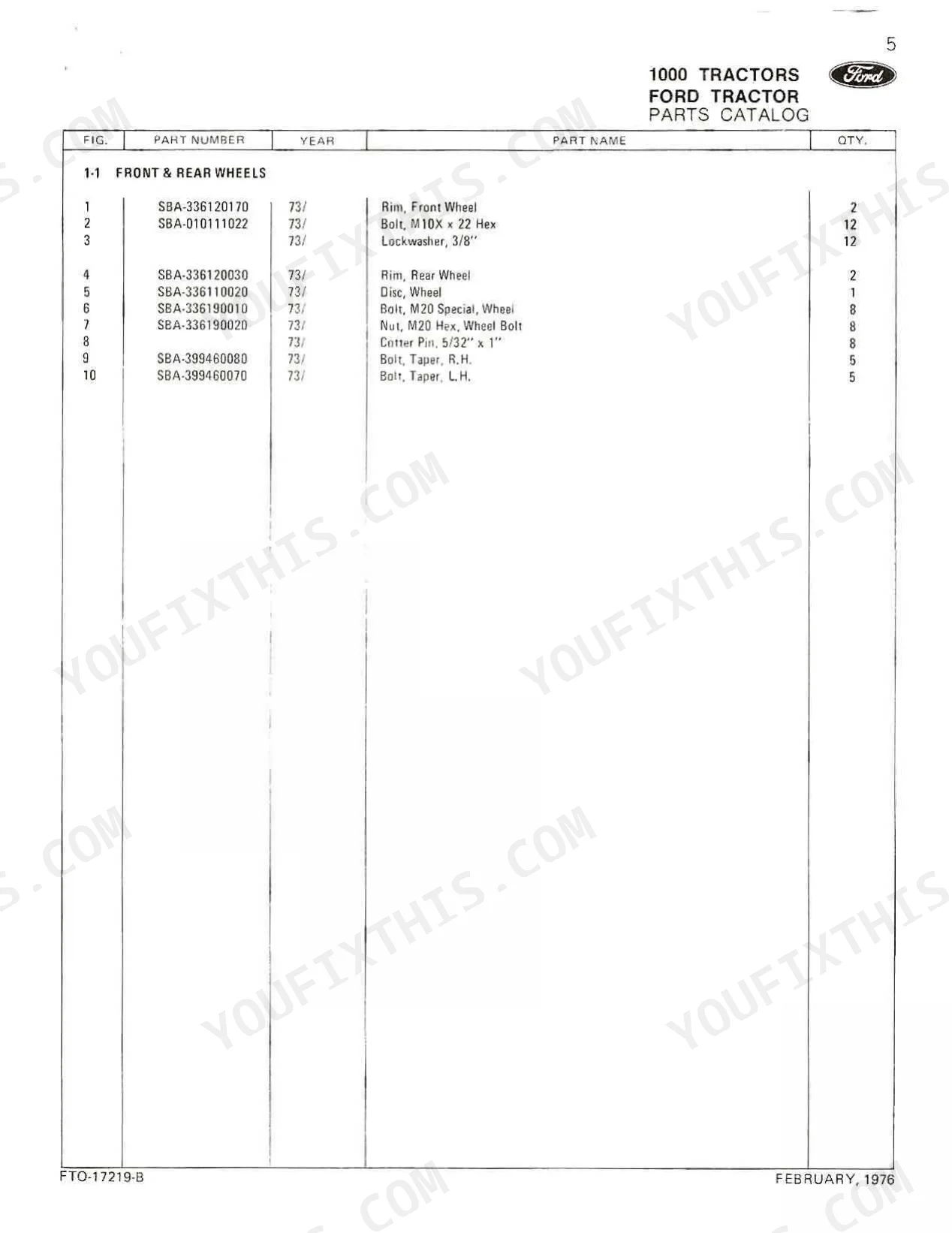

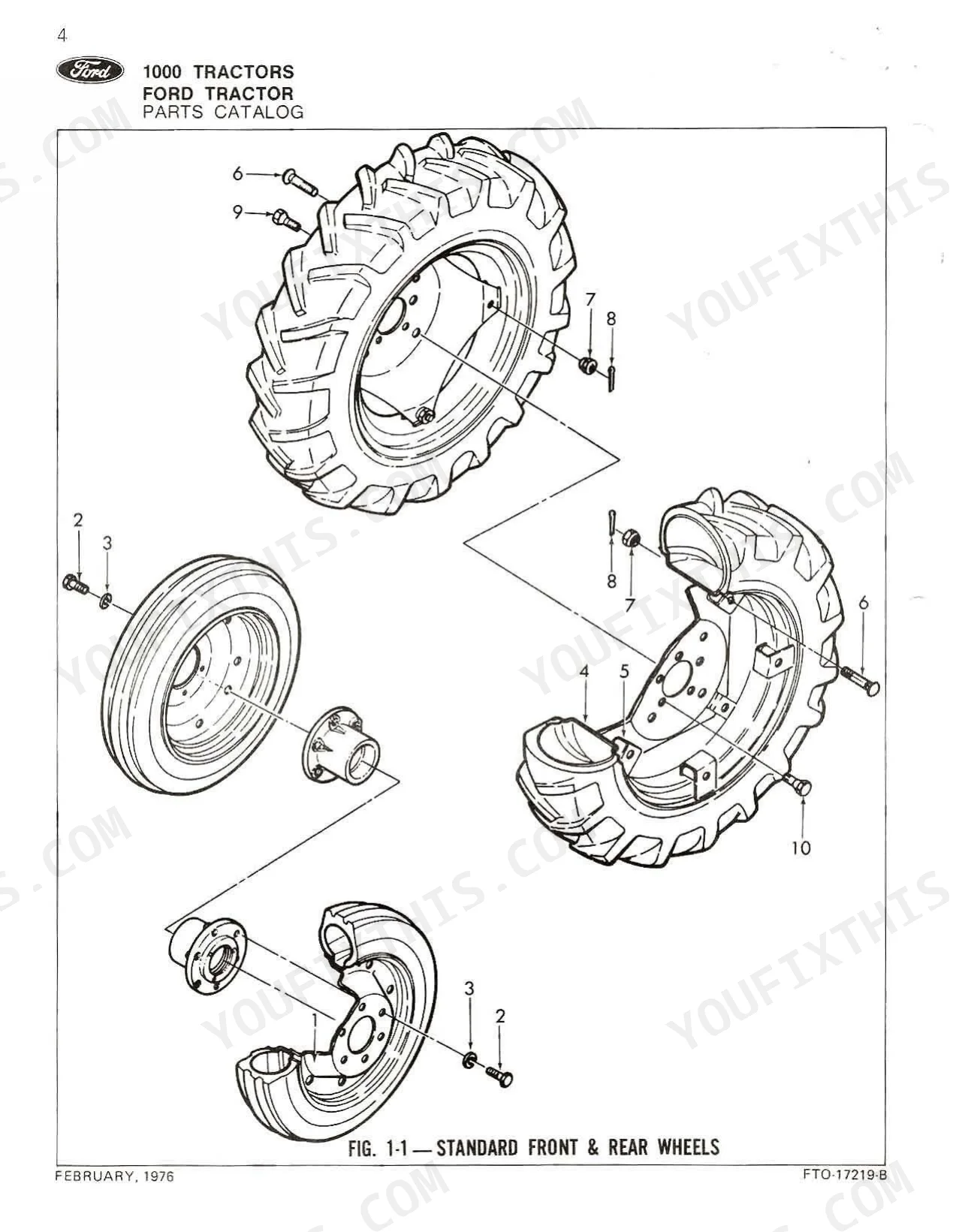

| Wheels | 5-12 | Standard Front Wheels, Standard Rear Wheels, Optional Front Wheels, Optional Rear Wheels, Front Wheel Weights, Rear Wheel Weights |
| Brakes | 13-16 | Brake Drum, Brake Carrier, Brake Cover, Brake Cam, Brake Shoe, Brake Shaft |
| Front Axle & Steering | 17-24 | Steering Column and Wheel, Steering Arm and Knuckle, Front Axle |
| Rear Axle | 25-30 | Differential Housing, Differential Gear, Pinion Shaft, Housing, Shaft, Final Drive Gear |
| Hydraulic Controls | 31-50 | Hydraulic Control Valve and Quadrant, Lift Cover and Arms, Piston and Bracket Parts, Pump and Supplements, Hydraulic Pump, Three Point Linkage, Shield and Hitch, Drawbars |
| Engine | 51-66 | Cylinder Block, Crankshaft Parts, Flywheel and Related Parts, Timing Gear Case, Cam Shaft, Pistons and Rods, Cylinder Head, Air Cleaner and Exhaust |
| Transmission, Clutch & PTO | 67-78 | Gear Shift, Transmission Gears, Transmission Case and PTO, Pedal and Steps, Clutch and Housing |
| Cooling System | 79-83 | Radiator Parts, Water Pump |
| Fuel System | 84-93 | Fuel Tank and Filter, Injection Pump and Related Parts, Fuel Injection Pump, Fuel Injector |
| Electrical System | 94-109 | Wiring Harnesses, Alternator, Starting Motor, Lighting Accessories, Flasher Lamps |
| Instrument Panel | 110-115 | Tachometer, Ignition Switch, Horn Switch, Throttle Control, Battery |
| Sheet Metal | 116-121 | Hood and Grille, Fender, Seat, Slow Moving Vehicle Emblem, Seat Belt and Rollbar |
| --- Decals | 122-131 | Identification Decal, Diesel Oil Information Decal, Fuel Injection Pump Decal, Caution Decal, PTO Decal, Engine Start-Stop Decal |
Ford 1000 Common Problems This Manual Covers
Ford 1000 tractor hydraulic pump leaking fluid and need the correct replacement seal kit part numbers
Check the hydraulic parts diagram on page 32. Identify the required hydraulic pump seal kit and cross-reference the numbers. Verify compatibility with your specific 540 RPM PTO configuration before ordering to ensure correct fitment for the lift cover and internal piston.
Manual Section: Hydraulic Controls p. 32Rear axle differential gear grinding noise and cannot locate the correct replacement housing assembly part numbers
Inspect the drivetrain parts diagram on page 26. Locate the differential gear, pinion shaft, and housing part numbers. Compare the required 6-bolt housing assembly against your serial number to ensure you order the exact replacement components for the final drive gear.
Manual Section: Rear Axle p. 26Wiring harness melted near the starting motor and need the exact replacement part numbers
Review the electrical parts diagram on page 95. Find the exact part numbers for the main wiring harnesses and the 12-volt starting motor. Match the alternator and lighting accessory connectors in the diagram to your old harness before sourcing the replacement parts.
Manual Section: Electrical System p. 95Engine cylinder block scored deeply and require the standard or oversized replacement piston part numbers
Examine the engine parts diagram on page 52. Locate the cylinder block, pistons, and timing gear case part numbers. Measure your worn cylinder bore to the nearest 0.001 inches to verify if you need standard or oversized replacement piston kits.
Manual Section: Engine p. 52Frequently Asked Questions
What are the replacement specifications for grease fittings and lubrication points?
The manual specifies the use of a lubrication fitting (SBA-060620000) for various components, such as the front axle spindle (page 23) and the steering arm (page 21). These fittings require regular lubrication to maintain proper operation of the steering and suspension systems. p. 23
What is the part number for the oil filter on the Ford 1000 tractor?
The oil filter for the Ford 1000 tractor is identified by part number SBA-140516040. p. 66
What is the correct stud for the cylinder head cover?
The cylinder head cover is secured using studs identified as SBA-012109029. p. 61
What is the part number for the radiator cap?
The radiator cap for the Ford 1000 cooling system is part number SBA-310110010. p. 81
What is the part number for the fuel filter element?
The replacement fuel filter element for the Ford 1000 fuel system is part number SBA-360720020. p. 86
Is this Ford 1000 Parts Catalog a digital download?
You get a 132-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Ford 1000 Parts Catalog?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
