Chasing part numbers for your 1984-1990 Ford 2810? This Ford 2810 parts catalog PDF packs 626 pages of factory lookup data for the 3 cylinder AG tractor. You get exploded views of every assembly: front axle and steering, hydraulic lift, transmission and PTO, brakes, rear axle and differential, plus the electrical system, cab, and heater group. A metric-to-inch hardware conversion section keeps your bolt substitutions honest. Match the 45mm (1.77-inch) power steering valve seal, or pull the right valve assembly by pressure rating: 800 PSI or 1050 PSI, straight from the figure. Your dealer's parts counter closed years ago; this catalog is what they used. Bookmarked with a full text layer: type the part name, jump to the figure, order once.
What's Inside This Ford 2810, 2810 3 CYL AG Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Gasoline, Diesel, Fuel Filter, Single, Dual, Fuel Injection Pump, Fuel Injector Assembly, Carburetor Assembly, Fuel Pump Assembly, Gas, Diesel Fuel Primer Assembly Kit, Air Cleaner Assembly, Oil Bath, Fuel Sedimenter & Filter Assembly, Primer Assembly, Fuel | |
| Cooling System | Transmission Oil Cooling System, L/Cab, W/Cab, Radiators & Related Parts, Water Pump & Related Parts | |

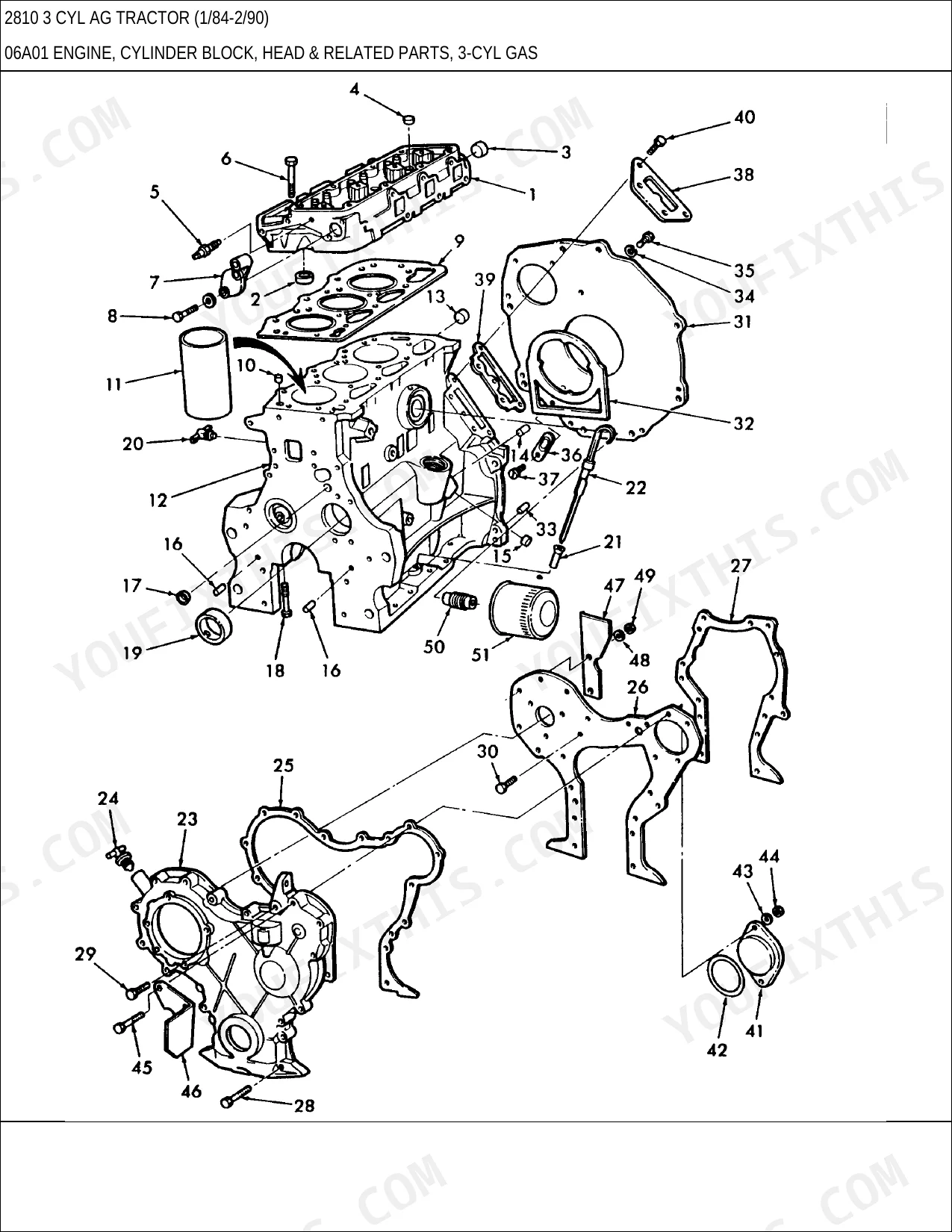

| Engine | Cylinder Block, Head & Related Parts, 3-Cyl Gas, 3-Cyl Diesel, Kit, Stepped Stud Engine Block, Crankshaft, Flywheel & Related Parts, Cyl Engine, Camshaft, Rocker Arm, Valves & Related Parts, Oil Pump & Oil Pan, Manifold & Exhaust System, Pistons & Connecting Rods, Gasoline, Diesel, Engine Gasket Kits, Hydraulic Pump Assembly, Engine Mounted, Gear Type, Aux. Engine Mtd. Hydraulic Pump Tubing, Engine Hood & Grille, Lubrication Equipment & Lubricants, Ford Engine & Hydraulic Oils, Engine Coolant Heater Kits, Accessory | |

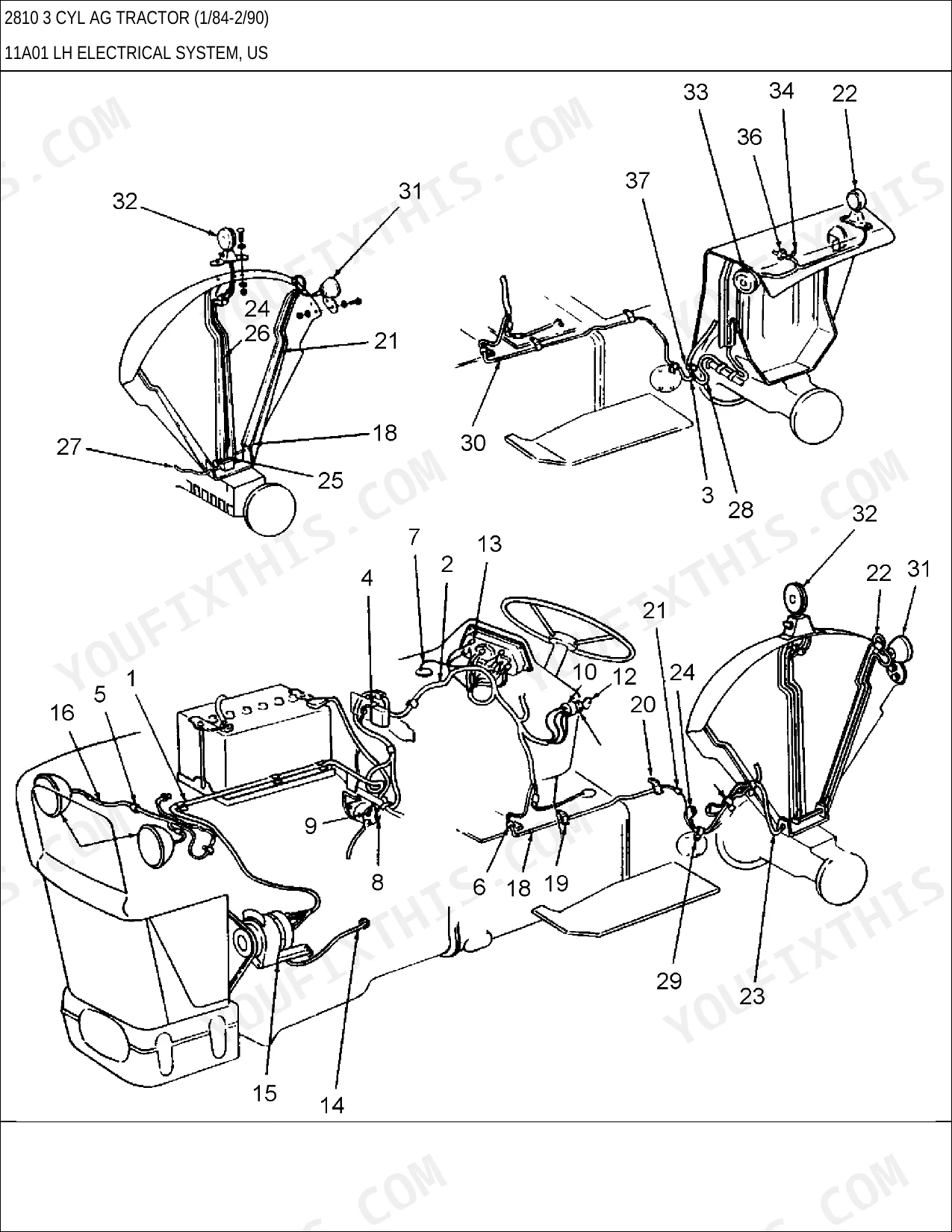

| Electrical System | Headlamp Assembly, - Front Mounted, Head & Utility Lamps, - Fender Mounted, Inset Headlamp Assembly, &, Side Mounted Headlamps, Headlamp, Side Mounted, Insert Headlamp Assembly, Rear Wiring, Rear Lamps, Flasher Lamps & Turn Signal, Round Lens, Square Lens, Lamp Assembly, Stop, Rear & Turn Signal, Emergency Warning, Rear Lamps - Stop & Flasher, Parking Lamps, Side & Flasher, Lamps, Front & Side, Stop & Flasher W/turn Indicator W/Cab, Stop & Flasher W/turn Indicator | |

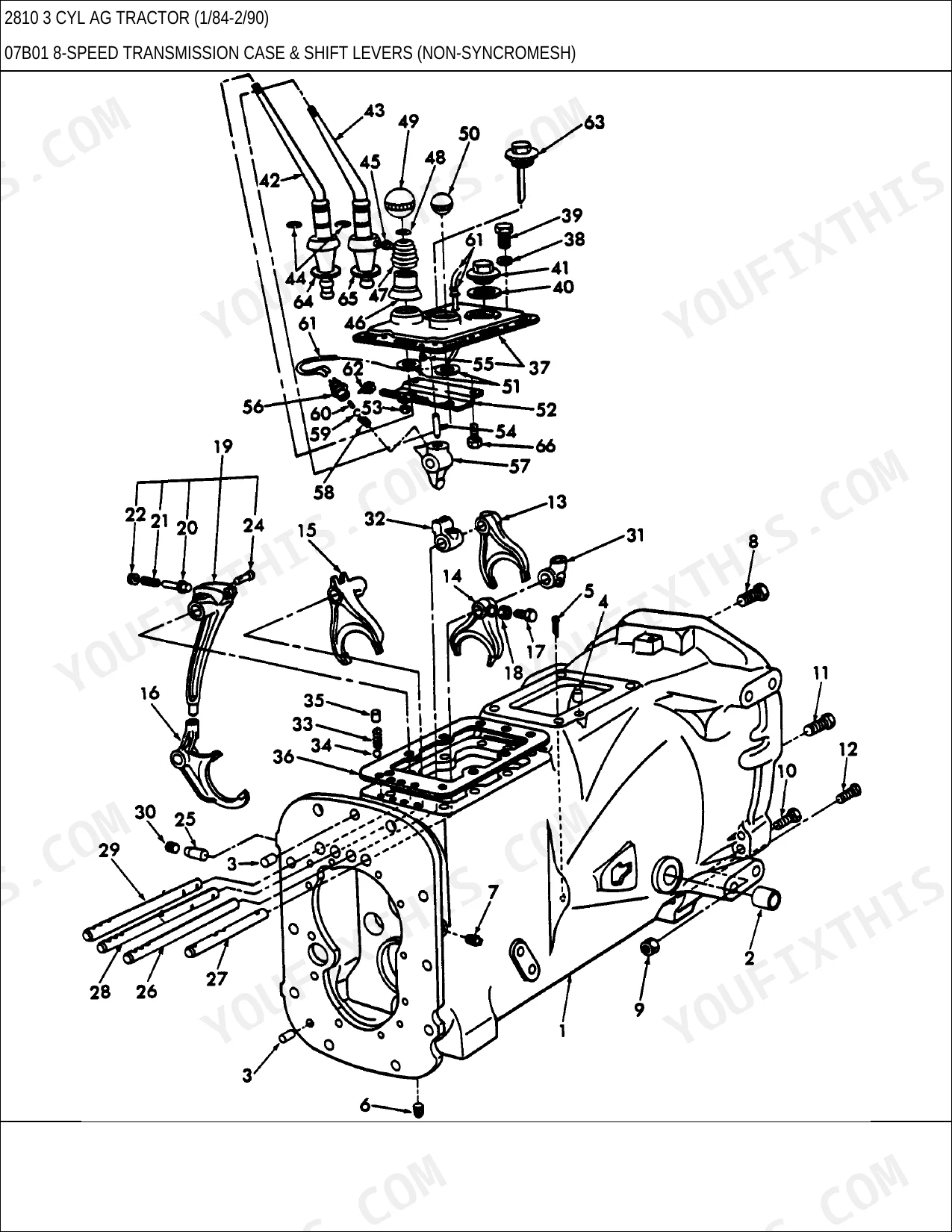

| Clutch & Transmission | Transmission Handbrake, Transmission Shaft, 8-Speed Transmission Case & Shift Levers, 8-Speed Non-Synchronized Transmission Gears, 8-Speed Synchronized Transmission Case, Synchronized Trans. Case - W/"H" Pattern Shift, 8-Speed Synchronized Transmission Gears, Column Mounted Gear Shift, Live Transmission Power Take Off Assy., W/double Clutch, Ipto Clutch Linkage, Clutch Controls, L/Cab, W/Cab, 11" Single Clutch Assembly, 13" Clutch Assembly, Reduction Gear Box Assembly, L/syncromesh Transmission, Steering Column Gear Shift Trim | |
| PTO | Rear Axle Related Parts, W/FWD, W/ipto, Independent Power Take-Off Assembly, Ground Speed PTO Related Parts, PTO Guard Kit, PTO Guard | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Manual Adjust Rear Wheel Weights W/square Discs 28", Brakes & Brake Controls, Brake Linkage & Pedals W/Cab, Handbrake, Handbrake Lever & Cable W/Cab, Hydraulic Trailer Brakes W/Cab, Brakes, Rear Axle, Differential & Related Parts, Differential Lock Linkage | |
| Front Axle & Steering | Front Wheel Assembly, FWD, Front Axle, Steering & Related Parts, Manual & Power, W/q Cab Only, Power Steering, L/Cab, W/lp Cab, Steering Gear Assembly, Power, Manual W/l Cab, Power W/l Cab, Power Steering Pump & Reservoir, W/Cab, Power Steering Cylinder Assembly & Related Parts, Swivel Housings & Steering Arms, Reduction Gears, Transfer Case, Steering Gear Covers, "H" Pattern Covers & Seals, W/FWD | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger & Related Parts, Selector Valve, Hydraulic Remote Control Valves - Single & Double Spool, Double Acting Remote Cylinder Coupling Kits, Deluxe Remote Control Valve & Coupler, Remote Control Unload Valve Assembly, Deluxe Remote Control Valve - Single & Double Spool, Coupling Assembly, Remote Control, Leverless, Economy Linkage Parts, Hydraulic Pump Assembly, Center Housing Mounted, Hydraulic Remote Control Cylinder Assembly | |
| Loader, Backhoe & Attachments | Stabilizer Assembly, Stabilizer Kit, 2-Post Rollbars, W/ & L/stabilizer Links | |

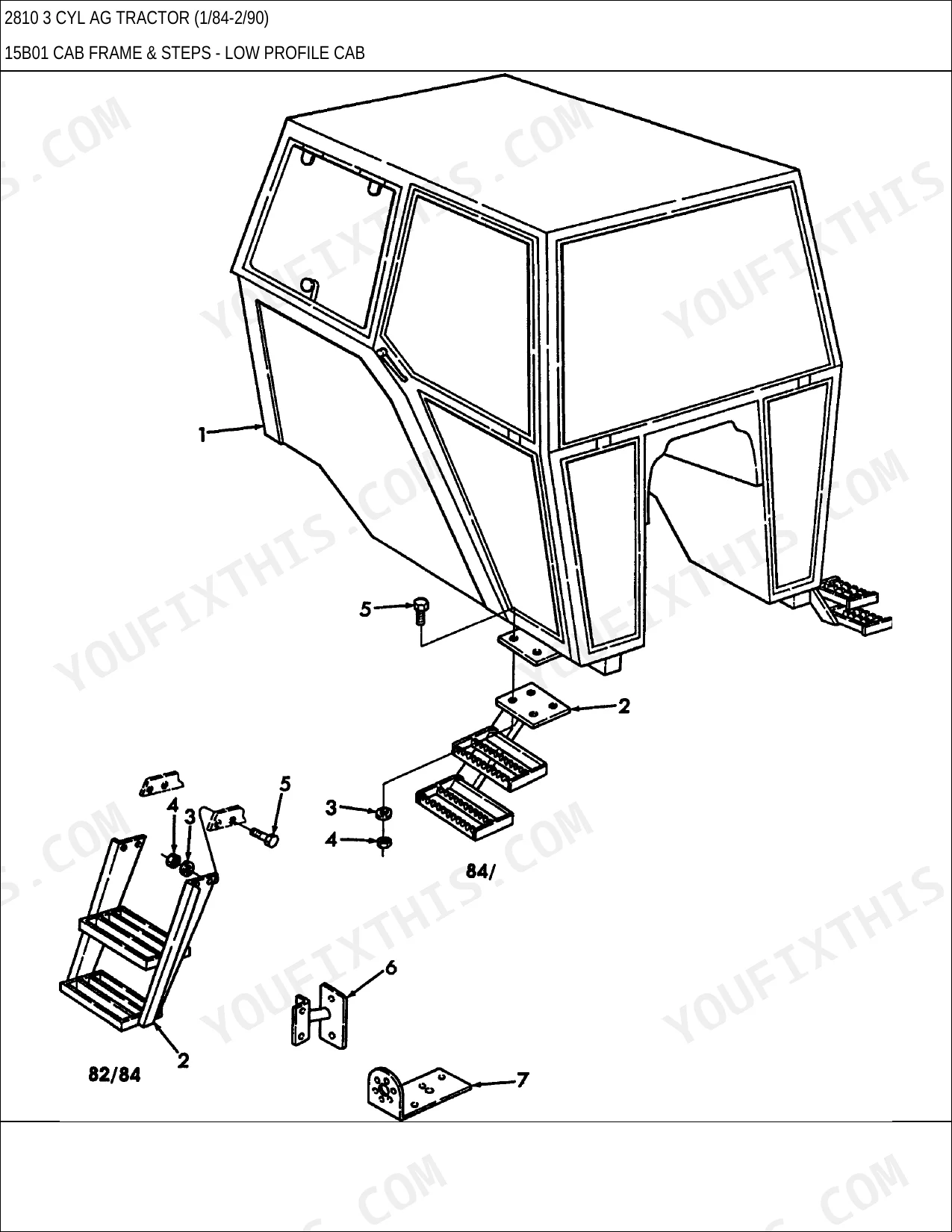

| Body & Operator Station | Foot Throttle Controls L/Cab, Foot Throttle Controls W/Cab, Trailer Sockets, W/lp Cab, Deluxe Suspension Seat Assembly, Crown Fenders, Platform & Tool Box, Flat Top Fenders, Rear Mud Fenders W/Cab, U.k., Round Roof Safety Frame, Germany, "H" Pattern Covers & Seals, W/Cab, Cab Heater, Cab Heater Hoses, Cabs, Soft Side, Seat Belt for 2-Post ROPS, Frame Assembly - Roll Bar Upper, Roof Assembly, Canopy, Cab Frame & Steps - Low Profile Cab | |
| Decals & Accessories | Dealer Installed Accessory Kits, U.S. Only, Identification Decals, Instruction Decals, Kit, Instruction & Safety Decals, Safety Decals, Warning, Tools | |
| Other Components | Front End Wafer Weights, Axle Housing, Ring Gear & Pinion Assembly, Drive Shafts, Front Support, Front Transfer Housing, Internal Parts of Pinion, Center Housing & Related Parts, Coupling Kit, H" Pattern Shift Assembly, Water Filter, Nhna, Dia, Diesel Cold Start, Throttle Controls & Related Parts, Gasoline, Diesel, LH Electrical System, Us, RH Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Seal, Power Steering Valve, 45mm (1.77") O.D. | 45mm (1.77") | p. 60 |
| Seal, 2.00/2.16 Wide, 57mm (1.46") O.D. | 57mm | p. 66 |
| Valve Assy., 800 PSI | 800 PSI | p. 69 |
| Valve Assy., 1050 PSI | 1050 PSI | p. 69 |
| Tube, Upper | C5NNB853A | p. 127 |
| Starting Motor (Diesel) | 4-1/2 inch diameter | p. 380 |
| Alternator Output | 51 Amp | p. 393 |
| Fuse Rating | 5 Amp | p. 349 |
Ford 2810, 2810 3 CYL AG Common Problems This Manual Covers
Ford 2810 power steering leaking at the gear housing, can't identify which seal to order
Check the power steering valve seal listing on page 60; that seal measures 45mm (1.77 inch) O.D. Compare it against the 57mm O.D. steering gear seal shown on page 66 before ordering, since the two look alike off the shelf. Match the part number to your serial number range in the parts index.
Manual Section: How to Use Figure Search p. 60Two power steering relief valve assemblies listed, not sure which pressure rating fits
Verify your original valve before ordering; the listing on page 69 shows an 800 PSI assembly and a 1050 PSI assembly for different build ranges. Pull the old valve, read the tag, and match it to the serial number range in the parts list. The wrong rating will leave steering pressure low or blowing seals.
Manual Section: How to Use Figure Search p. 69Starter drags on cold cranking, need the correct diesel starter motor part number
Test the battery and cables first, then pull the starter and compare it to the exploded view on page 380. The diesel unit is the 4-1/2 inch diameter frame starter; measure your old frame before ordering. Check the drive and solenoid listings in the same figure so you can order wear parts in one shot.
Manual Section: Starting Motor Assembly p. 380Charging system dead, three different alternator amp ratings listed and the original tag unreadable
Check the alternator listings on page 393 for the 32 Amp and 51 Amp units, then the 46 Amp version on page 401. Match mounting bosses and pulley style to your old unit before ordering. While the panel is open, verify the 5 Amp fuse listed on page 349 has not opened before blaming the alternator.
Manual Section: Alternator Assembly p. 393Metric fastener and shim sizes in the parts lists won't match inch hardware on hand
Measure the fastener with calipers, then run it through the conversion tables starting on page 625, which cover screw diameter and length. Small parts are the usual trap: steering gear shims on page 66 come in 0.05mm, 0.13mm, and 0.25mm thicknesses, thinner than anything in an inch drawer. Order by part number, not by measured size.
Manual Section: General Information - Metric to Inches p. 625Frequently Asked Questions
What is the torque specification for the front wheel hub bolts on the Ford 2810?

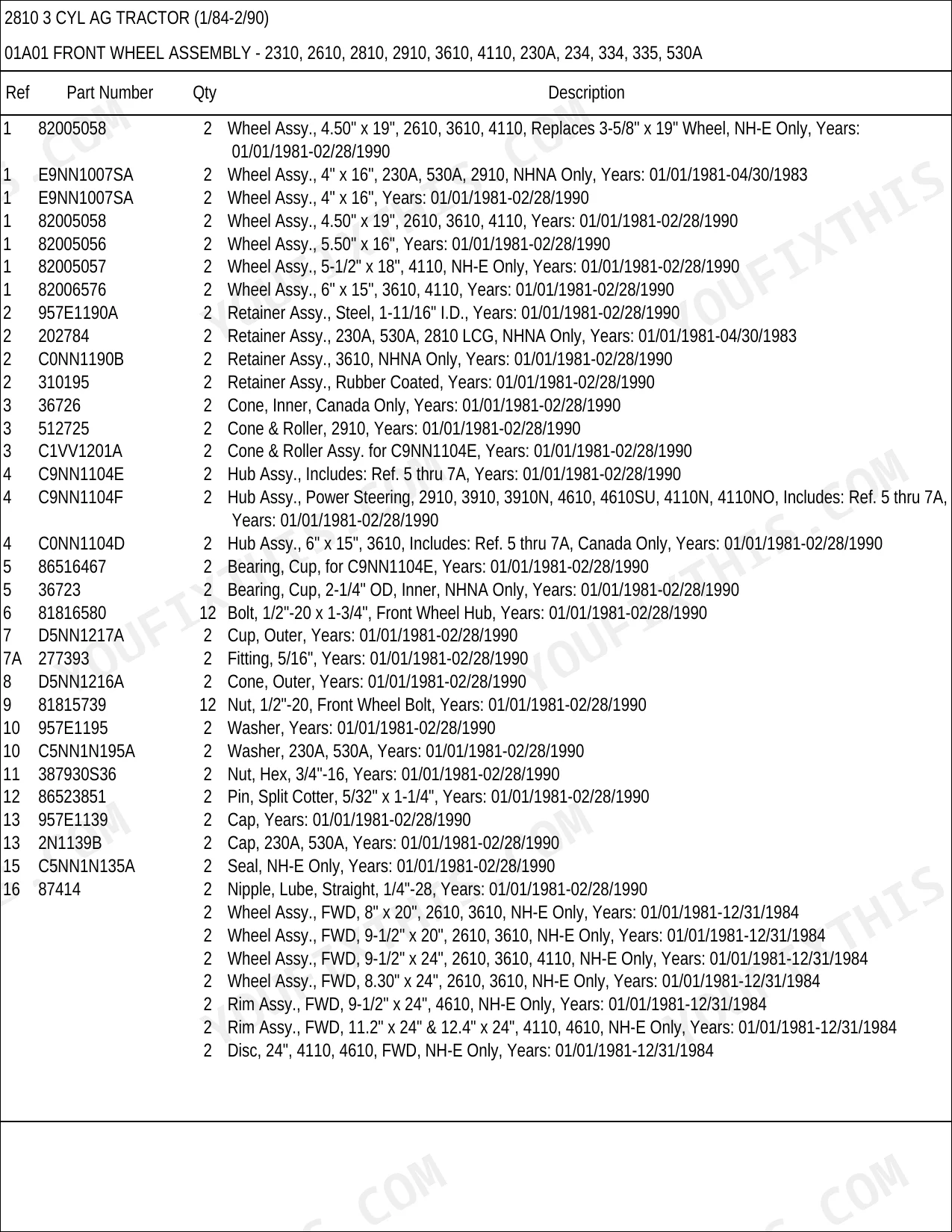

The front wheel hub bolts (Ref 6) for the front wheel assembly on the Ford 2810 are specified as 1/2"-20 x 1-3/4" bolts. There are 12 of these bolts required for the assembly. p. 8
What is the replacement part number for the engine oil filter on the Ford 2810?
The engine oil filter for the Ford 2810 is part number 86546614. p. 166
What is the specification for the fuel filter element on the Ford 2810?
The fuel filter element for the Ford 2810 is part number 83916922. p. 310
What is the part number for the alternator belt on the Ford 2810?
The alternator belt for the Ford 2810 is part number D3NN10C318D or D3NN10C318C depending on the specific alternator and application. p. 394
What is the part number for the radiator cap on the Ford 2810?
The radiator cap for the Ford 2810 is part number E5TH8100AA (13 lbs) or D0HA8100C (7 lbs). p. 253
Is this Ford 2810 manual a download or a disc?
You get a 626-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Ford 2810 manual print-friendly?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
