Tracking down the right component for your 1990-1998 3-cylinder Ag Tractor is simple with this 722-page Ford New Holland 3230, 3430, 3930, 4130, 4630 Parts Catalog PDF (also covers 3930H, 3930N, 3930NO, 4130N, 4130NO, 4630N, 4630NO, 4630-O). Inside, you get highly detailed exploded views of the entire driveline, hydraulic lift covers, and deluxe remote control valves. Open to any system to find precise cross-references and factory part numbers to reconstruct your engine block or front axle assembly. Verify your 128 A.H. battery against the factory support bracket hardware before ordering. Stop buying the wrong parts off generic sketches. Download this bookmarked file right to your tablet, search for your exact component, and order with confidence.
What's Inside This Ford New Holland 3230, 3430, 3930, 4130, 4630 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

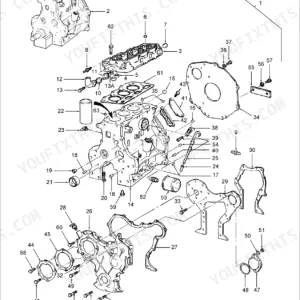

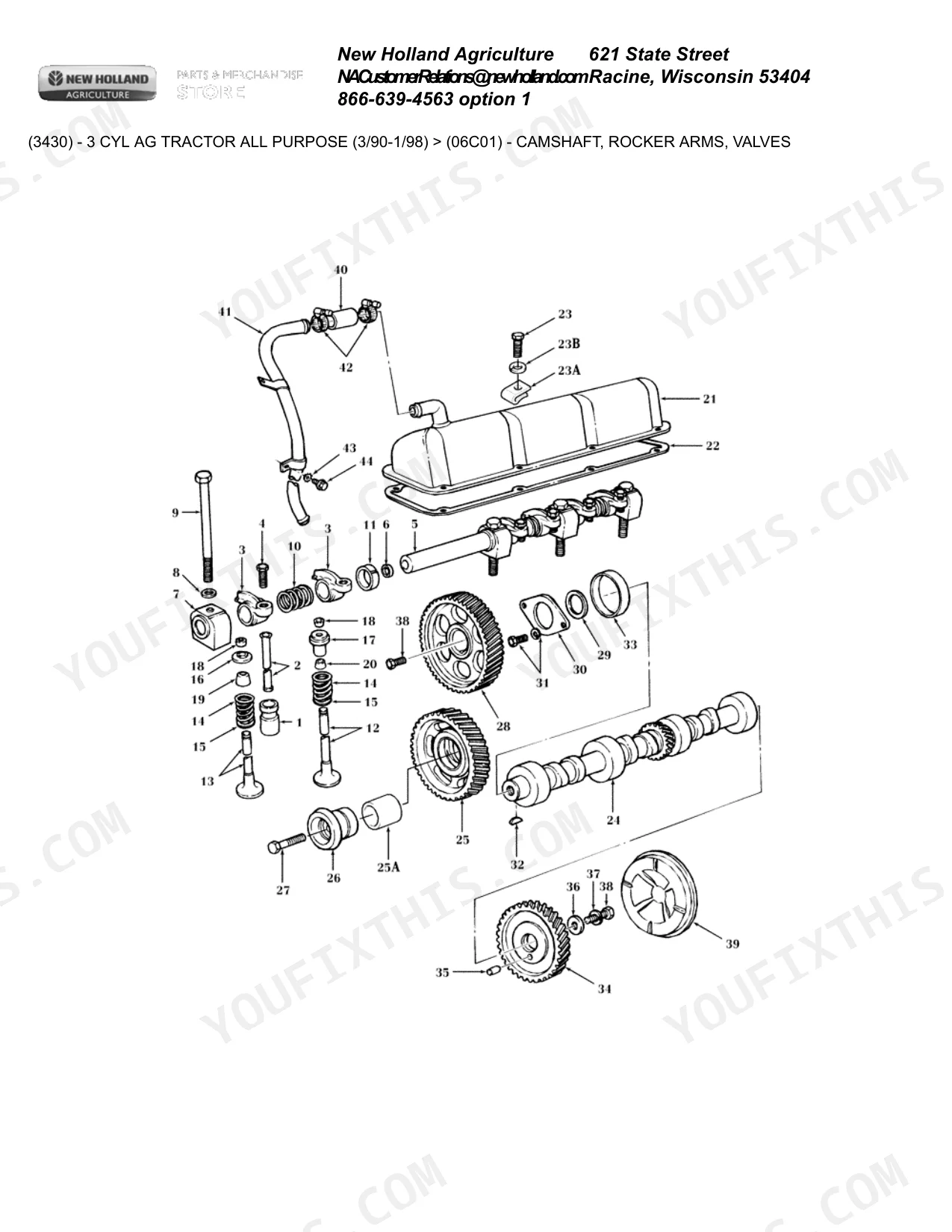

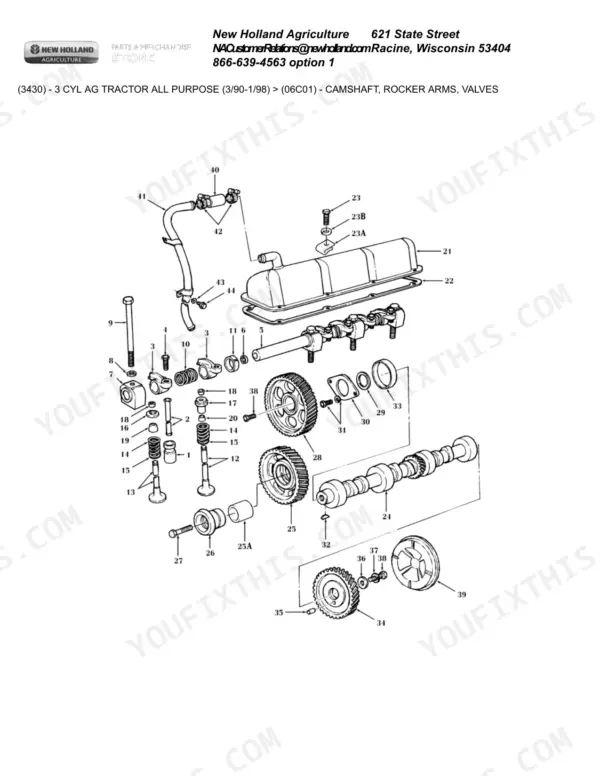

| Engine | 1-39 | Camshaft, Crankshaft, Gasket Kits, Manifold & Exhaust System, Oil Pump & Oil Pan, Pistons & Connecting Rods |
| Fuel System | 40-85 | Air Cleaner Assembly, Diesel Cold Start, Fuel Injection Pump, Fuel Injector Assembly, Fuel Primer Assembly, Fuel Sedimenter & Filter Assembly, Fuel Tank & Related Parts, Throttle Controls, Tube & Clamp Assembly |

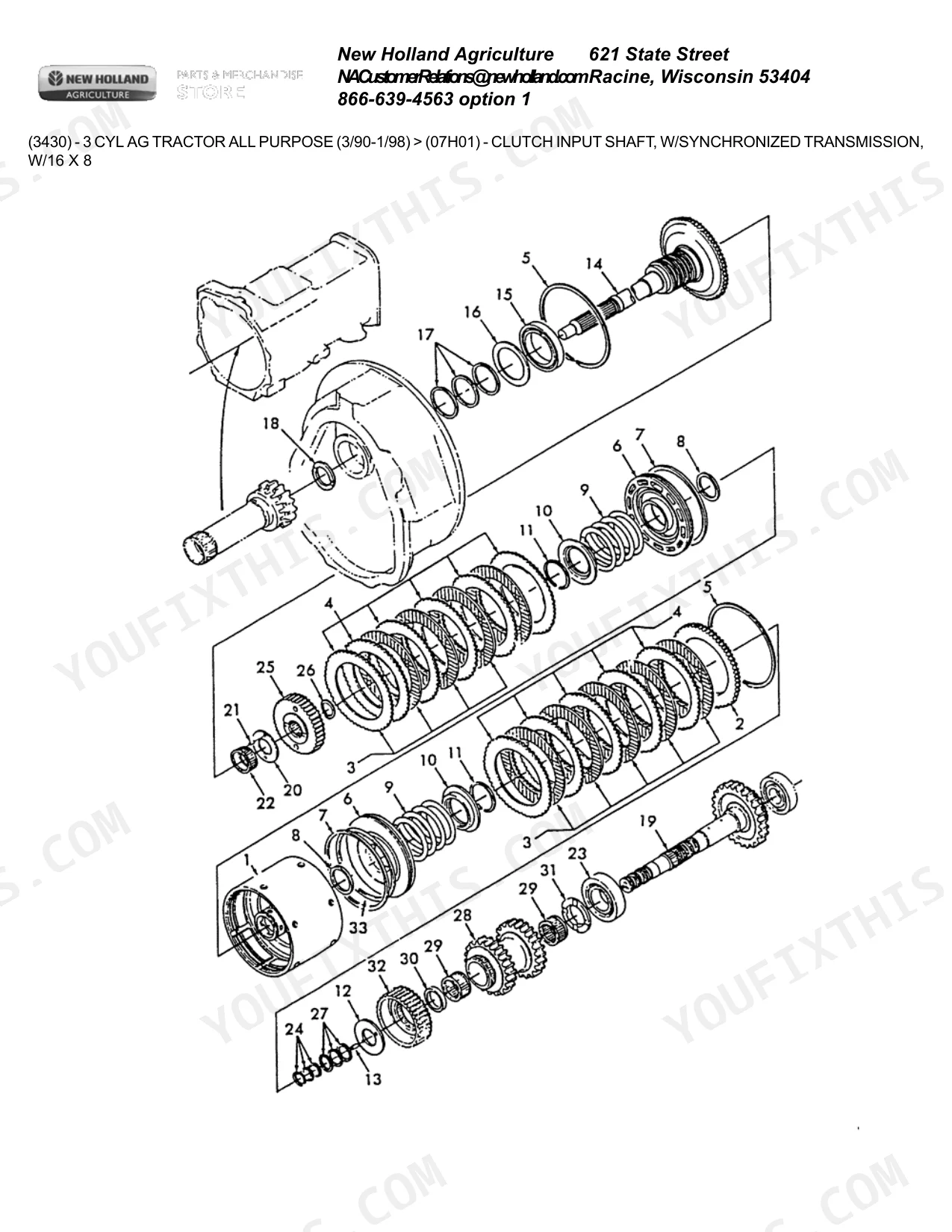

| Transmission | 86-210 | Back Idle Shaft, Clutch Assembly, Clutch Input Shaft, Front Cover, Front Housing, Gears & Related Parts, Input Shaft & Gears, Ipto Clutch & Related Parts, Ipto Control Lever & Related Parts, Ipto Cover & Related Parts, Ipto Handle Assembly & Related Parts, Low & Back Gears |
| Cooling System | 211-220 | Radiator & Related Parts, Water Filter, Water Pump & Related Parts |
| Rear Axle | 221-240 | Differential Lock Controls, Rear Axle & Related Parts, Rear Axle Center Housing, Rear Axle Final Drive Differential, Rear Final Drive |

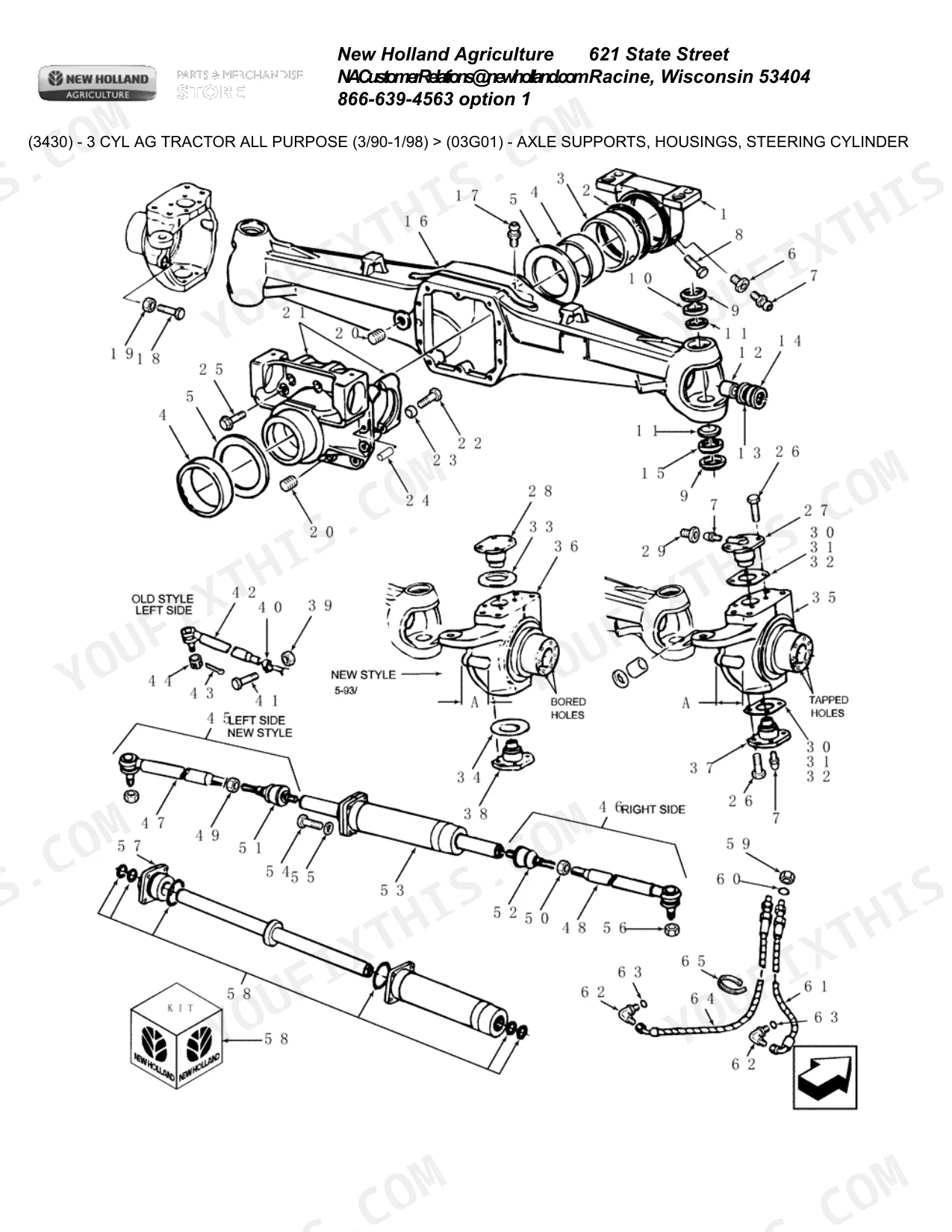

| Front Axle | 241-315 | Axle Shaft & Planetary Assemblies - 3230, Axle Supports, Drive Shaft & Shield Assembly, Front Axle Assembly, Front Transfer Case, Power Steering Cylinder, Power Steering Motor, Power Steering Pump & Reservoir, Ring Gear, Steering Column, Steering Gear Assembly |
| Hydraulic System | 316-417 | Attaching Parts, Auxiliary Pump Kit & Related Parts, Auxiliary Service Control Pipe & Coupler, Auxiliary Service Control Valve, Coupler Assembly, Coupler Kits, Flow Control Valve Components, Flow Control Valve, Handles, Hydraulic Manifold, Kit Seals, Lift Arms & Shafts |
| Sheet Metal | 418-450 | Crown Fenders, Engine Covers, Flat Top Fenders, Front Fenders, Radiator Shell & Related Parts, Rear Fenders, Reflectors, Steering Gear Cover, Tool Box & Related Parts |
| Electrical System | 451-529 | Alternator Assembly, Battery & Battery Support, Harness, Headlamp Assy., Inset Headlamp Assembly, Lamp Assembly & Mounting, Lamp Assembly, Plow Lamp, Rear Lamp Assembly, Rear Wiring, Rear Worklamps |
| Brakes | 530-548 | Brake Controls & Related Parts, Trailer Brakes, Transmission Handbrake |
| Wheels | 549-579 | Front Wheel & Hubs, Front Wheel Assembly, Front Wheel, Power Adjustable Wheel, Rear Weights, Rear Wheel Weight Kit, Standard Rear Wheels, Weights |
| Instrument Panel | 580-591 | Cigar Lighter Assembly, Hourmeter Assembly, Instrument Cluster & Related Parts, Speedometer, Voltmeter Assembly |
| Decals | 592-613 | Instruction, Shift Pattern & Speed Indicator, Warning |

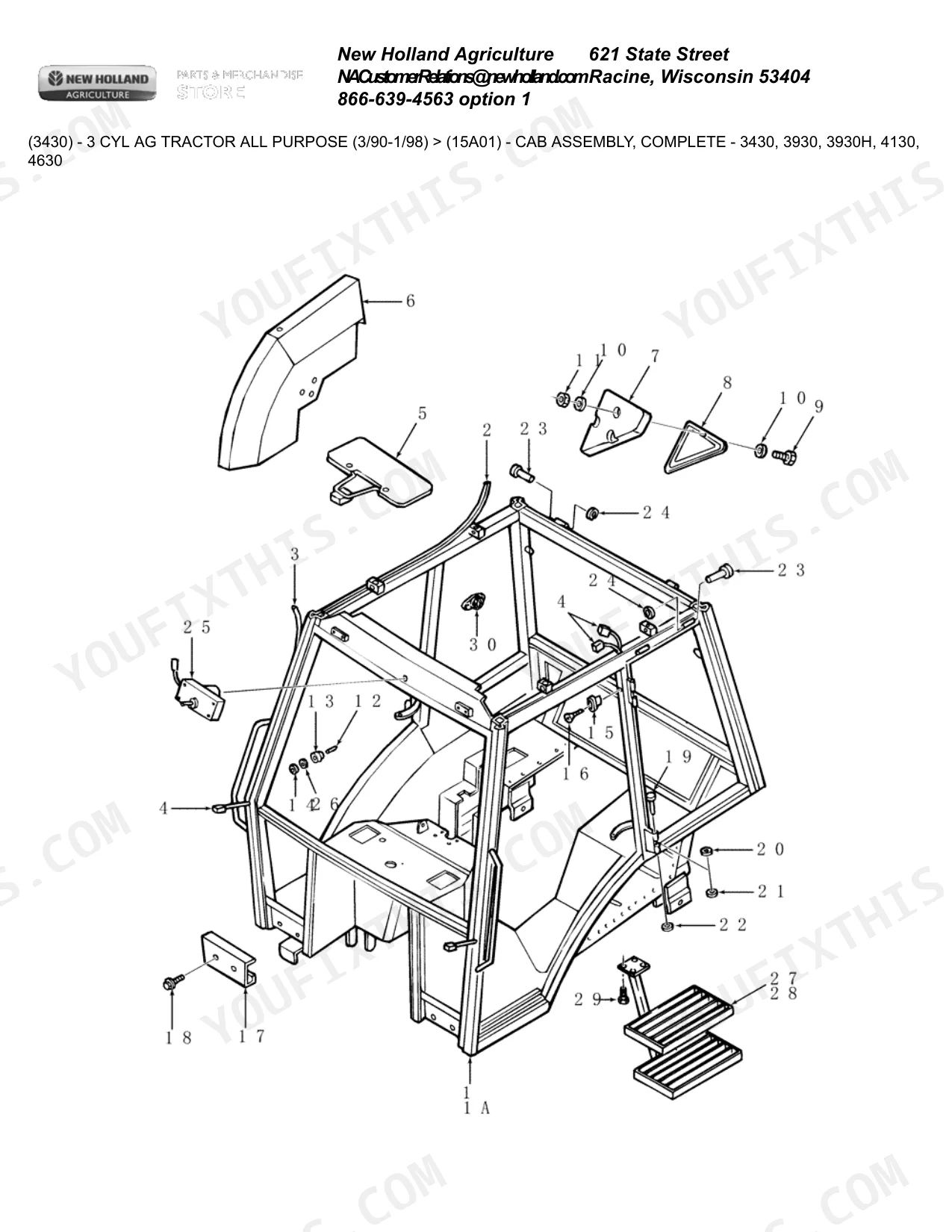

| Cab | 614-678 | Cab Assembly, Cab Mounting Parts, Door Assembly - 3430, Door, Fenders, Floor Mats & Related Parts - 3430, Heater & Related Parts, Heater Assembly - 3430, Insulation - 3430, Interior, Mirrors - Rear View - 3430, Rollbar Frame Assembly |
| Seats | 679-688 | Seat Assembly |
| Misc | 689-722 | Automatic Pick-Up Hitch, Engine Coolant Heater Kit, External Lift Check Chains, Front Tow Hook, Lubrication Equipment, Paint, Radio & Related Parts, Rear Tow Hook, Safety Equipment, Stabilizer Assembly, Swinging Drawbar Assembly, Tool Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Gasket thickness | 0.51mm | p. 342 |
| Battery Capacity | 128 A.H. | p. 459 |
| Starter Motor Power | 3.1kW | p. 520 |
| Starter Motor Voltage | 12V | p. 520 |
| Gasket, Rocker Arm Cover | 4.47mm Thk | p. 4 |
| Gasket, Cylinder Head | 1.8mm Thk | p. 21 |
| Gasket, Thermostat Housing | 0.8mm Thk | p. 18 |
| Gasket, Timing Cover | 1.32mm Thk | p. 20 |
| Gasket, Front Cover | 0.89mm Thk | p. 23 |
| Gasket, Exhaust Manifold | 1.1mm Thk | p. 23 |
Ford New Holland 3230, 3430, 3930, 4130, 4630 Common Problems This Manual Covers
Need injection pump lower half parts for Ford New Holland 3930 that cranks but won't start cold
Inspect the fuel system exploded views on page 40 to identify your injection pump components. Check the parts list for the exact DPA rotary pump sealing rings and gaskets listed with the pump assembly. Cross-reference the serial numbers before ordering.
Manual Section: Fuel System p. 40Searching for the exact replacement battery after dashboard lights flicker and sensors behave erratically
Review the electrical system diagrams starting on page 451 to locate the battery and battery tray hardware. Confirm your specific tractor model requires the 128 A.H. capacity battery specified on page 459. Match the exact part numbers for the ground cables to ensure proper fitment.
Manual Section: Electrical System p. 451Trying to find the correct rocker arm cover gasket part number to fix an upper engine oil leak
Locate the engine parts diagram on page 1 to identify the correct valve cover hardware. Find the rocker arm cover gasket in the index and ensure it matches the 4.47mm thickness requirement listed on page 4. Order the complete gasket kit using the provided factory part numbers.
Manual Section: Engine p. 1Looking up the dry air cleaner assembly components due to rough running and loss of power under load
Examine the dry air cleaner assembly parts list to locate the correct filter element numbers. Verify the replacement filter element matches the 10.2mm inner diameter specification shown on page 41. Identify all required mounting brackets and hardware in the exploded view before ordering components.
Manual Section: Fuel System p. 41Frequently Asked Questions
What are the replacement specifications for the battery?
The tractor uses a 128 A.H. dry battery. The part number for the wet battery is 82995755, and the dry battery is F770DS. p. 459
What are the replacement specifications for the starter motor?
The starter motor assembly is a 12V, 3.1kW unit. The part number for the starter motor is 82005342. p. 520
What are the specifications for the cylinder head bolts?
The cylinder head bolts are 9/16"-12 x 203.50mm, part number 87802207. There are 4 bolts required for the assembly. p. 2
What is the capacity of the hydraulic oil reservoir?
The hydraulic fluid reservoir for the auxiliary pump kit has a capacity of 2 gallons for part number 9624450, 5 gallons for 9624451, and 55 gallons for 9624452. p. 701
What is the specification for the engine oil filter?
The engine oil filter assembly part number is 86546614 for general use, or 87800068 for NH-E models. p. 21
How will I receive this Ford New Holland 3430 & variants Parts Catalog?
This is a 722-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Ford New Holland 3430 & variants Parts Catalog?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
