Need the right part number for your 1975-1981 Ford 7600? This 642-page Ford 7600 parts catalog PDF covers the standard tractor and its 4 CYL AG variant with exploded views of every assembly, from the 4-cylinder engine back to the rear axle. You get factory parts lists with original Ford part numbers, full breakdowns of engine, drivetrain, hydraulic, and cab hardware. Each exploded view keys every fastener, seal, and casting to its number so you can confirm the exact piece before you order. Running a 12-inch or 13-inch pressure plate? Both clutches are listed, right down to the 7-lb radiator cap and 2-quart oil filter. No more ordering the wrong part twice. Bookmarked with a working text layer: search a part number, find the figure, place the order.
What's Inside This Ford 7600, 7600 4 CYL AG Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Ether Fuel Primer Assembly, Single Fuel Filter, Dual Fuel Filter Assembly, Air Cleaner Assembly, Foot Accelerator Controls, Fuel Injection Pump, Fuel Injector Assembly, Fuel Pump Assembly, Electric Fuel Pump, Auxiliary Fuel Tank & Related Parts | |
| Cooling System | Transmission Oil Cooling System, Radiator & Related Parts, Water Pump & Related Parts | |
| Engine | Hydraulic Oil Filter & Cooler By-Pass Valve, Cylinder Block Head & Related Parts, Crankshaft, Camshaft, Pistons & Connecting Rods, Oil Pump & Pan, Engine Gasket Kits, Lubrication Equipment | |
| Electrical System | Headlamp Assembly, Head & Utility Lamps, Side Mounted Headlamps, Rear Wiring, Rear Lamps, Flasher Lamps & Turn Signal, Parking Lamps, Lamp Assembly, Flasher Lamp Assembly, Lamps, Parking & Rear Lamps, Battery & Battery Support, Alternator Assembly, License Plate Mounting & Lamp Assembly, Implement Lamp Assembly | |
| Clutch & Transmission | Transmission Handbrake, 7 & 8 Speed Transmission, Dual Range 7 & 8 Speed Transmission, Transmission Dual Power Assembly, PTO Clutch Valve Shaft & Related Parts, Clutch Controls, Single Clutch Assembly, Transmission Controls, Reduction Gear Box Assembly, Transmission Shift Pattern Decals | |
| PTO | Power Take-Off Assembly, PTO Guard Kit & Assembly, PTO Gear Housing & Pulley | |
| Rear Axle, Differential & Brakes | Rear Wheels, Rear Wheel Weights, Brakes & Brake Controls, Brake Linkage & Pedals, Handbrake, Handbrake Lever & Cable, Hydraulic Trailer Brakes, Rear Axle, Differential Lock Controls | |
| Front Axle & Steering | Front Wheel Assembly, Front Wheel Weights, Front Wheels, Front Axle, Power Steering Gear Assembly, Steering Gear Assembly, Steering Pump & Reservoir | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulic Lift Controls, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Hydraulic Lift Load Monitor & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Drawbar Stays, Remote Control Valve O-Ring Kit, Hydraulics, Remote Control Valve Handles, Remote Cylinder Coupling Kits, Load Monitor Cylinder Hose & Coupling Mounting, Automatic Pick-Up Hitch & Swinging Drawbar Kits, Cylinder Kits | |
| Body & Operator Station | Super Comfort Seat Assembly, Steel Pan Seat & Related Parts, Custom Deluxe Seat Assembly, Flat Top Fenders, Rear Mud Fenders & Related Parts, Round Roof Safety Frame, Engine Hood, Seat Belt for 2-Post ROPS, Tractor Cab Kits, Rollbar Canopy Assembly, Standard Tractor Cab Assembly for Safety Frame, Deluxe Tractor Cab Assembly for Safety Frame, Tractor Safety Frame & Electrical System, Cab Front & Side Glass, Cab Trim & Related Parts, Cab Underbody | |
| Decals & Accessories | Identification Decals, Identification Decals & Plates, Identification Decal Kits, Decals | |
| Other Components | Front End Weights, Front End Wafer Weights, Front Bumper, Differential Carrier, Differential, Axle Housing, Hub Carrier & Planetary Drive, Transfer Box, Center Housing & Related Parts, External Lift Link Check Chains, Stabilizer Kit, Pipe & Coupling Kits, Pipe & Coupling, Quick Attach Hitch, Engine Block Kit, Manifold |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| O-Ring, M12.37 ID x 2.4 Thk | 12.37 mm ID x 2.4 mm Thk | p. 96 |
| Filter, Engine Oil, 2 Quart, NHNA 7600C | 2 Quart | p. 178 |
| Plate, Pressure 12" (30.48cm) | 12 in | p. 243 |
| Plate, Pressure 13" (33.02cm) | 13 in | p. 244 |
| Radiator Cap | 7 lbs. | p. 254 |
| Cylinder pressure rating | 2500 PSI | p. 584 |
| Radiator Cap Pressure | 7 lbs. | p. 254 |
| Radiator Cap Pressure (Tropical) | 13 lbs. | p. 254 |
| Alternator Output | 51 Amp | p. 392 |
| Hydraulic Pump Pressure (Standard) | 650 PSI | p. 65 |
| Hydraulic Pump Pressure (High) | 1600 PSI | p. 65 |
Ford 7600, 7600 4 CYL AG Common Problems This Manual Covers
Ford 7600 lift cylinder leaking, can't identify the correct O-ring size for the hydraulic lift cover
Check the Hydraulic Lift Cover parts list on page 96. The lift cover O-ring is part 14457081, sized 12.37 mm ID x 2.4 mm thick, with start year 01/01/1975. Verify your serial number falls in that range before ordering, then count seals against the exploded view so you replace every one in a single teardown.
Manual Section: Hydraulic Lift Cover & Related Parts p. 96Two different clutch pressure plates listed, not sure whether tractor takes the 12 inch or 13 inch plate
Measure your old pressure plate diameter before ordering anything. The 12 inch (30.48 cm) plate is listed on page 243 and the 13 inch (33.02 cm) plate on page 244. Match the plate to your flywheel diameter, then confirm the part number against your serial number range in the parts index.
Manual Section: Drivetrain Parts Diagram p. 243Alternator failed and parts listings show several amp ratings, unsure which replacement unit fits
Check the amp stamp on your old alternator tag before ordering. The 51 Amp unit is cataloged on page 392 and the 46 Amp unit on page 401, each with its own regulator, pulley, and belt listings. Order the regulator from the same page as the alternator so the pair matches.
Manual Section: Alternator Assembly p. 392Hydraulic lift getting weak, need the correct replacement pump part number for this serial range

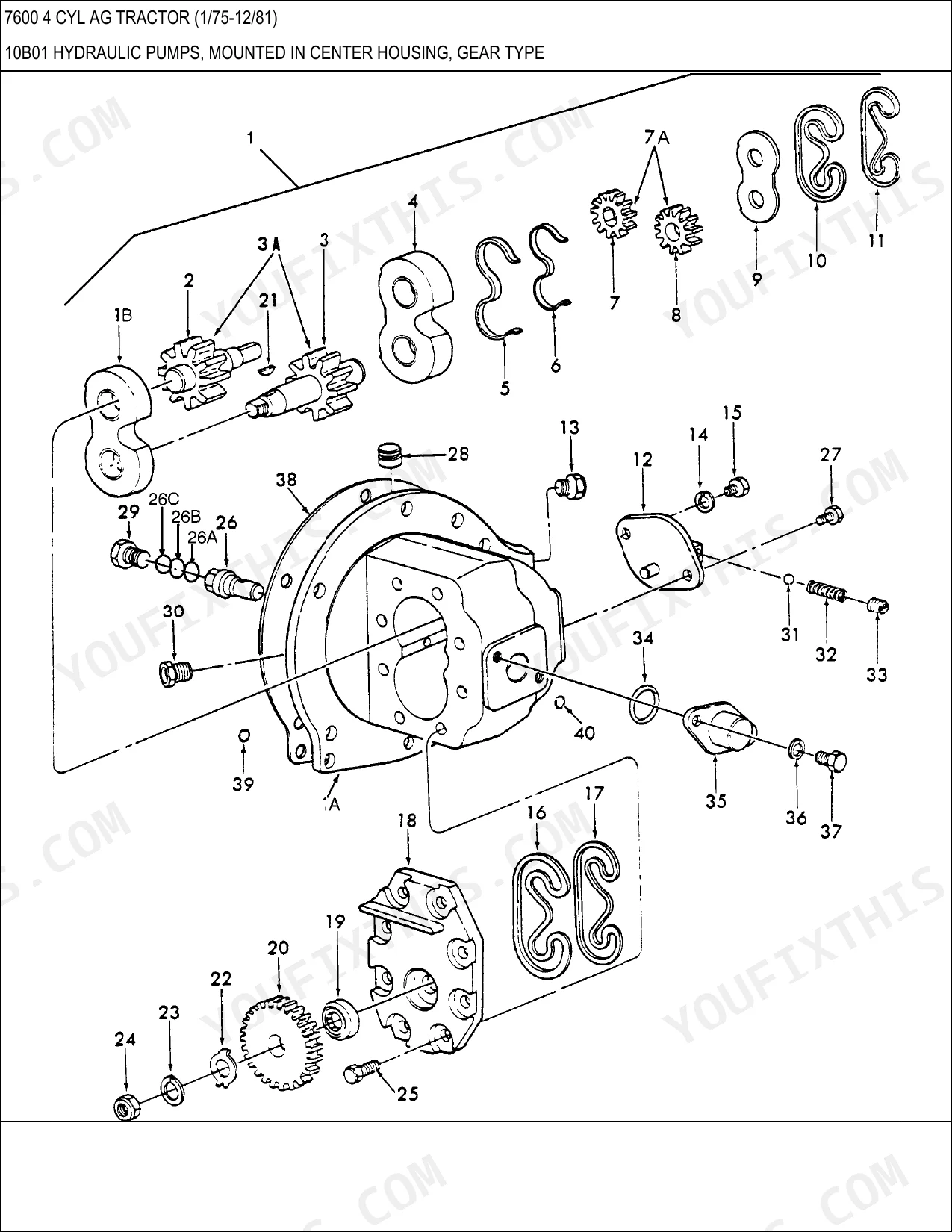

Identify your pump variant first: the standard pump is rated 650 PSI and the high-pressure version 1600 PSI, both listed on page 65. Locate the pump in the hydraulic exploded view, match the figure item number to the parts list, then verify the serial number break before ordering.
Manual Section: Hydraulic Parts DiagramFrequently Asked Questions
What is the torque specification for the front wheel hub bolts on the Ford 7600?

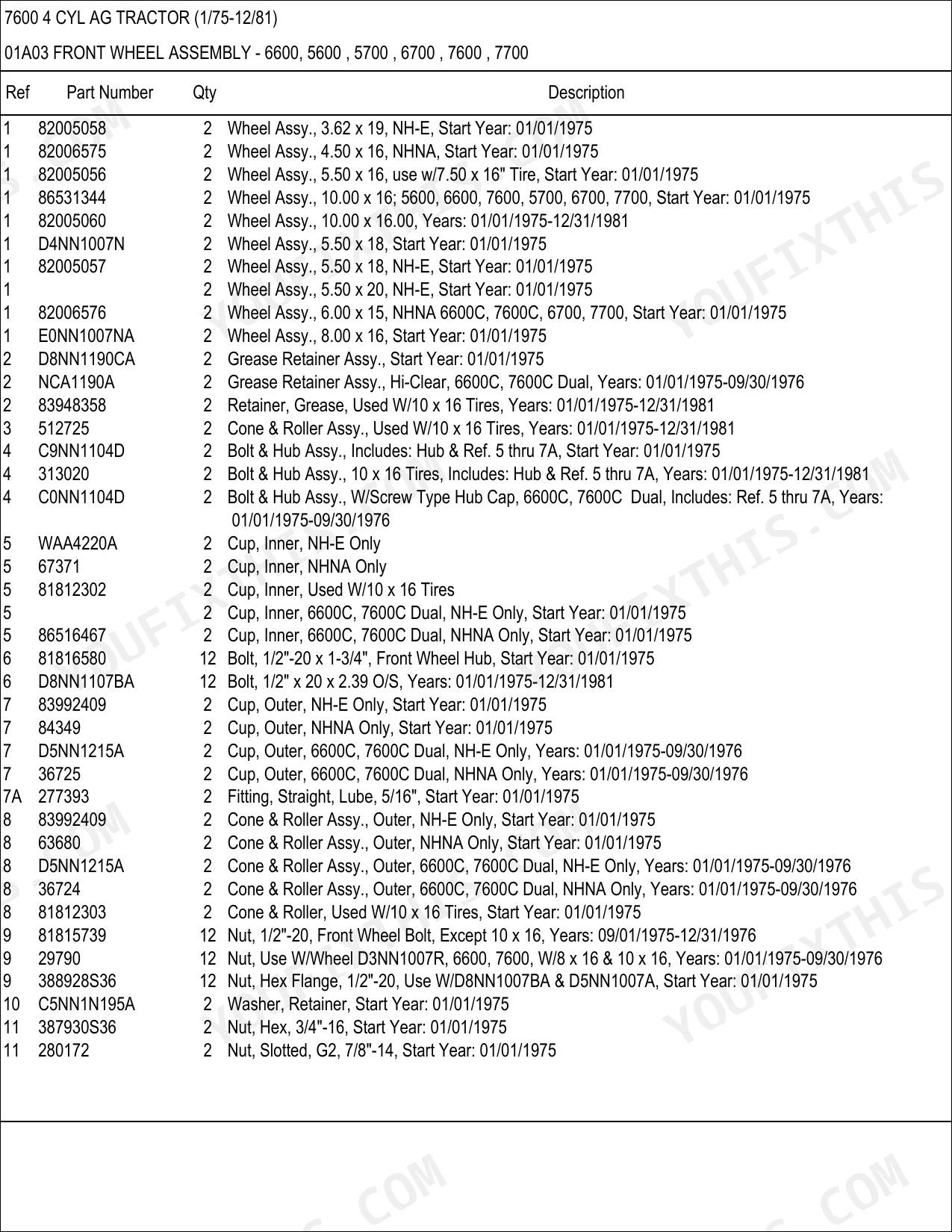

The front wheel hub bolts (Part Number 81816580) for the Ford 7600 are specified as 1/2"-20 x 1-3/4". Please refer to page 8 for the assembly diagram and part details. p. 8
What is the part number for the oil filter used on the Ford 7600 diesel engine?
For the Ford 7600 diesel engine, the oil filter part number is 87800083, which is a 3-3/4" x 5" quart filter. p. 178
What is the specification for the fuel injection pump gear mounting bolts?
The bolts used for attaching the fuel injection pump gear on the 6700 and 7700 models are part number 82935696, specified as 5/16"-24 x 1". p. 264
What is the correct size for the front wheel hub grease nipple?
The grease nipple for the front wheel hub on the Ford 7600 is a straight 1/4"-28 fitting, part number 87414. p. 9
What is the part number for the radiator cap on the Ford 7600?
The standard radiator cap for the Ford 7600 is a 7 lbs. cap, part number 76896. p. 254
What format is this Ford 7600, 7600 4 CYL AG manual in?
Instant PDF download. You get the full 642-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Ford 7600, 7600 4 CYL AG manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
