Every assembly on your 1993-2000 New Holland 8670 is broken out across the 495 pages of this New Holland 8670 Parts Catalog PDF, the factory lookup book for the 6 cylinder AG tractor. You get exploded views with OEM part numbers for the whole machine: brakes and wheels, 2WD and FWD front axles, rear axle and differential, Standard and Megaflow hydraulics, three-point hitch, engine internals, powershift transmission and PTO clutch packs, fuel and cooling systems, every cab harness and lamp, right down to trim and decals. Serial-number breaks do the hard work for you; the brake lever assembly splits at ASN D420489, and lift cylinders get separate 4-inch and 4-1/2-inch listings by build date. Guessing part numbers over the phone gets old fast. Bookmarked and text-searchable; type the component name, pull the number, place the order.
What's Inside This Ford New Holland 8670 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank & Related Parts, Upper Fuel Tank & Related Parts, Fuel System W/ "a" Injection Pump, Air Cleaner & Related Parts, Fuel Filter & Primer Assembly | |
| Cooling System | Brake Cooling Kit, Radiator & Related Parts, Water Pump & Thermostat Housing, Fan Belt & Related Parts | |
| Engine | Piston Pump Assembly, Engine Assembly, Cylinder Block, Head & Related Parts, Crankshaft, Flywheel & Related Parts, Camshaft, Rocker Arm, Valves & Related Parts, Oil Pump & Oil Pan, Oil Cooler Assembly & Related Parts, Piston & Connecting Rod, Gasket Kits, Oil Cooler Tubes & Related Parts, Intercooler, Oil Cooler & Related Parts, Engine Coolant Heater Kit & Transmission Coolant Heater Kit | |
| Electrical System | Harness, Air Brakes, Main Front, Harness Assembly, Front Lights & Horn, Transmission & Rear Hydraulics, Cab, Lower, Front Console, Upper, RH Console, Cab Roof, Trailer Brakes, Front Worklamps, Worklamps, Front & Rear, Rear, Fender & Center, Flasher Lamp, U.S., Lamp Assembly, Stop/tail/turn, Front Headlamps & Horn | |

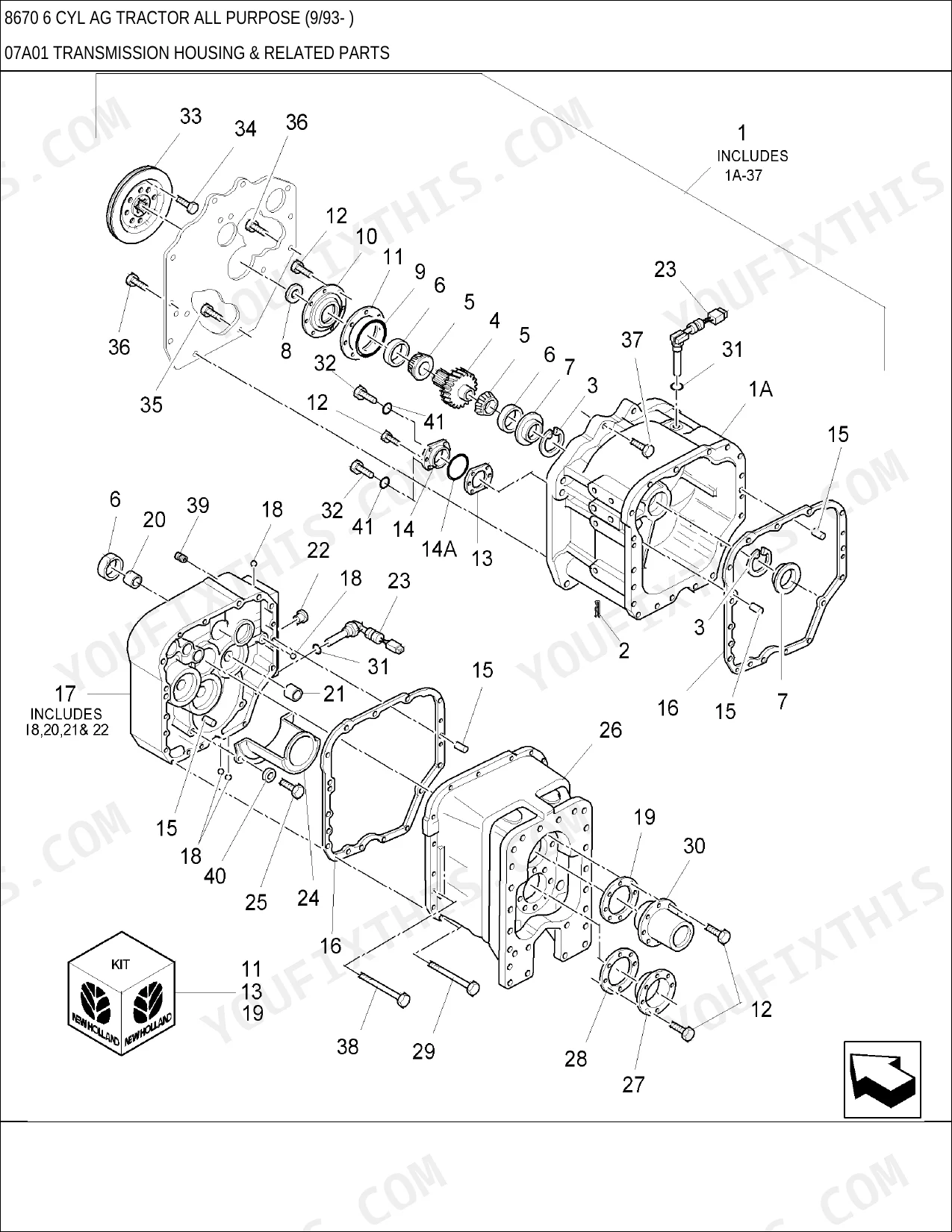

| Clutch & Transmission | Front Wheel Drive Clutch & Related Parts, Transmission Housing & Related Parts, Input Shaft & Clutches, Speed Clutch Assembly - 2/A, Speed Clutch Assembly - 1/C, Speed Clutch Assembly - 3/B, Directional Clutch Assembly - F2, Directional Clutch Assembly - F1 & Reverse, Shift Lever Control, PTO Clutch, Valve & Related Parts, PTO Clutch Housing, Transmission Assembly - W/creeper, Creeper Valve Assembly | |
| PTO | PTO Drive Gears & Output Shaft, PTO Valve Assembly, Hydraulic & PTO Decals | |

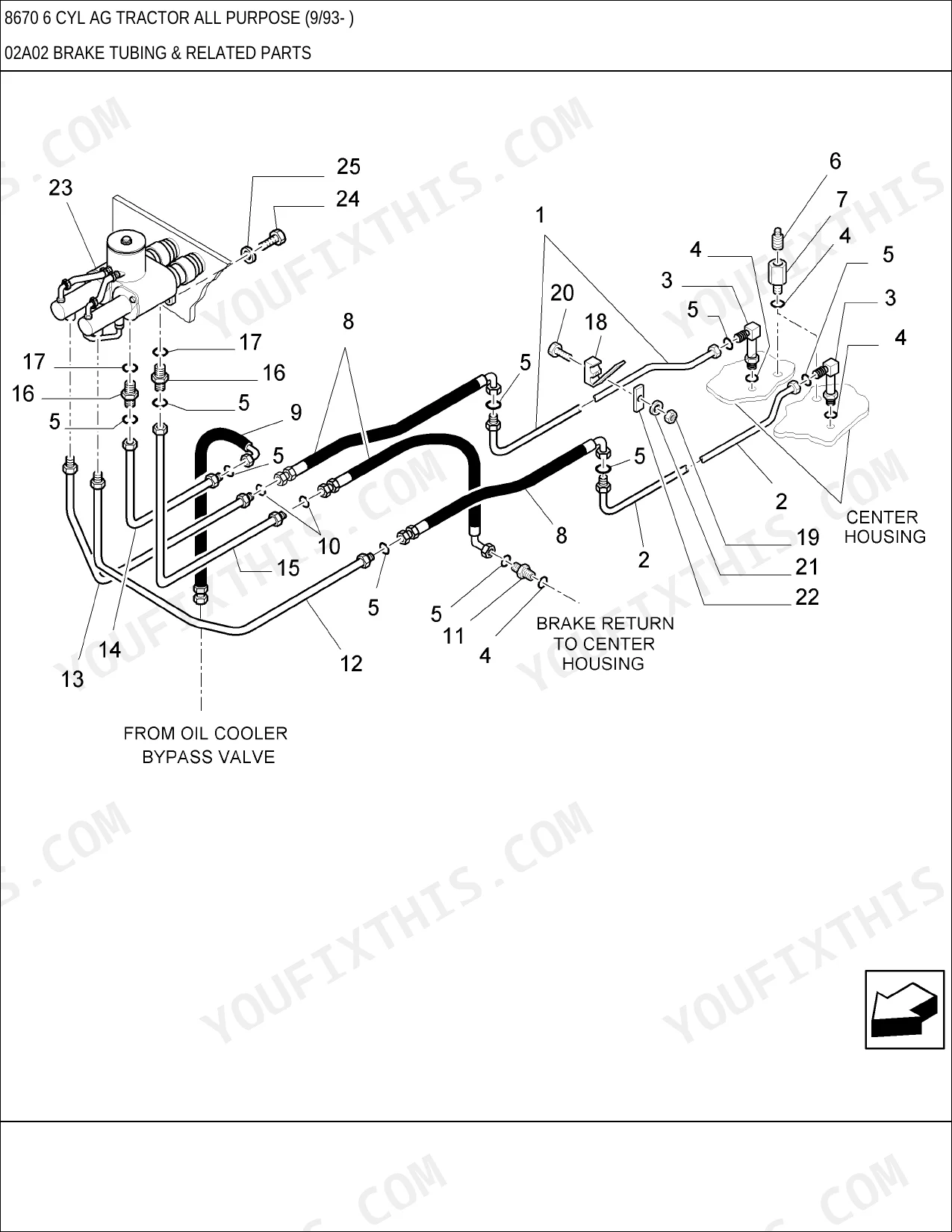

| Rear Axle, Differential & Brakes | Rear Wheels, Rear Wheel Weights, Brake Pedals & Related Parts, Brake Tubing & Related Parts, Brake Master Cylinder, Parking Brake, Parking Brake Controls, Brake Lever Assembly, Brake Lever Assembly - Asn D420489, Valve Assembly, Trailer Brake, Tubing & Hoses, Trailer Brakes, Trailer Brake Coupling, Valve & Related Parts, Compressor Pulley & Tank - Air Brakes, Compressor Mounting - Air Brakes, Tubing - Air Brakes, Unloader Valve & Guard - Air Brakes | |

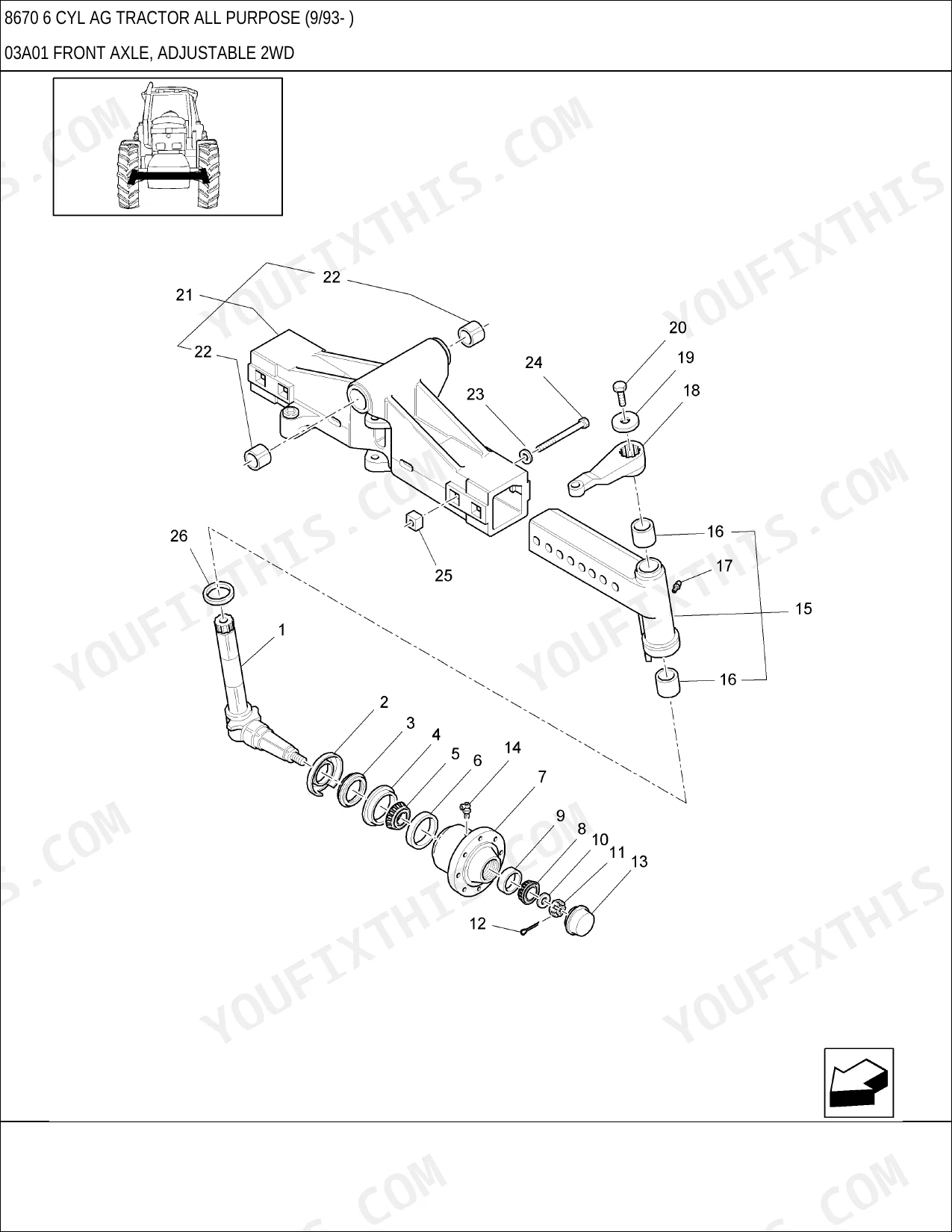

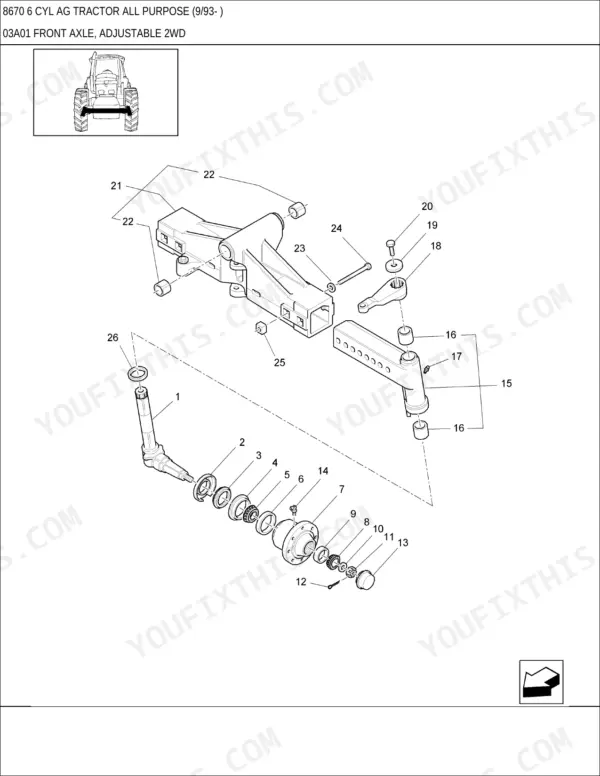

| Front Axle & Steering | Front Wheels, Front Axle, Adjustable 2WD, Tie Rod & Steering Linkage - 2WD, Steering Cylinder - 2WD, Axle Housing Assembly - FWD, Knuckle Joint & Axle - FWD, Planetary Drive, Pin - FWD, Differential, Ring Gear & Related Parts, FWD, Steering Cylinder, Tie Rod Assembly, Drive Shafts & Shields - FWD, Steering Hydraulics & Related Parts, Steering Motor Assembly, Steering Support, Standard Steer, Super Steer | |
| Hydraulics & 3-Point Hitch | Priority Valve Assembly, Standard Hydraulic Pump Drive & Related Parts, Megaflow Hydraulic Pump Drive & Related Parts, Gear Pump Assembly, Standard Hydraulics, Low Pressure, Standard & Megaflow Hydraulics, High Pressure Components, Suction Components, Remote Tubing, Megaflow Hydraulics, Low Pressure Components, Lift Cylinder Hydraulics, Check Valve Assembly, Lift Arms & Related Parts, Lift Cylinder Assembly 4-1/2", Lift Cylinder Assembly 4" | |
| Loader, Backhoe & Attachments | Quick Attach Hitch, Lower Link Stabilizer Mounting - Nhe, Lower Link Stabilizer - Nhe | |

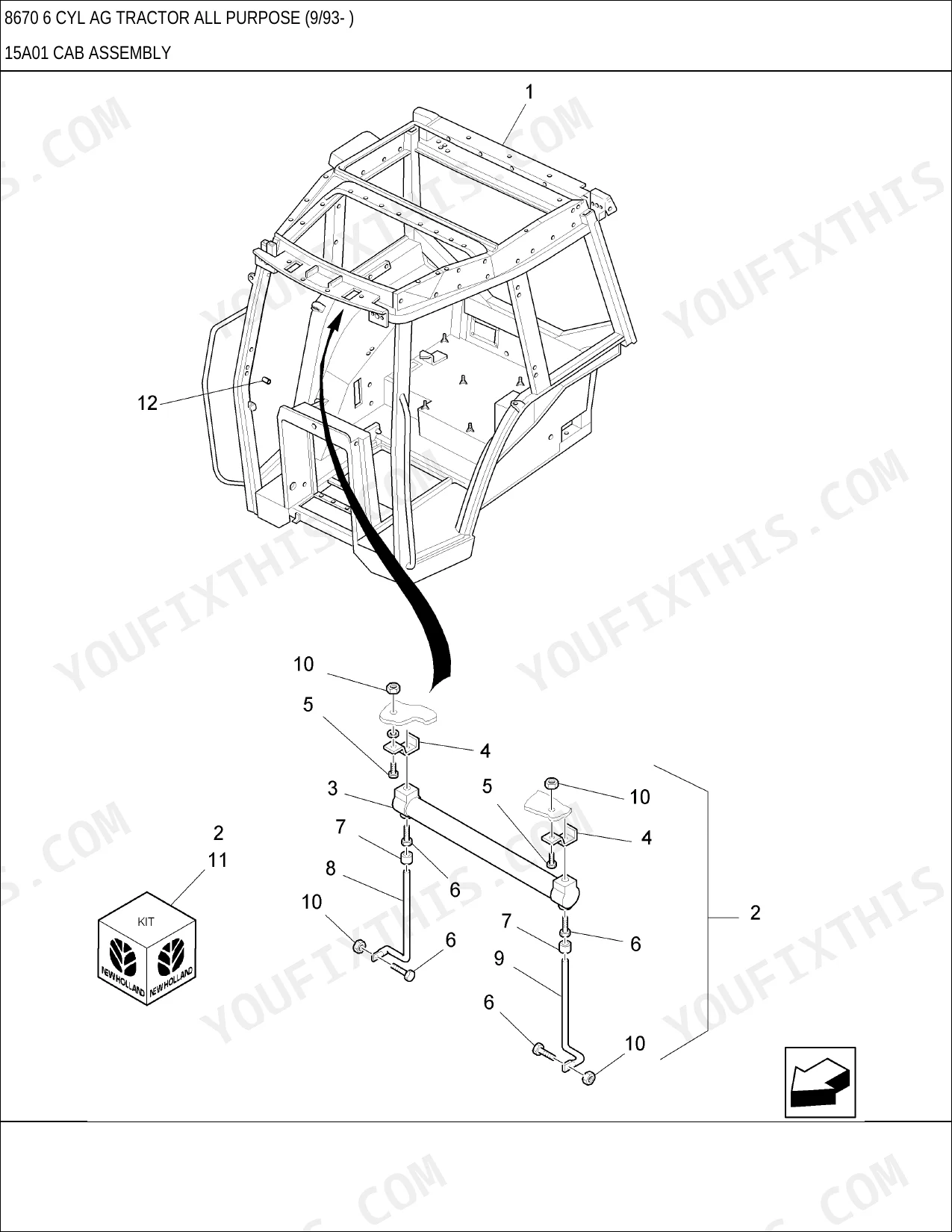

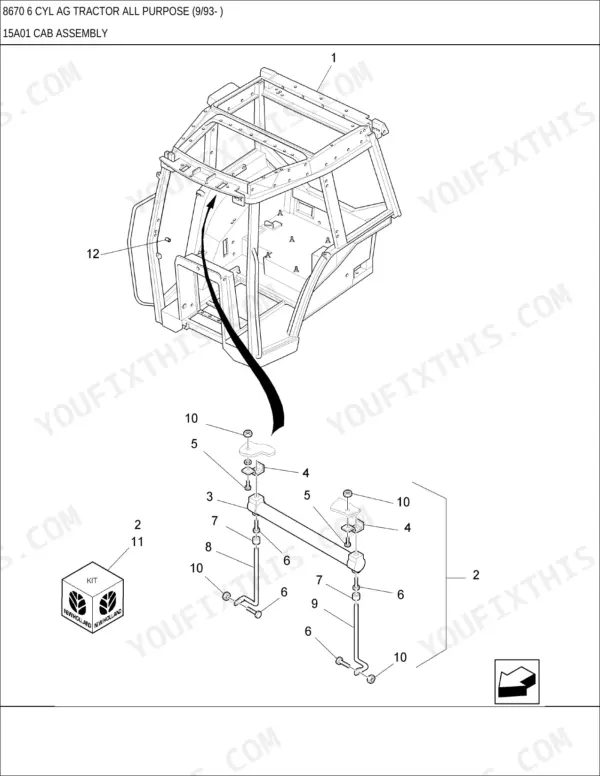

| Body & Operator Station | Seat Cushions & Related Parts, Seat Swivel, Slide Rails & Related Parts, Seat Suspension, Hood & Related Parts, Front Fenders, Rear Fenders, Cab Assembly, Floor Covers, Cab Mounts & Related Parts, Step Group - Nhna, Step Group - Nhe, R.H. Console Frame & Trim, Bracket Air Conditioning Compressor | |
| Decals & Accessories | Toolbox Assembly, Decals, I.d., French Warning Decals, Dealer Installed Accessories | |
| Other Components | Front Weights & Related Parts, Lift Link Assembly, Lift Link, Lower, Upper Link Assembly, Hpl Control, Block Plugs, Manifold & Related Parts, Exhaust System, Turbocharger & Related Parts, Inching Pedal & Related Parts, Water Filter & Related Parts, Cold Start - Nhna Only, Cold Start - Except Nhna, Cold Start, Trailer Socket, Radar Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil | 15W/40 | p. 438 |
Ford New Holland 8670 Common Problems This Manual Covers
New Holland 8670 remote valve leaking, can't identify the correct seal kit part number
Check the hydraulic parts diagram and match the leaking valve to its exploded view. Pull the seal kit number from the parts number list, then verify it against your serial number range. Measure the old seal's outer diameter to the nearest 0.5 mm before ordering.
Manual Section: Hydraulic SystemTransmission input shaft bearing rough, not sure which bearing and snap ring to order
Remove the old bearing and measure its outside diameter in millimeters with a micrometer. Match the input shaft assembly in the drivetrain parts diagram, note the callout numbers, then confirm both the bearing and snap ring part numbers in the parts number list before ordering.
Manual Section: TransmissionSteering cylinder leaking again after a rebuild, need the complete cylinder assembly number
Check the chassis parts diagram for the steering cylinder exploded view and note the assembly callout. Confirm the number in the parts number list against your serial number range. Measure the rod diameter in millimeters and check for scoring; a scored rod won't hold new seals, so order the complete assembly.
Manual Section: Steering SystemHeater and AC hoses cracked, can't match hose assemblies to catalog callouts
Inspect the cab and interior parts diagram and trace each hose to its callout number. Verify the assembly numbers in the parts number list. Measure the inside diameter of each cracked hose in millimeters and compare when ordering, since heater and AC lines look alike once the insulation is off.
Manual Section: Air Conditioning/HeatingCatalog lists metric hardware but only inch wrenches and thread gauges on hand
Measure the screw diameter and length in millimeters with calipers, then convert using the metric to inches table on page 494. Verify the callout against the exploded view before ordering; mixed hardware on older units is common, so check every fastener individually rather than assuming one size fits the whole assembly.
Manual Section: General Information - Metric to Inches p. 494Frequently Asked Questions
What is the correct part number and quantity for the front wheel nuts on the New Holland 8670?

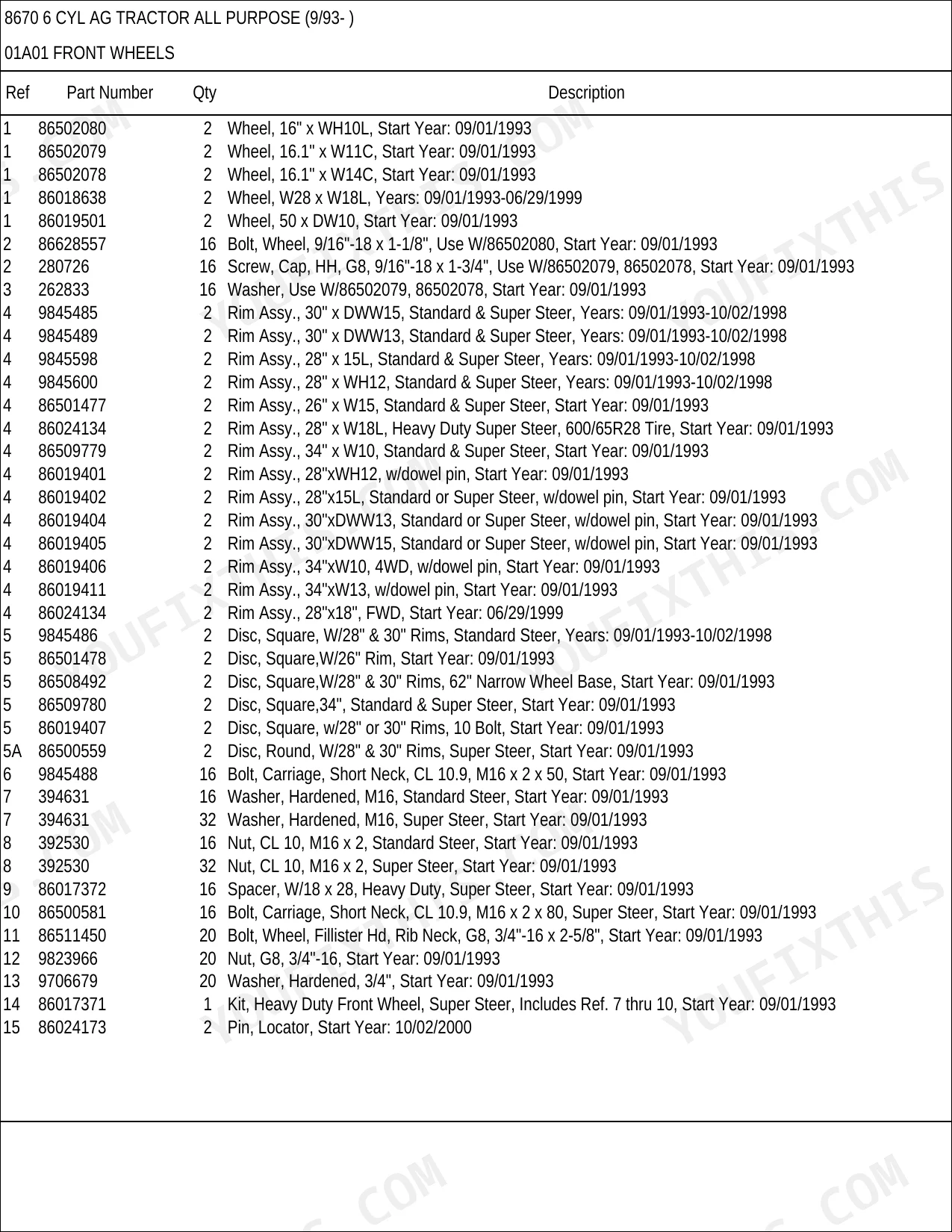

The correct part number for the front wheel nuts (Ref 12) on the New Holland 8670 is 9823966, and it requires a quantity of 20. Please refer to page 8 for the complete list of wheel assembly components and hardware. p. 8
What is the correct part number and quantity for the cylinder head bolts on the New Holland 8670 engine?

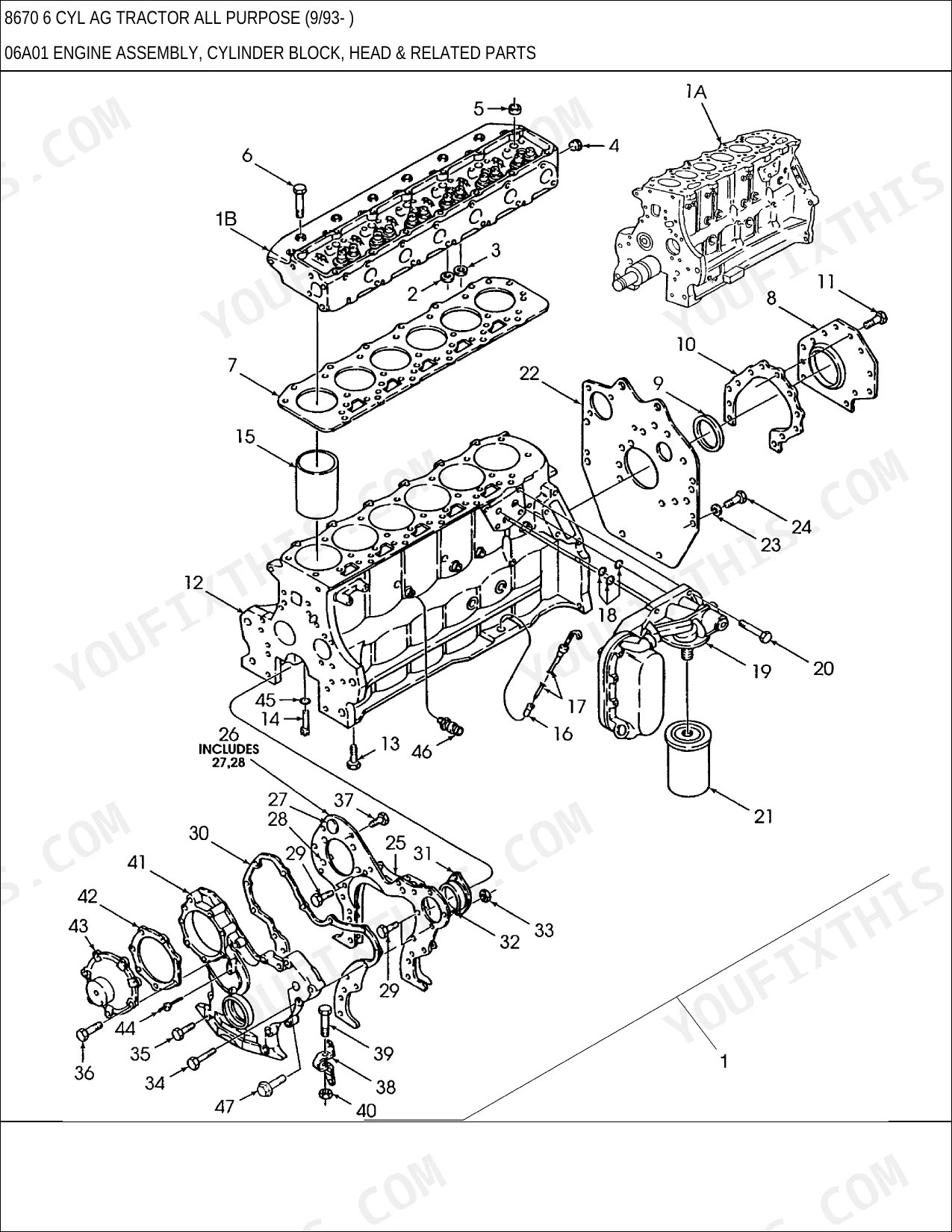

The correct part number for the cylinder head bolts (Ref 6) on the New Holland 8670 engine is 87801691, and it requires a quantity of 19. Please refer to page 194 for the complete engine assembly parts list. p. 194
What is the correct replacement part number for the engine oil filter on the New Holland 8670?
The correct replacement part number for the engine oil filter on the New Holland 8670 is 81879134. This part is listed on page 194 under the engine assembly section. p. 194
What is the correct replacement part number for the air cleaner element on the New Holland 8670?
The correct replacement part number for the outer air cleaner element on the New Holland 8670 is 9846494. This part is listed on page 281 under the air cleaner section. p. 281
How quickly can I access this New Holland 8670 manual after buying?
A 495-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this New Holland 8670 Parts Catalog?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
