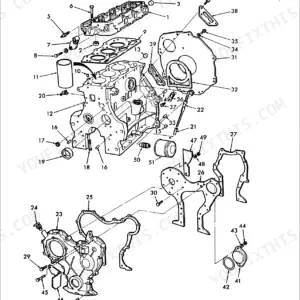

Every part on your 1981-1983 Ford 3610 agricultural tractor lives somewhere in this 727-page Ford 3610 parts catalog PDF, from the front wheel assembly to the rear wiring and lamps. You get exploded views with factory part numbers for the complete engine: cylinder block, crankshaft, camshaft, pistons, and connecting rods. Inside: full breakdowns of the transmission, rear axle, hydraulic lift, power steering, fuel system, electrical system, and cab, plus a metric-to-inch conversion table and a multi-language abbreviations index. Ordering a steering rebuild kit? You'll find the exact 1.60mm shim, the 5.6 GPM hydraulic pump, and the 20 Amp fuse, each tied to the number your parts counter will ask for. No more ordering three wrong parts to find one right one. Bookmarked and text-searchable; type a part name, jump to the exploded view, and order with confidence.
What's Inside This Ford 3610 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Gasoline, Diesel, Fuel Filter, Single, Dual, Fuel Injection Pump, Fuel Injector Assembly, Carburetor Assembly, Carburetor Repair Kits, Fuel Pump Assembly, Gas, Diesel Fuel Primer Assembly Kit, Air Cleaner Assembly, Oil Bath, Fuel Sedimenter & Filter Assembly, Primer Assembly, Fuel | |
| Cooling System | Transmission Oil Cooling System, L/Cab, W/Cab, Radiators & Related Parts, Water Pump & Related Parts | |

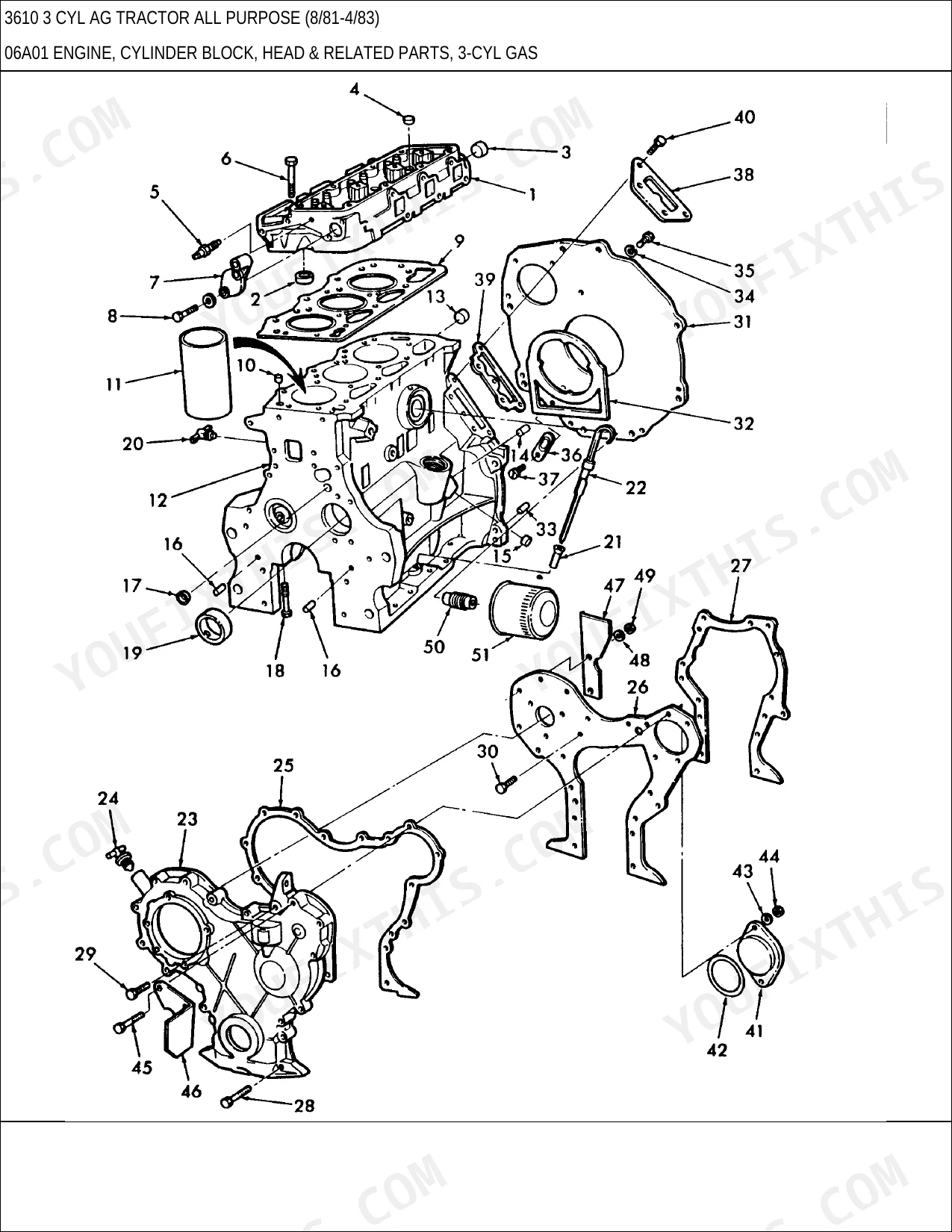

| Engine | Cylinder Block, Head & Related Parts, 3-Cyl Gas, 3-Cyl Diesel, Kit, Stepped Stud Engine Block, Crankshaft, Flywheel & Related Parts, Cyl Engine, Camshaft, Rocker Arm, Valves & Related Parts, Oil Pump & Oil Pan, Manifold & Exhaust System, Pistons & Connecting Rods, Gasoline, Diesel, Engine Gasket Kits, Hydraulic Pump Assembly, Engine Mounted, Piston Type, Engine Hood & Grille, Lubrication Equipment & Lubricants, Ford Engine & Hydraulic Oils, Engine Coolant Heater Kits, Accessory | |
| Electrical System | Headlamp Assembly, - Front Mounted, Head & Utility Lamps, - Fender Mounted, Inset Headlamp Assembly, &, Side Mounted Headlamps, Headlamp, Side Mounted, Insert Headlamp Assembly, Rear Wiring, Rear Lamps, Flasher Lamps & Turn Signal, Round Lens, Square Lens, Lamp Assembly, Stop, Rear & Turn Signal, Emergency Warning, Rear Lamps - Stop & Flasher, Parking Lamps, Side & Flasher, Lamps, Front & Side, Stop & Flasher W/turn Indicator W/Cab, Stop & Flasher W/turn Indicator | |

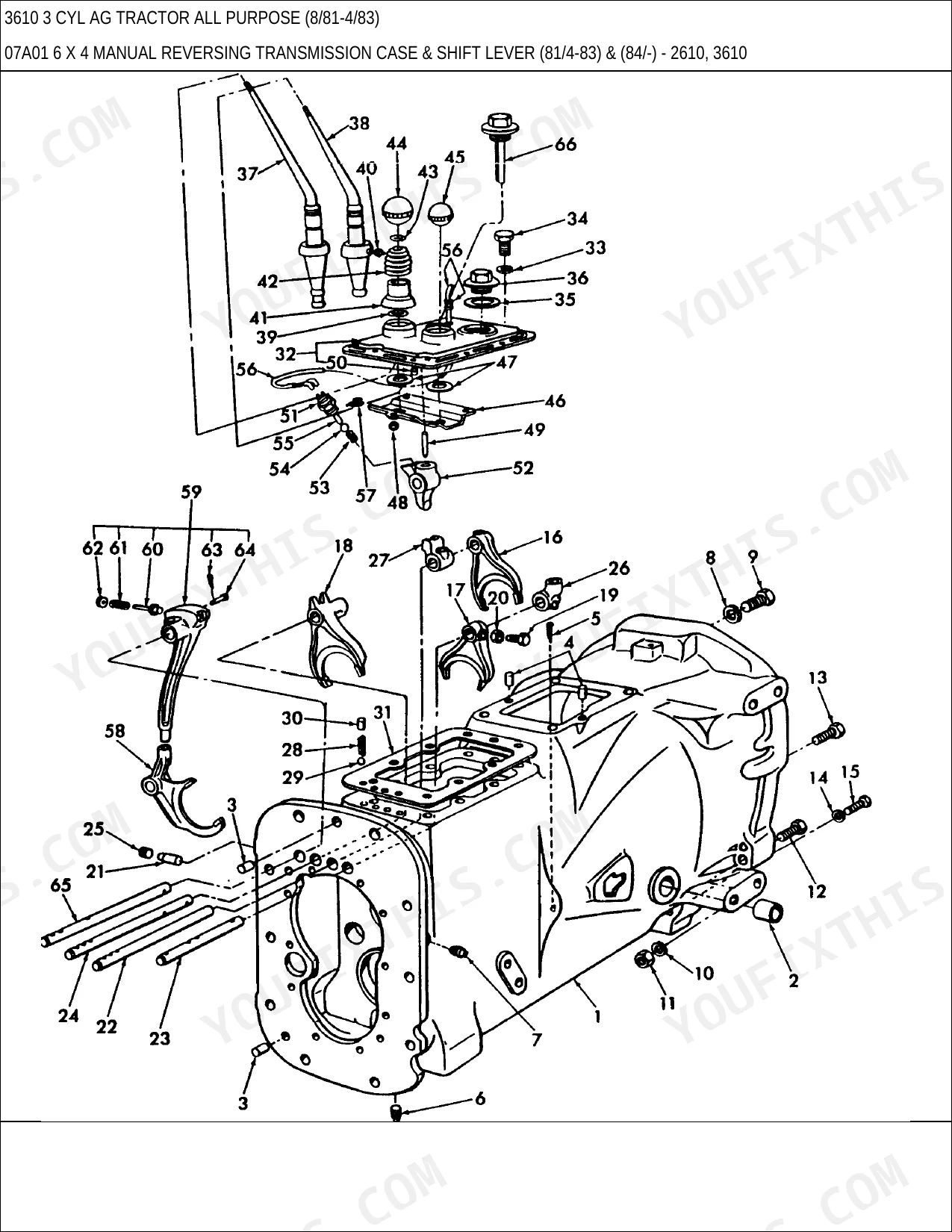

| Clutch & Transmission | Transmission Handbrake, Transmission Shaft, FWD Ae1, Transfer Box W/wet Clutch Ae1, Hand Lever W/wet Clutch Ae1, 6 X 4 Manual Reversing Transmission Case & Shift Lever, 6 X 4 Manual Reversing Transmission Gears, 8-Speed Transmission Case & Shift Levers, Dual Range 8-Speed Transmission Gears, 8-Speed Synchronized Transmission Case, Synchronized Trans. Case - W/"H" Pattern Shift, 8-Speed Synchronized Transmission Gears, Column Mounted Gear Shift, Live Transmission Power Take Off Assy., W/double Clutch, Transmission PTO Assy. & Rear Axle Oil Level Indicator, W/Cab, Clutch Controls, L/Cab | |
| PTO | Rear Axle Related Parts, W/FWD, W/ipto, Ground Speed PTO Related Parts, PTO Guard Kit, PTO Guard, PTO Gear Housing & Pulley W/guard | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, 24" Rear Wheel Weights, Manual, 28" Manual Adjust Rear Wheel Weights, 28" Rear Wheel Weights for Power Adjustable Wheels, Manual Adjust Rear Wheel Weights W/square Discs 28", Brakes & Brake Controls, Brake Linkage & Pedals W/Cab, Handbrake, Handbrake Lever & Cable W/Cab, Hydraulic Trailer Brakes W/Cab, Rear Axle, Differential & Related Parts, Differential Lock Linkage | |
| Front Axle & Steering | Front Wheel Assembly, Front Wheel Weights, Front Axle, Steering & Related Parts, Manual Steering, L/Cab, Power Steering, Manual & Power, W/q Cab Only, W/lp Cab, Steering Gear Assembly, Manual, W/Cab, Steering Gear, Power, Uk, Manual W/l Cab, Power W/l Cab, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly & Related Parts | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger & Related Parts, Drawbar Stays, Selector Valve, Selector Valve Assembly, W/Cab, Hydraulic Remote Control Valves - Single & Double Spool, Remote Control Valve Handles W/Cab, Double Acting Remote Cylinder Coupling Kits, Deluxe Remote Control Valve & Coupler, Remote Control Unload Valve Assembly, Deluxe Remote Control Valve - Single & Double Spool, Automatic Pick-Up Hitch W/swinging Drawbar, Nh-E | |
| Loader, Backhoe & Attachments | Stabilizer Chains, Germany, Austria, Switzerland, Stabilizer Kit, Dual Category, 2-Post Rollbars, W/ & L/stabilizer Links | |

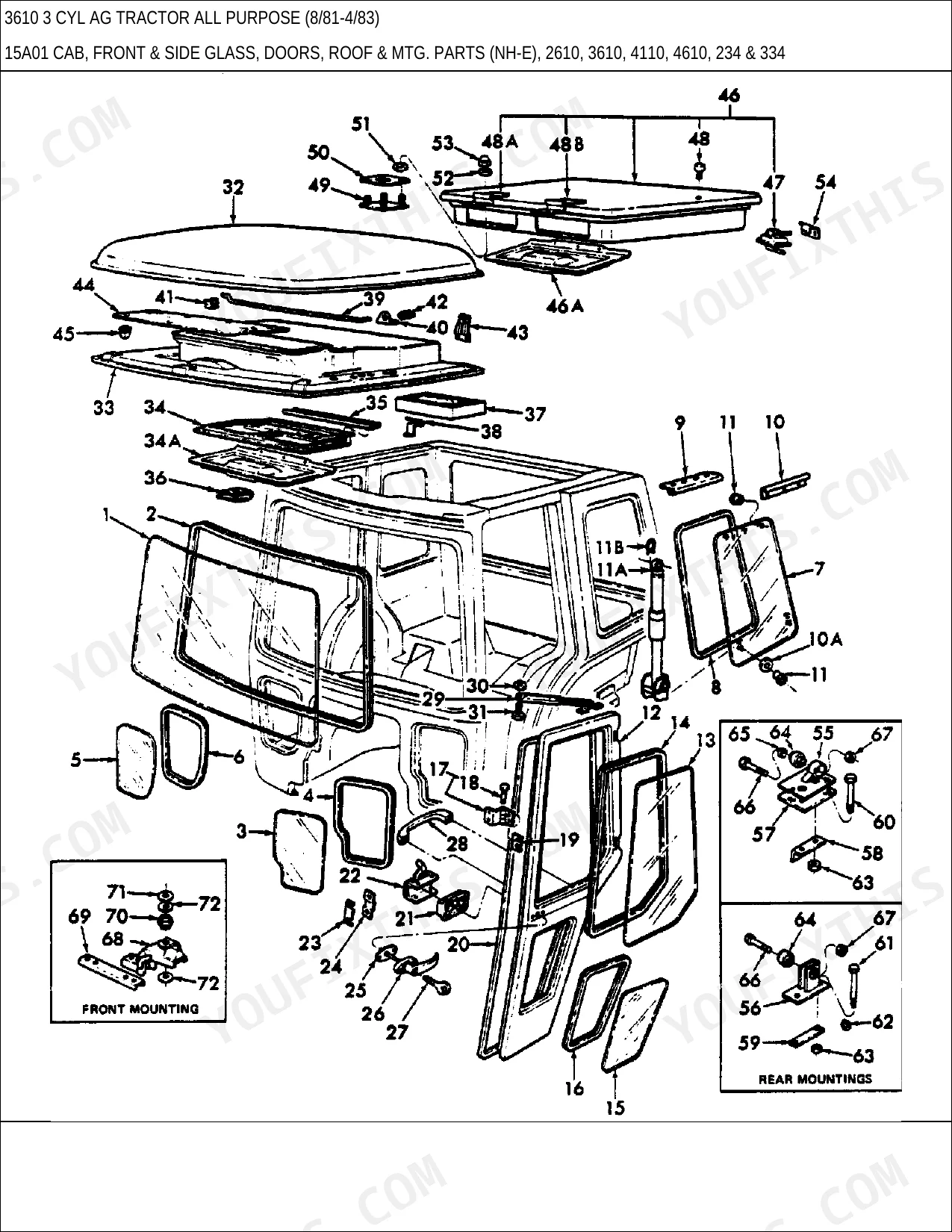

| Body & Operator Station | Foot Throttle Controls L/Cab, Foot Throttle Controls W/Cab, Trailer Sockets, W/lp Cab, Deluxe Suspension Seat Assembly, Super Comfort Seat Assembly, Custom Deluxe Seat Assembly, Crown Fenders, Platform & Tool Box, Flat Top Fenders, Rear Mud Fenders W/Cab, U.k., Round Roof Safety Frame, Germany, "H" Pattern Covers & Seals, W/Cab, Cab, Front & Side Glass, Doors, Roof & Mtg. Parts, Cab Trim & Related Parts, Cab Underbody & Related Parts, Cab Electrical System, Cab Heater | |
| Decals & Accessories | Dealer Installed Accessory Kits, U.S. Only, Identification Decals, Instruction Decals, Kit, Instruction & Safety Decals, Safety Decals, Warning, Tools | |
| Other Components | Power Adjustable Wheels, Front End Wafer Weights, Front Bumper, Internal Parts of Pinion, Ae149, Reduction Box, Transfer Box W/collar Gear Ae1, Center Housing & Related Parts, Single & Double Acting Pipe & Coupling Kits, Coupling Kit, Manifold & Exhaust System, Gasoline, H" Pattern Shift Assembly, Water Filter, Nhna, Dia, Kit, Coolant Filter, Diesel Cold Start, Throttle Controls & Related Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shim, .063 | 1.60mm | p. 75 |
| Hydraulic Pump Capacity | 5.6 GPM | p. 373 |
| Fuse Rating | 20 Amp | p. 383 |
Ford 3610 Common Problems This Manual Covers
Ford 3610 hydraulic lift won't raise implements, need the correct lift cylinder seal kit part numbers

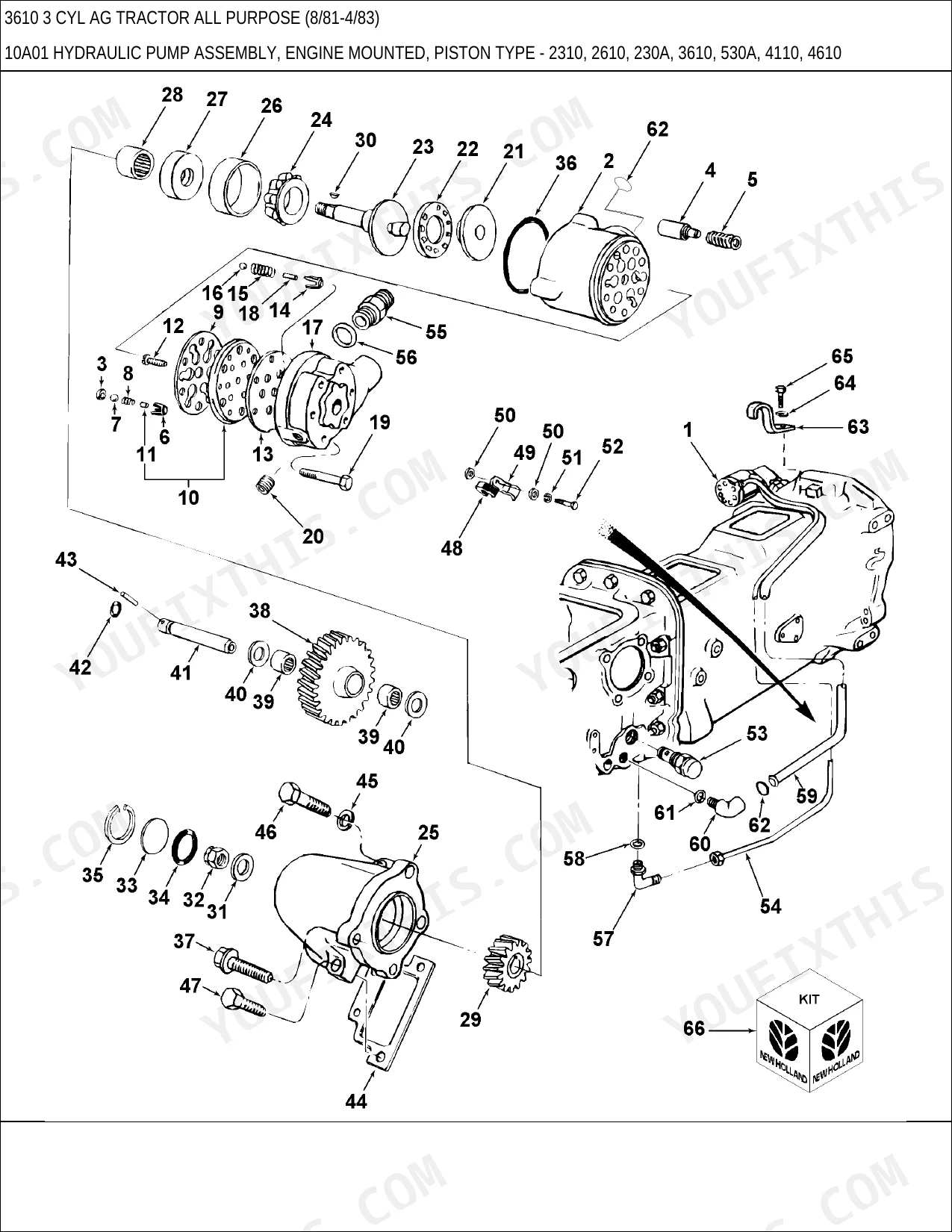

Check the hydraulic exploded view and match your lift cylinder against the illustrated seal, bushing, and plug callouts. Record every callout number, then pull matching part numbers from the parts number list. Verify your pump matches the 5.6 GPM capacity listed on page 373 before ordering pump seals.
Manual Section: Hydraulic Lift CylinderSteering gear rebuild needed, unsure which bearings, seals, and shims fit my serial number range
Match your steering gear assembly to the exploded callouts in the Front Axle & Steering section and note each item number. Confirm shim thickness before ordering: the .063 shim on page 75 measures 1.60mm. Cross-reference your callouts against the parts number list to lock down bearing and seal numbers for your serial range.
Manual Section: Front Axle & Steering p. 75Starter won't crank and inline fuse keeps blowing, need correct fuse rating and solenoid part numbers
Verify the fuse rating before replacing anything else: the circuit listings show 15 Amp and 25 Amp fuses on page 387 and a 10 Amp fuse on page 492. Then match your starter's solenoid, brush, and drive components against the Starting Motor (Diesel) exploded view and pull exact part numbers from the parts number list.
Manual Section: Starting Motor (Diesel) p. 387Hydraulics lose pressure after warm-up, need flow control valve seal and restrictor part numbers
Inspect the Flow Control Valve section callouts covering the plunger, restrictor, spring, and seal, and write down each item number. Compare against the hydraulic exploded view to confirm you have the right valve assembly for a 5.6 GPM pump, then match numbers in the parts number list before ordering.
Manual Section: Flow Control ValveFrequently Asked Questions
What are the replacement specifications for brake shoes?
The brake shoe and lining assembly for the Ford 3610 is part number F2NN2218AA. This part is applicable for the 81/4-83 model period. p. 33
What is the torque specification for the front wheel hub bolts?

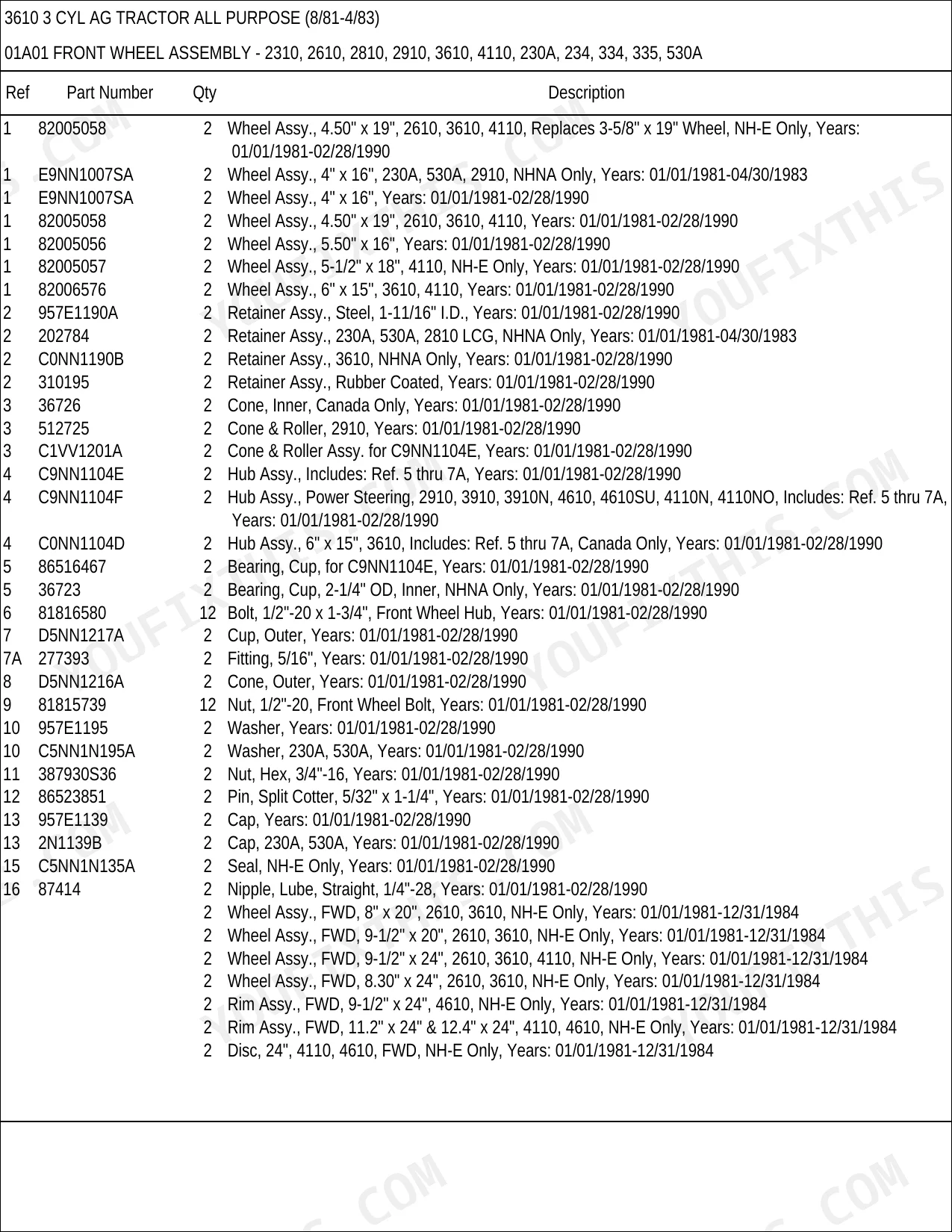

The front wheel hub bolts for the Ford 3610 are part number 81816580. These are 1/2"-20 x 1-3/4" bolts, and there are 12 required for the assembly. p. 9
What is the part number for the engine oil filter?
The engine oil filter for the Ford 3610 is part number 86546614. p. 210
What is the specification for the fuel injection pump gear retaining bolt?
The bolt for the fuel injection pump gear is part number C7NN3R655B, used for models from 1981 to 1987. p. 94
What is the part number for the radiator cap?
The radiator cap for the Ford 3610 is part number E5TH8100AA, which is a 13 lbs. pressure cap. p. 308
How will I receive this Ford 3610 Parts Catalog?
Instant PDF download. You get the full 727-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Ford 3610 Parts Catalog printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
