Hunting for a Ford 4610 parts manual PDF that actually shows every part on your tractor? This 772-page parts catalog covers the 1981-1990 Ford 4610 3 cylinder agricultural tractor from front axle to rear wheel weights. You get exploded views with factory part numbers for the whole machine: cylinder block, pistons and connecting rods, 8-speed and synchronized transmissions, brake linkage, power steering pump, both electrical systems, lighting, and the full cab with suspension seat, heater, doors, and windows. Ordering the coolant filter kit? The number is EKPN8A424EA. Choosing between the 32 Amp and 51 Amp alternator options? Each assembly is broken out piece by piece. No more squinting at a worn casting number and hoping the dealer guesses right. Bookmarked and text-searchable; type the part name, find the diagram, order once.
What's Inside This Ford 4610 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

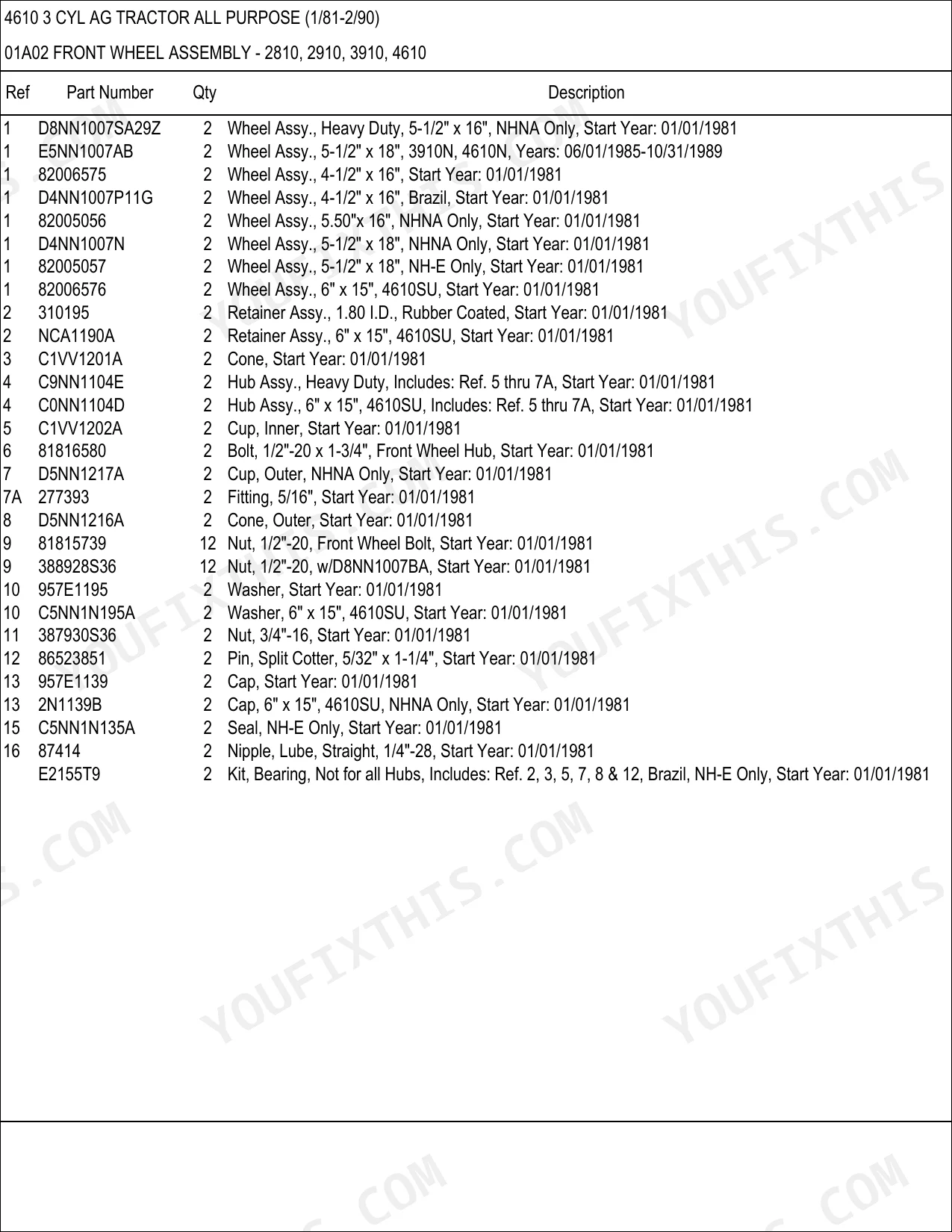

| Front Wheel Assembly | - | Two Piece Front Wheel, FWD Front Wheel Assembly |
| Rear Wheels | - | Standard Rear Wheels, Power Adjustable Rear Wheels |
| Front End Weights | - | Front End Wafer Weights, Front Wheel Weights |
| Rear Wheel Weights | - | 30" Rear Wheel Weights, 34"-38" Rear Wheel Weights, Manual Adjust Rear Wheel Weights |
| Brakes & Brake Controls | - | Brake Linkage, Transmission Handbrake, Hydraulic Trailer Brakes, Handbrake Lever & Cable |
| Front Axle & Steering | - | Front Axle, Steering Gear Assembly, FWD Axle, Steering Arm, Power Steering Pump |

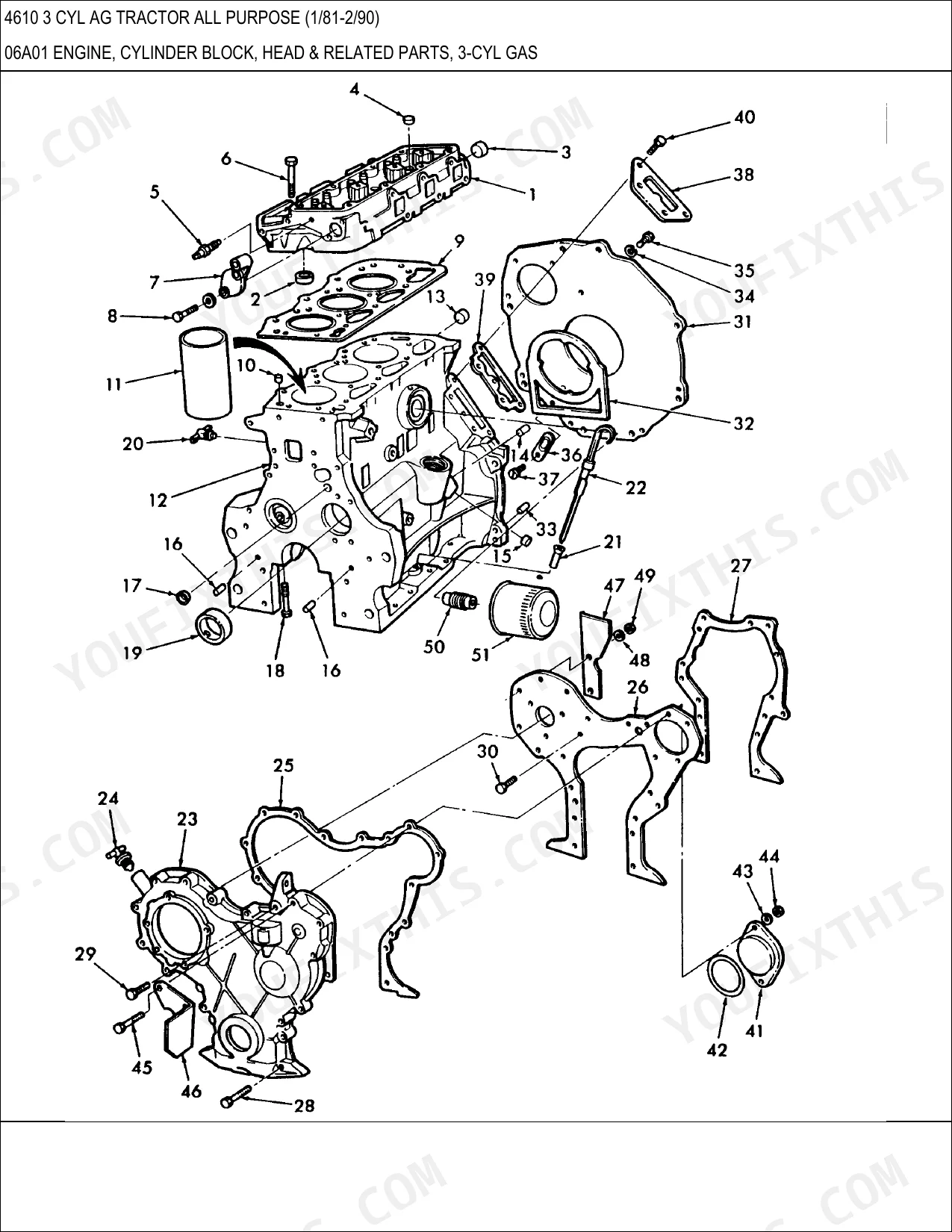

| Engine & Cylinder Block | - | Cylinder Block, Head, Stepped Stud Kit, Pistons & Connecting Rods, Engine Gasket Kits |

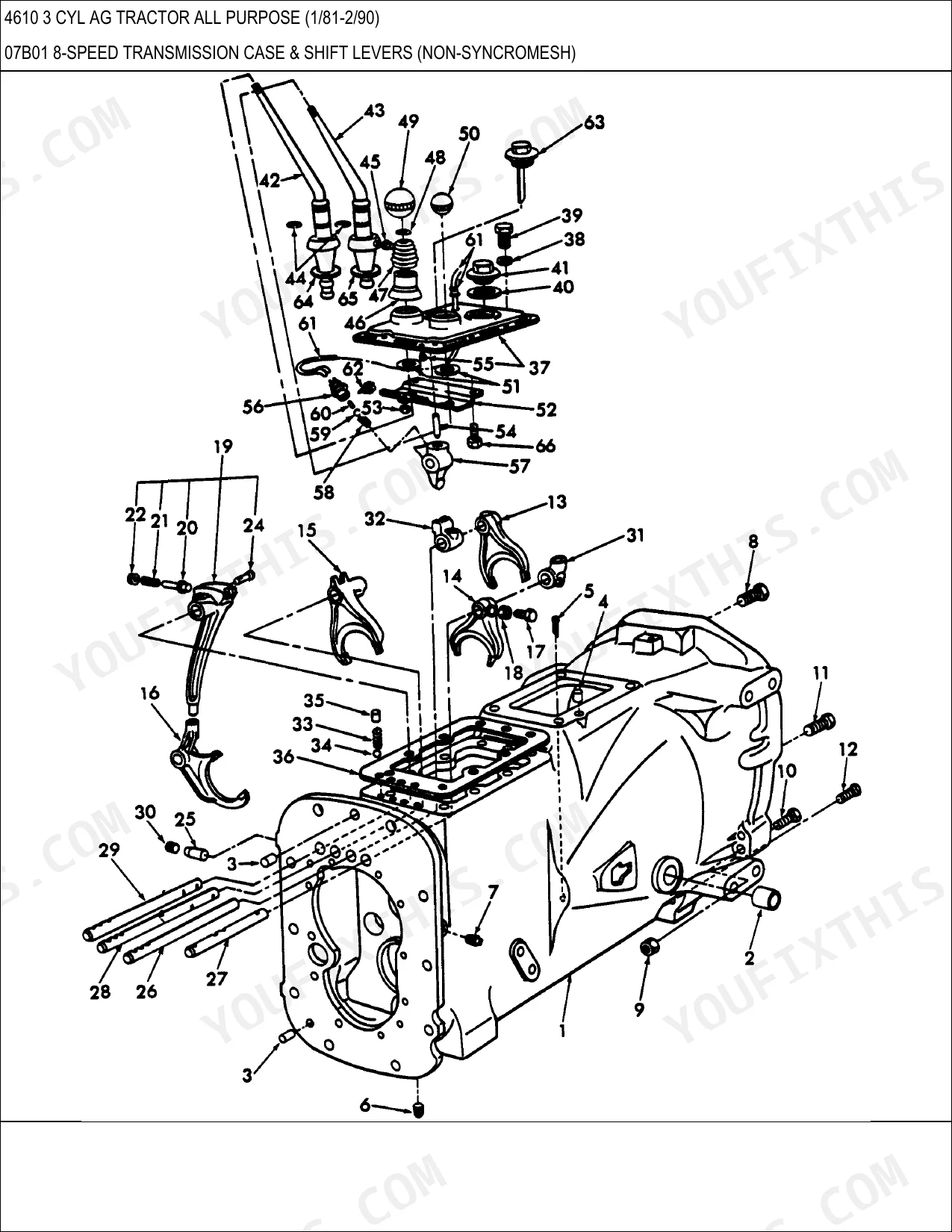

| Transmission & Gears | - | 8-Speed Transmission Case, Synchronized Transmission Gears, Creeper Gear Kit, Reduction Gear Box |
| Electrical System | - | LH Electrical System, RH Electrical System, Alternator Assembly, Starting Motor |
| Lighting | - | Headlamp Assembly, Flasher Lamps, Rear Lamps, License Plate Lamp, Implement Lamp |

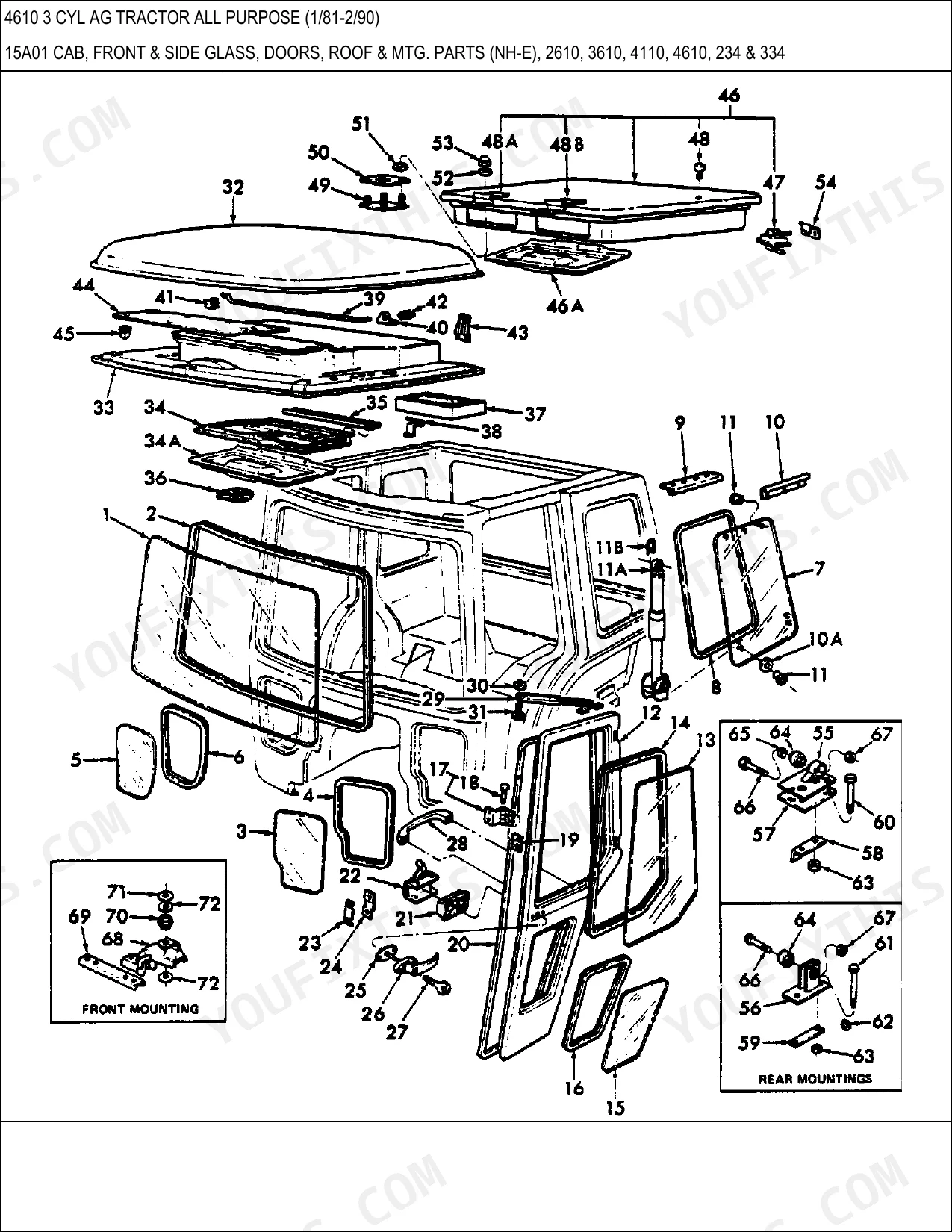

| Seat & Cab | - | Deluxe Suspension Seat, Cab Frame & Steps, Cab Heater, Windshield Washer, Doors, Windows |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Pump Pressure (4610) | 1050 PSI | p. 89 |
| Alternator Output (Option 1) | 32 Amp | p. 493 |
| Alternator Output (Option 2) | 51 Amp | p. 493 |
| Coolant Filter Kit | EKPN8A424EA | p. 339 |
Ford 4610 Common Problems This Manual Covers
Ford 4610 hydraulic pump part numbers hard to match, lift cylinder seal kit not on breakdown
Verify you have the correct pump first: the 4610 unit is rated at 1050 PSI, confirmed on page 89. Match your pump casting number against the parts number list, then trace the lift cylinder and flow control valve item numbers by serial number range before ordering any seals.
Manual Section: Hydraulic Lift SystemAlternator replacement ordering wrong unit, two different alternators fitted across the production run
Check the output rating stamped on your alternator tag before ordering anything; this tractor shipped with either a 32 Amp or a 51 Amp unit, both listed on page 493. Match the stator, rotor, and regulator part numbers to your amp rating in the Alternator Assembly breakdown, then confirm the pulley style.
Manual Section: Alternator Troubleshooting p. 493Engine overhaul gasket kit and coolant filter part numbers missing from dealer printout
Trace each gasket on the engine parts diagram and note the item numbers against the Engine Gasket Kits listing for the 3 cylinder block. Order coolant filter kit EKPN8A424EA, verified on page 339, in the same batch; it sits on the cooling breakdown and gets missed constantly.
Manual Section: Engine & Cylinder BlockPTO shaft and transmission gear part numbers confusing between standard and creeper gear versions
Identify your gearbox before pulling numbers: the 8-speed case and synchronized gear sets carry different part numbers than units fitted with the creeper gear kit. Trace the PTO shaft through the drivetrain parts diagram, count your gear teeth, and match every item number to your serial number range.
Manual Section: Transmission & GearsFrequently Asked Questions
What is the torque specification for the front wheel hub bolts on a Ford 4610 tractor?
The front wheel hub bolts (Ref 6) for the 4610 tractor are specified as 1/2"-20 x 1-3/4" bolts. The corresponding nut (Ref 9) is a 1/2"-20 nut. p. 9
What is the torque specification for the rear wheel lug nuts on a Ford 4610 tractor?
The rear wheel lug nuts (Ref 2) for the 4610 tractor are 5/8"-18 nuts. There are 16 required for the assembly. p. 16
What is the correct torque specification for the cylinder head bolts on a Ford 4610 3-cylinder diesel engine?
The cylinder head bolts for the 3-cylinder diesel engine are 1/2"-13 x 4-3/4" bolts. There are 10 required for the assembly. p. 241
What is the correct replacement filter for the engine oil on a Ford 4610 tractor?
The correct engine oil filter for the Ford 4610 tractor is part number 86546614. p. 238
What is the correct replacement filter for the diesel fuel system on a Ford 4610 tractor?
The correct fuel filter element for the diesel fuel system on the Ford 4610 tractor is part number 83937061. p. 352
What format is this Ford 4610 manual in?
You get a 772-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this Ford 4610 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
