Where the differential lock engages, how much ballast a loader job calls for, what wheel tread suits your row spacing: this 96-page Ford 3910 operator manual PDF (OEM ID 42281041) settles those questions with factory answers, and it covers five models in the same utility line. The 2810, 2910, 4610, and 4610SU share these pages too, from synchromesh transmission and PTO handling through the hydraulic lift system with draft control and tractor weighting. A lubrication and maintenance chart sets out every service point by hour interval, and a pre-delivery and 50-hour checklist shows you what the dealer should have done. Change the fuel filter at 600 hours, the hydraulic filter at 300, and torque the wheel hub nuts to 103 lbs. ft. (140 Nm) after wheel work. When it is just you, the tractor, and a quiet yard, this book answers what nobody is around to explain. Download the bookmarked, text-searchable PDF and put it back in the field.
What's Inside This Ford 2810, 2910, 3910, 4610, 4610SU Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 7-8 | The Tractor |
| Controls and Instruments | 9-18 | Seat, Light, And Engine Controls, Brake Controls, Transmission and PTO Controls, Front Wheel Drive Axle, Hydraulic Lift System Controls |
| Operation | 19-50 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating the Manual Shift and Synchromesh Transmission and PTO, Front Wheel Drive Axle, Towing the Tractor |
| Lubrication and Maintenance | 51-76 | Lubrication and Maintenance Chart, Fuels and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage, Front Wheel Drive, Steering Stop Adjustment |
| Specifications | 77-83 | Capacities, Engine Specifications, Electrical System Specifications |
| Decals | 84-86 | Draw Bar Warning Decal, PTO Warning Decal, Jump Start Warning Decal, Fan Shroud Warning Decal, Fender Warning Decal |
| Pre-Delivery and 50-Hour Service | 87-96 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Performance Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel hub nuts torque | 103 lbs. ft. (140 Nm) | p. 38 |
| Disc to rim nuts torque | 173 lbs. ft. (234 Nm) | p. 38 |
| Fuel filter change interval | 600 hours | p. 54 |
| Hydraulic system filter change interval | 300 hours | p. 58 |
| Hydraulic system (rear axle) oil change interval | 1200 hours | p. 58 |
| ROPS Mounting Bolt Torque | 180-220 lbs. ft. | p. 11 |
| Front Wheel Bearing Service Interval | 600 hours | p. 73 |
| Engine Oil Change Interval (Normal) | 300 hours | p. 55 |
| Transmission Oil Change Interval | 1200 hours | p. 59 |
| Rear Axle Oil Change Interval | 1200 hours | p. 60 |
Ford 2810, 2910, 3910, 4610, 4610SU Common Problems This Manual Covers
Ford 4610 three-point hitch lifts slowly or drops under load, lift gets weaker as oil warms up
Check the rear axle oil level with all cylinders lowered before condemning the pump. Drain and refill if the oil looks milky or burned; change the hydraulic system filter every 300 hours as shown on page 58, and change the rear axle oil every 1200 hours. Recheck lift speed with a loaded implement.
Manual Section: Lubrication and Maintenance p. 58Engine hard to start after fuel filter change, runs a minute then stalls out
Bleed the fuel system before chasing bigger problems. Loosen the filter bleed screw, work the primer until fuel runs free of bubbles, then tighten and bleed the injection pump the same way. Change the diesel fuel filter every 600 hours as noted on page 54, and check for weeping fittings that let air in.
Manual Section: Fuel System BleedingEngine loses power and runs hot pulling heavy draft loads in warm weather
Check the air cleaner restriction warning light with the engine under load and service the element if it glows. Clean chaff and debris from the radiator screen and verify coolant sits at the correct level when cold. If power is still down, replace the fuel filter; the schedule on page 54 calls for a new one every 600 hours.
Manual Section: Cooling System MaintenanceFront wheels shimmy at road speed, steering wheel has more play every season
Jack up the front axle and rock each wheel to feel for loose bearings; clean, repack, and adjust the front wheel bearings every 600 hours as shown on page 73. Check toe-in and adjust the tie rod if tire wear is uneven, then torque the wheel hub nuts to 103 lbs. ft. (140 Nm) before road travel.
Manual Section: Lubrication and Maintenance p. 73Engine cranks slowly and will not fire on frosty mornings, warning lights dim while cranking

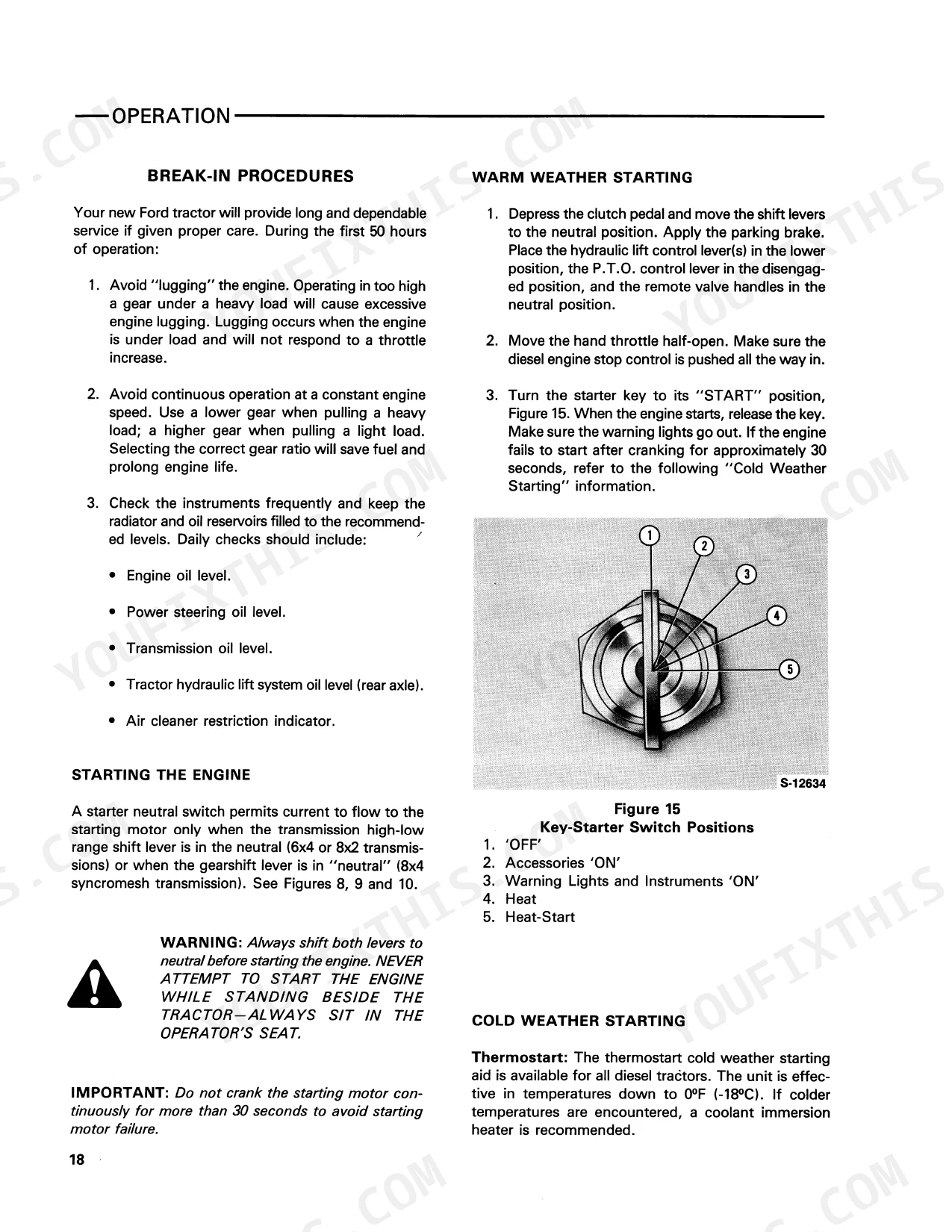

Follow the cold weather starting procedure on page 20, including correct throttle and clutch positions, before blaming the battery. Clean and tighten both battery cable ends and check the charge. Change engine oil on the 300 hour schedule shown on page 55; thick, dirty oil drags the starter on cold mornings and steals your field time.
Manual Section: Engine Starting Problems p. 20Frequently Asked Questions
What are the replacement air filter specifications for the Ford 2810, 2910, 3910, 4610, 4610SU tractor?
The air cleaner outer element should be cleaned only when the restriction indicator light illuminates while the engine is running. It can be cleaned using compressed air (maximum 30 psi) or by washing in warm water with a non-sudsing detergent. The inner element should not be cleaned and should only be replaced by your Ford Tractor-Equipment Dealer. p. 58
What are the replacement specifications for the fuel filter on a Ford 2810, 2910, 3910, 4610, 4610SU Tractor?
The diesel fuel filter should be drained every 50 hours to remove water and replaced every 600 hours. When replacing, close the fuel shut-off valve, remove the retaining bolt to separate the filter element, and install a new element and sealing rings. p. 56
What is the correct torque for the ROPS mounting bolts on a Ford 2810, 2910, 3910, 4610, 4610SU tractor?
The ROPS mounting bolts must be checked after the first 20 hours of operation and then every 500 hours or six months. They should be tightened to a torque of 180-220 lbs. ft. (244-298 Nm). p. 11
What is the valve clearance specification for the Ford 2810, 2910, 3910, 4610, 4610SU tractor engine?
The valve clearance (lash) for the engine should be checked and adjusted every 300 hours. The intake valve setting is 0.014-0.016 inch (0.35-0.41 mm) and the exhaust valve setting is 0.017-0.019 inch (0.43-0.48 mm). p. 68
What is the engine oil capacity for the Ford 4610 with a filter change?
The engine crankcase oil capacity for the Ford 4610, as well as all other models listed, is 7 U.S. quarts (5.8 Imp. qts.) (6.6 liters) when performing an oil change with a filter change. p. 78
How will I receive this Ford 2810 Operator Manual?
One searchable PDF covering 96 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Is printing allowed for this Ford 2810 Operator Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
