Built to keep an aging hydrostatic Ford mowing, the Ford GT65 to GT95 series operator manual PDF (OEM 42641075) packs factory operating and maintenance guidance for all four garden tractors in the series into 54 pages. Lubrication and maintenance fills more than a third of the book, pairing a service interval chart with fuel and lubricant procedures and off-season storage steps. Break-in, cold starting, hydrostatic transmission operation, and rear wheel tread settings each get a walkthrough, and the instrument panel, hand throttle, and PTO controls are laid out one by one so you know what each lever does. Set your fan belt to the printed figure, 7/16 to 9/16 inch of deflection under 20 to 25 pounds of thumb pressure, and replace the PTO tension spring once it measures under 94 mm. A parked tractor burns mowing season, not fuel. Bookmarked and text-searchable, this download has yours running again this weekend.
What's Inside This Ford GT65, GT75, GT85, GT95 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 4-7 | The Tractor |

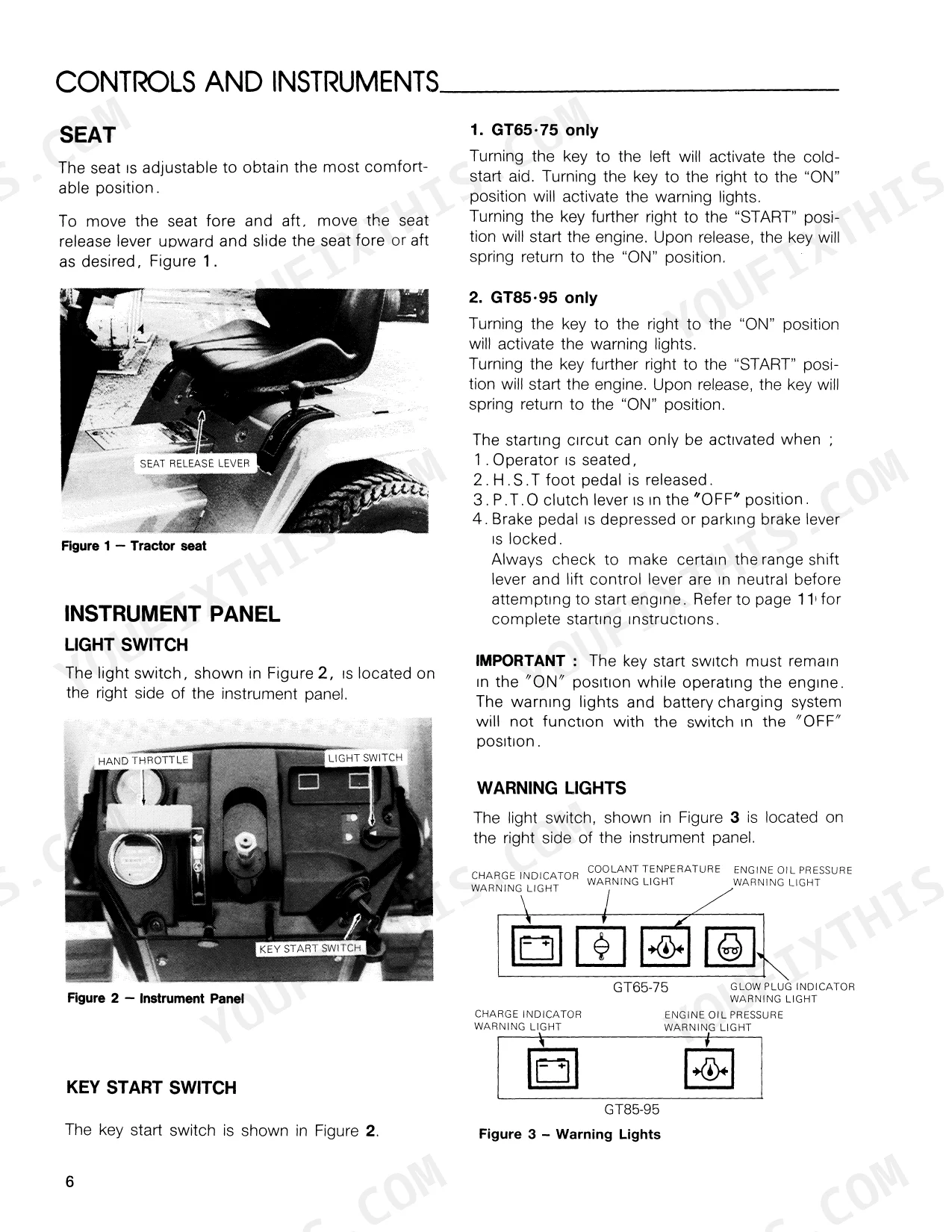

| Controls and Instruments | 8-12 | Seat, Instrument Panel, Hand Throttle Control, Brake Controls, H.S.T. Controls & Gearshift, P.T.O. and Hydraulic Lift Controls, Steering Wheel |

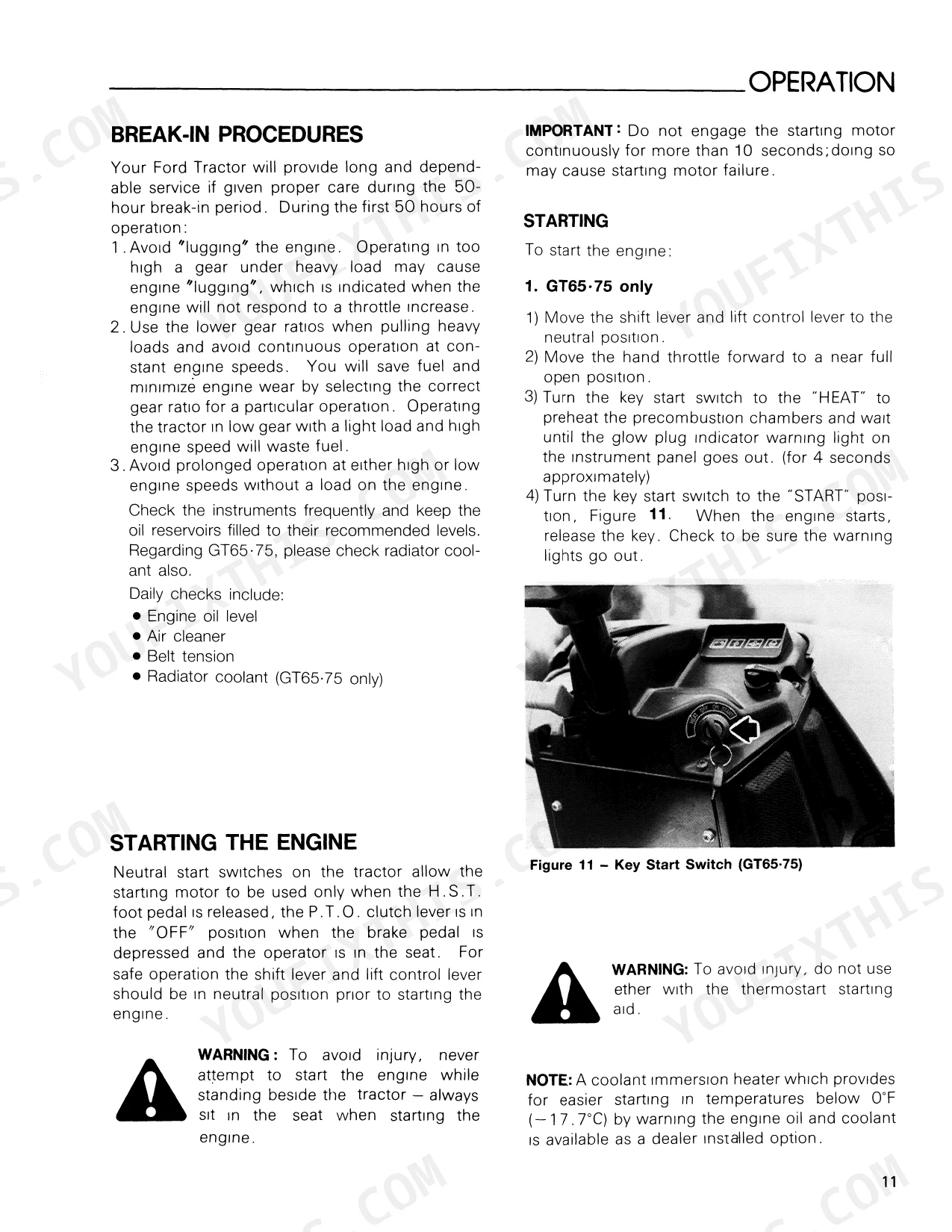

| Operation | 13-17 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating the Hydrostatic Transmission, Driving the Tractor, Rear Wheel Tread Setting, Tire Pressure |
| Fuel And Lubricants | 20-21 | - |
| Fuel And Lubricant Service Procedures | 22-29 | - |
| General Maintenance | 30-42 | - |
| Specifications | 43-46 | Engine Specifications, General Dimensions |
| Safety and Instruction Decals | 47-50 | Safety Decals, Instruction Decals |
| Owner Assistance | 51-54 | Dealership Management, Branch Office, Machine Identification, Consumer Services Department, Problem Documentation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fan belt deflection | 7/16 to 9/16 inch (10 to 15mm) | p. 30 |
| Fan belt thumb pressure | 20 to 25 pounds (9 to 11kg) | p. 30 |
| System Relief Valve Setting | 471 psi | p. 45 |
| Power Steering System Relief Valve Setting | 889 psi | p. 45 |
| GT65 | ||
| Engine Horsepower (GT65) | 14 hp | p. 44 |
| GT85, GT95 | ||
| Spark Plug Gap | 0.025 in. | p. 44 |
Ford GT65, GT75, GT85, GT95 Common Problems This Manual Covers
Ford GT75 PTO drive belt slipping and fraying, mower blades slow down in thick grass
Measure the PTO belt tension spring before buying another belt; correct length is 98 mm (3.9 inches), shown on page 39. If the spring measures under 3-11/16 inches (94 mm), adjust it per the procedure on page 37. Inspect both pulleys for grass packing and glazing, and consider a Kevlar replacement belt.
Manual Section: Brake and PTO Adjustments p. 39Engine runs fine for the first hour of mowing, then surges and dies like it ran out of fuel
Check the fuel tank cap vent first: loosen the cap when the engine dies and listen for inrushing air. Clean or change the fuel filter using the service procedures on page 26. Then check fan belt tension per page 30; the belt should deflect 7/16 to 9/16 inch (10 to 15 mm) under 20 to 25 pounds of thumb pressure.
Manual Section: Fuel System (Diesel) p. 26Engine misses under load, idles rough, and fouls plugs after sitting all winter
Remove the spark plug and inspect for carbon fouling or a worn electrode. On GT85 and GT95 engines, set the gap to 0.025 inch as specified on page 44, and replace a fouled plug rather than sandblasting it. Drain stale fuel and refill with fresh, then follow the maintenance schedule on page 18 before spring startup.
Manual Section: Ignition and Spark Plugs p. 44Mower deck draft arms and lift linkage sloppy, deck bounces and scalps on uneven ground
Inspect the draft arm pins, bushings, and lift linkage for wear; sloppy pins let the deck bounce and scalp. Replace worn pins and gauge wheels, then grease the linkage at the intervals on the maintenance chart on page 18. If the lift is weak, the system relief valve is set at 471 psi (page 45); let your dealer test it.
Manual Section: Lubrication and Maintenance p. 18Frequently Asked Questions
What is the wheel lug nut torque specification for the Ford GT65, GT75, GT85, GT95 Garden Tractor?
After reinstalling a wheel, torque the lug nuts to the specified value. You must check the lug nut torque daily until the torque stabilizes. p. 17
What are the valve clearance specifications for the GT65 and GT75 engines?
For both the GT65 and GT75 engines, the intake and exhaust valve clearance (cold engine) is 0.008 inches (0.20 mm). p. 44
What is the engine oil capacity for the GT85 and GT95 models with the filter changed?
When changing the engine oil and the filter on GT85 and GT95 models, the capacity is 2.0 U.S. quarts (1.7 Imp. qts. or 1.9 Liters). p. 44
How do I adjust the fan belt tension on the GT65-75 models?
A correctly tightened fan belt should deflect 7/16 to 9/16 inch (10 to 15 mm) when 20 to 25 pounds (9 to 11 kg) of thumb pressure is applied midway between the pulleys. To adjust, loosen the alternator mounting bolts, pry the alternator away from the engine, and tighten the bolts. p. 32
What is the procedure for bleeding the fuel system on the GT65-75 models?
After draining or if the system has air, open the fuel shut-off valve and the bleed screw (Figure 23). Turn the key start switch to the 'ON' position to allow the electric pump to push air bubbles out, then tighten the bleed screw. Finally, push the hand throttle to high speed and crank the engine for a few seconds to bleed the high-pressure fuel tube. p. 26
What format is this Ford GT65–GT95 Series manual in?
You get a 54-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Does this Ford GT65–GT95 Series manual allow printing?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
