Ford sold the LS25-12.5G yard tractor under model number 9861897, and this 44-page Ford LS25-12.5G, 9861897 operator manual PDF (Manual No. 42642510) is written for that machine specifically, and the Introduction (p.2) tells you to check the model and serial number plate under the seat to confirm the fit. This book covers the gear-drive LS25-12.5G, the 'G' in the model name: its controls use a clutch pedal plus a 5-speed gear selector, not the single traction pedal a hydrostatic sibling would have, though a few safety and lubrication notes call out both drivetrains. The wiring diagram (p.35) traces ignition switch circuitry through the solenoid, switching relay, and kill relay, plus the seat and brake switches, which is where most no-crank problems on this tractor hide. Maintenance fills nearly half the book: a service interval chart up front, then air cleaner, engine oil, brake adjustment, front wheel toe-in, fuses, and battery care in order, and Operation covers the attachment lift lever and Dial-A-Height control that set the mower deck's cutting height. Fill the crankcase with 4 pints (1.9 l) and keep the tires at 12 psi, and when the starter won't crank, the troubleshooting chapter starts you at the seat and parking-brake interlocks before it sends you looking for a bad fuse or relay. This is a scanned reprint with a recognized (OCR) text layer, so most of it searches and prints cleanly; it can take grease on the bench while the mowing weather holds.
What's Inside This Ford LS25-12.5G, 9861897 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Model and Serial Number Plate Location, Safety Signal Words (Danger/Warning/Caution) |
| Safety | 4-9 | Safe Operating Practices, Slope Operation, Children |

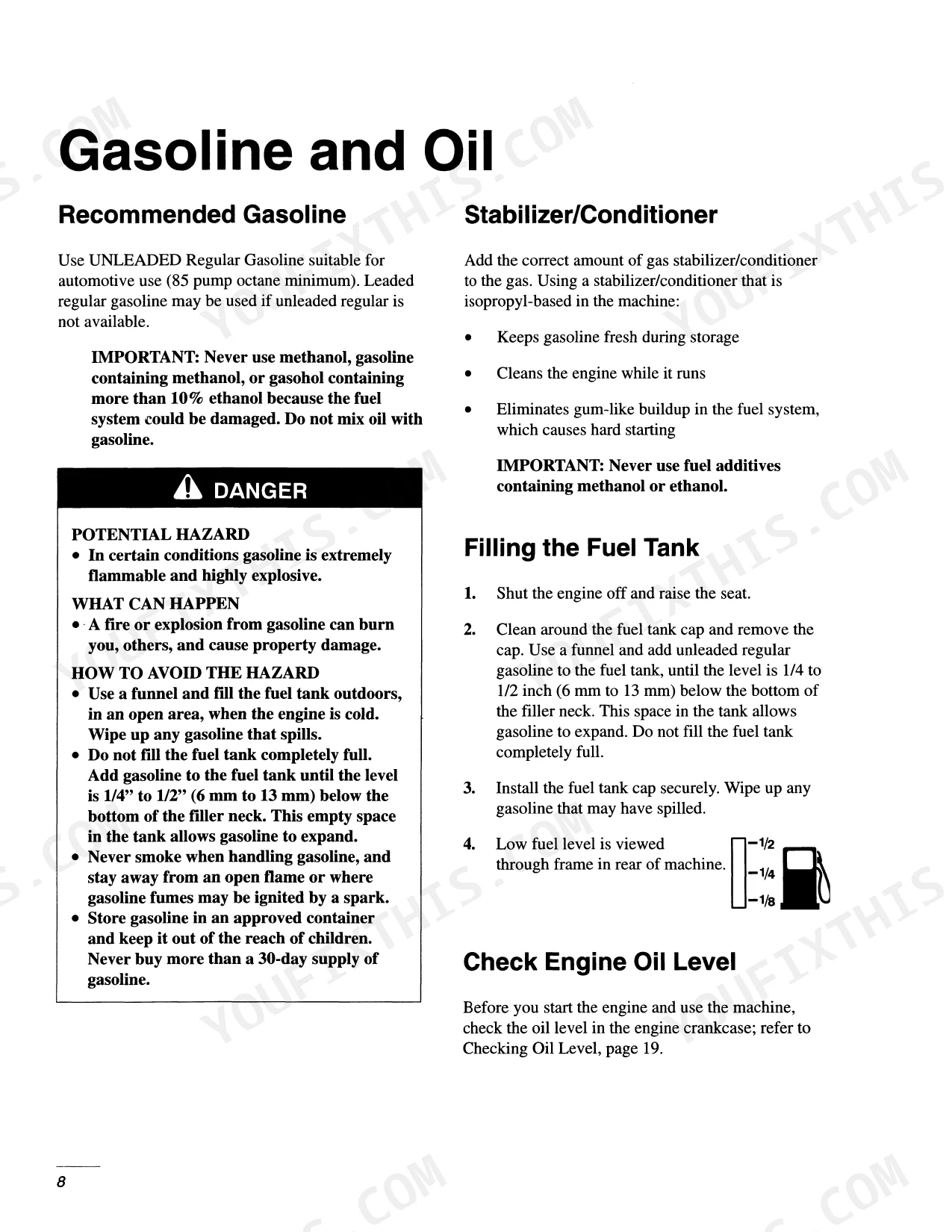

| Gasoline and Oil | 10 | Recommended Gasoline & Stabilizer/Conditioner, Filling the Fuel Tank, Check Engine Oil Level |

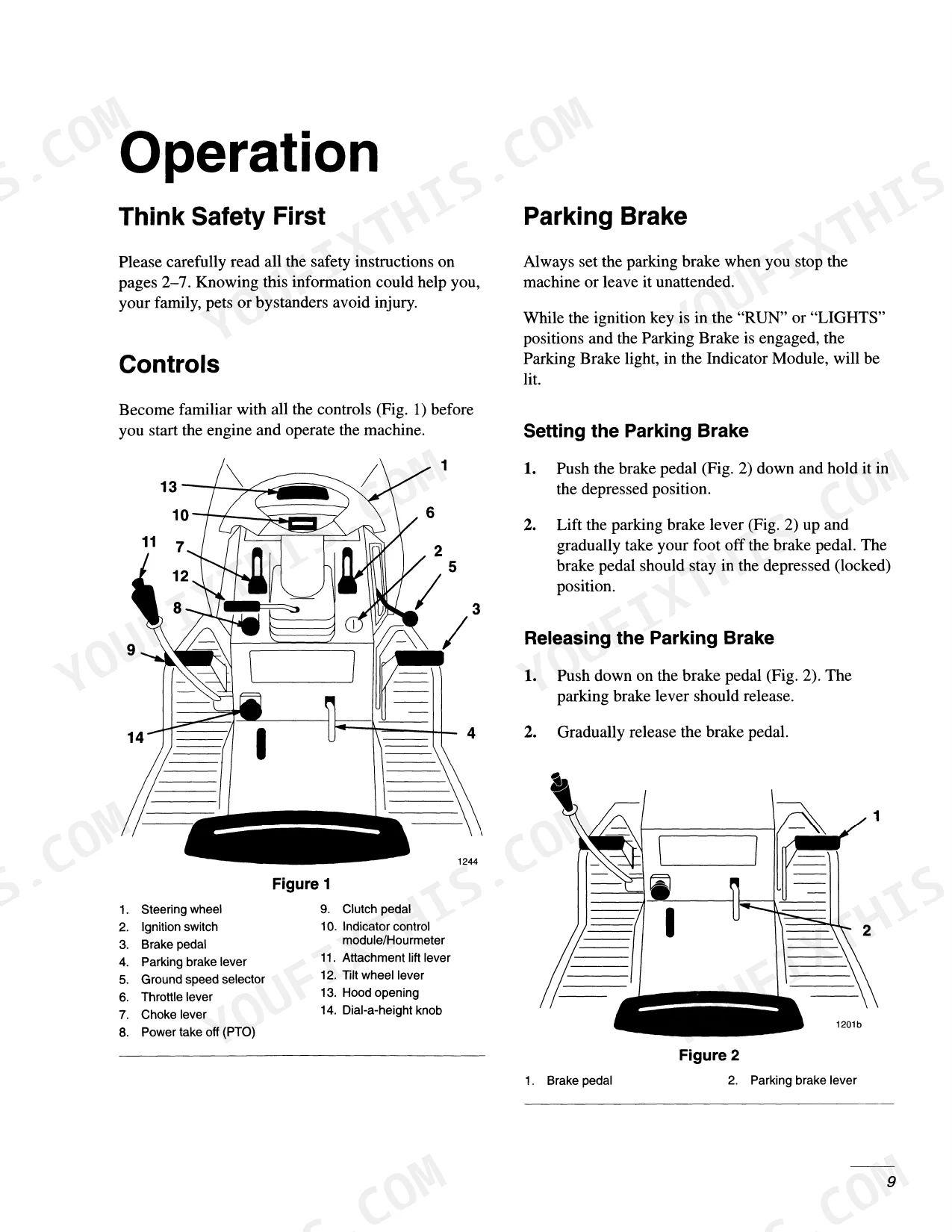

| Operation | 11-17 | Think Safety First, Controls, Parking Brake, Starting and Stopping the Engine, Operating the Power Take Off, Safety Interlock System, Indicator Control Module, Hourmeter, Attachment Lift Lever, Dial-A-Height Cutting-Height Adjustment |
| Maintenance Service Interval Chart | 18 | Service Schedule by Operating Hours |
| Air Cleaner | 19-20 | Foam Element Service Interval, Paper Element Replacement, Removing and Installing the Assembly |
| Engine Oil | 21-22 | Oil Type and Viscosity Chart, Crankcase Capacity (4 Pints), Changing Oil and Replacing the Filter |

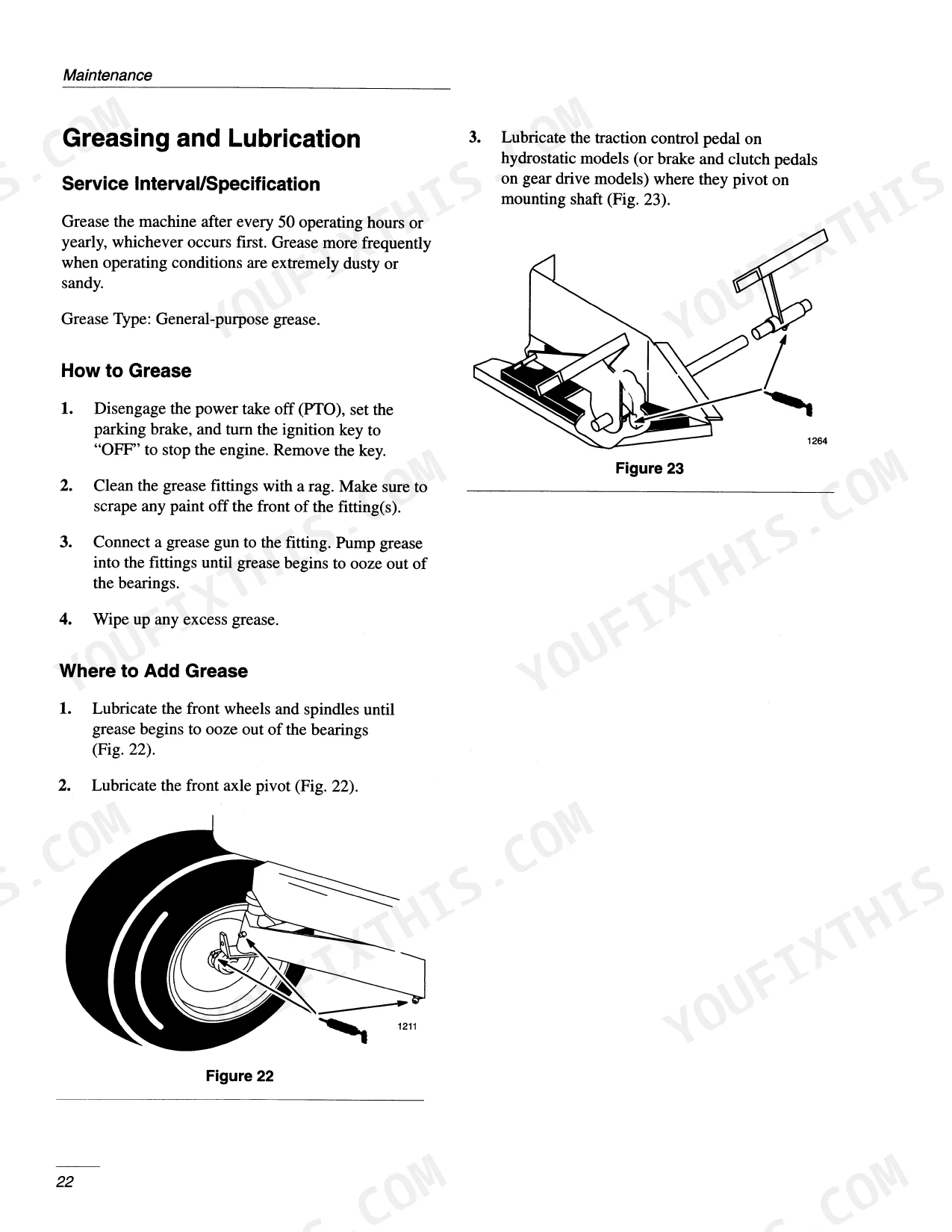

| Spark Plug, Greasing & Tire Pressure | 23-25 | Champion Rj-19LM Plug, Air Gap and Torque Spec, Chassis Grease Points, Tire Pressure |
| Brake, Fuel System & Front Wheel Toe-In | 26-29 | Brake Adjustment, Fuel Tank Draining and Filter Replacement, Front Wheel Toe-In Adjustment |
| Fuse & Headlights | 30-31 | Fuse Ratings and Replacement, Headlight Bulb Replacement |
| Battery | 32-34 | Voltage and Cold Cranking Amps, Removing and Installing, Electrolyte Level and Charging |
| Wiring Diagram | 35 | Ignition Switch Circuitry and Solenoid, Switching Relay and Kill Relay, Seat and Brake Safety Switches |
| Cleaning and Storage | 36 | Washing the Machine, End-of-Season Storage Prep |
| Troubleshooting | 37-38 | Starter, Engine Starting, Engine Power, Engine Overheating, Abnormal Vibration, Machine Drive |
| Warranty | 40-41 | Repair, Replacement, Dealer Responsibility, Exclusions, Design Changes |
| Owner Assistance | 43 | Dealer and Branch Office Contacts, Service Department, Service Publications Catalog |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Crankcase Capacity (w/filter) | 4 pints (1.9 l) | p. 21 |
| Spark Plug Torque | 15 ft-lb (20.4 Nm) | p. 23 |
| Tire Pressure | 12 psi (0.85 bar) | p. 25 |
| Front Wheel Toe-in | 1/8-1/4 inch | p. 29 |
| Dash/Hour meter Fuse | 5 amp | p. 30 |
| Head lights Fuse | 10 amp | p. 30 |
| Alternator Fuse | 25 amp | p. 30 |
| Main/Starter Fuse | 30 amp | p. 30 |
| Battery Voltage | 12 v | p. 32 |
| Battery Cold Cranking Amps | 240 CCA | p. 32 |
Ford LS25-12.5G, 9861897 Common Problems This Manual Covers
Ford LS25-12.5G starter does not crank when ignition key is turned, no click from solenoid
Check the safety interlock first: sit fully on the seat, set the parking brake, disengage the blade control, and put the speed selector in neutral. Work through the starter checklist on page 37, then test the 30 amp main/starter fuse on page 30 and confirm the battery holds 12 volts before condemning the starter.
Manual Section: Starter does not crank p. 37Engine will not start or starts hard after sitting in the shed all winter
Drain stale fuel from the tank using the procedure on page 27 and refill with fresh gasoline. Replace the fuel filter per page 28 if it sat over the winter. Pull the spark plug, check its condition against page 23, and torque it to 15 ft-lb (20.4 Nm) before mowing season kicks off.
Manual Section: Engine will not start, starts hard, or fails to keep running p. 37Engine loses power and bogs down when mowing tall grass or working uphill
Check the engine oil level with the machine on level ground; the crankcase holds 4 pints (1.9 l) as listed in the engine oil section starting on page 21. Clean or replace a dirty air cleaner element, brush grass clippings off the cooling fins, and follow the power loss chart on page 37 if the engine still bogs down.
Manual Section: Engine loses power p. 37Front tires wearing unevenly on inside edges and steering wanders on hard ground
Check tire pressure first and set the tires to 12 psi per page 25. Then measure front wheel toe-in following the procedure on page 29; the spec is 1/8-1/4 inch. Adjust the tie rods until toe-in lands in that range, and hit the front axle grease fittings while you are under there, per page 24.
Manual Section: Front Wheel Toe-In p. 29Frequently Asked Questions
What is the spark plug torque specification for the Ford LS25-12.5G?
The spark plug should be tightened to 15 ft-lb (20.4 Nm) during installation. p. 23
What is the crankcase oil capacity for the Ford LS25-12.5G?
The engine crankcase capacity with the filter is 4 pints (1.9 liters). p. 21
How often should the engine oil be changed?
The engine oil should be changed after the first 5 operating hours and then every 100 operating hours thereafter. p. 21
What is the correct tire pressure for the Ford LS25-12.5G front and rear tires?
The recommended air pressure for both the front and rear tires is 12 psi (0.85 bar). p. 25
What is the specified spark plug air gap for the Ford LS25-12.5G?
The spark plug air gap should be set to 0.030 inches (0.762 mm). p. 23
How quickly can I access this Ford LS25-12.5G manual after buying?
Instant PDF download. You get the full 44-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Ford LS25-12.5G Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
