Looking for a Ford TW-15 shop manual PDF that actually covers your tractor? This 172-page Ford Shop Manual spans the full TW line, covering the TW-5, TW-15, TW-25, and TW-35 from front axle to cab. Open it up and you get hydraulic schematics for both the pre-1985 and post-1985 lift systems, full troubleshooting sections for the hydrostatic power steering and PTO, plus step-by-step procedures for engine, transmission, and final drive teardown. Fluid capacity charts, valve clearance tables, and pump flow test values back up every adjustment with real numbers. Set intake valve tappet gap at 0.014-0.016 in. cold, and dial the hydraulic system relief valve to 2450-2550 psi before you button it back up. No more guessing which lift system your tractor has before you go chasing a pressure fault. Bookmarked and searchable; jump straight to the system you're working on and search any spec by keyword.
What's Inside This Ford TW-5 to TW-35 Series Manual
| System | Pages | Key Topics |
|---|---|---|

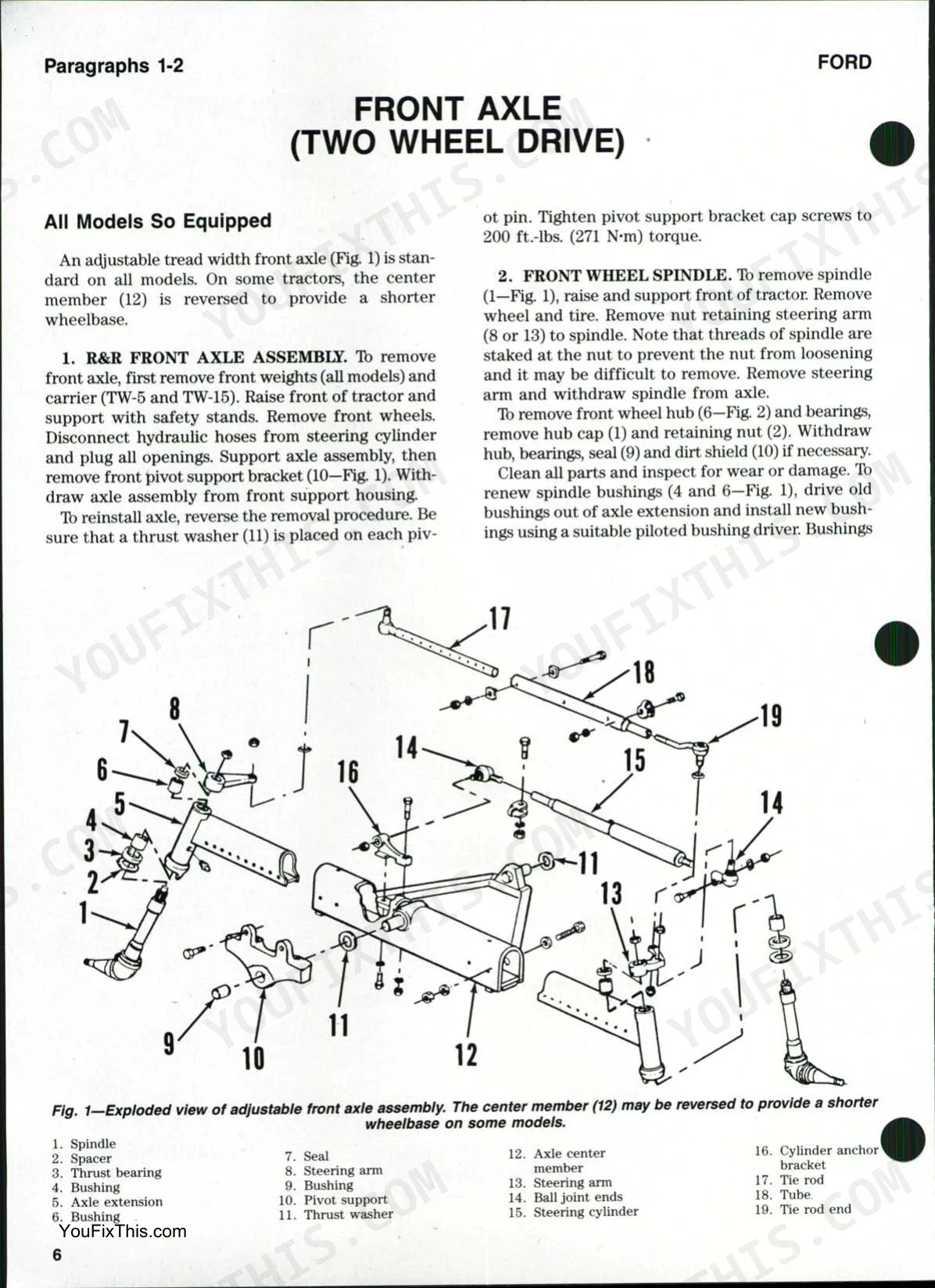

| Front Axle (Two Wheel Drive) | 5-7 | Axle Main Member, Front Support, Spindles, Tie Rod and Toe-In |
| Front Wheel Drive | 8-29 | All Models So Equipped, Lubrication, R&R Front Axle and Pivot Support, Toe-In, Apl-345 and Apl-355 Type Axles (All Models So Equipped), Wheel Hub and Planetary Carrier |
| Hydrostatic Power Steering | 30-39 | Fluid and Filter (All Models), System Pressure Test (All Models), Trouble-Shooting (All Models), Steering Pump (All Models, R&R and Overhaul), Steering Column (All Models) |
| Engine and Components | 40-51 | R&R Engine (All Models), Engine Compression Pressure (All Models), Cylinder Head (All Models), Valves, Seats, Guides and Springs (All Models), Rocker Arms (All Models) |
| Diesel Fuel System | 52-57 | Filter and Bleeding (All Models), Fuel Lift Pump (All Models, Pressure Check, R&R and Overhaul), Fuel Injection Pump (All Models, Pump Timing, R&R Fuel Injection Pump) |
| Turbocharger | 58-63 | All Models So Equipped, Remove and Reinstall, Bearing Clearance Check, Overhaul, Intercooler (Model Tw-35), Tip Turbine Fan, Heat Exchanger |
| Cooling System | 64-65 | Radiator Pressure Cap and Thermostat (All Models), Fan and Fan Drive (All Models), Radiator (All Models), Engine Oil Cooler (All Models), Water Pump (All Models) |
| Electrical System | 66-77 | Alternator and Regulator (All Models, Testing, Battery Voltage Test, Excitation Voltage Test, Field Circuit Test, Voltage Regulator Voltage Test, Alternator Output Test, Disassembly, Brushes and Springs, Stator Winding, Rectifier Diodes, Rotor Winding, Reassembly) |
| Clutch | 78-80 | Pedal Free Travel Adjustment (All Models), R&R Clutch Assembly (All Models, Tractor Split), Overhaul Clutch (Model Tw-5, Models Tw-15, Tw-25 and Tw-35) |
| Dual Power | 81-85 | Clutch Pilot Bearing (All Models), Clutch Release Bearing (All Models), Pressure Testing (All Models), Control Valve (All Models), R&R Dual Power (All Models) |
| Low Pressure Hydraulic System | 86-90 | Pressure Testing, Gerotor Pump, Pressure Regulating Valve (R&R and Overhaul) |
| Transmission | 91-111 | Lubrication (All Models, Pressure Test), Parking Brake (All Models, Linkage Adjustment, R&R Parking Brake Linkage) |
| Final Drive and Rear Axles | 112-119 | Differential Lock Valve (Models Tw-5, Tw-15 and Tw-25, Model Tw-35), R&R Rear Wheel, R&R Rear Axle and Final Drive Assembly, Overhaul Rear Axle Shaft and Bearings |
| Power Take-Off | 120-125 | Trouble-Shooting, Pressure Test, Control Linkage Adjustment |

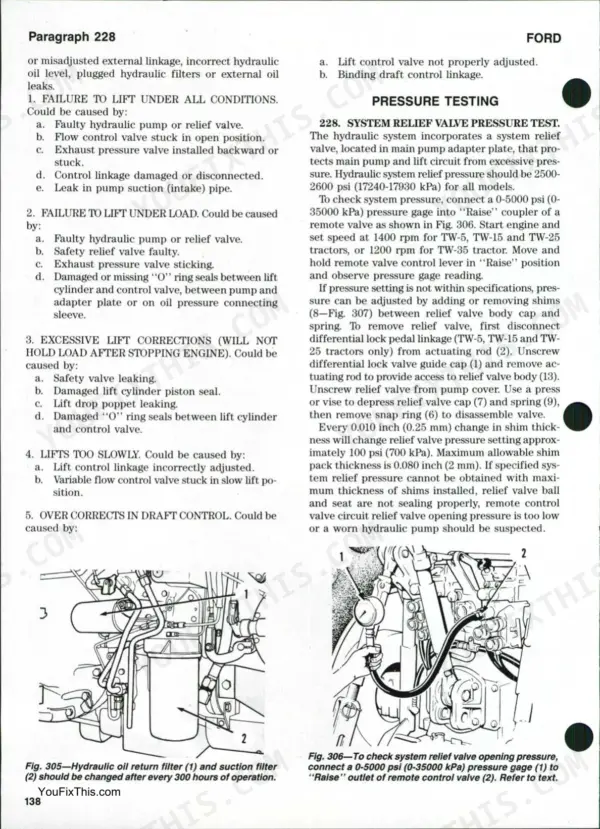

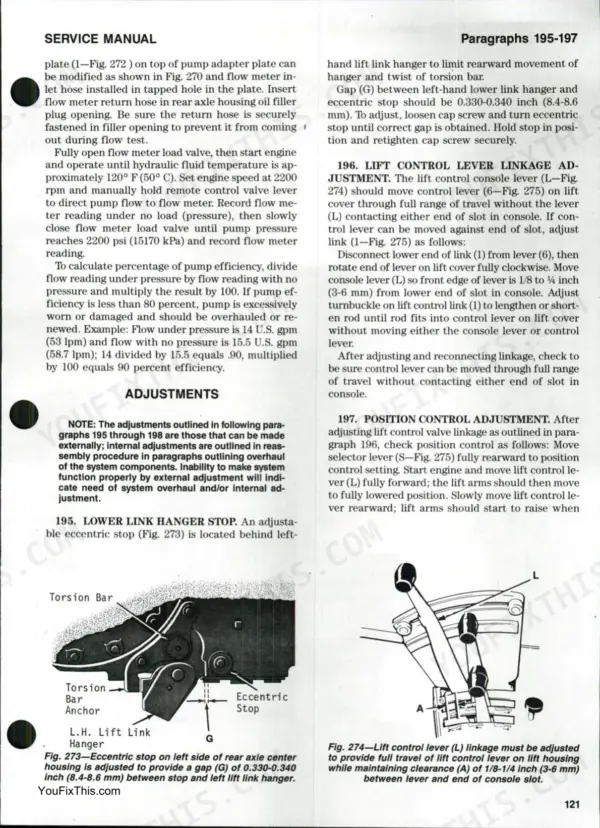

| Hydraulic Lift System (Tractors Built Prior to April 1985) | 126-144 | Principles of Operation, Hydraulic Fluid and Filters, Trouble-Shooting, Hydraulic Tests (Relief Valve Pressure Test, Pump Flow Rate Test) |
| Hydraulic Lift System (Tractors Built April 1985 and After) | 145-167 | Operation, Hydraulic Fluid and Filters, Trouble-Shooting, Pressure Testing (System Relief Valve Pressure Test, Remote Circuit Relief Valve Pressure Test, Pump Flow Testing) |
| Cab and Platform | 168-172 | Early Model Safety Cab (Remove and Reinstall), Platform (Remove and Reinstall), Late Model Safety Cab (Remove and Reinstall, Tilt Cab Forward) |

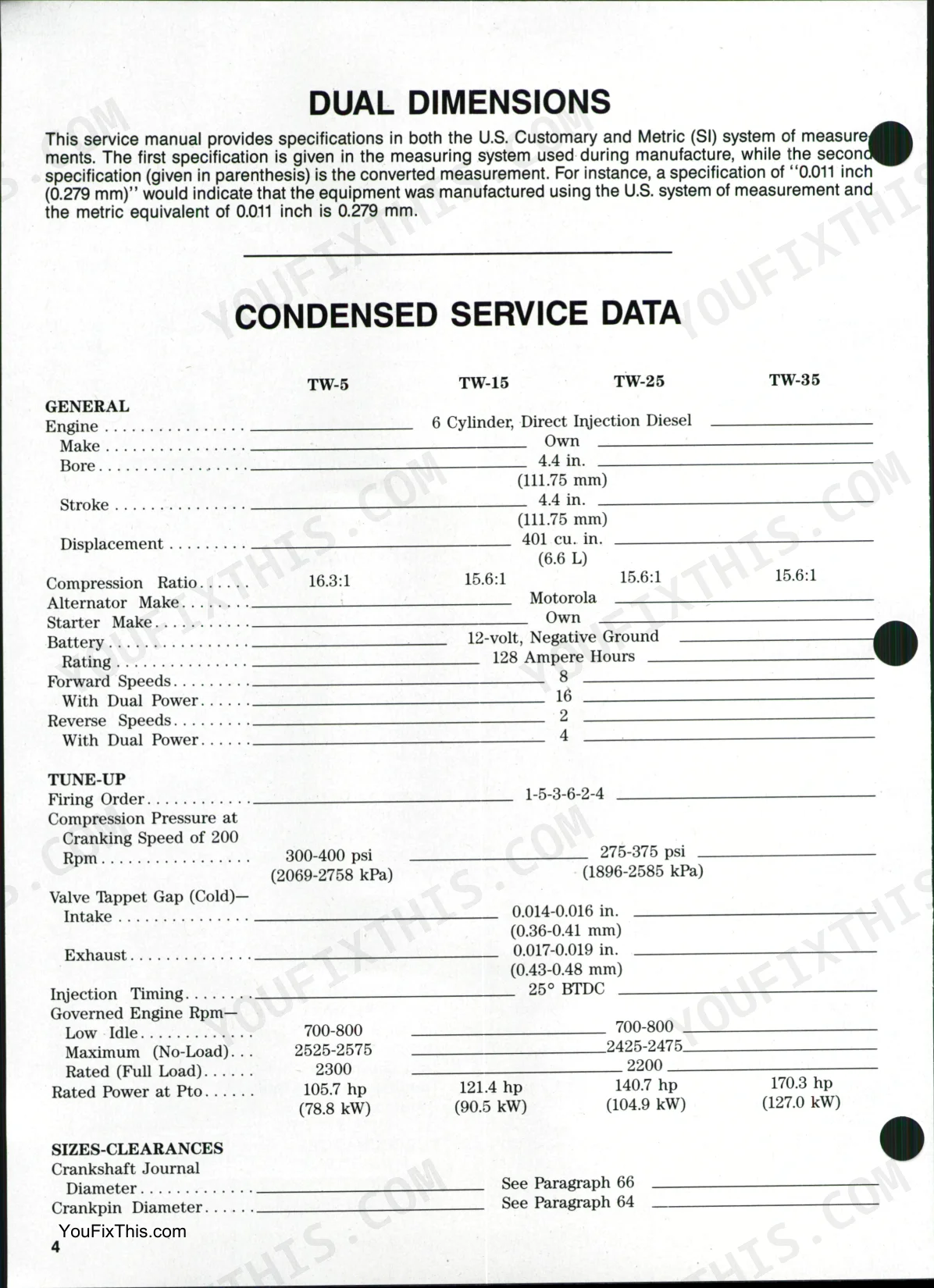

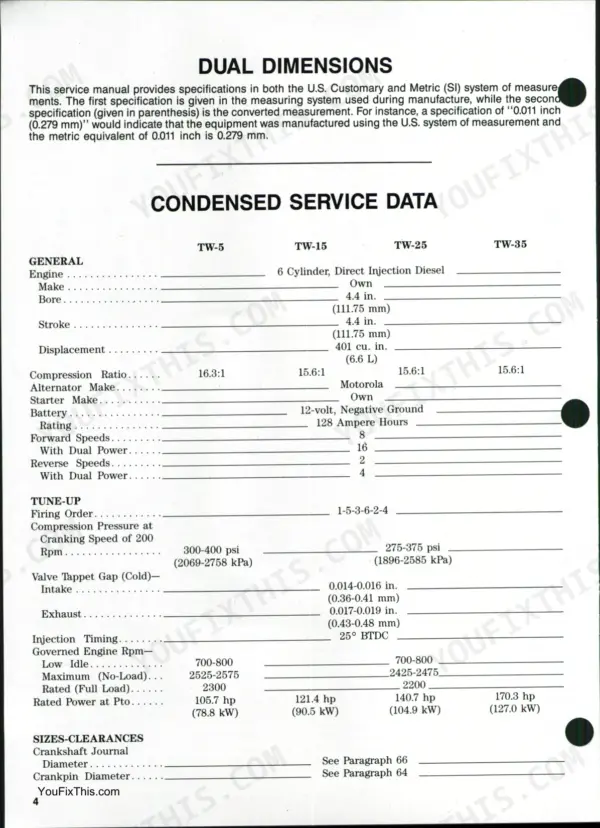

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic system relief pressure | 2450-2550 psi (16895-17580 kPa) | p. 129 |
| Valve Tappet Gap (Cold) - Intake | 0.014-0.016 in. | p. 3 |
| Crankcase Oil Capacity (With Filter Change) | 20 U.S. Qts. | p. 4 |
| Power Steering Relief Valve Opening Pressure | 1550-1650 psi | p. 30 |
| Crankshaft Rear Oil Seal Runout | 0.015 inch max | p. 50 |
| Clutch Pedal Free Travel | 1-1/8 to 1-5/8 inches | p. 78 |
| Dual Power Pressure Readings (all tests, 1000 rpm) | 185-220 psi | p. 83 |
| Transmission Lubrication Oil Pressure (2200 rpm) | 95-120 psi | p. 91 |
| Axle Shaft End Play (Front Wheel Drive) | 0.012-0.024 inch | p. 7 |
| TW-5 | ||
| Engine Compression Pressure | 300-400 psi | p. 40 |
| TW-15, TW-25, TW-35 | ||
| Engine Compression Pressure | 275-375 psi | p. 40 |
Ford TW-5 to TW-35 Series Common Problems This Manual Covers
Ford TW Series clutch pedal engages like an on/off switch, transmission shifts harsh between gears
Check clutch pedal free travel first: measure it at the pedal, per page 78 it should read 1-1/8 to 1-5/8 inches before resistance. Adjust the release shaft linkage if it's out of spec. If the clutch still grabs like a switch, pull the cover and inspect the friction discs and pressure plate for wear or oil contamination from a leaking seal.
Manual Section: Clutch p. 78Steering wheel feels heavy and responds slowly to input, especially at low engine RPM

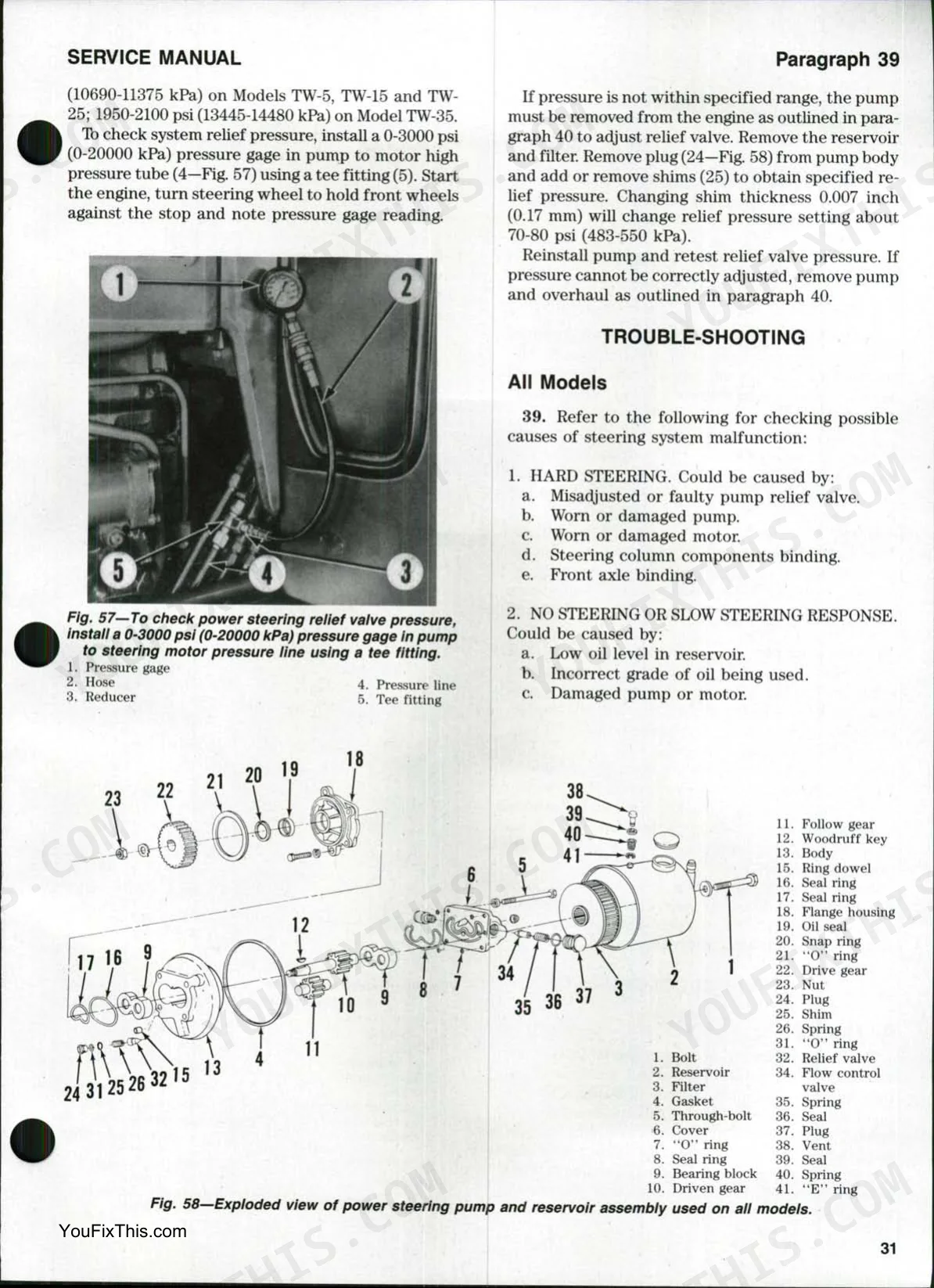

Check the troubleshooting steps on page 32 for hard or slow steering response. Verify the power steering relief valve opening pressure reads 1550-1650 psi. If pressure is low, inspect the steering pump for wear or a clogged filter, and check fluid level and condition before condemning the pump.
Manual Section: Hydrostatic Power Steering p. 32Battery keeps dying overnight and dash gauges flicker while engine is running
Test the alternator and regulator circuits on pages 66 through 68 in order: battery voltage, excitation voltage, field circuit, then alternator output. Verify battery voltage at rest reads above 12.4 volts. If excitation voltage is missing at the regulator terminal, check the wiring harness and brushes before replacing the alternator.
Manual Section: Electrical System p. 66PTO clutch keeps slipping under load or won't fully disengage when lever is pulled
Check PTO system pressure on page 120; at 2200 rpm it should read 185-235 psi. Low pressure under load points to a worn PTO clutch pack or a leaking control valve. Inspect the pressure regulating valve and clutch piston seals for wear, and verify the control linkage is adjusted correctly before tearing into the clutch pack itself.
Manual Section: Power Take-Off p. 120Three-point hitch lifts too slowly or won't raise implements even under light load

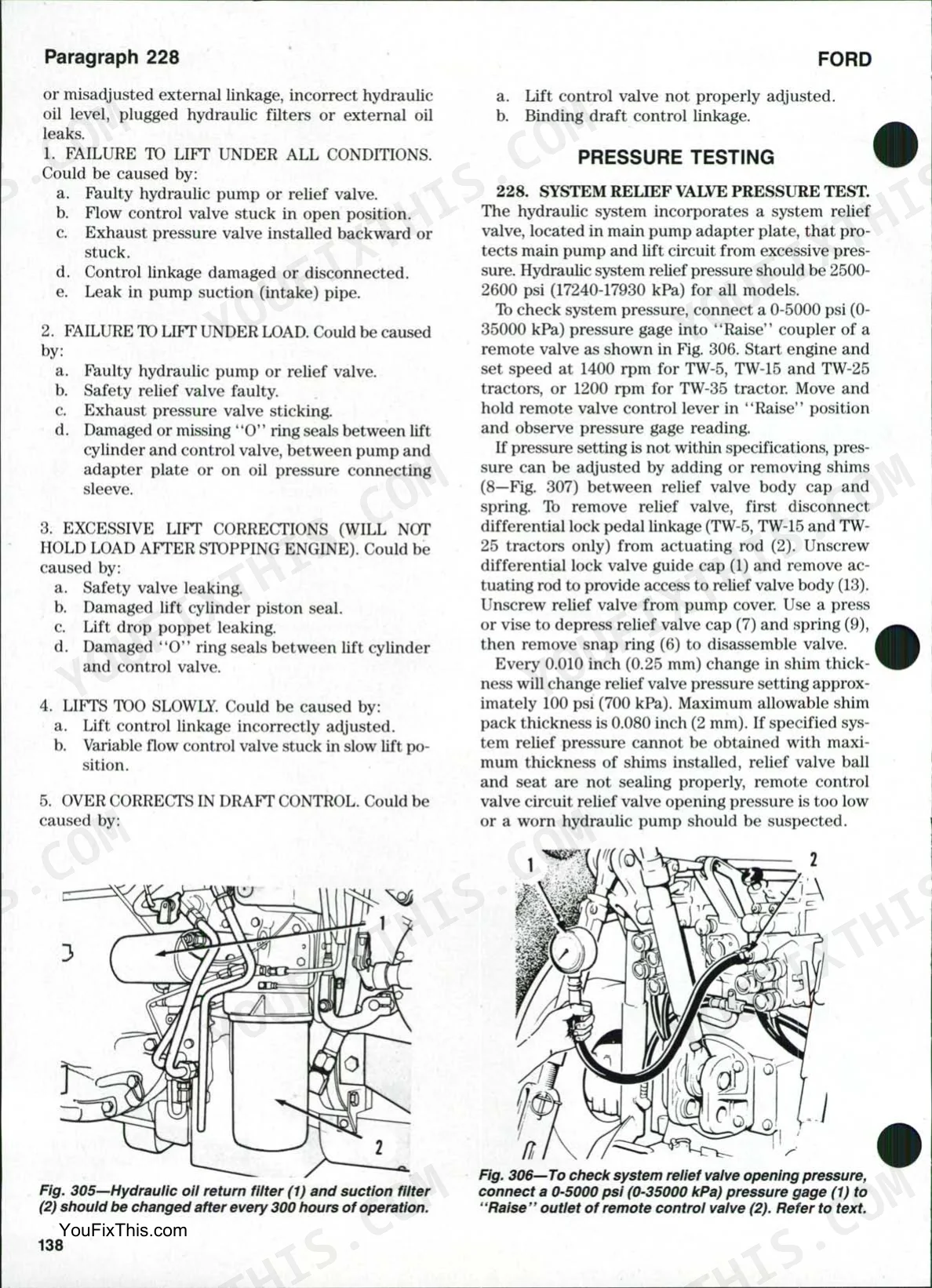

Check system relief valve pressure on page 129 for tractors built before April 1985; it should read 2450-2550 psi (16895-17580 kPa). Low pressure points to pump wear or a stuck relief valve. Verify hydraulic fluid level and filter condition first, then run the pump flow rate test before pulling the pump for overhaul.
Manual Section: Hydraulic Lift SYSTEM(Tractors Built Prior to Aprii 1985) p. 129Frequently Asked Questions
What are the differences between Ford TW-15 and TW-25 besides frame and fuel tank?
The Ford TW-15 and TW-25 tractors have several differences in specifications. The TW-15 has a Rated Power at PTO of 121.4 hp (90.5 kW), while the TW-25 has 140.7 hp (104.9 kW). For Front Wheel Drive Hub (Each) capacity, the TW-15 holds 1.6 U.S. Pts. (0.75 L), whereas the TW-25 holds 3.8 U.S. Pts. (1.8 L). Additionally, the Front Wheel Drive Differential Case capacity is 8 U.S. Qts. (7.5 L) for the TW-15 and 9.5 U.S. Qts. (9.0 L) for the TW-25. The Fuel Main Tank capacity also differs, with the TW-15 holding 33 U.S. Gals. (125 L) and the TW-25 holding 75 U.S. Gals. (284 L). p. 3
Does the Ford TW-15 have a turbo engine?
Yes, the Ford TW-15 is equipped with an AiResearch turbocharger. This component is also found on Models TW-25 and TW-35. p. 58
How much horsepower does the Ford TW-35 produce?
The Ford TW-35 produces 170.3 hp (127.0 kW) of rated power at the PTO. This is the highest rated power among the TW-series models listed. p. 3
What engine is used in the Ford TW tractors?
Ford TW tractors are equipped with a 6-cylinder, direct injection diesel engine. This engine type is standard across all models, including TW-5, TW-15, TW-25, and TW-35. p. 3
What format is this Ford TW-5, TW-15, TW-25, TW-35 manual in?
You get a 172-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Ford TW-5, TW-15, TW-25, TW-35 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Ford TW-5, TW-15, TW-25, TW-35 manual include hydraulic schematics?

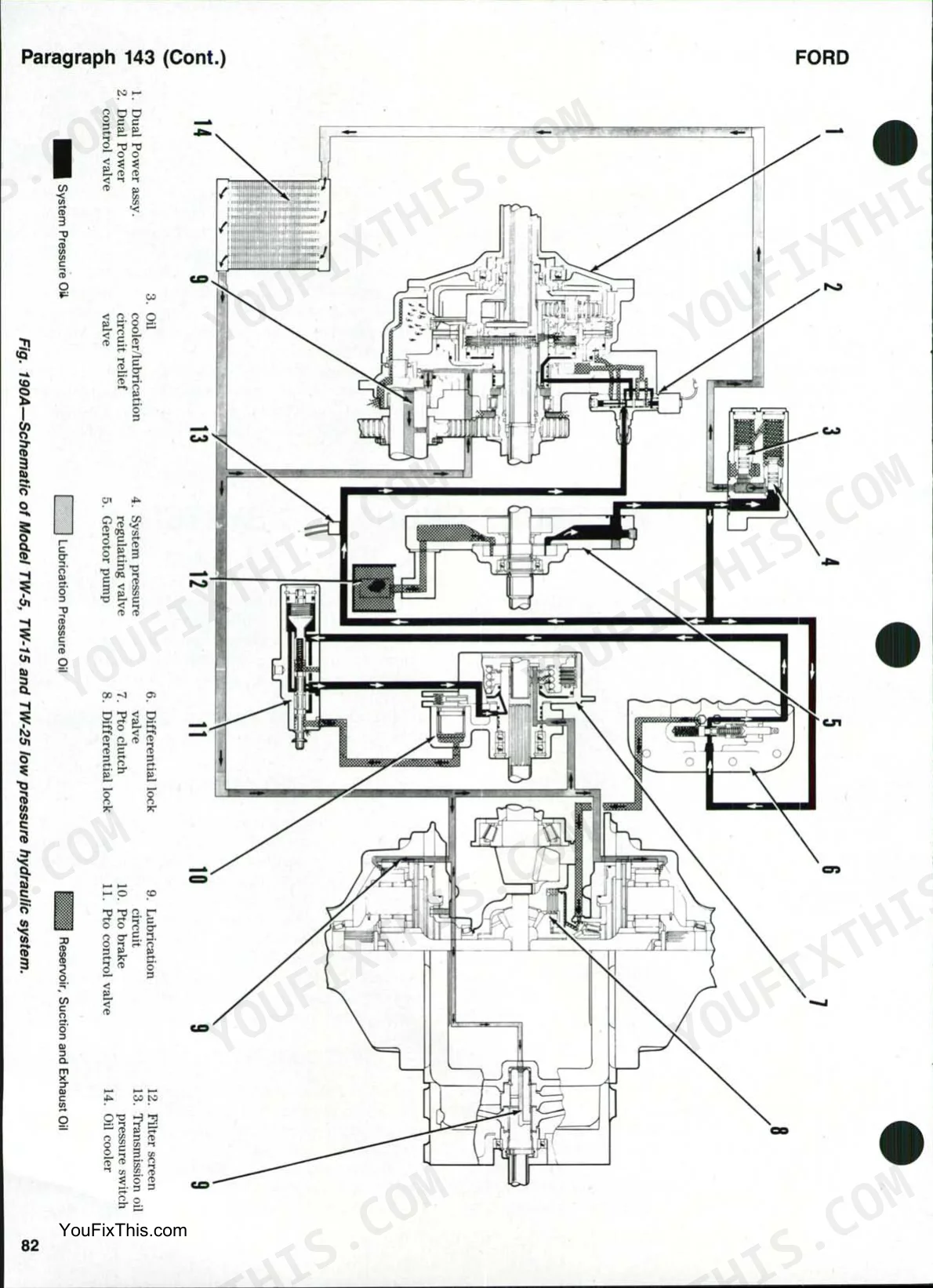

Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Ford TW-5, TW-15, TW-25, TW-35.
