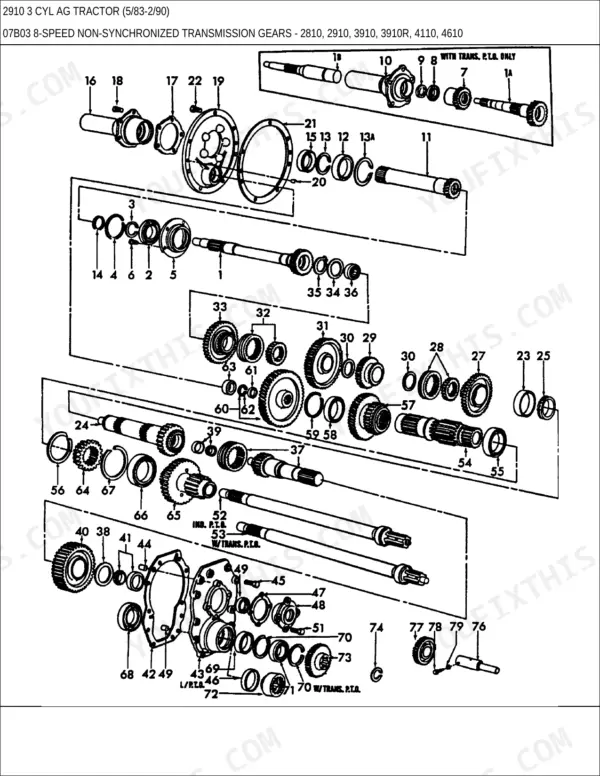

Hunting down the right part number for your 1983-1990 Ford 2910? This Ford 2910 parts catalog PDF packs 718 pages of factory exploded views and part numbers for the 2910 and 2910 3 CYL AG tractors. You get exploded-view drawings keyed to genuine Ford part numbers across every assembly: front wheel hubs and spindles, standard and power adjustable rear wheels, wafer weights, engine, drivetrain, hydraulics, and the full cab. Need proof this is real factory data? The front spindle inner bearing carries a 1.68-inch ID, and the hydraulic pressure valve assembly is listed at 800 PSI. Identify the red and yellow restrictor assemblies by exact bore diameter instead of eyeballing them at the bench. No more ordering three wrong bearings to find the one that fits. Bookmarked and searchable; type a part name, jump straight to the diagram, and order with confidence.
What's Inside This Ford 2910, 2910 3 CYL AG Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Distributor Drive & Governor Assembly, Gasoline, Diesel, Fuel Filter, Single, Dual, Fuel Injection Pump, Fuel Injector Assembly, Carburetor Assembly, Fuel Pump Assembly, Gas, Diesel Fuel Primer Assembly Kit, Air Cleaner Assembly, Oil Bath, Fuel Sedimenter & Filter Assembly, Primer Assembly, Fuel | |
| Cooling System | Transmission Oil Cooling System, L/Cab, W/Cab, Radiators & Related Parts, Water Pump & Related Parts | |
| Engine | Cylinder Block, Head & Related Parts, 3-Cyl Gas, 3-Cyl Diesel, Kit, Stepped Stud Engine Block, Crankshaft, Flywheel & Related Parts, Cyl Engine, Camshaft, Rocker Arm, Valves & Related Parts, Oil Pump & Oil Pan, Manifold & Exhaust System, Pistons & Connecting Rods, Gasoline, Diesel, Engine Gasket Kits, Hydraulic Pump Assembly, Engine Mounted, Gear Type, Aux. Engine Mtd. Hydraulic Pump Tubing, Attaching Dual Pump Engine Mounted Gear Type, Engine Hood & Grille, Lubrication Equipment & Lubricants, Ford Engine & Hydraulic Oils | |
| Electrical System | Headlamp Assembly, - Front Mounted, Head & Utility Lamps, - Fender Mounted, Inset Headlamp Assembly, &, Side Mounted Headlamps, Headlamp, Side Mounted, Insert Headlamp Assembly, Rear Wiring, Rear Lamps, Flasher Lamps & Turn Signal, Round Lens, Square Lens, Lamp Assembly, Stop, Rear & Turn Signal, Emergency Warning, Rear Lamps - Stop & Flasher, Parking Lamps, Side & Flasher, Lamps, Front & Side, Stop & Flasher W/turn Indicator W/Cab, Stop & Flasher W/turn Indicator | |
| Clutch & Transmission | Transmission Handbrake, Transmission Shaft, 8-Speed Transmission Case & Shift Levers, 8-Speed Non-Synchronized Transmission Gears, 8-Speed Synchronized Transmission Case, Synchronized Trans. Case - W/"H" Pattern Shift, 8-Speed Synchronized Transmission Gears, Column Mounted Gear Shift, Live Transmission Power Take Off Assy., W/double Clutch, Ipto Clutch Linkage, Clutch Controls, L/Cab, W/Cab, 11" Single Clutch Assembly, 13" Clutch Assembly, Reduction Gear Box Assembly, L/syncromesh Transmission, Steering Column Gear Shift Trim | |
| PTO | Rear Axle Related Parts, W/FWD, W/IPTO, Independent Power Take-Off Assembly, Ground Speed PTO Related Parts, PTO Guard Kit, PTO Guard, PTO Gear Housing & Pulley W/guard | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Power Adjustable Rear Wheels, 24" Rear Wheel Weights, Manual, 28" Manual Adjust Rear Wheel Weights, 28" Rear Wheel Weights for Power Adjustable Wheels, Manual Adjust Rear Wheel Weights W/square Discs 28", Brakes & Brake Controls, Brake Linkage & Pedals W/Cab, Handbrake, Handbrake Lever & Cable W/Cab, Hydraulic Trailer Brakes W/Cab, Brakes, Rear Axle, Differential & Related Parts, Differential Lock Linkage | |
| Front Axle & Steering | Front Wheel Assembly, W/16" Wheels, Front Wheel, Two Piece, FWD, Front End Wafer Weights, W/FWD, Front Wheel Weights, Front Axle, Steering & Related Parts, Manual Steering, L/Cab, Power Steering, Manual & Power, W/Q Cab Only, W/LP Cab, Steering Gear Assembly, Manual, W/Cab, Steering Gear, Power, Manual W/L Cab, Power W/L Cab, Power Steering Pump & Reservoir | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover & Related Parts, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder & Related Parts, Flow Control Valve Assemblies, Hydraulic Lift Linkage, Swinging Drawbar, Hanger & Related Parts, Drawbar Stays, Selector Valve, Selector Valve Assembly, W/Cab, Hydraulic Remote Control Valves - Single & Double Spool, Remote Control Valve Handles W/Cab, Double Acting Remote Cylinder Coupling Kits, Deluxe Remote Control Valve & Coupler, Remote Control Unload Valve Assembly, Deluxe Remote Control Valve - Single & Double Spool, Automatic Pick-Up Hitch W/swinging Drawbar, Nh-E | |
| Loader, Backhoe & Attachments | Stabilizer Assembly, Stabilizer Kit, 2-Post Rollbars, W/ & L/stabilizer Links | |
| Body & Operator Station | Foot Throttle Controls L/Cab, Foot Throttle Controls W/Cab, Trailer Sockets, W/LP Cab, Deluxe Suspension Seat Assembly, Super Comfort Seat Assembly, Custom Deluxe Seat Assembly, Crown Fenders, Platform & Tool Box, Flat Top Fenders, Rear Mud Fenders W/Cab, U.k., Round Roof Safety Frame, Germany, "H" Pattern Covers & Seals, W/Cab, Front Fenders, Cab Underbody & Related Parts, Cab Heater, Cab Heater Hoses, Cabs, Soft Side | |
| Decals & Accessories | Dealer Installed Accessory Kits, U.S. Only, Identification Decals, Instruction Decals, Kit, Instruction & Safety Decals, Safety Decals, Warning, Tools | |
| Other Components | Front End Wafer Weights, Front Bumper, Axle Housing, Ring Gear & Pinion Assembly, Drive Shafts, Front Support, Front Transfer Housing, Internal Parts of Pinion, Center Housing & Related Parts, Automatic Pick-Up Hitch, Coupling Kit, H" Pattern Shift Assembly, Water Filter, Nhna, Dia, Kit, Coolant Filter, Coolant Reservoir, Diesel Cold Start |
