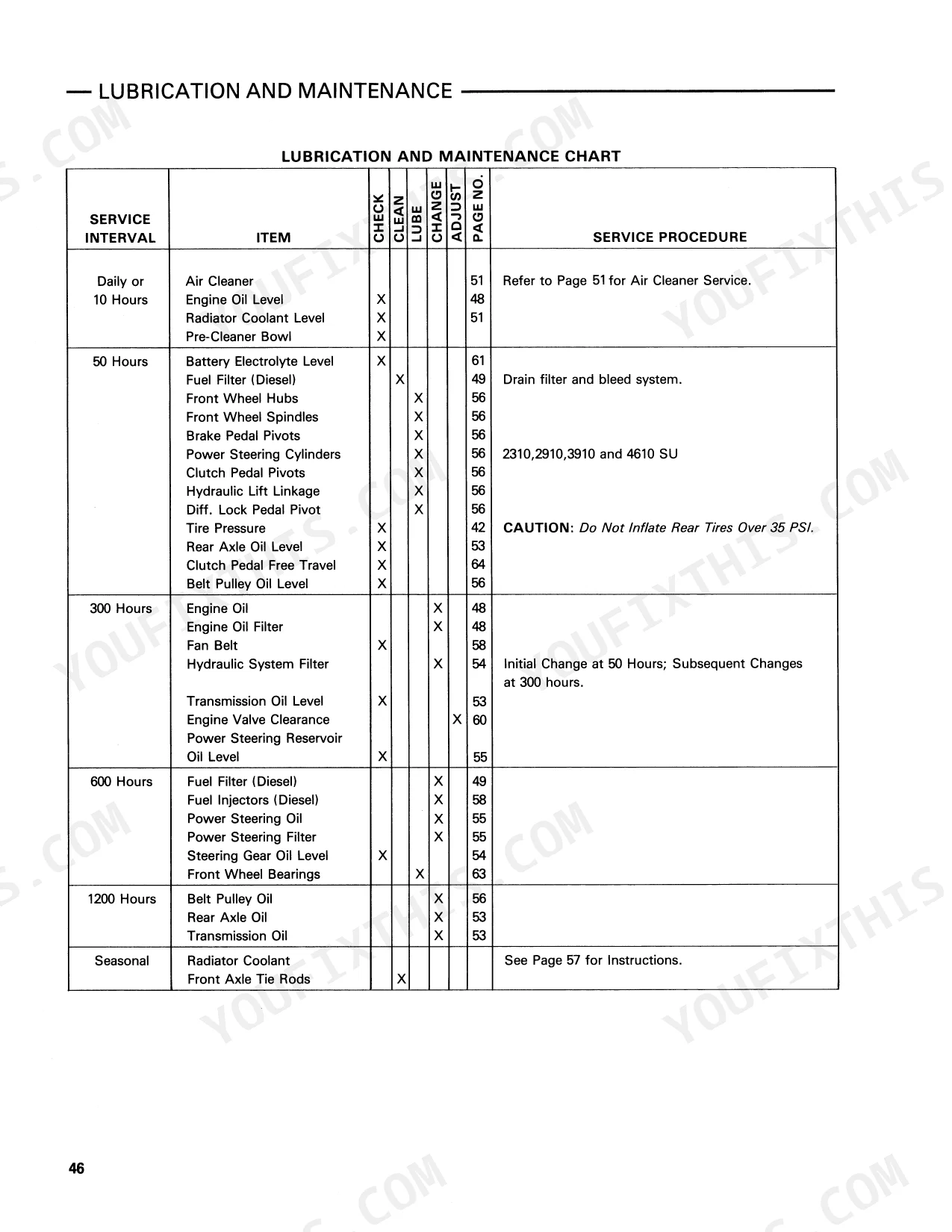

Safety precautions, controls and instruments, operation, lubrication and maintenance, specifications, decals, and pre-delivery service run end to end in the Ford 3910 operator manual PDF, 84 pages under OEM 42231030, across four tractor models. The hydraulic lift system takes the longest stretch of the operation chapter: draft control, lift linkage and drawbar adjustment, wheel tread settings, and tractor weighting for ballasting against a heavy mounted implement. One lubrication and maintenance chart collects every interval, so you can check when the fuel filter drains or the front axle takes grease. Drain that fuel filter at 50 hours; after changing tread width, torque rear wheel nuts to 220-300 lbs. ft. (298-407 Nm) on the 2310, 2910 and 3910, or 300-420 lbs. ft. on the 4610. Guess at a wheel nut figure and you learn the truth at speed, loaded. Bookmarked and searchable, it gets the right number in front of you and the tractor running again before the weather turns.
What's Inside This Ford 2310, 2910, 3910, 4610 Operator Manual

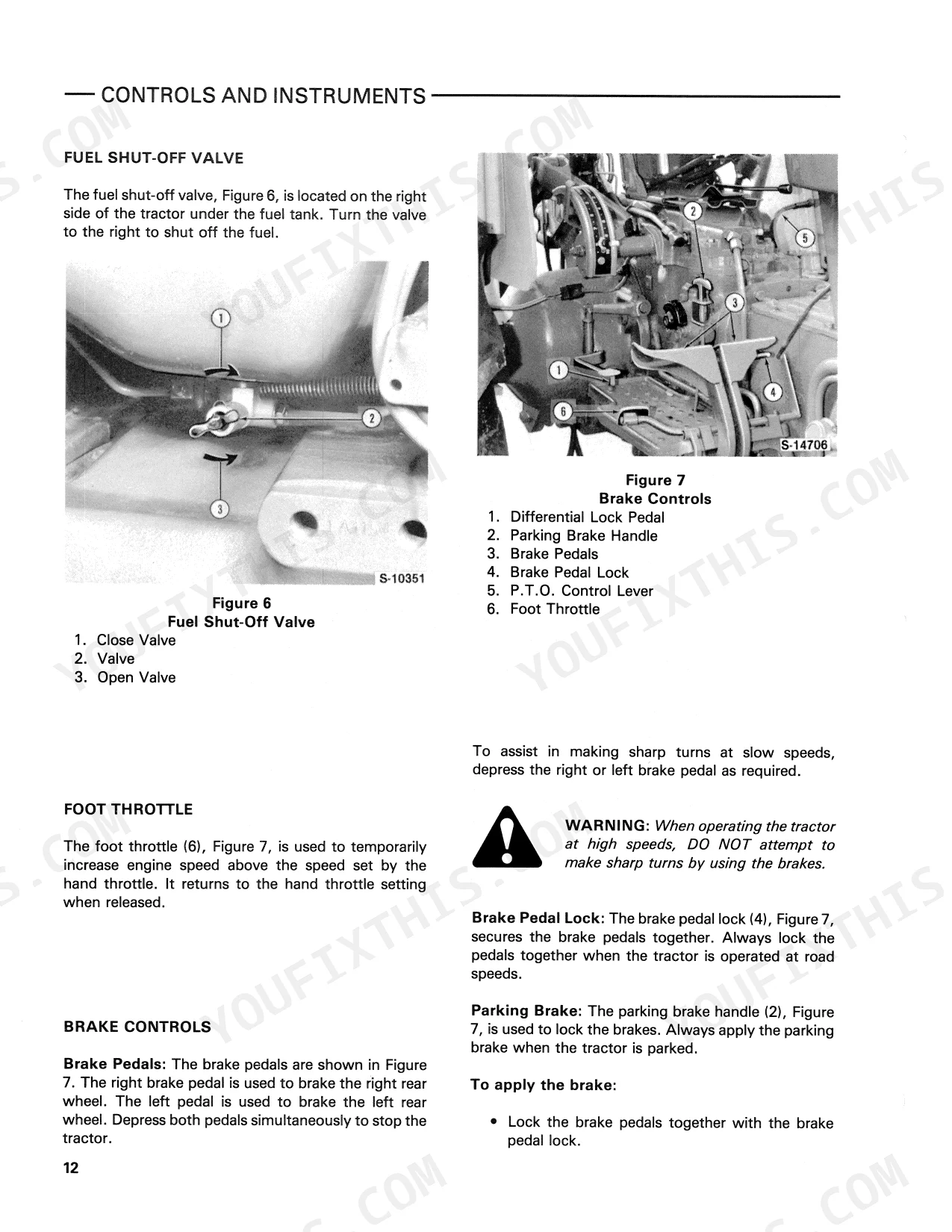

| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 7-8 | The Tractor |
| Controls and Instruments | 9-18 | Seat, Light, And Engine Controls, Brake Controls, Transmission and PTO Controls, Hydraulic Lift System Controls |
| Operation | 19-44 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating Manual Shift and Synchromesh Transmission and PTO, Towing the Tractor, Operating Differential Lock |
| Lubrication and Maintenance | 45-66 | Lubrication and Maintenance Chart, Fuels and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage |
| Specifications | 67-73 | Capacities, Engine, General Dimensions |
| Decals | 74-76 | Safety Decals |
| Pre-Delivery and 50-Hour Service | 77-84 | Pre-Delivery Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rear wheel nut torque (manually adjusted) | 220-300 lbs. ft. (298-407 Nm) | p. 38 |
| Rear wheel nut torque (power adjust range change) | 210-240 lbs. ft. (285-325 Nm) | p. 39 |
| Fuel filter drain interval | 50 hours | p. 51 |
| Diesel fuel filter change interval | 600 hours | p. 52 |
| Injector check interval | 600 hours | p. 60 |
| ROPS Mounting Bolt Torque | 180-220 lbs. ft. | p. 59 |
| Fuel Injection Pump Timing Bolt Torque | 15-20 lbs. ft. | p. 60 |
| Clutch Pedal Free Travel | 1-1/4 inches | p. 72 |
| Hydraulic System Nominal Pressure | 2500 psi | p. 72 |
| Engine Valve Clearance (Intake) | 0.014-0.016 inches | p. 71 |
| 2310, 2910, 3910 | ||
| Rear Wheel Nut Torque | 220-300 lbs. ft. | p. 38 |
| 4610 | ||
| Rear Wheel Nut Torque | 300-420 lbs. ft. | p. 38 |
Ford 2310, 2910, 3910, 4610 Common Problems This Manual Covers

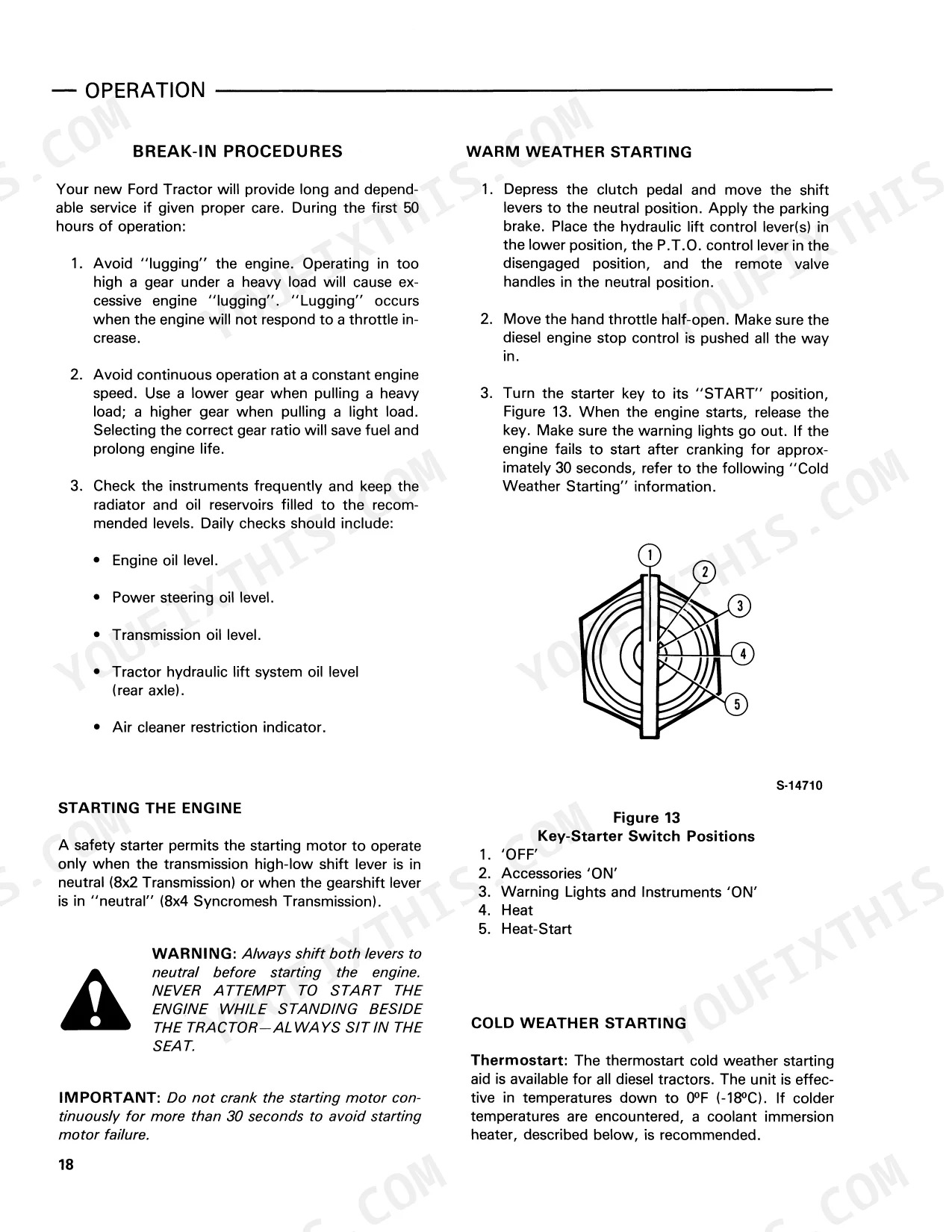

Ford 3910 hard starting after sitting through the off season, cranks but won't fire
Check the starting procedure on page 20 before blaming the pump. Bleed the fuel system at the filter, then the injection pump, then crack the injector lines and crank until air free fuel flows. Tighten those fittings to 18-22 lbs. ft. Drain water from the fuel filter every 50 hours.

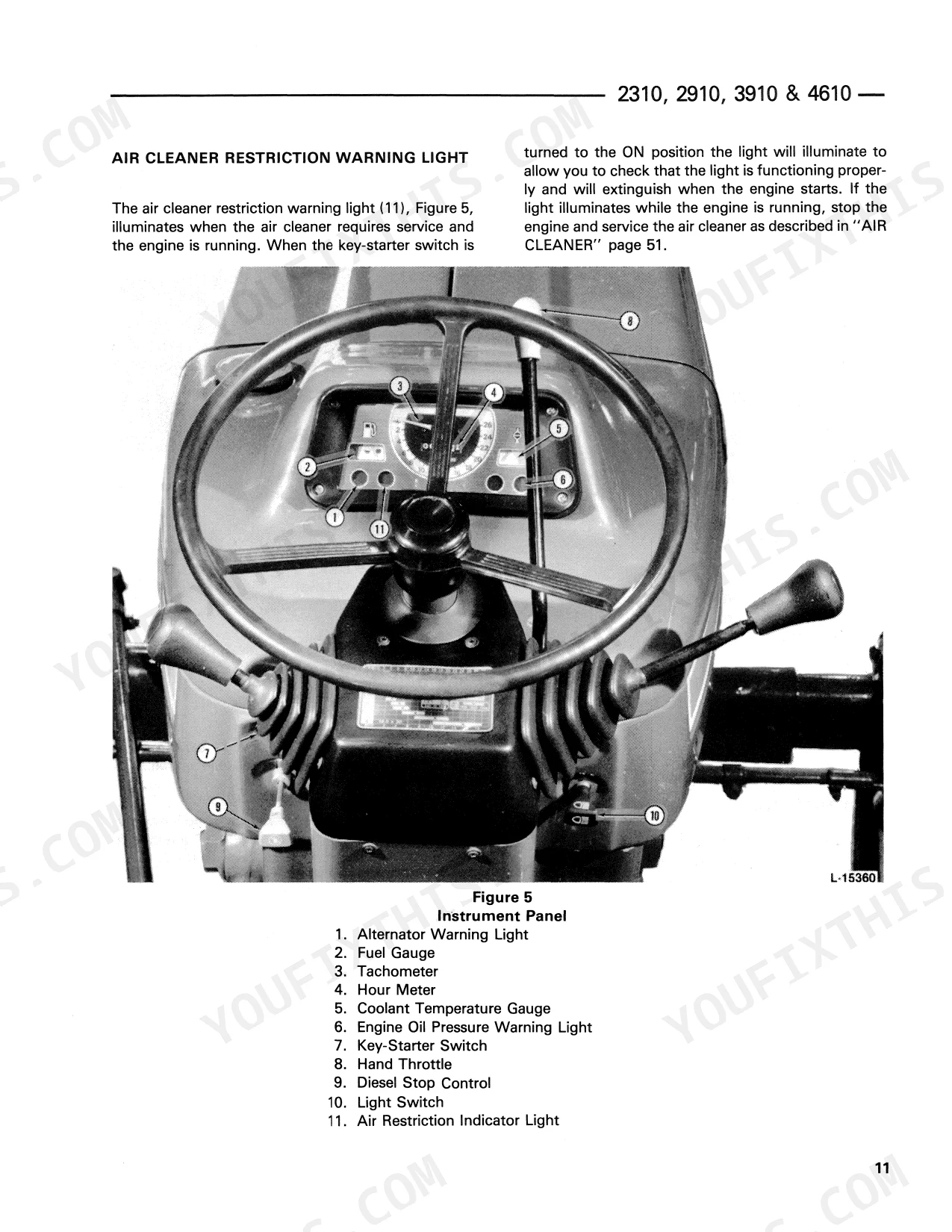

Manual Section: Operation p. 20Engine oil pressure warning light comes on at idle or flickers under load
Shut the engine down immediately. Check the oil pressure light meaning in the instrument panel section on page 13, then verify the oil level on the dipstick with the tractor parked level. Top up to the full mark with the grade listed in the fuels and lubricants pages, and do not restart until the light stays out.
Manual Section: Controls and Instruments p. 13Engine runs rough, smokes, and loses power pulling a mower or baler
Check the fuel filter first. Change the diesel filter every 600 hours and have the injectors checked on the same 600 hour interval per the maintenance schedule on page 52. Inspect the air cleaner restriction indicator before you go back out, and confirm the throttle linkage reaches full travel at the stop.
Manual Section: Lubrication and Maintenance p. 52Clutch slips or drags, shuttle shift grinds going into gear
Measure clutch pedal free travel at the pad before adjusting anything. Specifications list 1-1/4 inches (31.7 mm) for all tractors on page 72. Adjust the linkage to bring travel back into spec, then recheck with the engine off. Too little free travel rides the release bearing and burns the disc during long field days.
Manual Section: Specifications p. 72Steering wanders, front wheels wear unevenly, play in the wheel
Check front wheel toe-in before replacing parts. Park on level ground, set the wheels straight ahead, and measure hub height across the front tires at the front and rear of the rim. Inspect the tie rod ends and spindle seals for weeping oil and grease the front axle per the maintenance schedule on page 48.
Manual Section: Lubrication and Maintenance p. 48Wheel nuts loosening after changing rear tread width for row spacing
Retorque the rear wheel nuts before the next pass. Page 38 lists 220-300 lbs. ft. (298-407 Nm) for the 2310, 2910, and 3910. Tighten in a star pattern with the tractor on level ground, then recheck after the first hour of field work and again at the end of the day.
Manual Section: Operation p. 38Frequently Asked Questions
What is the procedure for timing the injection pump on the Ford tractors?
The injection pump is timed at the factory. If it must be removed, record the timing alignment by reading the mark on the pump mounting flange and the number on the front mounting plate. When reinstalling, align the pump flange mark with the previously recorded number and retighten the bolts to 15-20 lbs. ft. (20-27 Nm). p. 60
What are the fuel filter replacement specs for a Ford 2310, 2910, 3910, 4610 tractor?
The diesel fuel filter should be changed every 600 hours. When changing, ensure the fuel shut-off valve is closed, remove the retaining bolt, discard the old element and sealing rings, and clean the adapter and sediment bowl with clean diesel fuel before installing new parts. p. 52
What is the correct valve clearance for a Ford 2310, 2910, 3910, 4610 tractor engine?
The intake valve clearance should be 0.014 to 0.016 inches (0.35-0.41 mm) and the exhaust valve clearance should be 0.017 to 0.019 inches (0.43-0.48 mm). These should be checked and adjusted every 300 hours. p. 62
What is the required torque for the ROPS mounting bolts on a Ford 2310, 2910, 3910, 4610 tractor?
The ROPS mounting bolts should be checked after the first 20 hours of operation and then every 500 hours or six months. They must be tightened to a torque of 180-220 lbs. ft. (244-248 Nm). p. 59

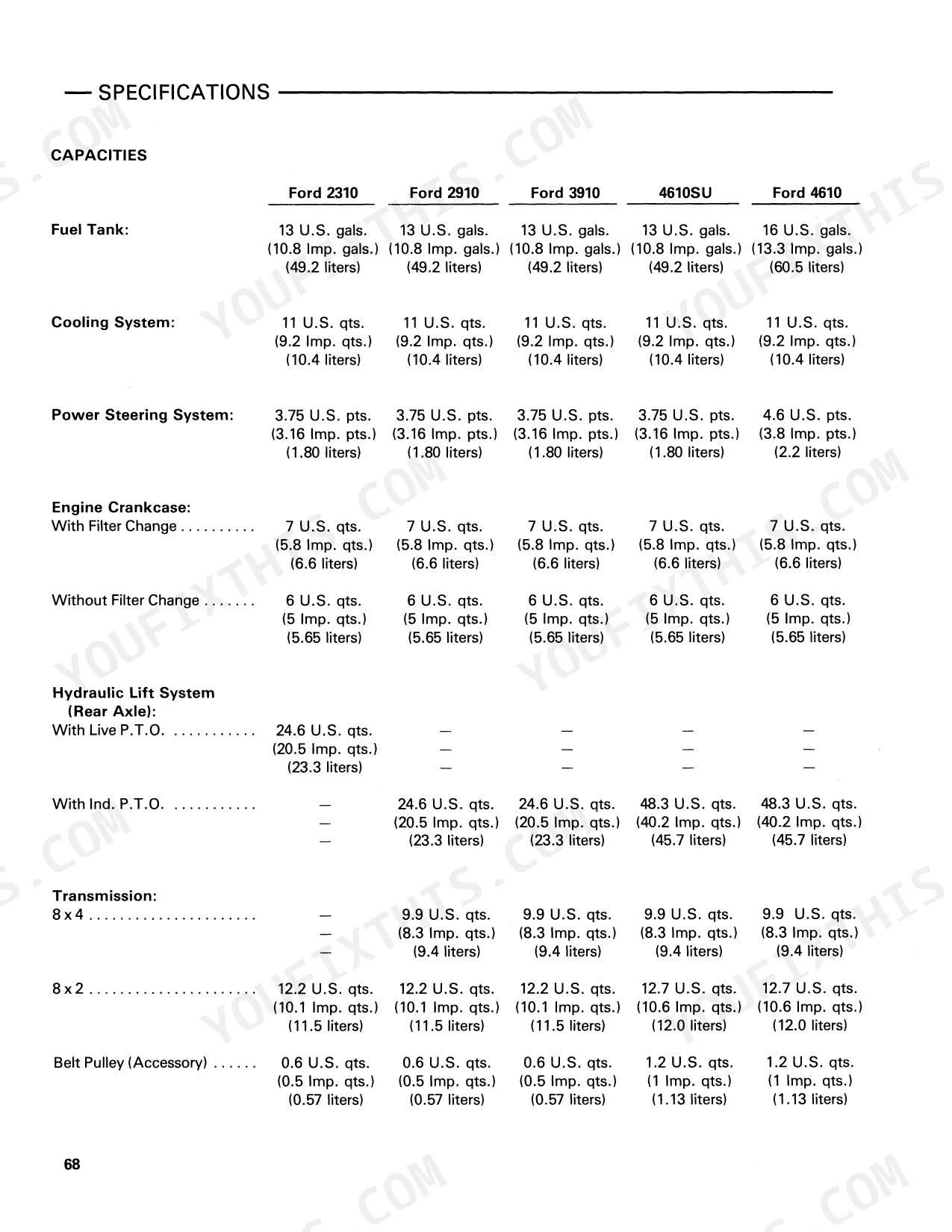

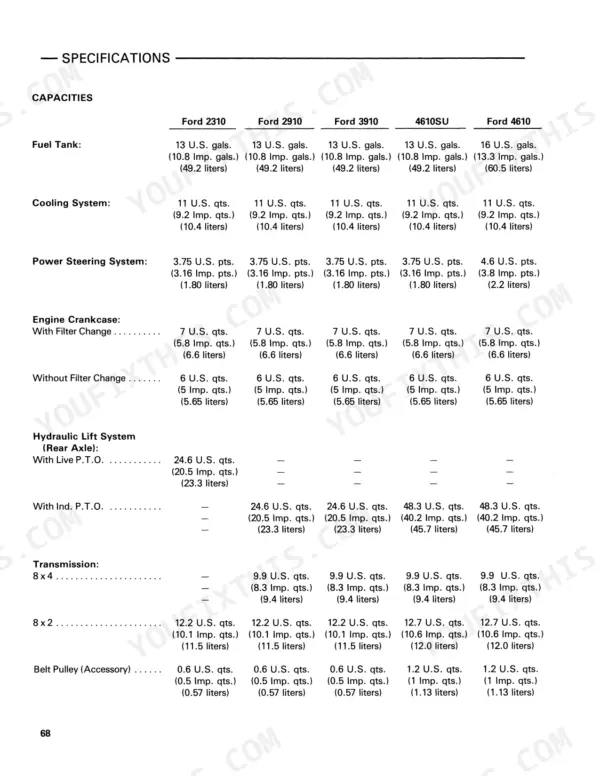

What is the engine crankcase oil capacity for the Ford 4610 with a filter change?
The engine crankcase oil capacity for the Ford 4610 with a filter change is 7 U.S. quarts (5.8 Imp. qts.) (6.6 liters). p. 70
How will I receive this Ford 2310 Operator Manual?
One searchable PDF covering 84 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I able to print pages from this Ford 2310 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
