A cast iron Kohler that won't hold idle on your Ford garden tractor comes down to the governor, the points, or a tired carburetor, and this 76-page Ford 80, 100, 120 and 140 tractor engine repair manual PDF (Ford pub 40008020) walks you through all three. It spans seven single-cylinder lawn and garden tractor engines, Kohler K91 through K321, as fitted to these Ford tractors. Wiring diagrams trace the motor generator, voltage regulator and magneto-alternator circuits, while the ignition chapter carries breaker point, condenser and timing procedures through to breakerless systems. Reconditioning and reassembly fill a good share of the book, from crankshaft and rod checks to valve seats and oil seals. Torque the flywheel retaining nut to 60 ft. lbs., and on a K91 bring the connecting rod cap screws to 140 in. lbs. A guessed rod cap figure can cost you the crankshaft. The bookmarked, searchable PDF is a one-time purchase that stays yours for the life of this engine.
What's Inside This Ford 80–140 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

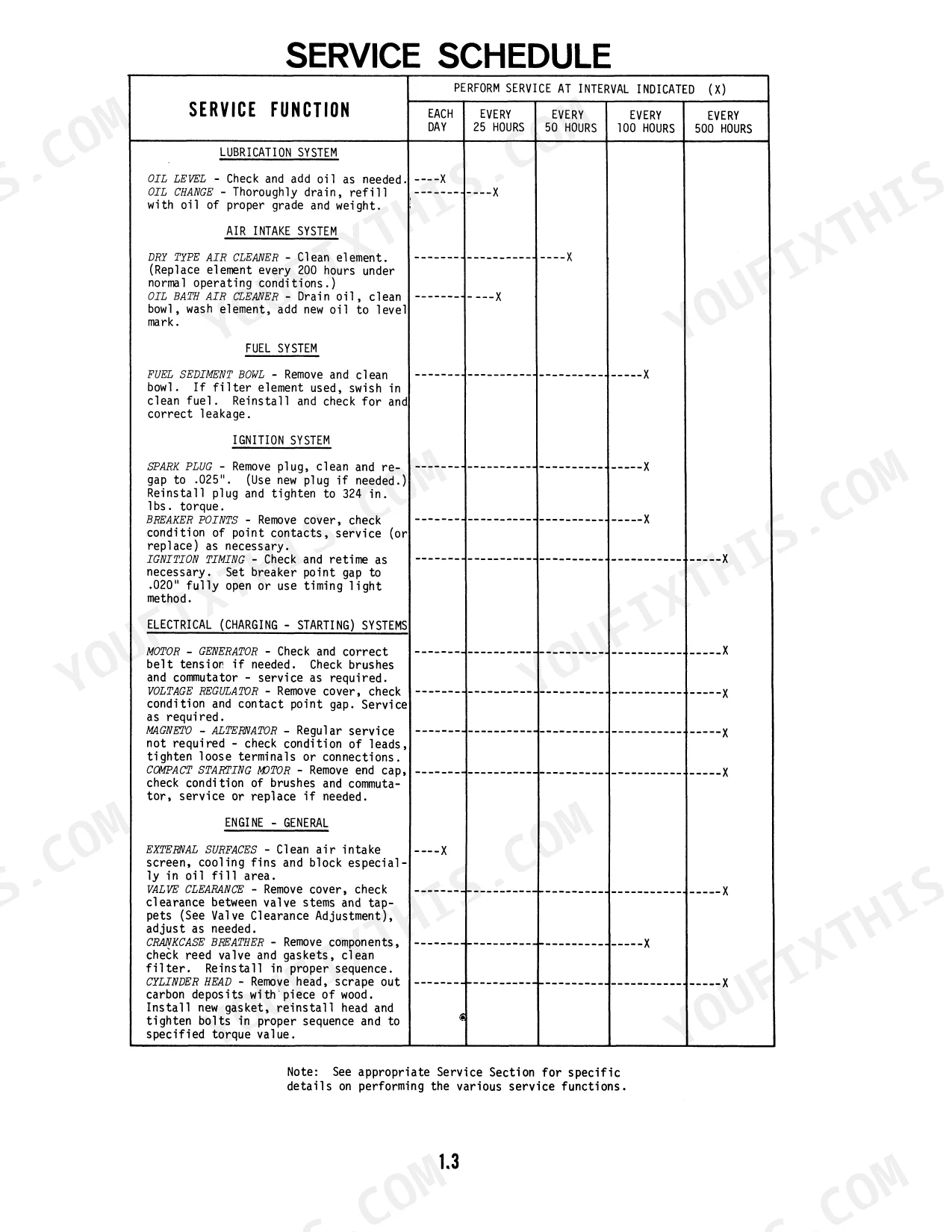

| Operating Instructions | 4-7 | Service Schedule, Trouble Shooting |
| Lubrication System | 8 | Oil Level, Oil Type, Oil Change, Run-In Oil |
| Air Intake | 9 | Dry Type Air Cleaner, Oil Bath Air Cleaner |
| Fuel System | 10-13 | Carburetor, Fuel Pump, Fuel Filter |
| Governor | 14-17 | Governor Operation, Governor Adjustment, Throttle Wire Installation, Speed Adjustment, Sensitivity Adjustment |

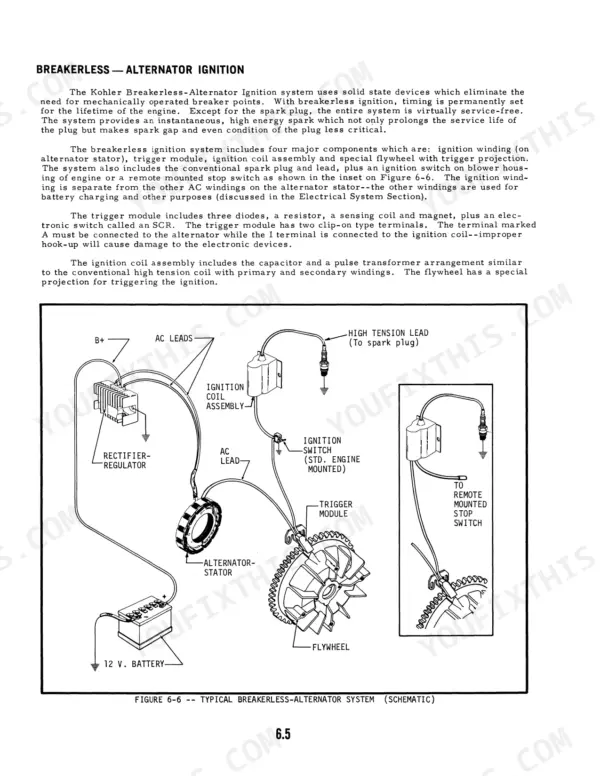

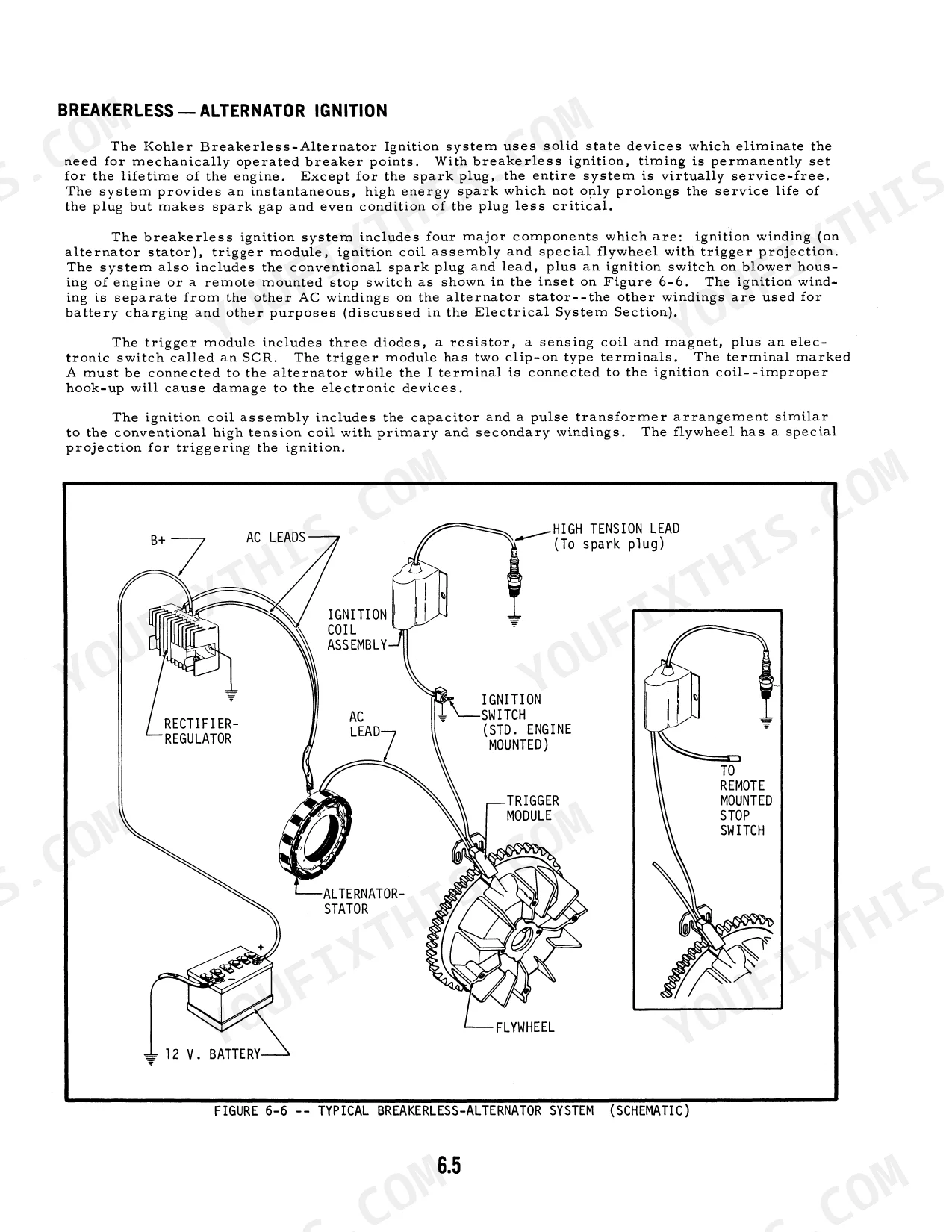

| Ignition System | 18-23 | Operational Tests, Spark Plug, Breaker Points, Condenser, Ignition Coil, Permanent Magnets, Ignition Timing Procedure, Breakerless Ignition |

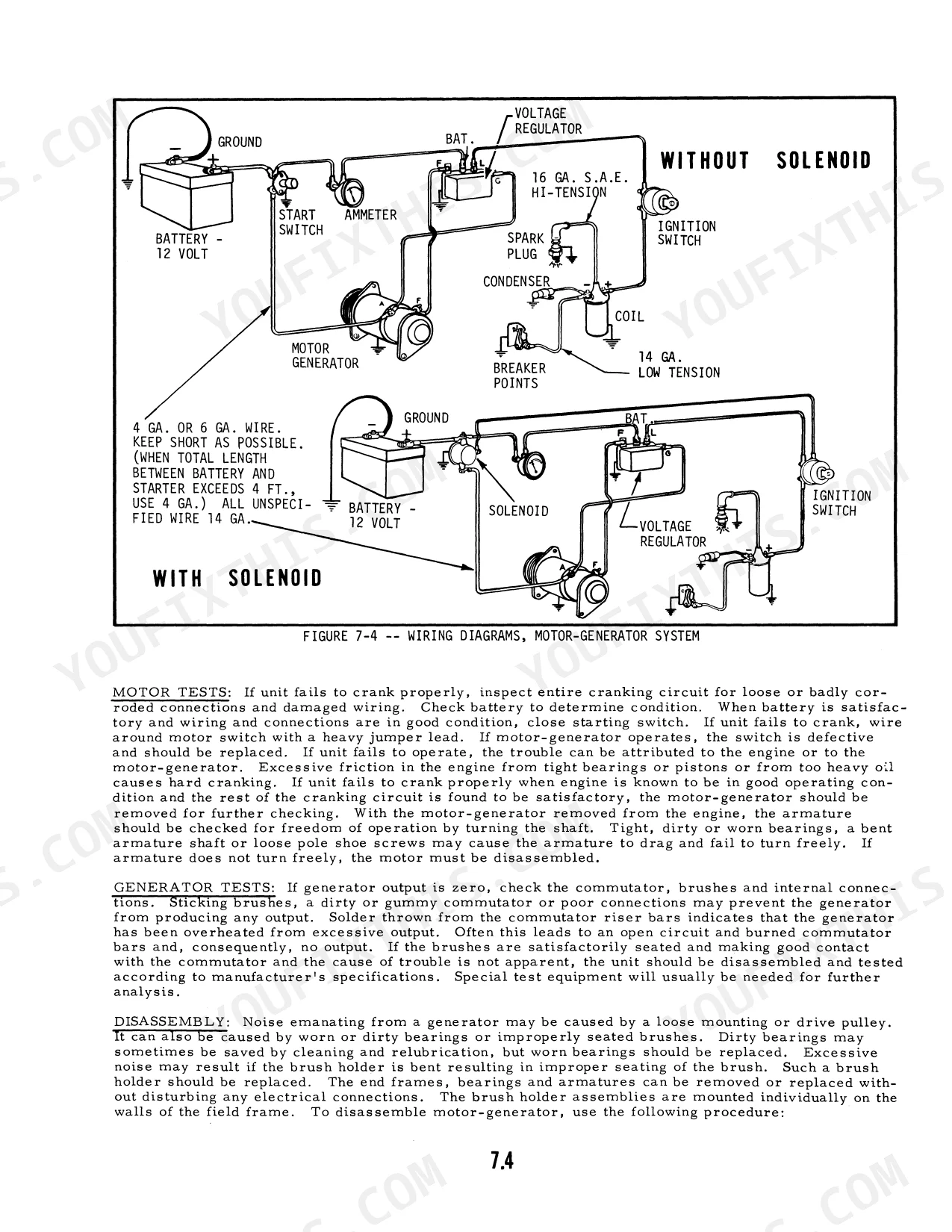

| Electrical System | 24-33 | Battery, Motor Generator, Voltage Regulator, Magneto - Alternator System, Compact Starting Motor |
| Retractable Starters | 34-36 | Fairbanks - Morse Starters, Eaton Retractable Starters |
| Engine - General Service | 37-38 | Cooling, External Surfaces, Engine Storage, Engine Tests |
| Inspection - Disassembly | 39-40 | Inspection, Disassembly Procedure |
| Engine Reconditioning | 41-46 | Cylinder Block, Crankshaft, Connecting Rod, Piston - Piston Rings, Piston - Rod Assembly, Valves - Valve Mechanism, Cylinder Head, Ring Gear |
| Reassembly | 47-52 | Rear Main Bearing, Governor Shaft, Camshaft Installation, Crankshaft Installation, Bearing Plate, Piston and Rod Assembly, Oil Seals, Oil Base |
| Special Fuel Systems | 53-65 | Gas Systems, Combination Gas - Gasoline, Kerosene System |
| Modifications & Accessories | 66-71 | Clutch, Gear Reduction, Automatic Chokes, Winterized Engines, Tool List |
| Specifications and Clearances | 72-76 | Bore and Stroke, Crankshaft End Play, Connecting Rod, Piston, Piston Rings, Camshaft, Valve Clearance, Valve Seat |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Spark plug torque | 324 in. lbs. | p. 6 |
| Flywheel Retaining Nut | 60 ft. lbs. | p. 72 |
| K241, K301, K321 | ||
| Cylinder Head Cap Screw Torque (K241, K301, K321) | 420 in. lbs. | p. 72 |
| Connecting Rod Cap Screw Torque (K241, K301, K321) | 300 in. lbs. | p. 72 |
| Oil Capacity (K241, K301, K321) | 2 quarts | p. 8 |
| K91 | ||
| Connecting Rod Cap Screw Torque (K91) | 140 in. lbs. | p. 72 |
| Flywheel Retaining Nut Torque (K91) | 45 ft. lbs. | p. 72 |
| Oil Capacity (K91) | 1 pint | p. 8 |
| K141, K161, K181, K241, K301, K321 | ||
| Flywheel Retaining Nut Torque (K141, K161, K181, K241, K301, K321) | 60 ft. lbs. | p. 72 |
Ford 80–140 Common Problems This Manual Covers
Kohler K91 through K321 breaker points or ignition coil suspected, engine cranks with weak or no spark
Test the ignition system using the operational checks on page 18. Pull the spark plug and read its condition. Then check the breaker points before you condemn the ignition coil, and test the coil last. When you put the plug back in, torque it to 324 in. lbs., the spark plug torque listed on page 6.
Manual Section: Ignition System Operational Test p. 18Carburetor problem with black exhaust smoke, engine missing or backfiring, and a rough idle

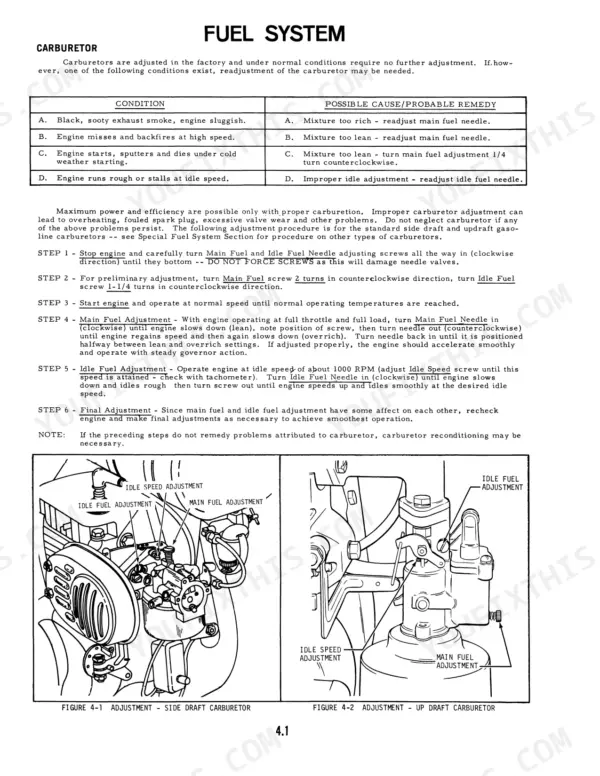

Work through the carburetor troubleshooting chart on page 10 one symptom at a time before you start swapping parts. Match the black smoke, missing, backfiring or rough idle to the cause the chart lists, then fix that one item. If the engine also fights you on cold mornings, check the cold weather starting entry on the same page.
Manual Section: Carburetor Troubleshooting p. 10Engine overheating with skipping, backfiring and erratic operation on the garden tractor
Check the trouble shooting chart on page 7 and match the overheating, skipping or backfiring to the cause it lists. Clean the cooling system and external surfaces using the general engine service steps on page 37. A mower engine packs up with grass and chaff fast, so start there before you tear into anything deeper.
Manual Section: Trouble Shooting p. 7Worn engine suspected, low compression with loss of power and hard starting
Run the compression test and the crankcase vacuum test on page 37 before you order any parts. Use the results to decide whether the cylinder block, piston rings or valves need work, then follow the engine reconditioning steps starting on page 41. Measure ring and valve clearances against the specifications and clearances on page 72.

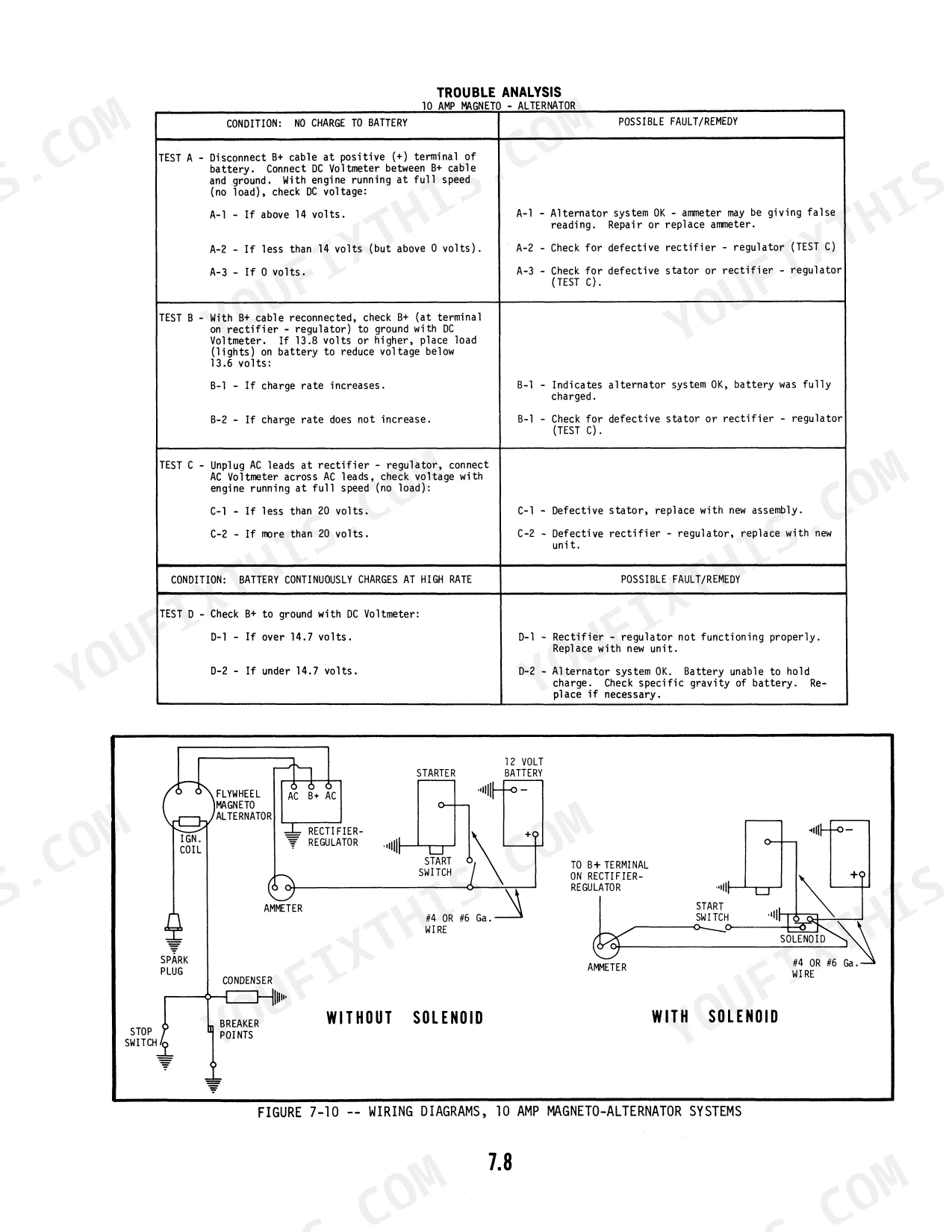

Manual Section: Engine Tests (Compression/Vacuum) p. 37Magneto-alternator not charging the battery, or battery continuously charging at a high rate
Test the magneto-alternator system using the trouble analysis on page 31. It splits into two paths: no charge to the battery, or a battery that keeps charging at a high rate. Check the battery first with the battery section of the electrical system chapter starting on page 24, then work down the chart for your symptom.
Manual Section: Magneto-Alternator Trouble Analysis p. 31Compact starting motor fails to energize or turns the engine over too slowly
Test the battery first using the battery service steps in the electrical system section on page 24. Then go through the compact starting motor trouble analysis for your symptom, either a starter that fails to energize or one that turns too slowly. Correct each listed cause in order before you pull the motor off the engine.
Manual Section: Compact Starting Motor Trouble AnalysisFrequently Asked Questions
How do I reset the governor on a Kohler K-series engine?
To reset the governor, loosen the nut holding the governor arm to the cross shaft. Turn the cross shaft counterclockwise as far as possible, pull the governor arm away from the carburetor, and retighten the nut. This procedure is detailed on page 15. p. 15

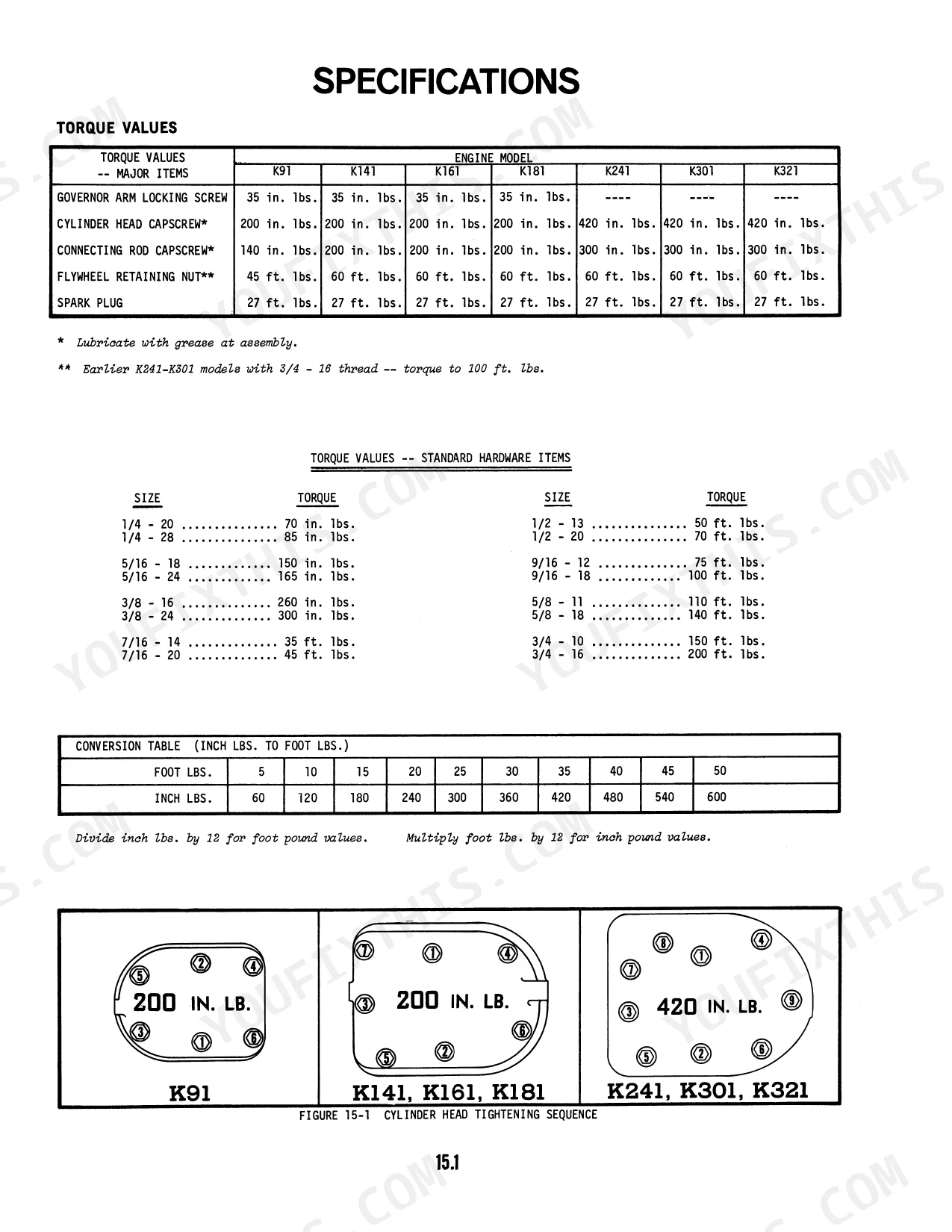

What are the torque specifications for Kohler K-series cylinder head bolts?
For the K91, K141, K161, and K181 models, the cylinder head cap screws should be torqued to 200 in. lbs. For the K241, K301, and K321 models, they should be torqued to 420 in. lbs. p. 72

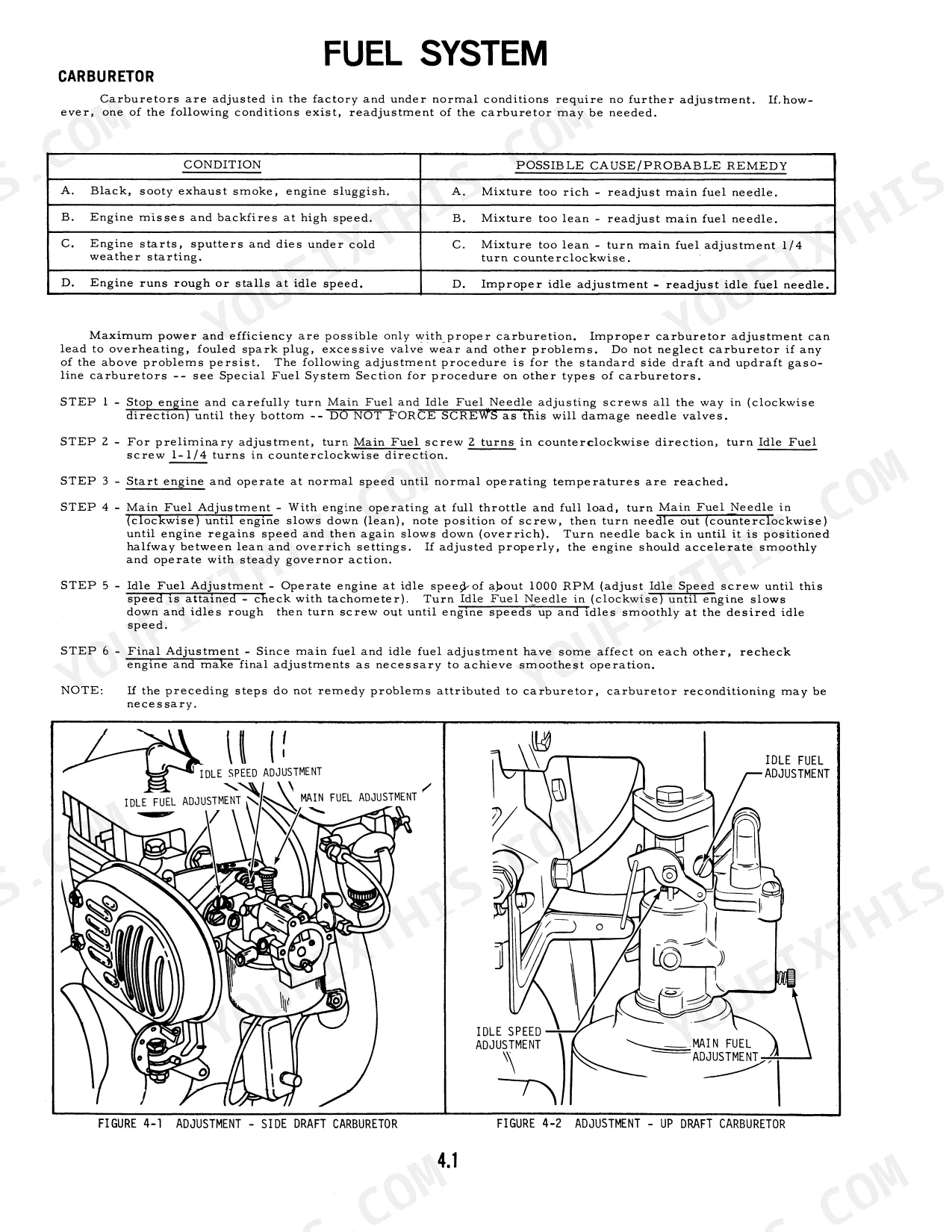

How do I adjust the carburetor on a Kohler K-series engine?
For preliminary adjustment, turn the main fuel screw 2 turns counterclockwise and the idle fuel screw 1-1/4 turns counterclockwise. Start the engine, operate at full throttle for the main adjustment, and set the idle speed to 1000 RPM for the idle fuel adjustment. p. 10
Why is my Kohler K-series engine surging or hunting?
Surging or hunting is often caused by improper governor adjustment or sensitivity. On K241, K301, and K321 models, you can adjust sensitivity by repositioning the governor spring in the holes on the governor arm and speed control brackets. p. 17
What are the replacement specifications for breaker points on the Kohler K91–K321 engines?
Breaker points should be set to a gap of .020 inches when fully open. If the points are burned or oxidized, they should be replaced. p. 18
Is this Ford 80–140 engine manual a PDF I download?
Delivery is instant: a 76-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print specific sections of this Ford 80–140 Engine Repair Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
