Deck off, belt diagram open on the bench: that is the first hour with the Ford LT 8, 09GN2108 operator manual PDF, 56 pages of factory instruction (OEM 42000810) for this lawn tractor. Mower drive belt routing, traction belt adjustment, deck pitch and deck removal fill the largest servicing chapter, and a full wiring diagram traces the seat switch, ignition switch, solenoid and fuse back to the battery. Troubleshooting tables let you work backward from a no-crank, a dead headlight or a slipping traction drive. Maintenance runs on daily, 25 hour and 100 hour schedules, with blade sharpening and balancing spelled out. Your tires run at 10 psi, the engine holds 3 pints of oil, and blade bolts pull to 30-40 lbs./ft. Guess at that blade torque and you are trusting a bolt that spins inches from your feet. Bookmarked and text-searchable, it rides on whatever screen you carry out to the barn.
What's Inside This Ford LT 8, 09GN2108 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 4-7 | Tractor Operation, Fuel Usage Safety, Mower Operation, Servicing, Maintenance, Storage |

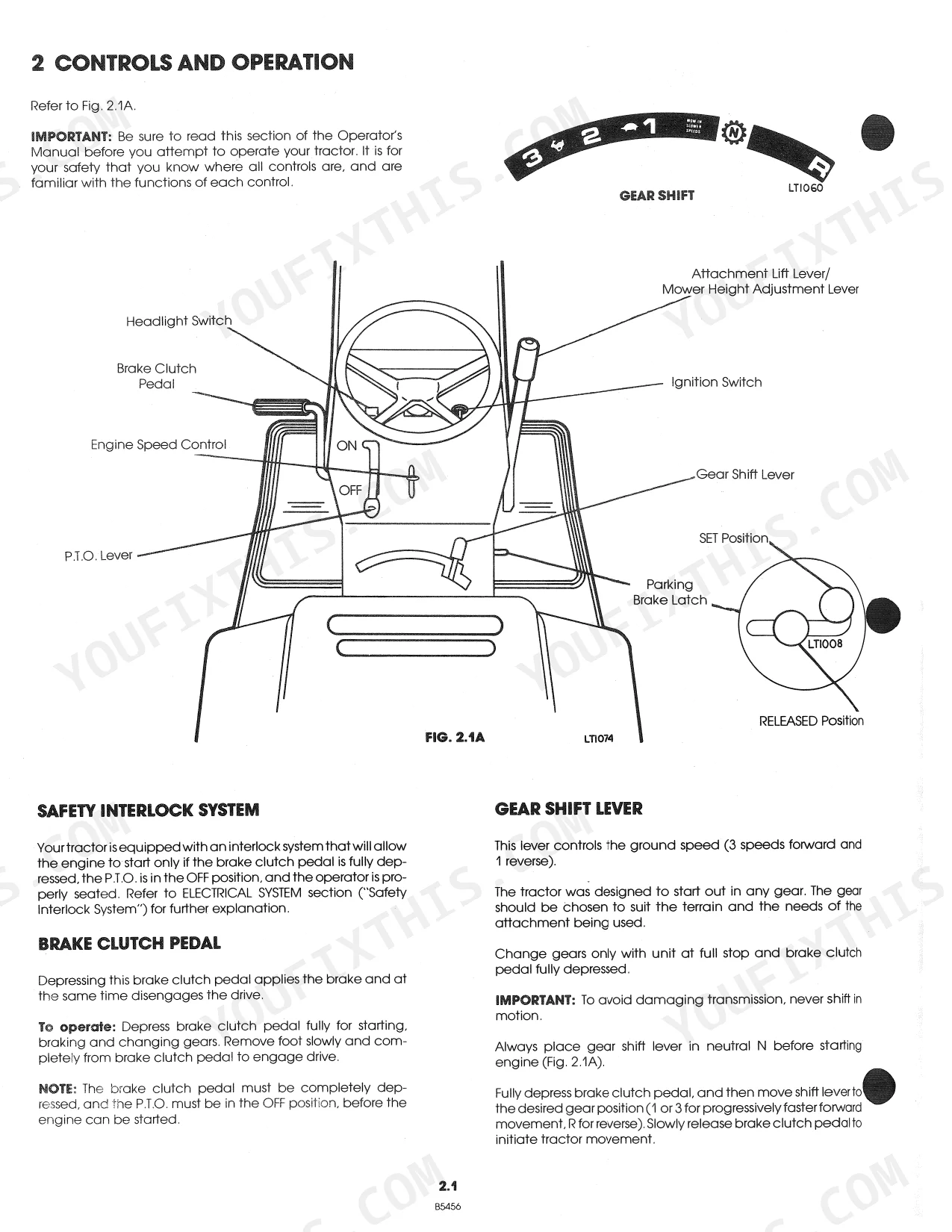

| Controls and Operation | 8-12 | Safety Interlock System, Brake Clutch Pedal, Gear Shift Lever, Attachment Lift Lever/Mower Height Adjustment Lever, P.T.O. Lever, Engine Speed Control, Parking Brake Latch |
| Trial Run | 13 | Before Starting, Starting, Stopping Engine |

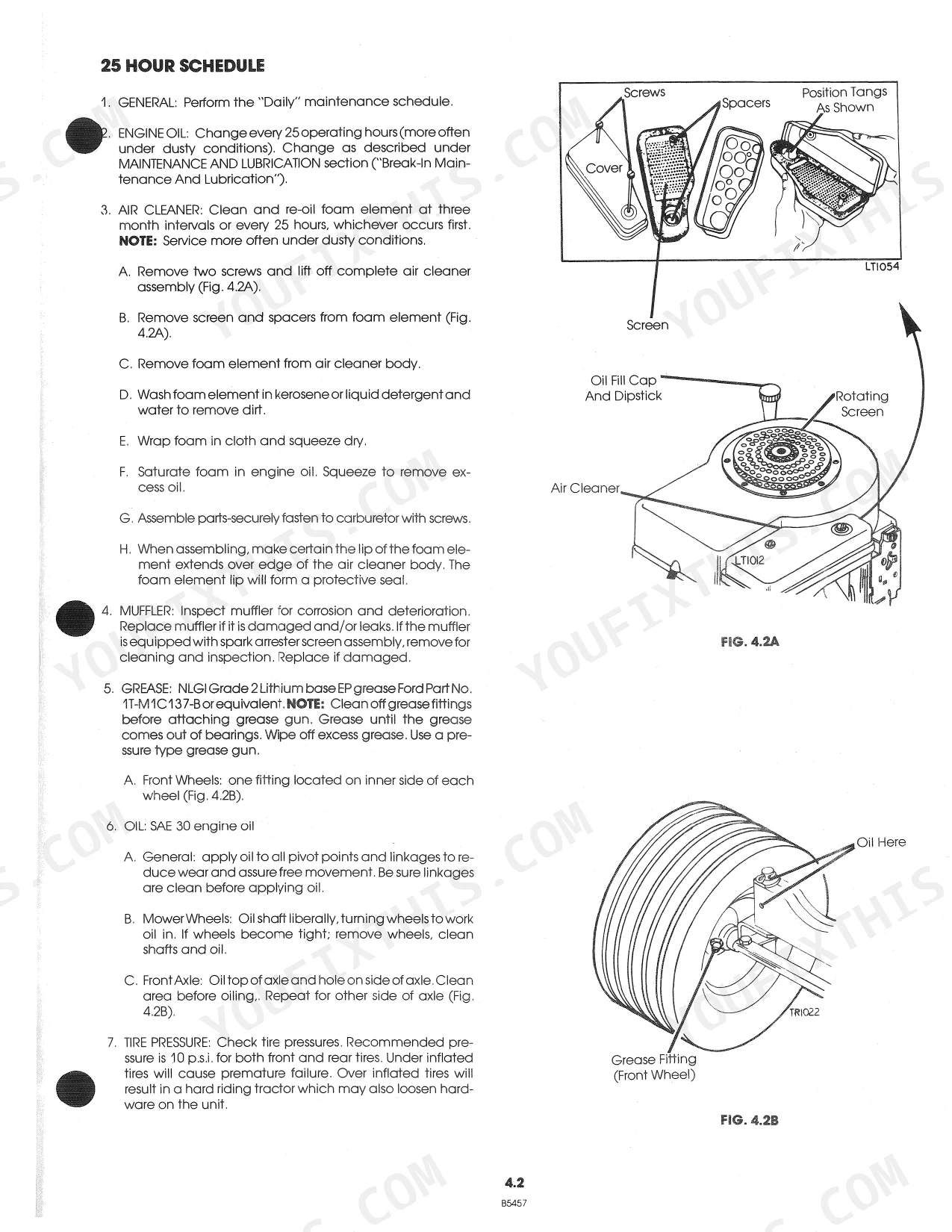

| Maintenance and Lubrication | 14-17 | Tune-Up Specifications, Break-In Maintenance and Lubrication, Daily Schedule, 25 Hour Schedule, 100 Hour Schedule, Blade Sharpening, Blade Balancing |
| Adjustment and Servicing | 18-26 | Traction Belt, Belt Diagram, Brake Clutch Pedal/Parking Brake, Brake Pad, Steering Gear, Mower Blade Brake, Mower Drive Belt, Mower Deck Pitch |
| Electrical System | 27 | |
| Storage | 28 | |

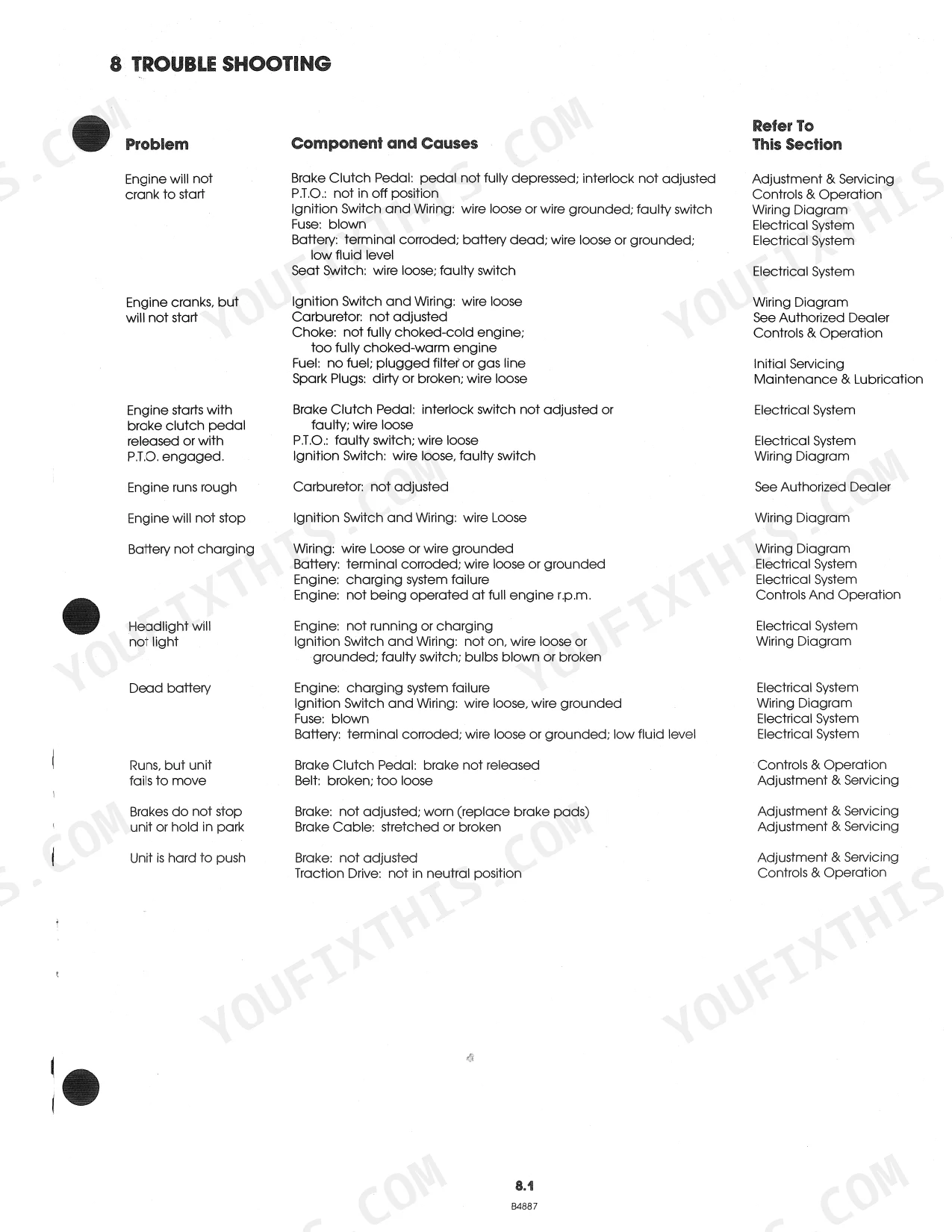

| Trouble Shooting | 29-30 | Engine Cranking, Engine Running, Battery Charging, Headlight Operation, Brake Performance, Traction Drive |
| Wiring Diagram | 31 | Solenoid |
| Replacement Decals | 32-33 | Safety, Standard |
| Set-Up and Assembly | 34-38 | Hardware Bag Contents, Battery, Steering Wheel, Seat, Initial Servicing |

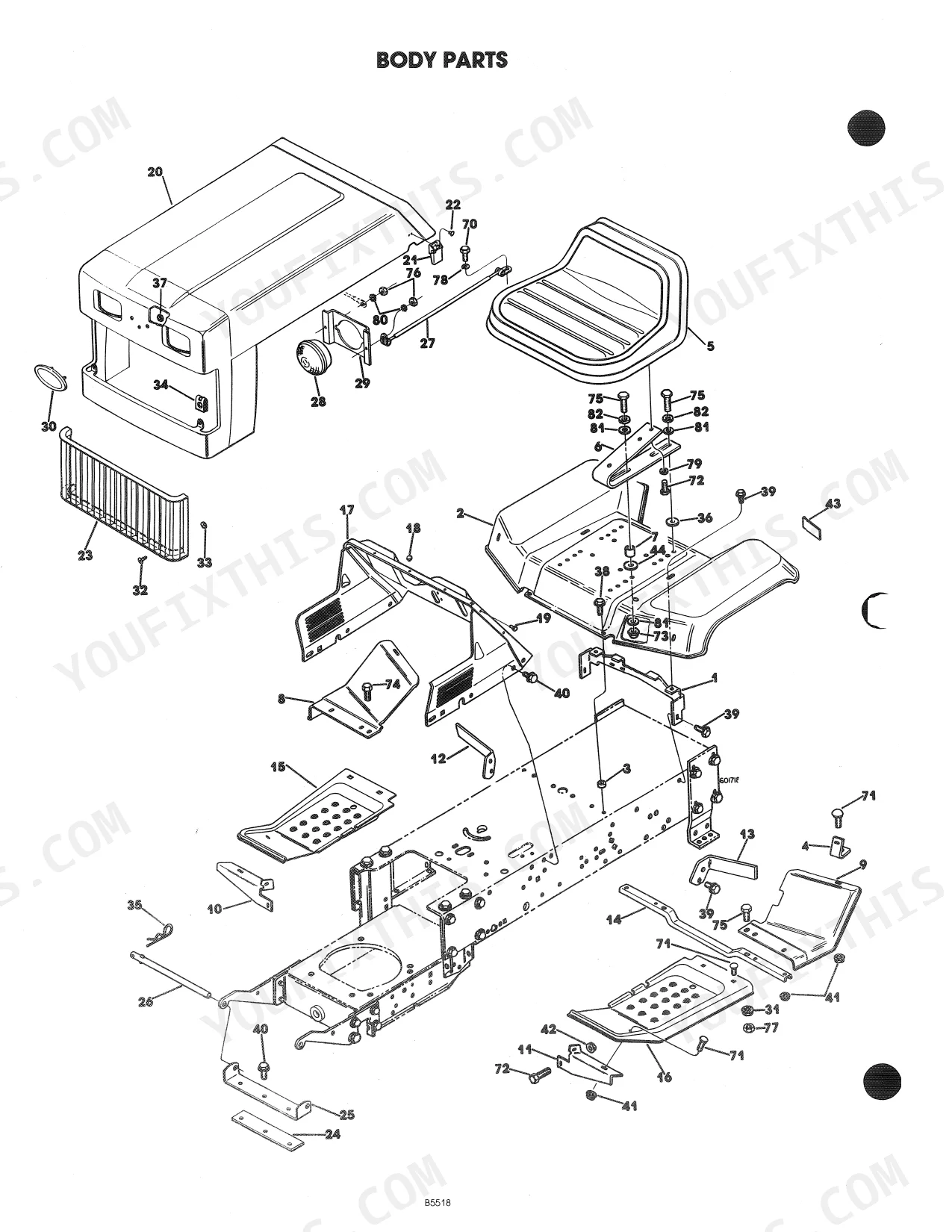

| Parts and Parts Lists | 39-56 | Lift Parts, Body Parts, Transmission and Drive Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Intake Valve Clearance | .005-.007 in | p. 14 |
| Exhaust Valve Clearance | .009-.011 in | p. 14 |
| Engine Oil Capacity | 3 pints | p. 14 |
| Tire Pressure | 10 psi | p. 15 |
| Mower Blade Torque | 30-40 lbs./ft. | p. 17 |
| Mower Clutch Spring Stretched Length | 4 3/8 in | p. 23 |

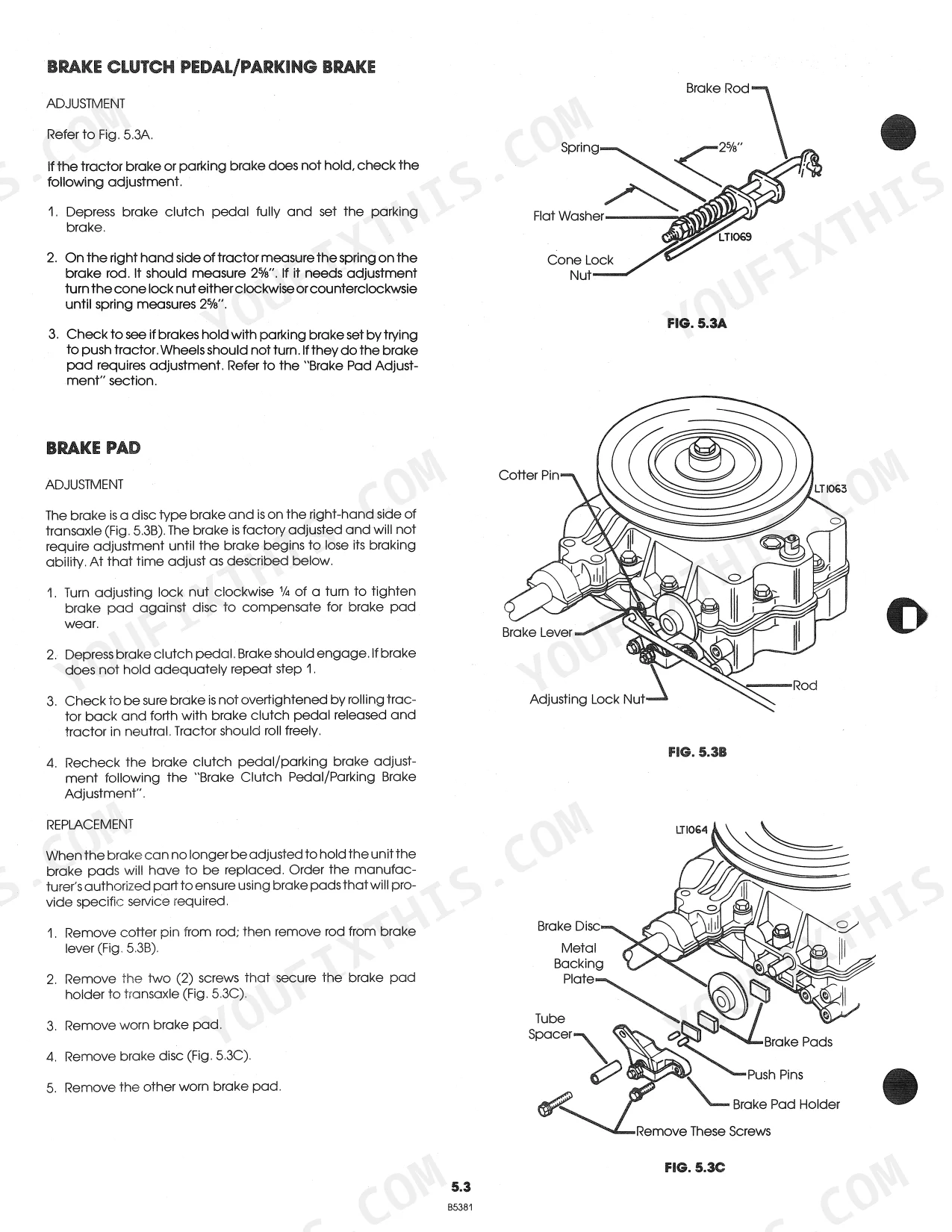

| Brake Rod Spring Length | 2 3/8 in | p. 20 |
| Mower Deck Pitch | 0-1/8 in | p. 25 |
Ford LT 8, 09GN2108 Common Problems This Manual Covers
Hard starting, rough idle, or surging after the tractor sat all winter
Drain the fuel tank and carburetor bowl following the storage instructions on page 28, then fill with fresh gasoline. Replace the spark plug and air filter per the 25 hour schedule beginning on page 14. Check the engine oil level and fill to the 3 pint capacity listed on the same page before cranking.
Manual Section: Storage p. 28Mower leaves streaks, stringers, or a stepped uneven cut across the lawn
Work through the mower deck troubleshooting chart on page 30 first. Set tire pressure to 10 psi all around, then level the deck so front-to-rear pitch falls between 0 and 1/8 inch as shown on page 25. Sharpen and balance the blades, and torque the blade cap screws to 30 to 40 lbs./ft.
Manual Section: Mower Deck Troubleshooting p. 30Mower blades stop turning or belt slips when PTO lever is engaged
Measure the mower clutch spring with the PTO lever engaged and the deck at its lowest cutting position: stretched length should be 4 3/8 inches per page 23. Adjust the clutch cable to reach that figure, then inspect the idler pulley and belt for glazing or missing chunks before remounting.
Manual Section: Mower Drive Belt Adjustment and Replacement p. 23Frequently Asked Questions
What are the spark plug replacement specs for a Ford LT 8, 09GN2108 lawn tractor?
The Ford LT 8 uses specific spark plugs depending on the type. For a short plug, use Champion CJ-8 or Autolite 235; for a long plug, use Champion J-8 or Autolite 295. The spark plug gap should be set to .030" (.76 mm). p. 14
How do you fix ford LT 8 engine keeps running after key switch is turned off?
Check the wiring diagram on page 31 and trace the ignition kill wire back to the switch terminal. Look for a loose spade connector or a corroded ground strap at the frame. Clean both ends to bright metal, reseat the connector, and confirm the engine dies within two seconds of key-off. p. 31
How do you fix engine dies when crossing bumps or when operator shifts weight in the seat?
Test the safety interlock system using the procedure on page 27. Sit on the seat, engage the parking brake, and wiggle the seat switch connector while the engine idles. Inspect the seat switch and PTO lever switch leads for chafed insulation, then check the fuse in the same section before replacing any switch. p. 27
How do you fix tractor will not move under load or drive belt jumps off the pulley?
Start with the traction belt tension check on page 18 and compare belt routing against the belt diagram there. Spin each idler pulley by hand and replace any that feel rough or gritty. Set both rear tires to 10 psi as listed on page 15, since a soft tire changes belt geometry and load. p. 18
Is this Ford LT 8 manual a download or a disc?
This is a 56-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Does this Ford LT 8 manual allow printing?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
Can I trace circuits with this Ford LT 8 manual?
Yes. You'll find an electrical wiring diagram covering the main wiring layout. You can see one on page 31.
