Rebuilding the Eaton hydrostatic transmission is the deepest work in this Ford LT 8 and LT 11 service manual PDF, a 100-page factory book (OEM ID 620-238) covering seven LT 8 and LT 11 lawn tractor model variants. A full wiring diagram traces each circuit from the ignition switch through the interlock system to the headlights, and the trouble-shooting charts run cranking, starting, traction drive, and steering wheel play complaints down one cause at a time. Adjustments and servicing take up the largest share of the book: engine removal, transaxle replacement, steering gear adjustment, brake pads, and drive belt routing. Change your engine oil every 25 operating hours and set the gap between belt finger and belt at 1/16 to 1/8 inch, straight from the factory tables. These tractors outlived their dealers. When yours acts up, there's nobody left to ask. Bookmarked and text-searchable, the PDF sits wherever your tractor does: barn, garage, or the back of the yard.
What's Inside This Ford LT 8, LT 11 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Safety | 5 | Personal Considerations |
| Lubrication and Maintenance | 6 | Engine, Front Wheels, Tie Bar, Spindles, Axle Pivot, Steering Gears |
| Adjustments and Servicing | 7-23 | Engine (Remove & Replace, Pulley Remove & Replace, Muffler Remove & Replace, Fuel Tank Remove & Replace) |
| Electrical System | 24-31 | System Functions, Battery, Solenoid Check, Ammeter Check, Ignition Switch, Interlock Switch System Check, Headlight Switch Check, Headlights |

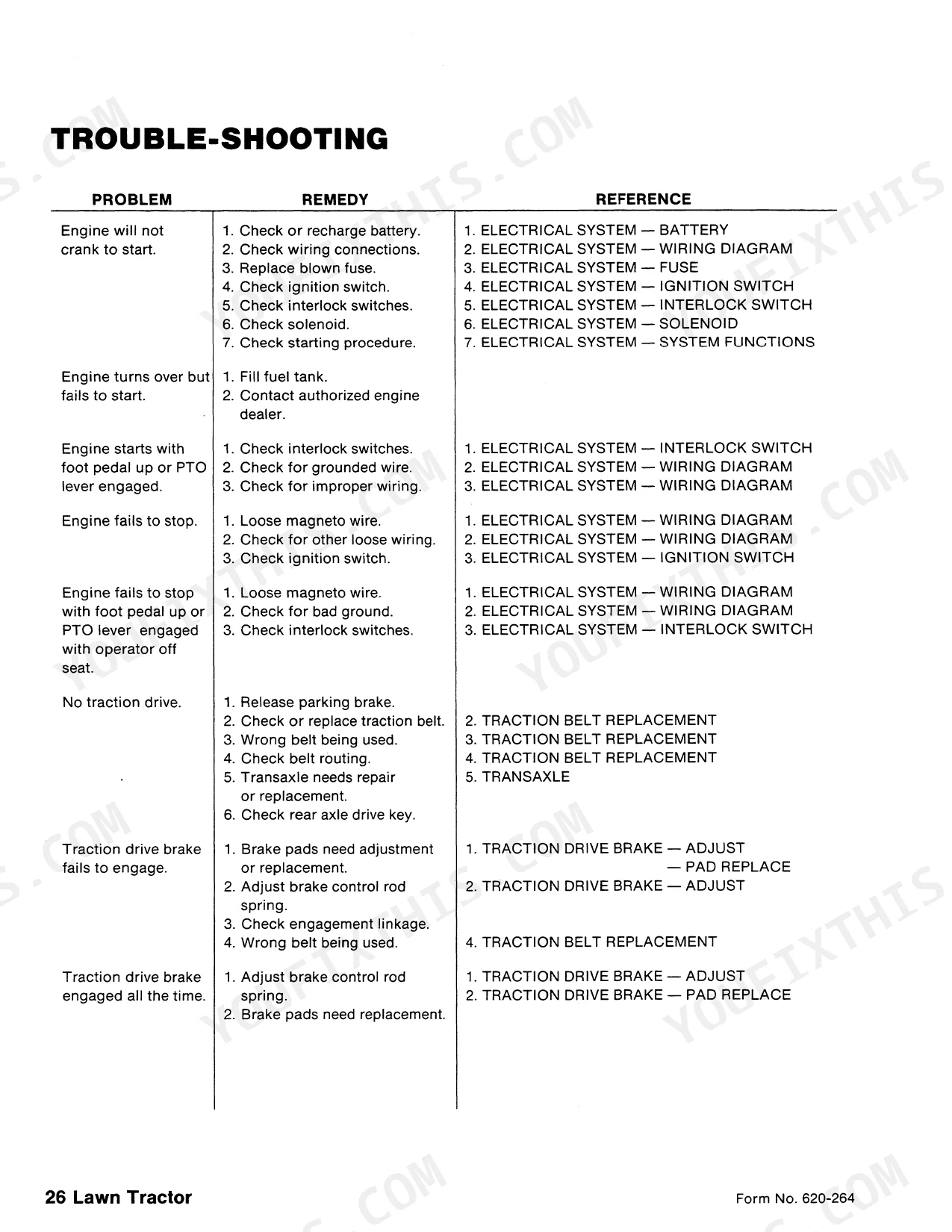

| Trouble-Shooting | 32 | Engine Cranking, Engine Starting, Engine Stopping, Traction Drive, Traction Drive Brake, Steering Wheel Play, Shift Lever Alignment |
| Bolt Torque Specifications | 33 | Standard Torque Specifications, Sae Grade 2, Sae Grade 5, Thread Forming Screws |
| Lt 11 H Hydro Drive Lawn Tractors (Models 09GN-2103/2105) | 34-58 | Engine Removal, Hydrostatic Transmission, Traction Drive Belts, Steering Gear Adjustment, Brake Pad Replacement |
| Lt 11 H Hydro Drive Lawn Tractors (Models 09GN-2106/2107) | 59-82 | Differential and Hydrostatic Transmission, Traction Drive Brake Cable, Clutch/Brake Pedal Shaft, Jackshaft Removal, Throttle Control Lever |
| Eaton Hydrostatic Transmissions (Model 6/7) Repair Information | 83-100 | Fluid Recommendations, Disassembly and Reassembly Procedures, Troubleshooting, Start-Up Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Gear select lever hex socket head capscrew torque | 5 to 7 ft. lbs. | p. 13 |
| Gap between belt finger and belt | 1/16 inch to 1/8 inch | p. 21 |
| Battery type | 12 volt wet cell | p. 26 |
| Maximum engine RPM (high speed, no load) | 3500-3700 RPM | p. 7 |
| Engine oil change interval | 25 operating hours | p. 6 |
| Grease lubrication interval | 25 operating hours | p. 6 |
| Engine pulley capscrew torque | 25-37 ft. lbs. | p. 9 |
| Brake pad holder thread forming screw torque | 85-110 in./lbs. | p. 12 |
| Hydrostatic transmission oil capacity | 22 ounces | p. 39 |
| Dump valve shaft torque | 2-3 ft. lbs. | p. 96 |
| Adapter/Reservoir torque | 8-12 ft. lbs. | p. 97 |
| Transmission hex head plug torque | 2-5 ft. lbs. | p. 97 |
Ford LT 8, LT 11 Common Problems This Manual Covers
Ford lawn tractor cranks but won't start after winter storage, fuel smell at carburetor
Drain the stale fuel and flush the tank and line before touching the carburetor. Remove the float bowl, clean varnish from the jets and needle seat, and install a new fuel filter and spark plug. Work through the engine chart on page 32, then set high speed no load between 3500 and 3700 RPM.
Manual Section: Engine Troubleshooting p. 32Engine hunts and surges at full throttle, bogs down and dies when blades engage
Replace the air filter first; a plugged element mimics a rich surge. Clean the main jet and idle passages, then check the governor linkage for binding and the throttle shaft for wear that lets in unmetered air. With the engine warm, verify high speed no load falls between 3500 and 3700 RPM, following the adjustment procedure on page 7.
Manual Section: Adjustments and Servicing p. 7Engine cuts out over bumps or on slopes, restarts after key cycle
Check the interlock switch system first; a worn seat or PTO switch opens over bumps and kills spark. Wiggle-test the harness connectors while cranking, and test the ignition switch using the electrical checks starting on page 24. Load-test the 12 volt wet cell battery and clean both cable ends before replacing parts.
Manual Section: Electrical System p. 24Tractor loses forward drive on inclines, traction belt squeals and slips under load
Check the engine pulley first; a loose capscrew lets the pulley walk and throw the belt, so torque it to 25-37 ft. lbs. per page 9. Then inspect the traction belt for glazing, spin the idler pulley to catch a seized bearing, and work through the traction drive chart on page 32.
Manual Section: Traction Drive Troubleshooting p. 32Blades slip or stop in tall grass, PTO belt squeals when engaged
Remove the deck belt and check the idler pulley bearing for roughness; replace it if it wobbles or grinds. Inspect the belt for glazing and cracked cogs. After installing the new belt, position the belt finger on the rear V-idler pulley for a 1/16 inch to 1/8 inch gap with the belt engaged, per page 21.
Manual Section: Adjustments and Servicing p. 21Hydrostatic drive jerky from a stop, loses power going uphill once warmed up
Check the reservoir fluid level cold before condemning the transmission; low oil causes jerky takeoff and heat fade. Verify the dump valve is fully closed. Refill the reservoir until fluid reappears at the plug, torque the hex head plug to 2-5 ft. lbs. per page 97, then follow the Eaton repair procedures starting on page 83.
Manual Section: Eaton Hydrostatic Transmissions (Model 6/7) Repair Information p. 83Frequently Asked Questions
What are the replacement specifications for the fuel filter on a Ford LT 8, LT 11 lawn tractor?

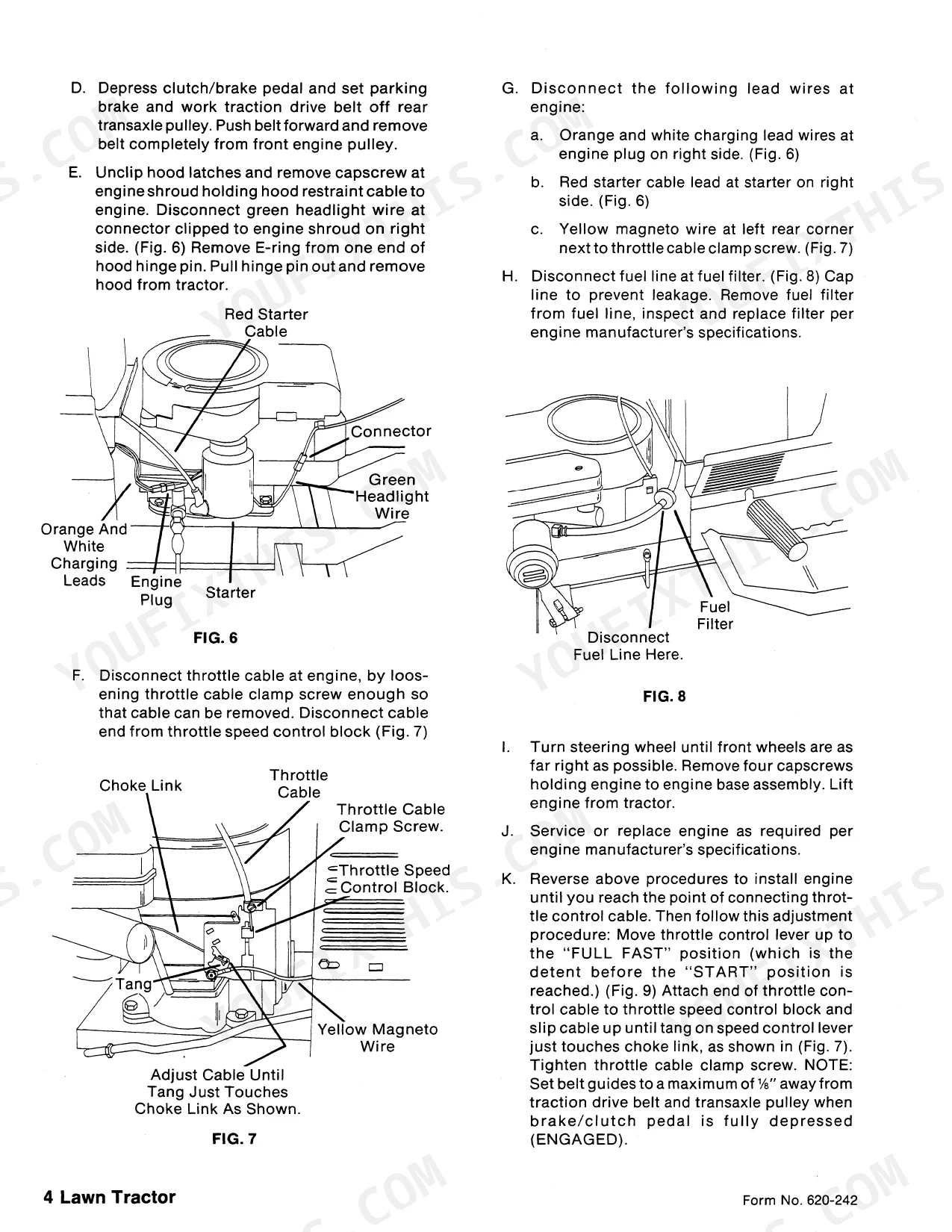

The fuel filter should be inspected and replaced according to the engine manufacturer's specifications. When replacing, ensure the fuel line is capped to prevent leakage. p. 8
What is the recommended torque for the engine pulley capscrew on a Ford LT 8, LT 11 lawn tractor?
The torque for the engine pulley capscrew should be between 25 and 37 ft. lbs. p. 9
What is the recommended tire pressure for the Ford LT 8, LT 11 lawn tractor?
The recommended tire pressure for both the front and rear tires is 10 p.s.i. p. 7
What is the maximum engine RPM range for the lawn tractor?
The maximum engine RPM high speed, no load, range is 3500 RPM to 3700 RPM. p. 7
How often should the engine oil be changed?
Engine oil should be changed every 25 operating hours, or more often if operating under dusty conditions. p. 6
Do I get instant access to this Ford LT 8 and LT 11 Service Manual?
You download the Service Manual yourself: 100 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Am I free to print this Ford LT 8 and LT 11 Service Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
