One book teaches the whole tractor: this Ford 4610 operator manual PDF, OEM 42001010, packs everything Ford wanted an owner to know about five utility tractors, 2310 through 4610, into 82 pages. Operation coverage fills roughly a third of the book: break-in, starting drill, shuttle and manual shift, PTO engagement, differential lock, plus setting the hydraulic lift, drawbar, and wheel tread for whatever implement you're hanging on the three-point hitch. Its lubrication and maintenance chart pins down every service interval, and the pre-delivery and 50-hour checks show you what the dealer should have done before handover. Set warm intake valve clearance at 0.014-0.016 in., and pull ROPS mounting bolts to 180-220 lbs. ft. straight off the specifications pages. A guessed torque works a ROPS loose over your head. Bookmarked and text-searchable, the PDF downloads in minutes and has the tractor working the field again before your weather window closes.
What's Inside This Ford 2310–4610 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 8 | The Tractor |

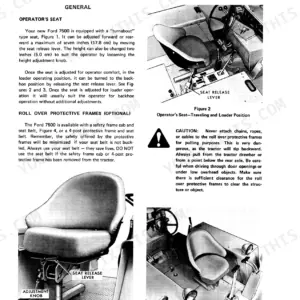

| Controls and Instruments | 9-16 | Seat, Light, And Engine Controls, Brake Controls, Transmission and PTO Control, Hydraulic Lift System Controls |

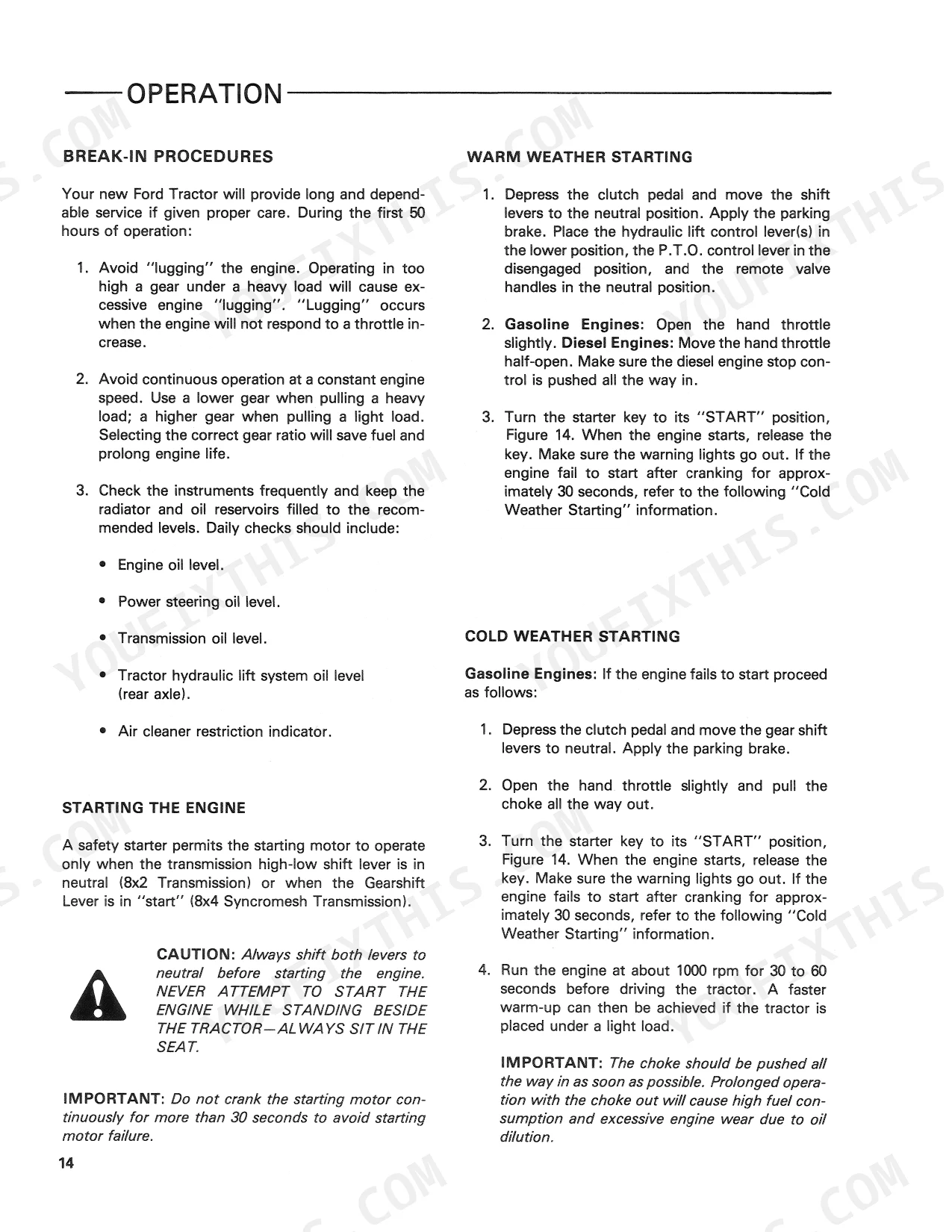

| Operation | 17-44 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating Manual Shift and Power Reversing Transmission and PTO, Towing the Tractor, Operating Differential Lock |

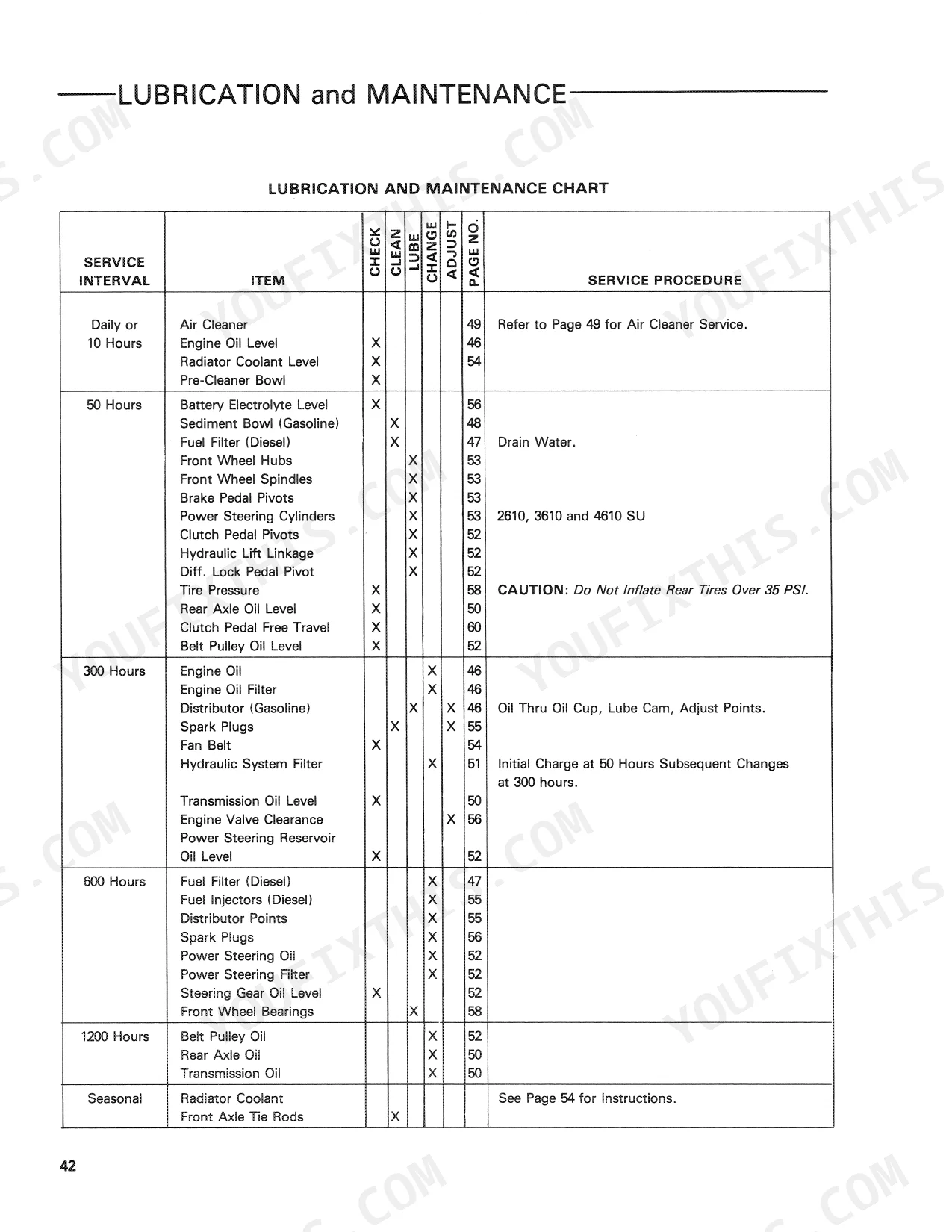

| Lubrication and Maintenance | 45-66 | Lubrication and Maintenance Chart, Fuels and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage |
| Specifications | 67-73 | Capacities, Engine, Cooling System |
| Decals | 74 | Draw Bar Warning Decal, PTO Warning Decal, Operating Instruction Decal, Jump Start Warning Decal, Fan and Belt Warning Decal |
| Pre-Delivery and 50-Hour Service | 75-82 | Inoperative Service Checks, Operative Service Checks, Performance Service Checks, Engine Oil and Filter, Hydraulic Inlet Filter, Fuel Filter, Brake and Clutch Linkage |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine displacement | 158 cu. in. (2539 cc) | p. 69 |
| Engine stroke | 3.8 in. (106.7 mm) | p. 69 |
| ROPS mounting bolts torque | 180-220 lbs. ft. (244-248 nm) | p. 57 |
| Injection pump mounting bolts torque | 15-20 ft. lbs. | p. 55 |
| Intake Valve Clearance (Warm) | 0.014-0.016 in. | p. 69 |
| Exhaust Valve Clearance (Warm) | 0.017-0.019 in. | p. 69 |
| Radiator Cap Pressure | 7 psi | p. 70 |
| Clutch Pedal Free Travel | 1-1/4 inches | p. 70 |
| ROPS Mounting Bolt Torque | 180-220 lbs. ft. | p. 57 |
| Rear Wheel Nut Torque | 220-300 lbs. ft. | p. 36 |
Ford 2310–4610 Common Problems This Manual Covers
Ford 4610 won't start, cranks slowly, dash lights flicker or go dead turning the key
Check every battery cable and ground strap before blaming the ignition switch; remove, clean, and retighten each connection, including the engine-to-frame ground. Follow the cold weather starting procedure on page 18 if it drags over slowly on frosty mornings. Make terminal cleaning part of every 50-hour service, and keep the maintenance schedule on page 46 handy.
Manual Section: Engine Starting (Cold Weather) p. 18Hydraulic lift won't raise or lifts slowly right after an oil and filter change
Verify the fluid type first; the wrong oil after a service is the usual cause on these tractors. Check the level with the lift lowered, then pull the hydraulic inlet filter and confirm it seated squarely, the 50-hour service section on page 75 shows the filter. Cycle the lift several times to work the air out.
Manual Section: Pre-Delivery and 50-Hour Service p. 75Engine runs hot and coolant pushes out of the radiator when mowing under load
Test the radiator cap; it must hold 7 psi, and that spec sits on page 70. Check coolant level when the engine is cold, then clear chaff and dust from the radiator screen and fins, blowing from the engine side out. Check fan belt tension before the next cutting; a slipping belt runs hot under load.
Manual Section: Cooling System Maintenance p. 70Clutch slips under heavy load or gears grind when shifting between ranges
Measure free travel at the clutch pedal; the spec is 1-1/4 inches, listed on page 70. Adjust the linkage if you are outside that: too little free play slips the clutch under load, too much grinds gears. Recheck the brake and clutch linkage at the 50-hour service covered on page 75.
Manual Section: Specifications p. 70Rear wheel wobbles and wheel nuts keep working loose after changing tread width
Retorque rear wheel nuts every time you move the tread settings. On 2610 and 3610 models, pull them to 220-300 lbs. ft., the figure printed on page 36, then check them again after the first hour of loaded work. Keep a bar in the toolbox during planting; a loose wheel wallows out its center fast.
Manual Section: Operation p. 36Frequently Asked Questions
What are the torque specifications for the rear wheel rim-to-disc clamp bolts on a Ford 2610 or 3610 tractor?
After changing the rear wheel tread settings on the 2610 and 3610, the wheel nuts should be torqued to 220-300 lbs. ft. (30.4-41.5 kgm). p. 36
What is the correct valve clearance for the intake and exhaust valves on Ford 2610, 3610, 4110, 4610, 2310 tractors?
The intake valve clearance should be 0.014 to 0.016 inches (0.35-0.41 mm) and the exhaust valve clearance should be 0.017 to 0.019 inches (0.43-0.48 mm). p. 60
What is the engine oil capacity for a Ford 2610 tractor with a filter change?
The engine crankcase capacity for a Ford 2610 with a filter change is 7 U.S. quarts (5.8 Imp. qts.) (6.6 liters). p. 68
How often should the transmission oil be changed on these tractors?
The transmission oil should be changed every 1200 hours of operation. p. 54
What is the correct spark plug gap for Ford 2610, 3610, 4110, 4610, 2310 gasoline engine models?
The spark plug gap should be set to 0.023-0.027 inches (0.58-0.69 mm). p. 70
Is this Ford 2310 Operator Manual a digital download?
All 82 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print just the pages I need from this Ford 2310 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
