Controls, operation, lubrication, and specifications: this 84-page Ford 7500 operator manual PDF (OEM ID 42750010) walks each of those systems end to end for Ford's tractor-loader-backhoe. Break-in procedures, cold starting, weighting limitations, and full loader and backhoe operating instructions fill the middle of the book, while lubrication and maintenance takes up nearly a quarter of it, anchored by a service chart that pairs every grease point and fluid change with its interval. The specifications section closes things out with the pre-delivery and 50-hour service checklist. Fill the engine with 8.5 liters of oil and the transmission with 26.4, then pull the rear wheel lug nuts to 650-700 lbs. ft., all straight from the factory tables. Out there it's just you and the machine. Download it, follow the bookmarks or search the live text layer for the spec you need, and get the 7500 running again.
What's Inside This Ford 7500 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 6 | Pivot Pins, Hydraulic Cylinders, Hoses, Safety Starter Switch, Hand Brake, Power Steering System |
| Controls and Instruments | 7-18 | General, Brake and Rear Axle Controls, Transmission Controls, Loader Controls, Backhoe Controls |

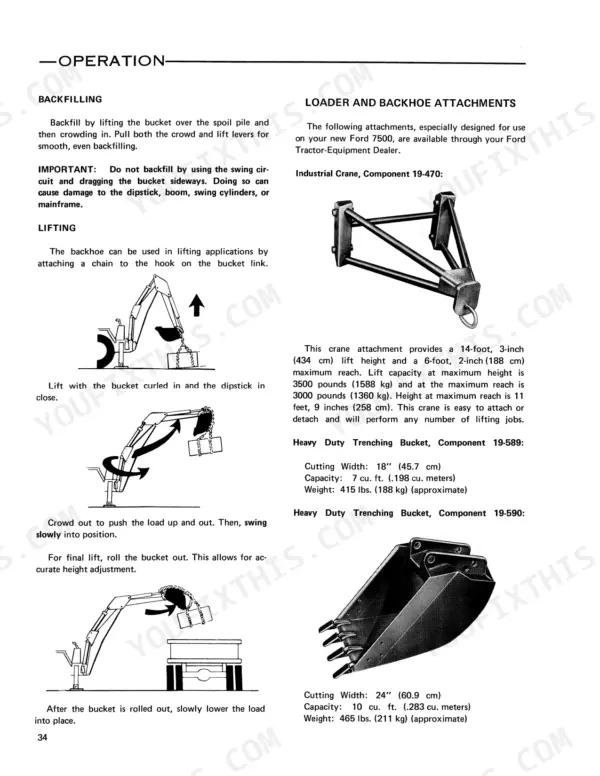

| Operation | 19-42 | Break-In Procedures, Starting the Engine, Weighting Limitations, Loader Operation, Backhoe Operation, Loader and Backhoe Attachments |

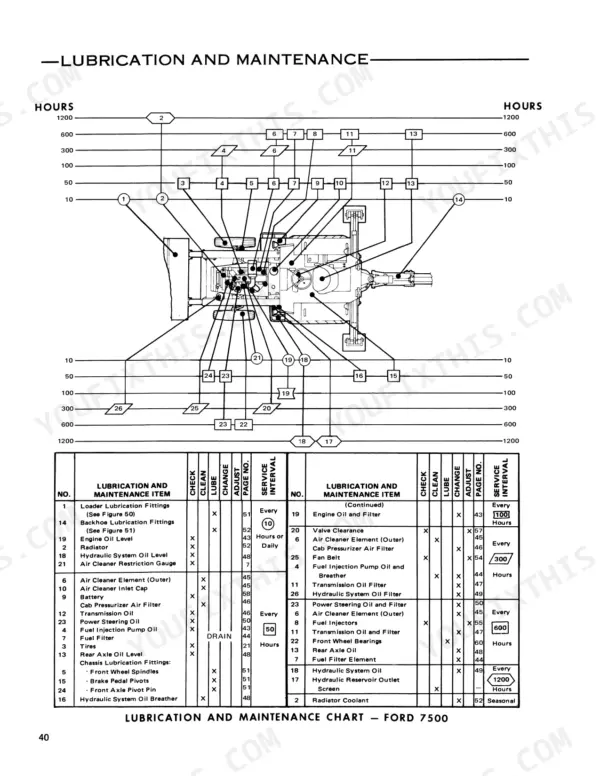

| Lubrication and Maintenance | 43-68 | Lubrication and Maintenance Chart, Fuels and Lubricants, Fuel and Lubricant Service Procedures, Hydraulic Hoses and Tubing, Storing the Ford 7500 |
| Specifications | 69-84 | Pre-Delivery and 50-Hour Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injector line fitting torque | 18-22 lbs. ft. | p. 49 |
| Rear wheel lug nuts | 650-700 lbs. ft. (89.7-96.6 kgm) | p. 64 |
| Engine Oil Capacity | 8.5 Liters | p. 71 |
| Transmission Oil Capacity | 26.4 Liters | p. 71 |
| Rear Axle Oil Capacity | 34.9 Liters | p. 71 |
| Hydraulic System Oil Capacity | 162.5 Liters | p. 71 |
| Fuel Tank Capacity | 94 Liters | p. 71 |
| Cooling System Capacity | 19.3 Liters | p. 71 |
| Rear Wheel Lug Nut Torque | 650-700 lbs. ft. | p. 64 |
| Front Wheel Bearing Nut Torque | 100-150 lbs. ft. | p. 65 |
| Front Wheel Nut Torque | 120-140 lbs. ft. | p. 65 |
| Engine Valve Clearance (Intake) | 0.356 mm | p. 62 |
Ford 7500 Common Problems This Manual Covers
Ford 7500 loses all hydraulic power after replacing a blown stabilizer hose, loader and backhoe dead
Check the hydraulic oil level first; a blown hose can drain the reservoir fast. Refill with clean fluid, remembering the system holds 162.5 liters total per the capacities on page 71. Start the engine at low idle and cycle the loader and backhoe slowly through full travel to purge trapped air before working.
Manual Section: Lubrication and Maintenance p. 71Engine hard to start and runs rough after a fuel filter change or running the tank dry
Bleed the fuel system before chasing anything else. Crank the engine until air-free fuel flows from each injector line connection, then tighten the fittings to 18-22 lbs. ft. as shown on page 45. Confirm the 94 liter tank actually has fuel and drain any water from the filters.
Manual Section: Fuel System Maintenance p. 45Engine cranks slowly and will not fire on cold mornings even with a full battery charge
Check the cold weather starting procedure on page 20 and use the coolant heater if the machine has one. Clean corroded battery connections and confirm the crankcase is filled with 8.5 liters of the correct cold weather oil grade. Never spray ether while a coolant heater or glow aid is active.
Manual Section: Engine Starting (Warm/Cold) p. 20Backhoe boom drifts down as soon as the control lever is released
Check hydraulic oil level with the machine on level ground and all cylinders retracted; low oil in the 162.5 liter system lets circuits aerate and drift. Inspect hoses and fittings around the boom cylinder for wet spots per the precautions on page 2. If drift continues, have your dealer test the valve and cylinder seals.
Manual Section: Safety Precautions p. 2Rear wheel wobble or clicking noise from the hub after transport or heavy loader work
Stop and check the lug nuts immediately; a loose rear wheel will destroy the studs fast. Torque rear wheel lug nuts to 650-700 lbs. ft. as specified on page 64, working in a cross pattern. Recheck the torque after the first few hours of work and at the intervals in the maintenance schedule on page 44.
Manual Section: Lubrication and Maintenance p. 64Frequently Asked Questions
What are the torque specifications for the transmission oil filter on a Ford 7500 tractor loader backhoe?
The transmission oil filter assembly should be tightened to 20-25 lbs. ft. (.277-.346 kgm) when installing it into the filter adaptor. p. 51
What is the correct valve clearance for the engine on a Ford 7500 tractor loader backhoe?
The intake valve clearance should be 0.014 in. (0.356 mm) go to 0.016 in. (0.406 mm) no-go. The exhaust valve clearance should be 0.017 in. (0.432 mm) go to 0.019 in. (0.483 mm) no-go. p. 62
What is the hydraulic system capacity on a Ford 7500 tractor loader backhoe?
The hydraulic system has a capacity of 43 U.S. gallons (35.8 Imp. gals.) (162.5 Liters). p. 71
What is the correct fan belt tension for the Ford 7500?
A correctly tightened existing belt will deflect 3/4 inch (19.05 mm) and a correctly installed new belt will deflect 1/2 inch (12.70 mm) when 25 pounds (11.34 kg) of thumb pressure is applied midway between the pulleys. p. 58
What is the required torque for the rear wheel lug nuts on a Ford 7500 tractor loader backhoe?
If the rear wheel lug nuts become loose, they should be retightened to 650-700 lbs. ft. (89.7-96.6 kgm). p. 64
Is this Ford 7500 manual a PDF I download?
You get a 84-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Ford 7500 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
